pyflwdir 0.5.3

Fast methods to work with hydro- and topography data in pure Python.

PyFlwDir

Intro

PyFlwDir contains a series of methods to work with gridded DEM and flow direction datasets, which are key to many workflows in many earth siences. Pyflwdir supports several flow direction data conventions and can easily be extended to include more. The package contains some unique methods such as Iterative Hydrography Upscaling (IHU) method to upscale flow directions from high resolution data to coarser model resolution.

Pyflwdir is in pure python and powered by numba to keep it fast.

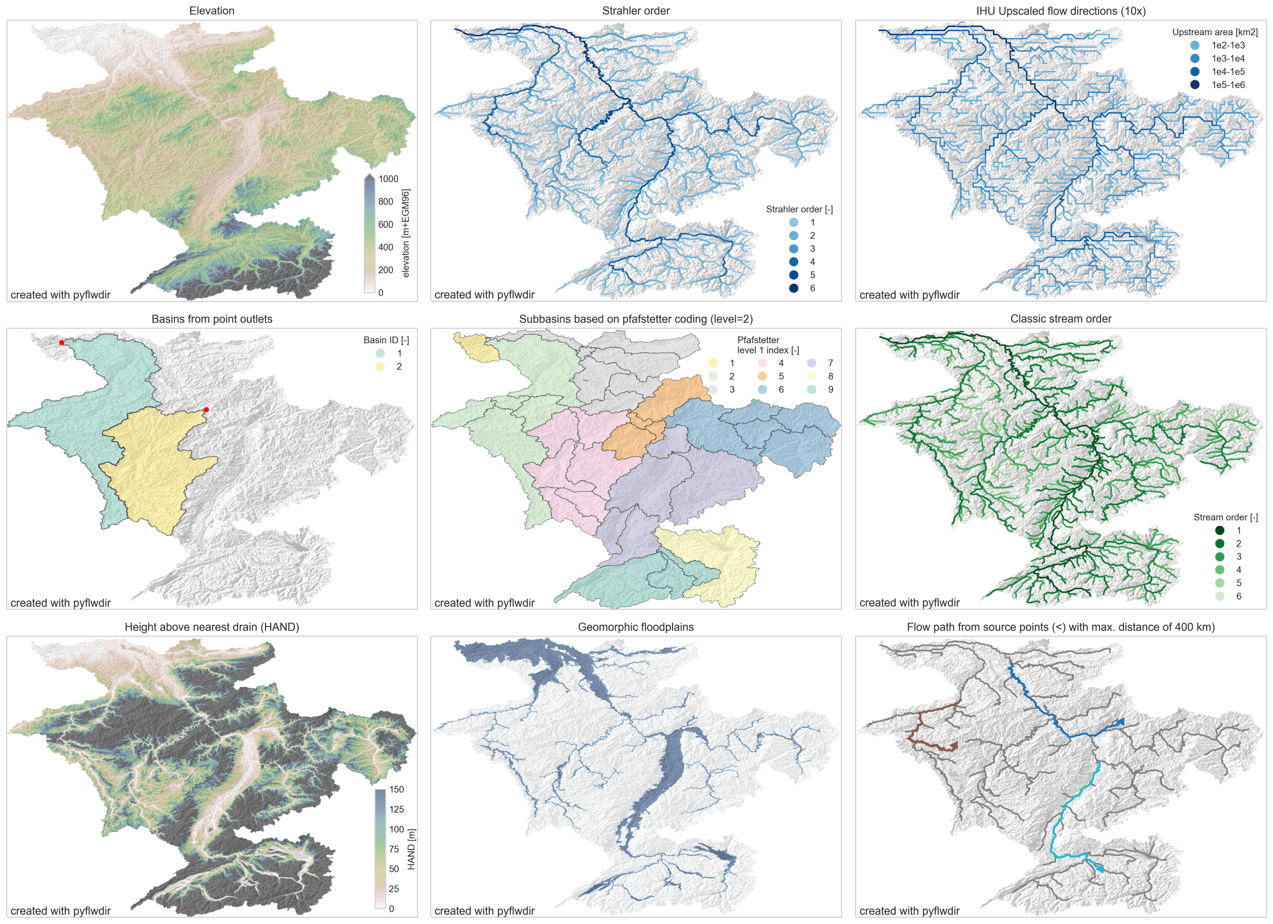

Featured methods

• flow directions from elevation data using a steepest gradient algorithm

• strahler stream order

• flow direction upscaling

• (sub)basin delineation

• pfafstetter subbasins delineation

• classic stream order

• height above nearest drainage (HAND)

• geomorphic floodplain delineation

• up- and downstream tracing and arithmetics

• hydrologically adjusting elevation

• upstream accumulation

• vectorizing streams

• many more!

Installation

We recommend installing PyFlwdir using conda or pip.

Install the package from conda using:

$ conda install pyflwdir -c conda-forge

Install the package from pip using:

$ pip install pyflwdir

In order to run the examples in the notebook folder some aditional packages to read and write raster and vector data, as well as to plot these data are required. A complete environment can be installed from the environment.yml file using:

$ conda env create -f environment.yml
$ pip install pyflwdir

Quickstart

The most common workflow to derive flow direction from digital elevation data and subsequent delineate basins or vectorize a stream network can be done in just a few lines of code.

To read elevation data from a geotiff raster file elevation.tif do:

import rasterio
with rasterio.open("elevation.tif", "r") as src:
    elevtn = src.read(1)
    nodata = src.nodata
    transform = src.transform
    crs = src.crs

Derive a FlwdirRaster object from this data:

import pyflwdir
flw = pyflwdir.from_dem(
    data=elevtn,
    nodata=src.nodata,
    transform=transform,
    latlon=crs.is_geographic,
)

Delineate basins and retrieve a raster with unique IDs per basin: Tip: This raster can directly be written to geotiff and/or vectorized to save as vector file with rasterio

basins = flw.basins()

Vectorize the stream network and save to a geojson file:

import geopandas as gpd
feat = flw.streams()
gdf = gpd.GeoDataFrame.from_features(feats, crs=crs)
gdf.to_file('streams.geojson', driver='GeoJSON')

Documentation

See docs for a many examples and a full reference API.

Development and Testing

Welcome to the pyflwdir project. All contributions, bug reports, bug fixes, documentation improvements, enhancements, and ideas are welcome. See CONTRIBUTING.rst for how we work.

Changes

See CHANGELOG.rst

Authors

See AUTHORS.txt

License

This is free software: you can redistribute it and/or modify it under the terms of the MIT License. A copy of this license is provided in LICENSE
