pygesture 1.0.4

Pre-built OpenCV-Python/Mediapipe modules that easy to use and understand.

pygesture

Pre-built OpenCV-Python/Mediapipe modules that easy to use and understand.
For now it only had Hand Track. More features will be add in future.

Table of Contents

• Installation
• Hand Track

Installation

pip install pygesture

• First time use might won't work, so try it again.
• Because it need to generate it own __pycache___.

Hand Track

• Hand tracking technology with the help of Mediapipe.
• This also detect if it Left or Right Hand.
• I know there a lot of stuff down there but trust me.
• Just read it one by one it easy to understand.

from pygesture import handtrack
import cv2

# [int] maxHand: The maximum amount hand that allowed to be track.
# [bool] drawLandmark: Draw on landmark and connect them together.
# You can also put nothing in there it will also work.
# Ex: handtrack.handDetector()
# There are more options available, you can check the source code if want to learn more.
ht = handtrack.handDetector(maxHand=2, drawLandmark=True)
cap = cv2.VideoCapture(0)

# This is a config for camera resolution.
# But the quality still limit by your camera.
cap.set(cv2.CAP_PROP_FRAME_WIDTH, 1920)
cap.set(cv2.CAP_PROP_FRAME_HEIGHT, 1080)

while True:
    success, img = cap.read()

    # The value will return everything you need.
    # img: is the image result.
    # hand: is the value of left or right hand and value of each landmarks on each hand.
    img, hand = ht.findHands(img)

    # Print it out to see what going on.
    # This will return None if no hand detect. Make sure to add a check condition.
    print(hand)

    # "Hand Track" you can name it whatever you want. But other options may required.
    cv2.namedWindow("Hand Track", cv2.WND_PROP_FULLSCREEN)

    # [Optional] You can use this if you want full screen.
    cv2.setWindowProperty("Hand Track",cv2.WND_PROP_FULLSCREEN,cv2.WINDOW_FULLSCREEN)

    # Display output image.
    cv2.imshow("Hand Track", img)

    # Wait in milliseconds before capture next frame.
    cv2.waitKey(1)

• You can also try the pre-built test

from pygesture import handtrack_test

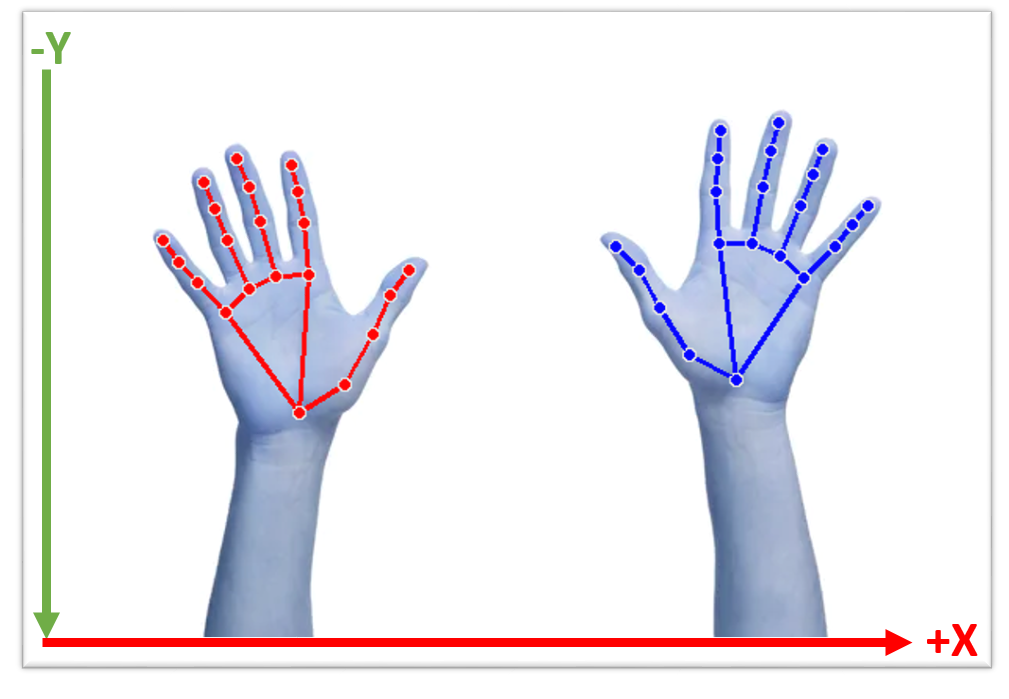

Hand Vector

Landmarks Coordinate

• Even though there no landmarks number specify.

'lms': [
        x: 0.2995750904083252
        y: 0.7221927642822266
        z: -4.386473335671326e-07,

        x: 1.2995750904083252
        y: 4.7221927642822266
        z: -4.626473335671326e-07,

        .....
    ]

• Each index inside a list is the landmark it self. Start from [0,1,2,...]
