pyopenlayersqt

OpenLayers + Qt (QWebEngine) mapping widget for Python.

A high-performance, feature-rich mapping widget that embeds OpenLayers in a Qt application using QWebEngine. Designed for displaying and interacting with large volumes of geospatial data.

Table of Contents

• Features
• Installation
  • Requirements
• Quick Start
• Core Components
  • OLMapWidget
  • Layer Types
    • VectorLayer
    • FastPointsLayer
    • FastGeoPointsLayer
    • WMSLayer
    • RasterLayer
  • Style Classes
  • Feature Selection
  • Selection and Recoloring
  • Deleting Features
  • Distance Measurement Mode
  • FeatureTableWidget
  • RangeSliderWidget
• Complete Example
• View Extent Tracking
• Advanced: Direct JavaScript Communication
• Performance Tips
• Architecture
• License
• Contributing
• Credits

Features

• 🗺️ Interactive Map Widget: Fully-featured OpenLayers map embedded in PySide6/Qt
• ⚡ High-Performance Rendering: Fast points layers with spatial indexing for millions of points
• 🎨 Rich Styling: Customizable styles for points, polygons, circles, and ellipses
• 🎨 QColor Support: Use QColor objects or color names directly in styles - no .name() needed
• 📍 Geolocation Support: Fast geo-points layer with uncertainty ellipses
• 🌐 WMS Integration: Built-in Web Map Service layer support
• 🖼️ Raster Overlays: PNG/ overlay support with custom bounds
• ✅ Feature Selection: Interactive feature selection with Python ↔ JavaScript sync
• 🎯 Smart Z-Ordering: Selected points and ellipses automatically appear on top
• 📊 Feature Table Widget: High-performance table widget for displaying and managing features
• 🔄 Bidirectional Sync: Seamless selection synchronization between map and table
• 📏 Distance Measurement: Interactive measurement mode with geodesic distance calculations and great-circle path visualization
• 🎚️ Range Slider Widget: Dual-handle range slider for filtering features by numeric or timestamp ranges

Installation

pip install pyopenlayersqt

Requirements

• Python >= 3.8
• PySide6 >= 6.5
• numpy >= 1.23
• pillow >= 10.0
• matplotlib >= 3.7

Quick Start

from PySide6 import QtWidgets
from PySide6.QtGui import QColor
from pyopenlayersqt import OLMapWidget, PointStyle
import sys

app = QtWidgets.QApplication(sys.argv)

# Create the map widget with custom initial view
map_widget = OLMapWidget(center=(37.0, -120.0), zoom=6)

# Add a vector layer
vector_layer = map_widget.add_vector_layer("my_layer", selectable=True)

# Add some points with QColor styling
coords = [(37.7749, -122.4194), (34.0522, -118.2437)]  # SF, LA
vector_layer.add_points(
    coords,
    ids=["sf", "la"],
    style=PointStyle(radius=8.0, fill_color=QColor("red"))
)

# Show the map
map_widget.show()
sys.exit(app.exec())

See the examples directory for more working examples:

• 01_basic_map_with_markers.py - Basic map with QColor markers (start here!)
• 02_layer_types_and_styling.py - All geometry types with QColor
• 03_fast_points_performance.py - High-performance rendering (10,000+ points)
• 04_wms_and_base_layers.py - WMS integration and opacity control
• 05_raster_overlay.py - Raster/heatmap visualization with in-memory PNG bytes
• 06_geo_uncertainty_ellipses.py - Geolocation uncertainty with ellipses
• 07_feature_selection.py - Interactive selection across layers
• 08_table_integration.py - Bidirectional map-table sync (CORE)
• 09_selection_and_recoloring.py - Interactive recoloring (CORE)

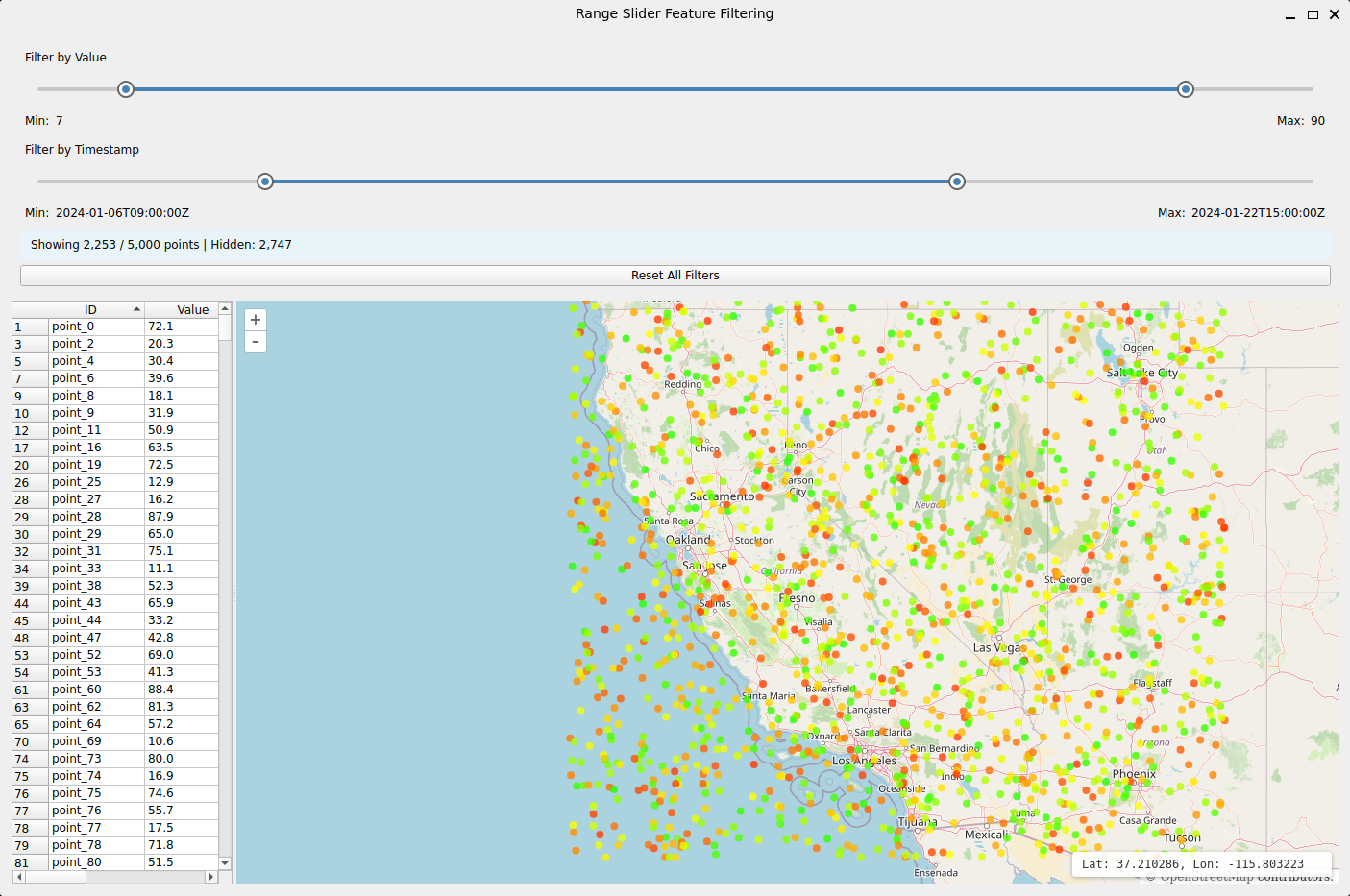

• 10_range_slider_filtering.py - Range slider filtering

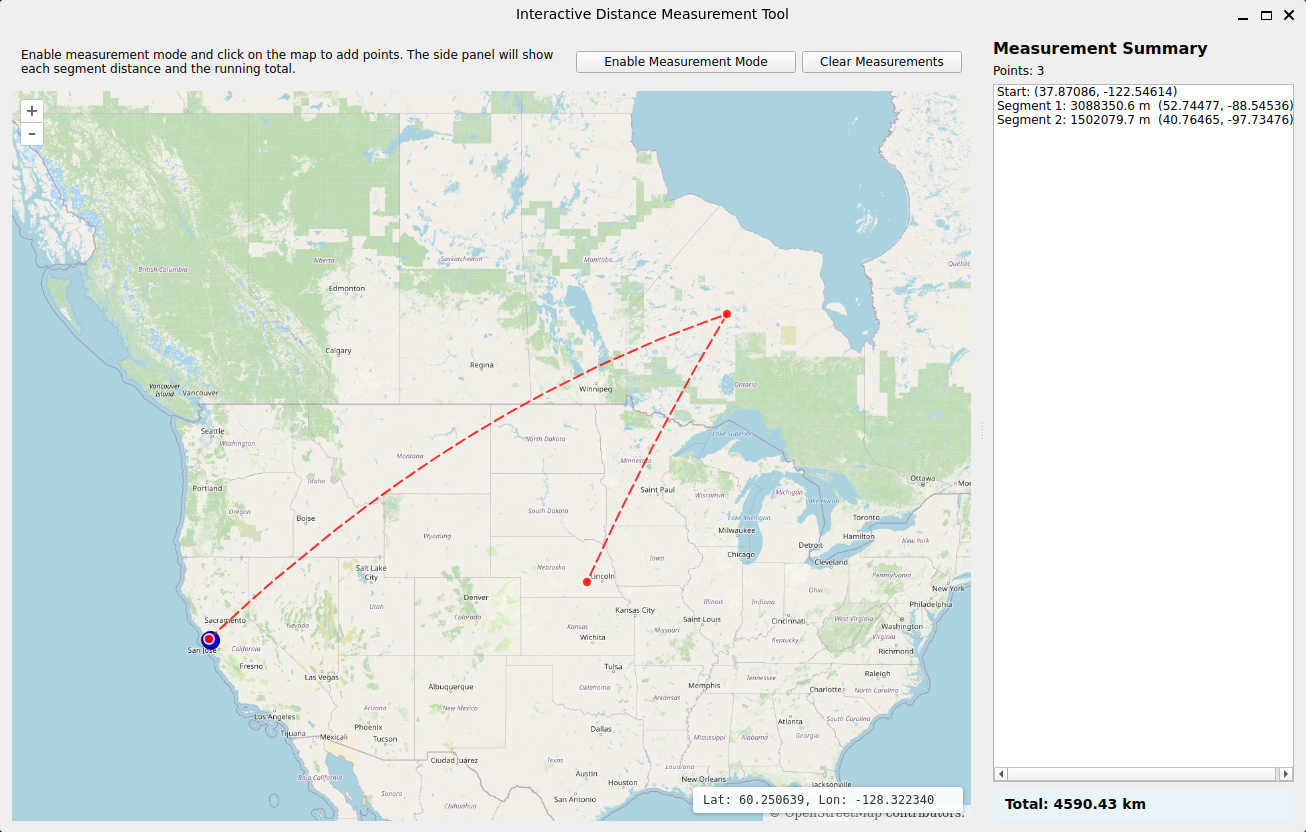

• 11_measurement_tool.py - Distance measurement tool
• 12_coordinate_display.py - Coordinate display toggle
• 13_dual_table_linking.py - Two-table parent/child map-table selection workflow
• 14_delayed_render_interrupt.py - Debounced, interruptible process-based heatmap rendering
• 15_load_data_and_zoom.py - Load features, then click a button to auto-zoom to loaded data

Core Components

OLMapWidget

The main widget class that embeds an OpenLayers map.

from pyopenlayersqt import OLMapWidget

# Create with default world view (center at 0,0, zoom level 2)
map_widget = OLMapWidget()

# Or create with custom initial view
map_widget = OLMapWidget(center=(37.0, -120.0), zoom=6)

# Programmatically adjust view later (no mouse interaction needed)
map_widget.set_center((34.0522, -118.2437))
map_widget.set_zoom(10)
# or set both at once
map_widget.set_view(center=(40.7128, -74.0060), zoom=12)

# Auto-zoom to all currently relevant points/features
feature_points = [
    (37.7749, -122.4194),
    (34.0522, -118.2437),
    (36.1699, -115.1398),
]
map_widget.auto_zoom_to_points(feature_points, padding_px=32, max_zoom=12)

# Or simply fit to all data already loaded in map layers
map_widget.fit_to_data()

Programmatic Zoom & Resolution Reference

OpenLayers uses the standard Web Mercator zoom model. This means zoom levels map predictably to resolution (meters per pixel at the equator):

resolution_m_per_px = 156543.03392804097 / (2 ** zoom)

You can query this directly in Python with:

resolution = OLMapWidget.zoom_resolution_m_per_px(zoom)

Approximate full-world horizontal extent represented by each zoom level:

Zoom	Resolution (m/px)	Approx. horizontal extent on a 256 px tile (km)
0	156543.0339	40075.02
1	78271.5170	20037.51
2	39135.7585	10018.75
3	19567.8792	5009.38
4	9783.9396	2504.69
5	4891.9698	1252.34
6	2445.9849	626.17
7	1222.9925	313.09
8	611.4962	156.54
9	305.7481	78.27
10	152.8741	39.14
11	76.4370	19.57
12	38.2185	9.78
13	19.1093	4.89
14	9.5546	2.45
15	4.7773	1.22
16	2.3887	0.61

Notes:

• "Extent" above is an equatorial approximation and varies with viewport size.
• For the actual current extent of your map widget, use get_view_extent(callback).
• For feature-driven workflows (e.g., after adding a batch of points), use fit_to_data() for a one-call auto-fit across loaded layers, or auto_zoom_to_points(...) / fit_bounds(...) when you want explicit control.

Constructor Parameters:

• parent - Optional parent widget
• center - Initial map center as (lat, lon) tuple. Defaults to (0, 0).
• zoom - Initial zoom level (integer). Defaults to 2 (world view).
• show_coordinates - If True, displays mouse lat/lon coordinates in the lower right corner. Defaults to True.
• show_country_boundaries - If True, enables the built-in countries boundary layer at startup. Defaults to False.
• country_boundaries_stroke_color - Optional country boundary stroke color as QColor or CSS string (e.g. "#ffcc00"). Defaults to None.
• show_osm_layer - If True, the OSM base layer is visible on startup. Defaults to True.
• map_background_color - CSS color rendered behind the OSM layer. Defaults to "#ffffff".

Key Methods:

• add_vector_layer(name, selectable=True) - Create a vector layer for points, polygons, circles, ellipses
• add_fast_points_layer(name, selectable, style, cell_size_m) - Create a high-performance points layer
• add_fast_geopoints_layer(name, selectable, style, cell_size_m) - Create a geo-points layer with uncertainty ellipses
• add_wms(options, name) - Add a WMS (Web Map Service) layer
• add_raster_image(image, bounds, style, name) - Add a raster image overlay
• set_base_opacity(opacity) - Set OSM base layer opacity (0.0-1.0)
• set_base_visible(visible) - Show/hide the OSM base layer
• set_map_background_color(color) - Set map background color behind OSM tiles
• set_country_boundaries_visible(visible, stroke_color=None) - Show/hide boundaries and optionally set boundary stroke color (QColor or CSS string)
• set_measure_mode(enabled) - Enable/disable interactive distance measurement mode
• on_measurement_updated(callback) - Register a typed callback for measurement click updates
• clear_measurements() - Clear all measurement points and lines
• set_view(center=None, zoom=None) - Programmatically set map center and/or zoom
• set_center((lat, lon)) - Programmatically set map center
• set_zoom(zoom) - Programmatically set map zoom level
• fit_bounds(bounds, padding_px, max_zoom, duration_ms) - Auto-fit map view to SW/NE bounds
• auto_zoom_to_points(points, padding_px, max_zoom, duration_ms) - Auto-fit map view to a list of feature points
• fit_to_data(padding_px, max_zoom, duration_ms, ...) - Auto-fit map view to data already in map layers
• zoom_resolution_m_per_px(zoom) - Return Web Mercator resolution (m/px) for a zoom level
• get_view_extent(callback) - Get current map extent asynchronously
• watch_view_extent(callback, debounce_ms) - Subscribe to extent changes

Signals:

• ready - Emitted when the map is ready
• selectionChanged - Emitted when feature selection changes
• viewExtentChanged - Emitted when map extent changes
• measurementUpdated - Emitted when a measurement point is added. Signal(object) carrying a MeasurementUpdate instance.
• jsEvent - Emitted for low-level JavaScript events. Signal(str, str) with event type and JSON payload.

Layer Types

All layer types in pyopenlayersqt inherit from a common BaseLayer class, providing consistent functionality across different layer implementations.

Common Layer Methods

All layers (VectorLayer, FastPointsLayer, FastGeoPointsLayer, WMSLayer, RasterLayer) support these core methods:

# Set layer opacity (0.0 = transparent, 1.0 = opaque)
layer.set_opacity(0.7)

# Remove the layer from the map
layer.remove()

Feature-based layers (VectorLayer, FastPointsLayer, FastGeoPointsLayer) also support:

# Show/hide the layer
layer.set_visible(True)

# Enable/disable feature selection
layer.set_selectable(True)

# Clear all features from the layer
layer.clear()

Each layer type also has specialized methods for its specific use case, as detailed below.

VectorLayer

For standard vector features with full styling control.

from pyopenlayersqt import PointStyle, PolygonStyle, CircleStyle, EllipseStyle

# Add a vector layer
vector = map_widget.add_vector_layer("vector", selectable=True)

# Add points
vector.add_points(
    coords=[(lat, lon), ...],
    ids=["id1", "id2", ...],
    style=PointStyle(
        radius=6.0,
        fill_color=QColor("red"),
        fill_opacity=0.85,
        stroke_color=QColor("black"),
        stroke_width=1.0
    )
)

# Add polygons
vector.add_polygon(
    ring=[(lat1, lon1), (lat2, lon2), ...],
    feature_id="poly1",
    style=PolygonStyle(
        stroke_color=QColor("dodgerblue"),
        stroke_width=2.0,
        fill_color=QColor("dodgerblue"),
        fill_opacity=0.15
    )
)

# Add lines (polylines)
vector.add_line(
    coords=[(lat1, lon1), (lat2, lon2), (lat3, lon3)],
    feature_id="ln1",
    style=PolygonStyle(
        stroke_color=QColor("dodgerblue"),
        stroke_width=2.0
    )
)

# Add circles (radius in meters)
vector.add_circle(
    center=(lat, lon),
    radius_m=1000.0,
    feature_id="circle1",
    style=CircleStyle(stroke_color=QColor("dodgerblue"), fill_opacity=0.15)
)

# Add ellipses (semi-major/minor axes in meters, tilt in degrees from north)
vector.add_ellipse(
    center=(lat, lon),
    sma_m=2000.0,  # Semi-major axis
    smi_m=1200.0,  # Semi-minor axis
    tilt_deg=45.0,  # Tilt from true north
    feature_id="ell1",
    style=EllipseStyle(stroke_color=QColor("gold"), fill_opacity=0.12)
)

# Update styles of specific features (e.g., selected features)
feature_ids = ["id1", "id2"]
new_styles = [
    PointStyle(radius=8.0, fill_color=QColor("red"), fill_opacity=1.0),
    PointStyle(radius=8.0, fill_color=QColor("green"), fill_opacity=1.0),
]
vector.update_feature_styles(feature_ids, new_styles)

# Remove features
vector.remove_features(["id1", "poly1"])

# Clear all features
vector.clear()

FastPointsLayer

High-performance layer for rendering millions of points using canvas and spatial indexing.

from pyopenlayersqt import FastPointsStyle

# Create fast points layer
fast = map_widget.add_fast_points_layer(
    "fast_points",
    selectable=True,
    style=FastPointsStyle(
        radius=2.5,
        default_color="green",  # Color name or QColor
        selected_radius=6.0,
        selected_color="yellow"
    ),
    cell_size_m=750.0  # Spatial index cell size
)

# Add points (efficient for large datasets)
coords = [(lat, lon), ...]  # millions of points
ids = [f"pt{i}" for i in range(len(coords))]

# Option 1: Single color for all points
fast.add_points(coords, ids=ids)

# Option 2: Per-point colors using QColor objects
from PySide6.QtGui import QColor
colors = [QColor(255, 0, 0, 180), QColor(0, 255, 0, 180), ...]
fast.add_points(coords, ids=ids, colors_rgba=colors)

# Option 3: Per-point colors using color names
colors = ["red", "green", "blue", ...]
fast.add_points(coords, ids=ids, colors_rgba=colors)

# Remove specific points
fast.remove_points(["pt1", "pt2"])

# Update colors of specific points (e.g., selected points)
feature_ids = ["pt10", "pt25", "pt50"]
# Use QColor objects (recommended)
from PySide6.QtGui import QColor
new_colors = [QColor("red"), QColor("green"), QColor("blue")]
fast.set_colors(feature_ids, new_colors)
# Or color names
new_colors = ["red", "green", "blue"]
fast.set_colors(feature_ids, new_colors)

# Temporarily hide/show features (without removing them)
fast.hide_features(["pt100", "pt200"])
fast.show_features(["pt100"])
fast.show_all_features()  # Show all hidden features

# Clear all points
fast.clear()

FastGeoPointsLayer

High-performance layer for geolocation data with uncertainty ellipses.

from pyopenlayersqt import FastGeoPointsStyle

# Create fast geo points layer
fast_geo = map_widget.add_fast_geopoints_layer(
    "fast_geo",
    selectable=True,
    style=FastGeoPointsStyle(
        # Point styling
        point_radius=2.5,
        default_color="steelblue",  # Color name or QColor
        selected_point_radius=6.0,
        selected_color="white",
        # Ellipse styling
        ellipse_stroke_color="steelblue",
        ellipse_stroke_width=1.2,
        fill_ellipses=False,
        ellipse_fill_color=QColor(40, 80, 255, 40),
        # Behavior
        ellipses_visible=True,
        selected_ellipses_visible=True,  # Independent toggle for selected ellipses
        min_ellipse_px=0.0,  # Cull tiny ellipses
        max_ellipses_per_path=2000,
        skip_ellipses_while_interacting=True
    ),
    cell_size_m=750.0
)

# Add points with uncertainty ellipses
coords = [(lat, lon), ...]
sma_m = [200.0, 300.0, ...]  # Semi-major axes in meters
smi_m = [100.0, 150.0, ...]  # Semi-minor axes in meters
tilt_deg = [45.0, 90.0, ...]  # Tilt from north in degrees
ids = [f"geo{i}" for i in range(len(coords))]

fast_geo.add_points_with_ellipses(
    coords=coords,
    sma_m=sma_m,
    smi_m=smi_m,
    tilt_deg=tilt_deg,
    ids=ids
)

# Toggle ellipse visibility
fast_geo.set_ellipses_visible(False)

# Toggle selected-ellipse visibility independently
fast_geo.set_selected_ellipses_visible(False)

# Update colors of specific points (e.g., selected points)
feature_ids = ["geo5", "geo12", "geo20"]
# Use QColor objects (recommended)
from PySide6.QtGui import QColor
new_colors = [QColor("red"), QColor("green"), QColor("blue")]
fast_geo.set_colors(feature_ids, new_colors)
# Or color names
new_colors = ["red", "green", "blue"]
fast_geo.set_colors(feature_ids, new_colors)

# Temporarily hide/show features (without removing them)
fast_geo.hide_features(["geo100", "geo200"])
fast_geo.show_features(["geo100"])
fast_geo.show_all_features()  # Show all hidden features

# Remove points
fast_geo.remove_ids(["geo1", "geo2"])

# Clear all
fast_geo.clear()

WMSLayer

Web Map Service layer integration.

from pyopenlayersqt import WMSOptions

# Add WMS layer
wms_options = WMSOptions(
    url="https://ahocevar.com/geoserver/wms",
    params={
        "LAYERS": "topp:states",
        "TILED": True,
        "FORMAT": "image/png",
        "TRANSPARENT": True
    },
    opacity=0.85
)

wms_layer = map_widget.add_wms(wms_options, name="wms")

# Update WMS parameters
wms_layer.set_params({"LAYERS": "new:layer"})

# Set opacity
wms_layer.set_opacity(0.5)

# Remove layer
wms_layer.remove()

RasterLayer

Image overlay layer for heatmaps, imagery, etc.

from pyopenlayersqt import RasterStyle

# Create PNG bytes (example using PIL)
from PIL import Image
import io

img = Image.new('RGBA', (512, 512), color=(255, 0, 0, 128))
buf = io.BytesIO()
img.save(buf, format='PNG')
png_bytes = buf.getvalue()

# Add raster overlay
bounds = [
    (lat_min, lon_min),  # Southwest corner
    (lat_max, lon_max)   # Northeast corner
]

raster = map_widget.add_raster_image(
    png_bytes,  # Can be bytes, file path, or URL
    bounds=bounds,
    style=RasterStyle(opacity=0.6),
    name="heatmap"
)

# Update opacity
raster.set_opacity(0.8)

# Remove layer
raster.remove()

Style Classes

All style classes are immutable dataclasses with sensible defaults:

from pyopenlayersqt import (
    PointStyle,
    PolygonStyle,
    CircleStyle,
    EllipseStyle,
    RasterStyle,
    FastPointsStyle,
    FastGeoPointsStyle
)
from PySide6.QtGui import QColor

# Vector styles use QColor objects or color names (recommended)
point_style = PointStyle(
    radius=5.0,
    fill_color=QColor("red"),        # QColor object (recommended)
    fill_opacity=0.85,
    stroke_color=QColor("black"),    # QColor object
    stroke_width=1.0,
    stroke_opacity=0.9
)

# You can also use color names directly
polygon_style = PolygonStyle(
    stroke_color="red",    # Color name string
    fill_color="green"     # Color name string
)

# Fast layer styles support QColor/color names (recommended)
# Recommended: Using QColor objects or color names
fast_style_qcolor = FastPointsStyle(
    radius=3.0,
    default_color=QColor("steelblue"),  # QColor object
    selected_radius=6.0,
    selected_color="orange"              # Color name string
)

# Legacy (deprecated): Using RGBA tuples
fast_style = FastPointsStyle(
    radius=3.0,
    default_rgba=(255, 51, 51, 204),
    selected_radius=6.0,
    selected_rgba=(0, 255, 255, 255)
)

# Mixed: Both styles (color options take precedence)
fast_style_mixed = FastPointsStyle(
    radius=3.0,
    default_rgba=(255, 51, 51, 204),     # Fallback
    default_color="purple",               # This takes precedence
    selected_radius=6.0,
    selected_color=QColor("yellow")       # This takes precedence
)

# FastGeoPointsStyle supports QColor for all colors (points and ellipses)
geo_style = FastGeoPointsStyle(
    point_radius=4.0,
    default_color="darkgreen",                    # Point color (QColor or color name)
    selected_color=QColor("red"),                 # Selected point color
    ellipse_stroke_color="darkgreen",             # Ellipse stroke color
    ellipse_fill_color=QColor(0, 100, 0, 40),    # Ellipse fill color (with alpha)
    selected_ellipse_stroke_color="red",          # Selected ellipse stroke color
    fill_ellipses=True,
    ellipses_visible=True,
    selected_ellipses_visible=True            # Hide/show selected ellipses independently
)

Key Features:

• QColor Support in ALL Styles: Pass QColor objects directly to any color parameter in PointStyle, CircleStyle, PolygonStyle, EllipseStyle, FastPointsStyle, and FastGeoPointsStyle - no need for .name()
• Color Names Everywhere: Use color names like "red", "Green", "steelblue" directly in all Style classes
• Multiple Formats: All styles accept QColor objects, color names, hex strings, and CSS strings (RGBA tuples are deprecated)
• Backward Compatible: Existing code using RGBA tuples or hex colors continues to work
• Z-Ordering: Selected points and ellipses are automatically drawn on top in dense areas

Feature Selection

Selection is synchronized between the map and Python:

# Set selection programmatically
map_widget.set_vector_selection(layer_id, ["feature1", "feature2"])
map_widget.set_fast_points_selection(layer_id, ["pt1", "pt2"])
map_widget.set_fast_geopoints_selection(layer_id, ["geo1", "geo2"])

# Listen to selection changes from map
def on_selection_changed(selection):
    print(f"Layer: {selection.layer_id}")
    print(f"Selected IDs: {selection.feature_ids}")
    print(f"Count: {selection.count}")

map_widget.selectionChanged.connect(on_selection_changed)

Selection and Recoloring

For updating styles of selected features, see the layer-specific methods documented above:

• VectorLayer.update_feature_styles() - Update styles for vector features
• FastPointsLayer.set_colors() - Update colors for fast points
• FastGeoPointsLayer.set_colors() - Update colors for fast geo-points
• FastGeoPointsLayer.set_selected_ellipses_visible() - Toggle selected ellipse outlines independently from unselected ellipses

Multi-layer selection workflow example:

# Track selections for all layers (layer_id -> list of feature_ids)
selections = {}

def on_selection_changed(selection):
    global selections
    # Update selections for this layer
    if len(selection.feature_ids) > 0:
        selections[selection.layer_id] = selection.feature_ids
    elif selection.layer_id in selections:
        # Clear selection for this layer
        del selections[selection.layer_id]

    total = sum(len(ids) for ids in selections.values())
    print(f"Total selected: {total} features across {len(selections)} layer(s)")

map_widget.selectionChanged.connect(on_selection_changed)

# Recolor all selected items across all layers
def recolor_selected_red():
    from PySide6.QtGui import QColor
    for layer_id, feature_ids in selections.items():
        if layer_id == vector_layer.id:
            styles = [PointStyle(fill_color="red") for _ in feature_ids]
            vector_layer.update_feature_styles(feature_ids, styles)
        elif layer_id == fast_layer.id:
            colors = [QColor("red") for _ in feature_ids]
            fast_layer.set_colors(feature_ids, colors)
        elif layer_id == fast_geo_layer.id:
            colors = [QColor("red") for _ in feature_ids]
            fast_geo_layer.set_colors(feature_ids, colors)

See examples/09_selection_and_recoloring.py for a complete interactive example.

Deleting Features

Each layer type provides methods to remove features, either individually, in batches, or all at once.

VectorLayer Deletion

# Remove specific features by ID
vector_layer.remove_features(["point1", "polygon2", "circle3"])

# Clear all features from the layer
vector_layer.clear()

FastPointsLayer Deletion

# Remove specific points by ID
fast_layer.remove_points(["pt1", "pt2", "pt100"])

# Clear all points from the layer
fast_layer.clear()

FastGeoPointsLayer Deletion

# Remove specific geo-points by ID
geo_layer.remove_ids(["geo1", "geo2", "geo50"])

# Clear all geo-points from the layer
geo_layer.clear()

Deleting Selected Features

A common pattern is to delete features that the user has selected interactively:

from PySide6.QtGui import QShortcut, QKeySequence

# Track selections across all layers
selections = {}

def on_selection_changed(selection):
    """Update the selections dictionary when selection changes."""
    if len(selection.feature_ids) > 0:
        selections[selection.layer_id] = selection.feature_ids
    elif selection.layer_id in selections:
        del selections[selection.layer_id]

map_widget.selectionChanged.connect(on_selection_changed)

def delete_selected():
    """Delete all currently selected features across all layers."""
    for layer_id, feature_ids in list(selections.items()):
        if layer_id == vector_layer.id:
            vector_layer.remove_features(feature_ids)
        elif layer_id == fast_layer.id:
            fast_layer.remove_points(feature_ids)
        elif layer_id == geo_layer.id:
            geo_layer.remove_ids(feature_ids)

    # Clear selections after deletion
    selections.clear()
    print(f"Deleted features")

# Connect to a button
delete_button.clicked.connect(delete_selected)

# Or add keyboard shortcut (Delete key)
delete_shortcut = QShortcut(QKeySequence.Delete, map_widget)
delete_shortcut.activated.connect(delete_selected)

Removing Entire Layers

To remove an entire layer from the map:

# Remove the layer (also removes all its features)
vector_layer.remove()
fast_layer.remove()
geo_layer.remove()

Complete CRUD Example: See examples/08_table_integration.py for a full working example demonstrating Create, Read, Update, and Delete operations with interactive add/delete buttons and keyboard shortcuts across all layer types.

Distance Measurement Mode

Interactive distance measurement with geodesic calculations and a clean callback API:

from pyopenlayersqt import MeasurementUpdate

# Enable measurement mode
map_widget.set_measure_mode(True)

# Listen for typed measurement updates
def on_measurement(update: MeasurementUpdate):
    if update.segment_distance_m is not None:
        print(f"Segment: {update.segment_distance_m:.1f} m")
    print(f"Total: {update.cumulative_distance_m:.1f} m")
    print(f"Point at ({update.lat:.5f}, {update.lon:.5f})")

handle = map_widget.on_measurement_updated(on_measurement)
# (Optional) also available as a Qt signal:
# map_widget.measurementUpdated.connect(on_measurement)

# Clear all measurements
map_widget.clear_measurements()

# Stop callback if needed
handle.cancel()

# Disable measurement mode
map_widget.set_measure_mode(False)

Features:

• Click on map to create measurement anchor points
• Live polyline drawn from last point to cursor
• Tooltip displays segment and cumulative distances
• Uses Haversine formula for accurate great-circle distances
• Lines follow great-circle paths - measurement lines curve to represent the true shortest path on Earth's surface
• Curved paths are especially visible for long distances (e.g., New York to London)
• Press Escape to exit measurement mode
• Measurement updates emitted to Python as MeasurementUpdate objects with distances and coordinates

See examples/11_measurement_tool.py for a complete working example.

FeatureTableWidget

High-performance table widget for displaying and managing features:

from pyopenlayersqt.features_table import FeatureTableWidget, ColumnSpec

# Define columns
columns = [
    ColumnSpec("Layer", lambda r: r.get("layer_kind", "")),
    ColumnSpec("Type", lambda r: r.get("geom_type", "")),
    ColumnSpec("ID", lambda r: r.get("feature_id", "")),
    ColumnSpec(
        "Latitude",
        lambda r: r.get("center_lat", ""),
        fmt=lambda v: f"{float(v):.6f}" if v != "" else ""
    ),
    ColumnSpec(
        "Longitude",
        lambda r: r.get("center_lon", ""),
        fmt=lambda v: f"{float(v):.6f}" if v != "" else ""
    ),
]

# Create table
table = FeatureTableWidget(
    columns=columns,
    key_fn=lambda r: (str(r.get("layer_id", "")), str(r.get("feature_id", ""))),
    debounce_ms=90
)

# Add rows
rows = [
    {
        "layer_kind": "vector",
        "layer_id": "v1",
        "feature_id": "pt1",
        "geom_type": "point",
        "center_lat": 37.7749,
        "center_lon": -122.4194
    }
]
table.append_rows(rows)

# Sync selection: table -> map
def on_table_selection(keys):
    # keys is list of (layer_id, feature_id) tuples
    for layer_id, feature_id in keys:
        # Update map selection based on layer type
        pass

table.selectionKeysChanged.connect(on_table_selection)

# Sync selection: map -> table
def on_map_selection(selection):
    keys = [(selection.layer_id, fid) for fid in selection.feature_ids]
    table.select_keys(keys, clear_first=True)

map_widget.selectionChanged.connect(on_map_selection)

# Optional: built-in right-click menu actions
from pyopenlayersqt.features_table import ContextMenuActionSpec


def view_metadata(event):
    # event.keys -> [(layer_id, feature_id), ...]
    # event.rows -> underlying row objects for selected rows
    print("Metadata:", event.rows)


def delete_selected(event):
    if event.keys:
        table.remove_keys(event.keys)


table.set_context_menu_actions([
    ContextMenuActionSpec("View Metadata", view_metadata),
    ContextMenuActionSpec("Delete Selected", delete_selected),
])

# Optional hook for custom menus owned by your GUI code
# table.contextMenuRequested.connect(on_context_menu_requested)

Row removal APIs: remove_keys vs remove_where

FeatureTableWidget provides two row-removal methods for different use cases:

• table.remove_keys(keys)

  • Use when you already know the exact (layer_id, feature_id) keys to remove.

  • Best for map-driven actions like deleting selected features from one or more layers, because keys are already available from selection events.

  • Example:

    selected_keys = table.selected_keys()  # [(layer_id, feature_id), ...]
    if selected_keys:
        table.remove_keys(selected_keys)


• table.remove_where(predicate)

  • Use when removal logic depends on arbitrary row attributes/conditions rather than known keys.

  • Example:

    # Remove all rows from a specific layer kind
    table.remove_where(lambda row: row.get("layer_kind") == "geo_points")


In short: prefer remove_keys for explicit feature-ID removals (typical CRUD flows), and remove_where for ad-hoc, attribute-based filtering/removal.

RangeSliderWidget

Dual-handle range slider for filtering features by numeric or timestamp ranges:

from pyopenlayersqt.range_slider import RangeSliderWidget
from pyopenlayersqt import FastPointsStyle

# Create a fast points layer (required for hide/show features)
fast_layer = map_widget.add_fast_points_layer(
    "filterable_points",
    selectable=True,
    style=FastPointsStyle(radius=3.0, default_color="green")
)

# Numeric range slider
value_slider = RangeSliderWidget(
    min_val=0.0,
    max_val=100.0,
    step=1.0,
    label="Filter by Value"
)

# Connect to filter function
def on_value_range_changed(min_val, max_val):
    # Filter features based on value range
    visible_ids = [f["id"] for f in features if min_val <= f["value"] <= max_val]
    hidden_ids = [f["id"] for f in features if not (min_val <= f["value"] <= max_val)]

    # Hide/show features on map (FastPointsLayer and FastGeoPointsLayer only)
    if hidden_ids:
        fast_layer.hide_features(hidden_ids)
    if visible_ids:
        fast_layer.show_features(visible_ids)

    # Hide/show rows in table
    layer_id = fast_layer.id
    table.hide_rows_by_keys([(layer_id, fid) for fid in hidden_ids])
    table.show_rows_by_keys([(layer_id, fid) for fid in visible_ids])

value_slider.rangeChanged.connect(on_value_range_changed)

# ISO8601 timestamp range slider
timestamps = ["2024-01-01T00:00:00Z", "2024-01-15T12:00:00Z", "2024-01-31T23:59:59Z"]
timestamp_slider = RangeSliderWidget(
    values=sorted(set(timestamps)),  # Unique sorted timestamps
    label="Filter by Timestamp"
)

timestamp_slider.rangeChanged.connect(on_timestamp_range_changed)

# Reset filters - show all features again
fast_layer.show_all_features()  # Show all on map
table.show_all_rows()  # Show all in table

See examples/10_range_slider_filtering.py for a complete working example with map and table filtering.

Complete Example

For a comprehensive demonstration of all features, see the complete working example at examples/08_table_integration.py. This example includes:

• Vector and fast points layers
• Feature table with bidirectional selection sync
• Sample data generation
• Layer management

View Extent Tracking

Monitor map extent changes for dynamic data loading:

# One-time extent request
def on_extent(extent):
    print(f"Extent: {extent['lon_min']}, {extent['lat_min']} to "
          f"{extent['lon_max']}, {extent['lat_max']}")
    print(f"Zoom: {extent['zoom']}, Resolution: {extent['resolution']}")

map_widget.get_view_extent(on_extent)

# Watch extent changes (debounced)
def on_extent_changed(extent):
    # Load data for current extent
    load_data_for_extent(extent)

handle = map_widget.watch_view_extent(on_extent_changed, debounce_ms=150)

# Stop watching
handle.cancel()

Advanced: Direct JavaScript Communication

For advanced use cases, you can send custom messages to the JavaScript bridge:

# Send custom message to JavaScript
map_widget.send({
    "type": "custom_command",
    "param1": "value1",
    "param2": 123
})

# Listen to JavaScript events
def on_js_event(event_type, payload_json):
    print(f"Event: {event_type}, Payload: {payload_json}")

map_widget.jsEvent.connect(on_js_event)

Performance Tips

1. Use Fast Layers for Large Datasets: For > 1000 points, use FastPointsLayer or FastGeoPointsLayer instead of vector layers
2. Tune Cell Size: Adjust cell_size_m parameter based on your data density (larger = faster, but less precise selection)
3. Chunk Large Additions: FastGeoPointsLayer.add_points_with_ellipses() automatically chunks data (default 50k points per chunk)
4. Debounce Extent Watching: Use appropriate debounce_ms when watching extent changes to avoid excessive updates
5. Cull Tiny Ellipses: Set min_ellipse_px in FastGeoPointsStyle to skip rendering very small ellipses
6. Skip Ellipses While Interacting: Enable skip_ellipses_while_interacting for smoother panning/zooming

Architecture

• Python → JavaScript: Commands sent via window.pyolqt_send()
• JavaScript → Python: Events sent via Qt Web Channel (qtBridge.emitEvent())
• Static Assets: Served by embedded HTTP server (wheel-safe)
• Raster Overlays: Written to user cache directory and served dynamically

License

MIT License

Contributing

Contributions are welcome! Please feel free to submit issues or pull requests.

For maintainers, see CONTRIBUTING.md for information on creating releases and publishing to PyPI.

Credits

Built with:

• OpenLayers - High-performance web mapping library
• PySide6 - Qt for Python
• NumPy - Numerical computing
• Matplotlib - Plotting and colormaps
