pypowerwall-server 0.1.8

A high-performance FastAPI-based server for monitoring and managing Tesla Powerwall systems

PyPowerwall Server

A high-performance FastAPI-based server for monitoring and managing Tesla Powerwall systems. Designed as the next-generation evolution of the pypowerwall proxy with multi-gateway support, real-time monitoring, and a built-in status console.

Features

• Multi-Gateway Support - Monitor multiple Powerwall installations from a single server with per-gateway configuration and aggregated metrics
• Connection Modes - TEDAPI (local), Cloud Mode (remote), and FleetAPI support with automatic failover and graceful degradation
• Real-Time Updates - WebSocket streaming with 1-second updates and background polling with intelligent caching
• Complete API - Full backward compatibility with pypowerwall proxy plus new multi-gateway and aggregate endpoints

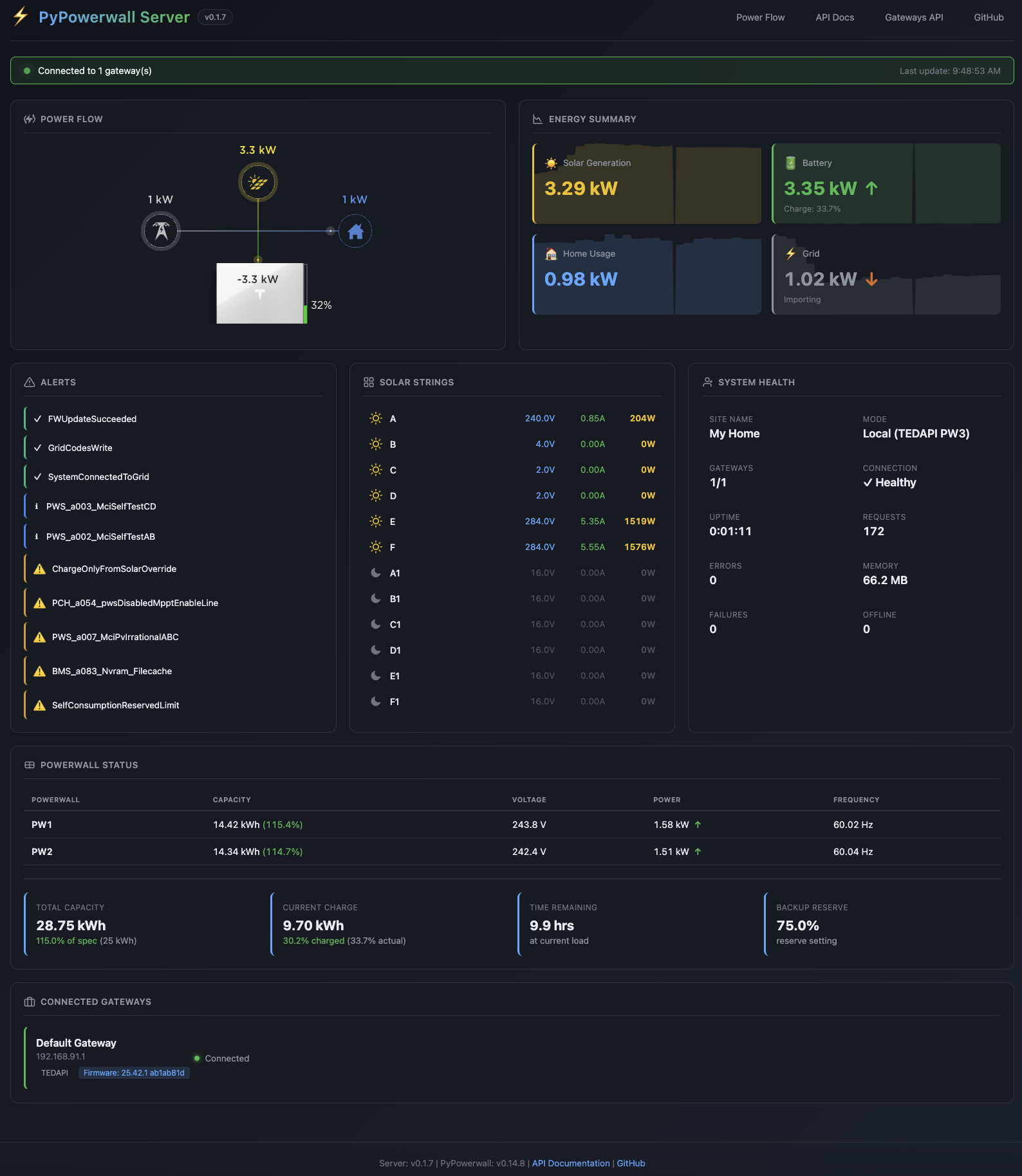

• Modern Web UI - Tesla Power Flow animation, management console, and auto-generated API documentation at /docs
• Container Ready - Docker and docker-compose support with configurable deployment via environment variables or YAML
• Planned: MQTT Integration - Publish metrics to MQTT brokers for Home Assistant and other automation systems

Quick Start

Docker (Recommended)

# TEDAPI Mode (Local Gateway) - requires host network to access gateway at 192.168.91.1
docker run -d \
  --name pypowerwall-server \
  --network host \
  -e PW_HOST=192.168.91.1 \
  -e PW_GW_PWD=your_gateway_password \
  jasonacox/pypowerwall-server

# Cloud Mode - connects via internet, includes persistent auth storage
docker run -d \
  --name pypowerwall-server \
  -p 8675:8675 \
  -v ~/.pypowerwall:/auth \
  -e PW_EMAIL="[e-mail]" \
  -e PW_AUTHPATH=/auth \
  jasonacox/pypowerwall-server

# Complete Cloud Mode setup (one-time authentication)
docker exec -it pypowerwall-server python -m pypowerwall setup

Visit http://localhost:8675

Multiple Powerwalls

# Multiple local gateways - requires host network
docker run -d \
  --name pypowerwall-server \
  --network host \
  -e PW_GATEWAYS='[
    {"id": "home", "name": "Home Gateway", "host": "192.168.91.1", "gw_pwd": "gateway_password_1"},
    {"id": "cabin", "name": "Cabin Gateway", "host": "192.168.91.2", "gw_pwd": "gateway_password_2"}
  ]' \
  jasonacox/pypowerwall-server

Command Line

# Install
pip install pypowerwall-server

# TEDAPI Mode
pypowerwall-server --host 192.168.91.1 --gw-pwd your_gateway_password

# Multiple Powerwalls
pypowerwall-server --config gateways.yaml

# Cloud Mode
pypowerwall-server --setup # one-time setup
pypowerwall-server --email "[e-mail]"

Configuration

Note: Most users will use TEDAPI to connect to their Powerwall gateway, which is accessible at the standard IP address 192.168.91.1 on your local network. You'll need your gateway password (found in the Tesla app under your gateway settings).

Cloud Authentication Setup (Optional, for Control Operations)

If you want to control your Powerwall (set reserve level, operating mode, etc.), you'll need Tesla Cloud authentication:

One-time setup:

pip install pypowerwall-server
pypowerwall-server --setup

This will:

1. Open your browser to authenticate with Tesla
2. Generate .pypowerwall.auth and .pypowerwall.site token files
3. Store them in the default location or a specified directory

Environment Variables

Single Gateway Mode (Read-Only via TEDAPI):

PW_HOST=192.168.91.1
PW_GW_PWD=your_gateway_password
PW_TIMEZONE=America/Los_Angeles
PW_PORT=8675              # Default port (proxy-compatible)
PW_BIND_ADDRESS=0.0.0.0  # Listen on all interfaces

Single Gateway Mode (With Cloud Control):

PW_HOST=192.168.91.1
PW_GW_PWD=your_gateway_password          # For TEDAPI data reads
PW_EMAIL=[e-mail]
PW_AUTHPATH=/path/to/auth/files            # Directory with .pypowerwall.auth/.site
PW_TIMEZONE=America/Los_Angeles

Multi-Gateway Mode:

PW_GATEWAYS='[
  {
    "id": "home",
    "name": "Home System",
    "host": "192.168.91.1",
    "gw_pwd": "gw_pwd_1",
    "email": "[e-mail]",
    "authpath": "/auth"
  },
  {
    "id": "cabin",
    "name": "Cabin System",
    "host": "192.168.91.1",
    "gw_pwd": "gw_pwd_2",
    "email": "[e-mail]",
    "authpath": "/auth"
  }
]'

Configuration File (gateways.yaml)

server:
  host: 0.0.0.0
  port: 8675
  cors_origins:
    - http://localhost:3000

gateways:
  - id: home
    name: Home System
    host: 192.168.91.1
    gw_pwd: gw_pwd_1
    email: [e-mail]
    authpath: /auth
    timezone: America/Los_Angeles

  - id: cabin
    name: Cabin System
    host: 192.168.91.1
    gw_pwd: gw_pwd_2
    email: [e-mail]
    authpath: /auth
    timezone: America/Denver

  - id: cloud-site
    name: Cloud Mode Site
    email: [e-mail]
    authpath: /auth
    cloud_mode: true

Authentication:

• gw_pwd: For TEDAPI local gateway access
• email + authpath: For Tesla Cloud API (control operations)
  • Run pypowerwall-server --setup to authenticate and generate auth files
  • Specify directory containing .pypowerwall.auth and .pypowerwall.site files

API Endpoints

Legacy Proxy Compatibility

All existing proxy endpoints work unchanged:

Core Data Endpoints:

• GET /vitals - Detailed system vitals
• GET /aggregates - Power meter aggregates
• GET /soe - State of energy (battery %)
• GET /freq - Grid frequency data
• GET /pod - Battery pod details
• GET /strings - Solar string data
• GET /battery - Battery information
• GET /json - Combined metrics and status (JSON)

Temperature & Environment:

• GET /temps - All temperature sensors
• GET /temps/pw - Powerwall temperatures only

Alerts & Status:

• GET /alerts - System alerts
• GET /alerts/pw - Powerwall alerts only

Fan Information:

• GET /fans - All fan status
• GET /fans/pw - Powerwall fans only

Data Export:

• GET /csv - CSV format for Telegraf/InfluxDB
• GET /csv/v2 - Enhanced CSV format

TEDAPI Raw Access:

• GET /tedapi - TEDAPI endpoint list
• GET /tedapi/config - Gateway configuration
• GET /tedapi/status - System status
• GET /tedapi/components - Component details
• GET /tedapi/battery - Battery information
• GET /tedapi/controller - Controller data

Tesla API Endpoints:

• GET /api/system_status/soe - State of energy
• GET /api/system_status/grid_status - Grid connection status
• GET /api/system_status/grid_faults - Grid fault log
• GET /api/sitemaster - Sitemaster information
• GET /api/meters/aggregates - Power meters
• GET /api/status - System status
• GET /api/site_info - Site information
• GET /api/site_info/site_name - Site name
• GET /api/customer/registration - Customer registration info
• GET /api/troubleshooting/problems - Problem list
• GET /api/auth/toggle/supported - Auth toggle support
• GET /api/networks - Network configuration
• GET /api/system/networks - System networks
• GET /api/powerwalls - Powerwall device list

Server Status:

• GET /version - Server and firmware versions
• GET /stats - Server statistics (uptime, requests, errors)

Control Operations (requires authentication):

• POST /control/{path} - Control operations (reserve, mode, etc.)

Multi-Gateway Endpoints

Gateway Selection:

• GET /api/gateways - List all configured gateways
• GET /api/gateways/{id} - Gateway details
• GET /api/gateways/{id}/vitals - Gateway-specific vitals
• GET /api/gateways/{id}/aggregates - Gateway-specific power data

Aggregated Data:

• GET /api/aggregate/power - Combined power across all gateways
• GET /api/aggregate/soe - Total battery capacity and charge
• GET /api/aggregate/status - Health status of all gateways

WebSocket Endpoints:

• WS /ws/gateway/{id} - Real-time data stream for specific gateway
• WS /ws/aggregate - Real-time aggregated data stream

Interactive API Documentation

• Swagger UI: http://localhost:8675/docs
• ReDoc: http://localhost:8675/redoc
• OpenAPI JSON: http://localhost:8675/openapi.json

Design Decisions

Cloud Authentication with Auth Tokens

The server supports Tesla Cloud authentication for control operations:

TEDAPI (Local): For fast data reads from 192.168.91.1

• Requires: host + password (gateway password)
• Fast response times (local network)
• No internet dependency
• Used for monitoring metrics

Cloud (Control): For control operations via Tesla API

• Requires: email + authpath
• Setup: Run pypowerwall-server --setup to authenticate
• Generates: .pypowerwall.auth and .pypowerwall.site token files
• Used for: Setting reserve level, operating mode, etc.

Configuration:

# TEDAPI only (monitoring)
PW_HOST=192.168.91.1
PW_GW_PWD=gateway_password

# TEDAPI + Cloud (monitoring + control)
PW_HOST=192.168.91.1
PW_GW_PWD=gateway_password
PW_EMAIL=[e-mail]
PW_AUTHPATH=/path/to/auth  # Directory with .pypowerwall.auth/.site files

Async + Sync Library Integration

FastAPI is async, but pypowerwall is synchronous. This is handled using asyncio.run_in_executor() to run blocking pypowerwall calls in thread pools, preventing event loop blocking. This is the standard pattern for integrating sync libraries with async frameworks and works perfectly.

Stateless Server Architecture

The server maintains no persistent state or historical data. All historical data for graphs is stored in browser localStorage, allowing:

• Server restarts without data loss (data persists in browser)
• Horizontal scaling (no shared state required)
• Minimal server resource usage
• Simple deployment model

Control Features & Security

Default: Read-only - The server operates in monitoring mode by default.

Optional Control Mode: Enable with environment variables:

CONTROL_ENABLED=true
CONTROL_TOKEN=your-secure-random-token

When control is enabled:

• All control operations require authentication via token
• Token must be sent in Authorization header
• Legacy POST endpoints are disabled (redirect to /control endpoint)
• UI requires authentication for control features

Similar to the proxy server's auth model but token-based for better security.

Data Aggregation Strategy

Multi-gateway aggregation uses smart aggregation that will evolve over time:

Current implementation (v0.1.0):

• Battery %: Simple average (TODO: weighted by capacity)
• Power flows: Simple sum (works for independent systems)
• Grid power: Calculated as site - solar

Future considerations documented in code:

• Capacity-weighted averages
• Different strategies per metric type
• Handling mixed local/cloud gateways
• Time synchronization across gateways
• Outlier detection

This area is expected to need tuning as real-world multi-gateway deployments provide feedback.

Performance & Caching

• Polling interval: 5 seconds (configurable later if needed)
• WebSocket updates: Real-time to UI (1-second interval)
• No server-side caching: Fresh data on every request
• Browser caching: Historical data in localStorage

UI Framework

Vanilla JavaScript - lightweight, no build step, fast loading. Charts and advanced features can be added incrementally without framework overhead.

Architecture

pypowerwall-server/
├── app/
│   ├── main.py                 # FastAPI application entry point
│   ├── config.py               # Configuration management
│   ├── api/
│   │   ├── __init__.py
│   │   ├── legacy.py           # Legacy proxy endpoints
│   │   ├── gateways.py         # Multi-gateway endpoints
│   │   ├── aggregates.py       # Aggregated data endpoints
│   │   └── websockets.py       # WebSocket handlers
│   ├── core/
│   │   ├── __init__.py
│   │   └── gateway_manager.py  # Connection manager with caching
│   ├── models/
│   │   ├── __init__.py
│   │   └── gateway.py          # All data models
│   ├── utils/
│   │   ├── __init__.py
│   │   └── transform.py        # UI data transformations
│   └── static/
│       ├── index.html          # Management console
│       ├── example.html        # iFrame demo
│       └── powerflow/          # Power flow UI assets
├── tests/
│   ├── conftest.py
│   ├── test_api_aggregates.py
│   ├── test_api_gateways.py
│   ├── test_api_legacy.py
│   ├── test_basic.py
│   ├── test_config.py
│   ├── test_edge_cases.py
│   └── test_gateway_manager.py
├── Dockerfile
├── docker-compose.yml
├── requirements.txt
├── requirements-dev.txt
└── README.md

Development

Setup

# Create virtual environment
python -m venv venv
source venv/bin/activate  # or `venv\Scripts\activate` on Windows

# Install dependencies
pip install -r requirements-dev.txt

# Run development server with auto-reload
uvicorn app.main:app --reload --port 8675

Running Tests

# Run all tests
pytest

# Run with coverage
pytest --cov=app --cov-report=html

# Run specific test file
pytest tests/test_api.py -v

Building Docker Image

docker build -t pypowerwall-server .
docker run -p 8675:8675 pypowerwall-server

Performance

The server is designed for efficiency with background polling and caching:

• Cached Responses - API endpoints return instantly from cache (no pypowerwall blocking)
• Background Polling - Default 5-second interval (configurable via PW_CACHE_EXPIRE)
• Thread Pool - Sized dynamically: max(10, num_gateways * 3) workers
• WebSocket Updates - Push data every 1 second to connected clients
• Graceful Degradation - Serves last known good data when gateways are offline
• Concurrent Gateway Polling - All gateways polled in parallel using asyncio

Technology Stack

• FastAPI - Modern, fast web framework
• Uvicorn - Lightning-fast ASGI server
• Pydantic - Data validation and settings management
• pypowerwall - Core Powerwall communication library
• aiohttp - Async HTTP client for concurrent gateway polling
• WebSockets - Real-time data streaming
• Modern UI - HTML5, CSS3, Vanilla JavaScript

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

License

MIT License - See LICENSE for details.

Support

• Issues: https://github.com/jasonacox/pypowerwall-server/issues
• Discussions: https://github.com/jasonacox/pypowerwall-server/discussions
• Wiki: https://github.com/jasonacox/pypowerwall-server/wiki
