pysm 0.4.0

Versatile and flexible Python State Machine library

pysm - Python State Machine

Versatile and flexible Python State Machine library.

Implement simple and complex state machines

It can do simple things like this:

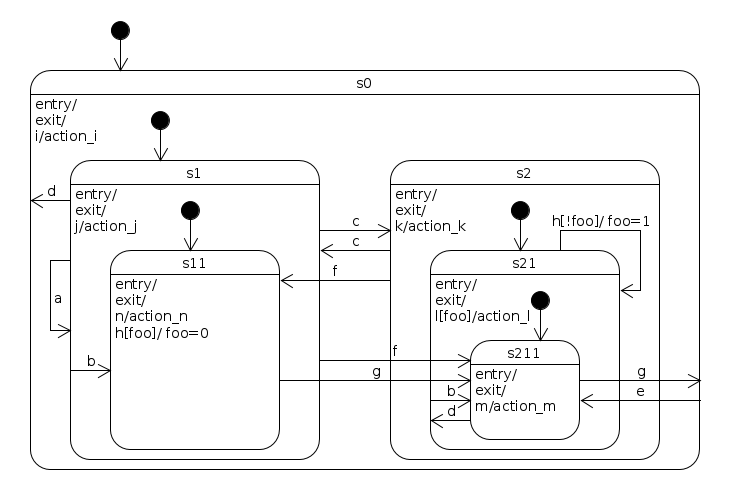

Or somewhat more complex like that:

Python State Machine

The State Pattern solves many problems, untangles the code and saves one’s sanity. Yet.., it’s a bit rigid and doesn’t scale. The goal of this library is to give you a close to the State Pattern simplicity with much more flexibility. And, if needed, the full state machine functionality, including FSM, HSM, PDA and other tasty things.

Goals

• Provide a State Pattern-like behavior with more flexibility (see Documentation for examples)

• Be explicit and don’t add any magic code to objects that use pysm

• Handle directly any kind of event or input (not only strings) - parsing strings is cool again!

• Keep it simple, even for someone who’s not very familiar with the FSM terminology

Features

• Finite State Machine (FSM)

• Hierarchical State Machine (HSM) with Internal/External/Local transitions

• Pushdown Automaton (PDA)

• Transition callbacks - action, before, after

• State hooks - enter, exit, and other event handlers

• Entry and exit actions are associated with states, not transitions

• Events may be anything as long as they’re hashable

• States history and transition to previous states

• Conditional transitions (if/elif/else-like logic)

• Explicit behaviour (no method or attribute is added to the object containing a state machine)

• No need to extend a class with State Machine class (composition over inheritance)

• Fast (even with hundreds of transition rules)

• Not too many pythonisms, so that it’s easily portable to other languages (ie. JavaScript).

• Micropython support

• Optional queued, thread-safe, async, serialization, builder, and typing helpers are available as explicit imports, so the core import stays small.

Installation

Install pysm from PyPI:

pip install pysm

or clone the Github pysm repository:

git clone https://github.com/pgularski/pysm
cd pysm
python setup.py install

Documentation

Read the docs for API documentation and examples - http://pysm.readthedocs.io/

The full documentation also covers the optional queued, thread-safe, async, serialization, and builder modules.

See Unit Tests to see it working and extensively tested.

Micropython support

The core runtime remains the intended shape for memory-constrained MicroPython/upysm builds. Optional CPython-oriented modules should stay out of device builds unless you explicitly need them and have measured the memory cost.

The library works with pyboards!:

import upip
upip.install('upysm')
