ramify

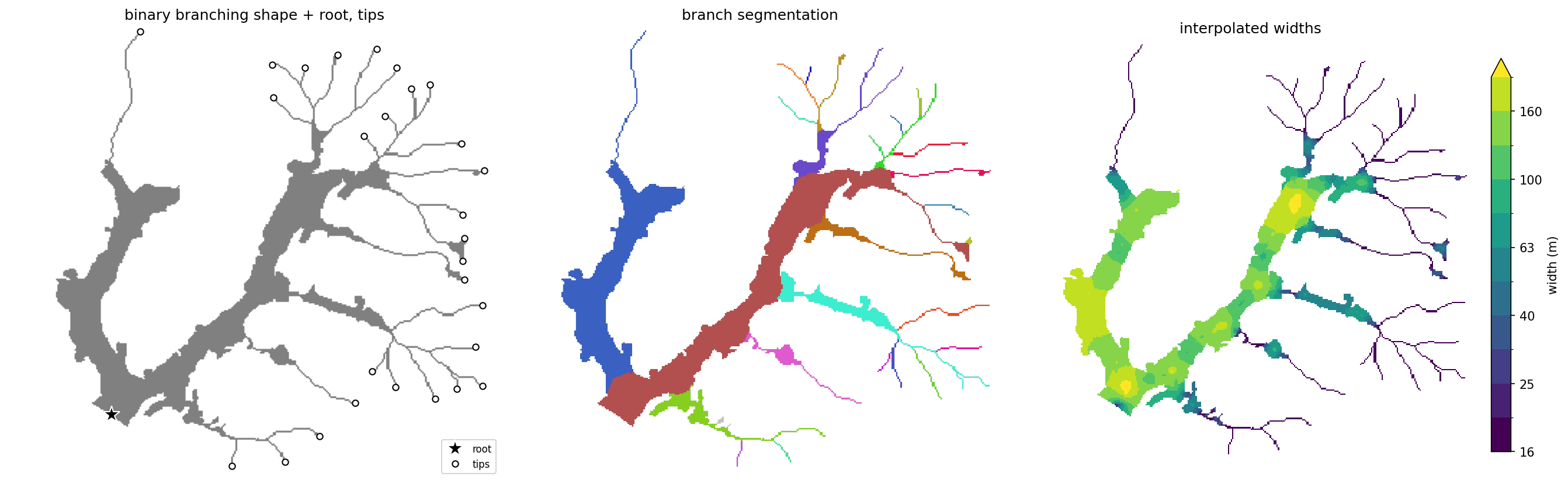

Characterize binary branching shapes (e.g. rivers, floodplains, glaciers, roots, veins...). Given a shape mask, a root point, and (optionally) branch tips, ramify extracts a topology-aware centerline network, decomposes it into hierarchically ordered paths, allocates every pixel of the shape to its path, and estimates local width everywhere.

Install

pip install ramify

Development (clone, then sync with dev extras):

git clone https://github.com/avkoehl/ramify.git
cd ramify
uv sync --extra dev

Usage

import ramify
from ramify.data import load

mask, root, tips = load()                       # bundled toy dataset

net = ramify.extract_centerlines(mask, root, tips=tips)     # centerline network of ordered paths
regions = ramify.partition_by_priority(mask, net.rasterize(by="path"))
widths = ramify.interpolate_widths(mask, net.rasterize(), regions)

net.segments                                    # DataFrame: segment_id, path_id, strahler,
                                                #   length, weight, downstream_segment_id
regions                                         # labeled raster: each pixel -> its path
widths                                          # float raster: local width everywhere

Inputs are np.ndarray (with pixel_size=) or georeferenced xr.DataArray; outputs match the input type. root and tips are (row, col) pixel coordinates.

Components

Each individual component is presented below.

Centerlines

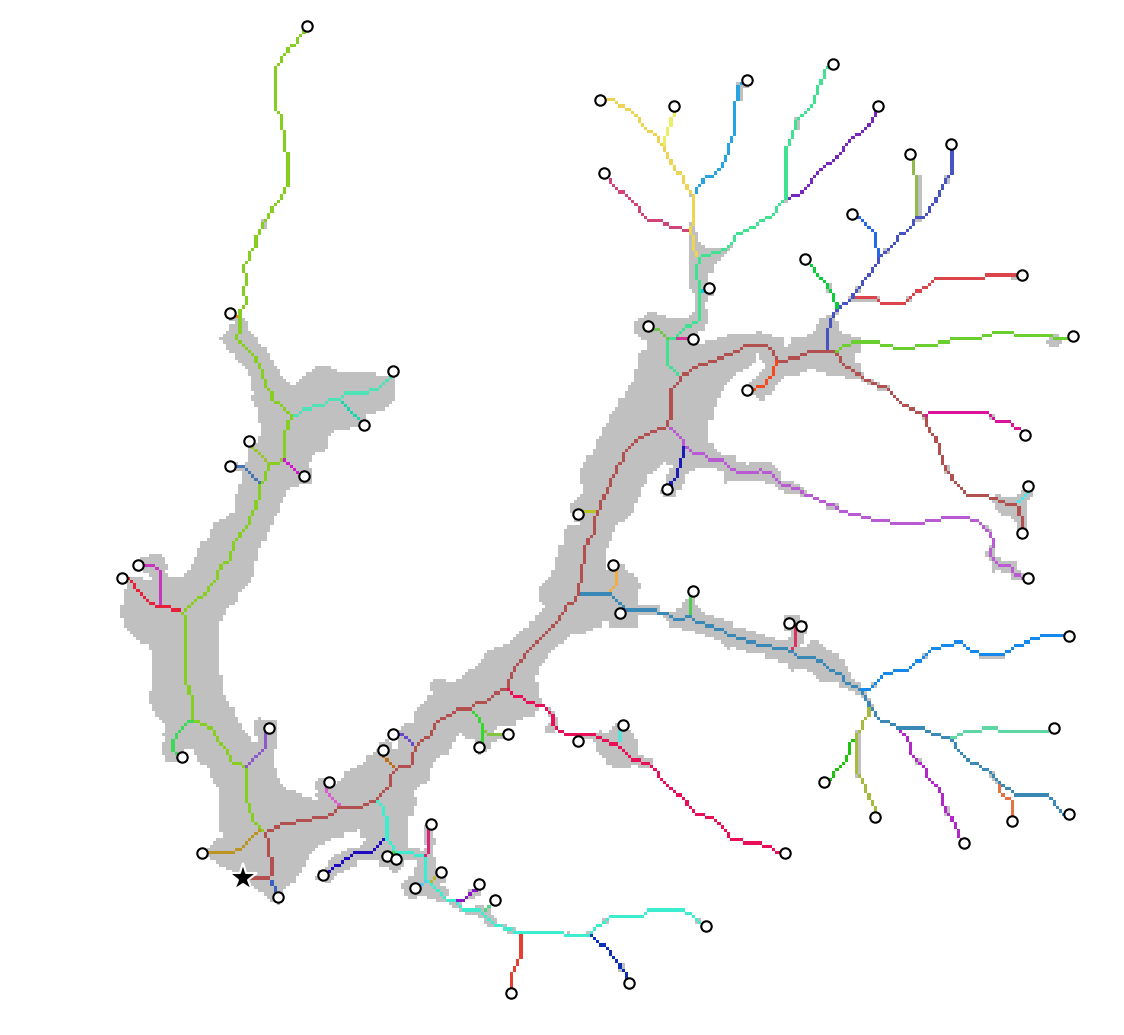

net = ramify.extract_centerlines(mask, root, tips=tips)

Skeletonizes the mask, routes from each tip to the root (pruning everything else), and decomposes the network into ordered paths — path_id == 1 is the mainstem.

net = ramify.extract_centerlines(mask, root)

Without tips, every skeleton endpoint becomes a tip.

Tips and root can often be derived automatically — glacier branch tips Kienholz et al., 2014, channel initiation points, or the lowest point on the boundary as the root — or simply digitized in GIS software.

Partitioning

regions = ramify.partition_by_priority(mask, net.rasterize(by="path"))

Assigns every pixel to a path: paths claim territory in priority order, each limited by the local shape radius, so wide branches claim proportionally more space at junctions.

regions = ramify.partition_by_nearest(mask, net.rasterize(by="path"))

Nearest-centerline partition — no ordering, no radius limits.

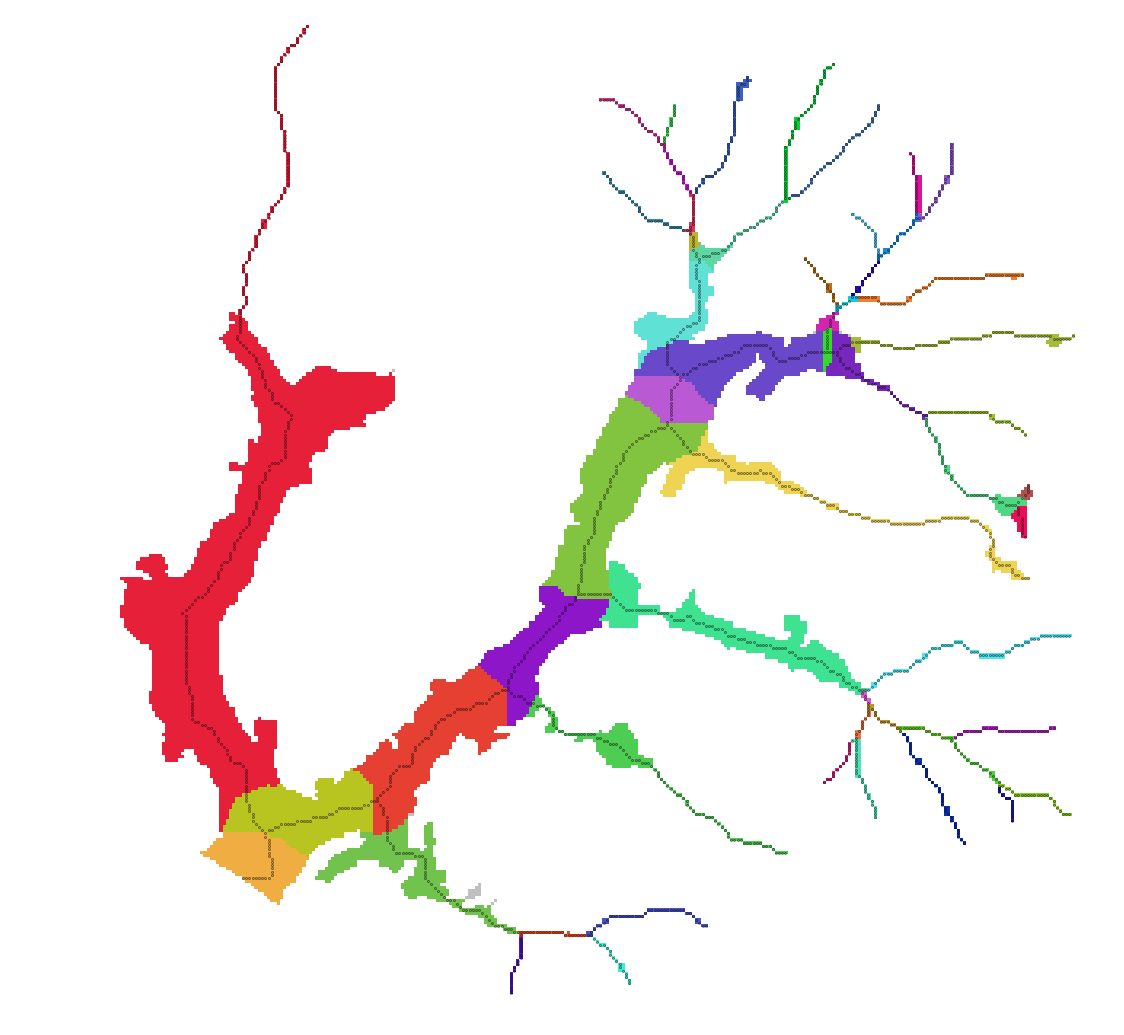

seg_regions = ramify.subdivide_regions(regions, net)

Subdivides each path's territory further: within a territory, every pixel goes to its nearest centerline segment of that same path.

Widths

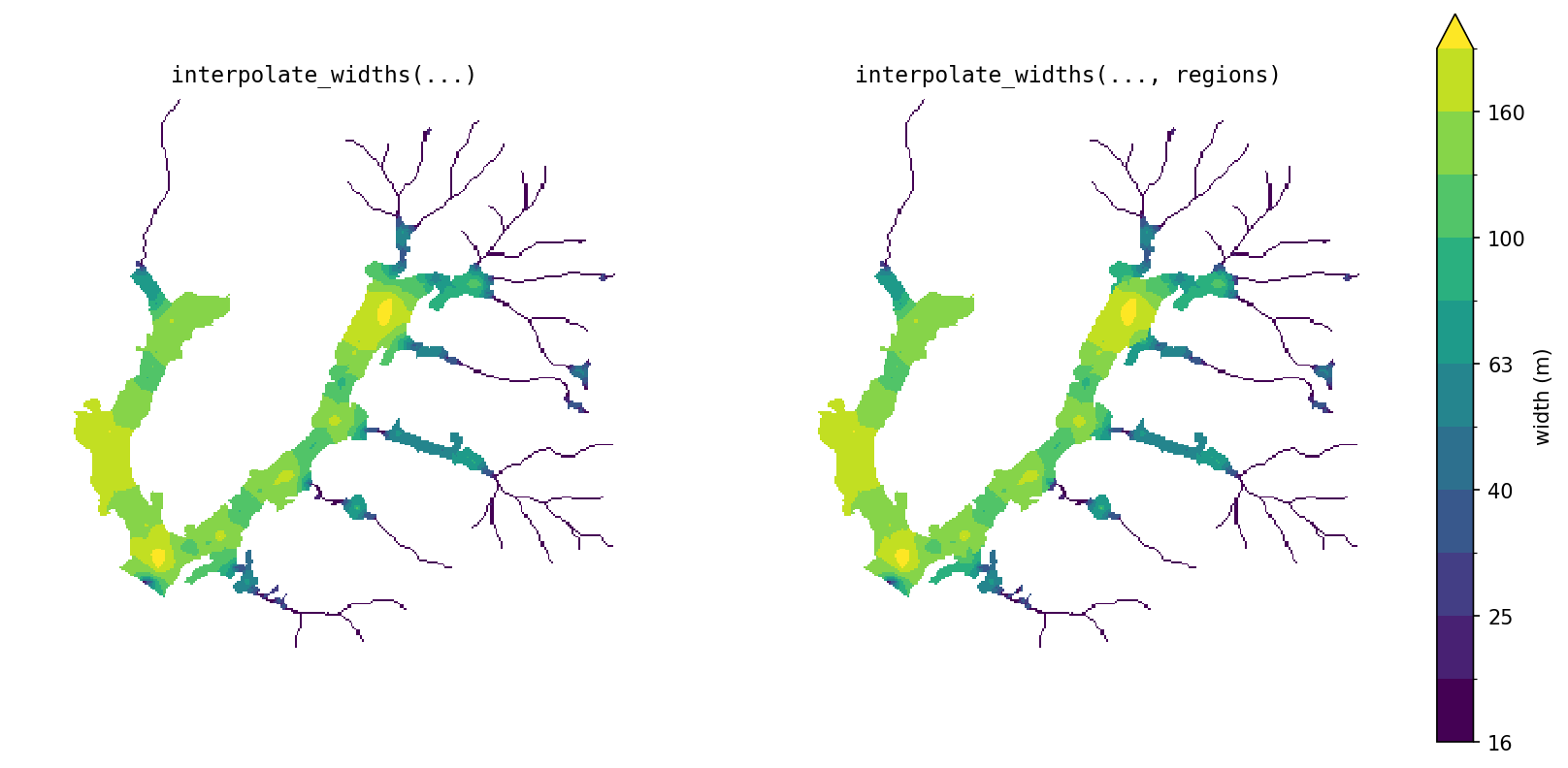

Exact widths (twice the distance to the boundary) are taken at the centerline and interpolated across the shape. That interpolation runs either over the whole shape or independently within each region, which keeps junction-zone pixels from averaging between a branch and its mainstem:

w = ramify.interpolate_widths(mask, net.rasterize())                    # whole shape
w = ramify.interpolate_widths(mask, net.rasterize(), regions=regions)   # per region

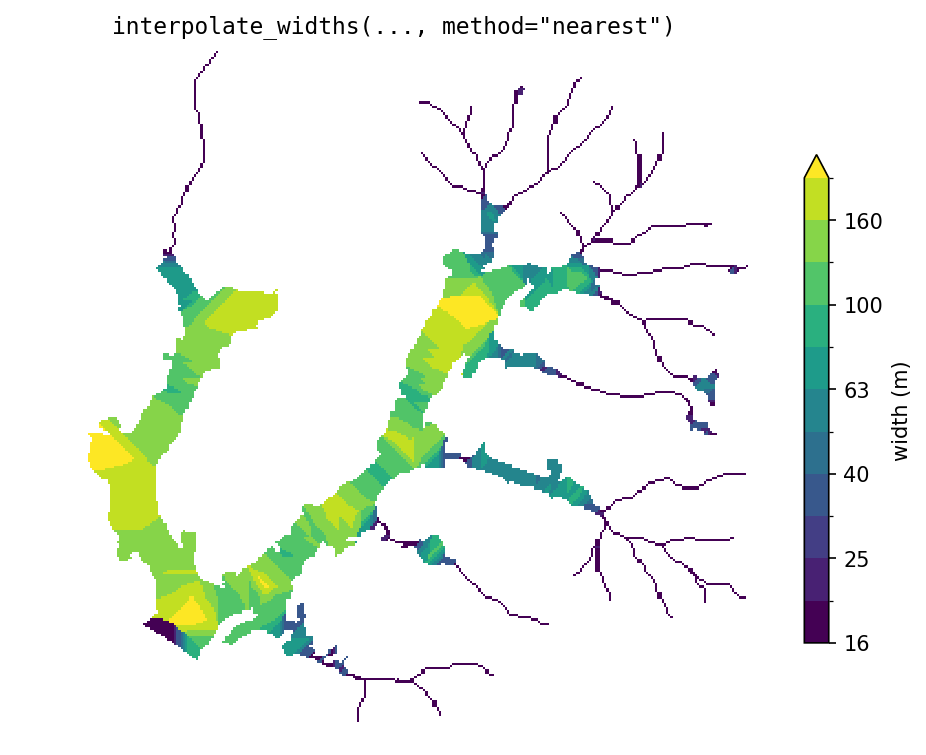

Either call also takes method="nearest", which gives each pixel the width of its nearest centerline pixel instead of diffusing smoothly from it — piecewise constant, and much faster:

w = ramify.interpolate_widths(mask, net.rasterize(), method="nearest")

Open boundaries

Everything above measures local half-width as the distance from each pixel to the shape's boundary, and that half-width drives three things: which branch is the mainstem, how far each path claims territory, and the width field. By default every boundary pixel is treated as a wall. Sometimes part of the boundary is not a real wall — the shape is truncated by open water, the data extent, or another medium — and treating it as one makes the half-width collapse to zero there.

Pass open_boundary: a binary mask, on the same grid as the shape, marking the non-wall (void) pixels. Distances are then measured only to the remaining real walls. It is optional — omitted, every boundary is a wall (the behaviour above) — and accepted by extract_centerlines, partition_by_priority, and interpolate_widths. Give it to every step, so all three stages measure against the same walls:

net = ramify.extract_centerlines(mask, root, tips=tips, open_boundary=open_boundary)
regions = ramify.partition_by_priority(mask, net.rasterize(by="path"), open_boundary=open_boundary)
widths = ramify.interpolate_widths(mask, net.rasterize(), regions,
                              open_boundary=open_boundary)

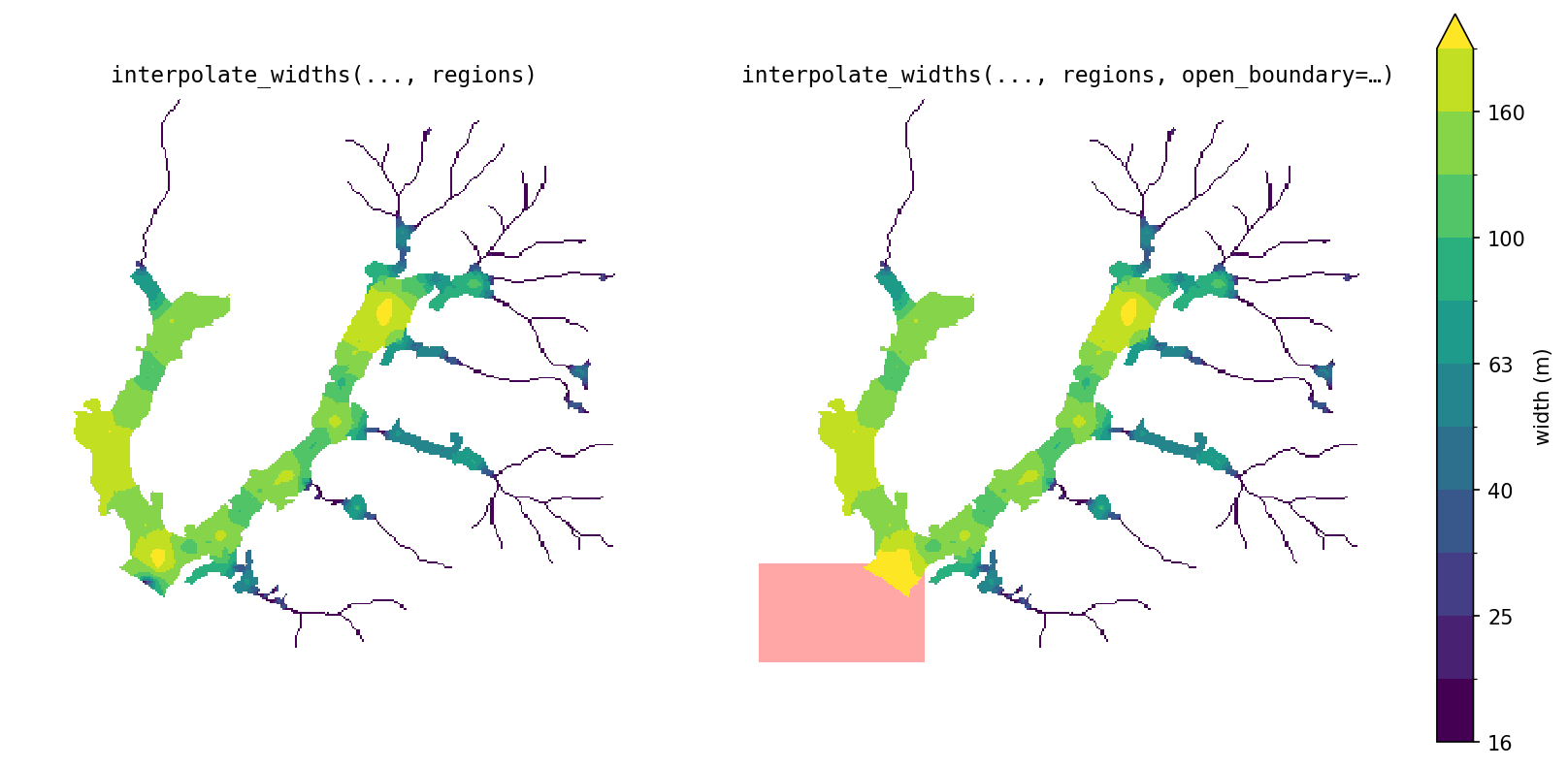

Below, the same mask, root, and tips are reused, but the void past the outlet is marked open (shaded red), and the outlet widths no longer taper to the cut edge. Mark a region with depth rather than a thin skin along the boundary: distances are measured through the open void, so a one-pixel rind would only push the wall out by one pixel.

Only the widths are shown because on this shape the partitioning didn't change.
