ruptures-rs

Find the moments a time series changed behaviour.

What this is for

You have a sequence of measurements, and partway through, something changed — and stayed changed. Change point detection finds those moments: the boundaries between stretches where the data behaves one way and stretches where it behaves another.

That is a different question from anomaly detection. An anomaly is one odd reading. A change point is where a new normal begins. If your latency rose after a deploy and stayed up, no single request looks wrong, but there is a moment worth finding.

It comes up wherever a process has regimes:

• Operations — when did the error rate shift, and does it line up with the release?
• Industrial sensors — split a run into phases, or catch where a machine's vibration signature changed.
• Finance — divide a series into volatility regimes instead of assuming one.
• Genomics — copy number segmentation, which is where much of this literature comes from.
• Wearables — cut an accelerometer trace into activities.

You supply the signal and either the number of changes you expect or a penalty for adding one. You get back the breakpoints.

Quick start

pip install ruptures-rs

import ruptures_rs as rpt

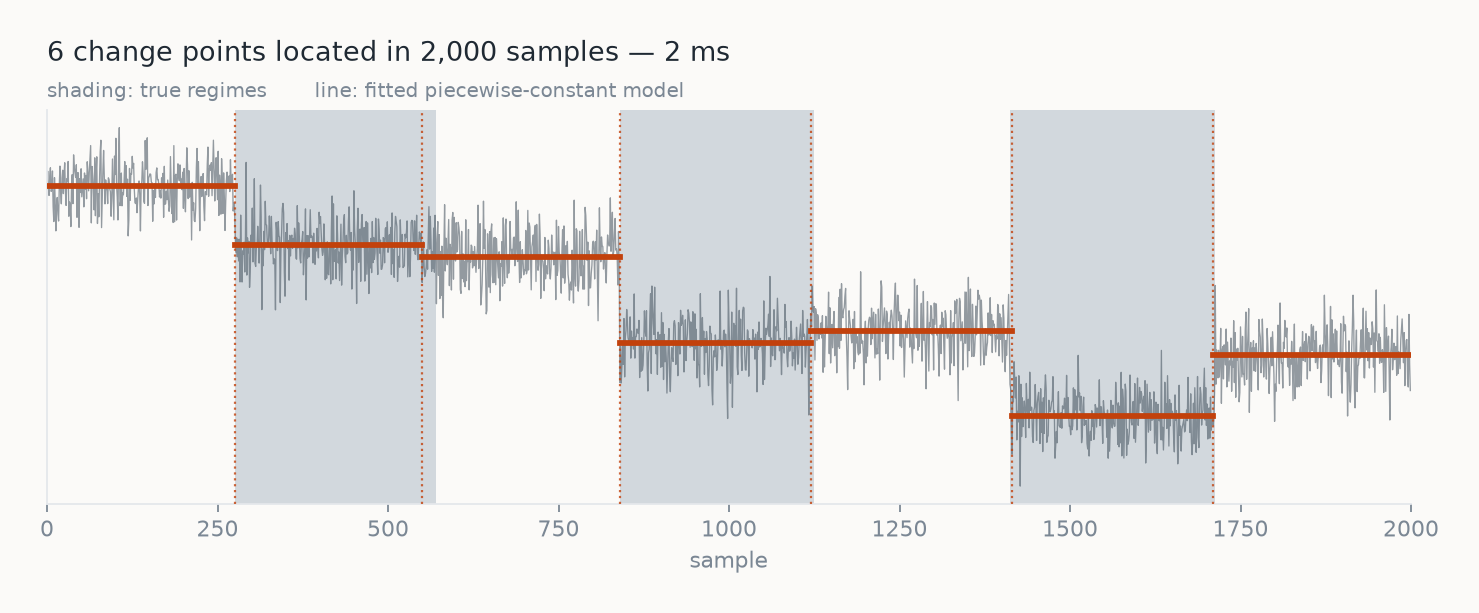

# A synthetic signal with six changes, so the example runs anywhere.
signal, true_bkps = rpt.pw_constant(2_000, 1, 6, noise_std=3, seed=11)

# "I expect six changes. Where are they?"
bkps = rpt.Dynp(model="l2", min_size=20, jump=5).fit(signal).predict(6)
#  -> [275, 550, 840, 1120, 1415, 1710, 2000]      in 1.6 ms

# "I don't know how many. Charge me 500 for each one you add."
bkps = rpt.Pelt(model="l2", min_size=20).fit(signal).predict(pen=500)

rpt.display(signal, true_bkps, bkps)   # needs matplotlib

A breakpoint is the end of a segment, and the last one is always the length of the signal — the same convention ruptures uses.

Choose a detector by what you know going in. Dynp when you know the number of changes and want the exact optimum. Pelt when you do not, and would rather set a penalty. Binseg and BottomUp for a quick approximate answer. Window for a fast scan of a long signal.

Choose a cost by the kind of change you are looking for. l2 for shifts in the mean, normal for shifts in variance or correlation, rbf for changes in distribution that are not just the mean, linear and ar for a change in a relationship or a temporal model.

A drop-in replacement for ruptures

This reimplements ruptures, the standard Python library for this problem, with the same API.

- import ruptures as rpt
+ import ruptures_rs as rpt

That is the whole migration. Same classes, same arguments, same breakpoints — verified by 1,392 tests that run both libraries on the same input and demand identical output, not merely similar output.

It also installs where the reference currently cannot. One abi3 wheel per platform covers Python 3.10 through 3.14, including musl, so pip install never has to go looking for a C compiler.

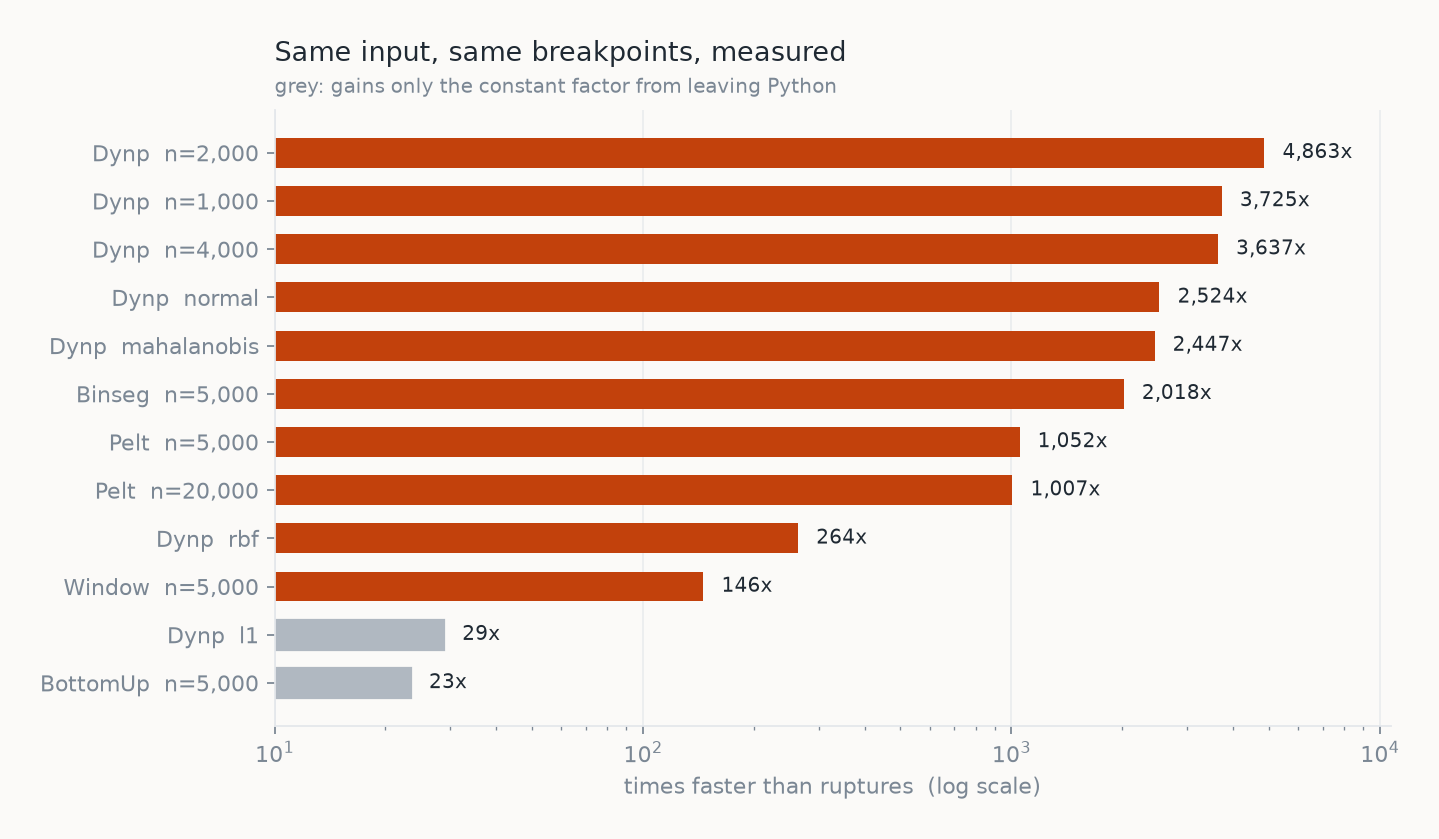

Fast enough to change what you attempt

ruptures evaluates its cost function once per cell of a dynamic-programming table, and every call is an O(segment length) NumPy reduction. Nearly all of those costs are a difference of prefix sums in disguise, which makes them O(1) — so the gain is structural, not just the constant factor from leaving Python.

The practical effect is that exact segmentation stops being something you budget for. A 50,000-point signal takes 0.06 s here, and is not a workload the reference can run at all.

Full benchmark tables →

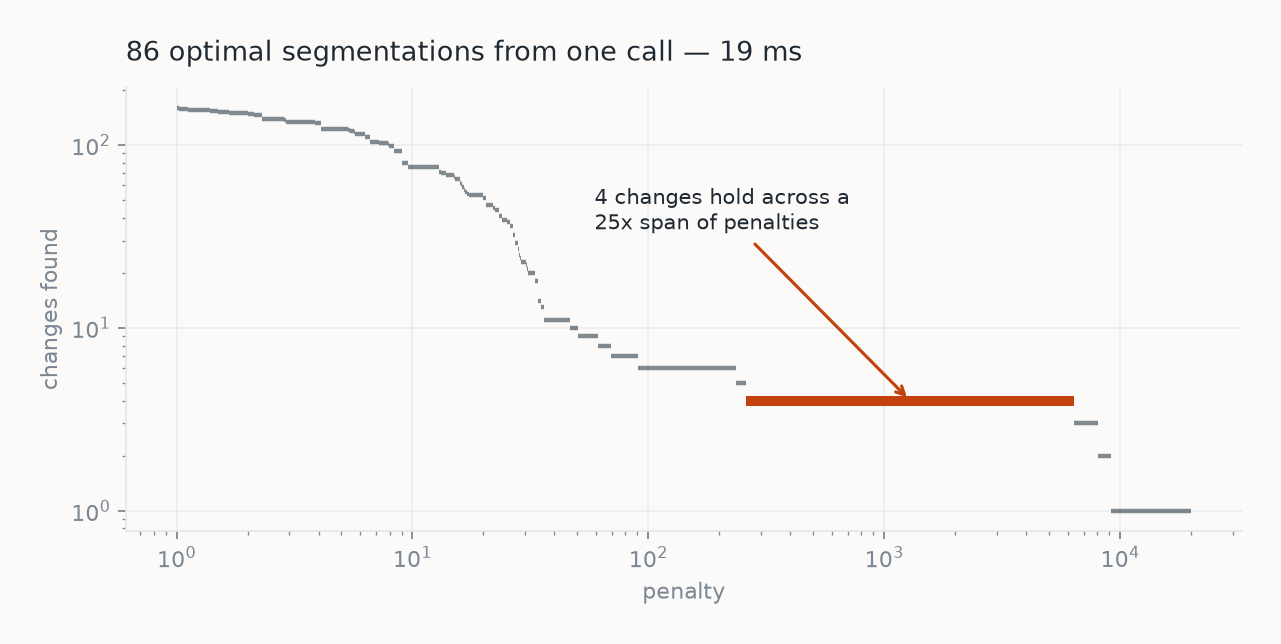

Choosing a penalty without guessing

Penalised detection asks you for a penalty, and nobody knows theirs in advance. Crops returns every segmentation that is optimal somewhere in a penalty range, with the exact interval each one owns:

for regime in rpt.Crops(model="l2", min_size=10).fit_predict(signal, 1, 20_000):
    print(f"{regime.n_bkps:2d} changes for penalty in "
          f"[{regime.pen_min:,.0f}, {regime.pen_max:,.0f}]")

The answer that survives the widest span of penalties is the defensible one, because it is the least sensitive to the parameter you could not justify picking. ruptures has no equivalent, and it is only practical here because PELT became cheap enough to run dozens of times. examples/penalty_path.py works through it.

What's included

Everything in ruptures 1.1.9, plus Crops:

Your own custom_cost still works. It runs on a pure-Python implementation, because a Python callable inside the inner loop cannot be made faster by crossing an FFI boundary to reach it — same answers, original speed. estimator.accelerated reports which path you are on.

Going deeper

• Benchmarks — every measured row, and how it was measured.
• Accuracy and correctness — why prefix sums are a numerical trap, what is done about it, and how the test suite is built.
• Where the answers differ — the four places this package and ruptures can disagree, stated precisely, each pinned by a test.
• Changelog.

For code you cannot edit

When a dependency deep in the stack imports ruptures by name:

import ruptures_rs
ruptures_rs.install()   # before anything imports `ruptures`

import ruptures as rpt  # this is now ruptures_rs

It refuses rather than half-patching the module graph if the real ruptures has already been imported.

Development

pip install maturin pytest numpy scipy ruptures
maturin develop --release
pytest tests/ -q
cargo test

Licence and credit

BSD-2-Clause, the same licence as ruptures.

This is a reimplementation of ruptures by Charles Truong, Laurent Oudre and Nicolas Vayatis, whose API, algorithms and semantics it deliberately reproduces. The pure-Python fallback in _fallback.py is a direct port of their code. If you use this in research, cite their paper:

C. Truong, L. Oudre, N. Vayatis. Selective review of offline change point detection methods. Signal Processing, 167:107299, 2020.
