SBOM Visualization Plugin

A plugin for Surfactant that generates interactive visualizations of CyTRICS-formatted SBOMs

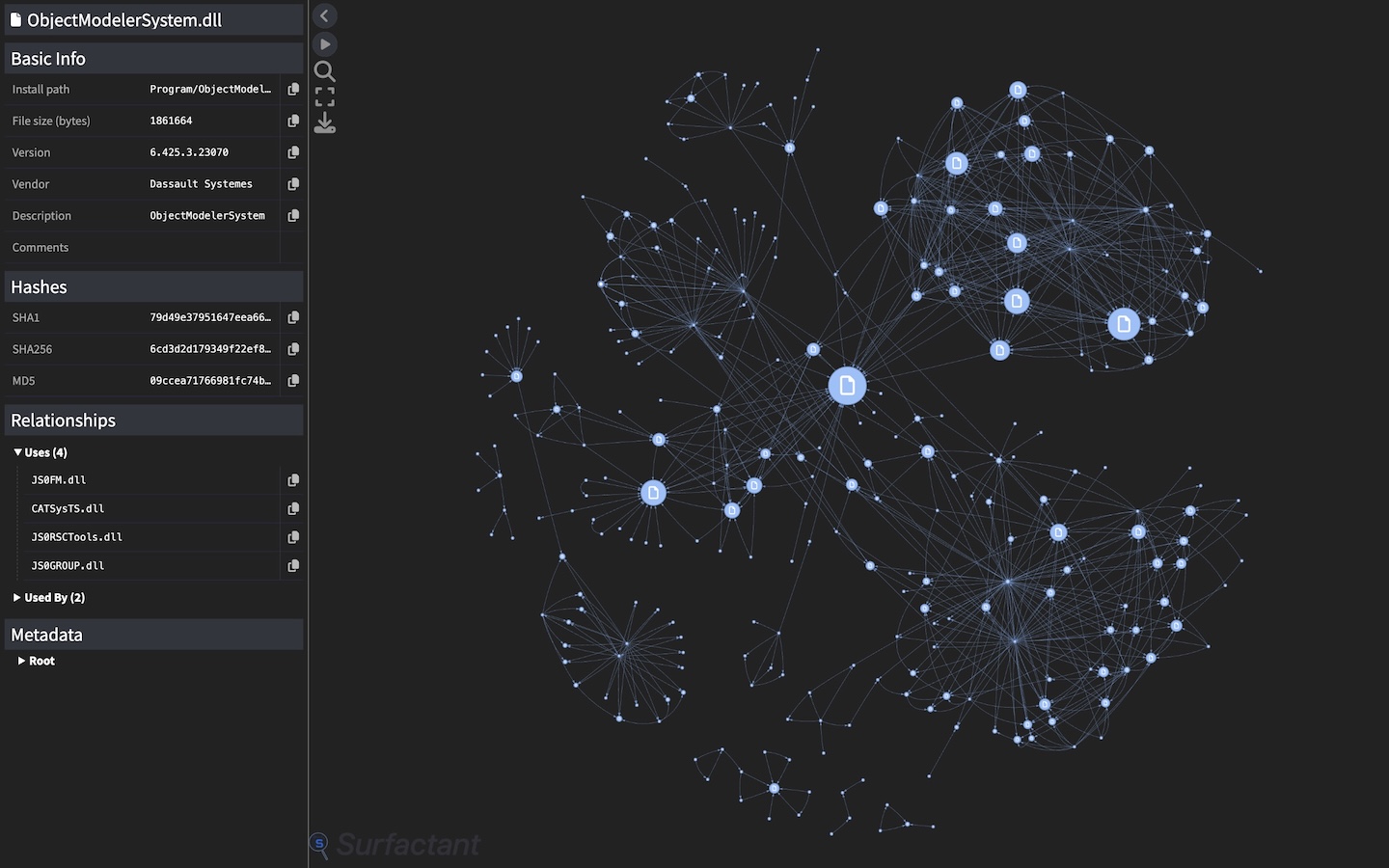

Installation

SBOMVis can be installed as a plugin for Surfactant or as a standalone executable with pip & pipx. Commands for installing with pipx (recommended) are shown below:

As a Surfactant plugin

$ pipx inject surfactant sbomvis

Standalone installation

$ pipx install sbomvis

Usage

The plugin can generate visualizations when running Surfactant's generate command or from an existing SBOM.

Generating visualizations during a Surfactant run

Passing in sbomvis as the output format will cause Surfactant to generate an HTML file with the same name as the SBOM containing the visualization. The original JSON SBOM will also be saved to the same directory.

$ surfactant generate --output_format=sbomvis SPECIMEN_CONFIG SBOM_OUTFILE

Generating visualizations from an existing SBOM

Visualizations can be created from an existing Surfactant SBOM by running sbomvis and passing in it's path with -p.

Surfactant SBOM Visualization

options: -h, --help show this help message and exit -p PATH [PATH ...], --path PATH [PATH ...] Path(s) to JSON SBOMs -c, --cull Enable culling of isolated nodes (may improve performance on large graphs at the cost of completeness) -pb, --use-progress-bar Display progress bar while waiting for large graphs to load instead of disabling physics

## Controls
Several controls are included:
* Clicking on a node will reveal a sidebar with more information about it
* Right clicking on a node will pin/unpin it in place
* Archives and containers can be expanded or collapsed by double clicking

Note: Physics is initially disabled for large graphs (~600+ nodes) to improve loading times. Once the graph is on screen it should be re-enabled via clicking the toggle in the upper left corner.
