sg-widgets-qt

Flow Production Tracking (formerly ShotGrid) widgets for Qt: pickers, editors, tables, trees, grids and search. For pipeline developers writing tools inside Maya, Houdini, Nuke, RV or a standalone app.

Install

pip install "sg-widgets-qt[pyside6]"
uv add "sg-widgets-qt[pyside6]"

Python 3.9 and up. [pyqt5] is the other extra; PyQt6 and PySide2 carry no extra and install by name beside the package. PySide2 has no Apple Silicon wheel, so on an M-series Mac name one of the other three.

Inside a DCC, install sg-widgets-qt on its own. Maya, Houdini, Nuke and RV import their own Qt binding before your code runs, and a second binding in that interpreter breaks it. The package brings shotgun_api3 and qtpy and, without an extra, no binding at all.

Every Qt import here goes through qtpy, so one widget runs on PySide2, PySide6, PyQt5 and PyQt6, and on whichever of them the host imported first. Where more than one is importable, QT_API picks.

The showcase

sg-widgets-showcase
python -m sg_widgets_qt.showcase

Either line opens the same window: one page per widget, with a live demo, the props, signals, slots and keyboard tables, and the docs prose. The pages ship inside the package, so it needs no checkout. The demos run on the mock, so it needs no site; its toolbar offers Live where the three values below are set.

A first widget

The mock site is generated in process, so this block runs on a fresh install with no credentials and no network.

import os

from qtpy.QtWidgets import QApplication

from sg_widgets_core import MockClient, create_sg_context
from sg_widgets_qt.widgets.entity_picker import EntityPicker

app = QApplication([])
context = create_sg_context(MockClient())
picker = EntityPicker(entity_types=["Shot"], context=context)
picker.value_changed.connect(lambda ref, row: print(ref))
picker.show()
if os.environ.get("QT_QPA_PLATFORM") != "offscreen":
    app.exec()

The context is built once and handed to every widget. Swapping the mock for a site is the client line alone. ShotgunClient.from_env() needs three environment values: FPT_API_SITE_URL, FPT_API_SCRIPT_NAME and FPT_API_API_KEY.

# Needs a site: FPT_API_SITE_URL, FPT_API_SCRIPT_NAME and FPT_API_API_KEY.
from sg_widgets_core import ShotgunClient, create_sg_context
from sg_widgets_qt.widgets.entity_picker import EntityPicker

context = create_sg_context(ShotgunClient.from_env())
picker = EntityPicker(entity_types=["Shot"], context=context)

The widgets

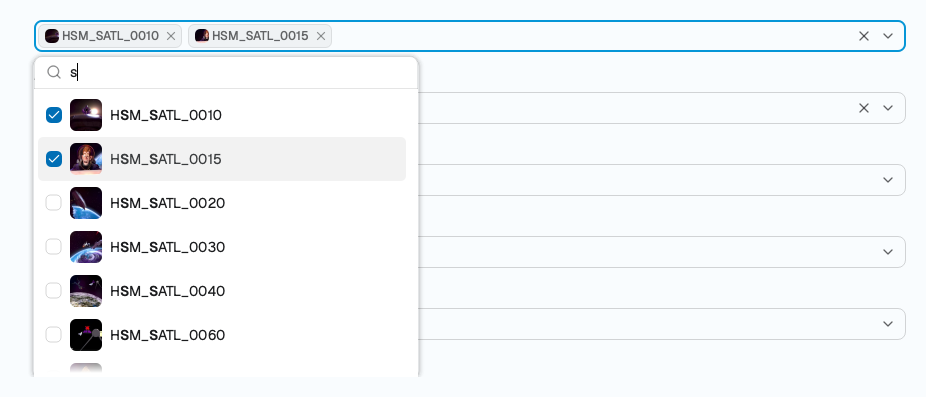

	A picker searches the site, holds what was ticked as chips, and emits references.

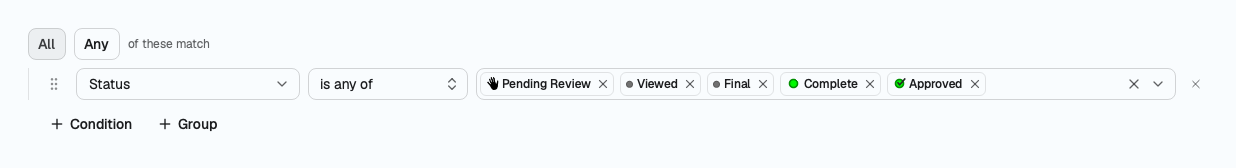

	The filter editor builds a condition tree and serialises it for the API.

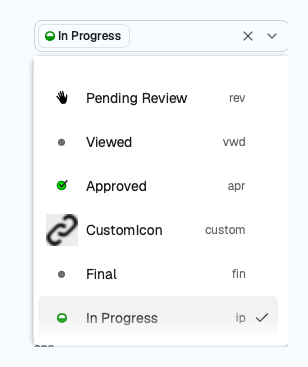

	Statuses carry the site's own names, codes, colours and icons, per project.

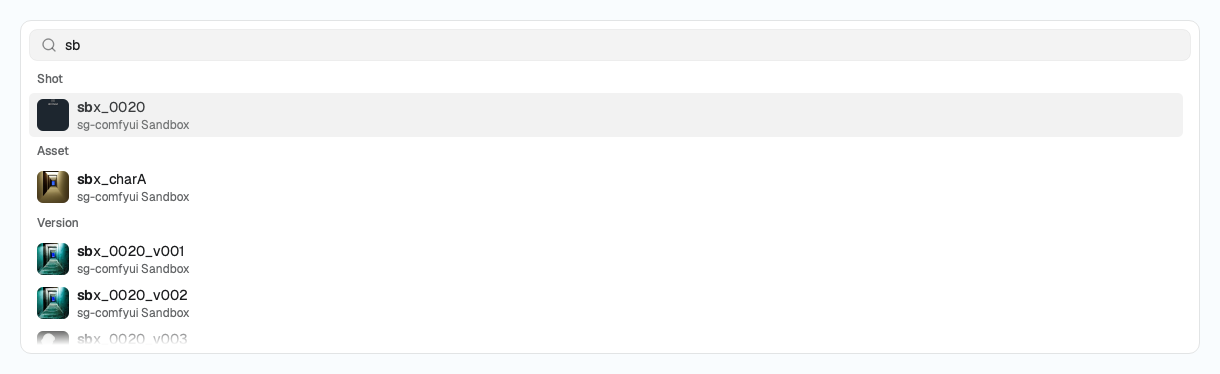

	Global search reads across entity types and marks what matched.

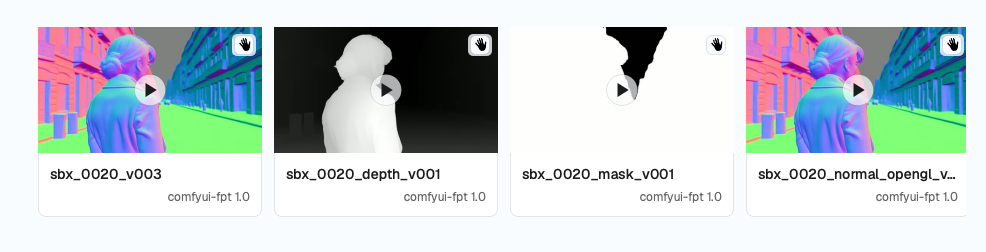

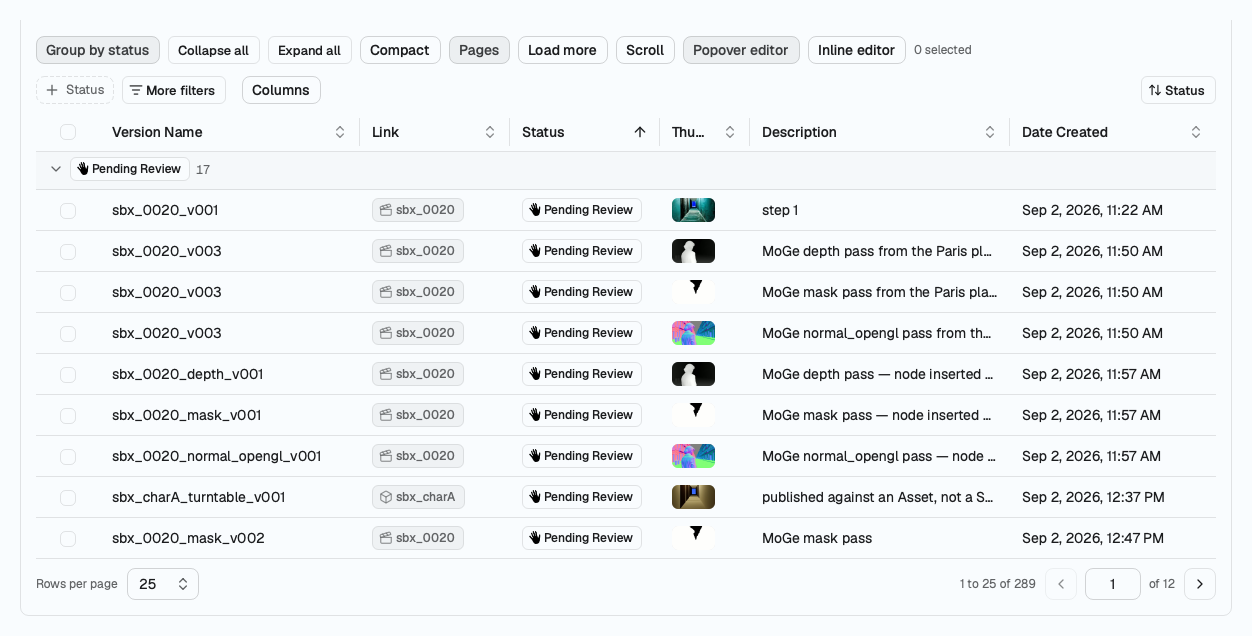

	A table, a grid and a tree page a set, sort it, group it and edit a cell.

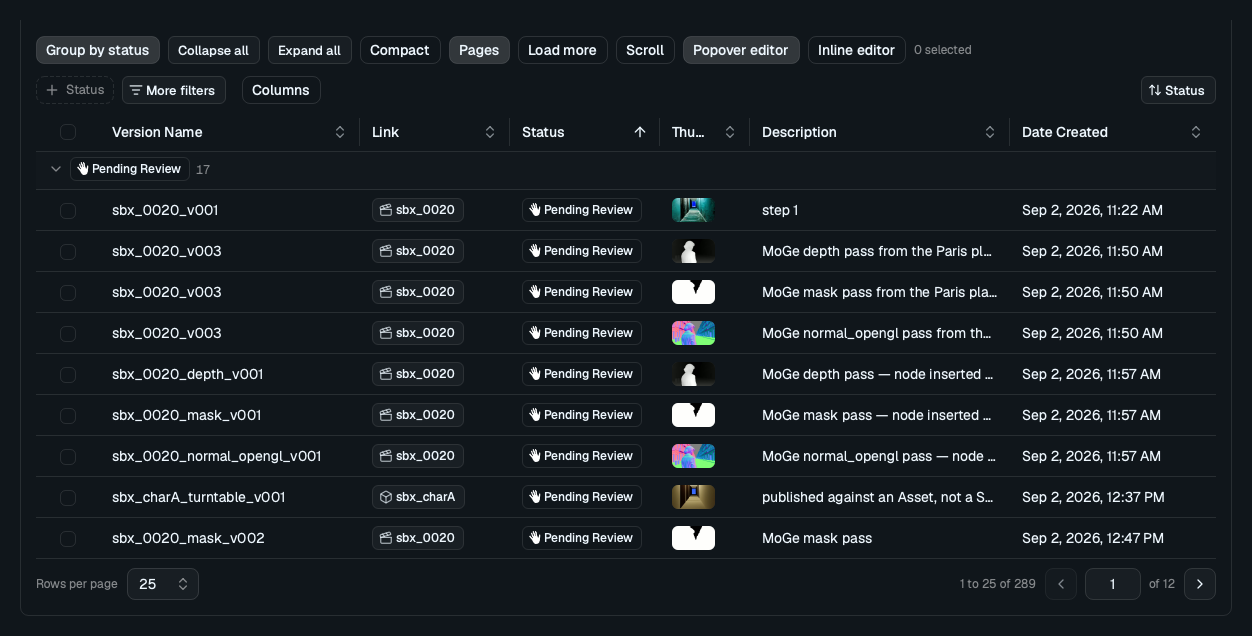

	Every widget wears a light and a dark theme, or the host application's palette.

Every shot above reads a live site. One page per widget says what each one takes and emits, beside the introduction, install and the core.

How it relates to sg-widgets

This is a port of sg-widgets, whose React and Svelte widgets carry the same names, props and behaviour, and whose documentation site is the reference for what a widget does; the pages here say where Qt or Python forced a difference. The framework-neutral half comes with it as sg_widgets_core, which holds the field data types, the operator vocabularies, the filter tree, status logic, the formatters, the parsers, the client protocol and a generated mock site, and imports no Qt, so it runs in a farm job as well as in a window. What either repo claims about the API is measured in sg-groundtruth and cited where it is relied on.

Status

Alpha. 45 widgets, 30 core modules and 51 documentation pages are complete, on Python 3.9 through 3.13 and on Qt 5.15 and Qt 6. Both packages carry py.typed. Names, props and signals can still change between 0.x releases, and the changelog records what changed. Ask for a widget, report a defect or say what reads wrong in the issues.

Licence

MIT. See LICENSE.
