slurm-avail 0.2.1

A live, configurable terminal dashboard for multiple Slurm clusters.

slurm-avail brings live CPU, memory, GPU, filesystem, and scheduler data from multiple Slurm clusters into one keyboard-driven TUI. Clusters can be queried locally or over SSH. No slurm-avail agent or service needs to be installed on the HPC systems; the dashboard uses their existing Slurm command-line tools.

Live multi-cluster overview	Scheduler forecast

Views

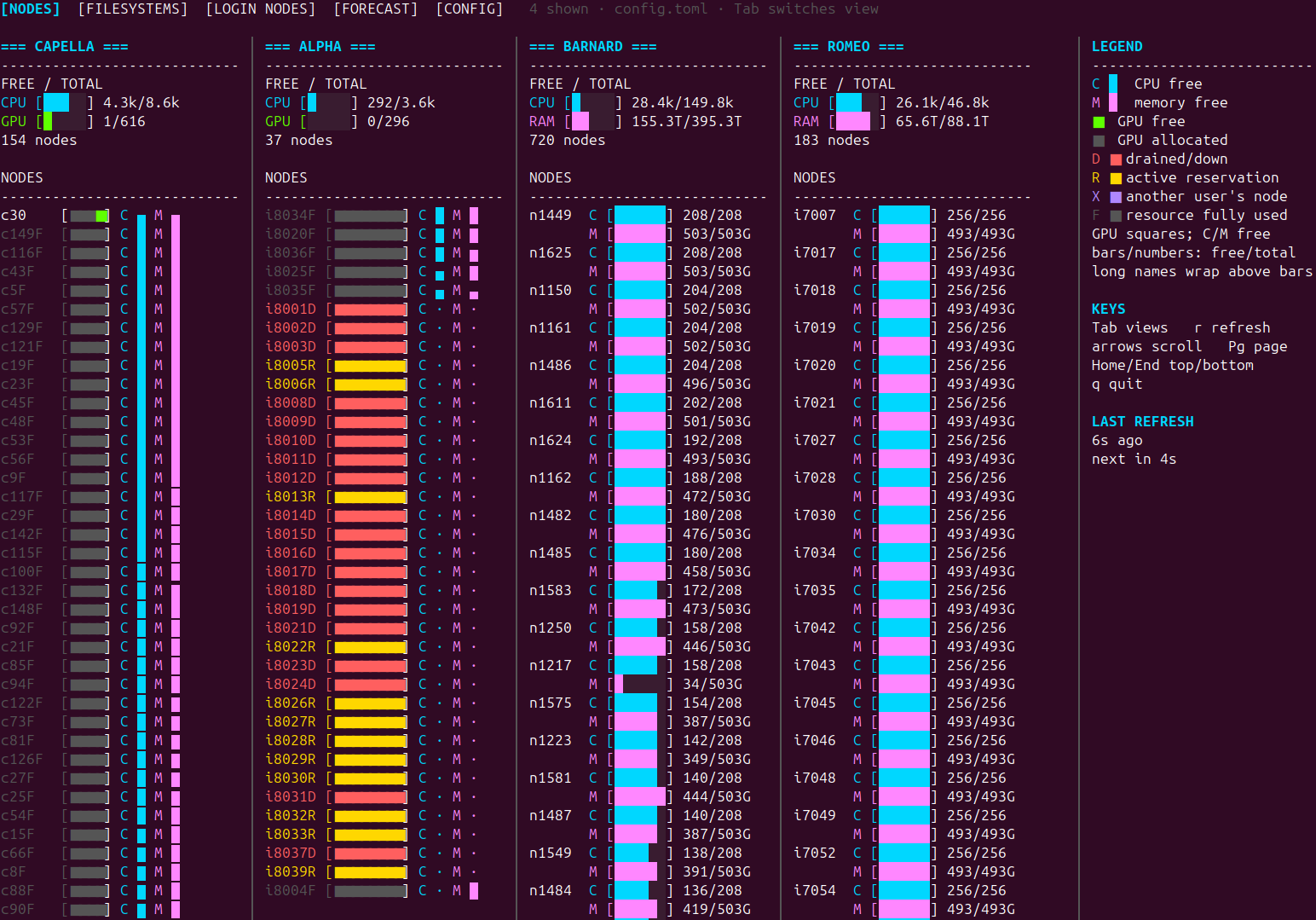

Nodes gives a live overview of all configured clusters. It summarizes free CPU, memory, and physical GPU capacity and then shows how those resources are distributed across individual nodes. Node states such as allocated, reserved, user-exclusive, drained, and down remain visible in the same view.

Filesystems compares capacity and available space for the storage paths configured on each cluster.

Login Nodes shows which SSH endpoints are reachable, which endpoint is currently supplying data, and whether automatic failover is available.

Jobs combines the current user's live queue with recent accounting history. Its default All scope lists jobs from every configured cluster; numbered cluster scopes filter the same table. Running jobs show their actual nodes and start/end times, pending jobs show Slurm's wait reason and placement estimate, and finished jobs appear in a separate history table with result-aware colors. A fixed inspector at the bottom follows the selected row and shows its full timing and result information. For pending jobs it also exposes weighted sprio factors and account and user fair-share data from sshare. Scheduler estimates are presented as estimates, not predictions made by the dashboard. The history window and its refresh interval are configurable; they default to seven days and one minute.

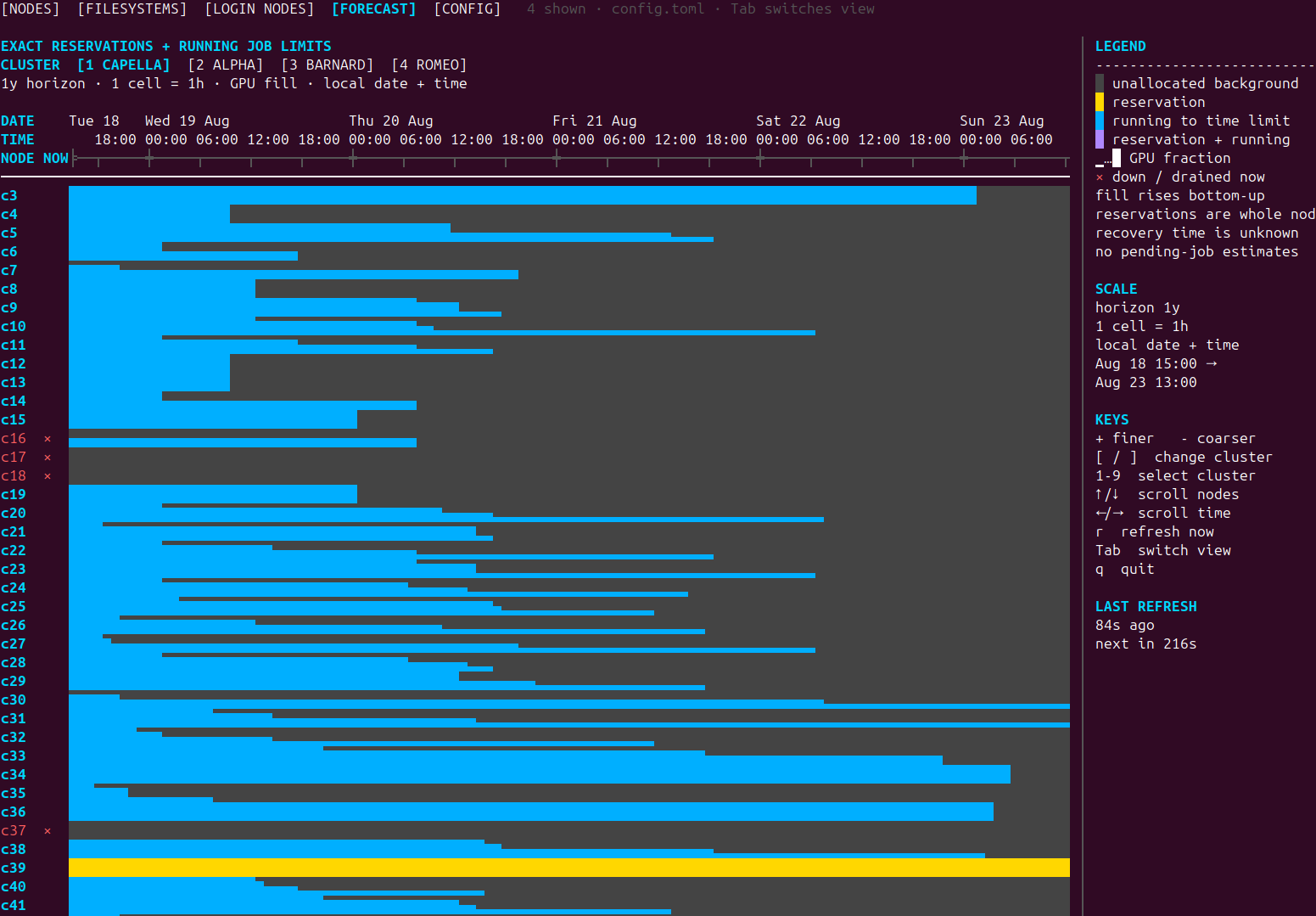

Forecast presents a per-node timeline of exact Slurm reservations and the remaining time limits of currently running jobs. The timeline can be zoomed and navigated from short operational windows up to a year. It deliberately does not speculate about when pending jobs will start.

Config manages clusters and dashboard behavior without leaving the TUI. Clusters can use local or SSH collection, multiple login endpoints, CPU or GPU focused layouts, custom Slurm locations, and selected filesystem paths. They can also be hidden or reordered, while refresh and retry intervals are shared dashboard settings. Everything is persisted in a readable TOML file.

Installation

Install from PyPI with uv:

uv tool install slurm-avail
slurm-avail

pipx is also supported:

pipx install slurm-avail

The package has no third-party runtime dependencies.

Quick start

Run:

slurm-avail

On first launch, the Config view opens automatically and creates:

~/.config/slurm-avail/config.toml

Select the initial local cluster and press Enter to edit it, or press a to add an SSH cluster. Press s to save and apply, then use Tab to switch between Nodes, Filesystems, Login Nodes, Jobs, Forecast, and Config.

You can return directly to configuration with:

slurm-avail --init

Configuration

Clusters may run locally or be reached through one or more SSH endpoints.

The following is an example configuration for the TU Dresden HPC system. It monitors the Capella, Alpha, Barnard, and Romeo clusters, including their two login nodes and shared filesystems. Replace USERNAME with your own TU Dresden/ZIH username.

version = 1

[settings]
node_refresh_seconds = 10
filesystem_refresh_seconds = 60
login_refresh_seconds = 60
jobs_refresh_seconds = 10
jobs_history_refresh_seconds = 60
jobs_history_days = 7
forecast_refresh_seconds = 300
failed_retry_seconds = 10
ssh_connect_timeout_seconds = 8
command_timeout_seconds = 20
login_probe_timeout_seconds = 10
filesystem_probe_timeout_seconds = 2
retries_per_address = 0
retry_delay_seconds = 1
forecast_horizon_days = 365

[[clusters]]
name = "CAPELLA"
mode = "ssh"
addresses = ["login1.capella.hpc.tu-dresden.de", "login2.capella.hpc.tu-dresden.de"]
user = "USERNAME"
focus = "gpu"
hidden = false
filesystems = ["/home", "/software", "/data/horse", "/data/walrus", "/data/narwhal", "/data/quokka", "/data/cat"]
slurm_bin_path = "/opt/slurm/current/bin"
exclude_partitions = ["interactive", "capella-interactive"]

[[clusters]]
name = "ALPHA"
mode = "ssh"
addresses = ["login1.alpha.hpc.tu-dresden.de", "login2.alpha.hpc.tu-dresden.de"]
user = "USERNAME"
focus = "gpu"
hidden = false
filesystems = ["/home", "/software", "/data/horse", "/data/walrus", "/data/narwhal", "/data/quokka", "/data/cat"]
slurm_bin_path = "/opt/slurm/current/bin"
exclude_partitions = ["interactive", "alpha-interactive"]

[[clusters]]
name = "BARNARD"
mode = "ssh"
addresses = ["login1.barnard.hpc.tu-dresden.de", "login2.barnard.hpc.tu-dresden.de"]
user = "USERNAME"
focus = "cpu"
hidden = false
filesystems = ["/home", "/software", "/data/horse", "/data/walrus", "/data/narwhal", "/data/quokka", "/data/cat"]
slurm_bin_path = "/opt/slurm/current/bin"
exclude_partitions = ["interactive"]

[[clusters]]
name = "ROMEO"
mode = "ssh"
addresses = ["login1.romeo.hpc.tu-dresden.de", "login2.romeo.hpc.tu-dresden.de"]
user = "USERNAME"
focus = "cpu"
hidden = false
filesystems = ["/home", "/software", "/data/horse", "/data/walrus", "/data/narwhal", "/data/quokka", "/data/cat"]
slurm_bin_path = "/opt/slurm/current/bin"
exclude_partitions = ["interactive"]

For a smaller generic example, see config.example.toml. The user field is optional; when omitted, OpenSSH configuration determines the user. The Slurm path is also optional when scontrol and squeue are already available on the endpoint's PATH.

A different configuration file can be selected with:

slurm-avail --config /path/to/config.toml

XDG_CONFIG_HOME is respected.

Controls

The Config view shows its editing controls in the legend. In particular, use a to add, Enter to edit, h to hide or show, Shift+Up/Down to reorder, and s to save clusters.

Requirements

On the computer running slurm-avail:

• Python 3.11 or newer
• a curses-capable POSIX terminal
• OpenSSH's ssh command for remote clusters

On each configured cluster endpoint:

• a working Slurm installation connected to the cluster controller
• Slurm's scontrol and squeue commands available on PATH or through the configured slurm_bin_path
• Slurm's sprio and sshare commands for Jobs priority and fair-share details (the Jobs view degrades gracefully when they are unavailable)
• Slurm's sacct command and accounting data for recent Jobs history (live jobs remain available if accounting is disabled or unavailable)
• /bin/sh and standard POSIX utilities including id, date, awk, sort, sed, and grep
• df and tail for filesystem monitoring (timeout is used when present)

SSH authentication must already work non-interactively, normally through an SSH agent, keys, and ~/.ssh/config. slurm-avail does not store passwords or private keys.

Command-line usage

slurm-avail --help
slurm-avail --version
slurm-avail --once
slurm-avail --view jobs
slurm-avail --view forecast --cluster 2

Development

git clone https://github.com/LukasBuschmann/slurm-avail.git
cd slurm-avail
python -m venv .venv
. .venv/bin/activate
python -m pip install -e '.[dev]'
pytest
ruff check .

Contributions and issue reports are welcome. Release instructions are in RELEASING.md.

License

slurm-avail is available under the MIT License.
