splitsmith 0.12.0

Extract IPSC shot splits from head-mounted camera footage

splitsmith

Extract per-shot split times from head-mounted camera footage of IPSC matches and generate Final Cut Pro timelines with per-shot markers.

Built to do two things from a single stage video: get per-shot splits for analysis and coaching, and prepare frame-marked clips for match-footage review. Your head-mounted cam (Insta360 Go 3S in this case) already captures audio of every shot; the RO's timer only records your total stage time, so the splits live in the video and nowhere else. Splitsmith extracts them and turns them into a CSV plus an FCPXML timeline with per-shot markers you can step through in Final Cut Pro.

Inputs: raw MP4s from a head-mounted cam, stage time data from SSI Scoreboard. Outputs (per stage): lossless trim around the start beep, splits CSV, FCPXML with frame-aligned markers, anomaly report.

What it looks like

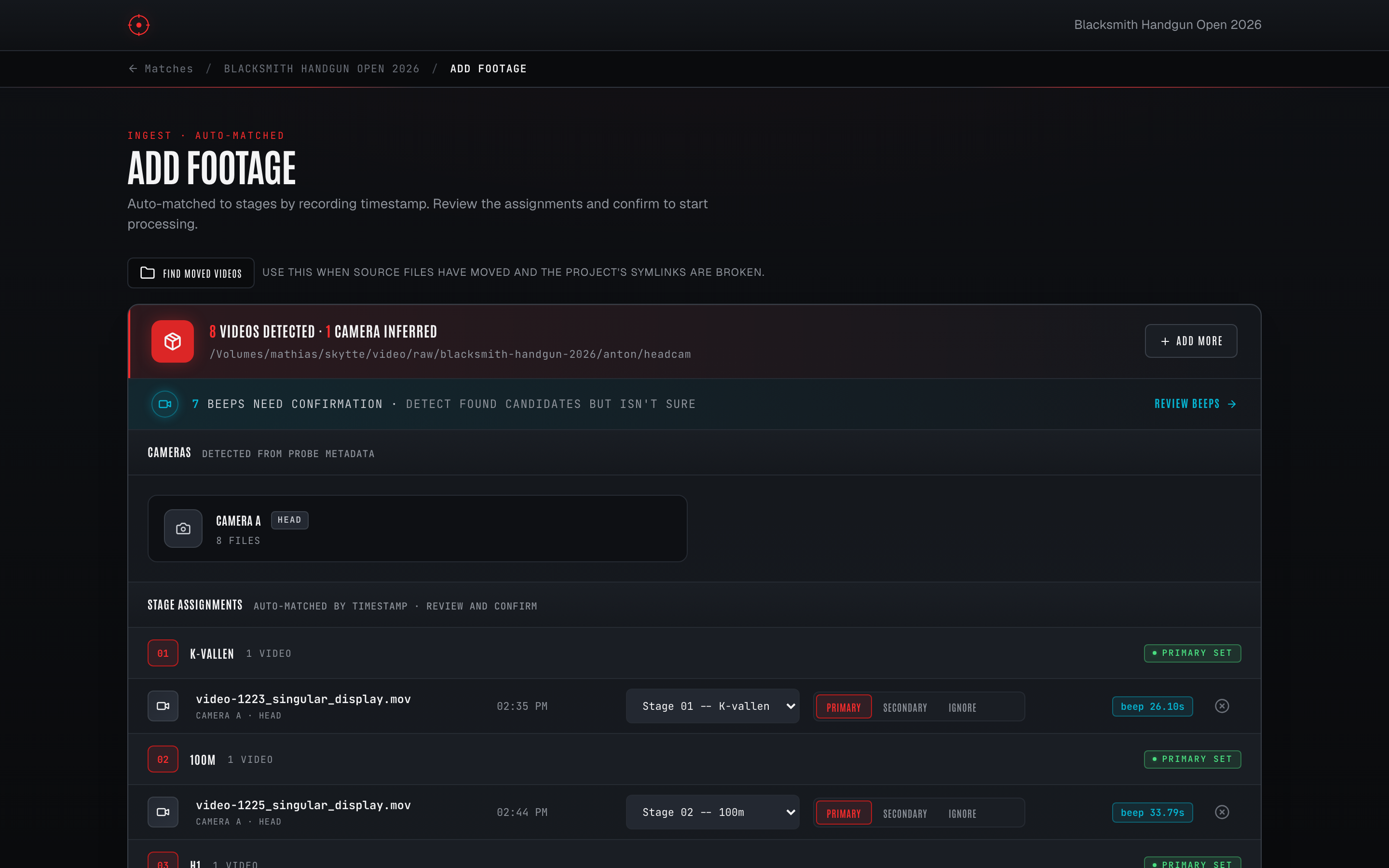

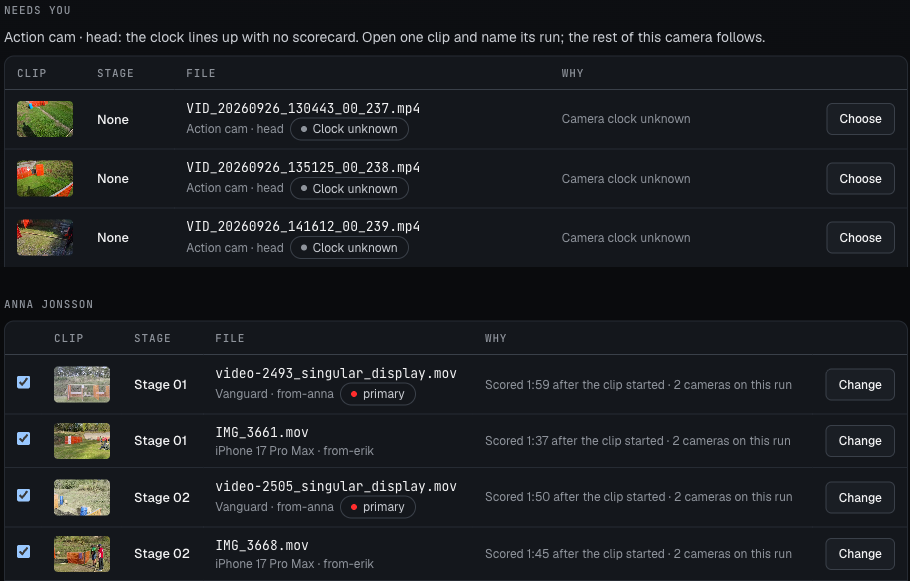

	Ingest. Drop a folder of GoPro clips; the engine auto-matches them to stages by file timestamp.

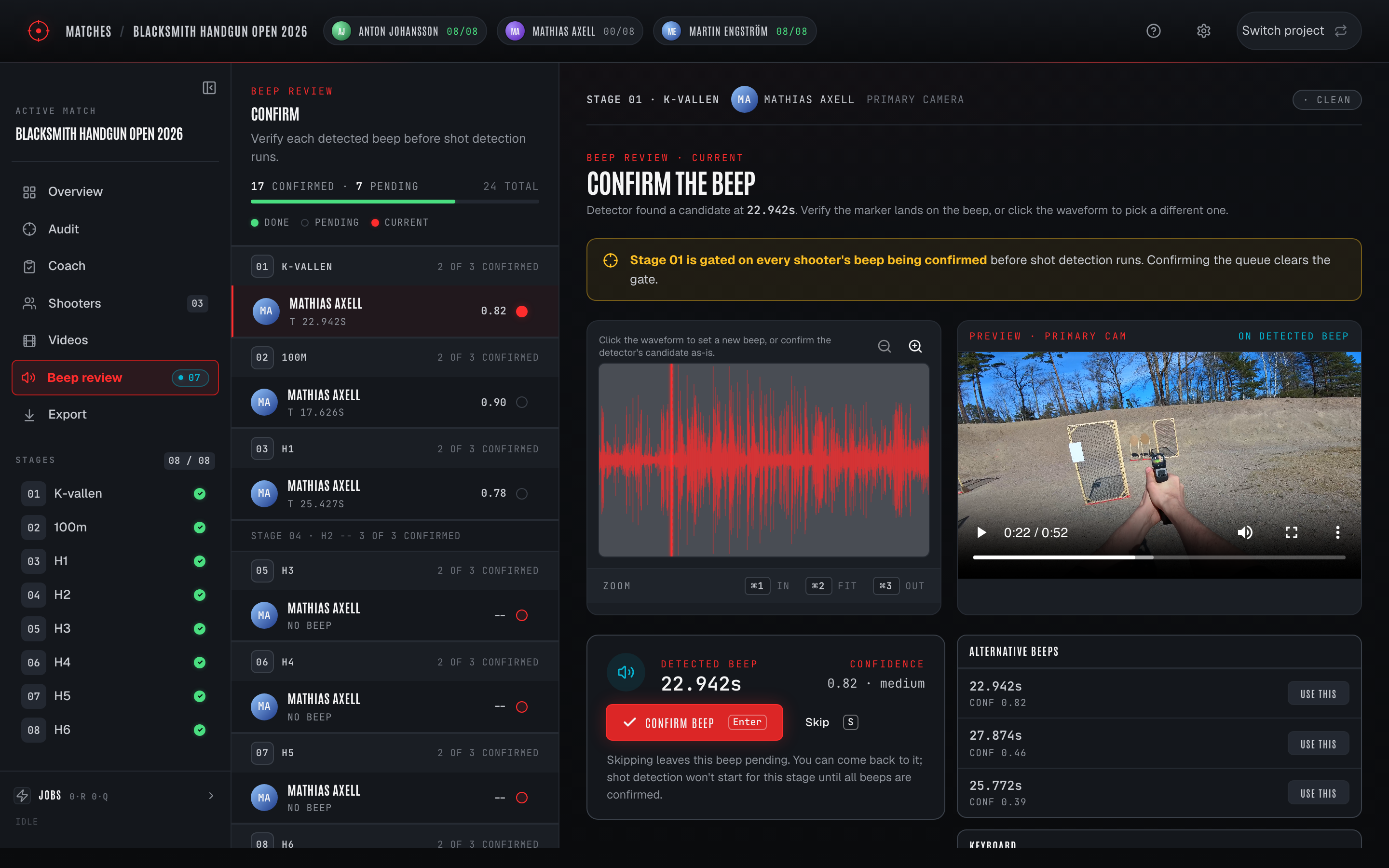

	Beep review. Auto-snap to the start beep on each stage; low-confidence detections land in a HITL queue.

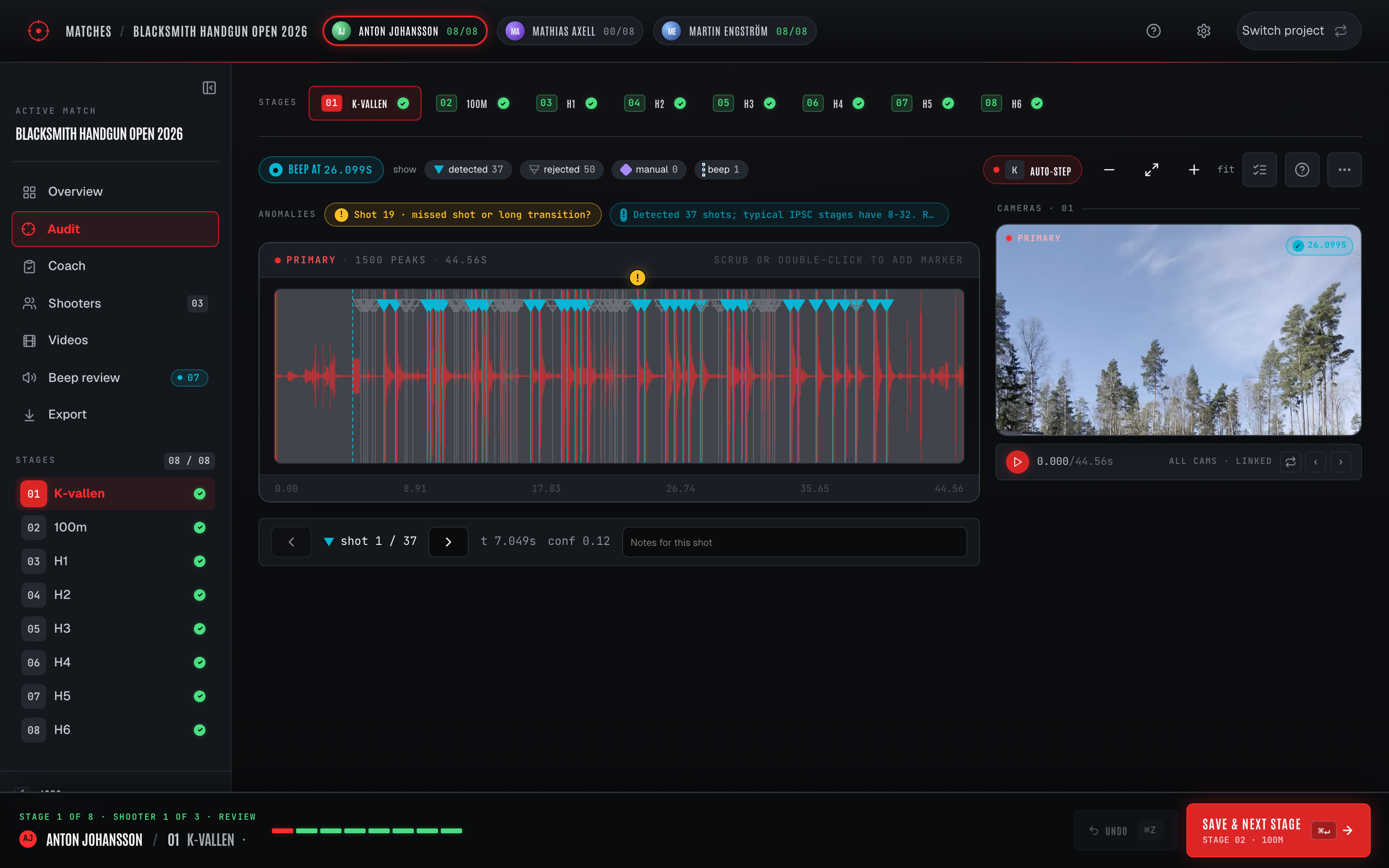

	Audit. Waveform + per-shot markers from the 3-voter ensemble. Click a marker to inspect votes; drag to fine-tune.

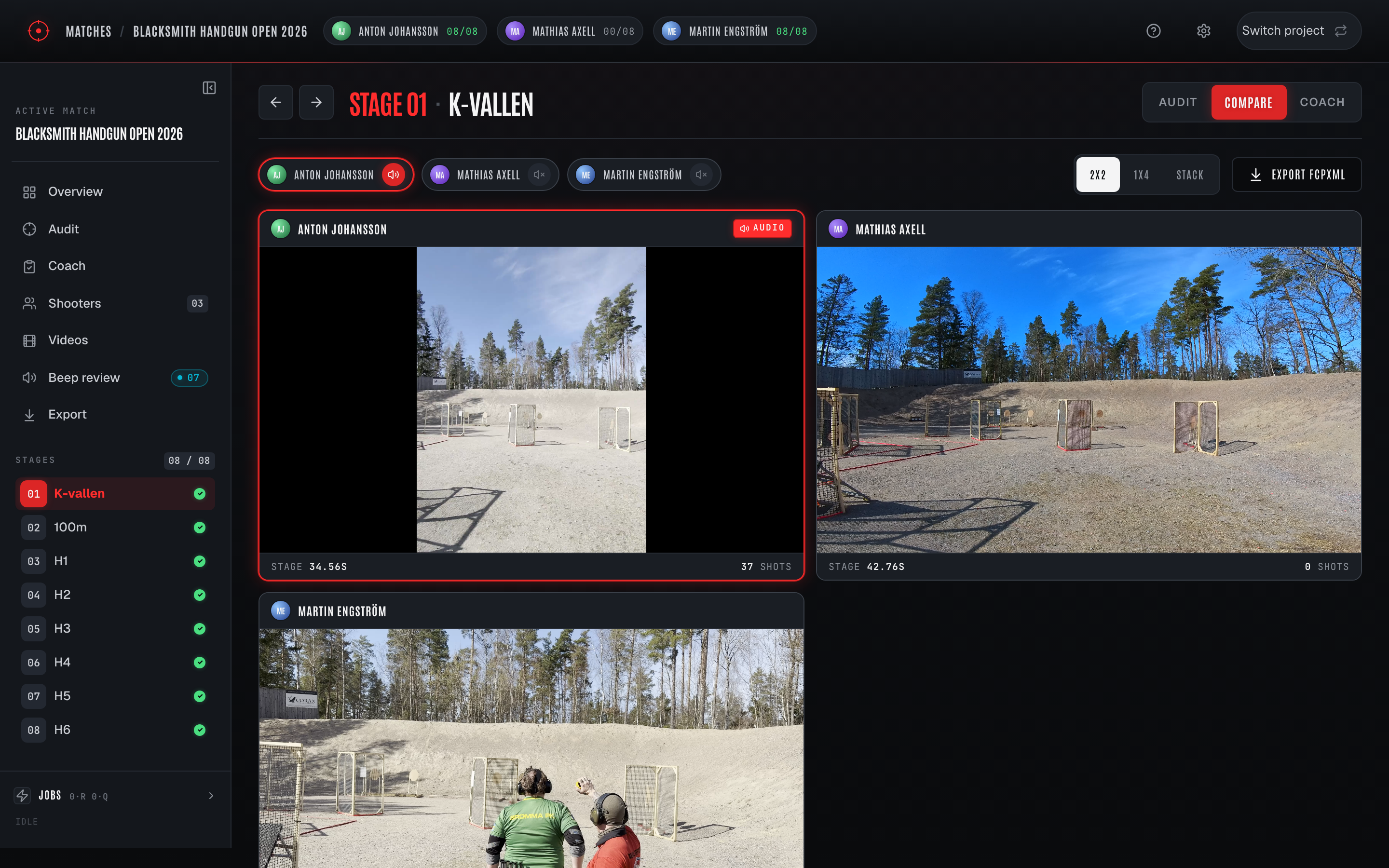

	Compare. Multi-shooter grid, all beep-aligned to t=0. Audio from one shooter, video tiles for everyone else.

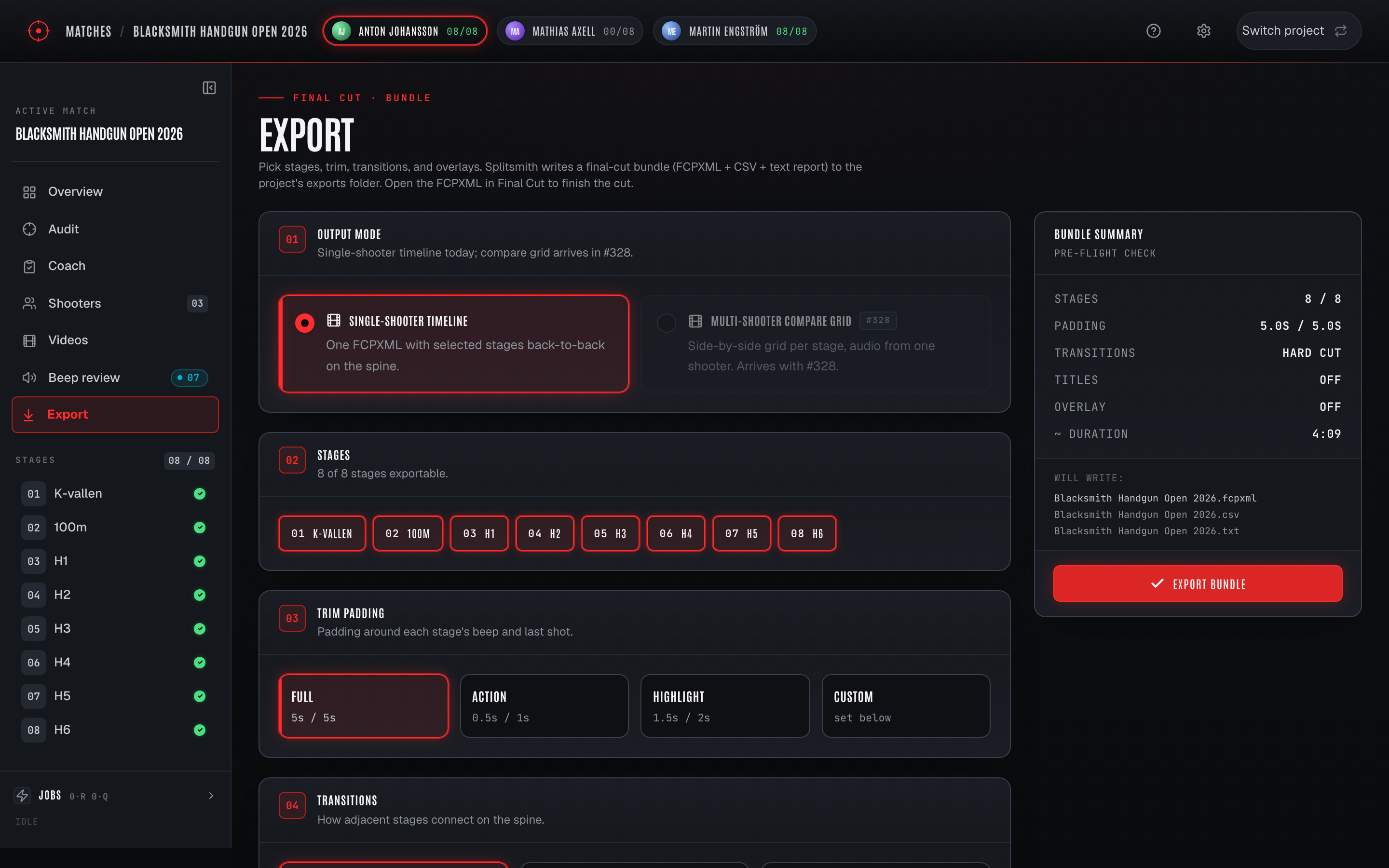

	Export. Per-stage or whole-match FCPXML. Open in Final Cut Pro, M / Shift+M to navigate markers.

Screenshots regenerate from a live splitsmith ui via scripts/capture_screenshots.py. See Regenerating screenshots below.

Quickstart

You need: uv and ffmpeg/ffprobe on PATH. See Install for OS-specific package commands.

uv tool install splitsmith                       # slim runtime, ~100 MB
splitsmith ui --project ~/matches/your-match     # auto-fetches ~440 MB of models on first launch

Running a hosted server or a self-hosted worker instead of the desktop app? Pull the container image from GHCR - see Which path is for you.

The UI kicks off the model prefetch as a background job the moment the server boots; the Jobs panel shows progress and the rest of the app (ingest, beep review) stays responsive while it runs. Shot detection waits on the download to finish.

Prefer the CLI? splitsmith single runs the envelope-only detector and needs no model artifacts:

# Bring your own head-cam clip and stage time (or use any IPSC video at hand)
splitsmith single \
    --video path/to/your_stage.mp4 \
    --time 14.74 \
    --output ./demo_analysis \
    --stage-name "Per told me to do it" \
    --stage-number 3

ls -la ./demo_analysis/
cat ./demo_analysis/stage3_per-told-me-to-do-it_report.txt

The repo ships a real Stage 3 audio sample at tests/fixtures/stage-shots-tallmilan-2026-stage3-s97dcec94.wav (Tallmilan 2026, 14.74s, 14 audited shots) plus its sibling JSON with ground-truth shot times. The companion source MP4 is gitignored -- bring your own video to exercise the full ingest pipeline.

The workflow

1. Ingest -- point at a folder of raw cam files; splitsmith ui auto-matches them to scoreboard stages by file timestamp.
2. Beep review -- the detector finds the start beep on each stage; anything below the auto-trust threshold lands in a HITL queue.
3. Audit -- the 3-voter ensemble (envelope onsets + CLAP prompts + GBDT over hand-crafted + PANN features) emits shot times; review the waveform and drag / drop markers to fix outliers.
4. Export -- generate a per-stage FCPXML (markers per shot) or a multi-shooter Compare FCPXML (beep-aligned grid). Splits CSV ships alongside for the cull workflow.

Install

Which path is for you

Three ways to get splitsmith, by what you are doing:

• Desktop app (most people). Install from PyPI and run splitsmith ui on your own machine to pull splits and cut timelines. This is the primary tool. Start at Option 1.
• Server, worker, or self-hosted agent. Run the container image from GitHub Container Registry (or build it). Same image, the subcommand picks the role. See Option 2.
• Development or contributing. Install from source with uv. See Option 3.

System prerequisites

• OS. macOS (primary target), Linux, or Windows. FCPXML is generated everywhere but Final Cut Pro itself is macOS-only -- on Linux/Windows you'll need to copy the .fcpxml to a Mac to open it (or just use the splits CSV directly).

• Python 3.11+ via uv

  • macOS: brew install uv
  • Linux: curl -LsSf https://astral.sh/uv/install.sh | sh
  • Windows: winget install --id=astral-sh.uv -e

• ffmpeg and ffprobe on PATH

  • macOS: brew install ffmpeg  ·  Linux: apt install ffmpeg  ·  Windows: winget install --id=Gyan.FFmpeg -e

  splitsmith ui checks for both on first launch and prints a copy-pasteable install hint if they're missing.

Option 1: PyPI slim wheel (desktop app, ~100 MB)

uv tool install splitsmith                       # from PyPI
splitsmith ui --project ~/matches/your-match

Detection models (~440 MB total) are auto-fetched from models.splitsmith.app into ~/.splitsmith/models/ in the background as soon as splitsmith ui starts; the SPA's Jobs panel shows progress. Pre-fetch in a one-shot run with splitsmith fetch-models if you'd rather pay the download up front (CI, metered connections, etc.). No torch, transformers, or panns_inference in the install. The CLI single / process / detect commands use only the envelope-based Voter A and need no model artifacts at all.

Option 2: Docker image (server, worker, or self-hosted agent)

The container image is published to GitHub Container Registry. One image runs every role: the entrypoint is the splitsmith CLI, so the subcommand you pass picks the role.

docker pull ghcr.io/mandakan/splitsmith:latest   # :edge tracks main; :X.Y.Z pins a release

Multi-arch (linux/amd64 and linux/arm64). The roles:

• serve (the default command) runs the hosted, Postgres-backed API.
• worker runs a compute worker for the hosted job queue.
• agent runs a self-hosted worker that lends a home box to a hosted server. The admin UI generates a ready-to-paste docker run command; the full setup is in docs/self-hosted-workers.md.

Prefer to build the image yourself rather than pull it:

git clone https://github.com/mandakan/splitsmith.git
cd splitsmith
docker build -t splitsmith:local .

To run the whole hosted stack (server, worker, and bundled Postgres + MinIO) from the published image, layer the GHCR overlay onto the base compose file:

docker compose -f docker-compose.yml -f docker-compose.ghcr.yml up -d   # SPLITSMITH_IMAGE_TAG=edge tracks main

docker-compose.yml on its own builds from source (the dev / test stack); the overlay swaps that build for the released image. This runs the release locally with bundled dependencies - it is not a production deployment (production is Railway + Neon + R2).

The container is for the server and worker roles, not the desktop ui workflow. For that, use the PyPI install above so the app has native access to your video files and Final Cut Pro.

Option 3: from source (required for contributors)

git clone https://github.com/mandakan/splitsmith.git
cd splitsmith
uv sync                                          # slim runtime deps only (~100 MB)
(cd src/splitsmith/ui_static && pnpm install && pnpm build)
uv run splitsmith --help                         # `splitsmith ui` auto-fetches ~440 MB of models on first launch

Source checkouts also need Node.js 20+ and pnpm to build the SPA:

• macOS: brew install node && npm install -g pnpm
• Linux: apt install nodejs npm && sudo npm install -g pnpm
• Windows: winget install -e --id OpenJS.NodeJS.LTS, open a new shell, then npm install -g pnpm

Option 4: contributor extras (adds torch + tests + export tooling)

For running the test suite, rebuilding the ONNX artifacts, or enabling the optional Voter E visual probe:

uv sync --all-groups                             # adds torch / transformers / panns / pytest / ruff / onnx export tools
uv run pytest -q                                 # unit tests
uv run pytest -q -m integration                  # ffmpeg/ffprobe-backed tests

Runtime backends (slim ONNX vs dev torch)

The shipped runtime uses ONNX Runtime for Voter B (CLAP) and Voter D (PANN gunshot probability, folded into Voter C). The slim install carries no torch, no transformers, no panns_inference. Artifacts (~440 MB) auto-download from models.splitsmith.app into ~/.splitsmith/models/ as a background job the moment splitsmith ui boots; splitsmith fetch-models is still around for scripted prefetch (CI, metered connections).

The dev backend (torch + transformers + panns_inference) lives in the [dev] group and is required for: re-running scripts/build_ensemble_artifacts.py, the ONNX export scripts (scripts/export_pann_onnx.py, scripts/export_clap_onnx.py), and enabling Voter E (CLIP visual probe -- off by default; turn on with SPLITSMITH_ENABLE_VOTER_E=1 after uv sync --all-groups).

select_backend() resolves to torch when both backends are importable (dev path with HF caches), and to onnxruntime by elimination otherwise (slim install). Override per-process with SPLITSMITH_BACKEND=torch|onnx. See docs/local-slim/ for the full design.

Subcommands

All commands run as uv run splitsmith <subcommand>. Pass --help for the full option list. See docs/COMMANDS.md for usage examples per command.

command	purpose
ui	Production SPA. Persistent project state on disk; the main entry point.
serve	Hosted-mode API server (Postgres-backed). Preview; see Hosted mode below.
detect	One-shot beep + shot detection preview. No files written.
single	Full pipeline on one video with an explicit stage time.
process	Batch over an SSI Scoreboard stage JSON, matching videos to stages by timestamp.
compare	Render a multi-shooter beep-aligned grid FCPXML across N projects.
lab	Algorithm Lab -- fixture eval, parameter sweeps, live tuning.
review	Single-page UI for auditing detected shots against a fixture WAV.
audit-apply	Merge an audited candidates CSV back into a fixture JSON.
fcpxml	Regenerate a timeline from a hand-edited splits CSV.
mcp	Model Context Protocol server; pairs with the /splitsmith-match Claude Code skill.

Hosted mode (preview)

The SaaS-foundation ladder ships a Postgres-backed hosted variant of the server alongside the desktop ui mode. Workers, jobs, and per-user state persist in Postgres + MinIO instead of ~/.splitsmith/. The whole stack boots locally via docker compose up:

docker compose up --build
curl http://localhost:5174/api/health
curl http://localhost:5174/api/me/recent-projects

This is preview-only: one loopback user, no real authentication, no SPA bundle, no upload pipeline yet. Workers still run in-process inside the API container (no separate worker command -- one container is both HTTP and the executor pool).

See docs/saas-readiness/HOSTED-LOCAL.md for the complete inventory of what works today, what doesn't, validation recipes, teardown, and the architecture diagram. The broader SaaS plan lives under docs/saas-readiness/.

Configuration

Defaults live in src/splitsmith/config.py. Override via --config path/to/config.yaml:

beep_detect:
  freq_min_hz: 2000
  freq_max_hz: 5000
  min_duration_ms: 150
  # Cutoff = max(min_amplitude * peak, noise_floor_factor * noise_floor, min_abs_peak).
  min_amplitude: 0.05
  min_abs_peak: 0.005
  noise_floor_factor: 5.0
  envelope_smoothing_ms: 40.0
  tonal_band_lo_hz: 2200
  tonal_band_hi_hz: 3500
  tonal_weight: 0.7
  dur_match_min_ms: 150.0
  dur_match_full_ms: 300.0
  dur_match_weight: 1.0
  silence_window_s: 1.5
  silence_pre_skip_s: 0.2
  min_pre_window_s: 0.2
  search_window_s: 30.0
  top_n_candidates: 5

shot_detect:
  min_gap_ms: 80
  onset_delta: 0.07
  pre_max_ms: 30
  post_max_ms: 30

video_match:
  tolerance_minutes: 15
  prefer_ctime: true

output:
  trim_buffer_seconds: 5.0
  trim_mode: lossless          # "lossless" (CLI default) or "audit"
  trim_gop_frames: 15          # audit mode: keyframe every N frames (0.5s @ 30fps)
  trim_audit_crf: 20           # audit mode: x264 CRF (lower = better quality, larger files)
  trim_audit_preset: fast      # audit mode: x264 preset
  fcpxml_version: "1.10"
  split_color_thresholds:
    green_max: 0.25
    yellow_max: 0.35
    transition_min: 1.0

trim_mode controls how trim.py cuts videos:

• lossless (default): ffmpeg -c copy. Instant; archival quality; inherits the source GOP. Insta360 head-cam typically has keyframes every 1-4 seconds.
• audit: re-encodes with a short GOP (default 0.5s) so browser <video> scrubbing in the production UI's audit screen lands within ~1 frame of the pointer. Encoding cost is roughly 1-2x realtime on Apple Silicon. Audio is stream-copied either way so the detector's input is bit-exact across modes.

Override per command via --trim-mode lossless|audit on splitsmith single and splitsmith process.

Lower shot_detect.onset_delta if you're under-detecting shots from a heavily-comped open gun. Tighten beep_detect.min_amplitude if a louder ambient noise is being mistaken for the beep.

Output file layout

analysis/
  stage3_per-told-me-to-do-it_trimmed.mp4   # lossless cut around the beep
  stage3_per-told-me-to-do-it_splits.csv    # editable; the source of truth for fcpxml regen
  stage3_per-told-me-to-do-it.fcpxml        # open in Final Cut Pro; M / Shift+M to navigate markers
  stage3_per-told-me-to-do-it_report.txt    # human-readable summary + anomalies

A .wav cache file is written next to each source video on first run -- this is intentional (re-running detect on the same video skips the audio extraction). Add *.wav to your match-videos directory's .gitignore if it's tracked.

What's in git

Source MP4/MOV recordings are gitignored (multi-GB; not worth git-LFS for a personal tool). The committed inputs are:

• tests/fixtures/*.wav -- pre-trimmed audio slices (~1-2 MB each), the canonical input for every detection / classification / eval script.
• tests/fixtures/*.json -- audited shot times (ground truth) plus _candidates_pending_audit (raw detector output) and a source / fixture_window_in_source provenance pair naming the original video and time window.

Anyone with the repo can run the full pipeline (beep / shot detection, PANN + CLAP feature extraction, ensemble eval) against the WAVs without touching the source videos. What you can't reproduce without the original MP4 is the audit-prep step itself -- if you want a different trim window, padding, or beep override, you need the source video. That step is "input data preparation" rather than "pipeline reproduction"; the WAV is the canonical artefact downstream.

Detection methodology

The detector is built around half-rise leading-edge timing (consistent across recordings; insensitive to AGC and gain) plus a 3-voter ensemble for shot classification. Full write-up in docs/METHODOLOGY.md: beep detection, shot detection, the half-rise rationale, confidence ranking, and the ensemble performance dashboard.

The audited corpus

Shot detection is driven by a 3-voter ensemble (envelope onsets, CLAP audio embeddings, and a per-camera-class GBDT) calibrated against the audited fixtures under tests/fixtures/. Each fixture is a real beep-to-last-shot audio slice with hand-labeled shot times plus a camera / shooter / stage_rounds provenance block.

The corpus grows over time -- right now I curate it by hand from my own matches and a few squadmates'. After dropping new audited fixtures into tests/fixtures/, rebuild the shipped calibration artifacts (src/splitsmith/data/ensemble_calibration.json and src/splitsmith/data/voter_c_gbdt.joblib) with:

uv run python scripts/build_ensemble_artifacts.py

Contributing audited stages (planned)

Soon I want to open the corpus to opt-in contributions from anyone running Splitsmith -- a per-stage "share this audited stage to improve detection" prompt at promotion time, so contributors grow the corpus without ever sharing a stage they didn't actively audit. Default will be off; nothing leaves your machine without explicit consent.

Regenerating screenshots

The README gallery comes from a live splitsmith ui driven through Playwright. To refresh after a UI redesign:

uv pip install --with playwright playwright
playwright install chromium

uv run python scripts/capture_screenshots.py \
    --project ~/matches/your-real-match \
    --stage 3 \
    --output docs/screenshots/

Commit the resulting PNGs. The script needs a project that's already been through the workflow (videos ingested, beeps reviewed, shots detected); Compare requires multiple shooters' trims on disk and is skipped with a warning otherwise.

Troubleshooting

• "ffmpeg binary not found" / "ffprobe binary not found" -- install via your platform's package manager (macOS brew install ffmpeg, Linux apt install ffmpeg, Windows winget install --id=Gyan.FFmpeg), or set --ffmpeg-binary if installed elsewhere.
• process aborts with "Ambiguous stages" -- two videos fall in the same stage's window, or one video matches multiple stages. Either narrow the input directory or use single for each stage.
• Report shows ">> 32 shots, possible false positives" -- expected on busy ranges. Cull in the CSV and regenerate the FCPXML.
• Last shot is detected after the official stage time -- usually a neighbouring-bay shot fired during your last shot's echo window. Drop it in the CSV.
• No FCPXML markers visible in FCP -- ensure FCP 11.x or later (FCPXML 1.10 is required). Older versions need an export of the timeline into 1.9.

Releases

Versioning is driven by release-please on main:

• Conventional commits (feat:, fix:, perf:, refactor:, ...) accumulate into an always-open chore: release X.Y.Z PR that bumps pyproject.toml and CHANGELOG.md. Merging that PR cuts the tag + GitHub Release.
• The GitHub Release triggers .github/workflows/release-please.yml's publish-pypi job, which builds the slim wheel (SPA included via the same SPA-build step as the smoke job) and runs uv publish --trusted-publishing automatic.
• No PyPI API token in repo secrets -- authentication uses PyPI trusted publishing (OIDC). One-time setup: at https://pypi.org/manage/account/publishing/, add a "pending publisher" for project name splitsmith, owner mandakan, repo splitsmith, workflow release-please.yml, environment pypi.
• Model artifacts on R2 are SHA-pinned in src/splitsmith/data/ensemble_calibration.json and decoupled from the app version. Re-uploads go through scripts/upload_model_artifacts.py; the calibration file is the source of truth that the wheel ships with.

Project status

Personal tool, actively developed for the maintainer's own match-recap workflow. The pipeline structure is intentionally narrow (single-shooter or multi-shooter compare, IPSC-style start beep + shot timing, FCPXML output) and not aimed at being a general-purpose audio analysis library. PRs welcome where they fit the use case; see SPEC.md and CLAUDE.md for the design priorities.
