Squid Game Doll 🔴🟢

English | Italiano

An AI-powered "Red Light, Green Light" robot inspired by the Squid Game TV series. This project uses computer vision and machine learning for real-time player recognition and tracking, featuring an animated doll that signals game phases and an optional laser targeting system for eliminated players.

🎯 Features:

• Real-time player detection and tracking using YOLO neural networks
• Face recognition for player registration
• Interactive animated doll with LED eyes and servo-controlled head
• Optional laser targeting system for eliminated players (work in progress)
• Support for PC (with CUDA), NVIDIA Jetson Nano (with CUDA), and Raspberry Pi 5 (with Hailo AI Kit)
• Configurable play areas and game parameters

🏆 Status: First working version demonstrated at Arduino Days 2025 in FabLab Bergamo, Italy.

🎮 Quick Start

Prerequisites

• Python 3.9+ with Poetry
• Webcam (Logitech C920 recommended)
• Optional: ESP32 for doll control, laser targeting hardware

Installation

Method 1: PC (Windows/Linux)

# 1. Install Poetry
pip install poetry

# 2. Install base dependencies + PyTorch for PC
poetry install --extras standard

# 3. Optional: CUDA support for NVIDIA GPU (better performance)
poetry run pip install torch torchvision torchaudio --index-url https://download.pytorch.org/whl/cu121 --force-reinstall

# 4. Install Ultralytics (required for AI detection)
poetry run pip install ultralytics --no-deps
poetry run pip install tqdm seaborn psutil py-cpuinfo thop requests PyYAML

Method 2: NVIDIA Jetson Orin

# 1. Install Poetry
pip install poetry

# 2. Install base dependencies (WITHOUT PyTorch)
poetry install

# 3. Install Jetson-optimized PyTorch manually
poetry run pip install https://github.com/ultralytics/assets/releases/download/v0.0.0/torch-2.5.0a0+872d972e41.nv24.08-cp310-cp310-linux_aarch64.whl
poetry run pip install https://github.com/ultralytics/assets/releases/download/v0.0.0/torchvision-0.20.0a0+afc54f7-cp310-cp310-linux_aarch64.whl

# 4. Install Ultralytics without dependencies (prevents PyTorch overwrite)
poetry run pip install ultralytics --no-deps
poetry run pip install tqdm seaborn psutil py-cpuinfo thop requests PyYAML

# 5. Install ONNX Runtime GPU for Jetson
poetry run pip install https://github.com/ultralytics/assets/releases/download/v0.0.0/onnxruntime_gpu-1.20.0-cp310-cp310-linux_aarch64.whl

# 6. Optional: CUDA OpenCV for maximum performance (see JETSON_ORIN.md)
# After building CUDA OpenCV system-wide:
VENV_PATH=$(poetry env info --path)
cp -r /usr/lib/python3/dist-packages/cv2* "$VENV_PATH/lib/python3.10/site-packages/"

Method 3: Raspberry Pi 5 with Hailo AI Kit

# 1. Install Poetry
pip install poetry

# 2. Install base dependencies
poetry install

# 3. Install Hailo AI infrastructure
poetry run pip install git+https://github.com/hailo-ai/hailo-apps-infra.git

# 4. Download pre-compiled Hailo models
wget https://hailo-model-zoo.s3.eu-west-2.amazonaws.com/ModelZoo/Compiled/v2.14.0/hailo8l/yolov11m.hef

# 5. Install PyTorch for Raspberry Pi (if not automatically installed)
poetry install --extras standard

Platform Detection

The application automatically detects your platform and uses the appropriate AI backend:

• PC: Uses Ultralytics YOLO with PyTorch
• Jetson Orin: Uses TensorRT-optimized YOLO with CUDA acceleration
• Raspberry Pi: Uses Hailo AI accelerated models (.hef files)

Setup and Run

1. Configure play areas (first-time setup):

# Using Python module
poetry run python -m squid_game_doll --setup

# Or using console script (after installation)
squid-game-doll --setup

2. Run the game:

# Using Python module
poetry run python -m squid_game_doll

# Or using console script (after installation)
squid-game-doll

3. Run with laser targeting (requires ESP32 setup):

# Using Python module
poetry run python -m squid_game_doll -k -i 192.168.45.50

# Or using console script
squid-game-doll -k -i 192.168.45.50

🎯 How It Works

Game Flow

Players line up 8-10m from the screen and follow this sequence:

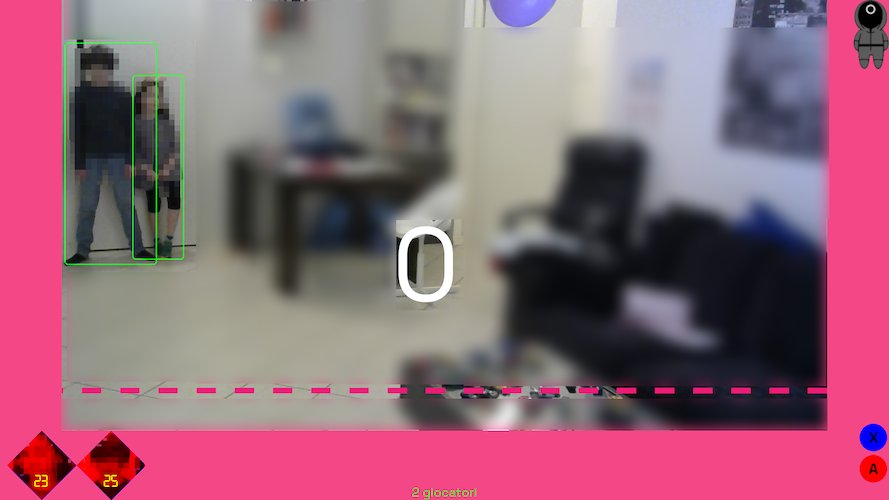

1. 📝 Registration (15s): Stand in the starting area while the system captures your face

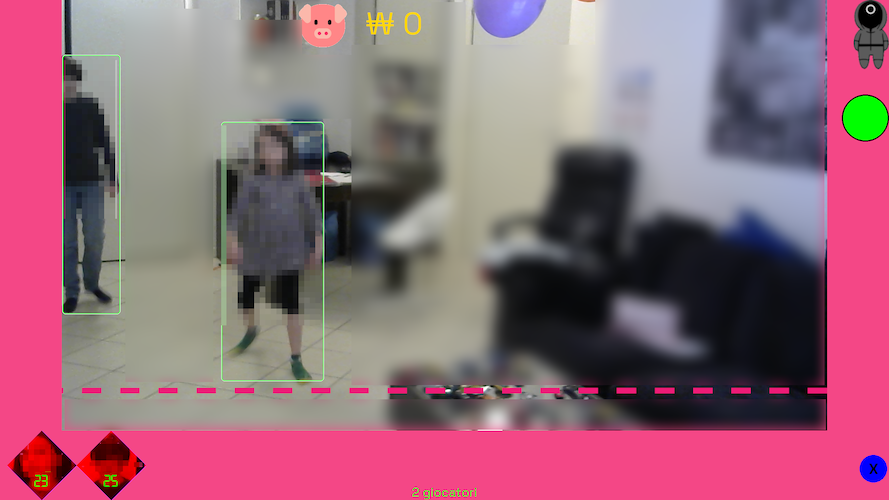

2. 🟢 Green Light: Move toward the finish line (doll turns away, eyes off)

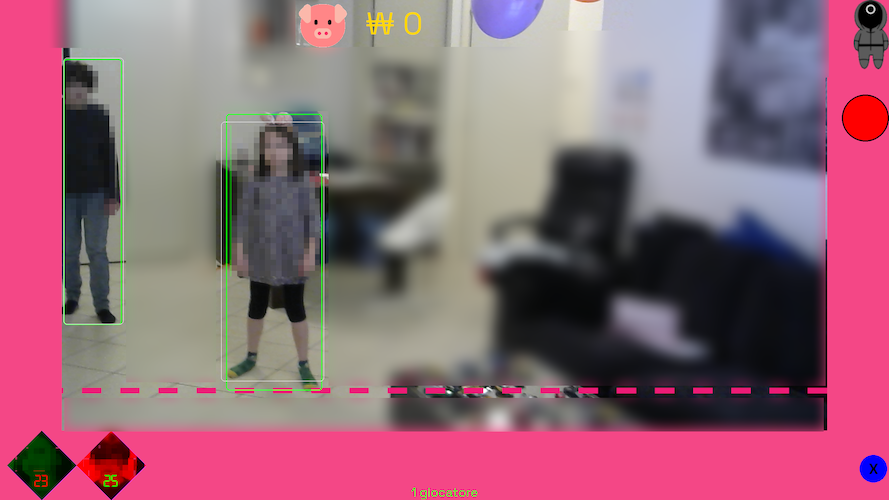

3. 🔴 Red Light: Freeze! Any movement triggers elimination (doll faces forward, red eyes)
4. 🏆 Victory/💀 Elimination: Win by reaching the finish line or get eliminated for moving during red light

Game Phases Visual Guide

Phase	Screen	Doll State	Action
Loading		Random movement	Attracts crowd
Registration			Face capture
Green Light			Players move
Red Light			Motion detection

⚙️ Configuration

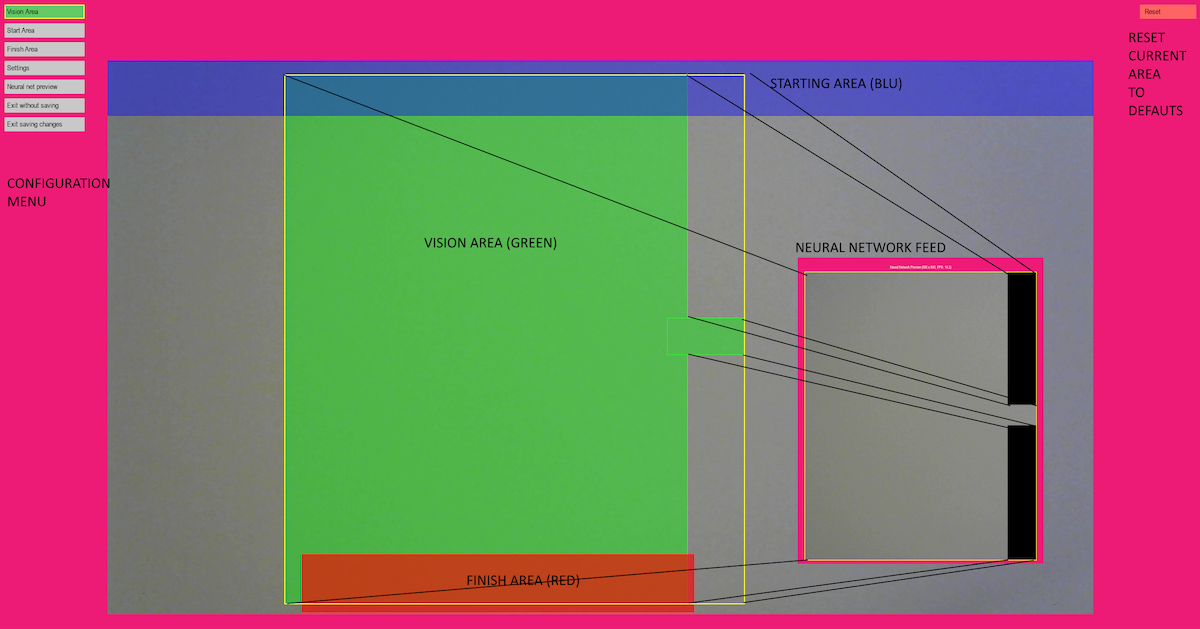

The setup mode allows you to configure play areas and camera settings for optimal performance.

Area Configuration

You need to define three critical areas:

• 🎯 Vision Area (Yellow): The area fed to the neural network for player detection
• 🏁 Finish Area: Players must reach this area to win
• 🚀 Starting Area: Players must register in this area initially

Configuration Steps

1. Run setup mode: poetry run python -m squid_game_doll --setup
2. Draw rectangles to define play areas (vision area must intersect with start/finish areas)
3. Adjust settings in the SETTINGS menu (confidence levels, contrast)
4. Test performance using "Neural network preview"
5. Save configuration to config.yaml

Important Notes

• Vision area should exclude external lights and non-play zones
• Webcam resolution affects neural network input (typically resized to 640x640)
• Proper area configuration is essential for game mechanics to work correctly

🔧 Hardware Requirements

Supported Platforms

Platform	AI Acceleration	Performance	Best For
PC with NVIDIA GPU	CUDA	30+ FPS	Development, High Performance
NVIDIA Jetson Nano	CUDA	15-25 FPS	Mobile Deployment, Edge Computing
Raspberry Pi 5 + Hailo AI Kit	Hailo 8L	10-15 FPS	Production Deployment
PC (CPU only)	None	3-5 FPS	Basic Testing

Required Components

Core System

• Computer: PC (Windows/Linux), NVIDIA Jetson Nano, or Raspberry Pi 5
• Webcam: Logitech C920 HD Pro (recommended) or compatible USB webcam
• Display: Monitor or projector for game interface

Doll Hardware

• Controller: ESP32C2 MINI Wemos board
• Servo: 1x SG90 servo motor (head movement)
• LEDs: 2x Red LEDs (eyes)
• 3D Parts: Printable doll components (see hardware/doll-model/)

Optional Laser Targeting System (Work in Progress)

⚠️ Safety Warning: Use appropriate laser safety measures and follow local regulations.

Status: Basic targeting implemented but requires refinement for production use.

Components:

• Servos: 2x SG90 servo motors for pan-tilt mechanism
• Platform: Pan-and-tilt platform (~11 EUR)
• Laser: Choose one option:
  • Green 5mW: Higher visibility, safer for eyes, less precise focus
  • Red 5mW: Better focus, lower cost
• 3D Parts: Laser holder (see hardware/proto/Laser Holder v6.stl)

Play Space Requirements

• Area: 10m x 10m indoor space recommended
• Distance: Players start 8-10m from screen
• Lighting: Controlled lighting for optimal computer vision performance

Detailed Installation

• PC Setup: See installation instructions above
• Raspberry Pi 5: See INSTALL.md (Italiano) for complete Hailo AI Kit setup
• ESP32 Programming: Use Thonny IDE with MicroPython (see esp32/ folder)

🎲 Command Line Options

poetry run python -m squid_game_doll [OPTIONS]
# or
squid-game-doll [OPTIONS]

Available Options

Option	Description	Example
-m, --monitor	Monitor index (0-based)	-m 0
-w, --webcam	Webcam index (0-based)	-w 0
-f, --fixed-image	Fixed image for testing (instead of webcam)	-f test_image.jpg
-k, --killer	Enable ESP32 laser shooter	-k
-i, --tracker-ip	ESP32 IP address	-i 192.168.45.50
-j, --joystick	Joystick index	-j 0
-n, --neural_net	Custom neural network model	-n yolov11m.hef
-c, --config	Config file path	-c my_config.yaml
-s, --setup	Setup mode for area configuration	-s

Example Commands

Basic setup:

# First-time configuration
poetry run python -m squid_game_doll --setup -w 0

# Run game with default settings
poetry run python -m squid_game_doll

Advanced configuration:

# Full setup with laser targeting
poetry run python -m squid_game_doll -m 0 -w 0 -k -i 192.168.45.50

# Custom model and config
poetry run python -m squid_game_doll -n custom_model.hef -c custom_config.yaml

# Testing with fixed image instead of webcam
poetry run python -m squid_game_doll -f pictures/test_image.jpg

🤖 AI & Computer Vision

Neural Network Models

• PC (Ultralytics): YOLOv8/v11 models for object detection and tracking
• NVIDIA Jetson Nano: CUDA-optimized YOLOv11 models with automatic platform detection
• Raspberry Pi (Hailo): Pre-compiled Hailo models optimized for edge AI
• Face Detection: OpenCV Haar cascades for player registration and identification

Performance Optimization

Platform-Specific Optimizations

NVIDIA Jetson Nano:

• Automatic CUDA acceleration with optimized PyTorch wheels
• CUDA OpenCV support for GPU-accelerated image processing (optional)
• Reduced input size (416px vs 640px) for faster inference
• FP16 precision for 2x speed improvement
• Optimized thread count for ARM processors
• Jetson-specific model selection (yolo11n.pt for optimal speed/accuracy balance)
• TensorRT optimization available via optimize_for_jetson.py script

Raspberry Pi 5 + Hailo:

• Hardware-accelerated inference using Hailo 8L AI processor
• Optimized .hef models compiled specifically for Hailo architecture
• Parallel processing between ARM CPU and Hailo AI accelerator

PC with NVIDIA GPU:

• Full CUDA acceleration with maximum input resolution
• High-precision models for best accuracy
• Multi-threaded processing for real-time performance

General Performance

• Object Detection: 3-30+ FPS depending on hardware and optimization
• Face Extraction: CPU-bound with OpenCV Haar cascades (GPU-accelerated with CUDA OpenCV)
• Image Processing: 2-5x speedup with CUDA OpenCV for color conversions and resizing
• Laser Detection: Computer vision pipeline using threshold + dilate + Hough circles

Model Resources

• Hailo Model Zoo
• Neural Network Implementation Details
• Laser Spot Detection Models - Pre-trained YOLOv5l6 models for laser tracking

🛠️ Development & Testing

Code Quality Tools

# Install development dependencies
poetry install --with dev

# Code formatting
poetry run black .

# Linting
poetry run flake8 .

# Run tests
poetry run pytest

Performance Profiling

# Profile the application
poetry run python -m cProfile -o game.prof -m squid_game_doll

# Visualize profiling results
poetry run snakeviz ./game.prof

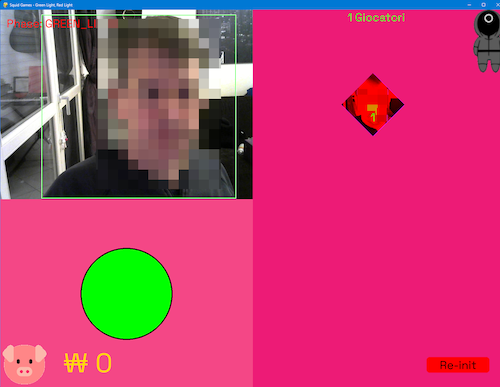

Game Interface

The game uses PyGame as the rendering engine with real-time player tracking overlay.

🎯 Laser Targeting System (Advanced)

Computer Vision Pipeline

The laser targeting system uses a sophisticated computer vision approach to detect and track laser dots:

Detection Algorithm

1. Channel Selection: Extract R, G, B channels or convert to grayscale
2. Thresholding: Find brightest pixels using cv2.threshold()
3. Morphological Operations: Apply dilation to enhance spots
4. Circle Detection: Use Hough Transform to locate circular laser dots
5. Validation: Adaptive threshold adjustment for single-dot detection

# Key processing steps
diff_thr = cv2.threshold(channel, threshold, 255, cv2.THRESH_TOZERO)
masked_channel = cv2.dilate(masked_channel, None, iterations=4)
circles = cv2.HoughCircles(masked_channel, cv2.HOUGH_GRADIENT, 1, minDist=50,
                          param1=50, param2=2, minRadius=3, maxRadius=10)

Critical Considerations

• Webcam Exposure: Manual exposure control required (typically -10 to -5 for C920)
• Surface Reflectivity: Different surfaces affect laser visibility
• Color Choice: Green lasers often perform better than red
• Timing: 10-15 second convergence time for accurate targeting

Troubleshooting

Issue	Solution
Windows slow startup	Set OPENCV_VIDEOIO_MSMF_ENABLE_HW_TRANSFORMS=0

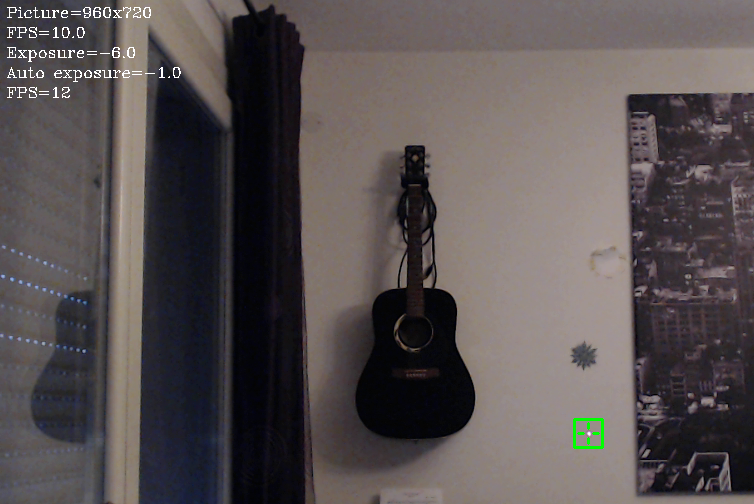

Poor laser detection	Adjust exposure settings, check surface types
Multiple false positives	Increase threshold, mask external light sources

🚧 Known Issues & Future Improvements

Current Limitations

• Vision System: Combining low-exposure laser detection with normal-exposure player tracking
• Laser Performance: 10-15 second targeting convergence time
• Hardware Dependency: Manual webcam exposure calibration required

Roadmap

• Retrain YOLO model for combined laser/player detection
• Implement depth estimation for faster laser positioning
• Automatic exposure calibration system
• Enhanced surface reflection compensation

Completed Features

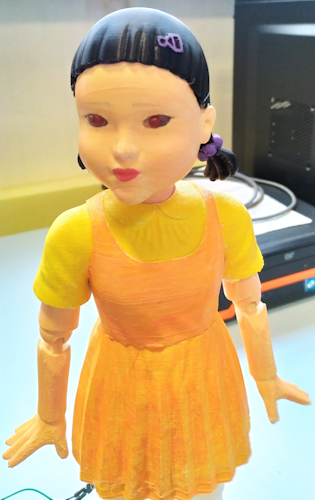

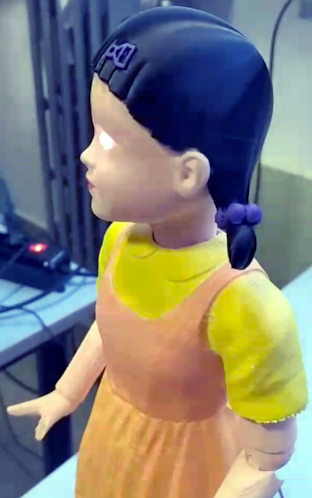

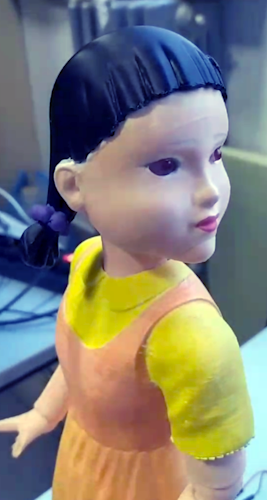

• ✅ 3D printable doll with animated head and LED eyes
• ✅ Player registration and finish line detection
• ✅ Configurable motion sensitivity thresholds
• ✅ GitHub Actions CI/CD and automated testing

📚 Additional Resources

• Installation Guide: INSTALL.md (Italiano) for Raspberry Pi setup
• CUDA OpenCV Setup: OPENCV_JETSON.md for Jetson Nano GPU acceleration
• ESP32 Development: Use Thonny IDE for MicroPython
• Neural Networks: Hailo AI implementation details
• Camera Optimization: OpenCV camera performance tips

📖 Citations and Attribution

Laser Spot Detection Neural Network

This project uses pre-trained laser spot detection models from the ADVRHumanoids research group. The YOLOv5l6 laser detection model (yolov5l6_e200_b8_tvt302010_laser_v5.pt) is automatically downloaded during setup from:

• Model Repository: https://zenodo.org/records/10471835
• Source Project: nn_laser_spot_tracking

Academic Citations

If you use this project's laser detection capabilities in academic research, please cite the following papers:

Robotics and Autonomous Systems (2025):

@article{TORIELLI2025105054,
    title = {An intuitive tele-collaboration interface exploring laser-based interaction and behavior trees},
    journal = {Robotics and Autonomous Systems},
    volume = {185},
    pages = {105054},
    year = {2025},
    issn = {0921-8890},
    doi = {https://doi.org/10.1016/j.robot.2025.105054},
    url = {https://www.sciencedirect.com/science/article/pii/S092188902500140X},
    author = {Davide Torielli and Edoardo Lamon and Luca Muratore and Arash Ajoudani and Nikos G. Tsagarakis},
}

IEEE Robotics and Automation Letters (2024):

@ARTICLE{10602529,
    title={A Laser-Guided Interaction Interface for Providing Effective Robot Assistance to People With Upper Limbs Impairments},
    author={Torielli, Davide and Lamon, Edoardo and Muratore, Luca and Ajoudani, Arash and Tsagarakis, Nikos G.},
    journal={IEEE Robotics and Automation Letters},
    year={2024},
    volume={9},
    number={9},
    pages={8170-8177},
    doi={10.1109/LRA.2024.3439528}
}

Acknowledgments

We thank the ADVRHumanoids research group at the Italian Institute of Technology for their excellent work on neural network-based laser spot tracking and for making their pre-trained models publicly available.

📄 License

This project is open source. See the LICENSE file for details.
