A planner over sets of configurations. A planning problem names a start set, a goal set, a set the whole path must stay inside, and a validity predicate; a solution is a path that begins in the start set, ends in the goal set, and stays inside the path set with every configuration valid. A set is anything that answers contains(q). The algorithm is CBiRRT (Berenson et al., 2009), a bidirectional RRT that grows trees from many roots and projects onto constraints. Task Space Regions are one representation of a set; the planner does not depend on it, and sets you define yourself take the same roles.

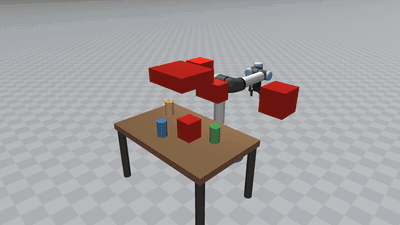

yellow can, from the near side	green can, straight in	blue can, over the boxes
yellow can, over the boxes	green can, another grasp	yellow can, a wide arc

Six runs of one call, plan(model, data, arm, goal=grasps), where grasps is every side grasp of every can: 18 regions. Each run lets the planner choose a different can, grasp, and route around the red boxes. Over 100 seeds every run succeeds, with a median of 0.05 s including root collection (tools/planning_benchmark.py). sscbirrt-demo pick --seed N renders a run.

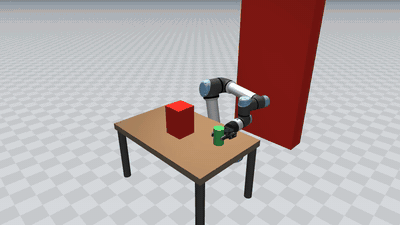

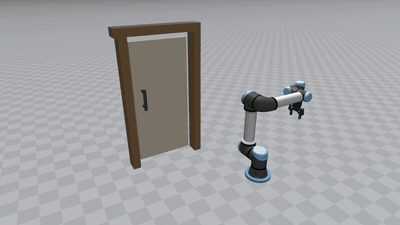

carrying a can upright: a path constraint	opening a door: a TSR chain

A path constraint holds at every point of the path: the can is lifted over the box and set down without tipping. The door's constraint is a TSR chain, the hinge and then the grasp on the handle, so the gripper follows the handle's arc as the door swings open. sscbirrt-demo transport door renders both.

Install

pip install sscbirrt                                  # the planner, its C++ core, and Task Space Regions
pip install "sscbirrt[mujoco,ssik]" sscbirrt-assets   # plus MuJoCo, analytical IK, and the UR5e model below
pip install "sscbirrt[demo]" && sscbirrt-demo         # everything above, and the rendered demos (MP4s in ./sscbirrt-demo)

Wheels for Linux x86_64 and macOS arm64, Python 3.10 through 3.14, include the native core with the SSIK and MuJoCo adapters. numpy and sstsr (Task Space Regions, imported as tsr) are installed as dependencies; the mujoco extra pins the exact MuJoCo the extension is built against. sscbirrt-assets packages the MuJoCo Menagerie UR5e and Robotiq 2F-85 so the demos need no clone.

From a checkout or the sdist, the extension compiles on install and needs CMake 3.16+ and a C++20 compiler; the build fetches scikit-build-core, pybind11, ninja, ssik, sstsr, and mujoco itself, and Eigen if none is installed:

uv pip install -e ".[all]"          # every extra, the example dependencies, and the dev tools

Plan in MuJoCo

Describe the arm once, then plan from where it is to a region:

import mujoco
import numpy as np
import sscbirrt_assets
from tsr import TSR

from sscbirrt.mujoco import Arm, plan

xml = sscbirrt_assets.ur5e_xml()                       # the Menagerie UR5e, packaged
model = mujoco.MjModel.from_xml_path(str(xml))
data = mujoco.MjData(model)
data.qpos[:] = [0, -1.57, 1.57, -1.57, -1.57, 0]       # where the arm is now

joints = ["shoulder_pan_joint", "shoulder_lift_joint", "elbow_joint",
          "wrist_1_joint", "wrist_2_joint", "wrist_3_joint"]
arm = Arm(model, joints, ee_site="attachment_site", mjcf=xml)   # SSIK built from the same MJCF

# Goal: the flange pointing down, within 2 cm of (0.5, 0.2, 0.3) and up to 5 cm above it, any yaw
T = np.eye(4)
T[:3, :3] = np.diag([1.0, -1.0, -1.0])
T[:3, 3] = [0.5, 0.2, 0.3]
goal = TSR(T0_w=T, Bw=[[-0.02, 0.02], [-0.02, 0.02], [0, 0.05], [0, 0], [0, 0], [-np.pi, np.pi]])

result = plan(model, data, arm, goal=goal, seed=0)
print(result.success, result.backend, len(result.path), f"{result.planning_time:.3f} s")

plan(model, data, arm, goal=..., start=..., constraint=..., holding=...) takes each role in whatever form you have it: a configuration, a list of configurations, a TSR, a list of TSRs (any of them, for a start or goal; all of them, for a constraint), or any set. start defaults to where the arm is now. holding="can" carries a body rigidly with the gripper and lets it touch the gripper, with the grasp taken from the current poses. The goal's Bw bounds the pose in the frame T, one [min, max] row each for x, y, z, roll, pitch and yaw (Task Space Regions). Collision checking runs on a native copy of the MuJoCo world. The search runs natively when every piece of the problem has a native form, and in Python otherwise. result.backend says which ran; result.backend_reasons is empty for a native solve and otherwise names each piece that kept it in Python (Backends).

For a gripper, the tsr package's hand models give the grasp regions: tsr.Robotiq2F85().grasp_cylinder_side(radius, height) returns templates for every side grasp of a cylinder, and template.instantiate(T_world_cylinder_bottom) places each as a TSR on the gripper's grasp frame. Pass them all as the goal and the planner chooses among them; result.goal_index says which.

Quick start without a simulator

Three roles, three kinds of set: a finite start, a goal induced by a pose region, and a path constraint written for this problem that only implements membership. Run against the two-link reference arm in sscbirrt.testing.

import numpy as np
from tsr import TSR
from sscbirrt import CBiRRT, CBiRRTConfig, FiniteSet, PlanningProblem, TSRConfigurationSet
from sscbirrt.testing import NoCollision, PlanarArm, PlanarIK

robot, ik, collision = PlanarArm(), PlanarIK(), NoCollision()
planner = CBiRRT(robot, ik, collision, CBiRRTConfig(step_size=0.1, timeout=10.0))

# Goal: end effector within 10 cm of (0, 1.5), orientation free
T = np.eye(4)
T[:3, 3] = [0.0, 1.5, 0.0]
near = TSR(T0_w=T, Tw_e=np.eye(4), Bw=np.array([[-0.1, 0.1], [-0.1, 0.1], [0, 0], [0, 0], [0, 0], [-np.pi, np.pi]]))


class RightOfWall:
    """The end effector stays at x >= -0.2 along the whole path. Membership only."""

    def contains(self, q):
        return robot.forward_kinematics(q)[0, 3] >= -0.2


problem = PlanningProblem(
    space=planner.space,
    start=FiniteSet([np.array([-0.5, 0.5])], metric=planner.space.distance),
    goal=TSRConfigurationSet(near, robot, ik, planner.space),
    validator=collision,
    path_constraint=RightOfWall(),
)
result = planner.solve(problem, seed=0)
result.success        # True
result.path           # 47 waypoints; every one has end-effector x >= -0.2
result.goal_source    # () : the goal is a single leaf, no choice to record
result.backend        # "python": result.backend_reasons names PlanarIK and RightOfWall, which have no native form

The path constraint has no projector, so the planner rejects any extension that would leave it. Give the class a project method and extensions are pulled onto the set instead, which is what TSRConfigurationSet does.

For problems whose sets are all TSRs or configuration lists, CBiRRT.plan(...) is the shorthand. It builds the PlanningProblem for you: configuration lists become a FiniteSet whose members are roots, TSR lists an AnyOf weighted by TSR volume, and several constraint_tsrs an AllOf with MostViolatedProjection. Its arguments differ from sscbirrt.mujoco.plan's: TSRs go in start_tsrs, goal_tsrs and constraint_tsrs. In this fragment, q_current, grasp_above, object_pose and upright stand for your own values:

result = planner.plan(
    start=q_current,                       # or a list of configurations
    goal_tsrs=[grasp_above(object_pose)],  # any of these regions
    constraint_tsrs=[upright],             # all of these, along the whole path
    seed=0,
    return_details=True,
)

Two search-strategy components are replaceable on the problem, each with a default. A custom motion_validator owns the whole edge check, and RestrictedMotionValidator(base, accepts) adds a restriction on top of the default discretized check. A custom sampler proposes the free-space targets the trees grow toward and defaults to the space's uniform sampling; replacing it trades away probabilistic completeness unless it has full support over the space. docs/design.md has the definitions, the composition rules, what the planner requires of each role, the tolerances, and the reference behavior artifact that pins the planner's semantics (python tools/reference_artifact.py --check).

Result

sscbirrt.mujoco.plan and CBiRRT.solve return a PlanResult; CBiRRT.plan returns the path, or the PlanResult with return_details=True:

When planning fails

A plan fails in one of two ways.

No start or goal configuration survives. Before searching, the planner collects the roots of each tree: every explicit configuration, and every IK solution of every pose drawn from a region. A root must be inside the joint limits, valid (collision-free), and inside the path constraint, if there is one. If none survives for a role, solve, CBiRRT.plan and sscbirrt.mujoco.plan raise a PlanningError: AllStartConfigurationsInCollision or AllGoalConfigurationsInCollision when every candidate was in collision, and AllStartConfigurationsInvalid or AllGoalConfigurationsInvalid otherwise. The message counts each cause, for example 12 IK unreachable, 3 in collision:

The search ends without connecting the trees. The result has success=False and a failure_reason that starts with Timeout, Max iterations or Aborted by user, and gives the iteration count and tree sizes. Raise timeout, or num_tree_roots to start from more members of the sets. With a path constraint, a small tree that stops growing usually means projection onto the constraint keeps failing: check that the constraint leaves room to move between the start and the goal.

backend="native" raises NativeUnsupported, listing every component without a native form, instead of planning; the default backend="auto" plans in Python with that list in result.backend_reasons.

How it works

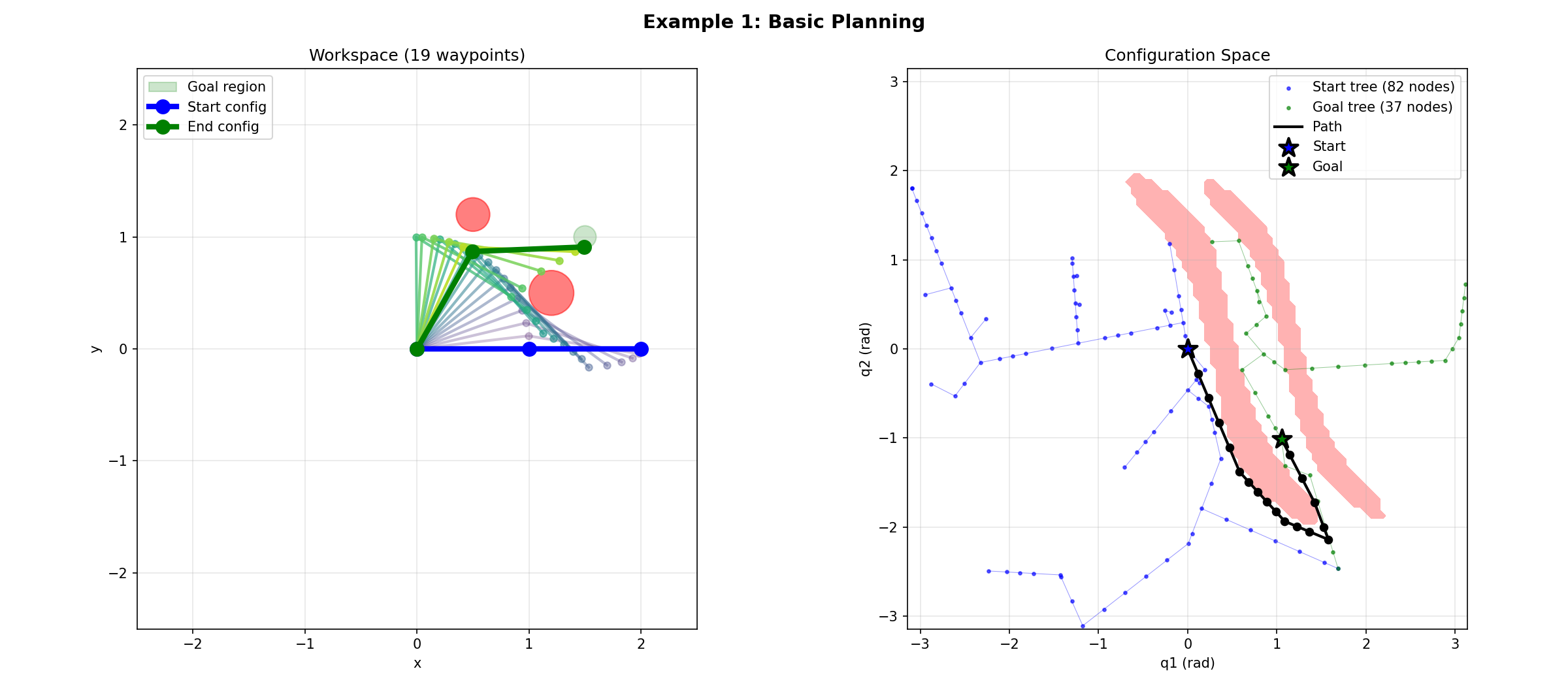

Two trees grow at once, blue from the start set and green from the goal set. The right panel is configuration space; red regions are in collision.

1. Grow a set, or sample. The trees take turns. On a tree's turn, with probability start_sample_probability (start tree) or goal_sample_probability (goal tree), the turn draws new members of that tree's own set and adds them as roots, and that is the whole turn. This is CBiRRT's P_sample: the trees keep gaining start and goal members throughout the search, not only before it. Otherwise the turn samples a random configuration. A finite set's members are all roots from the start, so its tree always samples.
2. Extend the tree whose turn it is toward the random configuration, in steps of step_size.
3. Project each new configuration onto the path-admissible set when a path constraint is present.
4. Connect the trees when one reaches the other within connection_tolerance along a validated edge.
5. Smooth by shortcutting; a shortcut is kept only if it is shorter and passes the same validation as a tree edge.

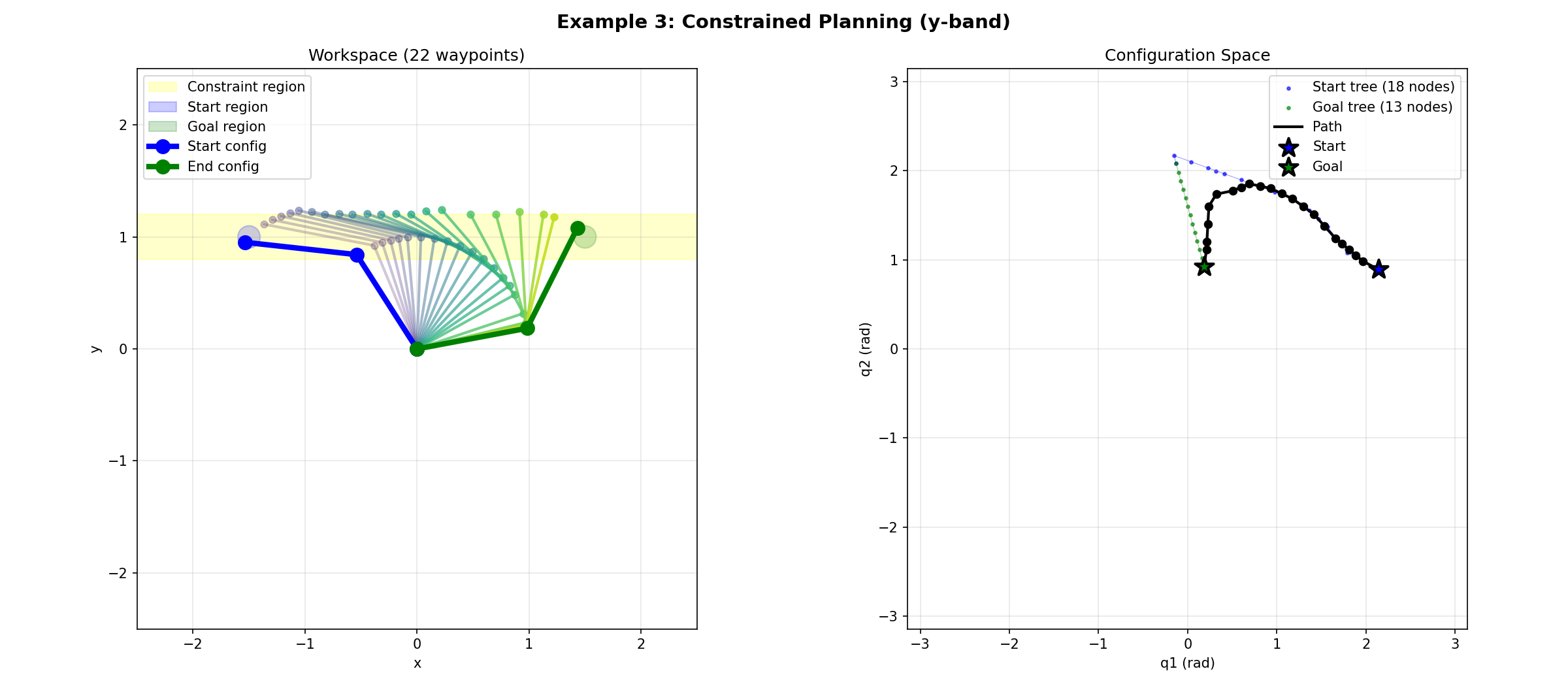

With a path constraint, the end effector stays within the yellow band throughout the motion.

Why sets

A point-to-point planner takes one start configuration and one goal configuration. Manipulation tasks are not specified that way. A grasp is valid anywhere around the rim of a mug. A placement is valid anywhere on a shelf. The arm can begin from any IK solution of its current end-effector pose. A carried cup must stay upright at every point of the motion, not only at its ends. Each of these is a set of configurations, and using a point planner means choosing one member of each set before planning.

That choice is made with the least information available. Whether a given grasp configuration is reachable from a given start, under a given path constraint, is what the search determines. Choosing first means the chosen grasp may collide with the shelf, or lie on an IK branch the arm cannot reach without leaving the constraint set, and the failure is found only after planning. The usual remedy is an outer loop over IK solutions and grasp candidates, replanning each time and rebuilding the same start tree.

Taking the sets moves the choice into the search. Both trees grow from many roots at once, one per member drawn from the start and goal sets, so every alternative is explored in one search and the reachable member is found rather than guessed. Path constraints are enforced during tree growth, by projecting each new configuration onto the constraint set or rejecting it, not by filtering the path afterward. The result records which start and goal member the path uses. And because the planner asks a set for nothing beyond membership, the sets are open: a pose region, a list of configurations, a predicate on forward kinematics, or a set of your own design are all admitted on equal terms.

What a set is

A state set is anything with contains(q) -> bool. The planner never branches on a set's concrete type. Four capabilities are separate protocols; a set provides them by defining the method, and supports(s, Capability) asks.

What each role requires:

Composition is explicit. AnyOf(children, weights) is the union: a single child delegates every capability; with several, sampling draws a child by weight and each Sample records which one. AllOf(children, projection=, sampling=) is the intersection: a single child delegates; with several, the caller names how to project (MostViolatedProjection) and how to sample (RejectionSampling(source)), because there is no canonical way to do either for an intersection. An intersection of finite sets is finite and enumerable. A Sample carries the configuration and a provenance tuple, the sequence of choices that produced it, which is what PlanResult.start_source and goal_source report; a leaf contributes no choices, so provenance is empty when the set expression has none.

Leaves provided: FiniteSet(configs, tolerance, metric), PredicateSet(fn), EmptySet(), and TSRConfigurationSet(tsr, robot, ik, space), which is ${q : \mathrm{FK}(q) \in \mathrm{TSR}}$ with all four capabilities.

Defining your own set

A set is a class. Implement contains; add capabilities as the role needs them.

class MySet:
    def contains(self, q: np.ndarray) -> bool:
        ...                                   # required; the only thing every role needs

    def sample(self, rng: np.random.Generator) -> list[Sample]:
        ...                                   # start/goal roots: every candidate from one draw, unfiltered

    def violation(self, q: np.ndarray) -> float:
        ...                                   # zero iff contains(q); lets strategies rank children

    def project(self, q_previous: np.ndarray, q_proposed: np.ndarray) -> np.ndarray | None:
        ...                                   # path constraints: move q_proposed onto the set, or None

Rules the planner relies on: sample returns every candidate a draw produces (for example every IK branch of one pose) and applies no collision or other external filter, since which branch is valid is the validator's call; violation is on the set's own scale and agrees with contains at zero; project may use q_previous to seed an iterative solve or to reject a result that moved too far. Every configuration a set returns is checked against the joint space and the validator before it is stored, so a set cannot put an invalid configuration into a tree.

Task Space Regions

A TSR is a pose region in SE(3): a reference frame T0_w, an end-effector offset Tw_e, and bounds Bw on x, y, z, roll, pitch, yaw in the reference frame. TSRConfigurationSet lifts it through the robot into the set of configurations whose end effector lies in the region, and the TSR's geometry supplies every capability: sampling (draw a pose, solve IK for every branch), distance and violation (TSR distance of the forward kinematics), and projection (the closest pose in the region, then IK seeded from the previous configuration).

from tsr import TSR

grasp_tsr = TSR(
    T0_w=object_pose,     # reference frame at the object
    Tw_e=gripper_offset,  # gripper offset from that frame
    Bw=np.array([
        [-0.01, 0.01], [-0.01, 0.01], [0, 0],  # position: ±1 cm in x and y, exact z
        [0, 0], [0, 0], [-np.pi, np.pi],       # roll and pitch fixed; yaw free
    ]),
)

Several TSRs in goal_tsrs or start_tsrs form a union; sampling is proportional to each TSR's volume. Configuration lists and TSRs can be mixed in the same role (the names below stand for your own configurations and TSRs):

path = planner.plan(start, goal_tsrs=[top_grasp_tsr, side_grasp_tsr])
path = planner.plan(start=[home1, home2, home3], goal_tsrs=[grasp_tsr])
path = planner.plan(start=current, goal=[ik_sol1, ik_sol2, ik_sol3])
path = planner.plan(start=[home], start_tsrs=[start_region], goal=[q_grasp], goal_tsrs=[grasp_region])

A TSRChain couples TSRs in series (a handle on a swinging door) and defines one region of end-effector poses. It goes anywhere a TSR goes. A complete, runnable chain is the door demo's door_chain in src/sscbirrt/demo/scenarios/door.py:

from tsr import TSRChain

door = TSRChain(TSRs=[hinge_tsr, handle_tsr])
path = planner.plan(start_config, goal_tsrs=[door])

For a chain of two or more TSRs, membership and projection search numerically for the links' values (sstsr's bounded inverse). The search can miss a pose that is in the chain, but never accepts one that is not, so every configuration on a returned path is in the set. A miss costs coverage: fewer start or goal roots, and some extensions under a chain path constraint rejected. If a chain problem finds no roots or does not connect, raise sample_draws and num_tree_roots, or widen the chain's bounds where the task allows. Chains plan natively like single TSRs: the door demo's chain plans in about 0.3 s natively, against 5 to 9 s in Python.

Configuration

from sscbirrt import CBiRRTConfig

config = CBiRRTConfig(
    # Termination
    timeout=30.0,                       # Wall-clock seconds
    max_iterations=100000,              # Safety limit
    abort_fn=None,                      # Callable returning True to stop early

    # Tolerances
    membership_tolerance=1e-3,          # TSR distance at which a configuration is in the set
    connection_tolerance=1e-3,          # Joint-space distance at which growth has reached its target
    edge_resolution=0.05,               # Spacing of collision checks along an edge, independent of step_size
    progress_tolerance=1e-6,            # Growth stops when it gains less than this per step
    projection_progress_tolerance=1e-6, # Projection gives up when the violation shrinks less than this

    # Tree growth
    step_size=0.1,                      # Max joint-space step per iteration
    start_sample_probability=0.1,       # On the start tree's turn, probability of adding start roots instead
    goal_sample_probability=0.1,        # On the goal tree's turn, probability of adding goal roots instead
    max_projection_iters=50,            # Iterations to project onto the constraint set

    # Set sampling
    sample_draws=100,                    # Pose samples to try from each TSR
    num_tree_roots=100,                 # Root configs to seed each tree before the search
    max_per_draw=None,                  # Candidates kept per draw; None keeps every one (3 until 3.4)

    # Extension behavior (None = connect until blocked)
    extend_steps=None,                  # Steps toward a random sample
    connect_steps=None,                 # Steps toward the other tree

    # Smoothing
    smooth_path=True,
    smoothing_iterations=50,
    smoothing_patience=15,              # Stop early after this many attempts without improvement

    # Joints with no limits (see below); None = every joint is bounded
    continuous_joints=None,
)

tsr_tolerance is a deprecated alias that sets both membership_tolerance and connection_tolerance and warns.

membership_tolerance, max_projection_iters and projection_progress_tolerance configure the sets that plan(...) builds from its arguments. A set you construct yourself and pass to solve keeps its own constructor values (FiniteSet(tolerance=1e-6), TSRConfigurationSet(tolerance=1e-3, ...)).

Continuous joints

Mark a joint continuous (continuous_joints) only if it has no limits. The space never infers this: a bounded joint must have finite limits, and a robot model that reports an unlimited joint (the MuJoCo model reports ±∞) fails at planner construction until you either mark the joint continuous or give it finite planning limits. A continuous joint ignores whatever limits were stored for it, samples over one full turn, and its distance wraps at 2π so the planner may join the trees across the seam. Joints with limits wider than one turn, such as the UR5e's ±2π joints, are not continuous: their windings are distinct configurations and the planner respects the limits. Returned paths are unwrapped forward from the start, so on a continuous joint consecutive waypoints never differ by more than a step and an executor can interpolate them directly. The goal may therefore be re-expressed by a multiple of 2π.

Planning variants

Interfaces

class RobotModel(Protocol):
    @property
    def dof(self) -> int: ...

    @property
    def joint_limits(self) -> tuple[np.ndarray, np.ndarray]: ...

    def forward_kinematics(self, q: np.ndarray) -> np.ndarray:
        """Return the 4x4 end-effector pose."""


class IKSolver(Protocol):
    def solve(self, pose: np.ndarray, q_init: np.ndarray | None = None) -> list[np.ndarray]:
        """Return every IK solution, unfiltered; q_init is an optional seed."""


class CollisionChecker(Protocol):
    def is_valid(self, q: np.ndarray) -> bool:
        """Return True if collision-free."""

Two optional declarations make root collection cheaper. They are declared, never inferred. An IK solver's revolute_joints names the joints on which q and q + 2πk put the arm in the same place; SSIK declares all of its joints. A collision checker's full_turn_invariant = True says that a full turn of a joint never changes its verdict; the MuJoCo checkers declare it when every planned joint is a hinge. With both, the many windings that SSIK returns for one pose are collision-checked once, not each separately (#200). The result is the same, only faster.

Together with StateSet, these are the planner's extension points. Each has a native counterpart in the C++ core (StateSet, StateValidator, ForwardKinematics, IKSolver), and the shipped integrations below are implementations of them, not special cases; see Adding an integration.

Backends: native and Python

The C++20 core in cpp/ implements the same contract as the Python planner (docs/native-design.md). It is built into the wheel as sscbirrt._native, and since 2.0 the planner selects it by default:

planner = CBiRRT(robot, ik, collision, config)                    # backend="auto": native where it can, else Python
planner = CBiRRT(robot, ik, collision, config, backend="native")  # native or NativeUnsupported; never a silent fallback
planner = CBiRRT(robot, ik, collision, config, backend="python")  # the reference implementation, always
result = planner.solve(problem, seed=0)
result.backend          # "native" or "python"
result.backend_reasons  # under "auto": why Python was chosen, one entry per component; also logged at INFO

Selection is decided by the problem's components, never by which optional packages happen to import: a missing extension or adapter is itself one of the stated reasons. The native core plans problems whose components all have a native form: finite sets, AnyOf/AllOf with the named strategies, EmptySet, the validators in sscbirrt.testing, any validator or IK solver that implements the integration protocols below (the MuJoCo scene and SSIK do), and TSRConfigurationSets whose region is a TSR or TSRChain and whose IK has a native form (SSIK around an ssik.Manipulator of a verified family, the UR family ikgeo.three_parallel). TSRs and SSIK then run entirely in C++: TSRs and TSR chains are sstsr's own C++ core (sstsr 3.3), and the SSIK adapter is checked against the Python one on the UR5e. Anything else (Python-only IK, predicates, Python-only validators, samplers, or motion validators) makes backend="native" raise NativeUnsupported listing every blocker, and the default fall back to Python with the same list on the result; Adding an integration is how to give a component a native form. Before a native solve, sscbirrt translates the problem into the core's C++ objects ("lowering"); lowering also checks that the robot model's forward kinematics agrees with the native IK model's on the problem's explicit configurations. The native solve releases the GIL and calls no Python after entry. Same seed, same path within a backend; the two backends agree on outcomes and validated paths but not on waypoints, because they use different random-number engines. tools/reference_artifact.py --backend {python,native,auto} --check runs the behavior artifact through each selection.

Integrations

sscbirrt ships three integrations. Each implements one interface the core defines and each lives in its own module, so none is required by the others:

sscbirrt::core depends on none of them and on nothing but the C++ standard library. import sscbirrt and the native planner work with no simulator and no IK library installed; a missing one is reported as a reason, never an import error. Another simulator or IK library is a fourth module of the same shape (Adding an integration).

MuJoCo

sscbirrt.mujoco (above) is the way in. The pieces it is built from are usable on their own:

from sscbirrt.backends.mujoco import MuJoCoCollisionChecker, MuJoCoIKSolver, MuJoCoRobotModel

robot = MuJoCoRobotModel(model, data, ee_site="attachment_site", joint_names=joints)
collision = MuJoCoCollisionChecker(model, data, joint_names=joints)   # any contact is a collision
ik = MuJoCoIKSolver(model, data, ee_site="attachment_site", joint_names=joints, collision_checker=collision, seed=0)

Name the arm's joints: a model with free bodies (objects on a table) refuses joint_names=None. MuJoCoRobotModel(joint_limits=(lower, upper)) replaces the model's limits, for example to give an unlimited joint finite planning limits. The differential solver is stateful and, when called without a seed configuration, tries a few random restarts within each joint's limits. Pass seed= for reproducible runs; CBiRRT.plan(seed=...) seeds the planner only.

Native MuJoCo scene (collision checking in C++)

With sscbirrt[mujoco] (pinned to mujoco==3.14.0, the version the extension is built against), collision checking can run natively against a MuJoCo world the planner owns:

from sscbirrt.backends.native_mujoco import NativeScene, Snapshot, NativeCollisionChecker

scene = NativeScene.from_model(model, joint_names)              # an owned mjModel from the compiled model's MJB bytes
snap = Snapshot.capture(scene, data, attachments={"can": ("robot/gripper/base", T_gripper_can)})
checker = NativeCollisionChecker(scene, snap)                   # a CollisionChecker for either backend

sscbirrt.mujoco.plan builds the scene, the snapshot, and the checker for you. plan_native(model, data, joint_names, ...) in this module did the same before 3.1.0 and is deprecated.

The snapshot is a value: qpos, mocap poses, and attachments copied at capture, so later changes to data do not reach a running solve. Downstream integration is described in docs/migration-mj-manipulator.md. The contact policy is mj_manipulator's (a grasped object may touch its gripper; everything else that touches the robot is a collision) and is checked against it on a checked-in corpus. PlanResult.provenance records the scene's MJB hash and the snapshot hash alongside the dependency versions; PlanResult.stats breaks the solve's cost down by component on both backends.

SSIK (analytical IK, recommended)

uv pip install "sscbirrt[ssik]"   # ssik >= 7.0

SSIKRobotModel(ik) is a RobotModel whose forward kinematics and limits come from the wrapped manipulator, for planning without a simulator.

SSIK is the analytical IK backend. The EAIK backend, deprecated in 1.3.0, was removed in 2.0 with its eaik extra; SSIKSolver(ssik.Manipulator.from_prebuilt("ur5e")) replaces EAIKSolver.for_ur5e(...).

SSIK solves 6R and 7R arms in closed form, accepts a seed, and returns every in-limit winding of each geometric branch on joints wider than one turn, so the planner sees the complete TSR-induced configuration set. The adapter does no collision checking and applies no solution cap; joint limits are enforced by JointSpace and collision by the planner's validator.

SSIK runs on the native backend for a 6-DOF ssik.Manipulator of a verified family, today the UR family (ikgeo.three_parallel). Any other arm, a 7R arm such as a Franka included, plans with SSIK on the Python backend, and result.backend_reasons says so.

sscbirrt.mujoco.Arm(..., mjcf=path) builds SSIK for you, computes both frame offsets from the MuJoCo model (so the arm can stand anywhere in the world), and checks that the two agree. By hand:

import ssik
import sscbirrt_assets
from sscbirrt.backends.mujoco import site_offset_in_body
from sscbirrt.backends.ssik import SSIKSolver

# From the same MJCF as the MuJoCo model, so the frames agree to machine precision
arm = ssik.Manipulator.from_mjcf(sscbirrt_assets.ur5e_xml(), base="world", ee="wrist_3_link")
ik = SSIKSolver(arm, T_ee=site_offset_in_body(model, "attachment_site"))  # the site is on wrist_3_link

# Or the prebuilt model (vendor nominal geometry); ssik.Manipulator.from_urdf takes a URDF
ik = SSIKSolver(ssik.Manipulator.from_prebuilt("ur5e"))

The SSIK model and the RobotModel must agree on joint order and sign, base frame, end-effector frame, and which joints are continuous. If the frames differ by fixed transforms, pass T_base and T_ee so that robot.forward_kinematics(q) == ik.fk(q), and assert that before planning. Prebuilt models use the vendor's nominal geometry and can differ from a simulator model by a millimeter, which matters at the default membership tolerance.

Adding an integration

The native backend runs a solve only when every component has a native form. One Python-only validator, IK solver or set sends the whole solve, every sample, extension and collision check, to the Python planner: the cost is the whole speedup, not that component's share. The door demo shows the size. Its TSR chain had no native form before 3.2.0; the same problem now plans in about 0.3 s natively, against 5 to 9 s in Python. result.backend_reasons names each component that kept a solve in Python, so it is the list of what to port.

The native lowering (sscbirrt.backends.native) recognizes validators and IK solvers by two protocols, never by type, so a new collision or IK backend plugs in without a change to sscbirrt:

from sscbirrt.backends.native import ValidatorIntegration, KinematicsIntegration

class MyChecker:                       # a CollisionChecker for the Python backend ...
    def is_valid(self, q) -> bool: ...
    def fresh(self):                   # ... and, for the native one, a sscbirrt StateValidator per solve
        return my_native_module.Validator(self.world_handle)
    @property
    def provenance(self) -> dict:      # what it checked against; merged into PlanResult.provenance
        return {"my_world_sha256": self.world_hash}

class MyIK:                            # an IKSolver ...
    def solve(self, pose, q_init=None) -> list: ...
    def native_kinematics(self):       # ... that is also a sscbirrt ForwardKinematics and IKSolver,
        return my_native_module.Arm(self.spec)   # or raises NativeUnsupported([reason])
    provenance = {"ik_backend": "mine"}

On the C++ side, subclass sscbirrt::StateValidator (one virtual, is_valid) or sscbirrt::ForwardKinematics and sscbirrt::IKSolver in a target that links sscbirrt::core, and bind it with pybind11 in your own extension module, declaring the base registered by sscbirrt._native so a native PlanningProblem accepts your object. NativeCollisionChecker and SSIKSolver are the two shipped implementations of these protocols and are the templates to copy. The rules that made them trustworthy apply to a new one too: the native form and the Python form are one implementation or are checked against each other on a corpus (MuJoCo: 490 configurations against mj_manipulator; SSIK: the UR5e artifact), the library version is pinned and verified at import, and per-solve scratch state comes from fresh() so a validator is never shared between concurrent solves. Lowering itself checks that your native_kinematics() agrees with the problem's RobotModel on the explicit configurations, and refuses with a reason if it does not.

Examples

# MuJoCo: a UR5e with a Robotiq 2F-85, rendered to MP4 (pip install "sscbirrt[demo]")
sscbirrt-demo                           # pick, transport, and door
sscbirrt-demo --list                    # what each one shows
sscbirrt-demo pick --seed 3             # one scenario, another seed

# A 2-DOF planar arm with matplotlib plots of the trees (no simulator)
uv pip install -e ".[examples]"
python examples/planar_arm.py           # all four
python examples/planar_arm.py -e 1      # basic planning
python examples/planar_arm.py -e 2      # start and goal TSRs
python examples/planar_arm.py -e 3      # a path constraint
python examples/planar_arm.py -e 4      # several start and goal configurations

The demos are the MuJoCo examples to read: each scenario in src/sscbirrt/demo/scenarios/ is one file built on sscbirrt.mujoco, and sscbirrt-demo runs them.

References

• Berenson, D., Srinivasa, S., Ferguson, D., & Kuffner, J. (2009). Manipulation planning on constraint manifolds. ICRA.
• Berenson, D., Srinivasa, S., & Kuffner, J. (2011). Task Space Regions: A framework for pose-constrained manipulation planning. IJRR.

License

MIT
