StitchIt

🧵/\/\/\✂️/\/\/\🪡/\/\/\🧵/\/\/\✂️/\/\/\🪡/\/\/\🧵/\/\/\✂️/\/\/\🪡

StitchIt generates a cross stitch chart from an image for free. Main features include:

• User option for number of colors and stitches per row
• DMC colors and symbols are used for a better experience
• Legend with DMC codes and symbols is also produced
• Thread information is also shown (ready to purchase)
• Aida simulation (image background replaced)
• Backstitch (limited to background-objects border, so far)
• CIEDE2000 color perception is used for the most accurate palette
• Optionally, multiple format tweaks for the chart
• Output formats include svg (vectorized image), png and pdf

NOTE: StitchIt is developed with Python 3.10 and tested with pytest.

Install

Directly from PyPI.

pip install stitchit

It will create an entrypoint to call the main script if you write stitchit in the terminal. The following third-party modules are required.

• pillow>=12.2.0
• cairosvg>=2.9.0
• tabulate>=0.10.0
• scikit-image>=0.22.0
• numpy>=1.24.3

You could also clone the GitHub repository with:

gh repo clone girdeux31/StitchIt

Quick guide

stitchit -i input_file -n n_colors -s stitches_per_row

WARNING: If you clone the repo, then call the main script as python src/stitchit from the project root.

Only 3 parameters are mandatory, see the list of all available options.

• input_file (str): image to process
• n_colors (int): number of DMC colors
• stitches_per_row (int): number of stitches (squares) per row

For example:

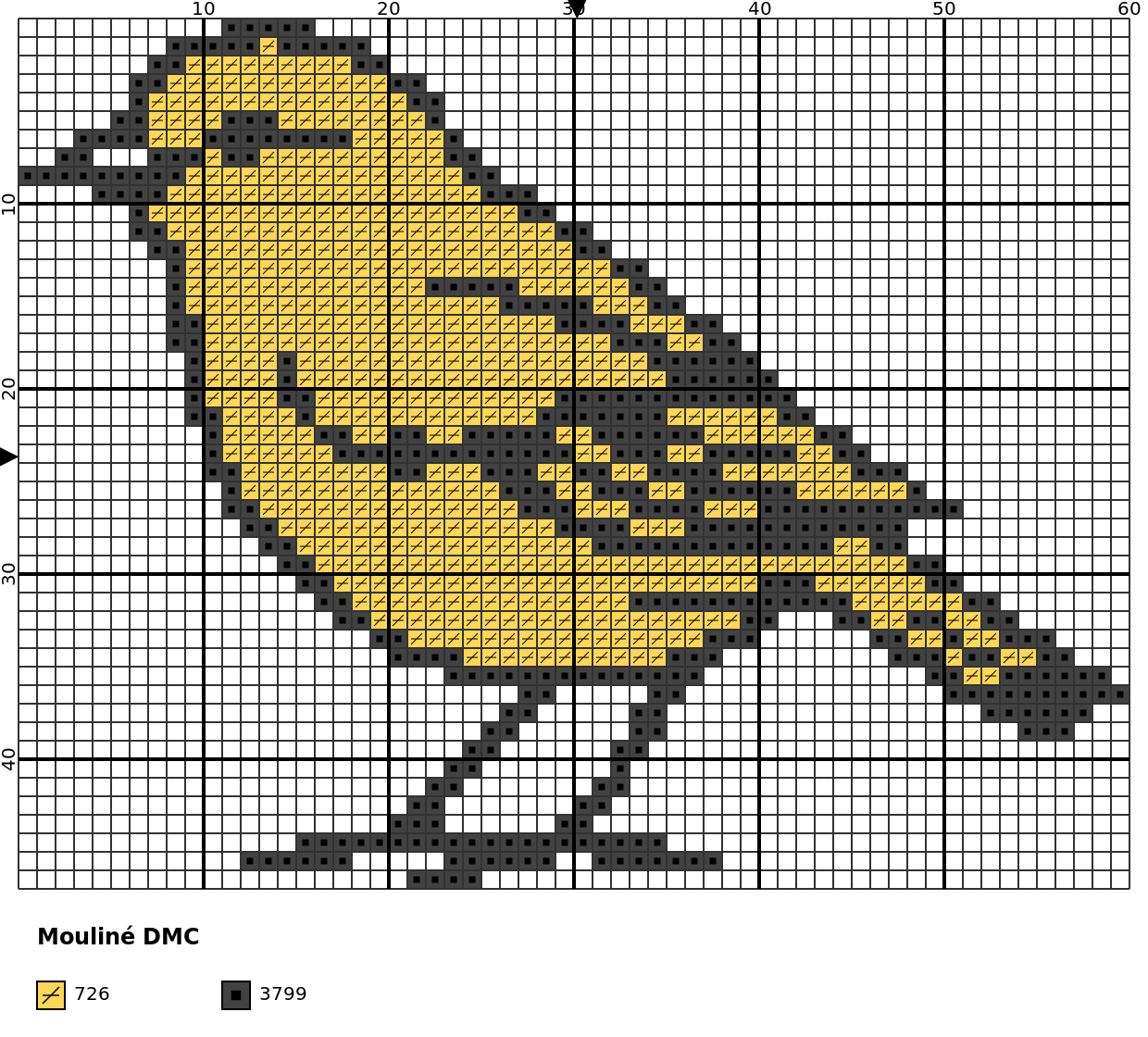

stitchit -i examples/bird.jpg -n 2 -s 60

That is, use 2 different DMC colors and 60 stitches in each row.

Original	Chart

Image recommendations

The following recommendations apply to input images:

• Cartoonish images
• Plain colors or slightly shaded
• Few details
• Homogeneous backgrounds
• No gray-scale images

The previous image is a good one but it is rather simple. A greater variety of colors is handled properly (increase n-colors accordingly). For example:

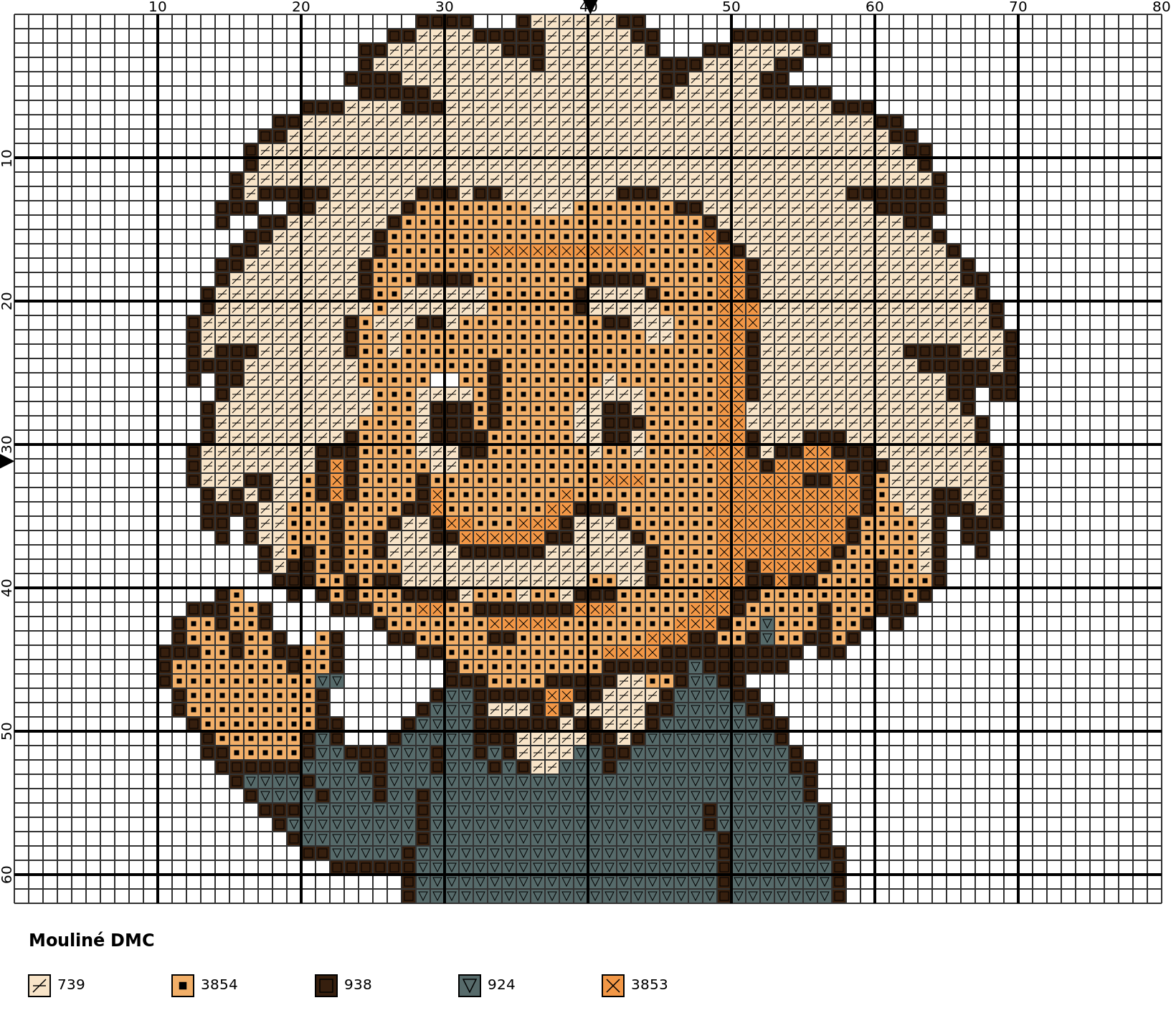

stitchit -i examples/einstain.jpg -n 5 -s 80

Original	Chart

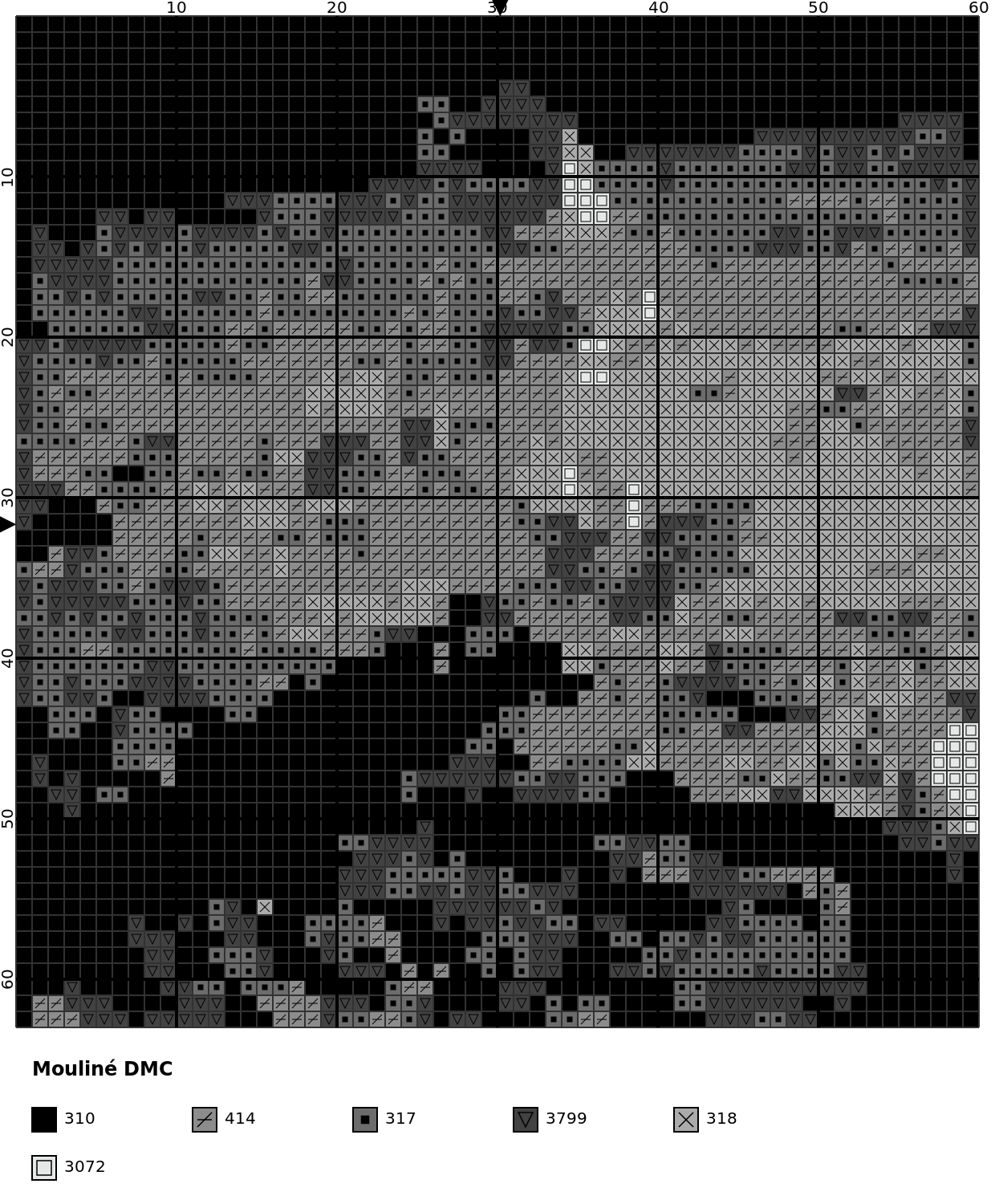

You can use any image, but the output of a real photography is not something you would stitch.

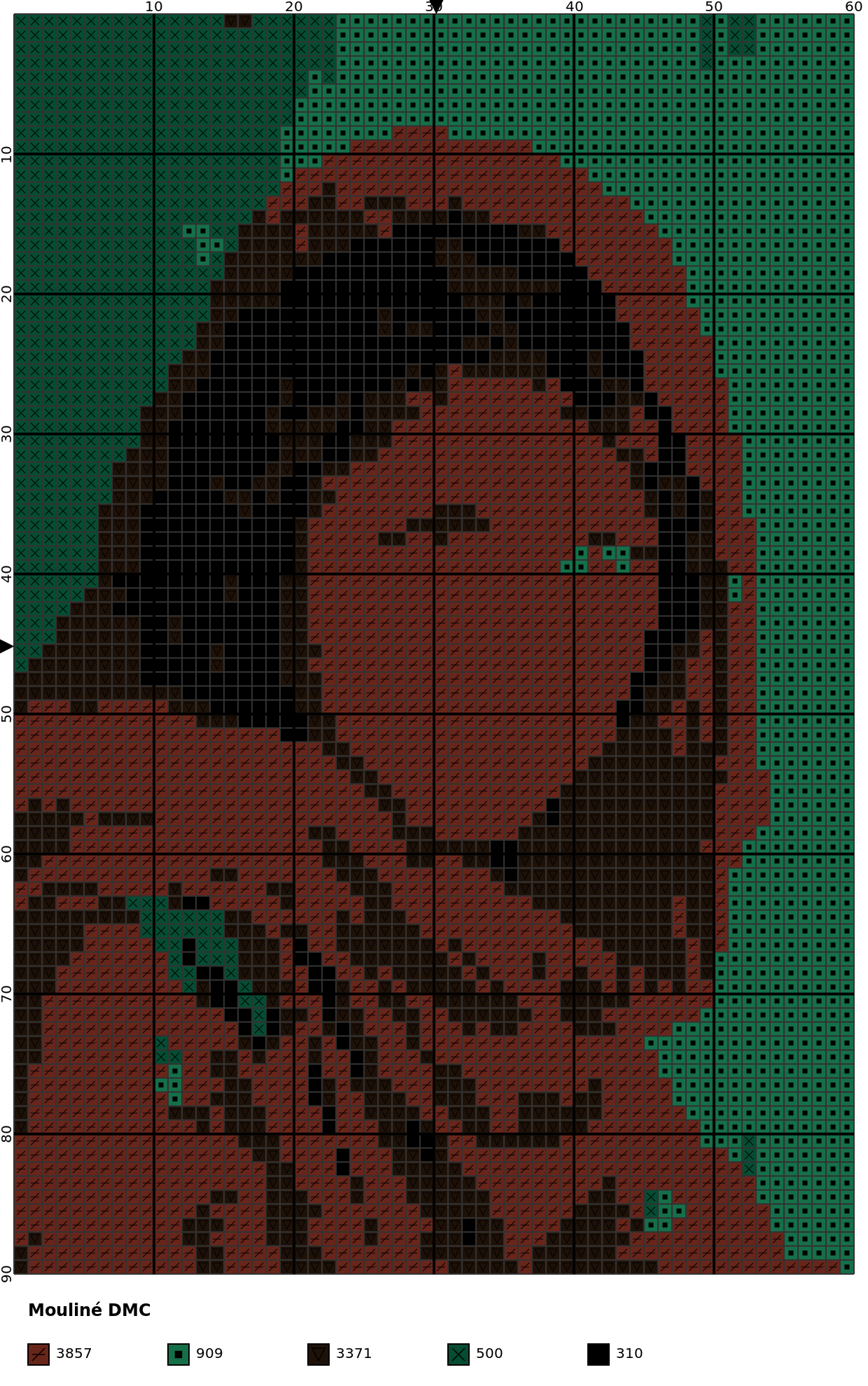

Original	Ugly chart

If you must use a real photography, try to convert it first with your favorite AI tool. You can use this prompt:

I attached an image. Can you convert it to a cartoonish picture so I can run it through an image-to-cross-stitch-chart program? Use plain colors or slightly shaded, few details, and homogeneous backgrounds. If it is in gray-scale, try to colorize it first.

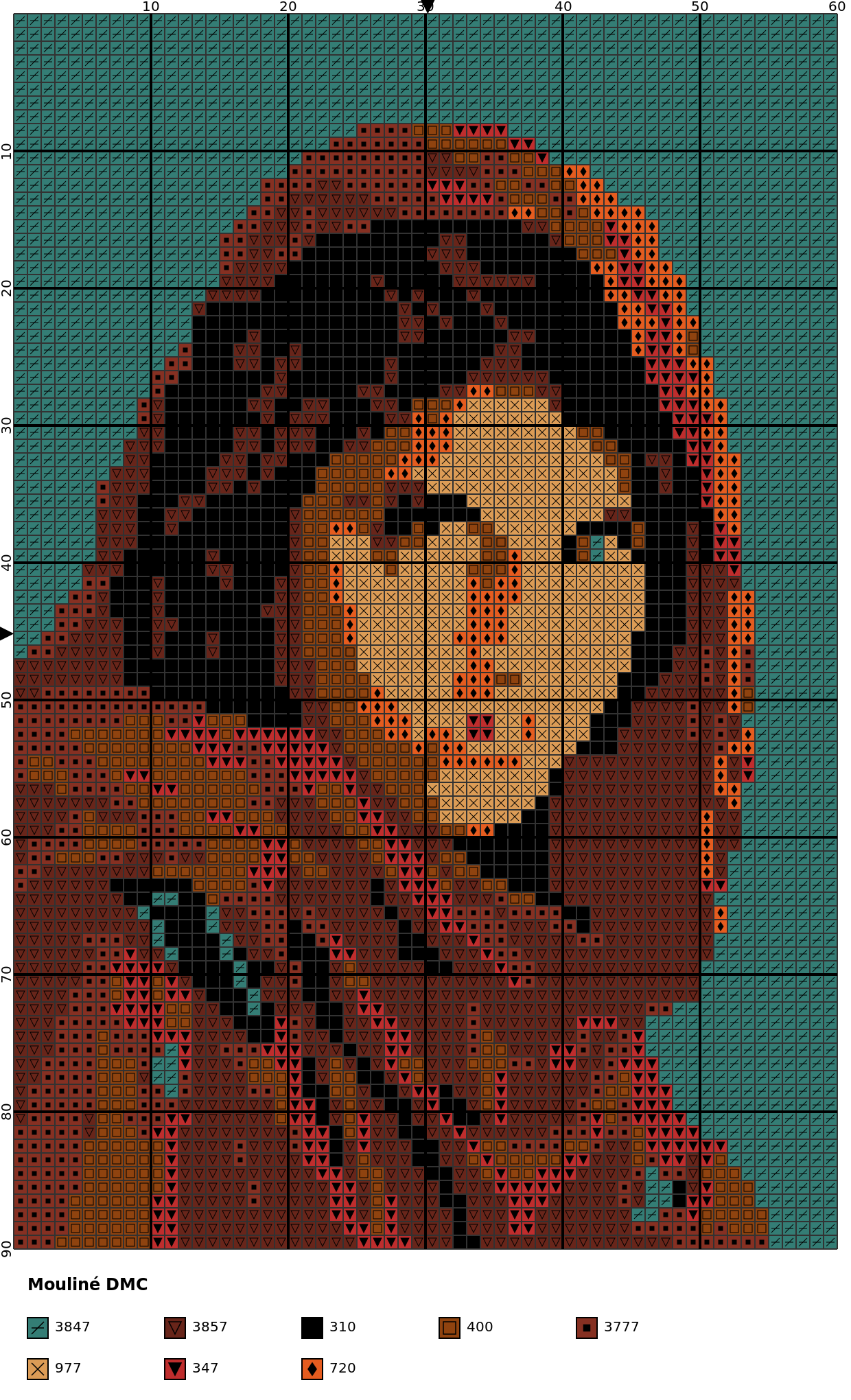

Original	Chart

Thread information

Beside the cross stitch chart, a file (txt format) with design and thread information is generated. For example, for the first image shown above (bird.jpg):

Design information:

  Fabric count or Aida count: 14 (ct or stitches per inch)
  Strands for stitching: 2 strands
  Size (width x height): 10.89x8.53 (cm) or 4.29x3.36 (in)
  Stitches (width x height): 60x47

Thread information:

  DMC code  DMC color              DMC RGB       Stitches    Length (m)    Skeins     MSE
----------  ---------------------  ----------  ----------  ------------  --------  ------
       726  Light Topaz            253,215,85         628         11.30         1  0.5451
      3799  Very Dark Pewter Gray  66,66,66           466          8.39         1  0.0060

This includes approx design real dimensions, thread usage information (based on Aida number, see --fabric-count), skeins to purchase and color MSE (error with respect to real image).

Special features

Among all optional options, there are two that is worth explaining in its own section.

Background

By default, image background is automatically detected and left as part of the Aida cloth. Besides:

• Color given by --aida-color is used in chart (default is white)
• No symbol is given to those stitches
• Aida color is not shown in legend

However, image background can be rendered as stitches with --no-aida. For example:

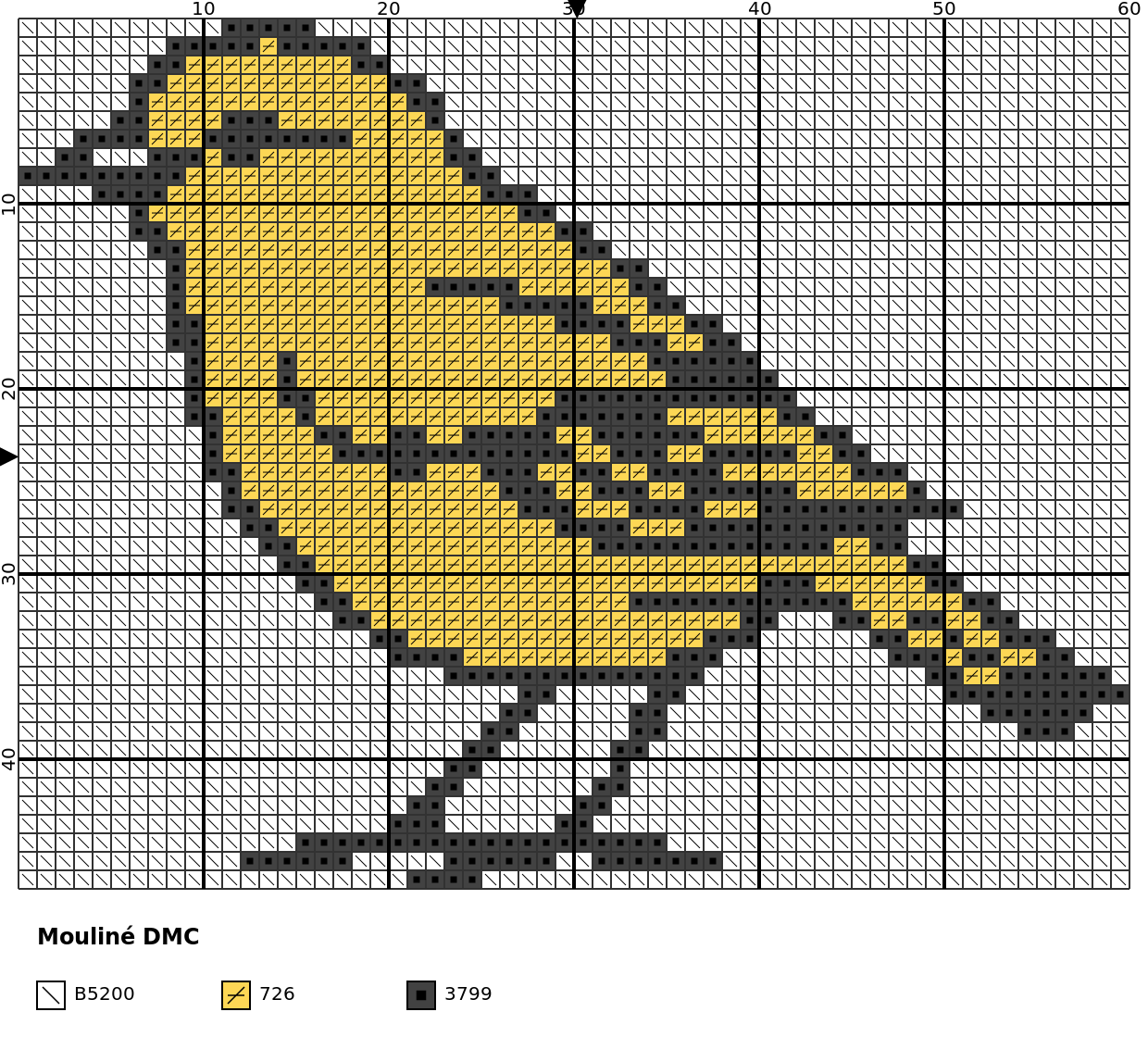

stitchit -i examples/bird.jpg -n 3 -s 60 --no-aida

Default	With --no-aida

WARNING: When --no-aida is present (not the default behavior), the image background takes up one color. Thus, to produce the same chart as the default behavior (background as Aida cloth) option --n-colors (or -n) must be increase by 1.

Background color is detected as the mode of the image outer border.

Backstitch

Backstitch is controlled with --backstitch-option. So far, only backstitch between objects and background is produced. It has 3 different options:

• none: no backstitch is included in chart
• constant: backstitch with constant color (given by --backstitch-code)
• inverse: backstitch with object inverse color (most similar DMC color)

For example:

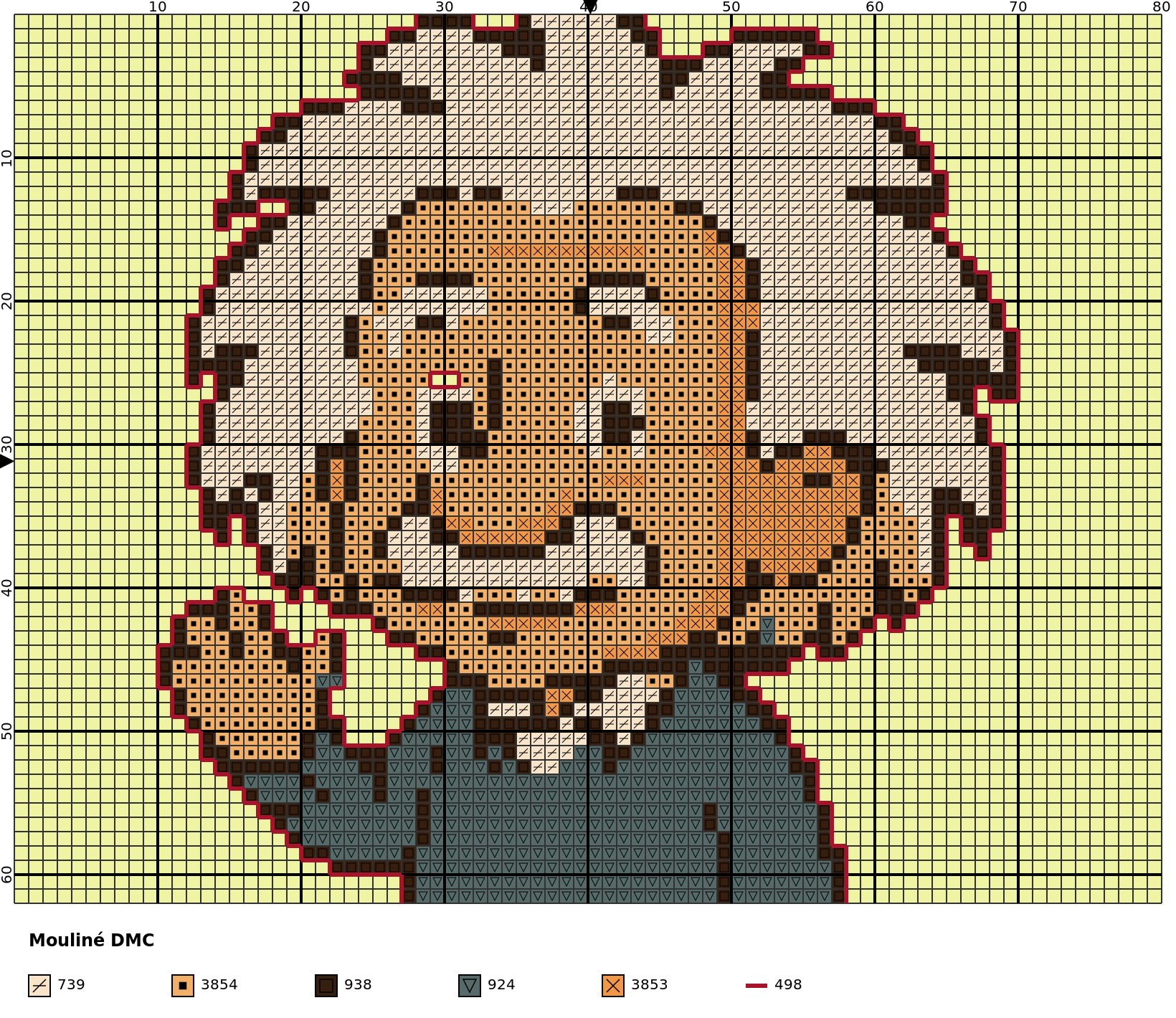

stitchit -i examples/einstain.jpg -n 5 -s 80 --backstitch-option constant --backstitch-code 498 --aida-color "#EFF4A4"

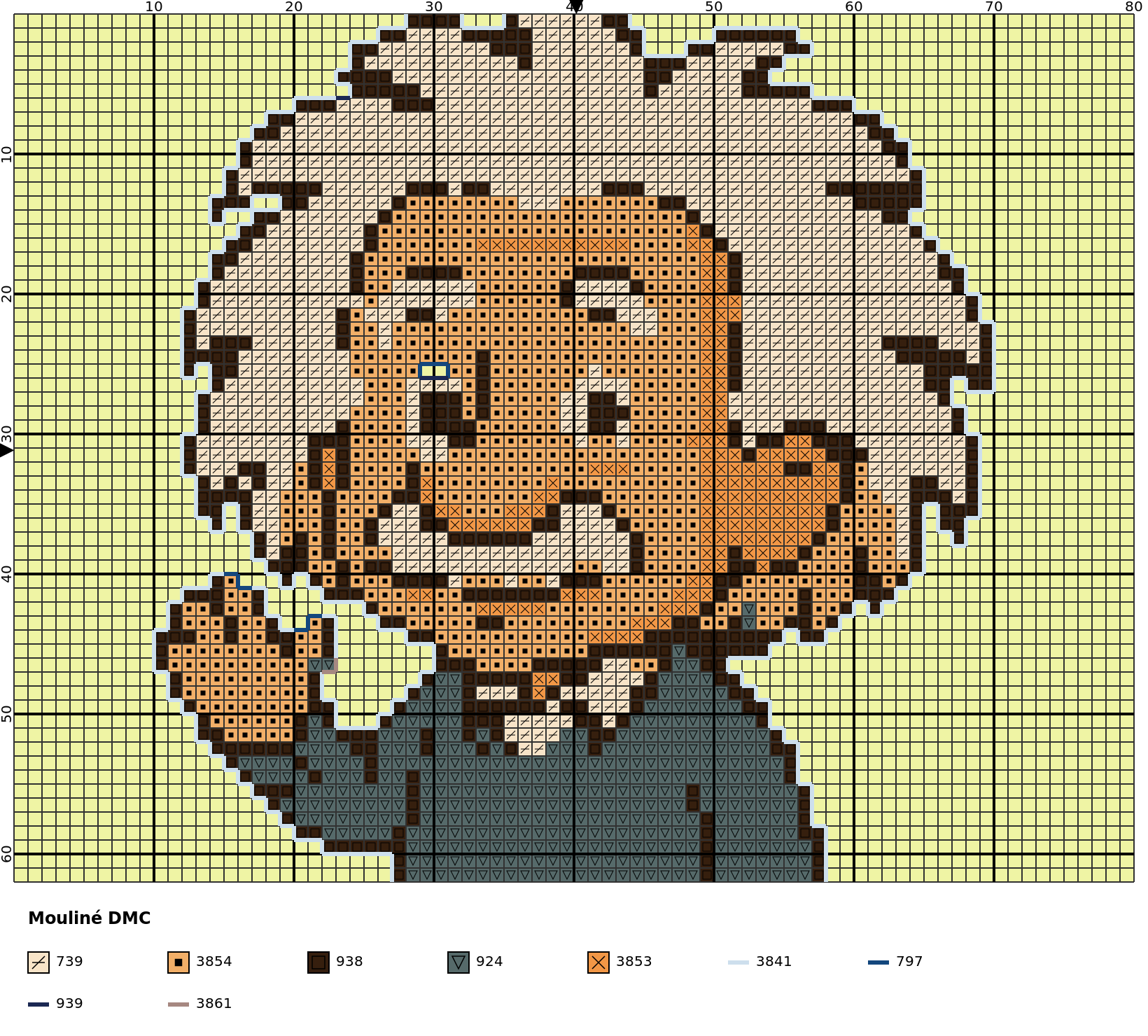

stitchit -i examples/einstain.jpg -n 5 -s 80 --backstitch-option inverse --aida-color "#EFF4A4"

--backstitch-option constant	--backstitch-option inverse

Additional control over backstitches is given by --backstitch-code (if --backstitch-option is constant) and --backstitch-line-width. Backstitch colors are also included in legend. Note that colors in legend are sorted according to the number of stitches (first cross stitches, then backstitches).

User options

In the table below there is a list of all available user options, along with the type, default value and a comment. Please, read carefully the following notes.

NOTE: Only options --input-file (or -i), --n-colors (or -n) and --stitches-per-row (or -s) are mandatory. All others are optional (defaults are included in table).

NOTE: No value is needed for options --no-colors, --no-symbols,--no-legend, --no-aida, --no-svg, --no-png and --no-pdf. Their effect is applied if they are present in the command line. That's way they don't have type or default values. Their default behavior is explained in comments.

NOTE: Options --backstitch-code and --backstitch-code-no-colors ask for a DMC code. See available DMC codes.

NOTE: All options that end with -color ask for a color. Colors can be specified with CSS4 names as gray or HEX codes as "#808080". See available CSS4 colors.

WARNING: Double quotes must be used if HEX code is used as color, otherwise the terminal thinks it is a comment since it has the character #.

NOTE: All options that end with -pixels ask for a distance in pixels over the SVG file produced.

Parameter	Type	Default	Comment
-i or --input-file	str		Image file to convert. Required.
-n or --n-colors	int		DMC colors to use in chart (backstitch colors are not included). Parameter must be between 2 and 100, both included. Required.
-s or --stitches-per-row	int		Number of stitches/squares/pixels per row in chart. Must be greater or equal than 10. Required.
--no-colors			Produces chart without colors (color specified in --aida-color is used). By default colors are used.
--no-symbols			Produces chart without symbols. By default symbols are used.
--no-legend			Produces chart without legend. By default legend is shown.
--no-aida			Image background is rendered as more stitches in chart if this option is present. By default Aida is shown, that is, stitches detected as background are drawn with color specified in --aida-color, without symbols and its color is not shown in legend (simulating Aida cloth). Background is detected as the mode of outer image borders.
--no-svg			Don't save chart as svg file. By default a svg file is generated.
--no-png			Don't save chart as png file. By default a png file is generated.
--no-pdf			Don't save chart as pdf file. By default a pdf file is generated.
--png-scale	float	2.0	Scale factor for the png generated file if --no-png is not used.
--method	str	de00	Method to compute color distance. Options are: euclidean, de76 (deltaE CIE76, like euclidean distance but with LAB coordinates), de00 (deltaE CIELAB2000, more accurate method as it measure color difference as human perception).
--cleaner-option	str	strong	Level of confetti (bad pixels) cleaning. Options are none, moderate (cleans isoleted pixels) and strong (same as moderate plus cleans pixels with just one diagonal neighbor).
--aida-color	str	white	Color for Aida cloth when --no-aida is not used (default). Take into account that it is drawn in chart as the most similar DMC color.
--backstitch-option	str	none	Level of backstitching. Options are none, constant (backstitches with constant color between objects and background, color is defined by --backstitch-code) and inverse (backstitches with inverse color between objects and background).
--backstitch-code	str	498	DMC code for backstitches when --backstitch-option is constant.
--backstitch-code-no-colors	str	310	DMC code for backstitches when --backstitch-option is not none and --no-colors is used.
--fabric-count	int	14	Aida number of squares per inch. Only used to compute thread usage.
--strands	int	2	Strands used for stitching. Only used to compute thread usage.
--skein-length-meters	float	8.0	Skein length in meters. Only used to compute thread usage.
--strands-per-skein	int	6	Strands in a skein. Only used to compute thread usage.
--legend-title	str	Mouliné DMC	Legend title.
--legend-title-font-size	int	12	Legend title font size.
--legend-title-font-color	str	black	Legend title font color.
--legend-title-font-weight	str	bold	Legend title font weight. Options are normal and bold.
--legend-title-x-pixels	int	20	Horizontal space before legend title in pixels.
--legend-title-y-pixels	int	30	Vertical space before legend title in pixels.
--legend-item-x-pixels	int	20	Horizontal space before first legend item in pixels.
--legend-item-y-pixels	int	20	Vertical space before first legend item in pixels.
--legend-column-width-pixels	int	100	Horizontal space between legend columns in pixels.
--legend-column-height-pixels	int	30	Vertical space between legend rows in pixels.
--legend-code-font-color	str	black	Font color for each legend item.
--legend-code-font-size	int	10	Font size for each legend item.
--legend-box-line-color	str	black	Box line color for each legend item.
--legend-box-line-width	int	1	Box line width for each legend item.
--svg-fill-color	str	none	SVG background color (outside chart). Use none for transparent color.
--major-grid-color	str	black	Major grid color.
--major-grid-step-pixels	int	100	Space between major gird lines in pixels.
--major-grid-width	int	2	Major gird line width.
--minor-grid-color	str	#323232	Minor grid color. Default is #323232.
--minor-grid-step-pixels	int	10	Space between minor gird lines in pixels.
--minor-grid-width	int	1	Minor gird line width.
--coords-font-color	str	black	Coordinates color in outer margin.
--coords-font-size	int	10	Coordinates font size.
--coords-step-units	int	10	Space between coordinate numbers in minor grid units.
--coords-gap-pixels	int	2	Space between coordinates and chart in pixels.
--arrow-color	str	black	Arrow color in outer margin.
--arrow-gap-pixels	int	2	Space before arrow and chart in pixels.
--symbol-color	str	black	Symbol color when --no-symbols is not used.
--symbol-line-width	int	1	Symbol line width when --no-symbols is not used.
--backstitch-line-width	int	3	Backstitch line width when --backstitch-option is not none.

WARNING: A chart without colors, symbols and legend can be generated (with options --no-colors, --no-symbols and --no-legend), but then, you will get an empty chart.

Future work

The following ideas can be implemented in the future. It is not planned to do so, but maybe someone will fork this repo.

• Improve backstitch with inner borders and/or other options
• Implement half and quarter stitches

Acknowledgements

This repo is a fork (see original repo), but it has been refactored in a 99.9% and substantially extended.

Contact

Feel free to contact me for any suggestion or bug.
