stratapy 1.0.1

A Tool for Automated Stratigraphic Log Visualisation

A Python-based framework for automated visualisation of creating standardised, reproducible, and digitally integrated stratigraphic logs.

Key Features

• Simple Input Format: Use CSV, Excel or similar files to structure your data with a range of supported column types (lithology, grain size, features, lenses, contacts, etc.) and let stratapy handle the visualisation

• Vast Customisation: Tailor every aspect of your logs, from layout and styling to colours and symbology, with a simple parameter-based interface

• Standardised Symbology: Access a curated library of geological symbols and patterns, including USGS standard lithology patterns

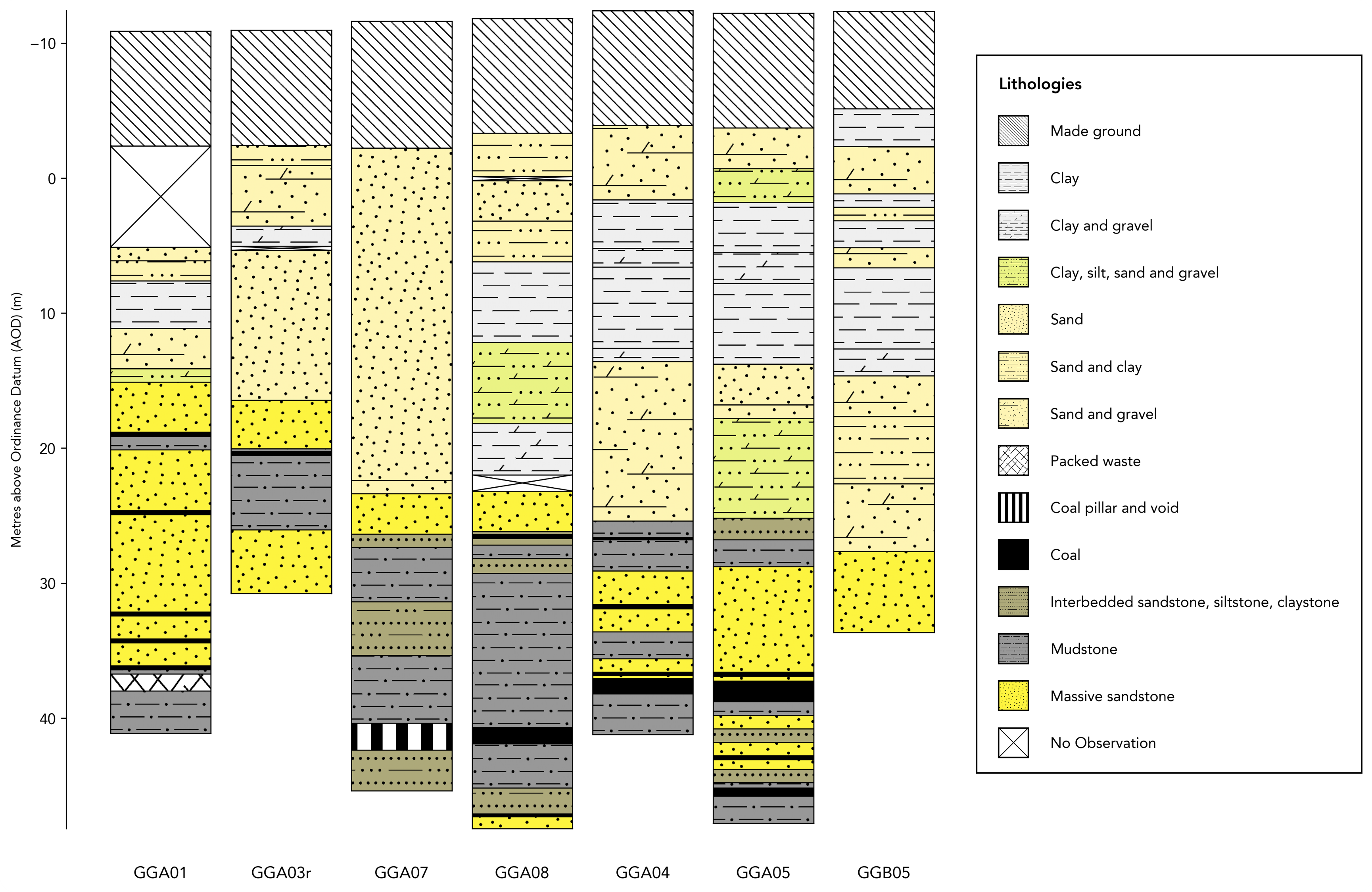

• Multi-Figure Functionality: Create complex, multi-panel figures with ease, enabling comprehensive visualisation of stratigraphic data

• Publication-Quality Output: Generate high-resolution figures suitable for academic publication and professional presentations

• Accessible for Non-Programmers: Designed with user-friendliness in mind, enabling geoscientists of all programming skill levels to create stunning visualisations

For more examples, see the documentation or try it out online with this Google Colab tutorial notebook.

Quick Start

Installation

pip install stratapy

Basic Usage

import stratapy as sp

# Load and plot a log
log = sp.load_log('path/to/file.csv')
log.plot()
log.save('output.png')

Multi-Panel Figures

import stratapy as sp

# Automatically plot multiple logs in a single figure
files = ['log1.csv', 'log2.csv', 'log3.csv']
panel = sp.multi_fig(files)
panel.save('output.png')

Use Online - No Installation Required

Try out stratapy immediately without any installation using this Google Colab tutorial notebook.

See the Online Platforms section of the documentation for more details.

Documentation

For full API reference and tutorials, visit our ReadTheDocs page.

Citation

If you use this software in your research or otherwise, please cite its associated publication:

Smith, J. L., Antoniou, C., & Alexander, R. (2026). Stratapy: a tool for automated stratigraphic log visualisation. Scientific Reports 16 1 https://doi.org/10.1038/s41598-026-58501-2

For detailed citation metadata, see CITATION.cff or use the following BibTeX entry:

@software{smith_stratapy_2026,
  author       = {Smith, Jack Lee and Antoniou, Christina and Alexander, Ruaridh},
  title        = {Stratapy: a tool for automated stratigraphic log visualisation},
  journal      = {Scientific Reports},
  volume       = {},
  number       = {},
  month        = june,
  year         = 2026,
  doi          = {10.1038/s41598-026-58501-2},
  url          = {https://doi.org/10.1038/s41598-026-58501-2},
}

License

Distributed under the BSD 3-Clause License. See LICENSE.txt for more information.

Compatibility

stratapy is compatible with Python 3.9 and above, and supports a wide range of versions for key dependencies (NumPy, Pandas, Matplotlib).
