streamlit-audio-editor 0.4.0

Browser-based audio editor & jam-session recorder for Streamlit — full effects rack, mic input, real-time recording

streamlit-audio-editor

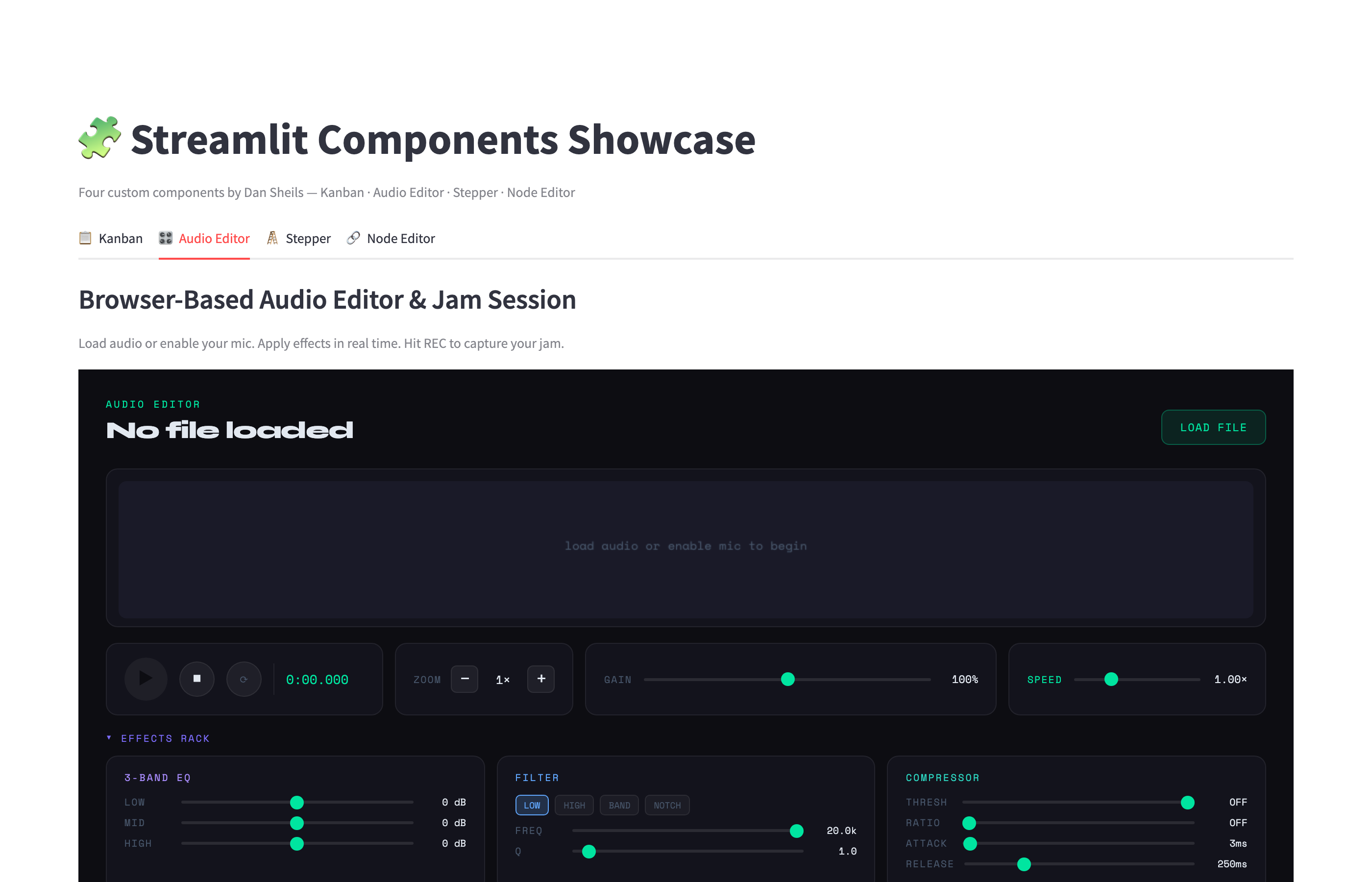

A browser-based audio editor and jam-session recorder for Streamlit. Load any audio file, route your microphone through a full effects rack, tweak parameters in real time, and record the effected output — all client-side via the Web Audio API, no ffmpeg or server processing required.

Features

• Waveform rendering from raw PCM via Web Audio API decodeAudioData
• Draggable IN/OUT trim handles directly on the waveform canvas
• Click-to-seek, live animated playhead
• Loop mode with correct loopStart / loopEnd on the AudioBufferSourceNode
• Zoom (scroll wheel or ±) + horizontal scrollbar for long files
• Full effects rack — all real-time, no playback restart:
  • 3-Band EQ (low shelf · mid peak · high shelf)
  • Filter (lowpass / highpass / bandpass / notch) with frequency + resonance
  • Compressor (threshold, ratio, attack, release)
  • Delay with feedback loop
  • Chorus (LFO-modulated delay, rate + depth + mix)
  • Distortion (waveshaper overdrive)
  • Tremolo (LFO amplitude modulation, rate + depth)
  • Reverb (convolution with synthetic impulse response)
  • Stereo Pan
  • Speed / Pitch (tape-style playback rate)
  • Gain control
• Microphone input — route live mic audio through the entire effects chain
• Jam Session recording — capture the effected output (file + mic) via MediaRecorder, then preview, download, or send to Streamlit
• Export: slices raw PCM, encodes 16-bit WAV in the browser, previews inline, provides download
• Supports MP3, WAV, OGG, M4A, FLAC — anything the browser can decode
• Zero server-side dependencies (no ffmpeg, no pydub)

Installation

pip install streamlit-audio-editor

Quickstart

import base64
import streamlit as st
from streamlit_audio_editor import st_audio_editor

st.title("Audio Editor")

result = st_audio_editor(key="editor")

if result and result.get("type") == "export":
    st.success(
        f"Trimmed {result['trimStart']:.2f}s → {result['trimEnd']:.2f}s "
        f"({result['trimEnd'] - result['trimStart']:.2f}s)"
    )
    wav_bytes = base64.b64decode(result["wavBase64"])
    st.audio(wav_bytes, format="audio/wav")
    st.download_button("Download trimmed WAV", wav_bytes, "trimmed.wav", "audio/wav")

if result and result.get("type") == "recording":
    audio_bytes = base64.b64decode(result["recordingBase64"])
    st.audio(audio_bytes, format=result["mimeType"])
    st.download_button("Download recording", audio_bytes, "jam.webm", result["mimeType"])

Pre-loading a file

# Load from a URL
result = st_audio_editor(audio_url="https://example.com/sample.mp3", key="editor")

# Load from a local file via data URI
with open("sample.wav", "rb") as f:
    import base64
    b64 = base64.b64encode(f.read()).decode()
result = st_audio_editor(audio_url=f"data:audio/wav;base64,{b64}", key="editor")

API

st_audio_editor(audio_url=None, key=None)

Parameter	Type	Description
audio_url	str | None	URL or data-URI to pre-load
key	str	Streamlit widget key

Returns dict on export or recording:

# On Export Trim (type="export"):
{
    "type":      "export",
    "trimStart": float,   # trim in-point, seconds
    "trimEnd":   float,   # trim out-point, seconds
    "duration":  float,   # total file duration, seconds
    "gain":      float,   # gain multiplier (0.0 – 2.0)
    "wavBase64": str,     # base64-encoded 16-bit PCM WAV of the trimmed region
    # … plus all current effect parameters (eqLow, filterFreq, delayTime, etc.)
}

# On Send Recording (type="recording"):
{
    "type":            "recording",
    "mimeType":        str,    # e.g. "audio/webm;codecs=opus"
    "recordingBase64": str,    # base64-encoded audio blob
    "durationSec":     float,  # recording length in seconds
}

Returns None before the user clicks Export.

Development

git clone https://github.com/RhythrosaLabs/streamlit-audio-editor
cd streamlit-audio-editor

cd streamlit_audio_editor/frontend
npm install
npm start   # dev server on :3002

# separate terminal
cd ../..
pip install -e .
# Set _RELEASE = False in streamlit_audio_editor/__init__.py
streamlit run example.py

License

MIT
