swmmer 0.1.1

A numpy-only toolkit for EPA SWMM file and engine I/O.

SWMMer: lightweight SWMM I/O and engine runner

A numpy-only toolkit for EPA SWMM file and engine I/O.

swmmer builds a SWMM .inp, runs the EPA SWMM engine (bundled inside the wheel, so no external dependencies are needed), and reads the binary .out results directly through the EPA libswmm-output C library via ctypes. numpy is the only required dependency.

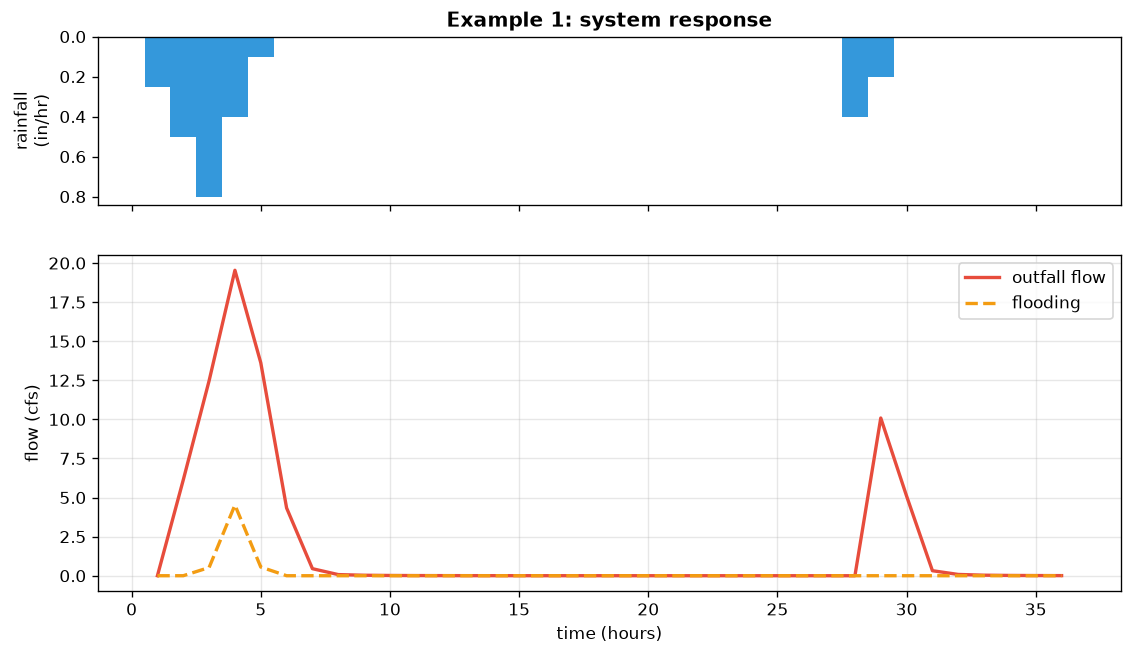

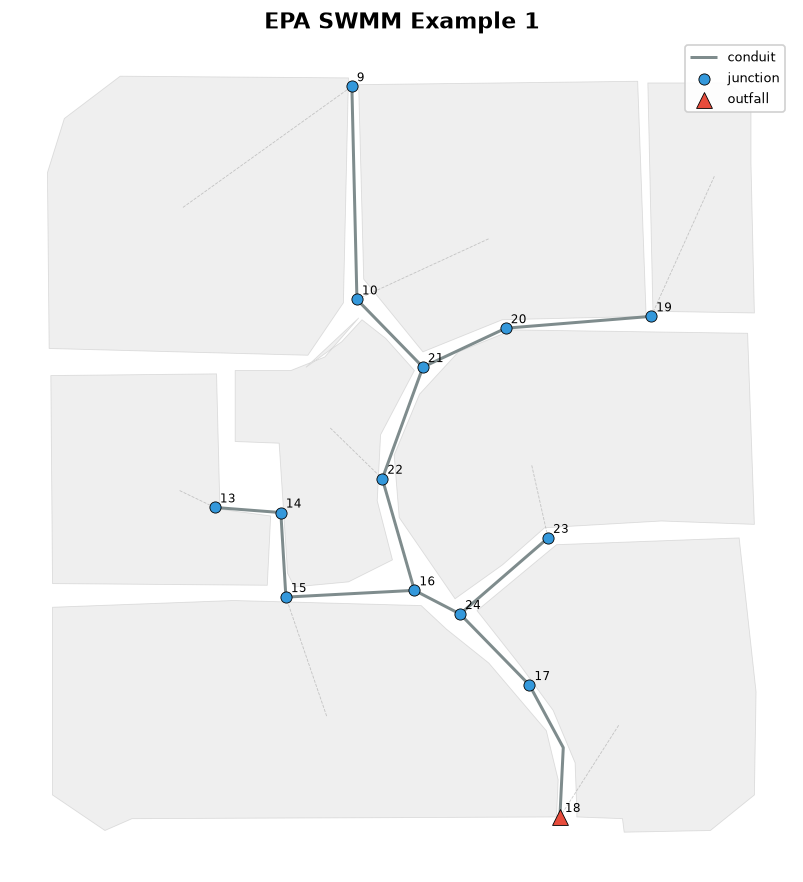

The EPA SWMM Example 1 network and its system response, both produced with swmmer:

Capabilities

• Write input files. SWMMInputGenerator, together with typed element defaults (junctions, conduits, subcatchments, storage, and more), assembles a valid .inp.
• Build design storms. build_nrcs_hyetograph distributes a total depth into an NRCS (SCS) Type II or Type III hyetograph, and write_rain_dat writes the SWMM rain file.
• Run the engine. run_swmm invokes the bundled runswmm executable (also exposed as a runswmm command line tool). The engine is compiled into the wheel, so there is nothing to install separately.
• Read results. SWMMResults reads the binary .out and returns NumPy arrays by element name and attribute (NodeAttr, LinkAttr, SubcatchAttr, SystemAttr), with optional to_pandas and to_xarray converters.
• Plot. swmmer.plot draws the network map and a longitudinal profile with matplotlib, and can color elements by any result (peak flow, flooding, and so on).

Installation

pip install swmmer

The SWMM engine (runswmm and libswmm-output) is compiled from source and bundled inside the wheel, so pip install swmmer is self-contained on Linux, macOS, and Windows.

Optional extras:

pip install "swmmer[plot]"           # matplotlib, for swmmer.plot
pip install "swmmer[pandas,xarray]"  # SWMMResults.to_pandas() / to_xarray()

Usage

Build a design storm and write it as a SWMM rain file (pure and offline):

from swmmer import build_nrcs_hyetograph, write_rain_dat

hyeto = build_nrcs_hyetograph(150.0, storm_type="III", duration="24-hr")
write_rain_dat(hyeto, "rain.dat")

Run a model and read results by element name:

from swmmer import SWMMResults, SystemAttr, run_swmm

rpt, out = run_swmm("model.inp")
with SWMMResults(out) as res:
    t = res.times_hours
    q = res.system_series(SystemAttr.OUTFALL_FLOW)

Plot the network (requires the plot extra):

import swmmer

fig, ax = swmmer.plot.plot_network("model.inp", labels=True)

The example notebook in the documentation walks through the full workflow: run a model, plot the network, draw hydrographs and a profile, then analyze the results.

Contributing

Contributions are welcome. Please see CONTRIBUTING.md for details.

License

BSD 3-Clause License. See LICENSE for details.
