TERAG: Token-Efficient Graph-Based RAG

Token-Efficient Graph-Based Retrieval-Augmented Generation

Based on the research paper: arXiv:2509.18667 (September 2025)

Overview

TERAG is a lightweight graph-based RAG framework that achieves 80%+ of GraphRAG's accuracy while consuming only 3-11% of the output tokens. It addresses the high cost associated with LLM token usage during graph construction that hinders large-scale adoption of graph-based RAG systems.

Key Advantages

• Cost-Efficient: 89-97% reduction in token consumption vs. traditional graph RAG
• High Performance: Matches GraphRAG accuracy (EM: 51.2 vs. 51.4; F1: 57.8 vs. 58.6)
• Lightweight: Minimal LLM usage - only for query NER and answer generation
• Scalable: Efficient for large document collections

Supported Features & Limitations

Supported Features

• Graph Backend: Built on NetworkX for efficient in-memory graph operations.
• Ingestion: Flexible JSON ingestion for chunks, Q&A pairs, and documents.
• Retrieval Algorithms:
  • Personalized PageRank (PPR): Biased random walks for entity-centric retrieval.
  • Hybrid Retrieval: Combines PPR scores with semantic vector similarity.
• Named Entity Recognition:
  • LLM-based: Uses Groq (default) or OpenAI for high-accuracy extraction.
  • Regex Fallback: Pattern-based extraction when LLM is unavailable.
• Graph Persistence: Auto-save and load graphs for reuse.
• Embeddings: Integrated with SentenceTransformers for local semantic search.

Limitations

• Graph Database: Currently supports NetworkX (in-memory) only. Native support for Neo4j or ArangoDB is NOT currently implemented.
• Scalability: Best suited for small to medium-sized graphs (up to ~100k nodes) that fit in memory.

Semantic Entity Matching

Overview

TERAG uses hybrid entity matching that combines three complementary strategies to match query entities to graph concepts:

1. Exact Match: Direct text match (e.g., "revenue" → "revenue")
2. Partial Match: Substring matching (e.g., "cash" → "cash flow")
3. Semantic Match: Embedding-based similarity (e.g., "cashflow" → "cash flow", "AI" → "artificial intelligence")

All three strategies run in parallel and their results are combined, ensuring maximum recall while maintaining precision.

Why Semantic Matching?

Text-based matching alone fails to handle:

• Spelling variations: "cash flow" vs "cashflow"
• Synonyms: "revenue" vs "income", "CEO" vs "chief executive officer"
• Abbreviations: "AI" vs "artificial intelligence", "Q4" vs "fourth quarter"
• Semantic equivalence: "revenue growth" vs "income expansion"

Semantic matching uses embeddings to understand the meaning of entities, not just their text.

Configuration

Semantic matching is enabled by default but requires an embedding model to function. If no embedding model is provided, TERAG automatically falls back to text-only matching.

Basic Setup

from terag import TERAG, TERAGConfig
from terag.embeddings.manager import EmbeddingManager
import os

# Create embedding manager (required for semantic matching)
embedding_manager = EmbeddingManager(
    api_key=os.getenv("OPENAI_API_KEY"),
    model="text-embedding-3-small"  # Default, can use other models
)

# Configure TERAG with semantic matching
config = TERAGConfig(
    use_semantic_entity_matching=True,  # Default: True
    semantic_match_threshold=0.7,       # Default: 0.7
    top_k=10
)

# IMPORTANT: Pass embedding_model during graph creation
terag = TERAG.from_chunks(
    chunks,
    config=config,
    embedding_model=embedding_manager  # Required for semantic matching
)

# Now semantic matching is active
results, metrics = terag.retrieve("What is their cashflow strategy?")
# Will match "cashflow" to "cash flow" concept via semantic similarity

Setting Embedding Manager at Graph Creation

Critical: The embedding model must be provided when creating the graph, not just during retrieval:

# ✅ CORRECT: Embedding model provided at graph creation
terag = TERAG.from_chunks(
    chunks,
    config=config,
    embedding_model=embedding_manager  # Embeddings computed here
)

# ❌ INCORRECT: Cannot add embedding model later
terag = TERAG.from_chunks(chunks, config=config)  # No embeddings!
# terag.embedding_model = embedding_manager  # Too late!

This is because TERAG pre-computes concept embeddings during graph construction for efficiency.

Loading from Saved Graph

When loading a pre-built graph, you still need to provide the embedding model:

# Load graph from file
terag = TERAG.from_graph_file(
    "terag_graph.json",
    config=config,
    embedding_model=embedding_manager  # Still required!
)

Threshold Configuration

The semantic_match_threshold controls how similar an entity and concept must be to match:

Use Case	Threshold	Behavior
High Precision (legal, medical)	0.85	Only very similar matches
Balanced (general Q&A)	0.70	Good precision/recall balance (default)
High Recall (exploratory search)	0.60	Cast wider net, more matches

# High precision example
config = TERAGConfig(
    semantic_match_threshold=0.85  # Stricter matching
)

# High recall example
config = TERAGConfig(
    semantic_match_threshold=0.60  # More lenient matching
)

Disabling Semantic Matching

If you prefer text-only matching or don't have an embedding model:

config = TERAGConfig(
    use_semantic_entity_matching=False  # Disable semantic matching
)

terag = TERAG.from_chunks(
    chunks,
    config=config
    # No embedding_model needed
)

Debugging and Logging

To see which matching strategies are being used:

import logging

# Enable debug logging
logging.basicConfig(level=logging.DEBUG)

terag = TERAG.from_chunks(chunks, config=config, embedding_model=embedding_manager)
results, metrics = terag.retrieve("What is their cashflow strategy?")

# Output will show:
# DEBUG: Entity 'cashflow' matched 1 concepts using strategies: semantic
# DEBUG: Entity 'strategy' matched 2 concepts using strategies: exact, partial

Performance Considerations

• Minimal overhead: Concept embeddings are pre-computed during graph creation
• Query-time cost: Only entity embeddings (typically 2-5 per query) are computed on-the-fly
• Typical overhead: < 50ms per query
• Memory: No additional memory beyond pre-computed concept embeddings

Supported Embedding Models

TERAG works with any embedding model that has an encode() method:

OpenAI (via EmbeddingManager):

from terag.embeddings.manager import EmbeddingManager

embedding_manager = EmbeddingManager(
    api_key=your_key,
    model="text-embedding-3-small"  # or "text-embedding-3-large"
)

SentenceTransformers (local, no API key needed):

from sentence_transformers import SentenceTransformer

embedding_model = SentenceTransformer('all-MiniLM-L6-v2')
terag = TERAG.from_chunks(chunks, config=config, embedding_model=embedding_model)

Other models: Any model with an encode(texts: List[str]) -> np.ndarray method.

Complete Example

import os
from terag import TERAG, TERAGConfig
from terag.embeddings.manager import EmbeddingManager

# Sample documents
chunks = [
    {"content": "The company's cash flow improved significantly in Q4 2024.", "metadata": {"source": "report"}},
    {"content": "Artificial intelligence investments drove revenue growth.", "metadata": {"source": "report"}},
    {"content": "The CEO announced a new strategic initiative.", "metadata": {"source": "news"}}
]

# Setup embedding manager
embedding_manager = EmbeddingManager(api_key=os.getenv("OPENAI_API_KEY"))

# Configure with semantic matching
config = TERAGConfig(
    use_semantic_entity_matching=True,
    semantic_match_threshold=0.7,
    top_k=5,
    min_concept_freq=1  # Lower threshold for small datasets
)

# Create TERAG with embeddings
terag = TERAG.from_chunks(
    chunks,
    config=config,
    embedding_model=embedding_manager,
    verbose=True
)

# Test semantic matching capabilities
queries = [
    "What is their cashflow strategy?",  # "cashflow" → "cash flow" (spelling)
    "Tell me about AI investments",      # "AI" → "artificial intelligence" (abbreviation)
    "What did the chief executive say?"  # "chief executive" → "CEO" (synonym)
]

for query in queries:
    print(f"\nQuery: {query}")
    results, metrics = terag.retrieve(query, verbose=True)
    print(f"Found {len(results)} results")
    if results:
        print(f"Top result: {results[0].content[:100]}...")

Best Practices

1. Always provide embedding model at graph creation, not later
2. Start with default threshold (0.7) and adjust based on results
3. Enable debug logging during development to understand matching behavior
4. Use higher thresholds (0.85+) for domains requiring high precision
5. Consider local models (SentenceTransformers) if API costs are a concern
6. Test with your specific domain - threshold effectiveness varies by use case

Architecture

1. Graph Construction

TERAG uses a directed, unweighted graph G = (V, E) where:

• Nodes (V):
  • Passage nodes (squares): Document chunks/passages
  • Concept nodes (circles): Named entities and document-level concepts
• Edges (E ⊆ V×V): Directed connections between passages and concepts
• Storage: Adjacency lists for efficient neighborhood expansion

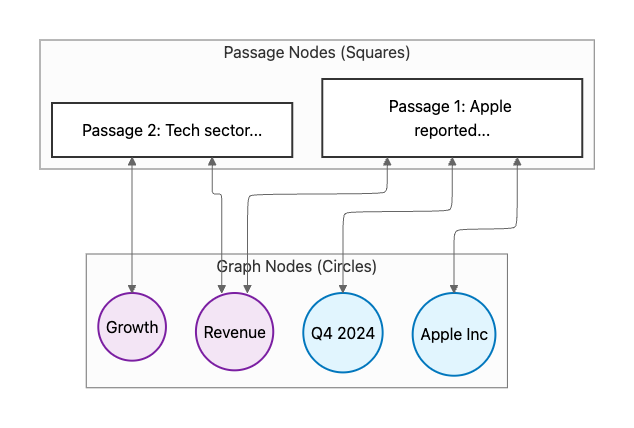

Visual Representation

Legend:

• Passage Nodes (White Squares): The actual text chunks from your documents.
• Entity Nodes (Blue Circles): Specific named entities (People, Orgs, Dates).
• Concept Nodes (Purple Circles): Abstract topics or themes shared across passages.
• Edges: Bidirectional links. If Passage 1 mentions "Apple", they are connected. This allows the retrieval to "hop" from one passage to another via shared concepts.

2. Concept Extraction

Lightweight concept extraction focusing on:

• Named Entities: People, organizations, locations, dates (dark green circles)
• Document-level Concepts: Key topics, themes, technical terms (dark blue circles)
• Non-LLM Clustering: Efficient grouping without heavy LLM usage

3. Retrieval Algorithm

Personalized PageRank (PPR) inspired by HippoRAG:

1. Query NER: Few-shot prompt extracts named entities from user query
2. Node Matching: Match query entities to graph concepts
3. PPR Computation: Run PPR biased towards query-relevant nodes
4. Weighting: Combine frequency and semantic weights
5. Passage Ranking: Return top-k most relevant passages

4. Weighting Scheme

Each matched node receives an unnormalized weight:

weight(node) = frequency_weight(node) × semantic_weight(node)

• Frequency Weight: Inverse of concept frequency (rarer = more important)
• Semantic Weight: Embedding similarity between query and concept

Performance Comparison

Method	Accuracy	Token Consumption	Relative Cost (per token to be ingested)
Nano-GraphRAG	100% baseline	100% baseline	80-200x (personal experience)
LightRAG	~75%	~30%	High
MiniRAG	~70%	~25%	High
TERAG	80-90%	3-11%	3-5x

Algorithm Components

Graph Construction Phase

1. Chunk documents into passages (P1, P2, ..., Pn)
2. For each passage Pi:
   a. Extract named entities → ENT(Pi)
   b. Extract document concepts → CON(Pi)
   c. Create passage node → V_passage
3. Cluster similar concepts (non-LLM)
4. Create concept nodes → V_concepts
5. Build edges:
   - Pi → concept (if concept in Pi)
   - concept → Pi (bidirectional)
6. Store as adjacency list graph G = (V, E)

Retrieval Phase

1. Query Q arrives
2. Extract query entities → ENT(Q) [Few-shot LLM]
3. Match ENT(Q) to graph concepts → matched_nodes
4. Calculate restart vector R:
   R[node] = freq_weight[node] × semantic_weight[node] for matched nodes
   R[node] = 0 for unmatched nodes
5. Run Personalized PageRank:
   PPR(G, R, alpha=0.85, max_iter=100)
6. Rank passages by PPR scores
7. Return top-k passages
8. Generate answer using LLM with retrieved passages

Installation

From PyPI

pip install terag

From Source

git clone https://github.com/rudranaik/terag.git
cd terag
pip install -e .

Environment Variables

TERAG uses the following environment variables for optional LLM-based features:

Variable	Purpose	Required For	How to Get
GROQ_API_KEY	Groq LLM API access	LLM-based NER (default provider)	Get free API key
OPENAI_API_KEY	OpenAI API access	LLM-based NER, embeddings	Get API key

Setup:

# Option 1: Export in your shell
export GROQ_API_KEY="your_groq_key_here"
export OPENAI_API_KEY="your_openai_key_here"

# Option 2: Create a .env file in your project root
echo "GROQ_API_KEY=your_groq_key_here" >> .env
echo "OPENAI_API_KEY=your_openai_key_here" >> .env

[!NOTE] LLM-based NER is optional. TERAG will automatically fall back to regex-based entity extraction if no API key is provided. LLM-based NER provides higher accuracy but incurs API costs.

[!TIP] Groq is recommended for LLM-based NER as it offers fast inference and generous free tier limits.

Quick Start

Get started with TERAG in 3 simple steps:

1. Installation

pip install terag

2. Basic Usage with Unified Retrieval API

from terag import TERAG, TERAGConfig
from terag.embeddings.manager import EmbeddingManager
import os

# Define sample data
chunks = [
    {"content": "Apple Inc announced strong revenue growth in Q4 2024.", "metadata": {"source": "news"}},
    {"content": "Microsoft Corporation reported significant cloud achievements.", "metadata": {"source": "news"}}
]

# Setup (optional for semantic/hybrid retrieval)
embedding_manager = EmbeddingManager(api_key=os.getenv("OPENAI_API_KEY"))

# Initialize TERAG
config = TERAGConfig(top_k=3)
terag = TERAG.from_chunks(chunks, config=config, embedding_model=embedding_manager)

# Method 1: PPR Retrieval (default, graph-based)
results, metrics = terag.retrieve("What is the revenue growth?", method="ppr")

# Method 2: Semantic Retrieval (embedding-based)
results, metrics = terag.retrieve("What is the revenue growth?", method="semantic")

# Method 3: Hybrid Retrieval (combines both)
results, metrics = terag.retrieve(
    "What is the revenue growth?",
    method="hybrid",
    ppr_weight=0.6,  # Weight for graph-based scores
    semantic_weight=0.4  # Weight for semantic scores
)

# Inspect results
for result in results:
    print(f"Score: {result.score:.4f} | Content: {result.content}")

Backward Compatibility:

# This still works (defaults to PPR)
results, metrics = terag.retrieve("What is the revenue growth?")

3. Visualization & Export

TERAG uses a custom JSON format for storage, but you can easily export to GraphML (supported by Gephi, Cytoscape, etc.) using NetworkX:

import networkx as nx

# Convert to NetworkX graph
G = terag.graph.to_networkx()

# Save as GraphML for visualization tools
nx.write_graphml(G, "terag_graph.graphml")

Retrieval Methods

TERAG supports three retrieval methods, each with different strengths:

Method	Best For	Requires Embeddings	Speed	Accuracy
PPR	Entity-centric queries, multi-hop reasoning	No	Fast	High for entity queries
Semantic	Conceptual queries, paraphrases	Yes	Medium	High for semantic similarity
Hybrid	General-purpose, best overall performance	Yes	Medium	Highest (combines both)

When to Use Each Method

PPR (Personalized PageRank):

• Queries with specific entities: "What did Apple announce?"
• Multi-hop reasoning: "Which companies mentioned by the CEO have partnerships?"
• When you don't have embedding models available

Semantic:

• Conceptual queries: "What are the main challenges discussed?"
• Paraphrased queries: "revenue growth" vs "income increase"
• When entity extraction might miss relevant content

Hybrid (Recommended):

• General-purpose retrieval
• When you want the best of both approaches
• Production applications where accuracy matters most

Example Comparison

query = "What are the financial results?"

# PPR: Finds passages with entities like "revenue", "profit", "Q4"
ppr_results, _ = terag.retrieve(query, method="ppr")

# Semantic: Finds passages semantically similar to "financial results"
sem_results, _ = terag.retrieve(query, method="semantic")

# Hybrid: Combines both approaches for best coverage
hyb_results, _ = terag.retrieve(query, method="hybrid", ppr_weight=0.6, semantic_weight=0.4)

Graph Access Convenience Methods

TERAG provides convenient methods to access graph data:

# Get passage by ID
passage = terag.graph.get_passage("passage_0")
print(passage.content)

# Get passage content directly
content = terag.graph.get_passage_content("passage_0")

# Get concept by ID
concept = terag.graph.get_concept("revenue")
print(f"Concept '{concept.concept_text}' appears in {concept.frequency} passages")

# List all passages and concepts
all_passages = terag.graph.list_passages()
all_concepts = terag.graph.list_concepts()

# Search for concepts by text
revenue_concepts = terag.graph.search_concepts("revenue")
for concept in revenue_concepts:
    print(f"Found: {concept.concept_text}")

# Get neighbors (related nodes)
concept_neighbors = terag.graph.get_concept_neighbors("revenue")
passage_neighbors = terag.graph.get_passage_neighbors("passage_0")

Advanced Usage

For more complex scenarios, including custom graph building and hybrid retrieval, check out terag/examples/example_usage.py.

Contributing

We welcome contributions! Please see CONTRIBUTING.md for guidelines on how to help improve TERAG.

Configuration Guide

TERAG is highly configurable to suit different use cases. Here's what each setting does:

Parameter	Default	Developer Explanation	Product/Business Impact
top_k	10	Number of passages to return in the final result set.	Response Depth: Higher values give the LLM more context but increase costs and latency. Lower values are faster and cheaper but might miss details.
min_concept_freq	2	Minimum number of times a concept must appear in the corpus to be included in the graph.	Noise Reduction: Filters out one-off mentions or typos. Increase this for cleaner graphs from noisy data (e.g., social media).
max_concept_freq_ratio	0.5	Maximum ratio of documents a concept can appear in before being excluded (stopword filtering).	Relevance: Prevents common words (like "company" in a business report) from dominating the search results.
ppr_alpha	0.15	Damping factor for Personalized PageRank (teleport probability).	Exploration vs. Focus: Lower values explore further away from the query entities (finding indirect connections). Higher values stick closer to direct matches.
semantic_weight	0.5	Weight given to semantic similarity vs. frequency in the initial node scoring.	Understanding: Higher values prioritize concepts that mean the same thing as the query, even if spelled differently.
use_llm_for_ner	False	Whether to use an LLM (Groq/OpenAI) for Named Entity Recognition during ingestion/querying.	Accuracy vs. Cost: True gives much better entity extraction but costs money per query. False is free and fast but less accurate.
llm_provider	"groq"	Which LLM provider to use ("groq" or "openai") if use_llm_for_ner is True.	Flexibility: Switch providers based on credit/availability.
auto_save_graph	False	Whether to automatically save the built graph to disk.	UX: Prevents losing work after long build times.
graph_save_path	terag_graph.json	Path to save the graph if auto-save is enabled.	Organization: Manage multiple graph versions.

Example Configuration

For a high-precision legal search (using OpenAI):

config = TERAGConfig(
    top_k=20,
    min_concept_freq=1,
    use_llm_for_ner=True,
    llm_provider="openai",
    auto_save_graph=True
)

For a real-time news chatbot:

config = TERAGConfig(
    top_k=5,                   # Fast response needed
    min_concept_freq=3,        # Ignore noise
    use_llm_for_ner=False,     # Keep costs low
    ppr_alpha=0.2              # Focus on direct matches
)

• terag/graph/builder.py: Graph construction from chunks
• terag/ingestion/ner_extractor.py: Named Entity Recognition for queries/documents
• terag/retrieval/ppr.py: Personalized PageRank retrieval algorithm
• terag/core.py: Main TERAG retriever interface
• terag/examples/example_usage.py: Usage examples and integration tests

## Research References

- **TERAG Paper**: [arXiv:2509.18667](https://arxiv.org/abs/2509.18667) (2025)
- **HippoRAG**: Personalized PageRank for RAG (2024)
- **GraphRAG**: Microsoft's graph-based RAG (2023-2024)
- **Personalized PageRank**: Page et al., Stanford (1998)

## Performance Metrics

### Expected Results (based on paper)

- **Accuracy**: 80-90% of GraphRAG quality
- **Token Reduction**: 89-97% fewer tokens than GraphRAG
- **Retrieval Speed**: < 2 seconds per query
- **Graph Construction**: < 15 minutes for 400-page document

### Our Implementation Goals

- Match paper's token efficiency (3-11% consumption)
- Achieve F1 score > 55% on multi-hop queries
- Support 100K+ node graphs efficiently
- Support 100K+ node graphs efficiently

## Future Enhancements

- [ ] Support for dynamic graph updates
- [ ] Advanced concept clustering (embeddings-based)
- [ ] Multi-hop reasoning chains visualization
- [ ] Hybrid retrieval combining TERAG + dense vectors
- [ ] Real-time graph construction for streaming documents

## License

MIT License
