threshscore 0.1.1

Threshold-aware scoring and feature selection under sensitivity-specificity constraints

threshscore

Threshold-aware binary classification scoring for Python.

---

The Problem

Standard metrics like F1-score or ROC AUC measure overall performance, but they ignore deployment constraints. In medical screening, fraud detection, or any safety-critical application, you need both high sensitivity (catch most cases) and high specificity (limit false alarms) - simultaneously. A classifier with 95% sensitivity and 40% specificity may look fine on F1 yet fail completely in production.

What is missing is a score that tells you directly: does this classifier meet my operating constraints, and by how much?

---

The Solution: Centering-based Scoring

threshscore introduces a score built around two operating constraints:

• s_thr - minimum sensitivity required (e.g. 0.80: detect at least 80% of positives)
• p_thr - minimum specificity required (e.g. 0.60: correctly reject at least 60% of negatives)

The score has a guaranteed centering property: it equals exactly 0.5 at the target operating point, rises above 0.5 when both constraints are exceeded, and falls below 0.5 when either constraint is missed.

Score	Meaning
0.5	classifier is exactly at the target operating point
> 0.5	both constraints are met with margin
< 0.5	at least one constraint is not met

This makes the score directly interpretable and comparable across classifiers, tasks, and threshold pairs - without needing to look at sensitivity and specificity separately.

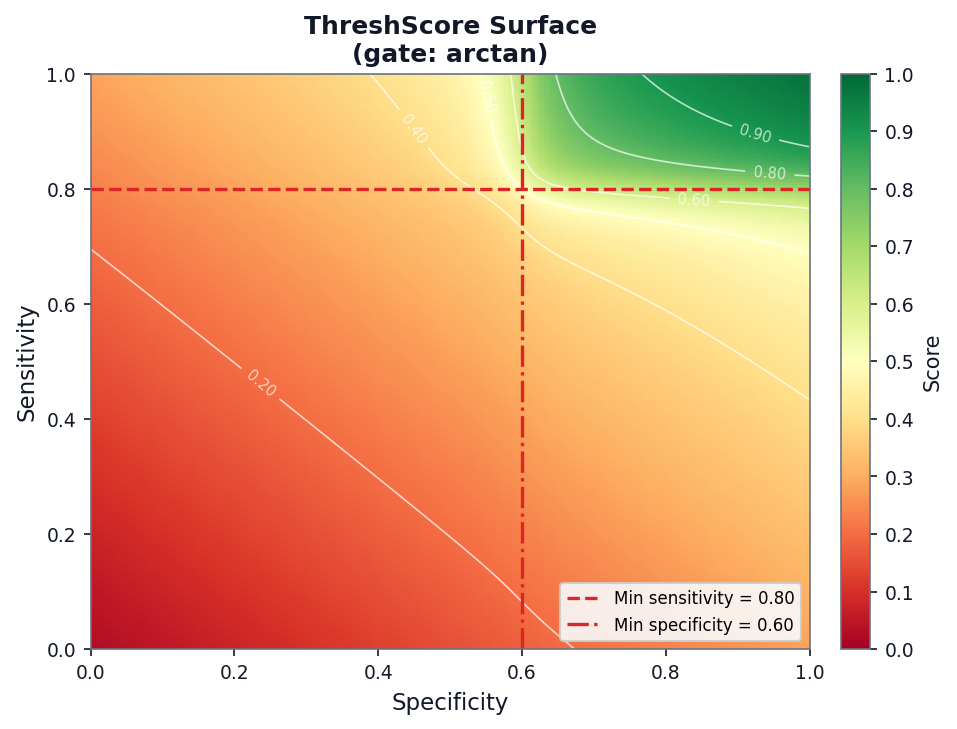

Score surface on the (sensitivity, specificity) plane with s_thr = 0.80, p_thr = 0.60.
Green = both constraints met (score > 0.5); Red = constraints not met (score < 0.5).
The score equals 0.5 exactly at the intersection of the two threshold lines.

---

Installation

pip install threshscore

Requires Python 3.9+, NumPy, scikit-learn, matplotlib.

---

Quick Start

import threshscore

# Score from pre-computed metrics (returns a float)
# Constraints: at least 80% sensitivity and 60% specificity

print(threshscore.score_from_metrics(0.80, 0.60, s_thr=0.80, p_thr=0.60))
# 0.5        <- exactly at the operating point

print(threshscore.score_from_metrics(0.90, 0.75, s_thr=0.80, p_thr=0.60))
# ~0.84      <- both constraints exceeded

print(threshscore.score_from_metrics(0.70, 0.50, s_thr=0.80, p_thr=0.60))
# ~0.33      <- constraints not met

import numpy as np
import threshscore

y_true  = np.array([0, 0, 1, 1, 1, 0, 1, 0])
y_score = np.array([0.1, 0.2, 0.8, 0.9, 0.7, 0.3, 0.6, 0.4])
y_pred  = (y_score >= 0.5).astype(int)

# Score from binary predictions (returns a ScoreResult object)
result = threshscore.score_from_predictions(
    y_true, y_pred, s_thr=0.80, p_thr=0.60
)
print(result.score)        # centering-based score
print(result.sensitivity)  # achieved sensitivity
print(result.specificity)  # achieved specificity

# Score from probability scores (binarises at threshold; includes ROC/PR AUC)
result = threshscore.score_from_scores(
    y_true, y_score, threshold=0.5, s_thr=0.80, p_thr=0.60
)

# All standard metrics at once
m = threshscore.compute_metrics(y_true, y_pred, y_score)
print(m.f1, m.roc_auc, m.pr_auc)

# Sweep all decision thresholds and find the best operating point
sweep = threshscore.sweep(y_true, y_score)
best  = sweep.best_by_sensitivity_at_specificity(min_specificity=0.60)

# Plots (all return (Figure, Axes))
fig, ax = threshscore.plot.plot_roc(y_true, y_score)
fig, ax = threshscore.plot.plot_pr(y_true, y_score)
fig, ax = threshscore.plot.plot_threshold(y_true=y_true, y_score=y_score)
fig, ax = threshscore.plot.plot_confusion(m.confusion_matrix)
fig, ax = threshscore.plot.plot_heatmap(
    sensitivity_threshold=0.80, specificity_threshold=0.60
)
fig, ax = threshscore.plot.plot_gate("arctan")

---

How It Works

Gate functions

The core building block is a gate function: a monotone S-curve anchored so that g(threshold, threshold) = 0.5. It acts as a soft switch - values well above the threshold saturate toward 1, values well below saturate toward 0.

Four gate functions are built in:

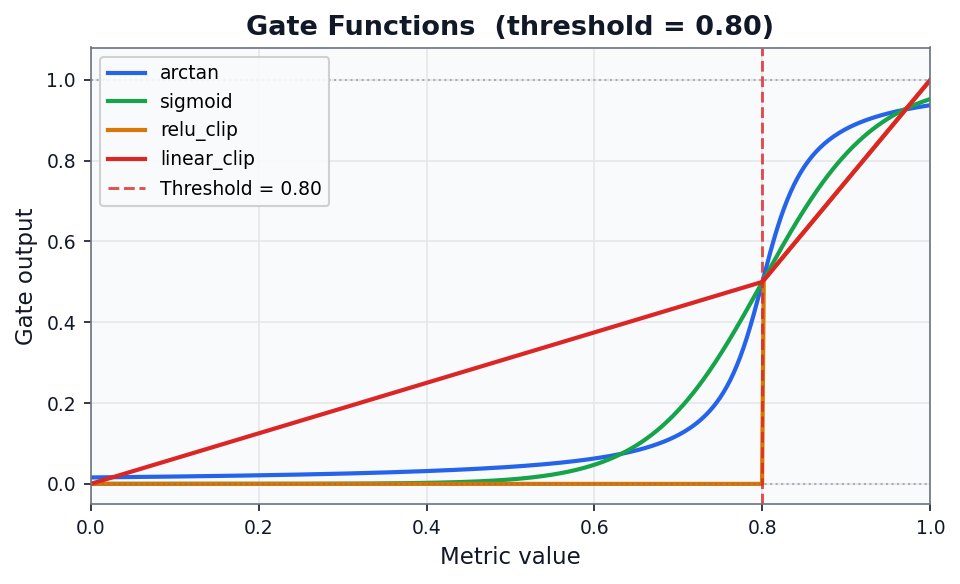

All four built-in gate functions at threshold = 0.80. Every gate returns exactly 0.5 at the threshold, regardless of the threshold value chosen.

Name	Shape	Key parameter
arctan (default)	Smooth S-curve	k=25 (steepness)
sigmoid	Smooth S-curve	k=15 (steepness)
relu_clip	Hard zero below threshold, linear above	-
linear_clip	Linear everywhere, anchored at threshold	-

Sensitivity gate and specificity gate

One gate is applied per constraint. The sensitivity gate g_s maps the observed sensitivity relative to s_thr; the specificity gate g_p maps the observed specificity relative to p_thr. Each independently signals whether its constraint is satisfied, and both are anchored at 0.5 at their respective thresholds.

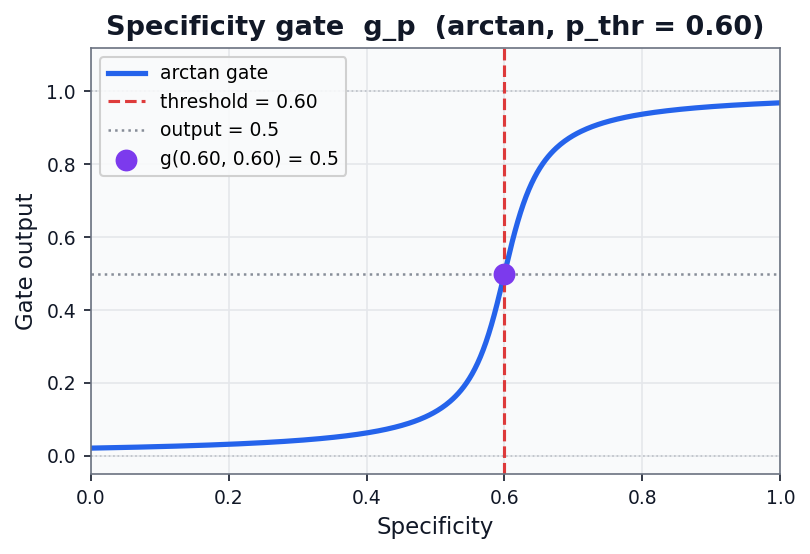

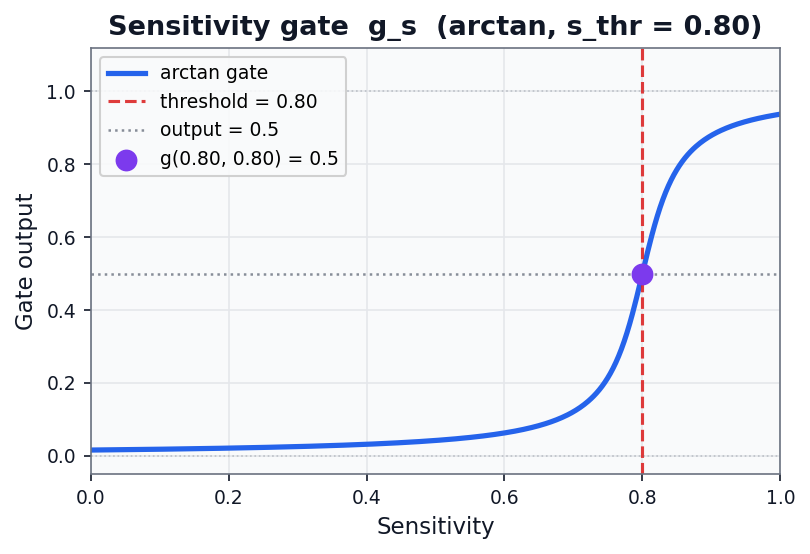

Left: sensitivity gate g_s anchored at s_thr = 0.80. Right: specificity gate g_p anchored at p_thr = 0.60. The purple dot marks the centering point: g = 0.5 at the threshold.

Score formula

The final score combines the two gates with a balanced performance term:

q     = 0.5 * (sens + spec)                           # balanced accuracy
g_s   = 0.5 + (1/pi) * arctan(k * (sens - s_thr))    # sensitivity gate
g_p   = 0.5 + (1/pi) * arctan(k * (spec - p_thr))    # specificity gate
gate  = g_s * g_p                                      # soft-AND of both constraints
score = clip(0.5 + 0.5*(gate - 0.25) + 0.5*(q - q_thr), 0, 1)

where q_thr = 0.5*(s_thr + p_thr).

The gate product g_s * g_p is a soft-AND: it rises above its baseline of 0.25 only when both constraints are satisfied. This is the key distinction from additive penalty approaches (like penalized balanced accuracy), which can mask a failing constraint behind a strong result on the other.

Centering proof: when sens = s_thr and spec = p_thr, both gates equal 0.5, so gate = 0.25 and q = q_thr, giving score = 0.5 exactly - for any choice of threshold pair and any gate function.

---

API Reference

Entry point	Input	Returns
score_from_metrics(sens, spec, ...)	Pre-computed sensitivity and specificity	float
score_from_predictions(y_true, y_pred, ...)	Binary labels and predictions	ScoreResult
score_from_scores(y_true, y_score, ...)	Labels and probability scores	ScoreResult
compute_metrics(y_true, y_pred, y_score)	Labels, predictions, scores	Metrics
sweep(y_true, y_score)	Labels and probability scores	SweepResult

ScoreResult exposes: score, sensitivity, specificity, sensitivity_gate, specificity_gate, gate_name, metrics.

Feature	Description
Centering property	Score = 0.5 at the operating point by construction, for all built-in gates
Gate functions	arctan (default), sigmoid, relu_clip, linear_clip: pluggable and configurable
Standard metrics	Sensitivity, specificity, precision, recall, F1, accuracy, ROC AUC, PR AUC, confusion matrix
Threshold sweep	Evaluate every decision threshold; rank by F1, sensitivity, or specificity constraint
6 plot types	ROC, PR curve, threshold vs. metrics, confusion matrix, score heatmap, gate shape
Custom gate functions	Subclass BaseGate and register with one line
Type-annotated	Full mypy --strict compliance
Well-tested	188 tests, property-based tests via Hypothesis

---

Gate Function Reference

# Use a different built-in gate
result = threshscore.score_from_predictions(
    y_true, y_pred,
    gate="sigmoid",
    gate_params={"k": 20.0},
)

# Visualise all gate shapes
fig, ax = threshscore.plot.plot_gate(threshold=0.8)

# Define and register a custom gate
from threshscore.gates import BaseGate, register

class StepGate(BaseGate):
    @property
    def default_params(self):
        return {}

    def __call__(self, value: float, threshold: float, **params) -> float:
        return 1.0 if value >= threshold else 0.0

register("step", StepGate())
result = threshscore.score_from_predictions(y_true, y_pred, gate="step")

---

Documentation

• Quickstart guide
• API reference
• Example notebook

Contributing

threshscore is primarily a reproducible research tool accompanying an IEEE publication. Bug reports and questions are welcome via GitHub Issues. For code contributions (new gate functions, fixes), see CONTRIBUTING.md.

License

MIT: see LICENSE.
