tinygraphs 2.0.3

A minimal library for plotting training progress in Jupyter/Colab

A minimal library for plotting training progress in Jupyter/COLAB notebooks.

Installation

pip install tinygraphs

Options

train_losses: (Required) List of training loss values to plot

val_losses: (Required) List of validation loss values to plot

epoch: (Required) Current epoch number for updating the plot

legend_loc: Location of the legend on the plot (default: "upper right")

updating_title: Boolean flag to indicate if the title should update with epoch progress (default: True)

legend: Boolean flag to show/hide the legend (default: True)

x_label: Label for the x-axis

y_label: Label for the y-axis

title: Main title of the plot

dark_mode: Boolean flag to switch between light and dark themes (default: True)

Usage

import tinygraphs as tg

train_losses, val_losses = [], []
epochs = 3

for epoch in range(epochs):
    # Training
    model.train()
    running_train_loss = 0
    for x, y in train_loader:
        x, y = x.to(device), y.to(device)
        optimizer.zero_grad()
        loss = criterion(model(x), y)
        loss.backward()
        optimizer.step()
        running_train_loss += loss.item()
    train_losses.append(running_train_loss / len(train_loader))

    # Validation
    model.eval()
    running_val_loss = 0
    with torch.no_grad():
        for x, y in val_loader:
            x, y = x.to(device), y.to(device)
            loss = criterion(model(x), y)
            running_val_loss += loss.item()
    val_losses.append(running_val_loss / len(val_loader))

    # Plot using tinygraphs
    tg.plot(train_losses, val_losses, epoch, legend_loc = "upper right", updating_title = False, legend = True, x_label = "x title", y_label = "y title", title = "title", dark_mode = False)

Other Usage Options

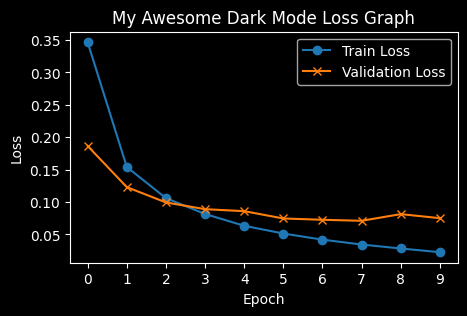

    tg.plot(train_losses, val_losses, epoch, legend_loc = "upper right", updating_title = False, legend = True, x_label = "Epoch", y_label = "Loss", title = "Loss Graph", dark_mode = True)

    tg.plot(train_losses, val_losses, epoch, theme = 'jet')
