Tolerant toposort

Tolerant toposort extends the PyPi package toposort to support disabled nodes within the graph
It takes a (directed) dependency graph, and disabled nodes as input,and returns ordered batches of nodes which are independent of disabled nodes

data = {
            2:  {11},
            9:  {11, 8},
            10: {11, 3},
            11: {7, 5},
            8:  {7, 3},
        }
disabled = {5}
toposort(data, disabled)
[{3, 7}, {8}]

Examples

Simple

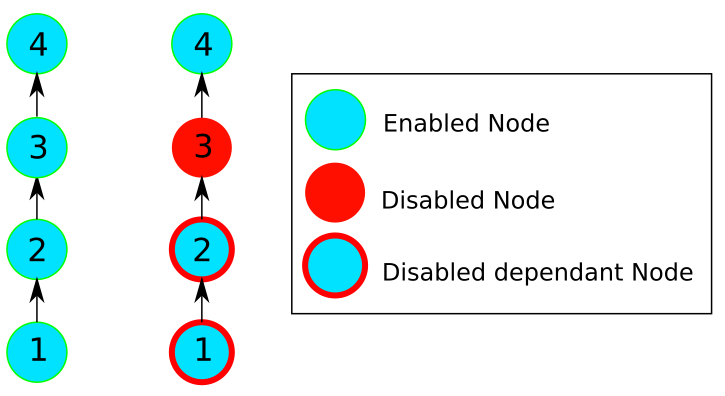

Item 1 depends on Item 2, depends on 3, depends on 4
With Item 3 disabled both 2 and 1 are implicitly disabled.
However, using tolerant toposort, we find we can still process Item 4

data = {
            1:  {2},
            2:  {3},
            3:  {4},
        }
disabled = {3}
result = toposort(data, disabled)
[{4}]

Less Simple

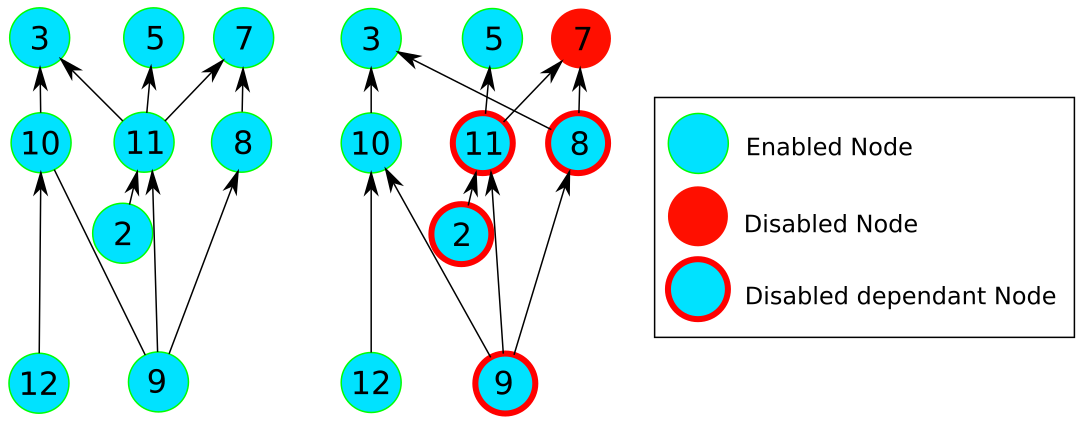

A more complicated graph with Item 7 disabled
Again, using tolerant toposort, we find we can still process Items 3 and 5, then 10, and then 12:

data = {2: {2,11},
        9: {11, 8, 10},
       10: {3},
       11: {7, 5},
        8: {7, 3},
       12: {10},
       }
disabled = {7}
result = toposort(data, disabled)
[{3, 5}, {10}, {12}]

Use Case

The original use case was building packages.

The aim was to process(build) as many nodes(packages) as possible in a tree of nodes:

• Whilst processing, a node might fail to be processed
• Or the node might be known to be failed prior to processing
• If a node was failed then it and its dependants could not be processed
• Fixing, aka re-enabling, nodes took time
• Processing nodes took time
• Processing a node only to find its dependant was failed, took time
• Once a node was processed, it needed no further processing

The main issue was if a node failed ( or was failed prior), then no more nodes could safely be processed, and that switched what should have been concurrent:

• fixing nodes
• processing nodes

into a repetition of process batches,node fails,fix node,process batches,node fails,fix node,process batches...

Requirements for the improvements:

• To have the best handle on the number of disabled nodes (ie attempt to process as many nodes much as possible)
• Concurrently be able to:
  • repeatedly process batches, revealing failed nodes as they appear, recalculate batches, continue processing
  • Fix failed nodes as they 'appear', removing them from the disabled list as they are supposedly fixed

With tolerant toposort:

• Processing of all independant ( of disabled ) nodes can be attempted
• As disabled nodes are encountered they can be added to the disabled set, and a revised batch set created
• Processing can then continue until all possible nodes have been attempted
• The maximum set of disabled nodes is returned

Typical Usage Foo

Typical Usage Too

from tolerant.toposort import toposort,CircularDependencyError

class ProcessException(Exception):
    def __init__(self,node):
        super(ProcessException, self).__init__('')
        self.node = node

def get_graph():
    """ build and return your graph """
    return {2: {2,11},
            9: {11, 8, 10},
           10: {3},
           11: {7, 5},
            8: {7, 3},
           12: {10},
           13: {12},
           14: {2}
           }

def process(node):
    """
    perform a once-only process on a node.
    return the success of the proceess
    """
    print(f"processing {node}")
    return node != 12;

def main():
    disabled = {9}            # add any known disabled items at start-up
    already_processed = set() # persist this between runs!!
    graph = get_graph()
    while(True):
        print(f"calling toposort")
        batches = toposort(graph,disabled)
        if not batches:
            print(f"batches is empty")
            break
        processedAny = False
        try:
            for batch in batches:
                for node in batch:
                    if node in already_processed:
                       print(f"already processed {node}")
                       continue
                    if process(node):
                        already_processed.add(node)
                        print(f"processed {node}")
                        processedAny= True
                    else:
                        raise ProcessException(node)
            # our work is done ( bar enabling any disabled)
            if not processedAny:
                print(f"no processing so finished")
                break
        except ProcessException as pe:
            # pe.node can now be concurrently 'enabled'
            print(f"disabled {pe.node}")
            disabled.add(pe.node)
    if not disabled:
        # we are done
        pass
main()

API

Module tolerant.toposort

Generates successive batches of dependant items which are enabled and do not depend on disabled items

Based on toposort with these changes:

• toposort and toposort_flatten take an optional set of disabled items. These disabled items, and their dependents, will not be included in the returned batch(es)

Functions

Function toposort

def toposort(
    data,
    disabled=set()
  )

Dependencies are expressed as a dictionary whose keys are items and whose values are a set of dependent items.
Returns a list of sets in topological order. The first set consists of items with no dependences, each subsequent set consists of items that depend upon items in the preceeding sets.

Args

• data - the dependency graph dependencies are expressed as a dictionary whose keys are items and whose values are a set of dependent items.

• disabled(optional) - Set of items which, with their dependents, should not be included in the output

Returns

• a list of sets in topological order which are not disabled, or depend on a disabled item.
  The first set consists of items with no dependences, each subsequent set consists of items that depend upon items in the preceeding sets.

Function toposort_flatten

def toposort_flatten(
    data,
    sort=True,
    disabled=set()
  )

Returns a single list of dependencies. For any set returned by toposort(), those items are sorted and appended to the result (just to make the results deterministic).

Args

• data - the dependency graph dependencies are expressed as a dictionary whose keys are items and whose values are a set of dependent items.

• sort(True) - should each batch be sorted

• disabled(optional) - Set of items which, with their dependents, should not be included in the output

Classes

Class CircularDependencyError

class CircularDependencyError(
    data
)

An item eventually depends on itself

NOTE : we tolerate items directly depending on themeselves

Args

• data : the list containing the circular dependency

Testing

 nose2
 python3 setup.py test

Install

 sudo python3 setup.py install
