trackio-view 0.1.2

Terminal-based dashboard for TrackIO experiment tracking

TrackIO View

Terminal-based dashboard for TrackIO experiment tracking. Monitor your machine learning experiments directly from the command line with beautiful, real-time visualizations and GPU monitoring.

Background

TrackIO View was originally developed as an enhancement to the main TrackIO project. Following feedback from the TrackIO maintainers who appreciated the functionality but felt it was out of scope for the core lightweight tracking library, this has been extracted into a standalone package:

"This is very cool @mcgrof but is a bit out of scope and will be hard for us to maintain. Trackio is designed to be pretty lightweight and extensible so I'd recommend instead creating a separate trackio-view pypi package which we could link to from our documentation."

This allows TrackIO to remain focused on its core mission while providing users with a powerful, optional terminal-based monitoring tool. The original implementation can be found in the TrackIO repository on branch 20250921-trackio-view.

Features

• 📊 Real-time Metrics Display: Monitor training progress with live-updating terminal dashboard
• 📈 ASCII Graphs: Beautiful gradient-colored graphs for loss, accuracy, and custom metrics
• 🖥️ GPU Monitoring: Comprehensive GPU hardware monitoring (NVIDIA, AMD, Intel)
• 🔍 Interactive Zoom: Zoom in/out to examine different portions of training history
• 🎨 Color-Coded Feedback: Intuitive color gradients for quick performance assessment
• 🌐 Remote-Friendly: Perfect for monitoring training on remote servers via SSH
• ⚡ Lightweight: Minimal resource usage compared to web dashboards
• 🔧 Flexible: Works with or without the rich library for enhanced visuals

Installation

pip install trackio-view

For enhanced terminal graphics (recommended):

pip install trackio-view[rich]

For NVIDIA GPU monitoring support:

pip install trackio-view[nvidia]

Install all optional dependencies:

pip install trackio-view[all]

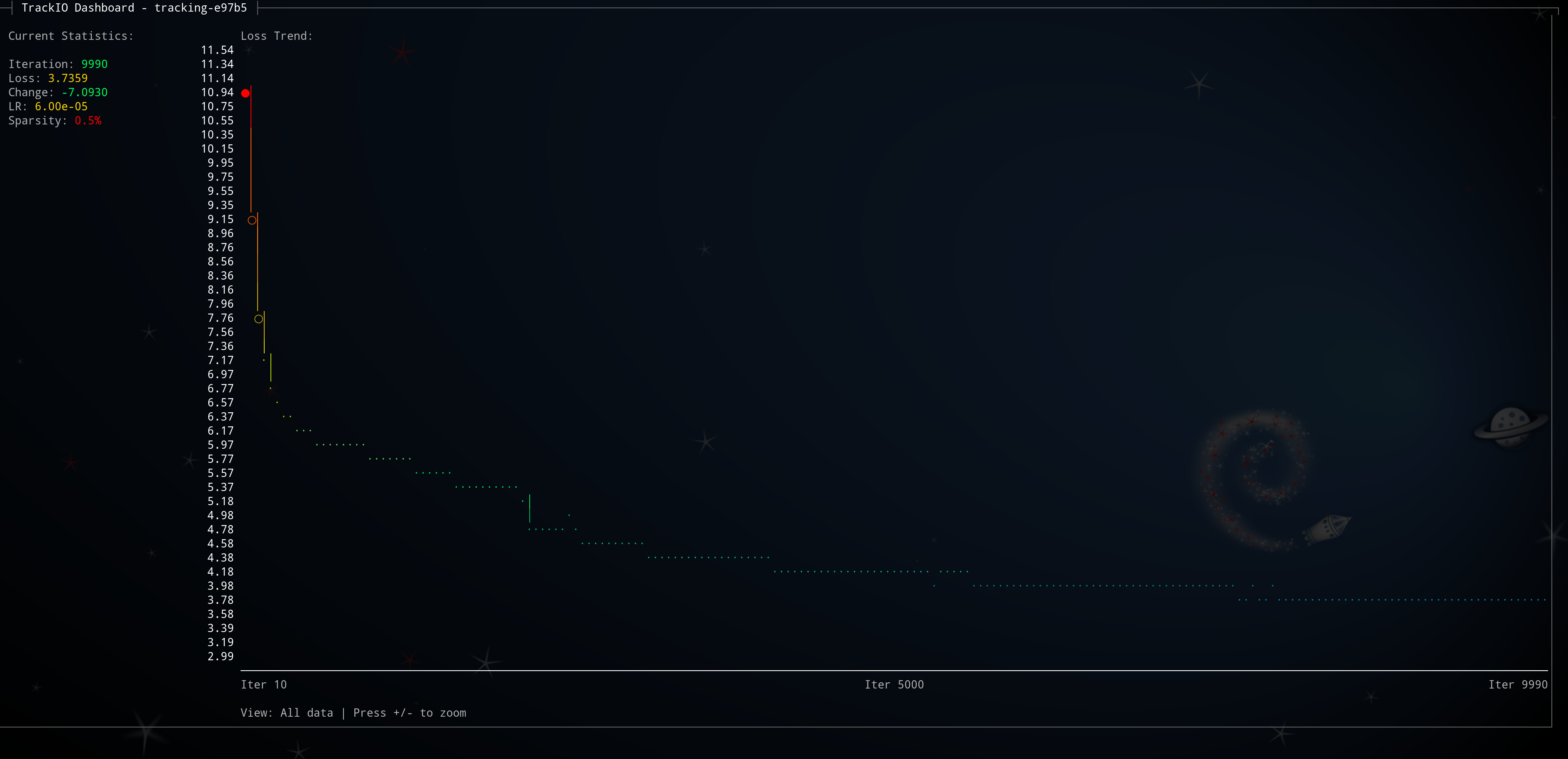

Quick Start

Monitor Training Metrics

Start your training with TrackIO:

import trackio

trackio.init(project="my-experiment")

for epoch in range(num_epochs):
    for batch in dataloader:
        loss = train_step(batch)
        trackio.log({"loss": loss, "epoch": epoch})

trackio.finish()

In another terminal, launch the dashboard:

trackio-view --project my-experiment

Monitor GPU Hardware

# Real-time GPU monitoring
trackio-view --gpu

# Quick GPU status check
trackio-view --gpu --once

View Logged GPU Metrics

If you logged GPU metrics during training:

trackio.init(project="my-training", log_gpu=True)

View them later:

# Display GPU database metrics once
trackio-view --gpu-db --project my-training --once

# Live monitoring of GPU database
trackio-view --gpu-db --project my-training

Usage

Command Line Options

trackio-view [OPTIONS]

Options:
  -p, --project TEXT     Project name to monitor
  -i, --interval INT     Update interval in seconds (default: 2)
  --once                 Display once and exit (no live monitoring)
  --gpu                  Show live GPU hardware metrics
  --gpu-db               Show GPU metrics from database (requires --project)
  -z, --zoom {0,1,2,3,4} Initial zoom level (0=all, 1=500, 2=200, 3=100, 4=50)
  --list                 List all available TrackIO projects
  --delete PROJECT       Delete a TrackIO project by name
  --force                Force deletion without confirmation (use with --delete)
  -h, --help            Show help message

Interactive Controls (Live Mode)

• Press +: Zoom in (show fewer, more recent iterations)
• Press -: Zoom out (show more training history)
• Press q: Quit
• Number keys (0-9): Switch between GPUs (in GPU mode)

Zoom Visualization

The interactive zoom feature lets you explore different time scales of your training. Press + to zoom in (see fewer, more recent iterations) and - to zoom out (see more history).

Real-World Example: Progressive Zoom Levels

Each level numerically represents zooming in by pressing +:

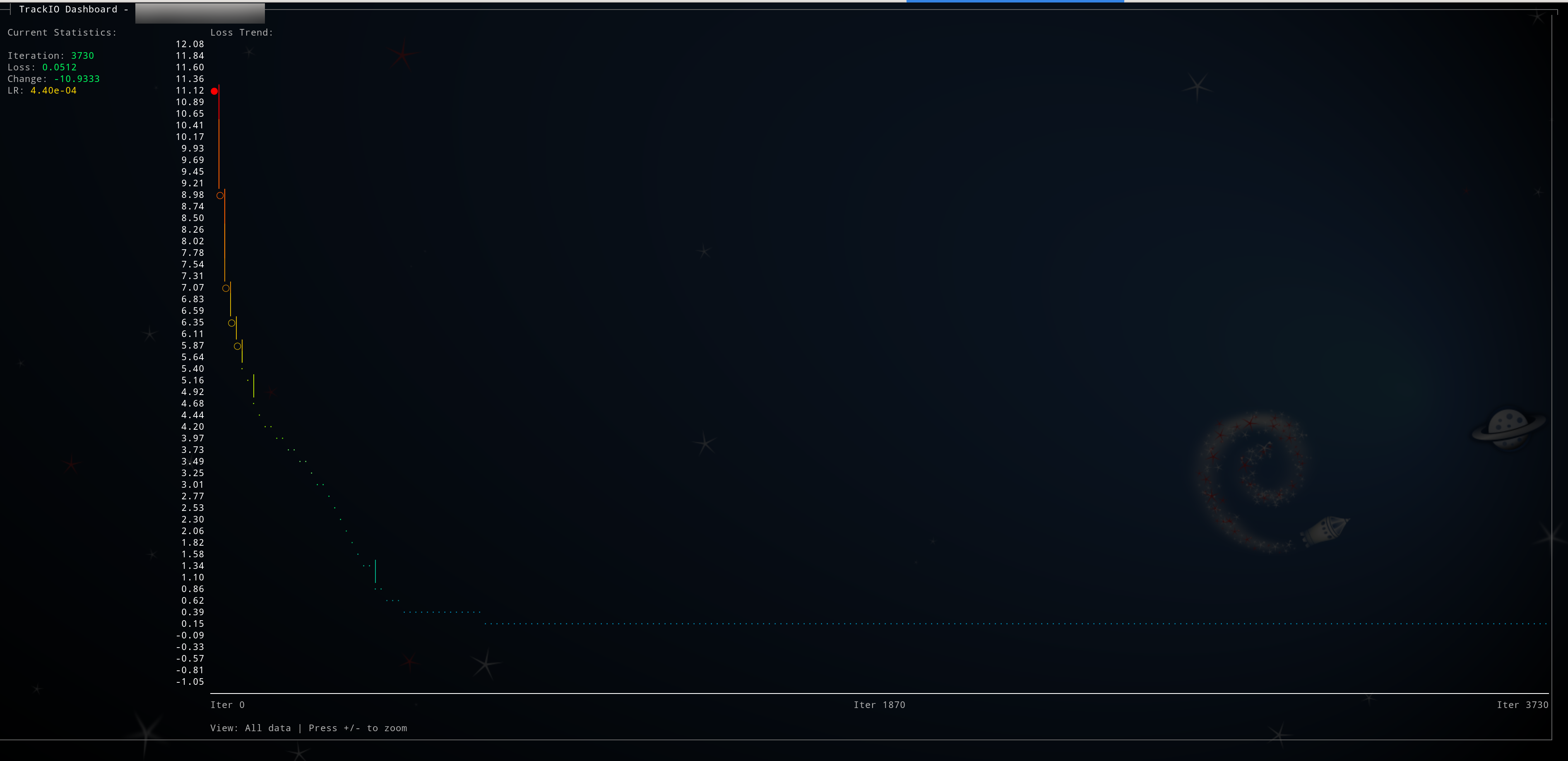

Level 1 - Initial View (500 iterations):

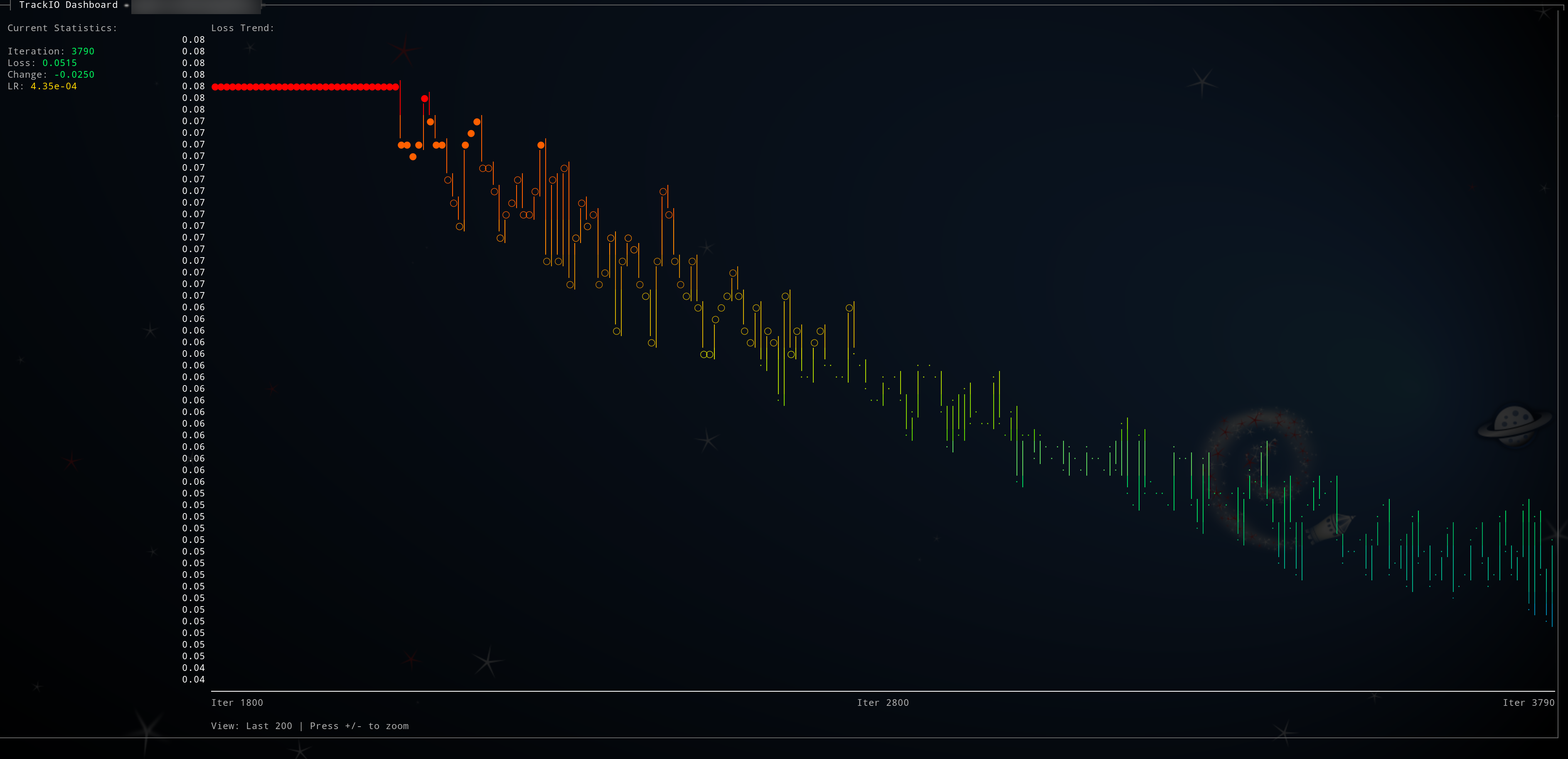

Level 2 - Zoomed In (200 iterations):

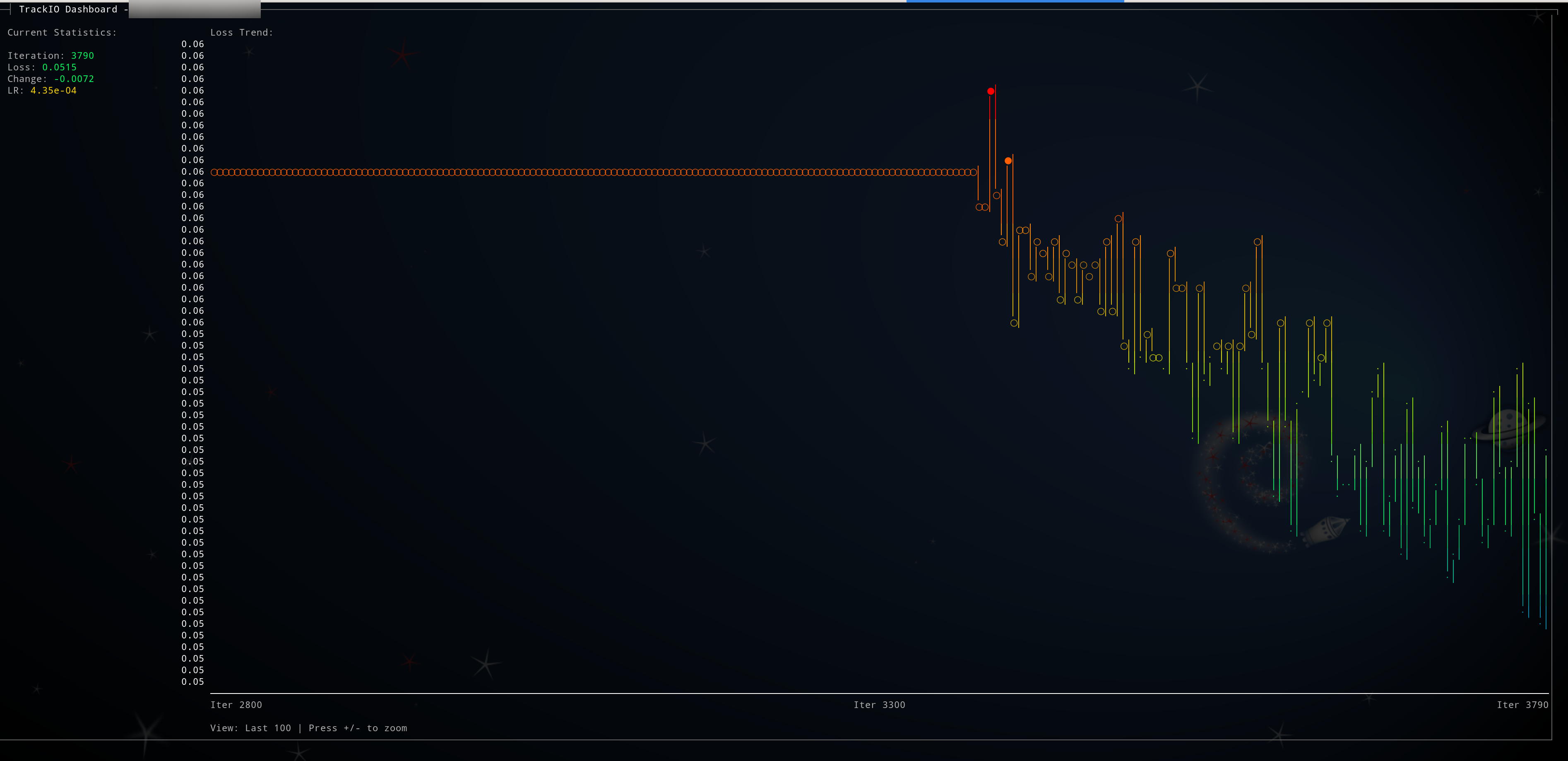

Level 3 - Maximum Detail (100 iterations):

This feature is perfect for:

• Getting an overview of entire training runs (zoom out)
• Examining recent training dynamics in detail (zoom in)
• Identifying patterns at different time scales
• Monitoring convergence behavior and spotting anomalies

Examples

# Monitor specific project
trackio-view --project my-model-training

# Quick snapshot without live updates
trackio-view --once

# Start with zoom on last 200 iterations
trackio-view --zoom 2

# Slower updates (every 5 seconds)
trackio-view --interval 5

# Monitor GPU while training
trackio-view --gpu

# View historical GPU data from training
trackio-view --gpu-db --project my-training --once

# List all available projects
trackio-view --list

# Delete a project (with confirmation)
trackio-view --delete my-old-project

# Delete a project without confirmation
trackio-view --delete my-old-project --force

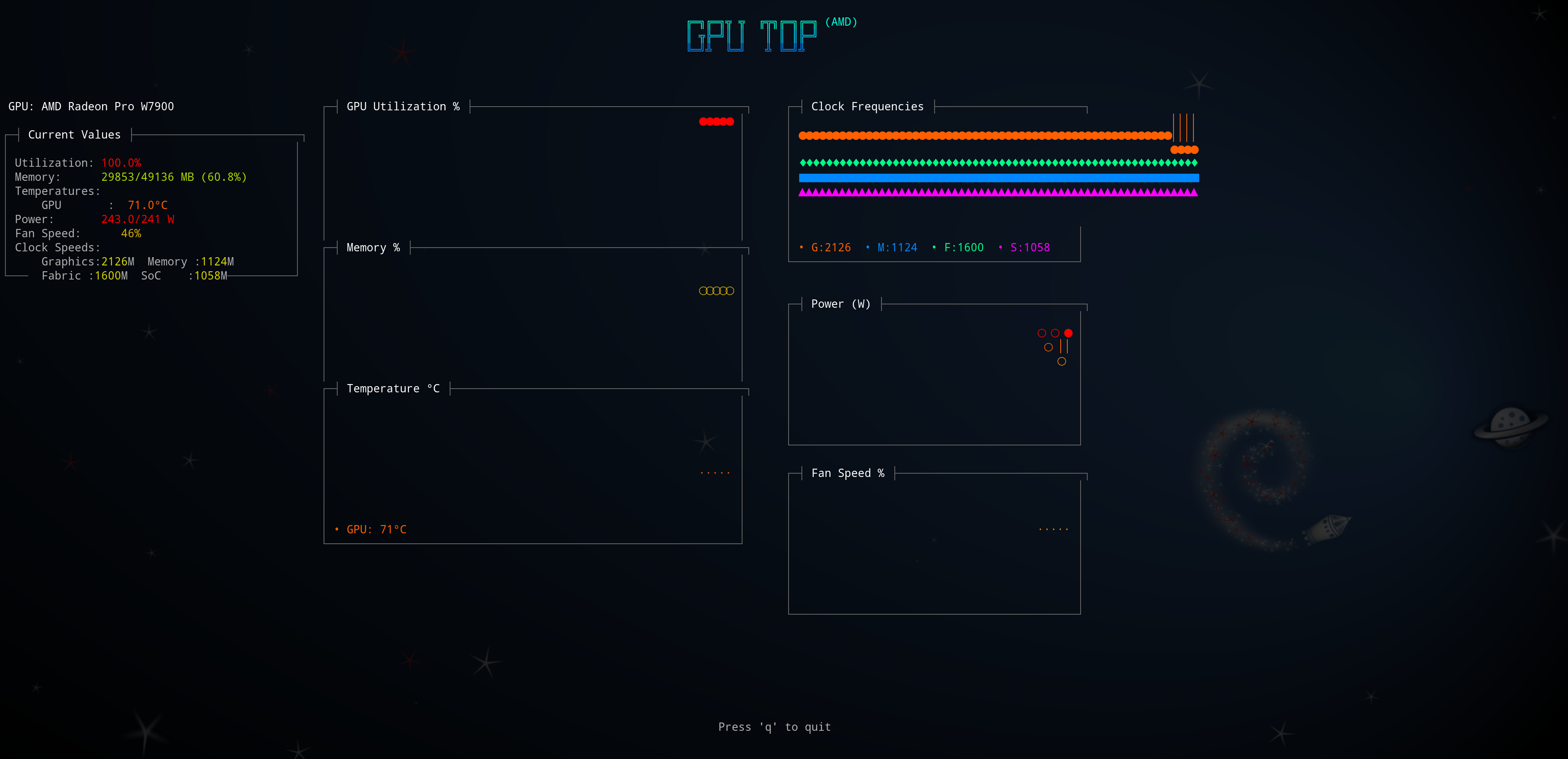

GPU Monitoring

TrackIO View includes comprehensive GPU monitoring inspired by gputop.

Supported GPUs

NVIDIA GPUs

• Desktop: RTX 30/40 series, GTX 10/16 series, Quadro
• Datacenter: A100, V100, A10G, T4
• Embedded: Jetson TX2, Xavier, Orin, Nano

AMD GPUs

• Workstation: Radeon Pro W7900, W6800, W5700
• Consumer: RX 6000/7000 series, RX 500/Vega series
• Datacenter: MI100, MI250, MI300 series

Intel GPUs

• Arc series discrete GPUs
• Integrated: Iris Xe, UHD Graphics

GPU Metrics

• GPU utilization percentage
• Memory usage (GB and percentage)
• Temperature (multiple sensors)
• Power consumption
• Clock frequencies (graphics, memory, fabric, SoC)
• Fan speed and RPM
• Performance states

Use Cases

Remote Training Monitoring

# SSH into remote server
ssh user@gpu-server

# Monitor training progress
trackio-view --project remote-training

# Or run in screen/tmux for persistent monitoring
screen -S training-monitor
trackio-view --project my-training

Quick Status Checks

# Get training snapshot
trackio-view --once

# Pipe to file
trackio-view --once > metrics.txt

# Extract specific metrics
trackio-view --once | grep "Latest Loss:"

Automation and Scripting

# Check if training converged
change=$(trackio-view --once --zoom 3 | grep "Loss Change:" | awk '{print $3}')
if (( $(echo "$change < 0.001 && $change > -0.001" | bc -l) )); then
  echo "Training has converged"
fi

# Log progress periodically
while true; do
  trackio-view --once >> training_log.txt
  sleep 3600
done

Architecture

TrackIO View is designed as a lightweight, standalone package that depends on TrackIO for data access:

• trackio_view.view: Main viewer module with terminal UI
• trackio_view.gpu_monitor: Cross-platform GPU monitoring backend
• trackio_view.gpu_dashboard: Simplified GPU dashboard
• trackio_view.gpu_dashboard_gputop: Full gputop-style monitoring

The package uses:

• ANSI escape codes for terminal control and colors
• Gradient color schemes for visual feedback
• Deque-based data structures for efficient graph rendering
• Platform-specific GPU interfaces (NVML, sysfs, DRM)

Requirements

• Python 3.8+
• trackio >= 0.1.0
• Optional: rich for enhanced terminal graphics
• Optional: nvidia-ml-py for NVIDIA GPU monitoring

Development

# Clone the repository
git clone https://github.com/mcgrof/trackio-view.git
cd trackio-view

# Install in development mode
pip install -e .[dev]

# Run tests
pytest

# Format code
ruff check --fix --select I && ruff format

Troubleshooting

No data found

Ensure:

• TrackIO logging is enabled in your training script
• Data is in the expected location (~/.cache/huggingface/trackio/)
• Correct project name is specified

Colors not displaying

Try:

• Using a modern terminal (iTerm2, Windows Terminal, etc.)
• Setting TERM=xterm-256color
• Installing the rich library

GPU monitoring not working

Check:

• GPU drivers are installed
• For NVIDIA: Install nvidia-ml-py package
• For AMD: sysfs hwmon interfaces are accessible
• Run with --once to see detailed error messages

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

License

MIT - See LICENSE file for details

Credits

• Inspired by gputop for terminal-based GPU monitoring
• Built on top of TrackIO for experiment tracking

Links

• TrackIO GitHub
• TrackIO View GitHub
• Issue Tracker
