twoD-cmaps 0.1.3

Two-dimensional colormaps for Matplotlib-friendly Python workflows

cmap2d

cmap2d is a small Matplotlib-friendly Python package for building, transforming, inspecting, and applying two-dimensional colormaps.

A normal colormap maps one scalar value to color. A cmap2d colormap maps two scalar values, usually called U and V, to RGB/RGBA colors:

colors = cmap(U, V)

This is useful when each point, pixel, polygon, cell, or region has two quantities that should be visualized together.

Installation

Once published on PyPI:

pip install twoD-cmaps

For local development from a cloned repository:

pip install -e ".[dev]"

Basic usage

The core workflow is:

1. prepare or load two scalar arrays, U and V;
2. choose a 2D colormap;
3. call the colormap to obtain RGB/RGBA colors;
4. use those colors in Matplotlib.

import matplotlib.pyplot as plt
import cmap2d as c2d

# Replace this with your own data loading.
# U and V should be broadcast-compatible arrays with the quantities to encode.
U, V = load_my_two_scalar_fields()

# Get a 2D colormap from the registry.
cmap = c2d.get_2d_cmap("RG")

# Map the two scalar fields to colors.
extent = c2d.extent_from_data(U, V, pad_u="5%", pad_v="5%")
colors = cmap(U, V,
    umin=extent[0], umax=extent[1],
    vmin=extent[2], vmax=extent[3],
)

# Use the colors in a normal Matplotlib plot.
fig, ax = plt.subplots()
ax.imshow(colors)

# Add a 2D colorbar showing how U and V map to color.
c2d.add_2d_colorbar(ax, cmap, extent=extent,
                    xlabel="U", ylabel="V" )

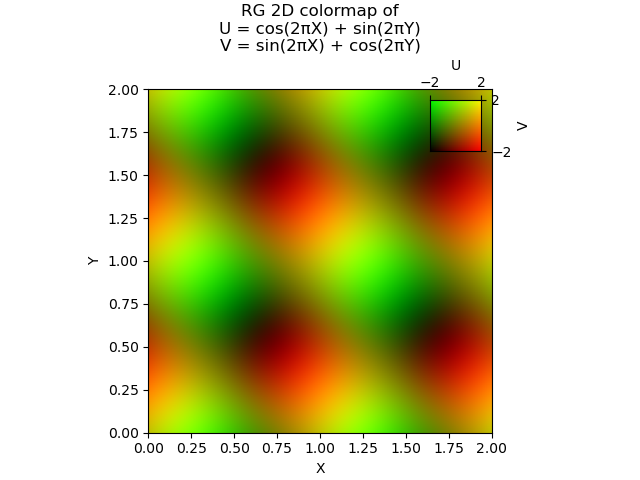

For a fully runnable version with synthetic data, see examples/basic_usage.py.

Inspecting colormaps

Use show_2d_cmap to display one colormap, or show_2d_cmaps to display several:

import cmap2d as c2d

c2d.show_2d_cmap("RG")
c2d.show_2d_cmaps(["RG", "CM", "teuling_fig2"])

You can also inspect the registry:

c2d.list_2d_cmaps()
c2d.list_2d_cmap_categories()
c2d.list_2d_cmaps(category="RGB")
c2d.list_2d_cmaps(kind="sampled")

info = c2d.cmap_info("teuling_fig2")
print(info.display_name)
print(info.source)
print(info.reference)

Available colormap families

cmap2d includes analytic colormaps, custom constructors, and a curated set of image-based colormaps.

Category	What it contains	Example
RGB	Analytic maps made from pairs of RGB channels.	c2d.cm.RG
CMY	Analytic maps made from pairs of cyan, magenta, and yellow channels.	c2d.cm.CM
RGB-CMY	Analytic maps combining one RGB channel with one CMY channel.	c2d.cm.RY
ColorMap Explorer	Curated sampled 2D colormaps derived from the ColorMap Explorer project.	c2d.cm.teuling_fig2

All registered maps can be accessed either by name:

cmap = c2d.get_2d_cmap("RG")

or through the lazy cm namespace:

cmap = c2d.cm.RG

Custom colormaps

Two-color constructor

Use make_two_colors_cmap to build a map from two perceptual color vectors, one for the U axis and one for the V axis:

cmap = c2d.make_two_colors_cmap(
    color_u="tab:blue",
    color_v="tab:orange",
    background="black",
)

Four-corner constructor

Use make_four_corners_cmap to specify the colors at the four corners of the U/V plane. Colors are interpolated in CIELab space.

cmap = c2d.make_four_corners_cmap(
    c00="black",      # U=0, V=0
    c10="tab:red",    # U=1, V=0
    c01="tab:blue",   # U=0, V=1
    c11="white",      # U=1, V=1
)

Image-based colormaps

A 2D colormap can also be backed by an image:

cmap = c2d.make_cmap_from_image("my_2d_colormap.png", origin="upper")

This is also how curated image-based colormaps are loaded internally.

Transforming colormaps

Colormap objects are immutable. Transformations return new colormap objects and can be chained:

cmap = c2d.cm.RG

swapped = cmap.swapped()
reversed_u = cmap.reversed_u()
reversed_v = cmap.reversed_v()

lighter = cmap.lightened(0.4)
darker = cmap.darkened(0.4)
desaturated = cmap.desaturated(0.7)

custom = cmap.reversed_v().lightened(0.25).desaturated(0.2)

You can export any colormap, including transformed or custom maps, to an image:

c2d.save_cmap_image(custom, "my_cmap.png", n=512)

This is useful for sharing colormaps, using them in figure workflows, or inspecting them in external tools.

Showing colormaps in use

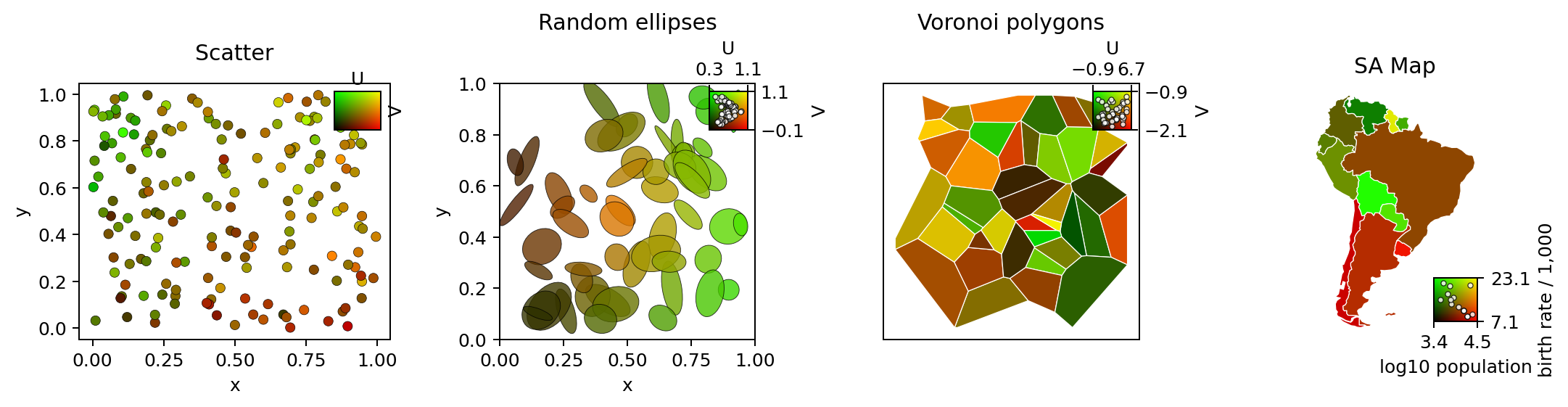

For quick demonstrations, show_cmap_in_use applies a colormap to lightweight example datasets:

fig, ax, cbar_ax = c2d.show_cmap_in_use("RG", kind="voronoi")

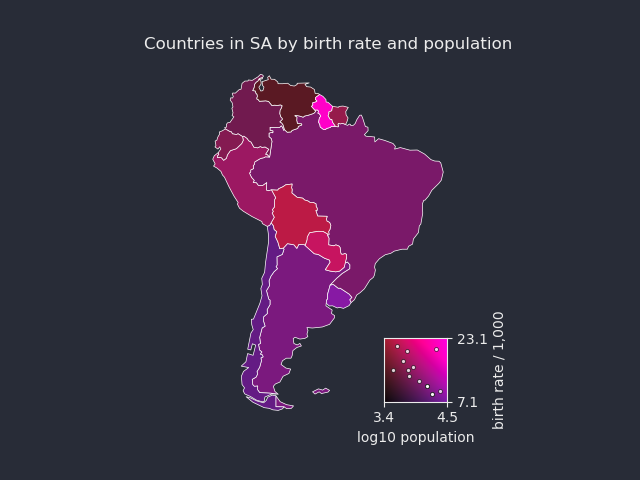

Supported demo kinds include scatter-like data, random ellipses, Voronoi-like polygons, and a map-like polygon example. See examples/show_cmap_in_use.py.

ColorMap Explorer colormaps and credits

cmap2d includes a small curated set of sampled 2D colormaps generated from ColorMap Explorer, a Fraunhofer IGD / IVA project for exploring, comparing, and evaluating 2D colormaps.

ColorMap Explorer is licensed under Apache-2.0. It collects and implements 2D colormaps from the visualization literature. The image-based maps included in cmap2d are loaded through the same registry as the analytic maps, and their source, license, and reference metadata can be inspected with cmap_info.

Colormaps created with cmap2d can be exported with save_cmap_image(...) and then analyzed with ColorMap Explorer or other image/LUT-based colormap tools.

Examples

Runnable examples live in examples/:

Example	What it shows
basic_usage.py	Applying a registered 2D colormap to synthetic data.
show_all_cmaps.py	Displaying registered colormaps grouped by category.
show_cmap_in_use.py	Applying maps to demo datasets.
two_color_construction.py	Building a custom two-color map.
four_corners_construction.py	Building a custom four-corner map.
mutators.py	Lightening, darkening, desaturating, and reversing maps.
sampled_cmap.py	Loading and using an image-backed colormap.

Most examples save figures to examples/output/.

License

cmap2d is distributed under the license included in LICENSE.

Selected image-based colormaps derived from ColorMap Explorer retain their own attribution and source metadata. Use cmap_info(name) for source, license, and reference details for a specific colormap.
