VanillaSort 🐾

English | 简体中文

📦 Python package · SpikeInterface API · Command-line sorting

VanillaSort combines VanillaDet spike detection, HuiduRep waveform representations, and VanillaCluster clustering. Sort extracellular recordings through a Python API or the vanillasort command and obtain spike times and putative neuronal-unit assignments.

The pretrained pipeline processes four-channel recordings at 30 kHz. The SpikeInterface API also provides an experimental nearest-four-neighbor adapter for larger 2D probes. Research code and method development are documented on the main branch.

📄 Paper: Zishuo Feng and Feng Cao, Spike Sorting with VanillaSort, bioRxiv, 2026. You must cite this paper when using VanillaSort. BibTeX

Meet Vanilla, our lovely Maine Coon! 🤍

📦 Install · 🚀 Quick start · 🐍 Python API · 💻 CLI · 📁 Outputs · 🧠 Architecture · 📊 Results

Installation

Requirements: Python 3.10+, PyTorch 2.7.0+, and CUDA 12.8+ with a compatible NVIDIA driver for GPU execution. Use the latest compatible stable releases whenever possible.

Create a virtual environment:

python -m venv .venv
source .venv/bin/activate
python -m pip install --upgrade pip

On Windows PowerShell, activate the environment with .venv\Scripts\Activate.ps1.

For GPU execution, select Stable and the newest compatible CUDA version 12.8 or later in the PyTorch installation selector. Use its wheel index in the installation command. The table includes a CUDA 12.8 example:

Install VanillaSort from PyPI:

python -m pip install --upgrade vanillasort

The package installs its runtime dependencies. Both model checkpoints (about 36 MiB total) download from Hugging Face on first use and are cached locally. The commands below work from any directory.

Quick start

Run the complete pipeline on the built-in two-second synthetic recording with four mixture components:

vanillasort --self-test --device cpu --output output/self-test

This checks detection, waveform encoding, clustering, and result export. A successful run prints Done: and saves events.npz and run.json in output/self-test/.

For your recordings, --device auto selects CUDA when available and CPU otherwise. Use a new or empty output directory for each run.

Python API

Pass a SpikeInterface BaseRecording with channel locations to vanillasort.sort():

import vanillasort
from spikeinterface.core import load

# recording is your SpikeInterface BaseRecording.
sorting = vanillasort.sort(
    recording,
    components=22,  # choose the GMM component count for your recording
    output_folder="output/recording",
    device="auto",
    seed=0,
)

for unit_id in sorting.unit_ids:
    samples = sorting.get_unit_spike_train(unit_id, segment_index=0)
    print(unit_id, len(samples))

restored = load("output/recording/sorting")

The result is a SpikeInterface BaseSorting. Spike trains use zero-based sample indices within each segment; main_channel_id identifies each unit's main recording channel.

Input: raw recordings at 30,000 Hz (tolerance ±1 Hz), at least 100 samples per segment, and finite 2D channel locations in micrometres. Each channel group or shank must contain at least four contacts. Channel gains and offsets are applied when present; traces otherwise need a common voltage scale. Filtering is internal.

K applies to each neighborhood and segment. A nonempty neighborhood needs at least K sortable events; empty detections produce an empty sorting.

Larger probes: the experimental adapter builds nearest-four neighborhoods, respects group/shank boundaries, and suppresses overlapping detections within 12 samples. Segments receive independent unit IDs. Drift correction and unit matching across neighborhoods or segments remain future work; drifting units may split and nearby simultaneous events may be suppressed.

Memory: traces are read in blocks of at most 300,000 samples for one four-channel neighborhood at a time. Exact filtering and median/MAD normalization require a complete segment in RAM, with an initial memory check. Waveform storage grows with the event count. CUDA memory errors trigger retries with smaller inference batches.

Command-line usage

Prepare the input

Save a NumPy .npz archive containing:

Use finite values, at least 100 time samples, and a common voltage scale across channels. Filtering and normalization are applied by the pipeline. Use the Python API for larger probes, or export a four-channel group and its matching coordinates for the CLI.

For example, package existing trace and coordinate arrays:

import numpy as np

traces = np.load("traces.npy")  # (T, 4)
coords = np.load("coords.npy")  # (4, 2), micrometres

np.savez(
    "recording.npz",
    traces=traces.astype(np.float32),
    coords=coords.astype(np.float32),
    fs_hz=30000.0,
)

Run sorting

vanillasort --input recording.npz --components 22 --output output/recording-k22

Set --components to the number of Gaussian mixture components, K, chosen for your recording. K must be at least 2, and the number of sortable events must be at least K. The bundled Hybrid Janelia settings use 22 for recordings 11/12 and 24 for 21/22/31/32.

You can also supply separate .npy files:

vanillasort --input traces.npy --coords coords.npy --fs 30000 --components 22 --output output/recording-npy

An NPZ fs_hz value takes precedence over --fs; --coords takes precedence over coordinates stored in the NPZ.

To export spike detections alone:

vanillasort --input recording.npz --detect-only --output output/detections

Outputs

Python API outputs

Passing output_folder saves the following alongside the returned BaseSorting:

Use restored.register_recording(recording) to associate a reloaded sorting with the original traces.

CLI outputs

Each run writes two files:

The following arrays are saved for a completed clustering run. Here, D is the number of accepted detections, N is the number of sortable events, and K is the requested component count.

Sorting retains detections satisfying 30 <= sample < T - 30 and extracts waveform offsets -30 through +29. This accounts for the difference between D and N. Detection-only runs save the three detection_* arrays.

Read spike times in seconds and select a unit:

import json
from pathlib import Path
import numpy as np

output = Path("output/recording-k22")
metadata = json.loads((output / "run.json").read_text(encoding="utf-8"))
with np.load(output / "events.npz") as events:
    spike_times_s = events["samples"] / metadata["fs_hz"]
    unit_ids = events["labels"]

unit_0_times_s = spike_times_s[unit_ids == 0]
units, spike_counts = np.unique(unit_ids, return_counts=True)
print(dict(zip(units.tolist(), spike_counts.tolist())))

Times are relative to the start of the supplied recording. Review putative units using their waveforms, firing rates, and inter-spike intervals. The clustering section of run.json records GMM convergence, warnings, template construction, and changes made during assignment refinement.

Models and caching

The default model is hybrid-janelia-2026.09, hosted at Kohaku2580/VanillaSort. Its immutable revision and SHA-256 hashes are recorded in default_model.json. Every load verifies the checkpoint hashes.

Download and verify the weights ahead of a run:

vanillasort --verify-only

The package uses the standard Hugging Face cache (HF_HOME / HF_HUB_CACHE). Set VANILLASORT_MODEL_CACHE to choose another Hub cache root. Once the cache is populated, HF_HUB_OFFLINE=1 enables offline operation.

For a local model:

sorting = vanillasort.sort(recording, model_path="/path/to/model.pt", components=22)

A combined .pt contains detector_state_dict, huidurep_state_dict, and optionally config. A model directory contains config.json plus the two checkpoint files named by detector_checkpoint and huidurep_checkpoint. Model loading uses weights_only=True and strict architecture matching.

Configuration

Common command-line options:

CUDA out-of-memory handling halves the affected inference batch and retries. Filtering and normalization use the entire selected recording in host memory. Before processing, the runner checks for approximately 12 × input array bytes + 512 MiB of available RAM; waveform and feature storage also grows with the event count.

The profiles and model settings are defined in configs/default.json:

Both profiles use per-channel median/MAD normalization for detector input. Event-SNR gating uses the canonical 200–6,000 Hz signal. Processing a prefix with --seconds also fits normalization and clustering to that prefix. Keep run.json with your results to record these choices.

Model architecture

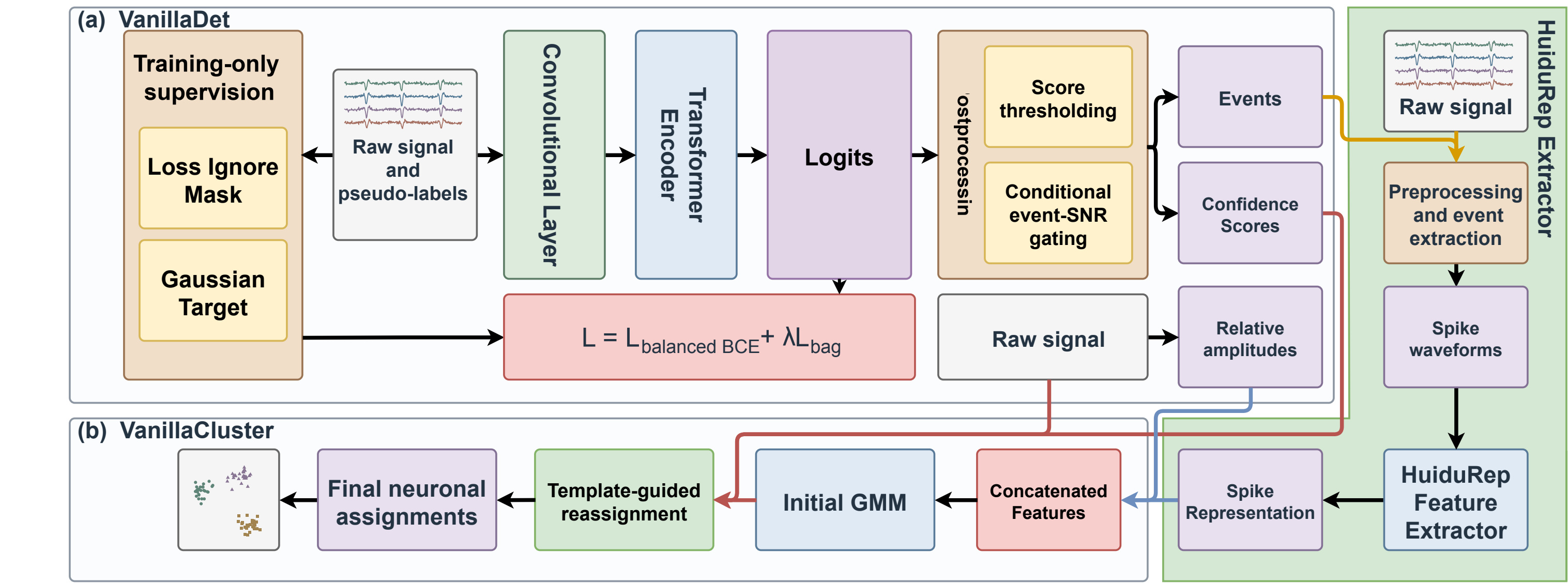

VanillaDet → HuiduRep → VanillaCluster. The diagram shows detector training and event selection, waveform representation learning, and clustering with relative-amplitude features and template-guided reassignment.

Method

1. VanillaDet — detect spikes. A convolutional frontend and a six-layer local Transformer produce sample-level scores. The default model uses 256-dimensional hidden states, four attention heads, rotary positional encoding, and L2-normalized queries and keys. Peak selection applies a 12-sample exclusion radius. Events at or above the direct-acceptance threshold are retained; events between the two thresholds require a primary-channel SNR of at least 3 and an SNR of at least 2 on another channel.
2. HuiduRep — encode waveforms. Each event contributes a 60-sample, four-channel waveform. Preprocessing standardizes each channel over events and time, interpolates to 90 samples, and repeats/crops channels to 11 inputs. HuiduRep applies internal denoising and produces a 32-dimensional representation, which is standardized across the recording's events.
3. VanillaCluster — assign units. Three relative-amplitude features are formed from per-channel peak-to-peak amplitude fractions, projected onto a Helmert contrast basis, and standardized. A full-covariance GMM clusters the resulting 35-dimensional vectors. One template-residual refinement pass then updates assignments among the top three candidate components.

Template refinement splits events into alternating one-second blocks. For each target fold, templates are built from the opposite fold using events with GMM posterior probability of at least 0.9. Each core pool is capped at 512 events, then its lowest-scoring 25% by detector score is removed. A valid template requires at least 30 retained events and nonzero energy. Residual fitting searches shifts of ±2 samples and shared amplitude scales from 0.5 to 2.0; event timestamps are preserved. Events with insufficient template support retain their GMM assignments.

Results

The paper's Tables 1–2 report results on Hybrid Janelia Static and Drift, with nine recordings per subset and ground-truth units with SNR ≥ 3. Sorting accuracy is TP / (TP + FP + FN), with event matching within ±6 samples. Values below are mean ± SEM; higher is better.

DAE denotes a denoising autoencoder. Other-tool scores are the SpikeForest or original-publication results used in the paper.

• Detection: VanillaDet achieves 0.74/0.71 accuracy on Static/Drift, compared with SimSort's 0.72/0.68 and amplitude thresholding's 0.61/0.60.
• Sorting: VanillaSort improves accuracy over the corresponding HuiduRep baselines by 3–4 percentage points on Static and 4–5 points on Drift (paired Wilcoxon test, p < 0.05).

Package development

To develop the package:

git clone --branch feat/inference-package https://github.com/IgarashiAkatuki/VanillaSort.git
cd VanillaSort
python -m pip install -e ".[dev]"
pytest

The tests use small synthetic recordings and locally generated model weights. Numerical reference versions are recorded in requirements.txt; the package's runtime dependencies are declared in pyproject.toml.

Maintainers can follow the release process to publish a version through GitHub Actions.

Repository layout

Citation

Use of VanillaSort requires citation of the following paper:

Zishuo Feng and Feng Cao. Spike Sorting with VanillaSort. bioRxiv, 2026. doi:10.64898/2026.09.18.752552.

@article{feng2026vanillasort,
  title   = {Spike Sorting with {VanillaSort}},
  author  = {Feng, Zishuo and Cao, Feng},
  journal = {bioRxiv},
  year    = {2026},
  doi     = {10.64898/2026.09.18.752552},
  url     = {https://www.biorxiv.org/content/10.64898/2026.09.18.752552}
}

License

GNU Affero General Public License v3.0.
