Vision Embedding Space Travelling (VEST)

Browser-based exploration of vision embeddings in 3D space. Navigate using your mouse, touchscreen and keyboard, save keypoints along your trajectory and allow others to follow your path.

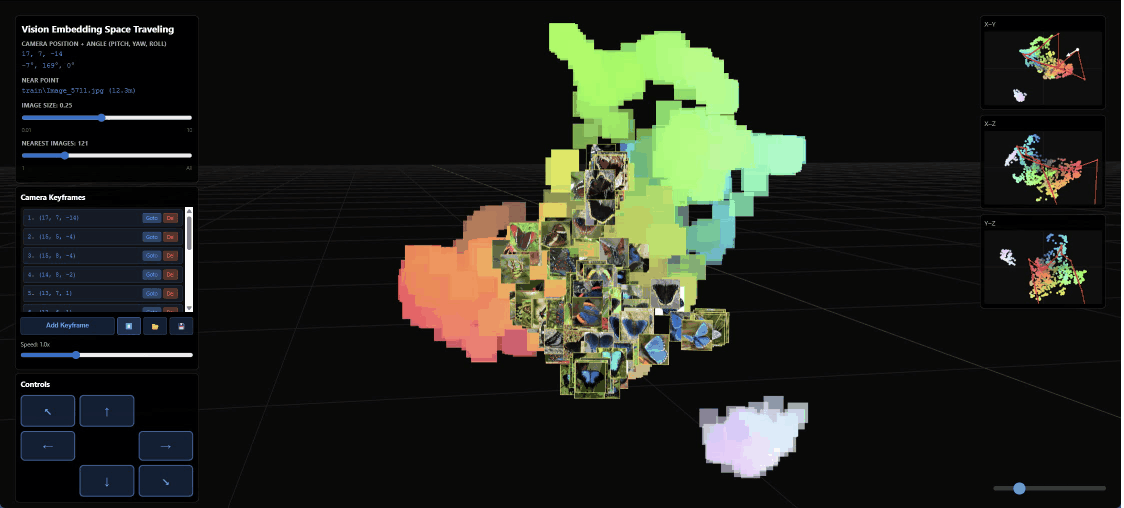

This video shows a VEST through butterfly images published on kaggle by DePie. The embedding was generated using openai/clip-vit-base-patch32 and reduced to 3 dimensions using a UMAP. Read the full example and download the video.

Features

• Interactive 3D Visualization: Explore images placed at 3D coordinates
• Browser-Based: Runs entirely in your web browser using Three.js
• Pip-Installable: Easy installation as a Python package
• Flexible Data Input: Works with CSV files containing filename, x, y and z columns and folders of .png or .jpg files.
• Fast Navigation: Smooth keyboard movement, mouse and touchscreen controls

Installation

Installation of VEST is commonly done like this:

pip install vision-embedding-space-travelling

Or the development version:

git clone https://github.com/scads/vest.git
cd vest
pip install -e .

While VEST uses minimal dependencies only (pandas and Flask), you may need to install additional requirements such as pytorch, transformers, umap-learn, kagglehub depending on which example notebook you use. For more details, check the instructions in the example directories and the 'environmnent.yml' files.

Quick Start

Navigate to a folder containing a VEST-compatible data.csv file and an images subfolder with content as explaned below. E.g.:

cd examples/mnist

Run VEST like this:

vest data.csv --image-path ./images

The images folder may contain sub-folders, as long as these are secified in the filename column of the CSV file.

Data Format

To use VEST with your own data, you need a .csv file with image locations and coordinates in these following columns:

Column	Type	Description
x	float	X coordinate in 3D space
y	float	Y coordinate in 3D space
z	float	Z coordinate in 3D space
filename	string	Relative path to image file (.png, .jpg, etc.)

Example:

filename, x, y, z
test\Image_420.jpg, 11.708443, 5.975971, 1.1601356
train\Image_420.jpg, 14.487134, 3.430255, -2.0715249
test\Image_2562.jpg, 12.263655, 5.8971086, -0.066879705

Controls

Camera Movement

• W / A / S / D: Move forward, left, backward, right
• E / Y: Move up / Down
• I / J / K / L: Rotate upward, left, downwar, righ
• U / M: Rotate counter-clockwise, clockwise
• O: Move to Near Point
• Space: Add keyframe
• Mouse: Look around (click to enable pointer lock)
• Touch control
  • 1 finger: Rotate view
  • 2 fingers: Zoom
  • 3 fingers: Pan view

Note: On Windows, 3-finger touch gestures are per default overwritten by the operating system. To deactivate operarting systemm touch gestures go to the System Settings > Bluetooth & devices > Touch and turn Three- and four-finger touch gestures off.

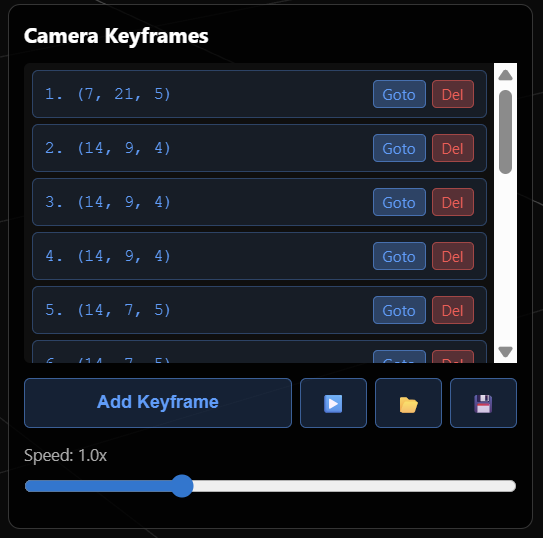

While navigating through space, you can press the "Add keyframe" button in this panel. You can also save and load lists of keyframes and play an animation travelling along the given path.

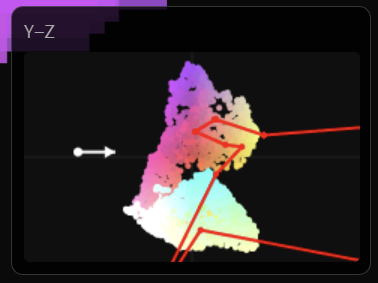

On the right, you see three panels visualizing X-Y, X-Z and Y-Z projections. The small white arrow in there is your current view point and direction. The red line corresponds to the path of keyframes which is currently loaded.

If your CSV file contains additional numeric columns, you can use them for coloured data visualization. Choose which column to use for colouring and min/max intensity in the lower right corner of the user interface:

Example Gallery

CHAMMI-75 Microscopy Images

This example was generated using the CHAMMI-75 microscopy images dataset, which is licensed CC-BY 4.0. See how to download this dataset programmatically and generate vest-compatible embeddings / data files. Read the full example.

Satellite Images

Here we see VEST through 396 Satellite images. It contains satellite images from the US National Agricultural Imagery Program (NAIP). The embedding was generated using openai/clip-vit-base-patch32 and reduced to 3 dimensions using a UMAP. Read the full example. Download the video

This video shows VEST through Overhead Wind Turbine Dataset (NAIP) which is licensed CC-BY 4.0 by Komfein C. et al. It contains satellite images from the US National Agricultural Imagery Program showing wind turbines and without wind turbines. The embedding was generated using openai/clip-vit-base-patch32 and reduced to 3 dimensions using a UMAP. Read the full example.

MNist Image of Numbers

This visualization uses a subsample of the MNist dataset embedded using nomic-ai/nomic-embed-vision-v1.5 reduced to 3 dimensions using UMAP. See this data generation notebook. Read the full example.

X-ray images of patients with COVID-19

In this example, we view X-Ray images of patients with COVID-19. We are using the covid-19-image-repository published under CC-BY 3.0 unported license by Hinrich B. Winther, Hans Laser, Svetlana Gerbel, Sabine K. Maschke, Jan B. Hinrichs, Jens Vogel-Claussen, Frank K. Wacker, Marius M. Höper, Bernhard C. Meyer (2020, DOI: 10.6084/m9.figshare.12275009), downloaded from https://github.com/ml-workgroup/covid-19-image-repository. The embedding was generated using openai/clip-vit-base-patch32 and reduced to 3 dimensions using a UMAP. Read the full example.

Logos

This screenshot show a VEST through 199 AI-generated logos of hypothetical company names. The embedding was generated using openai/clip-vit-base-patch32 and reduced to 3 dimensions using a UMAP. Read the full example.

Troubleshooting

Images not loading

• Check that image-path points to the correct directory
• Ensure image filenames match exactly (case-sensitive on Linux/Mac)
• Supported formats: PNG, JPG

License

MIT License - see LICENSE file for details

Contributing

Contributions are welcome! Please feel free to submit a Pull Request. Note: Most of the code in this repository was vibe-coded using Github copilot integration in Visual Studio Code. When modifying code here, consider using a similar tool.

Citation

If you use VEST (Vision Embedding Space Travelling) in your work, please cite:

@software{vest,
  title={VEST: Vision Embedding Space Travelling - 3D Browser-Based Visualization for Image Data},
  author={Robert Haase},
  year={2026},
  url={https://github.com/scads/vest}
}

Acknowledgements

Big thanks goes to Lea Kabjesz and Lea Gihlein for inspiration and code snippets in the example notebooks for creating embeddings. We acknowledge the financial support by the Federal Ministry of Education and Research of Germany and by Sächsische Staatsministerium für Wissenschaft, Kultur und Tourismus in the programme Center of Excellence for AI-research “Center for Scalable Data Analytics and Artificial Intelligence Dresden/Leipzig”, project identification number: ScaDS.AI
