vlmrun-hub 0.1.35

VLM Run Hub for various industry-specific schemas

VLM Run Hub

Website | Platform | Docs | Blog | Discord | Catalog

Welcome to VLM Run Hub, a comprehensive repository of pre-defined Pydantic schemas for extracting structured data from unstructured visual domains such as images, videos, and documents. Designed for Vision Language Models (VLMs) and optimized for real-world use cases, VLM Run Hub simplifies the integration of visual ETL into your workflows.


JSON

{ "issuing_state": "MT", "license_number": "0812319684104", "first_name": "Brenda", "middle_name": "Lynn", "last_name": "Sample", "address": { "street": "123 MAIN STREET", "city": "HELENA", "state": "MT", "zip_code": "59601" }, "date_of_birth": "1968-08-04", "gender": "F", "height": "5'06\"", "weight": 150.0, "eye_color": "BRO", "issue_date": "2015-02-15", "expiration_date": "2023-08-04", "license_class": "D" }

💡 Motivation

While vision models like OpenAI's GPT-4o and Anthropic's Claude Vision excel in exploratory tasks like "chat with images," they often lack practicality for automation and integration, where strongly-typed, validated outputs are crucial.

The Structured Outputs API (popularized by GPT-4o, Gemini) addresses this by constraining LLMs to return data in precise, strongly-typed formats such as Pydantic models. This eliminates complex parsing and validation, ensuring outputs conform to expected types and structures. These schemas can be nested and include complex types like lists and dictionaries, enabling seamless integration with existing systems while leveraging the full capabilities of the model.

🧰 Why use this hub of pre-defined Pydantic schemas?

• 📚 Easy to use: Pydantic is a well-understood and battle-tested data model for structured data.
• 🔋 Batteries included: Each schema in this repo has been validated across real-world industry use cases—from healthcare to finance to media—saving you weeks of development effort.
• 🔍 Automatic Data-validation: Built-in Pydantic validation ensures your extracted data is clean, accurate, and reliable, reducing errors and simplifying downstream workflows.
• 🔌 Type-safety: With Pydantic's type-safety and compatibility with tools like mypy and pyright, you can build composable, modular systems that are robust and maintainable.
• 🧰 Model-agnostic: Use the same schema with multiple VLM providers, no need to rewrite prompts for different VLMs.
• 🚀 Optimized for Visual ETL: Purpose-built for extracting structured data from images, videos, and documents, this repo bridges the gap between unstructured data and actionable insights.

📖 Schema Catalog

The VLM Run Hub maintains a comprehensive catalog of all available schemas in the vlmrun/hub/catalog.yaml file. The catalog is automatically validated to ensure consistency and completeness of schema documentation. We refer the developer to the catalog-spec.yaml for the full YAML specification.

Category	Domains
📄 Document Processing	document.bank-statement	document.invoice	document.receipt
	document.resume	document.us-drivers-license	document.utility-bill
	document.us-passport	document.business-card	document.insurance-claim
	document.bank-check	document.request-for-proposal	document.india.aadhaar-card
	document.india.pan-card
💰 Accounting & Finance	accounting.form-w2	accounting.form-payslip	finance.balance-sheet
🏥 Healthcare	healthcare.medical-insurance-card	healthcare.hipaa-release	healthcare.pathology-report
🛒 Retail	retail.ecommerce-product-caption	retail.product-catalog	food.nutrition-facts-label
📺 Media	media.tv-news	media.nba-game-state	media.nfl-game-state
🏭 Other Industries	aerospace.remote-sensing	logistics.bill-of-lading	real-estate.lease-agreement
	social.twitter-card

If you have a new schema you want to add to the catalog, please refer to the SCHEMA-GUIDELINES.md for the full guidelines.

🚀 Getting Started

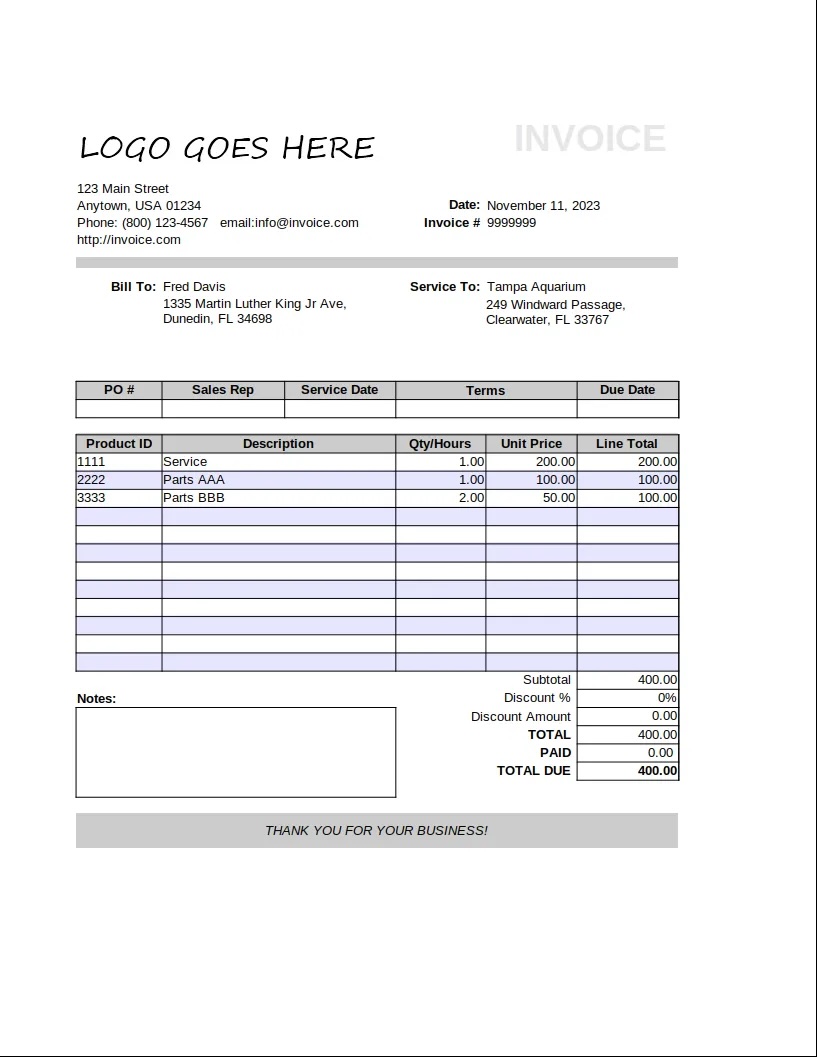

Let's say we want to extract invoice metadata from an invoice image. You can readily use our Invoice schema we have defined under vlmrun.hub.schemas.document.invoice and use it with any VLM of your choosing.

For a comprehensive walkthrough of available schemas and their usage, check out our Schema Showcase Notebook.

💾 Installation

pip install vlmrun-hub

With VLM Run Python SDK

import os
from PIL import Image
from vlmrun.client import VLMRun
from vlmrun.client.types import PredictionResponse
from vlmrun.common.utils import download_image

VLMRUN_BASE_URL = os.getenv("VLMRUN_BASE_URL", "https://api.vlm.run/v1")
VLMRUN_API_KEY = os.getenv("VLMRUN_API_KEY", None)

client = VLMRun(base_url=VLMRUN_BASE_URL, api_key=VLMRUN_API_KEY)

IMAGE_URL = "https://storage.googleapis.com/vlm-data-public-prod/hub/examples/document.invoice/invoice_1.jpg"
image: Image.Image = download_image(IMAGE_URL)

response: PredictionResponse = client.image.generate(
    images=[image],
    domain="document.invoice",
)

With Instructor / OpenAI

import instructor
from openai import OpenAI

from vlmrun.hub.schemas.document.invoice import Invoice

IMAGE_URL = "https://storage.googleapis.com/vlm-data-public-prod/hub/examples/document.invoice/invoice_1.jpg"

client = instructor.from_openai(
    OpenAI(), mode=instructor.Mode.MD_JSON
)
response = client.chat.completions.create(
    model="gpt-4o-mini",
    messages=[
        { "role": "user", "content": [
            {"type": "text", "text": "Extract the invoice in JSON."},
            {"type": "image_url", "image_url": {"url": IMAGE_URL}, "detail": "auto"}
        ]}
    ],
    response_model=Invoice,
    temperature=0,
)

JSON Response:


JSON Output 🔐

{ "invoice_id": "9999999", "period_start": null, "period_end": null, "invoice_issue_date": "2023-11-11", "invoice_due_date": null, "order_id": null, "customer_id": null, "issuer": "Anytown, USA", "issuer_address": { "street": "123 Main Street", "city": "Anytown", "state": "USA", "postal_code": "01234", "country": null }, "customer": "Fred Davis", "customer_email": "[e-mail]", "customer_phone": "[phone]", "customer_billing_address": { "street": "1335 Martin Luther King Jr Ave", "city": "Dunedin", "state": "FL", "postal_code": "34698", "country": null }, "customer_shipping_address": { "street": "249 Windward Passage", "city": "Clearwater", "state": "FL", "postal_code": "33767", "country": null }, "items": [ { "description": "Service", "quantity": 1, "currency": null, "unit_price": 200.0, "total_price": 200.0 }, { "description": "Parts AAA", "quantity": 1, "currency": null, "unit_price": 100.0, "total_price": 100.0 }, { "description": "Parts BBB", "quantity": 2, "currency": null, "unit_price": 50.0, "total_price": 100.0 } ], "subtotal": 400.0, "tax": null, "total": 400.0, "currency": null, "notes": "", "others": null }

With OpenAI Structured Outputs API

import instructor
from openai import OpenAI

from vlmrun.hub.schemas.document.invoice import Invoice

IMAGE_URL = "https://storage.googleapis.com/vlm-data-public-prod/hub/examples/document.invoice/invoice_1.jpg"

client = OpenAI()
completion = client.beta.chat.completions.parse(
    model="gpt-4o-mini",
    messages=[
        {"role": "user", "content": [
            {"type": "text", "text": "Extract the invoice in JSON."},
            {"type": "image_url", "image_url": {"url": IMAGE_URL}, "detail": "auto"}
        ]},
    ],
    response_format=Invoice,
    temperature=0,
)

When working with the OpenAI Structured Outputs API, you need to ensure that the response_format is a valid Pydantic model with the supported types.

Locally with Ollama

Note: For certain vlmrun.common utilities, you will need to install our main Python SDK via pip install vlmrun.

from ollama import chat

from vlmrun.common.image import encode_image
from vlmrun.common.utils import remote_image
from vlmrun.hub.schemas.document.invoice import Invoice


IMAGE_URL = "https://storage.googleapis.com/vlm-data-public-prod/hub/examples/document.invoice/invoice_1.jpg"

img = remote_image(IMAGE_URL)
chat_response = chat(
    model="llama3.2-vision:11b",
    format=Invoice.model_json_schema(),
    messages=[
        {
            "role": "user",
            "content": "Extract the invoice in JSON.",
            "images": [encode_image(img, format="JPEG").split(",")[1]],
        },
    ],
    options={
        "temperature": 0
    },
)
response = Invoice.model_validate_json(
    chat_response.message.content
)

📖 Qualitative Results

We periodically run popular VLMs on each of the examples & schemas in the catalog.yaml file and publish the results in the benchmarks directory.

Provider	Model	Date	Results
OpenAI	gpt-4o-2024-11-20	2025-01-09	link
OpenAI	gpt-4o-mini-2024-07-18	2025-01-09	link
Gemini	gemini-2.0-flash-exp	2025-01-10	link
Ollama	llama3.2-vision:11b	2025-01-10	link
Ollama	Qwen2.5-VL-7B-Instruct:Q4_K_M_benxh	2025-02-20	link
Ollama + Instructor	Qwen2.5-VL-7B-Instruct:Q4_K_M_benxh	2025-02-20	link
Microsoft	phi-4	2025-01-10	link

📂 Directory Structure

Schemas are organized by industry for easy navigation:

vlmrun
└── hub
    ├── schemas
    |   ├── <industry>
    |   |   ├── <use-case-1>.py
    |   |   ├── <use-case-2>.py
    |   |   └── ...
    │   ├── aerospace
    │   │   └── remote_sensing.py
    │   ├── document  # all document schemas are here
    |   |   ├── invoice.py
    |   |   ├── us_drivers_license.py
    |   |   └── ...
    │   ├── healthcare
    │   │   └── medical_insurance_card.py
    │   └── retail
    │   │   └── ecommerce_product_caption.py
    │   └── contrib  # all contributions are welcome here!
    │       └── <schema-name>.py
    └── version.py

✨ How to Contribute

We're building this hub for the community, and contributions are always welcome! Follow the CONTRIBUTING and SCHEMA-GUIDELINES.md to get started.
