xlsx-gantt 0.2.0

Generate richly styled Gantt charts as Excel (.xlsx) files

xlsx-gantt

Turn Python data into polished, presentation-ready Gantt charts — no Excel required, no GUI needed.
Built on openpyxl. Zero heavy dependencies.

---

Features

• Polished charts out of the box — pick one of eight ready-made colour themes, or generate a matching palette from your brand colour
• No Excel needed to create them — charts are plain .xlsx files anyone can open, filter, and edit in Excel
• Simple to use — describe your project as sections and tasks, get a presentation-ready chart; even directly from the command line: xlsx-gantt chart.json -o gantt.xlsx
• Shows what matters — progress bars per task, milestones, who's responsible for what, and automatic time-estimate totals
• Your language, your logo — day and week labels are fully configurable, and your logo can sit in the chart header
• Lightweight — just openpyxl and Pillow; no pandas, no matplotlib, no Java bridge

---

Installation

pip install xlsx-gantt

This includes everything — all logo image formats (PNG, JPEG, BMP, GIF, TIFF) work out of the box.

Development install

git clone https://github.com/trondegil/xlsx-gantt.git
cd xlsx-gantt
pip install -e ".[dev]"

---

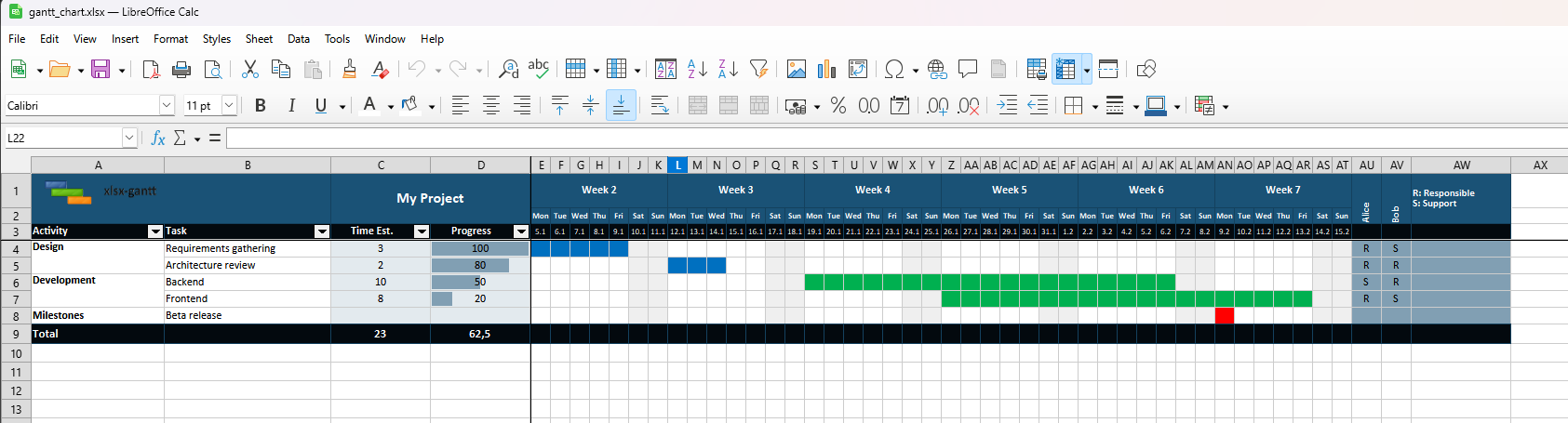

Quick Start

from datetime import datetime
from xlsx_gantt import GanttChart, GanttTheme

sections = [
    {
        "name": "Design",
        "tasks": [
            {
                "name": "Requirements gathering",
                "time_estimate": 3,
                "progress": 100,
                "ranges": [
                    {"start": datetime(2026, 1, 5), "end": datetime(2026, 1, 9), "color": "0070C0"},
                ],
                "annotations": {"Alice": "R", "Bob": "S"},
            },
            {
                "name": "Architecture review",
                "time_estimate": 2,
                "progress": 80,
                "ranges": [
                    {"start": datetime(2026, 1, 12), "end": datetime(2026, 1, 14), "color": "0070C0"},
                ],
                "annotations": {"Alice": "R", "Bob": "R"},
            },
        ],
    },
    {
        "name": "Development",
        "tasks": [
            {
                "name": "Backend",
                "time_estimate": 10,
                "progress": 50,
                "ranges": [
                    {"start": datetime(2026, 1, 19), "end": datetime(2026, 2, 6), "color": "00B050"},
                ],
                "annotations": {"Alice": "S", "Bob": "R"},
            },
            {
                "name": "Frontend",
                "time_estimate": 8,
                "progress": 20,
                "ranges": [
                    {"start": datetime(2026, 1, 26), "end": datetime(2026, 2, 13), "color": "00B050"},
                ],
                "annotations": {"Alice": "R", "Bob": "S"},
            },
        ],
    },
    {
        "name": "Milestones",
        "tasks": [
            {
                "name": "Beta release",
                "time_estimate": None,
                "progress": None,
                "ranges": [
                    {"start": datetime(2026, 2, 9), "end": datetime(2026, 2, 9), "color": "FF0000"},
                ],
            },
        ],
    },
]

style = GanttTheme.get("ocean")

chart = GanttChart(
    sections=sections,
    start_date=datetime(2026, 1, 5),    # Monday
    end_date=datetime(2026, 2, 15),     # Sunday
    project_name="My Project",
    resource_names=["Alice", "Bob"],
    style=style,
    logo_path="logo.png",               # optional
)

# Save to disk
chart.generate_excel("gantt_chart.xlsx")

# — or — get raw bytes (no file written)
xlsx_bytes = chart.generate_excel_bytes()
print("Done!")

From a JSON file

Keep the project plan in a JSON file instead of Python code and load it in one line:

from xlsx_gantt import GanttChart, GanttTheme

chart = GanttChart.from_json("chart.json", style=GanttTheme.get("ocean"))
chart.generate_excel("gantt.xlsx")

The JSON mirrors the dict API, with dates as ISO strings — see Command-Line Usage for a full example file. The same file also works without any Python at all: xlsx-gantt chart.json -o gantt.xlsx.

---

Typed Dataclass API (optional)

Instead of plain dicts you can use the typed Section, Task, and DateRange dataclasses. Both forms are fully interchangeable and may be freely mixed in the same sections list.

from datetime import datetime
from xlsx_gantt import GanttChart, GanttTheme, Section, Task, DateRange

sections = [
    Section(
        name="Design",
        tasks=[
            Task(
                name="Requirements gathering",
                time_estimate=3,
                progress=100,
                ranges=[
                    DateRange(
                        start=datetime(2026, 1, 5),
                        end=datetime(2026, 1, 9),
                        color="0070C0",
                    )
                ],
                annotations={"Alice": "R", "Bob": "S"},
            ),
        ],
    ),
]

chart = GanttChart(
    sections=sections,
    start_date=datetime(2026, 1, 5),
    end_date=datetime(2026, 2, 15),
    project_name="My Project",
    resource_names=["Alice", "Bob"],
    style=GanttTheme.get("ocean"),
)
chart.generate_excel("gantt_chart.xlsx")

Mixing dicts and dataclasses

from xlsx_gantt import Section, Task

# Dict section alongside dataclass section — both work
sections = [
    {"name": "Phase 1", "tasks": [{"name": "Kickoff", "progress": 100}]},
    Section(name="Phase 2", tasks=[Task(name="Development", time_estimate=10)]),
]

to_dict / from_dict

Each dataclass provides to_dict() (serialize back to the dict API) and from_dict() (construct from a raw dict, returning None for invalid input):

from xlsx_gantt import Section, Task, DateRange
from datetime import datetime

dr = DateRange(start=datetime(2026, 1, 5), end=datetime(2026, 1, 9), color="0070C0")
print(dr.to_dict())
# {'start': datetime(2026, 1, 5, 0, 0), 'end': datetime(2026, 1, 9, 0, 0), 'color': '0070C0'}

task = Task.from_dict({"name": "Research", "time_estimate": 3, "progress": 80})
print(task.name)  # Research

---

In-Memory Output

generate_excel_bytes() returns the raw .xlsx bytes without writing to disk. Useful for streaming from a web server or attaching to an e-mail:

chart = GanttChart(sections=sections, ...)

# Flask / Django example
xlsx_bytes = chart.generate_excel_bytes()

response = HttpResponse(
    xlsx_bytes,
    content_type="application/vnd.openxmlformats-officedocument.spreadsheetml.sheet",
)
response["Content-Disposition"] = 'attachment; filename="gantt.xlsx"'

---

Command-Line Usage

Installing the package also installs an xlsx-gantt command that builds a chart from a JSON file — no Python required:

xlsx-gantt chart.json -o gantt.xlsx --theme ocean [--logo logo.png]

The JSON mirrors the dict API, with dates as ISO strings (YYYY-MM-DD):

{
  "project_name": "Website Redesign",
  "start_date": "2026-03-02",
  "end_date": "2026-04-12",
  "resource_names": ["Alice", "Bob"],
  "sections": [
    {
      "name": "Design",
      "tasks": [
        {
          "name": "Research",
          "time_estimate": 3,
          "progress": 80,
          "ranges": [
            {"start": "2026-03-02", "end": "2026-03-06", "color": "0070C0"}
          ],
          "annotations": {"Alice": "R", "Bob": "S"}
        }
      ]
    }
  ]
}

--theme accepts any name from the Themes table. Invalid input is reported on stderr with exit code 1.

The CLI is a thin wrapper around GanttChart.from_json(), so the same JSON file can be loaded from Python too:

chart = GanttChart.from_json("chart.json")

---

Data Structure

Sections (dict form)

{
    "name": str,       # section label (merged across all its task rows in column A)
    "tasks": [ ... ]   # list of task dicts (see below)
}

Tasks (dict form)

{
    "name": str,                      # task label
    "time_estimate": float | None,    # hours / days / any unit; summed in the Total row
    "progress": float | None,         # 0–100 %; rendered as a solid DataBar
    "ranges": [                       # one or more coloured bars on the timeline
        {
            "start": datetime,        # inclusive start date
            "end":   datetime,        # inclusive end date (start == end → milestone)
            "color": "RRGGBB",        # 6-digit hex, no '#'; falls back to theme bar colour
        },
        ...
    ],
    "annotations": {                  # optional resource role markers
        "Alice": "R",                 # R = Responsible
        "Bob":   "S",                 # S = Support
    },
}

Note: time_estimate, progress, ranges, and annotations are all optional. Omitting them or passing None is handled gracefully.

---

Themes

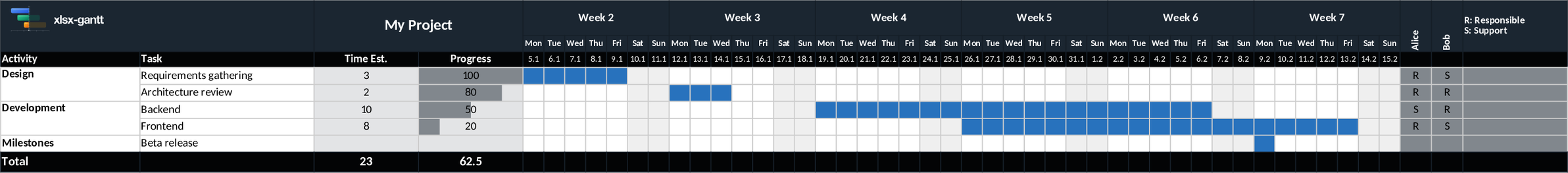

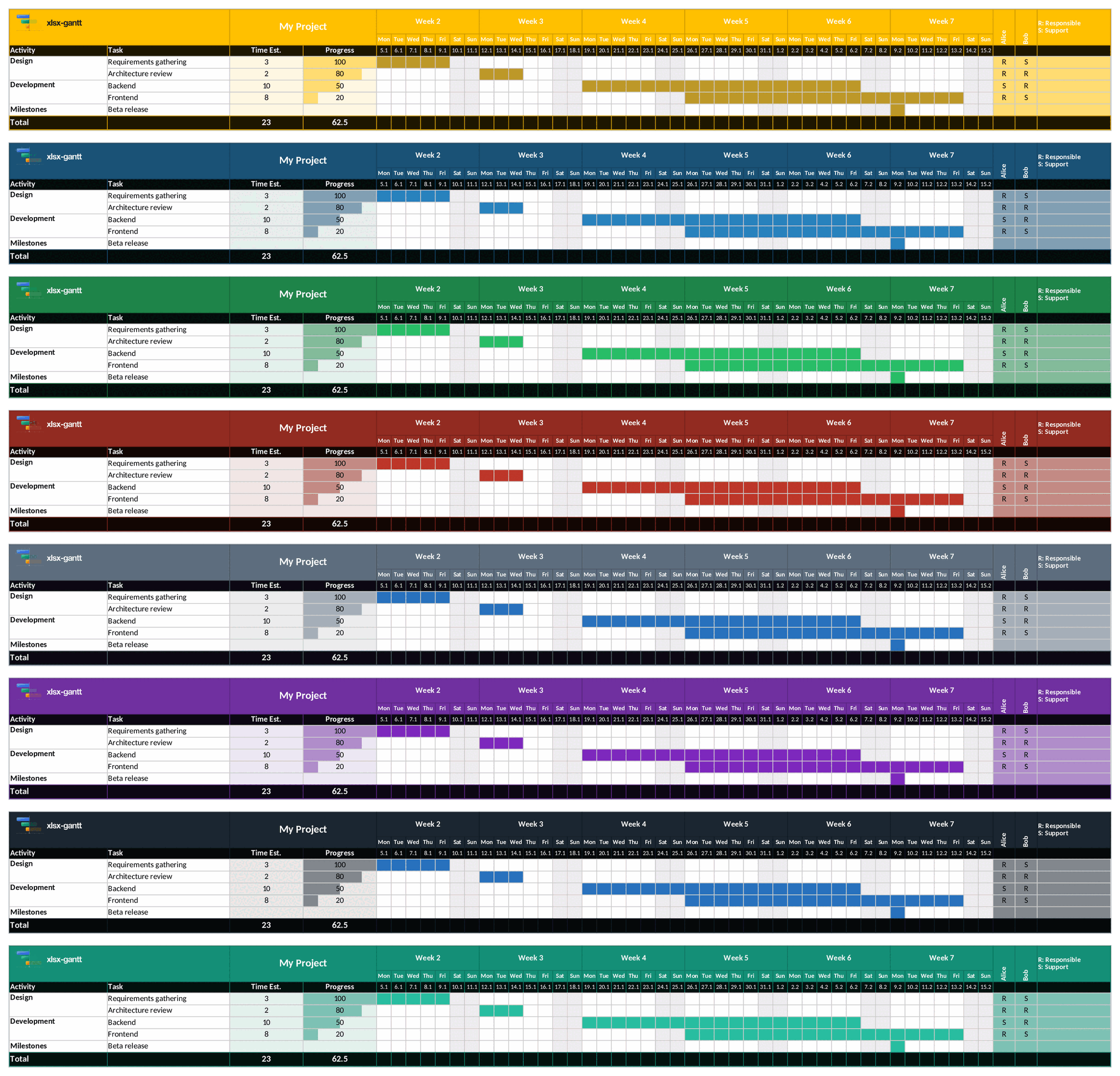

Eight built-in themes are available:

Name	Description	Base colour
amber	Warm corporate orange	FFC000
ocean	Deep professional blue	1A5276
forest	Environmental green	1E8449
crimson	Bold, high-impact red	922B21
slate	Minimal neutral gray	5D6D7E
royal_purple	Original default palette	7030A0
midnight	Modern near-black	1B2631
teal	Fresh blue-green	148F77

from xlsx_gantt import GanttTheme

# By static method
style = GanttTheme.ocean()

# By name (case-insensitive; spaces and hyphens treated as underscores)
style = GanttTheme.get("royal_purple")

# Generated from any base hex colour
style = GanttTheme.from_color("#2E86C1")

# List all available theme names
print(GanttTheme.list_themes())

---

Custom Styles

Pass a GanttStyle dataclass instance to override any visual property:

from xlsx_gantt import GanttChart, GanttStyle

style = GanttStyle(
    header_bg        = "2C3E50",
    header_fg        = "FFFFFF",
    bar_color        = "E74C3C",
    row_bg_even      = "F2F3F4",
    section_name_bg  = "D5D8DC",
    annotation_r_bg  = "C8FFCC",   # green tint for "R: Responsible"
    annotation_s_bg  = "FFE4B5",   # amber tint for "S: Support"
    col_label_bg     = "FFC000",
    col_label_fg     = "000000",
)

chart = GanttChart(sections=..., style=style, ...)

Key GanttStyle fields

Field	Default	Description
header_bg	"7030A0"	Background for header rows (rows 1–2)
header_fg	"FFFFFF"	Text colour for header rows
bar_color	"9966CC"	Default Gantt bar fill
progress_bar_color	"7030A0"	Solid DataBar fill colour
weekend_bg	"EFEFEF"	Column fill for Sat/Sun
row_bg_even	None	Even data-row background (None = white)
row_bg_odd	None	Odd data-row background (None = white)
section_name_bg	None	First row of each section
col_label_bg	"FFC000"	Row 3 — Activity / Task / date numbers
annotation_r_bg	None	Background for "R" annotation cells (annotation_a_bg still accepted)
annotation_s_bg	None	Background for "S" annotation cells
total_row_bg	None	Total row background (None → header_bg)
day_names	("Mon", …, "Sun")	Day abbreviations for row 2 (Mon-first) — set your own for other locales
week_label_format	"Week {week}"	Row-1 week band label; {week} and {year} placeholders
logo_scale	0.7	Logo size as a fraction of the A1:B2 area
font_name	"Calibri"	Font used throughout the sheet
col_width_task	25.0	Task column width (Excel units)
col_width_date	3.0	Width of each day column

All fields and their defaults are documented in the GanttStyle dataclass docstring.

---

Colour Utilities

The package also exports the colour helpers used internally by the theme engine:

from xlsx_gantt import contrast_text, darken, lighten, rotate_hue

# Pick white or black for maximum WCAG contrast against a background
text = contrast_text("1A5276")   # → "FFFFFF"

# Blend a colour toward black or white
darker  = darken("FFC000", 0.4)
lighter = lighten("FFC000", 0.6)

# Rotate the hue by a given number of degrees (0–360)
comp = rotate_hue("1A5276", 180)

---

For Power Users

• In-memory output — generate_excel_bytes() returns raw .xlsx bytes without touching the file system; drop it straight into a Flask/Django response, e-mail it, or cache it in Redis
• Theme engine — GanttTheme.from_color("#2E86C1") derives a complete WCAG-contrast-checked palette from any hex colour; the colour helpers darken, lighten, rotate_hue, and contrast_text are exported for your own theme logic
• Typed dataclass API — Section, Task, and DateRange dataclasses give you IDE auto-completion and type checking; plain dicts still work and can be freely mixed in the same list
• Multiple bars per row — paint several independent date ranges on a single task row, each with its own hex colour; any range where start == end renders as a milestone
• Solid progress DataBars — gradient-free Excel 2010 DataBar conditional formatting, injected via x14 extension XML post-processing
• Fine-grained styling — every colour, font, column width, and row height is a GanttStyle field; section names merge vertically, headers freeze, and label columns get auto-filters
• Locale control — GanttStyle.day_names and week_label_format (with {week}/{year} placeholders) replace the default English labels
• Production-safe error handling — malformed sections, tasks, ranges, and annotations are silently skipped; no unhandled exceptions in live environments

---

Project Structure

xlsx-gantt/
├── xlsx_gantt/                # Library package
│   ├── __init__.py            # Public re-exports
│   ├── style.py               # GanttStyle configuration dataclass
│   ├── models.py              # Section, Task, DateRange input dataclasses
│   ├── chart.py               # GanttChart builder
│   ├── themes.py              # GanttTheme + colour utilities
│   ├── cli.py                 # xlsx-gantt command-line interface
│   ├── py.typed               # PEP 561 marker
│   └── _xlsx_patch.py         # Internal: solid DataBar XML post-processor
├── tests/
│   ├── __init__.py
│   ├── test_malformed_input.py
│   ├── test_new_features.py
│   ├── test_readme_example.py
│   └── test_v020.py
├── pyproject.toml
├── requirements.txt
├── requirements-dev.txt
├── CHANGELOG.md
├── LICENSE
└── README.md

---

Running the Tests

pip install -r requirements-dev.txt
pytest

The test suite covers:

• Valid input (dict API and dataclass API)
• In-memory output (generate_excel_bytes)
• Mixed dict + dataclass inputs
• to_dict / from_dict round-trips
• patch_solid_databars with both file paths and BytesIO
• Malformed sections, tasks, ranges, and annotations
• Edge-case chart configurations (empty date ranges, None fields, reversed dates, etc.)

---

Requirements

Package	Version	Notes
Python	≥ 3.10
openpyxl	≥ 3.1.0	Required
Pillow	≥ 10.0.0	Required

---

Contributing

Contributions are welcome! Here is the recommended workflow:

1. Fork the repository and create a feature branch:

   git checkout -b feature/my-improvement


2. Install the project in editable mode with dev dependencies:

   pip install -e ".[dev]"


3. Make your changes. Keep the following guidelines in mind:

   • Follow the existing code style (PEP 8, type hints, docstrings).
   • Add or update tests in tests/ for any changed behaviour.
   • All colour values must be 6-digit hex strings without a leading #.

4. Run the test suite and make sure all tests pass:

   pytest


5. Commit with a clear, descriptive message:

   git commit -m "feat: add X / fix Y"


6. Open a pull request against the main branch describing what you changed and why.

Reporting issues

Please open a GitHub Issue and include:

• Python version (python --version)
• openpyxl version (pip show openpyxl)
• A minimal reproducible example or the full traceback.

---

License

This project is licensed under the MIT License — see the LICENSE file for the full text.

Dependency licences

• openpyxl — MIT
• Pillow — HPND (historically permissive, MIT-compatible)
