airflow-pytest-plugin 0.6.0

View airflow-pytest-operator results in the Airflow 3 web UI.

airflow-pytest-plugin

View airflow-pytest-operator results in the Airflow 3 web UI.

Package

Badge	What it tells you
	Latest release on PyPI — pip install airflow-pytest-plugin
	Supported Python versions (3.10+)
	Targets Airflow 3.x (FastAPI plugin UI)
	Distributed under the Apache-2.0 licence

Quality & build

Badge	What it tells you
	Build & test suite (lint, types, unit, integration) on main
	Test coverage of the package
	Fully type-checked with mypy --strict
	Linted & formatted with Ruff
	OpenSSF supply-chain security score

The operator runs a pytest suite as an Airflow task and parses the JUnit report into a structured result. This plugin archives each of those reports — keyed by dag_id / run_id / task_id / try — and serves a small web UI to browse them: pass/fail counts per run, durations, and the per-test breakdown (with failure messages) for any run. On top of that it adds cross-run analytics — flaky-test detection, per-test history, run-to-run comparison, a duration histogram, and a searchable catalogue of unique tests.

It has two halves that share one on-disk layout:

Side	Where it runs	What it is
Producer	the worker	ArchivingResultParser, a drop-in parser= for PytestOperator
Reader	the API server	a FastAPI app + single-page viewer, registered as an Airflow plugin

Contents

• Screenshots
• Install
• Quickstart
• Do I need cleanup="never"?
• How it works
• HTTP API
• Access control (RBAC)
• Configuration
• Prometheus metrics
• Architecture (SOLID)
• Development
• License

Screenshots

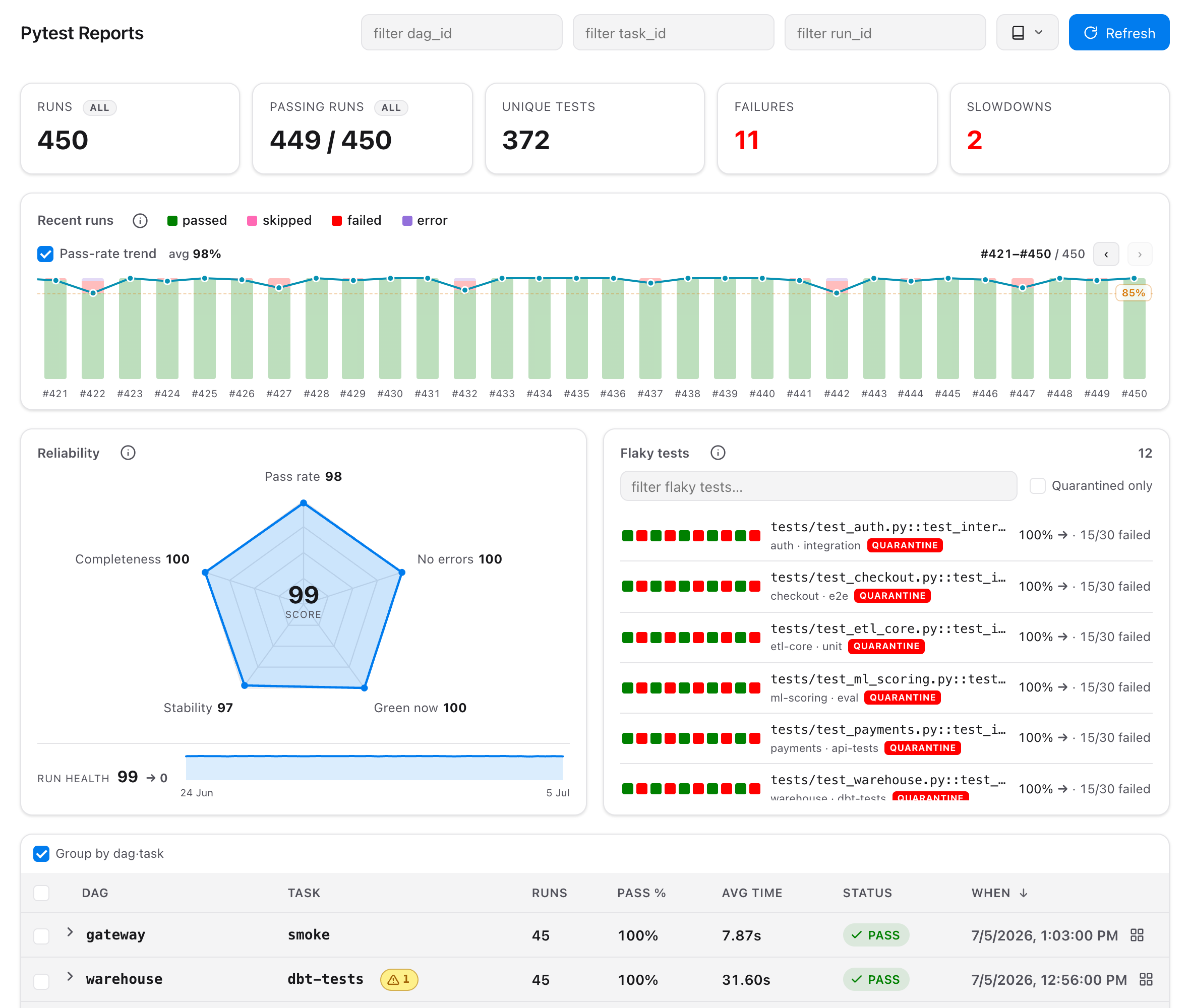

Overview — the run list with the historical chart (per-status legend toggles, run numbers, a carousel beyond 30 runs, an optional pass-rate trend line with a success-threshold gridline, and tick runs in the list to filter the chart to just their trend) beside a flaky-tests panel (with its own search and a quarantined-only toggle), KPI cards (including a clickable unique tests count), and Airflow-matched colours and font. The run list is grouped by dag·task by default (a checkbox toggles the flat list) — collapsible groups with run count, pass-rate, average duration and last status, each sortable on its own; select a whole group to chart its trend:

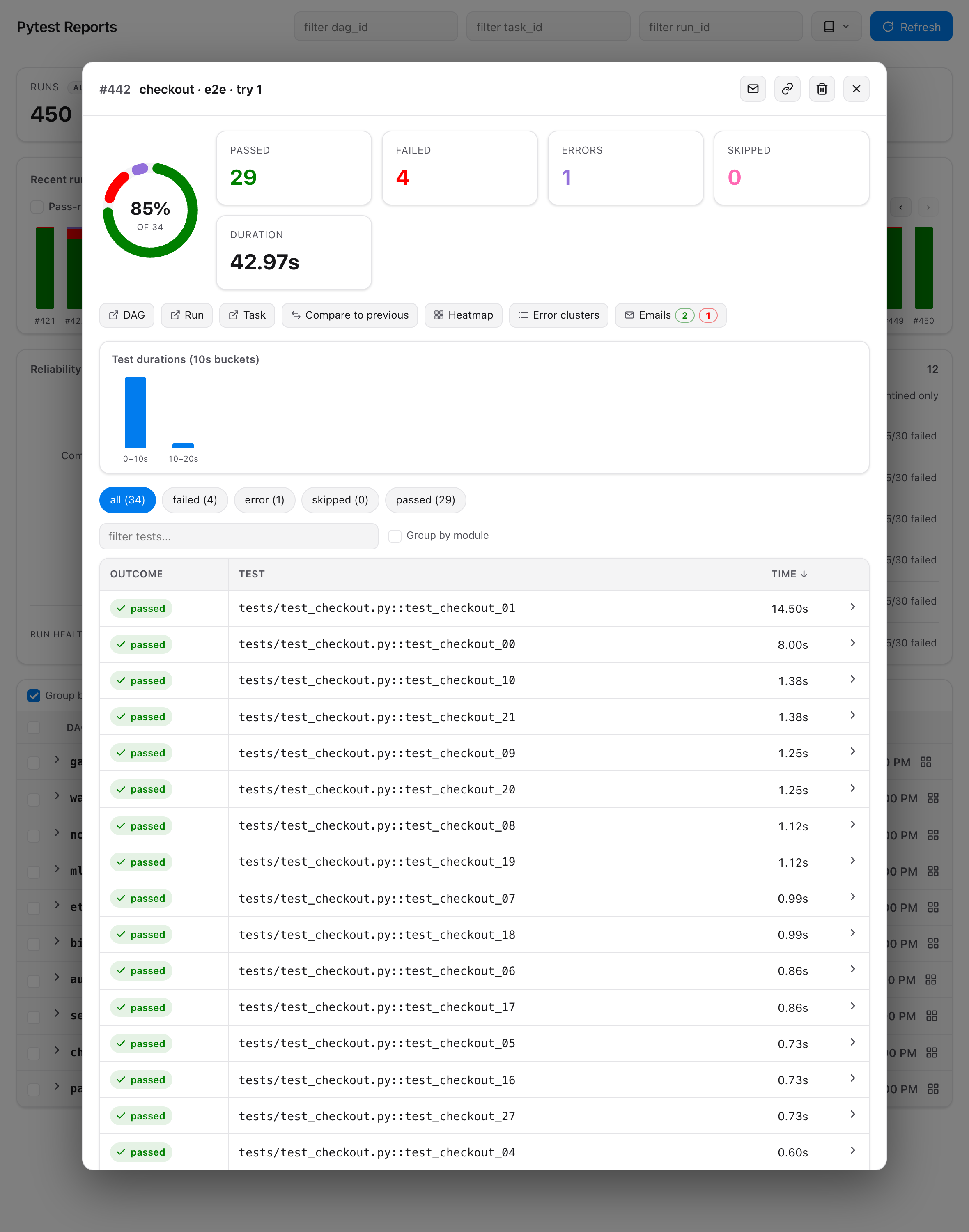

A single run — a clickable success donut (pass-rate over the test count; click a slice to filter by status), a test-duration histogram (10-second buckets, scrollable), case search / group-by-module, and every test's captured output on expand:

Flaky tests & comparison — from a run, Flaky tests lists the tests that both pass and fail across recent runs, each with a recent-outcome strip, a flakiness score, a trend arrow, and a quarantine badge, over a configurable analysis window; Compare to previous diffs it against the prior run; expanding a case offers its full history:

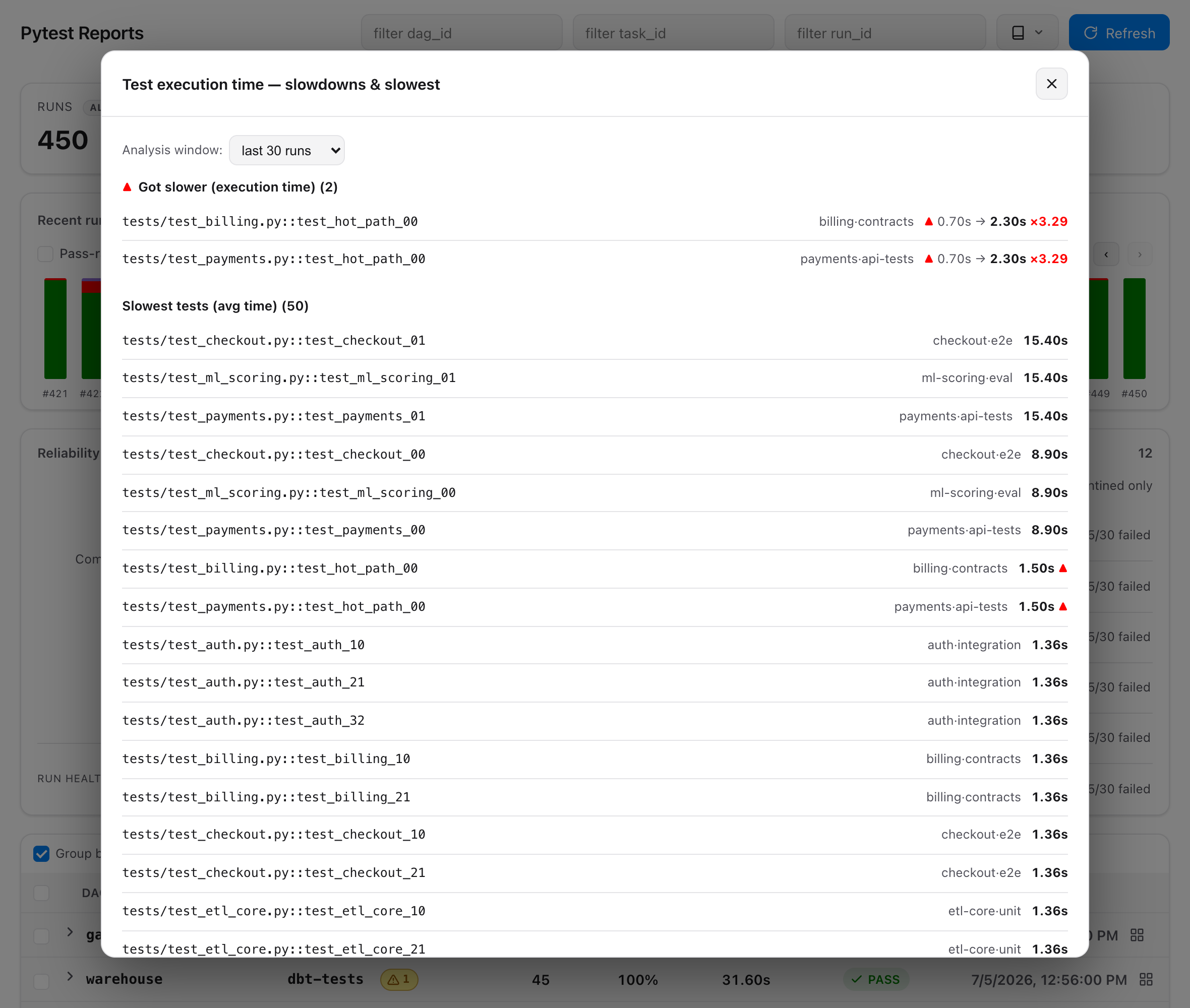

Slow tests & duration regressions — the Slowdowns KPI opens a panel of tests whose execution time got slower (recent-half average vs the older half, over a configurable window) alongside the slowest tests by average duration. A test that speeds back up drops off the list. Inside a run, the case table sorts by execution time (slowest first) so the heaviest tests surface immediately.

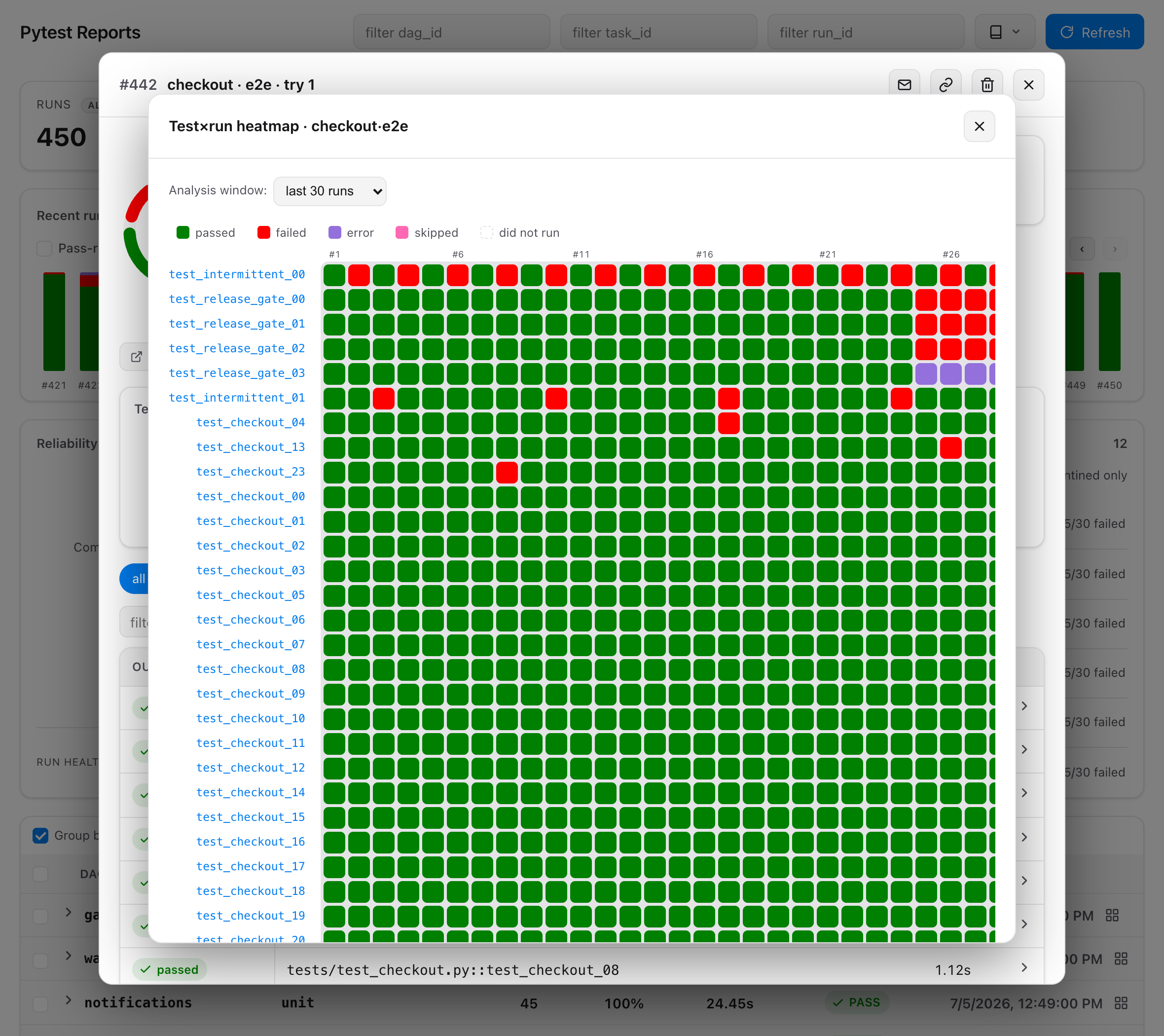

Test×run heatmap — the Heatmap button on a dag·task group (or a run's toolbar) opens a matrix of tests (rows) × recent runs (columns), each cell coloured by that test's outcome (did not run is an empty dashed cell). Flaky tests read as alternating rows, a regression as a block of failures filling in on the right, and a run that broke the build as a red/error column — all at a glance. Rows sort most-broken first; click a cell to open that run, or a test name to open its history.

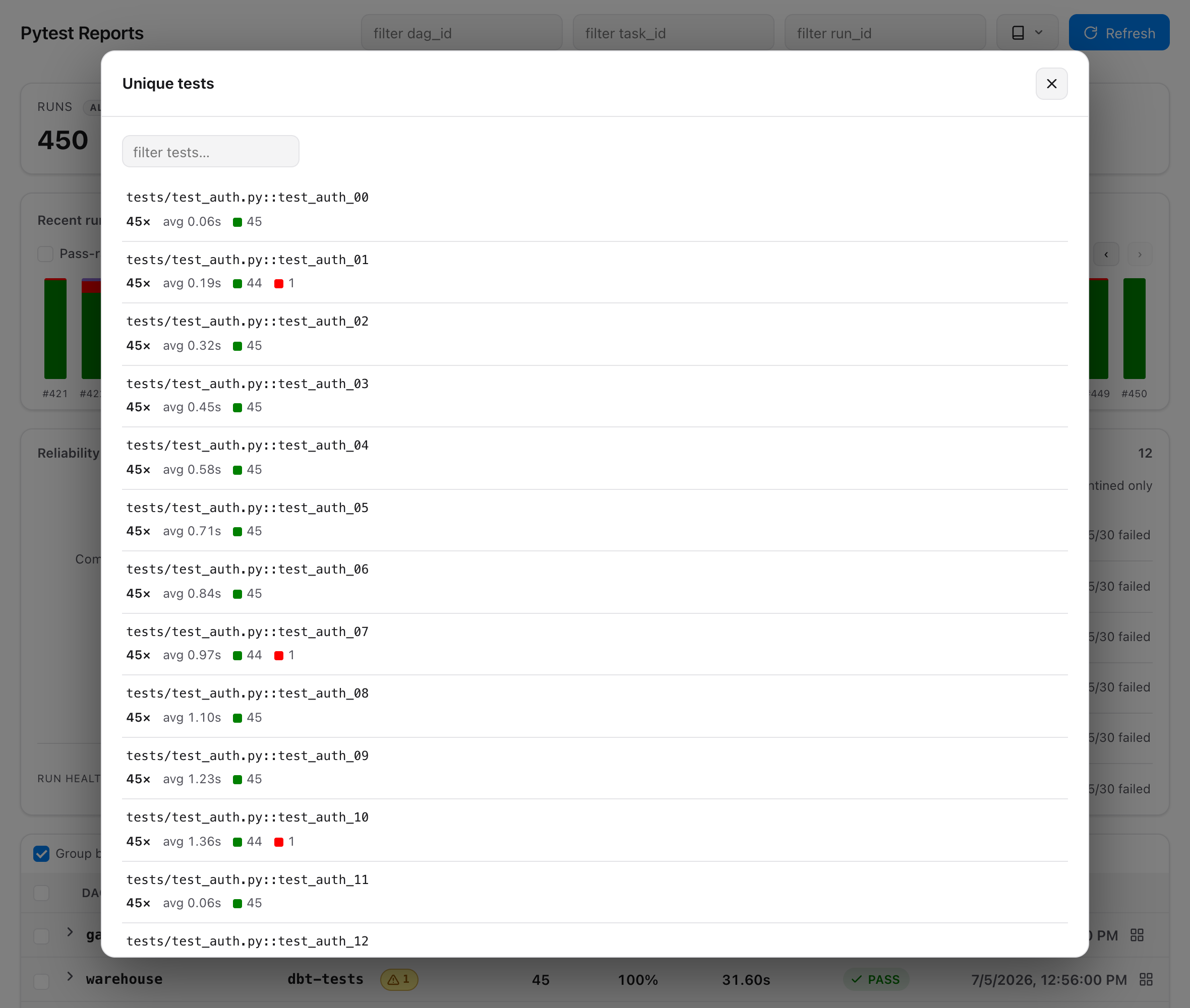

Unique tests & failures — the Unique tests KPI opens the searchable, paginated catalogue of every distinct test (each with its runs / pass-fail-error-skip counts / average time); the Failures KPI shows what's broken now — failures in each dag·task's latest run, so the count shrinks as tests are fixed — grouped into clusters by normalized error (biggest first) so common root causes surface instead of per-failure spam. Expand a cluster to its tests, or open the same clusters scoped to one run via the detail's Error clusters button:

---

Install

pip install airflow-pytest-plugin          # producer side (workers)
pip install 'airflow-pytest-plugin[web]'   # reader side (API server)

On Airflow 3 the API server already provides FastAPI, so the bare install is enough there too; the [web] extra only adds the standalone dev server.

Quickstart

1. Point your operator at the archiving parser — the only DAG change:

from airflow_pytest_operator import PytestOperator
from airflow_pytest_plugin import ArchivingResultParser

PytestOperator(
    task_id="run_tests",
    test_path="tests/",
    parser=ArchivingResultParser(),   # was JUnitResultParser()
)

After each run the task log gets a tracking link straight to the archived report, opened inside the Airflow UI (Pytest report archived — view it at http://…/plugin/pytest-reports?dag=…&run=…&task=…&try=1), provided [api] base_url (or [webserver] base_url) is set — without it the log lists the run's coordinates instead.

2. Tell both sides where reports live (one place, read by producer and reader alike):

export AIRFLOW_PYTEST_REPORTS_ROOT=/opt/airflow/pytest-reports

or in airflow.cfg:

[pytest_reports]
reports_root = /opt/airflow/pytest-reports

In a distributed deployment this should be a shared volume that both the workers (writing) and the API server (reading) can see.

3. Open the UI. The plugin registers itself via the airflow.plugins entry point — no config. The app mounts on the API server at /pytest-reports, with a Pytest Reports entry under Browse in the nav.

Preview locally, without Airflow

python -m airflow_pytest_plugin.web --root ./pytest-reports --port 8000
# open http://127.0.0.1:8000/

---

Do I need cleanup="never"?

No. In the operator, the parser owns the report location, and a parser-supplied directory is never deleted by the runner under any cleanup policy. ArchivingResultParser supplies its own directory, so reports always survive regardless of the runner's cleanup setting. cleanup="never" only matters when you let the runner use throwaway temp dirs — which is exactly the fragile path (random names, no dag/run/task association, not visible to other workers) this plugin replaces.

How it works

worker                              shared volume                 API server
──────                              ─────────────                 ──────────
PytestOperator                      {root}/{dag}/{run}/           FastAPI app
  └─ ArchivingResultParser ──▶   {task}/t{try}/        ◀──── FileSystemReportSource
       report_request() → path          ├─ junit.xml              └─ lists meta.json,
       parse()          → meta.json     └─ meta.json                 parses junit.xml

• report_request() reads the live Airflow context (get_current_context(), available because the parser runs inside the task's execute()), computes the archive directory, and hands it to the operator's JUnit parser.
• parse() reuses the operator's JUnit parsing, then drops a meta.json sidecar carrying the Airflow coordinates + the summary. That sidecar makes each report self-describing, so the reader needs no database access.
• The reader lists by scanning meta.json files (fast) and parses junit.xml on demand for the per-case detail.

The directory is a human-friendly container; the authoritative identity always lives in meta.json (and the API's opaque, reversible report token), so awkward run_id characters like : are sanitised in the path without losing anything.

HTTP API

The app is mountable under any prefix; the viewer derives its API base at runtime. Endpoints (relative to the mount):

Method & path	Returns
GET /	the single-page viewer (HTML)
GET /api/reports?dag_id=&run_id=	summaries, newest first
GET /api/reports/{report_id}	one report with per-case rows
GET /api/groups?dag_id=&task_id=	runs aggregated by dag·task (count, pass-rate, avg duration, last status)
GET /api/failures?dag_id=&run_id=&task_id=&latest=	failed/errored cases — each dag·task's latest run by default (latest=0 for full history)
GET /api/failure-clusters?dag_id=&run_id=&task_id=&latest=	failures grouped by normalized error signature (biggest first); latest-run-only by default
GET /api/compare?base=&head=	per-test diff between two runs (newly failed / fixed / …)
GET /api/flaky?dag_id=&task_id=&window=	flaky tests with score, trend, and a quarantine flag
GET /api/slow?dag_id=&task_id=&window=	duration regressions (tests whose execution time got slower) + the slowest tests by average
GET /api/heatmap?dag_id=&task_id=&window=	test×run outcome matrix for one dag·task (rows = tests sorted most-broken first, cells = p/f/e/s/- aligned to recent runs)
GET /api/test-history?dag_id=&task_id=&node_id=&limit=	one test's outcome per run
GET /api/unique-tests?dag_id=&task_id=&run_id=&full=	distinct test count (+ when full, each test's runs / passed / failed / errors / skipped / avg duration)
DELETE /api/reports/{report_id}	delete a report (RBAC-gated)
GET /api/reports/{report_id}/allure.zip	raw Allure results as a zip (if any)
GET /api/health	liveness + readiness: status, ready, reports_root(+_exists), auth, secure_xml
GET /api/version	{"name": ..., "version": ...} from package metadata
GET /api/metrics	Prometheus exposition — opt-in, bearer-token (see Prometheus metrics)
GET /api/docs	OpenAPI docs (Swagger UI)

The reads (GET) and the delete are gated by Airflow RBAC — see below.

Access control (RBAC)

Access is enforced the way Airflow 3 enforces it: every check goes through Airflow's auth manager (is_authorized_dag(...)) — the same call Airflow's own DAG-run endpoints make — keyed by the report's dag_id and the authenticated user. Two permissions are checked:

Action	Airflow 3.x check	Airflow 2.x (FAB) equivalent
See / open a report	is_authorized_dag(method="GET", access_entity=RUN)	can_read on the DAG
Delete a report	is_authorized_dag(method="POST", access_entity=RUN) (may trigger the DAG)	trigger / can_create on the DAG

The report list is filtered to the DAGs you may read, opening a report you can't read returns 403, and deleting one requires permission to trigger its DAG. Every check fails closed: if the auth manager can't be consulted, access is denied.

Airflow 2 → 3 mapping. Airflow 2's FAB used (action, resource) pairs — can_read / can_edit / can_delete / can_create on a resource such as DAG:<id>. Airflow 3 replaced these with the auth manager's method: GET ↔ read, POST ↔ create, PUT ↔ edit, DELETE ↔ delete, MENU ↔ menu access. This plugin maps read → GET and delete → POST (trigger), so it inherits your existing per-DAG roles with no extra configuration.

Plugin visibility. The nav entry is an Airflow external_views item, which has no per-permission gate, so the menu link is visible to every signed-in user; access is enforced on the content (a user who may read no DAG sees an empty list and 403 on direct links). The standalone dev server (no Airflow auth) allows everything.

Allure / TestOps export

Opt in per task and install allure-pytest on the worker:

parser=ArchivingResultParser(allure=True)

The parser then adds --alluredir (pytest errors with unrecognized arguments if allure-pytest is missing), so the raw Allure results are archived next to the report, with an executor.json linking the launch back to the Airflow run. Download them from a report's detail view, or GET /api/reports/{id}/allure.zip — then upload to Allure TestOps (allurectl upload …). The JUnit viewer is unaffected; both artifacts coexist.

Configuration

Setting	Default	Purpose
AIRFLOW_PYTEST_REPORTS_ROOT (env)	—	report root (highest precedence)
[pytest_reports] reports_root (cfg)	—	report root
built-in default	/opt/airflow/pytest-reports	fallback
AIRFLOW_PYTEST_PLUGIN_ENABLE (env)	True	reader on/off — see below
AIRFLOW_PYTEST_SCAN_CACHE_TTL (env)	2.0	seconds a directory scan is reused (0 disables)
AIRFLOW_PYTEST_RETENTION_MAX_AGE_DAYS (env/cfg)	—	delete runs older than N days
AIRFLOW_PYTEST_RETENTION_MAX_RUNS (env/cfg)	—	keep at most N newest runs per dag·task
AIRFLOW_PYTEST_RETENTION_MAX_TOTAL_MB (env/cfg)	—	total report-tree budget in MB
AIRFLOW_PYTEST_FLAKY_WINDOW (env/cfg)	30	default recent runs the flaky detector scans
AIRFLOW_PYTEST_FLAKY_QUARANTINE_SCORE (env/cfg)	0.5	flakiness score (0–1) that flags a test for quarantine
AIRFLOW_PYTEST_FLAKY_MIN_SCORE (env/cfg)	0.1	flakiness score (0–1) below which a test is not counted as flaky
AIRFLOW_PYTEST_SLOW_FACTOR (env/cfg)	1.3	how much slower (recent-half avg ÷ older half, ≥1) a test must get to count as a duration regression
AIRFLOW_PYTEST_SLOW_MIN_DELTA (env/cfg)	0.5	minimum absolute slowdown in seconds for a regression to register (filters jittery fast tests)
AIRFLOW_PYTEST_SUCCESS_THRESHOLD (env/cfg)	0.85	pass-rate (0–1) over executed tests at/above which a run counts as successful (Passing runs); 1.0 = strict, zero failures/errors
AIRFLOW_PYTEST_METRICS_TOKEN (env/cfg)	—	bearer token that enables the Prometheus /api/metrics endpoint; unset = disabled (see below)
AIRFLOW_PYTEST_ALERTS_EMAIL_TO (env/cfg)	—	comma-separated alert recipients (empty = alerting stays off; the per-task email=True flag is the on-switch — see below). Validated, case-insensitively deduped, capped at 50 (use a mailing-list address for bigger audiences)
AIRFLOW_PYTEST_SMTP_* (env/cfg)	—	standalone SMTP (_HOST, _PORT, _USER, _PASSWORD, _FROM, _STARTTLS); when _HOST is set it is used directly (takes precedence over Airflow's send_email), otherwise it's the fallback

Enable / disable the reader. Set AIRFLOW_PYTEST_PLUGIN_ENABLE to a falsey value (0, false, no, off) to stop the plugin registering its UI and API with Airflow; any other value, or leaving it unset, keeps it on (the default). This is a kill switch for the reader only — the producer-side ArchivingResultParser still archives reports regardless. It is read once at plugin discovery, so toggling it takes effect on the next API-server restart.

export AIRFLOW_PYTEST_PLUGIN_ENABLE=false   # hide the Pytest Reports UI + API

Scan cache. Loading the home page hits several summary-driven endpoints (the run list, the flaky panel, the unique-tests count), and the filter box queries as you type. To avoid walking the report tree once per call, the filesystem source reuses a single scan for AIRFLOW_PYTEST_SCAN_CACHE_TTL seconds (default 2.0; deletes invalidate it immediately). New runs therefore appear within a couple of seconds (or on Refresh); set it to 0 for no caching, or higher on a very large tree.

Prometheus metrics

GET /api/metrics exposes per-dag·task gauges (from each dag·task's latest run) in the Prometheus text format — airflow_pytest_latest_{passed,failed,errors,skipped, tests,pass_ratio,duration_seconds,success,run_timestamp_seconds}{dag_id,task_id} and airflow_pytest_dagtask_runs{dag_id,task_id}, plus globals airflow_pytest_{up,runs,dagtasks,latest_failures,series_truncated,build_info} (all gauges).

It's disabled by default and turns on only when you set a scrape token; requests must then present it as a bearer token (constant-time compared). The scrape is cheap and bounded — one cached directory scan, summary-derived (no per-run reads), capped at 2000 series — so it's safe to poll frequently.

export AIRFLOW_PYTEST_METRICS_TOKEN="$(openssl rand -hex 16)"

# prometheus.yml
scrape_configs:
  - job_name: airflow-pytest
    metrics_path: /pytest-reports/api/metrics   # the plugin's mount prefix
    authorization:
      credentials: "<AIRFLOW_PYTEST_METRICS_TOKEN>"
    static_configs:
      - targets: ["airflow-apiserver:8080"]

Retention (auto-cleanup)

Reports accumulate forever unless you prune them. Set any of the AIRFLOW_PYTEST_RETENTION_* knobs above (all opt-in; unset = keep everything) and schedule prune_reports from a maintenance DAG:

from airflow import DAG
from airflow.providers.standard.operators.python import PythonOperator
from airflow_pytest_plugin import prune_reports

with DAG("pytest_reports_retention", schedule="@daily", catchup=False, ...):
    PythonOperator(task_id="prune", python_callable=prune_reports)

Each knob is a dimension and they combine as a union — a run is deleted if any applies:

• age — older than …_MAX_AGE_DAYS;
• count — beyond the newest …_MAX_RUNS of its dag·task;
• size — oldest-first until the tree fits …_MAX_TOTAL_MB.

The newest run of each dag·task is always kept, so a task's latest result never disappears. prune_reports(dry_run=True) reports what would go without deleting (its RetentionResult carries deleted, freed_bytes, scanned). Cleanup is scheduler-driven — the plugin never deletes on its own. For a custom policy, build a RetentionPolicy(...) and pass it (prune_reports(policy)).

Email alerts

Opt-in email notifications with an adaptive, styled HTML body — green for a clean pass, amber for flaky, red for a failure — listing the failed / flaky tests and linking back to the run:

Automatic notifications are per task, via email=True. The ArchivingResultParser(email=) flag is the switch: with email=True a "run finished" mail is sent after every run (styled by outcome — green pass / amber flaky / red fail), so a team gets notified without watching the run; the default email=False sends nothing, so a noisy ping / smoke suite can't flood the mailbox:

from airflow_pytest_plugin import ArchivingResultParser

parser = ArchivingResultParser(email=True)            # email me when each run finishes
parser = ArchivingResultParser(email_only_fail=True)  # email ONLY on a failed / flaky run
parser = ArchivingResultParser()                      # default: never auto-emails (ping-safe)

email_only_fail=True is for teams that don't want success mail: nothing arrives while runs are green, a red/amber notification arrives the moment a run fails or turns flaky (it wins over email=True when both are set).

Recipients are validated (RFC-bounded addresses; invalid configured entries are dropped with a warning) and deduplicated case-insensitively — listing the same mailbox twice, in the env or in the UI dialog, sends one email. The UI dialog also validates as you submit and names the bad address before anything is sent; the server re-validates and answers a plain-language 400.

A run is "failing" below AIRFLOW_PYTEST_SUCCESS_THRESHOLD (the same 0–1 bar the Passing runs KPI uses; default 0.85) — which is what colours the email. Recipients + transport are configured once, one of two ways:

Airflow mode — mail rides Airflow's own SMTP. Set the recipients here, then configure Airflow's SMTP the standard way (per the Airflow email guide):

export AIRFLOW_PYTEST_ALERTS_EMAIL_TO="[e-mail], [e-mail]"
export AIRFLOW_PYTEST_SUCCESS_THRESHOLD=0.85   # optional

On Airflow 3 the default backend (airflow.utils.email.send_email) takes the SMTP host / port / STARTTLS from the [smtp] config but the login / password from the smtp_default connection — so you usually need both, present on the service that runs the task (the worker), not only the scheduler / API server. A minimal Gmail setup:

• [smtp] (env on every Airflow service): AIRFLOW__SMTP__SMTP_HOST=smtp.gmail.com, AIRFLOW__SMTP__SMTP_PORT=587, AIRFLOW__SMTP__SMTP_STARTTLS=True, AIRFLOW__SMTP__SMTP_SSL=False, AIRFLOW__SMTP__SMTP_MAIL_FROM=[e-mail].
• smtp_default connection: type SMTP, host smtp.gmail.com, port 587, login [e-mail], password = a Gmail App Password (2FA required; strip the spaces).

Standalone mode — no Airflow SMTP available (the bundled dev server, or a worker without mail configured), so also point the built-in SMTP client at your server:

export AIRFLOW_PYTEST_ALERTS_EMAIL_TO="[e-mail]"
export AIRFLOW_PYTEST_SMTP_HOST=smtp.example.com
export AIRFLOW_PYTEST_SMTP_PORT=587
export AIRFLOW_PYTEST_SMTP_STARTTLS=true                 # default true; set false for plain SMTP
export AIRFLOW_PYTEST_SMTP_USER=apikey                   # omit user+password for an open relay
export AIRFLOW_PYTEST_SMTP_PASSWORD="$SMTP_PASSWORD"     # keep the secret out of shell history
export AIRFLOW_PYTEST_SMTP_FROM="[e-mail]"

Send one run by hand (from the UI). Open a run and click the ✉ Email button in its toolbar to email that run's summary. Recipients are optional (leave the field empty to use the configured AIRFLOW_PYTEST_ALERTS_EMAIL_TO); any you type are validated as email addresses and capped. The button appears only when a mail transport is configured. The action is RBAC-gated — it needs permission to read the run's DAG — and backed by POST /api/reports/{id}/email.

Every send is logged on the run. Each attempt (automatic or manual) lands in the run's meta.json; the run's toolbar then shows an ✉ Emails N bench that opens the send log — who was mailed, when, and a ✓ delivered / ✗ failed mark per send (newest 50 kept). When the run has raw Allure results, the notification email carries them as an allure-results.zip attachment (skipped above 10 MB so mail servers accept the message).

Transport precedence: if you set AIRFLOW_PYTEST_SMTP_HOST, that standalone SMTP client is used directly — even inside Airflow — so your explicit config always wins. Otherwise mail goes through Airflow's configured SMTP (airflow.utils.email.send_email; set it up per the Airflow email/SMTP guide). Alerting is best-effort — a mail or config failure is logged (the real reason lands in the reader's log; the UI/endpoint only says "failed to send") and never fails the task that archived the run. The decision (evaluate_alerts) and orchestrator (notify_for_run, which takes dry_run= and a custom mailer=) are importable and side-effect-free for testing.

Architecture (SOLID)

Mirrors the operator's layering — each piece has one reason to change:

Module	Responsibility
layout.ReportLayout	the single ReportRef → directory mapping, shared by both sides
producer.ArchivingResultParser	write JUnit XML + meta.json (extends the operator's parser)
sources.ReportSource / FileSystemReportSource	read/index reports behind an interface (Dependency Inversion)
web.create_app	map HTTP onto a ReportSource — knows nothing about the filesystem
retention	pure select_expired decision + a prune orchestrator over any ReportSource
notifications	pure evaluate_alerts decision + a notify_for_run orchestrator over any ReportSource + a pluggable Mailer
flaky_core	web-free flaky scoring behind the /api/flaky route
plugin.PytestReportsPlugin	register the app with Airflow
compat	the only module that imports Airflow; version differences resolved once
models	JSON-serializable view types; the web layer never sees operator types

Adding a different backing store (e.g. an XComReportSource reading the metadata DB) is a new ReportSource, not an edit of the web app (Open/Closed).

Development

pip install -e '.[dev,web]'
pytest -q
ruff check src tests && ruff format --check src tests
mypy src

License

Apache-2.0. See LICENSE.
