ANDES

Python Software for Symbolic Power System Modeling and Numerical Analysis.

GitHub Action Status Azure Pipeline build status Codecov Coverage Codacy Badge

PyPI Version Conda Downloads Documentation Status Binder

Why ANDES

ANDES is by far easier to use for modeling power system devices than other simulation tools such as PSAT, Dome and PST, while maintaining high numerical efficiency.

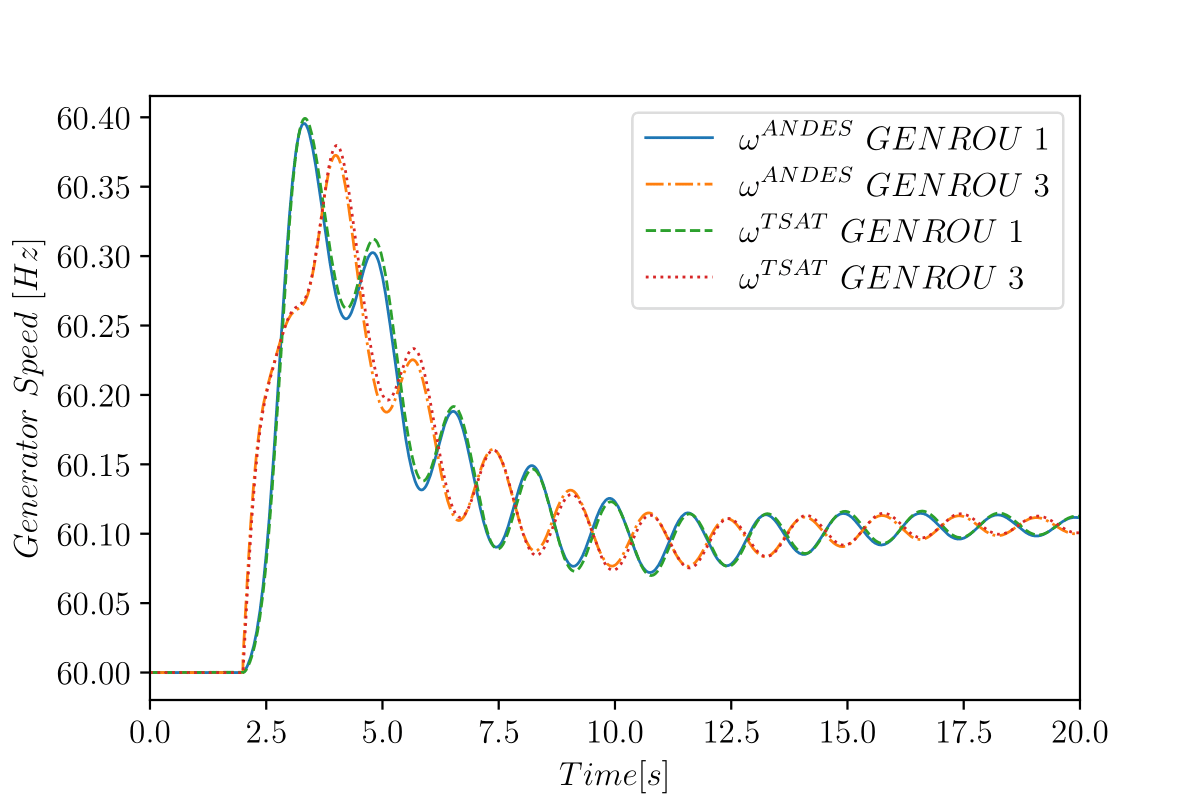

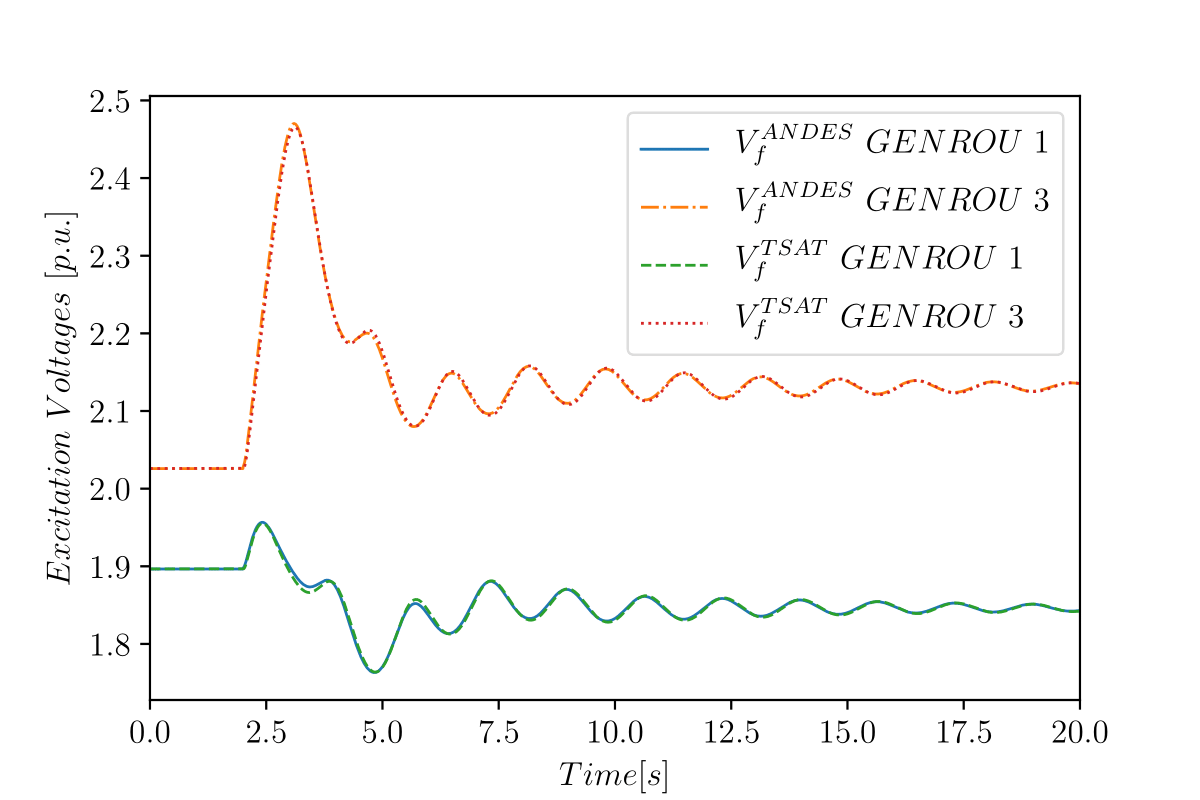

ANDES produces accurate simulation results. For the Kundur's two-area system with GENROU, TGOV1 and EXDC2, ANDES produces almost identical (<1% discrepancy) results to that from DSATools TSAT™.

Generator Speed Excitation Voltage

ANDES provides a descriptive modeling framework in a scripting environment. Modeling DAE-based devices is as simple as describing the mathematical equations.

Controller Model and Equation ANDES Code
Diagram:


Write into DAEs:

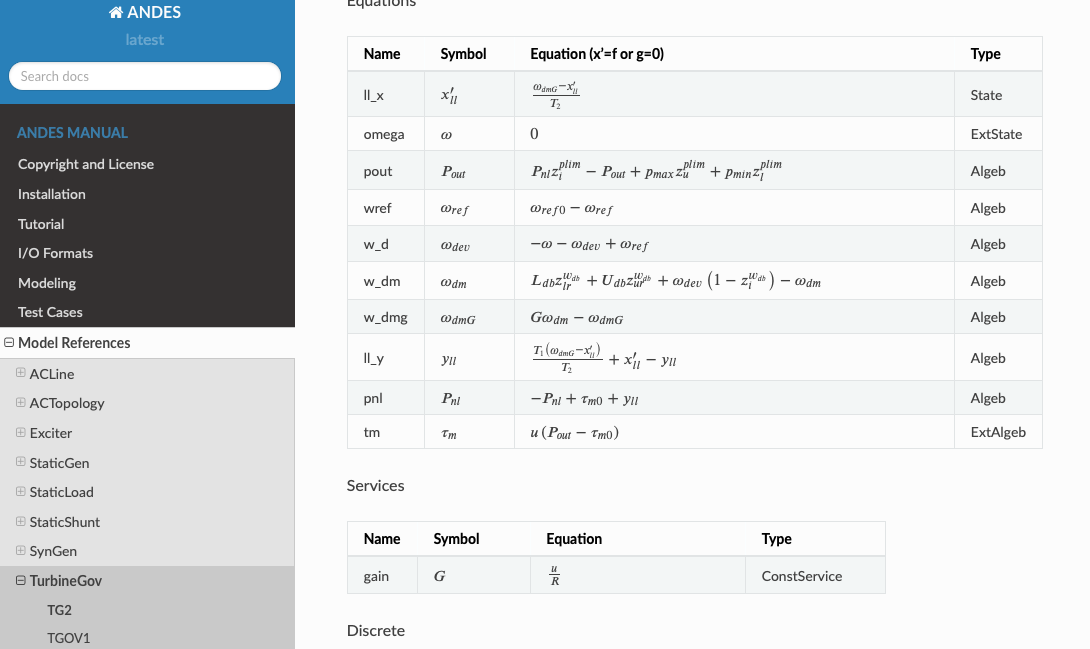

In ANDES, what you simulate is what you document. ANDES automatically generates model documentation, and the docs always stay up to date. The screenshot below is the generated documentation for the implemented TGOV1 model.

In addition, ANDES features

  • Power flow, trapezoidal method-based time domain simulation, and full eigenvalue analysis.
  • Support PSS/E raw and dyr inputs among other formats.
  • Symbolic DAE modeling and automated code generation for numerical simulation.
  • Numerical DAE modeling for cases when symbolic implementations are difficult.
  • Modeling library with common transfer functions and discontinuous blocks.
  • Automatic sequential and iterative initialization (experimental) for dynamic models.
  • Full equation documentation of supported DAE models.

ANDES is currently under active development. Use the following resources to get involved.

Table of Contents

Get Started with ANDES

ANDES is a Python package and needs to be installed. We recommend Miniconda if you don't insist on an existing Python environment. Downloaded and install the latest 64-bit Miniconda3 for your platform from https://conda.io/miniconda.html.

Step 1: (Optional) Open the Anaconda Prompt (shell on Linux and macOS) and create a new environment.

Use the following command in the Anaconda Prompt:

conda create --name andes python=3.7

Step 2: Add the conda-forge channel and set it to default. Do

conda config --add channels conda-forge
conda config --set channel_priority flexible

Step 3: Activate the new environment

This step needs to be executed every time a new Anaconda Prompt or shell is open. At the prompt, do

conda activate andes

Step 4: Download and Install ANDES

  • Download the latest ANDES source code from https://github.com/cuihantao/andes/releases.

  • Extract the package to a folder where source code resides. Try to avoid spaces in any folder name.

  • Change directory to the ANDES root directory, which contains setup.py. In the prompt, run the following commands in sequence.

conda install --file requirements.txt --yes
conda install --file requirements-dev.txt --yes
pip install -e .

Observe if any error is thrown. If not, ANDES is successfully installed in the development mode.

Step 5: Test ANDES

After the installation, run andes selftest and check if all tests pass.

Run Simulations

ANDES can be used as a command-line tool or a library. The following explains the command-line usage, which comes handy to run studies.

For a tutorial to use ANDES as a library, visit the interactive tutorial.

ANDES is invoked from the command line using the command andes. Running andes without any input is equal to andes -h or andes --help, which prints out a preamble and help commands:

    _           _         | Version 0.8.3.post24+g8caf858a
   /_\  _ _  __| |___ ___ | Python 3.7.1 on Darwin, 04/06/2020 08:47:43 PM
  / _ \| ' \/ _` / -_|_-< |
 /_/ \_\_||_\__,_\___/__/ | This program comes with ABSOLUTELY NO WARRANTY.

usage: andes [-h] [-v {10,20,30,40,50}]
             {run,plot,misc,prepare,doc,selftest} ...

positional arguments:
  {run,plot,misc,prepare,doc,selftest}
                        [run] run simulation routine; [plot] plot simulation
                        results; [doc] quick documentation; [prepare] run the
                        symbolic-to-numeric preparation; [misc] miscellaneous
                        functions.

optional arguments:
  -h, --help            show this help message and exit
  -v {10,20,30,40,50}, --verbose {10,20,30,40,50}
                        Program logging level in 10-DEBUG, 20-INFO,
                        30-WARNING, 40-ERROR or 50-CRITICAL.

The first level of commands are chosen from {run,plot,doc,misc,prepare,selftest}. Each command contains a group of subcommands, which can be looked up by appending -h to the first-level command. For example, use andes run -h to look up the subcommands in run.

andes has an option for the program verbosity level, controlled by -v or --verbose. Accpeted levels are the same as in the logging module: 10 - DEBUG, 20 - INFO, 30 - WARNING, 40 - ERROR, 50 - CRITICAL. To show debugging outputs, use -v 10.

Step 1: Power Flow

Pass the path to the case file to andes run to perform power flow calculation. It is recommended to change directory to the folder containing the test case before running.

The Kundur's two-area system can be located under andes/cases/kundur with the namekundur_full.xlsx. Locate the folder in your system and use cd to change directory. To run power flow calculation, do

andes run kundur_full.xlsx

Power flow reports will be saved to the directory where andes is called. The power flow report, named kundur_full_out.txt, contains four sections:

  • system statistics,
  • ac bus and dc node data,
  • ac line data,
  • the initialized values of algebraic variables and state variables.

Step 2: Dynamic Analyses

ANDES comes with two dynamic analysis routines: time-domain simulation and eigenvalue analysis.

Option -r or -routine is used to specify the routine, followed by the routine name. Available routine names include pflow, tds, eig.

  • pflow is the default power flow calculation and can be omitted.
  • tds is for time domain simulation.
  • eig is for for eigenvalue analysis.

To run time-domain simulation for kundur_full.xlsx in the current directory, do

andes run kundur_full.xlsx -r tds

Two output files, kundur_full_out.lst and kundur_full_out.npy will be created for variable names and values, respectively.

Likewise, to run eigenvalue analysis for kundur_full.xlsx, use

andes run kundur_full.xlsx -r eig

The eigenvalue report will be written in a text file named kundur_full_eig.txt.

PSS/E raw and dyr support

ANDES supports the PSS/E v32 raw and dyr files for power flow and dynamic studies. Example raw and dyr files can be found in andes/cases/kundur. To perform a time-domain simulation for kundur_full.raw and kundur_full.dyr, run

andes run kundur_full.raw --addfile kundur_full.dyr -r tds

where --addfile takes the dyr file. Please note that the support for dyr file is limited to the models available in ANDES.

Step 3: Plot Results

andes plot is the command-line tool for plotting. Currently, it only supports time-domain simulation data. Three arguments are needed: file name, x-axis variable index, and y-axis variable index (or indices).

Variable indices can be looked up by opening the kundur_full_out.lst file as plain text. Index 0 is always the simulation time.

Multiple y-axis variable indices can be provided in eithers space-separated format or the Pythonic comma-separated style.

To plot speed (omega) for all generators with indices 2, 8, 14, 20, either do

andes plot kundur_full_out.npy 0 2 8 14 20

or

andes plot kundur_full_out.npy 0 2:21:6

Configure ANDES

ANDES uses a config file to set runtime configs for system, routines and models. The config file is loaded at the time when ANDES is invoked or imported.

At the command-line prompt,

  • andes misc --save saves all configs to a file. By default, it goes to ~/.andes/andes.conf.
  • andes misc --edit is a shortcut for editing the config file. It takes an optional editor name.

Without an editor name, the following default editor is used:

  • On Microsoft Windows, it will open up a notepad.
  • On Linux, it will use the $EDITOR environment variable or use vim by default.
  • On macOS, the default is vim.

Format Converter

Input Converter

ANDES recognizes a few input formats (MATPOWER, PSS/E and ANDES xlsx) and can convert input to the xlsx format. This function is useful when one wants to use models that are unique in ANDES.

  • andes run CASENAME.ext --convert performs the conversion to xlsx, where CASENAME.ext is the full test case name.
  • andes run CASENAME.ext --convert-all performs the conversion and create empty sheets for all supported models.
  • andes run CASENAME.xlsx --add-book ADD_BOOK, where ADD_BOOK is the workbook name (the sane as the model name) to be added.

For example, to convert wscc9.raw in the current folder to the ANDES xlsx format, run

andes run wscc9.raw --convert

The command will write the output to wscc9.xlsx in the current directory. An additional dyr file can be included through --addfile, as shown in Step 2: Dynamic Analysis. Power flow models and dynamic models will be consolidated and written to a single xlsx file.

Adding Model Template to an Existing xlsx File

To add new models to an existing xlsx file, one needs to create new workbooks (shown tabs at the bottom), --add-book can add model templates to an existing xlsx file. To add models GENROU and TGOV1 to the xlsx file wscc9.xlsx, run

andes run wscc9.xlsx --add-book GENROU,TGOV1

Two workbooks named "GENROU" and "TGOV1" will appear in the new wscc9.xlsx file.

Warning: --add-book will overwrite the original file. All empty workbooks will be discarded. It is recommended to make copies to backup your cases.

Output Converter

The output converter is used to convert .npy output to a comma-separated (csv) file.

To convert, do andes plot OUTPUTNAME.npy -c , where OUTPUTNAME.npy is the file name of the simulation output.

For example, to convert kundur_full_out.npy (in the current directory) to a csv file, run

andes plot kundur_full_out.npy -c

The output will be written to kundur_full_out.csv in the current directory.

Model Development

The steps to develop new models are outlined. New models will need to be written in Python and incorporated in the ANDES source code. Models are placed under andes/models with a descriptive file name for the model type.

If a new file is created, import the building block classes at the top of the file

from andes.core.model import ModelData, Model
from andes.core.param import IdxParam, NumParam, ExtParam
from andes.core.var import Algeb, State, ExtAlgeb, ExtState
from andes.core.service import ConstService, ExtService
from andes.core.discrete import AntiWindup

The TGOV1 model will be used to illustrate the model development process.

Step 1: Define Parameters

Create a class to hold parameters that will be loaded from the data file. The class inherits from ModelData

class TGOV1Data(ModelData):
    def __init__(self):
        self.syn = IdxParam(model='SynGen',
                            info='Synchronous generator idx',
                            mandatory=True,
                            )
        self.R = NumParam(info='Speed regulation gain under machine base',
                          tex_name='R',
                          default=0.05,
                          unit='p.u.',
                          ipower=True,
                          )
        self.wref0 = NumParam(info='Base speed reference',
                              tex_name=r'\omega_{ref0}',
                              default=1.0,
                              unit='p.u.',
                              )

        self.VMAX = NumParam(info='Maximum valve position',
                             tex_name='V_{max}',
                             unit='p.u.',
                             default=1.2,
                             power=True,
                             )
        self.VMIN = NumParam(info='Minimum valve position',
                             tex_name='V_{min}',
                             unit='p.u.',
                             default=0.0,
                             power=True,
                             )

        self.T1 = NumParam(info='Valve time constant',
                           default=0.1,
                           tex_name='T_1')
        self.T2 = NumParam(info='Lead-lag lead time constant',
                           default=0.2,
                           tex_name='T_2')
        self.T3 = NumParam(info='Lead-lag lag time constant',
                           default=10.0,
                           tex_name='T_3')
        self.Dt = NumParam(info='Turbine damping coefficient',
                           default=0.0,
                           tex_name='D_t',
                           power=True,
                           )

Note that the example above has all the parameters loaded in one class. In practice, it is recommended to create a base class for common parameters and let TGOV2Data inherit from it. See the code in andes/models/governor.py for the example.

Step 2: Define Externals

Next, another class to hold the non-parameter instances is created. The class inherits from Model and takes three positional arguments by the constructor.

The code below defines parameters, variables and services retrieved from external models (specifically , generators).

class TGOV1Model(Model):
    def __init__(self, system, config):
        self.Sn = ExtParam(src='Sn',
                           model='SynGen',
                           indexer=self.syn,
                           tex_name='S_m',
                           info='Rated power from generator',
                           unit='MVA',
                           export=False,
                           )
        self.Vn = ExtParam(src='Vn',
                           model='SynGen',
                           indexer=self.syn,
                           tex_name='V_m',
                           info='Rated voltage from generator',
                           unit='kV',
                           export=False,
                           )
        self.tm0 = ExtService(src='tm',
                              model='SynGen',
                              indexer=self.syn,
                              tex_name=r'\tau_{m0}',
                              info='Initial mechanical input')
        self.omega = ExtState(src='omega',
                              model='SynGen',
                              indexer=self.syn,
                              tex_name=r'\omega',
                              info='Generator speed',
                              unit='p.u.'
                              )

In addition, a service can be defined for the inverse of the gain

        self.gain = ConstService(v_str='u / R',
                                 tex_name='G',
                                 )

Step 3: Define Variables

First of all, the turbine governor output modifies the generator power input. Therefore, the generator input variable should be retrieved by the governor. Next, internal variables can be defined.

        # mechanical torque input of generators
        self.tm = ExtAlgeb(src='tm',
                           model='SynGen',
                           indexer=self.syn,
                           tex_name=r'\tau_m',
                           info='Mechanical power to generator',
                           )

        self.pout = Algeb(info='Turbine final output power',
                          tex_name='P_{out}',
                          )
        self.wref = Algeb(info='Speed reference variable',
                          tex_name=r'\omega_{ref}',
                          )

        self.pref = Algeb(info='Reference power input',
                          tex_name='P_{ref}',
                          )
        self.wd = Algeb(info='Generator under speed',
                        unit='p.u.',
                        tex_name=r'\omega_{dev}',
                        )
        self.pd = Algeb(info='Pref plus under speed times gain',
                        unit='p.u.',
                        tex_name="P_d",
                        )

        self.LAG_x = State(info='State in lag transfer function',
                           tex_name=r"x'_{LAG}",
                           )
        self.LAG_lim = AntiWindup(u=self.LAG_x,
                                  lower=self.VMIN,
                                  upper=self.VMAX,
                                  tex_name='lim_{lag}',
                                  )
        self.LL_x = State(info='State in lead-lag transfer function',
                          tex_name="x'_{LL}",
                          )
        self.LL_y = Algeb(info='Lead-lag Output',
                          tex_name='y_{LL}',
                          )

Step 4: Define Equations

Set up the equation associated with each variable. Algebraic equations are in the form of 0 = g(x, y). Differential equations are in the form of T \dot{x} = f(x, y).

        self.tm.e_str = 'u*(pout - tm0)'

        self.wref.e_str = 'wref0 - wref'
        self.pref.e_str = 'tm0 * R - pref'
        self.wd.e_str = '(wref - omega) - wd'
        self.pd.e_str='(wd + pref) * gain - pd'

        self.LAG_x.e_str = 'LAG_lim_zi * (1 * pd - LAG_x) / T1'

        self.LL_x.e_str = '(LAG_x - LL_x) / T3'
        self.LL_y.e_str='T2 / T3 * (LAG_x - LL_x) + LL_x - LL_y'
        self.pout.e_str = '(LL_y + Dt * wd) - pout'

Step 5: Define Initializers

Initializers are used to set up initial values for variables. Initializers are evaluated in the same sequence as the declaration of variables. Initializer evaluation results are set to the corresponding variable. Usually, only internal variables (Algeb and State) require initializers.

        self.wref.v_str = 'wref0'
        self.pout.v_str = 'tm0'

        self.LL_y.v_str = 'LAG_x'
        self.LL_x.v_str = 'LAG_x'
        self.LAG_x.v_str = 'pd'

        self.pd.v_str = 'tm0'
        self.wd.v_str = '0'
        self.pref.v_str = 'tm0 * R'

Alternatively, equations and initializers can be passed to keyword arguments e_str and v_str, respectively , of the corresponding instance.

Step 6: Finalize

This step provides additional information on the model. The group to which the device belongs need to be specified, and the routine this model supports need to updated.

For example, TGOV1 belongs to the TurbineGov group, which is defined in andes/models/group.py. TGOV1 participates in the time-domain simulation and is not involved in power flow. The snipet below is added to the constructor of class TGOV1Model.

        self.group = 'TurbineGov'
        self.flags.update({'tds': True})

Next, a TGOV1 class need to be created as the final class. It is a bit boilerplate as of the current implementation.

class TGOV1(TGOV1Data, TGOV1Model):
    def __init__(self, system, config):
        TGOV1Data.__init__(self)
        TGOV1Model.__init__(self, system, config)

One more step, the class needs to be added to the package __init__.py file to be loaded. Edit andes/models/__init__.py and add to non_jit whose keys are the file names and values are the classes in the file. To add TGOV1, locate the line with key governor and add TGOV1 to the value list so that it looks like

non_jit = OrderedDict([
    # ...
    ('governor', ['TG2', 'TGOV1']),
    # ...
])

Finally, run andes prepare from the command-line to re-generate code for the new model.

API Reference

The official documentation explains the complete list of modeling components. The most commonly used ones are highlighted in the following.

Who is Using ANDES?

Please let us know if you are using ANDES for research or projects. We kindly request you to cite our paper if you find ANDES useful.

Natinoal Science Foundation US Department of Energy CURENT ERC Lawrence Livermore National Laboratory

Contributors

This work was supported in part by the Engineering Research Center Program of the National Science Foundation and the Department of Energy under NSF Award Number EEC-1041877 and the CURENT Industry Partnership Program.

This project was originally inspired by the book Power System Modelling and Scripting by Prof. Federico Milano.

The following contributors are sincerely acknowledged:

  • Christopher Lackner: for contributing the EAGC model.
  • Qiwei Zhang: for contributing a solar PV model.
  • Yichen Zhang for feedback on documentation.

License

ANDES is licensed under the GPL v3 License.


Project details


Download files

Download the file for your platform. If you're not sure which to choose, learn more about installing packages.

Files for andes, version 0.9.2
Filename, size File type Python version Upload date Hashes
Filename, size andes-0.9.2.tar.gz (5.2 MB) File type Source Python version None Upload date Hashes View

Supported by

AWS AWS Cloud computing Datadog Datadog Monitoring DigiCert DigiCert EV certificate Facebook / Instagram Facebook / Instagram PSF Sponsor Fastly Fastly CDN Google Google Object Storage and Download Analytics Pingdom Pingdom Monitoring Salesforce Salesforce PSF Sponsor Sentry Sentry Error logging StatusPage StatusPage Status page
