Banko AI Assistant - RAG and Agentic-AI Demo

An AI-powered expense analysis application demonstrating Retrieval-Augmented Generation (RAG) and agentic-AI workflows with CockroachDB vector search and multiple AI provider support.

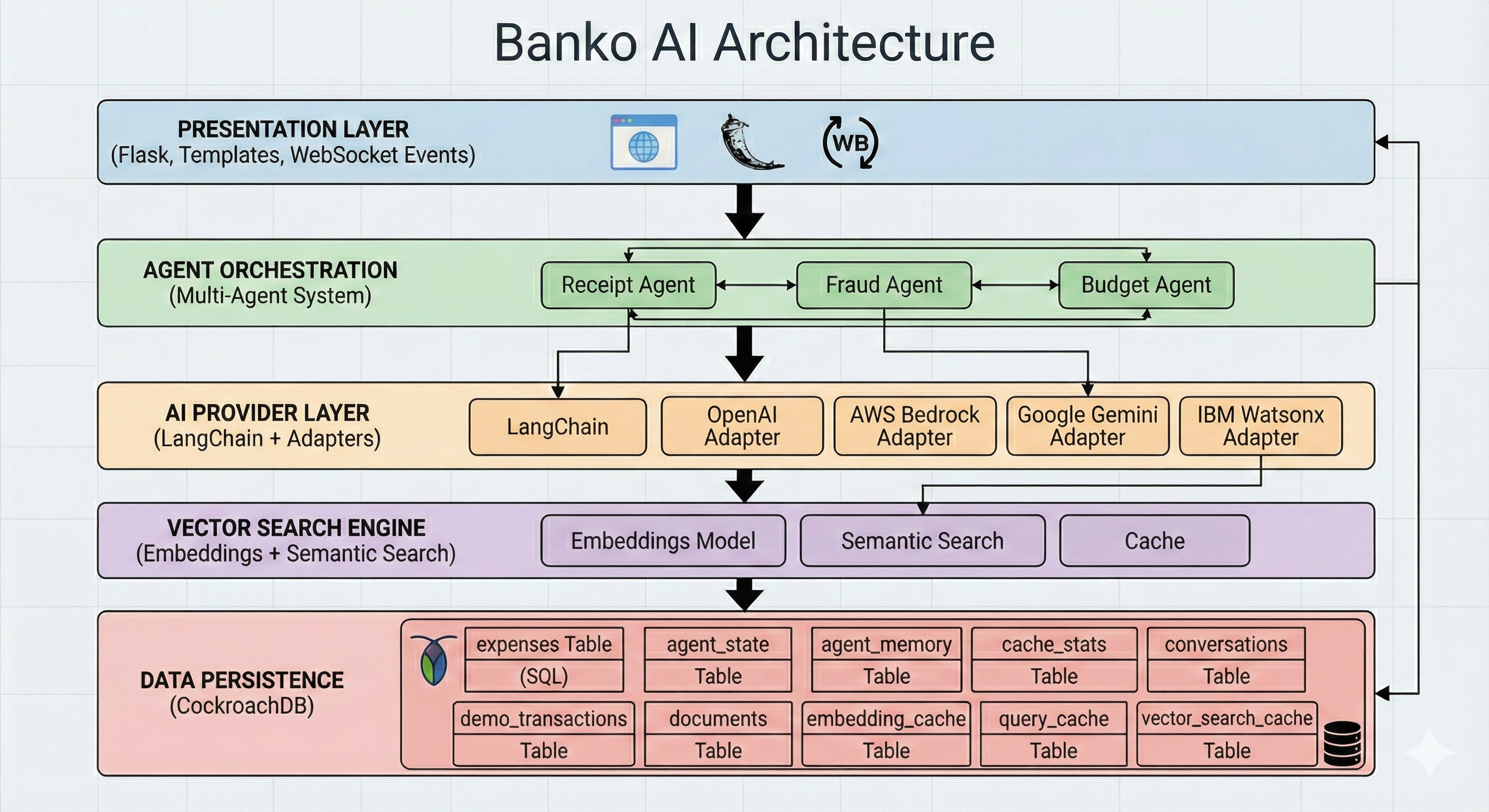

Architecture

The application uses a five-layer architecture:

1. Presentation Layer

• Flask Routes: API endpoints for search, RAG, receipt upload, data generation, and agent status
• Templates: Responsive web UI with real-time chat
• WebSocket Events: Real-time agent activity updates via Flask-SocketIO

Location: banko_ai/web/app.py

2. Agent Orchestration

Multi-agent system with specialized agents:

• Receipt Agent: OCR and data extraction from uploaded receipts (images and PDFs)
• Fraud Agent: Duplicate detection, statistical anomaly analysis, and suspicious pattern recognition
• Budget Agent: Spending categorization and budget impact analysis
• Orchestrator Agent: Coordinates multi-agent workflows

Receipt uploads trigger a LangGraph pipeline: Receipt -> Fraud -> Budget -> Done, checkpointed by CockroachDBSaver for crash recovery and replay.

Location: banko_ai/agents/

3. AI Provider Layer

Abstraction layer with a standardized interface to multiple LLMs:

• IBM Watsonx (GPT-OSS-120B, Llama 3/4, Granite, Mistral)
• OpenAI (GPT-4o-mini, GPT-4o, GPT-4.1, GPT-5)
• AWS Bedrock (Claude Sonnet 4, Claude 3.5 Haiku, Claude Opus 4 via inference profiles)
• Google Gemini (Gemini 2.0 Flash, Gemini 1.5 Pro, Gemini 1.5 Flash)

Models are dynamically discovered from each provider's API. Switch providers and models from the Settings page or via environment variables -- no restart required. Override with WATSONX_MODELS, OPENAI_MODELS, AWS_MODELS, or GEMINI_MODELS (comma-separated).

Location: banko_ai/ai_providers/

4. Vector Search Engine

Semantic search using CockroachDB vector indexes:

• Embeddings: all-MiniLM-L6-v2 (384 dimensions) via sentence-transformers -- runs locally, no API key needed
• Cosine Similarity: Industry-standard <=> operator with C-SPANN indexes
• langchain-cockroachdb: CockroachDBVectorStore with automatic C-SPANN indexing
• Multi-Layer Caching: Query cache, embedding cache, and vector search cache with configurable similarity thresholds

Location: banko_ai/vector_search/

5. Data Persistence

CockroachDB as a unified store for three data types:

• SQL Data: Structured financial data (expenses, accounts)
• Vector Data: 384-dimensional embeddings for semantic search
• Agent State: Memory, decisions, tasks, and workflow checkpoints

Key integrations via langchain-cockroachdb:

Component	Purpose	Table
CockroachDBEngine	Shared async connection pool (psycopg3)	--
CockroachDBVectorStore	Semantic search with C-SPANN cosine indexes	expense_vectors
CockroachDBChatMessageHistory	Persistent chat per session/thread	chat_message_store
CockroachDBSaver	LangGraph checkpointer for durable workflows	checkpoint* tables

Location: banko_ai/utils/

Features

• RAG: Retrieval-Augmented Generation with AI-powered financial insights
• Vector Search: Semantic expense search using CockroachDB C-SPANN vector indexes
• Multi-Agent System: Receipt processing, fraud detection, and budget analysis agents
• LangGraph Workflows: Multi-agent receipt pipeline with crash-resistant checkpointing
• Duplicate Detection: Fraud agent flags duplicate receipts (same merchant + amount)
• Persistent Chat History: Conversations stored in CockroachDB, survive restarts
• Multi-AI Provider: OpenAI, AWS Bedrock, IBM Watsonx, Google Gemini -- switch without restart
• Dynamic Model Switching: Change models from the Settings page
• Data Generator: Built-in UI to generate and seed sample expense data with embeddings
• Multi-Layer Caching: Query, embedding, and result caching with configurable thresholds
• Agent Dashboard: Real-time view of agent status, regions, and activity
• Security: Auto-generated Flask secret keys, no hardcoded credentials
• PyPI Package: pip install banko-ai-assistant
• Docker: docker-compose up -d

Quick Start

Prerequisites

• Python 3.10+
• CockroachDB v25.4.0+ (with vector index support)
• AI Provider API Key (at least one: OpenAI, AWS, IBM Watsonx, or Google Gemini)

Installation

PyPI

pip install banko-ai-assistant

Docker

docker-compose up -d

Development

git clone https://github.com/cockroachlabs-field/banko-ai-assistant
cd banko-ai-assistant
pip install -e ".[dev]"

With uv (faster)

uv pip install banko-ai-assistant
# Or for development:
uv pip install -e ".[dev]"

CockroachDB Setup

# Install
brew install cockroachdb/tap/cockroach  # macOS

# Start single node
cockroach start-single-node \
  --insecure \
  --store=./cockroach-data \
  --listen-addr=localhost:26257 \
  --http-addr=localhost:8080 \
  --background

# Verify
cockroach sql --insecure --execute "SELECT version();"

Run

# Set provider credentials (example: Watsonx)
export AI_SERVICE="watsonx"
export WATSONX_API_KEY="your_api_key"
export WATSONX_PROJECT_ID="your_project_id"
export DATABASE_URL="cockroachdb://root@localhost:26257/defaultdb?sslmode=disable"

# Start (generates 5000 sample records on first run)
banko-ai run

Open http://localhost:5000

Configuration

Core Settings

Variable	Description	Default
DATABASE_URL	CockroachDB connection string	cockroachdb://root@localhost:26257/defaultdb?sslmode=disable
AI_SERVICE	AI provider	watsonx
SECRET_KEY	Flask session key (auto-generated if not set)	Random

Note: postgresql:// and postgres:// URLs are automatically normalized to cockroachdb:// for proper dialect handling.

AI Provider Configuration

IBM Watsonx

export WATSONX_API_KEY="your_api_key"
export WATSONX_PROJECT_ID="your_project_id"
export WATSONX_MODEL_ID="openai/gpt-oss-120b"  # Default

Variable	Description	Default
WATSONX_API_URL	API endpoint URL	US South region
WATSONX_TOKEN_URL	IAM endpoint	IBM Cloud IAM
WATSONX_TIMEOUT	Timeout (sec)	30

OpenAI

export OPENAI_API_KEY="your_key"
export OPENAI_MODEL="gpt-4o-mini"  # Default

AWS Bedrock

export AWS_ACCESS_KEY_ID="your_access_key"
export AWS_SECRET_ACCESS_KEY="your_secret_key"
export AWS_REGION="us-east-1"
export AWS_MODEL_ID="us.anthropic.claude-3-5-haiku-20241022-v1:0"

Google Gemini

export GOOGLE_APPLICATION_CREDENTIALS="path/to/service-account.json"
export GOOGLE_PROJECT_ID="your-project-id"
export GOOGLE_MODEL="gemini-2.0-flash-001"  # Default
export GOOGLE_LOCATION="us-central1"

Or use the Generative AI API:

export GOOGLE_API_KEY="your-gemini-api-key"

Response Caching

export CACHE_SIMILARITY_THRESHOLD="0.75"  # Default (0.0-1.0)
export CACHE_TTL_HOURS="24"               # Default
export CACHE_STRICT_MODE="true"           # Default (requires data match)

Preset	Threshold	Strict Mode	Hit Rate
Demo	0.75	false	80-90%
Balanced (recommended)	0.75	true	60-70%
Conservative	0.85	true	50-60%

Fraud Detection

export FRAUD_DUPLICATE_WINDOW_DAYS="60"   # Days to look back for duplicates (default: 60)

Database Connection Pool

export DB_POOL_SIZE="100"          # Base pool size (default)
export DB_MAX_OVERFLOW="100"       # Max overflow connections
export DB_POOL_TIMEOUT="30"        # Connection timeout (sec)
export DB_POOL_RECYCLE="3600"      # Recycle after (sec)
export DB_POOL_PRE_PING="true"     # Test before use

Regional Configuration

# Watsonx EU
export WATSONX_API_URL="https://eu-de.ml.cloud.ibm.com/ml/v1/text/chat?version=2023-05-29"

# AWS Europe
export AWS_REGION="eu-west-1"

# Google Europe
export GOOGLE_LOCATION="europe-west1"

Running the Application

# Start with default settings (5000 sample records)
banko-ai run

# Custom port
banko-ai run --port 5001

# Custom data amount
banko-ai run --generate-data 10000

# Without generating data
banko-ai run --no-data

# Debug mode
banko-ai run --debug

What Happens on Startup

1. Connects to CockroachDB and creates tables (expenses, agent tables, cache tables)
2. Generates sample expense records with embeddings (if needed)
3. Initializes selected AI provider
4. Starts Flask web server

API Endpoints

Endpoint	Method	Description
/	GET	Web interface

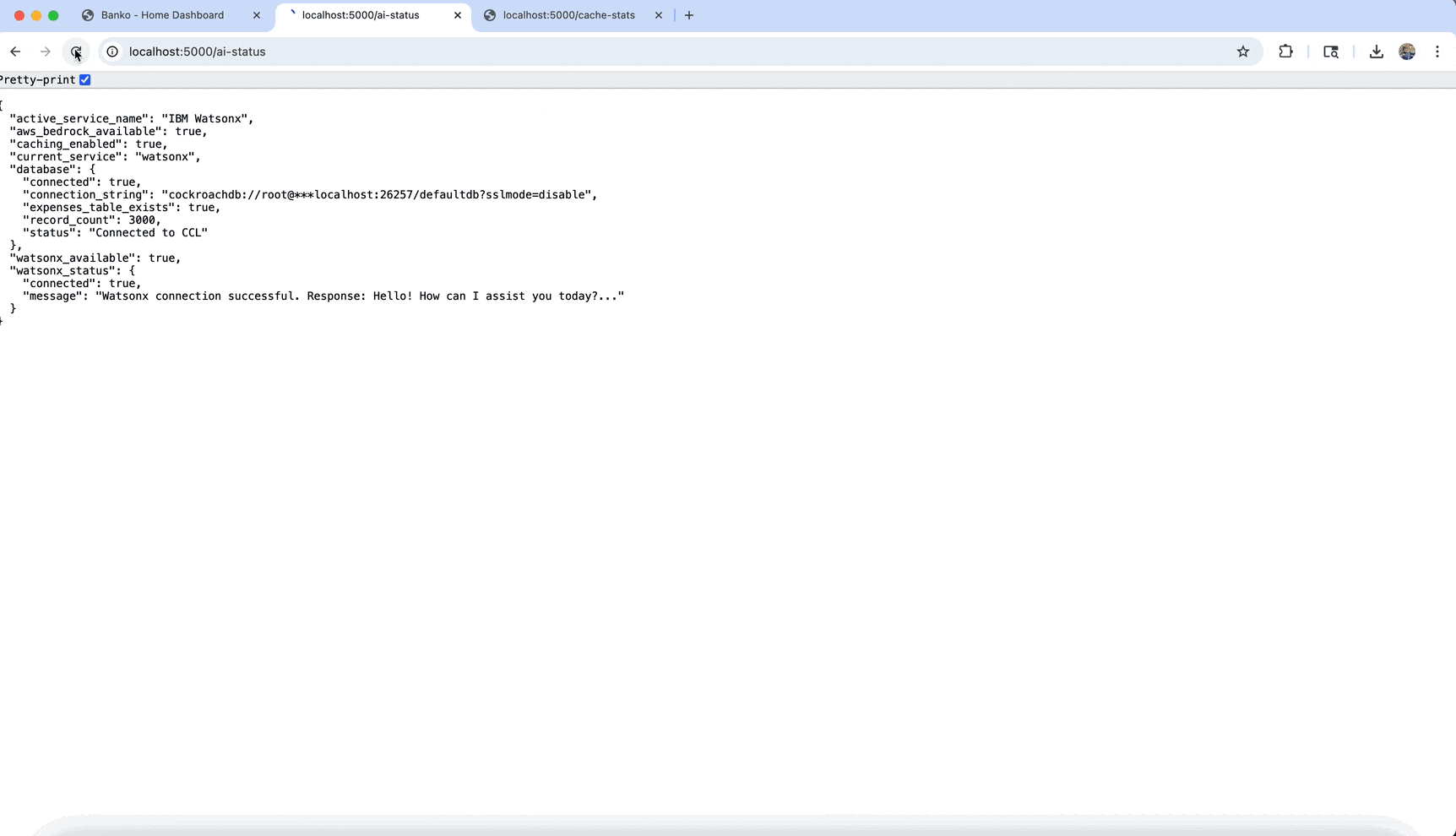

/api/health	GET	Health check (DB + AI status)
/api/ai-providers	GET	Available AI providers
/api/models	GET/POST	List or switch models
/api/search	POST	Vector search expenses
/api/vectorstore-search	POST	Search via langchain-cockroachdb VectorStore
/api/rag	POST	RAG-based Q&A with AI insights
/api/upload-receipt	POST	Upload receipt image/PDF for agent processing
/api/agents/status	GET	Agent dashboard data
/api/chat-history/<id>	GET/DELETE	Persistent chat history per session
/api/generate-data	POST	Generate sample expense data
/data-generator	GET	Data generator UI
/cache-stats	GET	Cache performance statistics
/diagnostics/watsonx	GET	Watsonx connection diagnostics

Examples

# Health check
curl http://localhost:5000/api/health

# Vector search
curl -X POST http://localhost:5000/api/search \
  -H "Content-Type: application/json" \
  -d '{"query": "coffee shop expenses", "limit": 5}'

# RAG query
curl -X POST http://localhost:5000/api/rag \
  -H "Content-Type: application/json" \
  -d '{"query": "What are my biggest expenses this month?"}'

# Upload receipt
curl -X POST http://localhost:5000/api/upload-receipt \
  -F "receipt=@receipt.png"

# Agent status
curl http://localhost:5000/api/agents/status

Database Schema

Core Tables

Table	Purpose
expenses	Expense records with 384-dim vector embeddings
expense_vectors	LangChain VectorStore (C-SPANN cosine index)
chat_message_store	Persistent chat history per session
checkpoint*	LangGraph workflow state (CockroachDBSaver)

Agent Tables

Table	Purpose
agent_state	Agent registration and heartbeats
agent_memory	Agent memory with vector embeddings
agent_tasks	Inter-agent task queue
agent_decisions	Fraud/budget decisions with feedback loop
documents	Uploaded receipt/document metadata

Cache Tables

Table	Purpose
query_cache	Cached RAG responses with semantic similarity
embedding_cache	Cached vector embeddings
vector_search_cache	Cached search results
cache_stats	Cache hit/miss statistics

Vector Indexes

-- C-SPANN cosine indexes for semantic search
CREATE INDEX idx_expenses_embedding ON expenses USING cspann (embedding vector_cosine_ops);
CREATE INDEX idx_cspann_expense_vectors_embedding ON expense_vectors USING cspann (embedding vector_cosine_ops);

CLI Commands

banko-ai run [OPTIONS]           # Run application
banko-ai generate-data --count N # Generate sample data
banko-ai clear-data              # Clear all data
banko-ai status                  # Check status
banko-ai search "query"          # Search expenses
banko-ai help                    # Help

Project Structure

banko_ai/
├── agents/
│   ├── base_agent.py            # Base agent with memory, tasks, decisions
│   ├── receipt_agent.py         # OCR and data extraction
│   ├── fraud_agent.py           # Duplicate and anomaly detection
│   ├── budget_agent.py          # Budget impact analysis
│   ├── orchestrator_agent.py    # Multi-agent coordination
│   ├── receipt_workflow.py      # LangGraph pipeline + CockroachDBSaver
│   ├── llm_factory.py           # Provider-agnostic LLM creation
│   └── tools/                   # LangChain tools (search, analysis, document)
├── ai_providers/
│   ├── base.py                  # Provider interface
│   ├── factory.py               # Provider factory
│   ├── openai_provider.py
│   ├── aws_provider.py
│   ├── gemini_provider.py
│   └── watsonx_provider.py
├── config/
│   └── settings.py              # Centralized env-based configuration
├── utils/
│   ├── db_retry.py              # DB retry logic, URL normalization, connection pooling
│   ├── cache_manager.py         # Multi-layer semantic caching
│   ├── database.py              # Schema creation
│   ├── agent_schema.py          # Agent table schema
│   ├── crdb_engine.py           # Singleton CockroachDBEngine
│   └── crdb_chat_history.py     # CockroachDBChatMessageHistory wrapper
├── vector_search/
│   ├── search.py                # Vector search engine
│   ├── enrichment.py            # Data enrichment for embeddings
│   ├── generator.py             # Sample data generator with batch embeddings
│   └── crdb_vectorstore.py      # CockroachDBVectorStore wrapper
├── web/
│   ├── app.py                   # Flask app with all routes
│   ├── agent_dashboard.py       # Agent status API
│   └── auth.py                  # Authentication
├── cli.py                       # CLI entry point
└── __main__.py                  # Module entry point

Testing

# Run all tests
python -m pytest tests/ -v

# Individual test suites
python tests/test_vector_index.py        # Vector search verification
python tests/test_cache_after_cleanup.py # Cache system tests
python tests/test_all_providers.py       # Multi-provider tests
python tests/test_env_config.py          # Environment config tests

# Lint
ruff check banko_ai/

Troubleshooting

CockroachDB Version

Must be v25.4.0+ for vector index support:

cockroach version

Database Connection Error

cockroach start-single-node --insecure --store=./cockroach-data \
  --listen-addr=localhost:26257 --http-addr=localhost:8080 --background
cockroach sql --insecure --execute "SHOW TABLES;"

AI Provider Issues

• Verify API keys are correct and exported
• Check /api/health for connection status
• Use /diagnostics/watsonx for Watsonx-specific debugging

Port 5000 in Use (macOS)

macOS AirPlay Receiver uses port 5000. Either disable it in System Settings > AirDrop & Handoff, or use a different port:

banko-ai run --port 5001

License

MIT License
