binex 0.1.0a2

Debuggable runtime for AI agent pipelines

Binex

Debuggable runtime for AI agent pipelines
Orchestrate multi-agent workflows. Trace every step. Replay and diff runs.

Quickstart · Documentation · Report Bug · Request Feature

---

Why Binex?

Building multi-agent systems is hard. Debugging them is harder. Binex gives you:

• YAML-first workflows — define agent pipelines as readable DAGs, not tangled code
• Full execution tracing — every node call, every artifact, every millisecond recorded
• Post-mortem debugging — inspect any run after the fact with rich, filterable reports
• Replay with agent swap — re-run a workflow substituting different LLMs or agents
• Run diffing — compare two executions side-by-side to spot regressions
• Human-in-the-loop — approval gates and free-text input with conditional branching

(back to top)

---

Demo

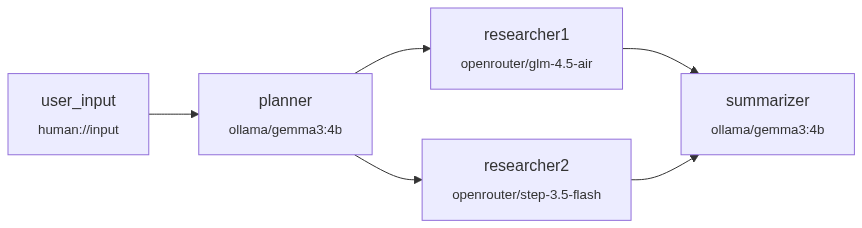

A multi-provider research pipeline: Ollama runs locally for planning and summarization, OpenRouter calls cloud models for parallel research — all in one YAML file.

Requirements to run this demo

• Ollama installed and running locally
• Model pulled: ollama pull gemma3:4b
• Free OpenRouter API key (set OPENROUTER_API_KEY in .env)
• Binex installed: pip install -e .

# examples/multi-provider-demo.yaml
name: multi-provider-research

nodes:
  user_input:
    agent: "human://input"                          # ask the user for a topic

  planner:
    agent: "llm://ollama/gemma3:4b"                 # local LLM plans the research
    system_prompt: "Create a structured research plan with 3 subtopics..."
    inputs: { topic: "${user_input.result}" }
    depends_on: [user_input]

  researcher1:
    agent: "llm://openrouter/z-ai/glm-4.5-air:free"    # cloud model researches subtopic 1
    inputs: { plan: "${planner.result}" }
    depends_on: [planner]

  researcher2:
    agent: "llm://openrouter/stepfun/step-3.5-flash:free"  # cloud model researches subtopic 2
    inputs: { plan: "${planner.result}" }
    depends_on: [planner]

  summarizer:
    agent: "llm://ollama/gemma3:4b"                 # local LLM combines findings
    inputs: { research1: "${researcher1.result}", research2: "${researcher2.result}" }
    depends_on: [researcher1, researcher2]

Run it, explore results, debug the execution:

(back to top)

---

Quickstart

# Clone
git clone https://github.com/Alexli18/binex.git
cd binex

# Create and activate virtual environment
python -m venv .venv
source .venv/bin/activate   # Linux/macOS
# .venv\Scripts\activate    # Windows

# Install
pip install -e .

# Run the zero-config demo
binex hello

# Run a workflow
binex run examples/simple.yaml --var input="hello world"

# Debug a completed run
binex debug <run-id>
binex debug latest          # shortcut for the most recent run

# Optional: rich colored output
pip install -e ".[rich]"
binex debug latest --rich

See it in action

$ binex hello

Running built-in hello-world workflow...

  [1/2] greeter ...
  [greeter] -> result:
Hello from Binex!

  [2/2] responder ...
  [responder] -> result:
{"greeter": "Hello from Binex!"}

Run completed (2/2 nodes)
Run ID: run_d71c9a50

Next steps:
  binex debug run_d71c9a50    — inspect the run
  binex init                  — create your own project
  binex run examples/simple.yaml — try a workflow file

$ binex run examples/simple.yaml --var input="hello world"

Run ID: run_69651bec
Workflow: simple-pipeline
Status: completed
Nodes: 2/2 completed
╭──────────────────────── consumer ────────────────────────╮
│ { "art_producer": { "msg": "hello world" } }             │
╰──────────────────────── result ──────────────────────────╯

(back to top)

---

Trace & Debug

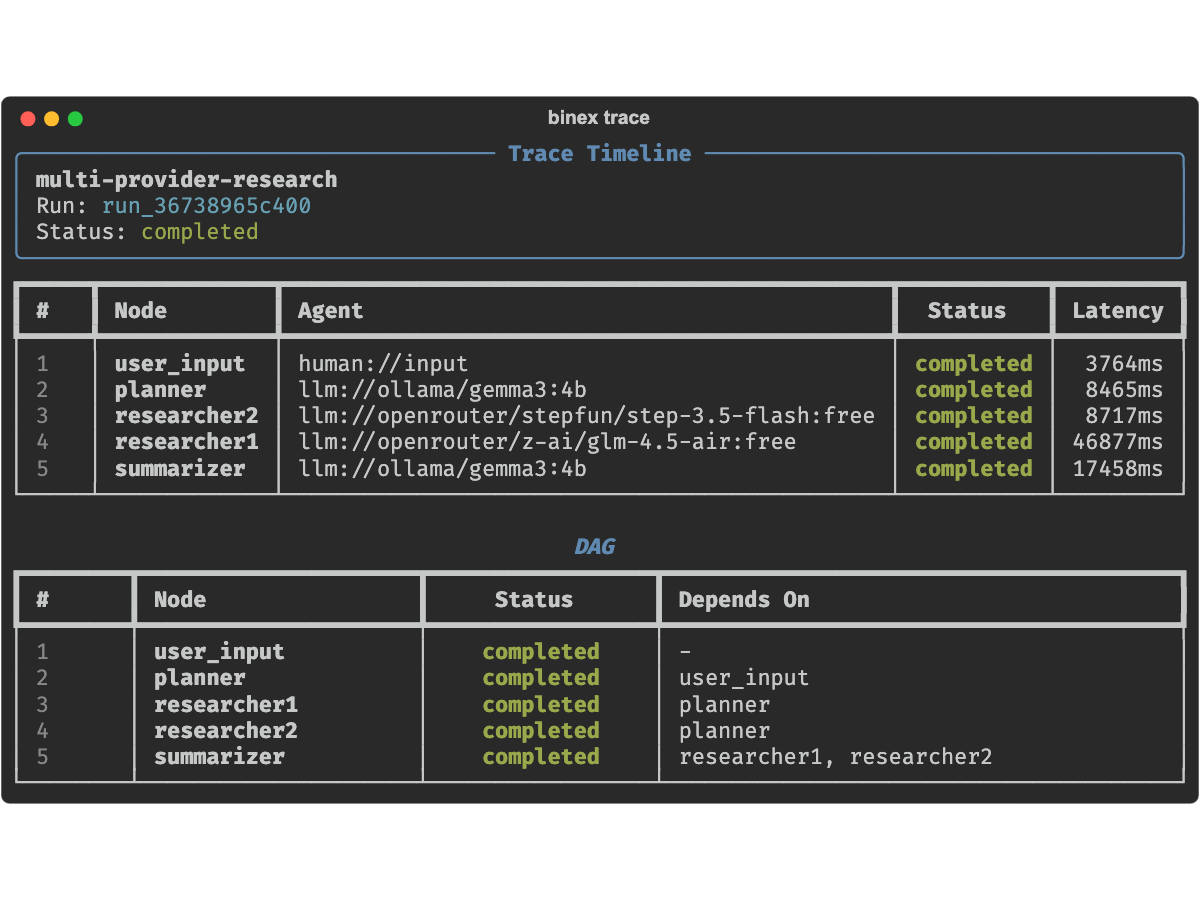

Every run is fully recorded. Inspect the execution timeline and DAG:

binex trace <run-id>

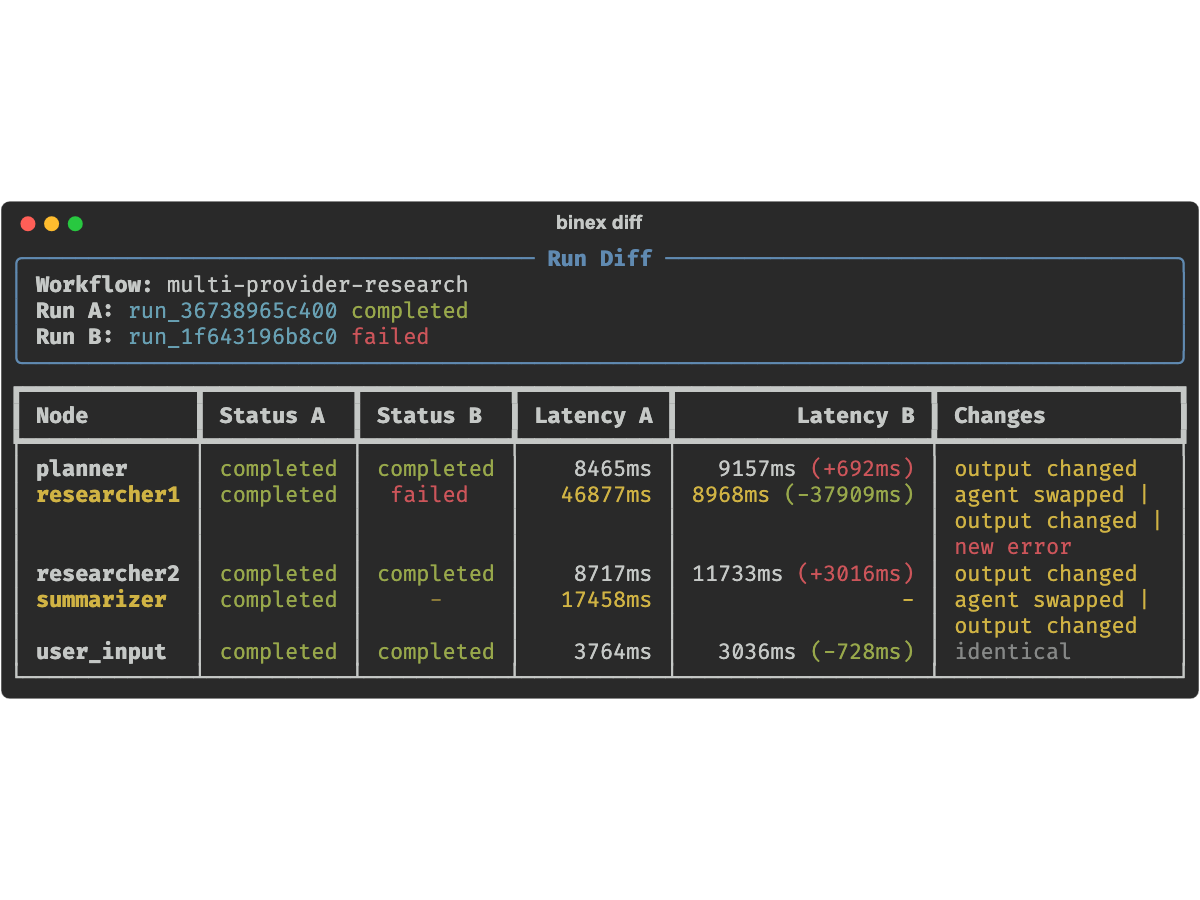

Compare two runs side-by-side — spot status changes, latency deltas, and output differences:

binex diff <run-a> <run-b>

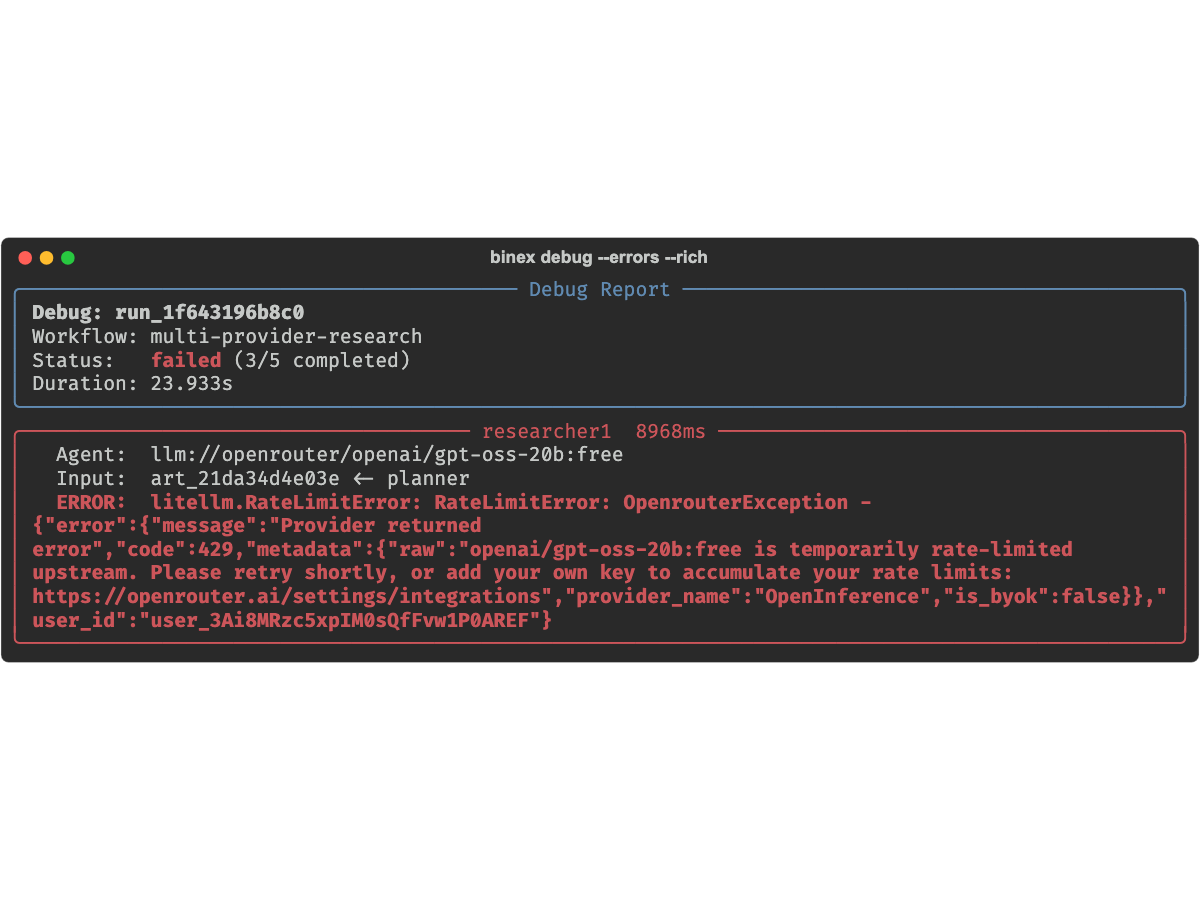

Post-mortem debug of a failed run — see errors, prompts, and artifacts per node:

binex debug <run-id> --errors --rich

(back to top)

---

How It Works

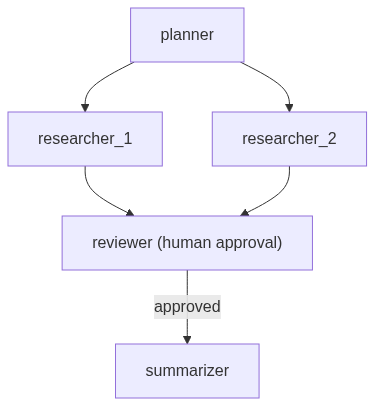

Define a workflow in YAML. Binex builds a DAG, schedules nodes respecting dependencies, dispatches each to the right agent adapter, and records everything.

name: research-pipeline
description: "Fan-out research with human approval"

nodes:
  planner:
    agent: "llm://openai/gpt-4"
    system_prompt: "Break this topic into 3 research questions"
    inputs:
      topic: "${user.topic}"
    outputs: [questions]

  researcher_1:
    agent: "llm://anthropic/claude-sonnet-4-20250514"
    inputs: { question: "${planner.questions}" }
    outputs: [findings]
    depends_on: [planner]

  researcher_2:
    agent: "a2a://localhost:8001"
    inputs: { question: "${planner.questions}" }
    outputs: [findings]
    depends_on: [planner]

  reviewer:
    agent: "human://approve"
    inputs:
      draft: "${researcher_1.findings}"
    outputs: [decision]
    depends_on: [researcher_1, researcher_2]

  summarizer:
    agent: "llm://openai/gpt-4"
    inputs:
      research: "${researcher_1.findings}"
    outputs: [summary]
    depends_on: [reviewer]
    when: "${reviewer.decision} == approved"

(back to top)

---

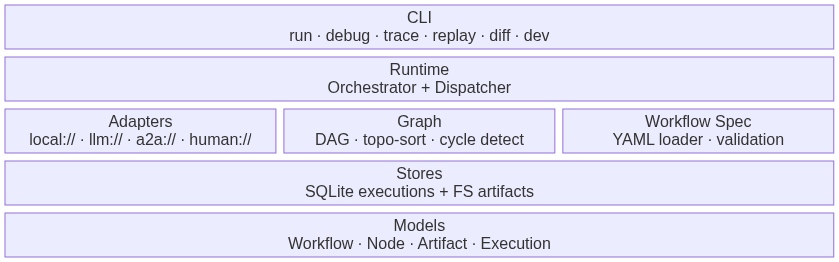

Architecture

(back to top)

---

Features

Agent Adapters

Prefix	Adapter	Description
local://	LocalPythonAdapter	In-process Python callable
llm://	LLMAdapter	LLM completion via LiteLLM (40+ providers)
a2a://	A2AAgentAdapter	Remote agent via A2A protocol
human://input	HumanInputAdapter	Terminal prompt for free-text input
human://approve	HumanApprovalAdapter	Approval gate with conditional branching

CLI Commands

Command	Description
binex run <workflow.yaml>	Execute a workflow
binex debug <run-id|latest>	Post-mortem inspection (--json, --errors, --node, --rich)
binex trace <run-id>	Execution timeline, node details, or DAG graph
binex replay <run-id>	Re-run with optional agent swaps
binex diff <run1> <run2>	Compare two runs side-by-side
binex artifacts list <run-id>	List artifacts with lineage tracking
binex validate <workflow.yaml>	Validate YAML before execution
binex scaffold workflow "A -> B"	Generate workflow from DSL shorthand
binex start	Interactive wizard to create a workflow step-by-step
binex init	Interactive project setup (workflow / agent / full)
binex dev up	Start Docker dev stack (Ollama + LiteLLM + Registry)
binex doctor	Check system health
binex explore	Interactive browser for runs and artifacts
binex hello	Zero-config demo

DSL Shorthand

Generate workflows from simple expressions:

binex scaffold workflow "planner -> researcher, analyst -> summarizer"

Nine built-in patterns available: simple, diamond, fan-out, fan-in, map-reduce, and more.

LLM Providers

Out-of-the-box support for 9 providers via LiteLLM:

OpenAI · Anthropic · Google Gemini · Ollama · OpenRouter · Groq · Mistral · DeepSeek · Together AI

(back to top)

---

Project Structure

src/binex/
├── adapters/        # Agent execution backends (local, LLM, A2A, human)
├── agents/          # Built-in agent implementations
├── cli/             # Click CLI commands
├── graph/           # DAG construction + topological scheduling
├── models/          # Pydantic v2 domain models
├── registry/        # FastAPI agent registry service
├── runtime/         # Orchestrator, dispatcher, lifecycle
├── stores/          # SQLite execution + filesystem artifact persistence
├── trace/           # Debug reports, lineage, timeline, diffing
├── workflow_spec/   # YAML loader + validator + variable resolution
└── tools.py         # Tool calling support (@tool decorator)

(back to top)

---

Built With

(back to top)

---

Examples

The examples/ directory contains 22 ready-to-run workflows:

Example	What it demonstrates
hello-world.yaml	Minimal two-node pipeline
diamond.yaml	Diamond dependency pattern
fan-out-fan-in.yaml	Parallel research with aggregation
human-in-the-loop.yaml	Approval gates and conditional branching
multi-provider-research.yaml	Multiple LLM providers in one workflow
a2a-multi-agent.yaml	Remote agents via A2A protocol
conditional-routing.yaml	Branch based on node output
map-reduce.yaml	MapReduce-style aggregation

(back to top)

---

Documentation

Full docs available at alexli18.github.io/binex:

• Quickstart — install and run your first workflow
• Concepts — agents, workflows, artifacts, execution model
• CLI Reference — every command with options and examples
• Architecture — runtime internals and design decisions
• Workflow Format — complete YAML schema reference

(back to top)

---

Development

# Clone
git clone https://github.com/Alexli18/binex.git
cd binex

# Create virtual environment
python -m venv .venv
source .venv/bin/activate

# Install with dev dependencies
pip install -e ".[dev]"

# Run tests (870 tests, 96% coverage)
python -m pytest tests/

# Lint
ruff check src/

# Start dev environment (Ollama + LiteLLM + Registry)
binex dev up

(back to top)

---

Roadmap

See ROADMAP.md for the full roadmap, or a summary below:

• Web UI for execution visualization
• Plugin system for custom adapters
• Framework adapters (LangChain, CrewAI, AutoGen)
• Workflow versioning and migration
• Distributed execution across multiple runtimes
• OpenTelemetry integration for observability

See the open issues for a full list of proposed features and known issues.

(back to top)

---

Contributing

Contributions are welcome! Here's how:

1. Fork the Project
2. Create your Feature Branch (git checkout -b feature/amazing-feature)
3. Commit your Changes (git commit -m 'Add amazing feature')
4. Push to the Branch (git push origin feature/amazing-feature)
5. Open a Pull Request

(back to top)

---

License

Distributed under the MIT License. See LICENSE for more information.

(back to top)

---

_{Built with focus on debuggability, because AI agents shouldn't be black boxes.}
