CHILmesh

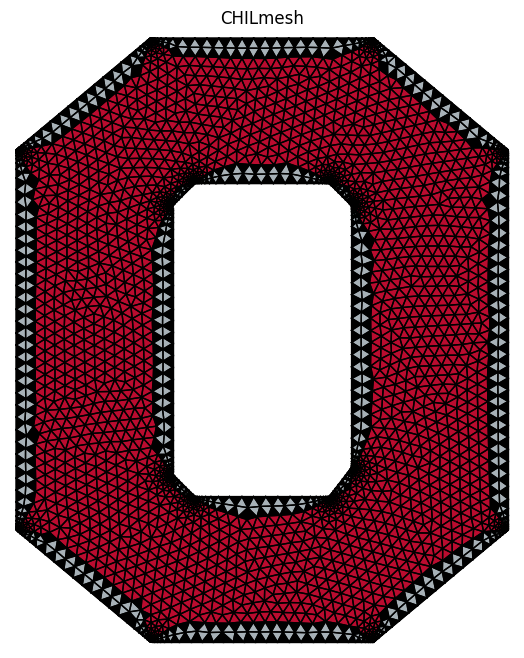

Fast 2D mesh processing, smoothing, and analysis for triangular, quadrilateral, and mixed-element meshes. Intended for hydrodynamic domains.

Dominik Mattioli^1†, Ethan Kubatko^2
†Corresponding author | ¹Unaffiliated | ²Ohio State University (CHIL)

MATLAB users: This Python library is the actively-developed successor to the original MATLAB codebase. The original (no longer maintained) is at src/@CHILmesh/CHILmesh.m and on MathWorks.

---

Table of Contents

• Quick Start
• Gallery
• Features
• Installation
• Performance
• Validation
• Implementations
• API Overview
• Mesh Smoothing
• Examples
• CLI
• Sibling Projects
• Contributing
• Citation

---

Why CHILmesh

The stable backbone for hydrodynamic mesh tooling. Sibling projects ADMESH, ADMESH-Domains, and QuADMesh build on top of it.

• Pythonic API — from chilmesh import Mesh; backwards-compatible CHILmesh alias preserved.
• C++ acceleration, bit-identical output — half-edge extension is ~24× faster than pure Python on full init, verified bit-for-bit by 36 cross-backend equivalence tests.
• One interface for all topologies — triangles, quadrilaterals, and mixed meshes share the same call surface.
• Stable v1.x API — sibling projects can pin chilmesh>=1.0,<2.

---

Quick Start

pip install chilmesh

from chilmesh import Mesh

mesh = Mesh.read_from_fort14("ocean.14")
mesh.smooth_mesh(method="fem", acknowledge_change=True)
quality, angles, stats = mesh.elem_quality()
mesh.plot_quality()

The legacy chilmesh.CHILmesh import is preserved for backward compatibility. Built-in fixtures live at chilmesh.examples.{annulus, donut, block_o, structured}(). See examples/ for runnable scripts.

---

Gallery

_{Figure 1. Scale demo on WNAT_Hagen (52,774 vertices · 98,365 elements). plot_quality() renders per-element skew quality; plot_quality_histogram() emits the matched-colormap distribution beneath. Reproduce: python scripts/generate_wnat_showcase.py.}

_{Figure 2. Mixed-element pipeline — wireframe, skeletonization, and per-element quality on one tri+quad mesh. Reproduce: python scripts/generate_mixed_truss_demo.py.}

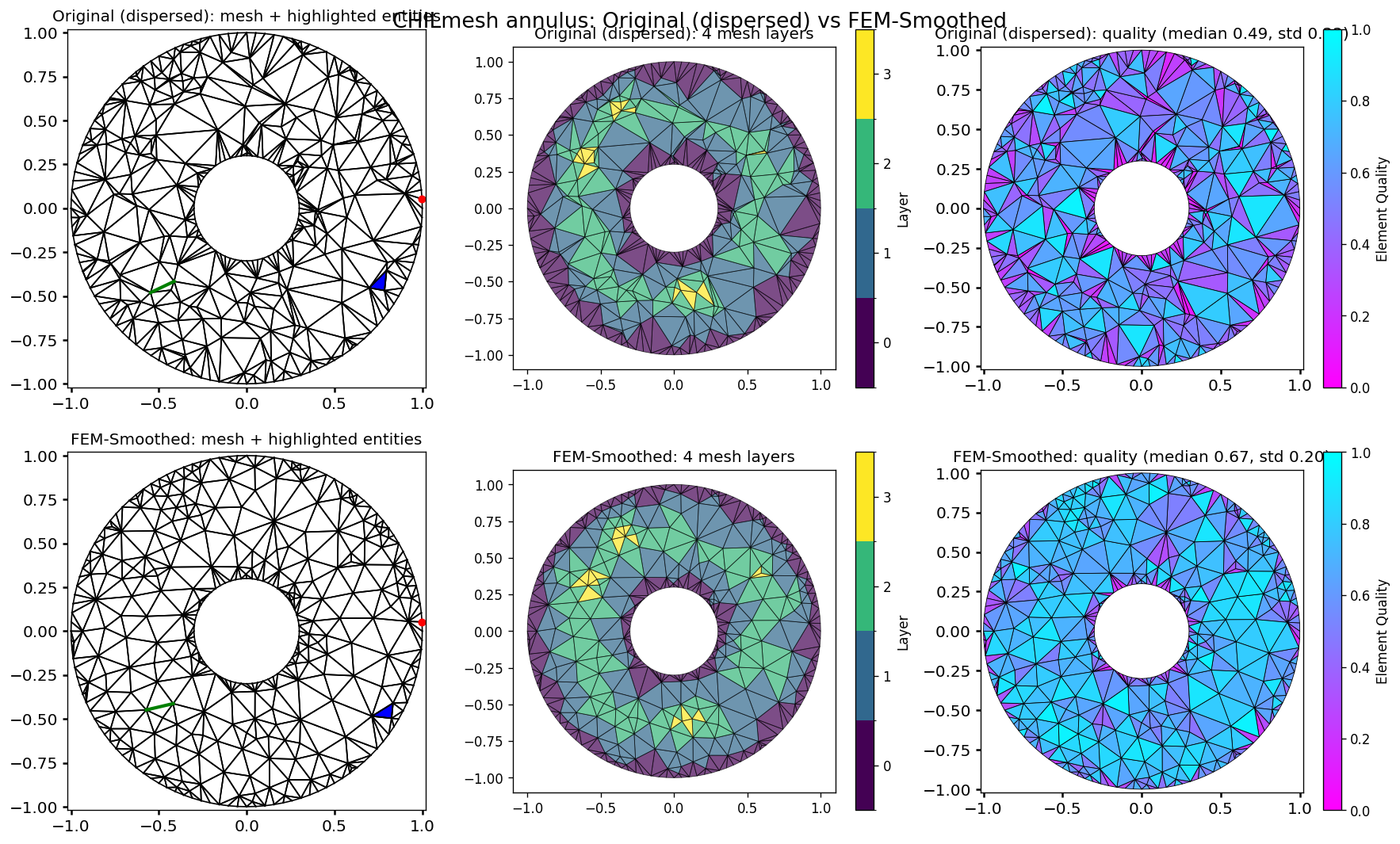

_{Figure 3. plot_layer() and plot_quality() tracking skeletonization and quality across raw → truss → FEM smoothing. Reproduce: python scripts/generate_3row_admesh.py.}

_{Figure 4. Figure 3 as a Manim animation. Higher-fidelity 1080p at output/readme_pipeline_annulus.mp4.}

---

Features

• Fast — full init + quality analysis on a 98,365-element mesh in ~1.7 s (4.6× faster than v0.2.0)
• Mixed-element — triangles, quads, and mixed meshes share one API
• Smoothing — Balendran direct FEM, Zhou-Shimada angle-based, and ADMESH Spring-Based Truss
• Analysis — element quality, interior angles, layer-based skeletonization (medial axis)
• I/O — ADCIRC .fort.14 and SMS Aquaveo .2dm read/write
• Spatial queries — point-in-element, k-nearest vertices, radius search at O(log n)
• Mesh alterations — insert_vertex, coord moves, advancing-front element addition; full mutation suite tracked in #94
• ADMESH-Domains integration — from_admesh_domain() adapter

---

Installation

pip install chilmesh                        # PyPI
uv pip install chilmesh                     # uv
conda install -c conda-forge chilmesh       # conda-forge (pending)
pip install -e .                            # from source

---

Performance

Reference workload: WNAT_Hagen (52,774 vertices · 98,365 elements). Median of 3 trials. v1.0.0 backends are output-equivalent — the C++ extension produces bit-identical skeletonization layers to Python, verified by tests/test_backend_equivalence.py.

Metric	v0.1.0 MATLAB ‡	v0.2.0 Python Port	v0.3.0 Python Optimized	v0.4.0 Rust †	v1.0.0 C++
Fast init (adj, no skeletonization)	0.27 s	~3.9 s	1.31 s	0.029 s	0.036 s
Skeletonization only	0.67 s	~3.8 s	0.32 s	0.20 s	0.033 s
Full init (adj + skeletonization)	1.04 s	7.7 s	1.65 s	0.23 s	0.069 s
Quality analysis	12 ms	6.6 s	6.4 ms	<1 ms	<1 ms
Vertex-edge lookup (per call)	~2200 μs	~700 μs	0.34 μs	0.02 μs	0.04 μs

C++ is ~24× faster than Python on full init. Python's skeletonization is now within ~10× of C++ (and faster than the original MATLAB/Octave); the remaining Python gap is the pure-Python adjacency build (~4× slower than vectorized MATLAB, the largest single cost). The Python implementation remains the canonical reference; C++ is opt-in via direct chilmesh_cpp import, Rust via chilmesh_core.

‡ MATLAB v0.1.0 = the original QuADMesh+ @CHILmesh class (Mattioli, OSU MSc thesis, 2017) measured under GNU Octave 8.4 (no MathWorks MATLAB license in CI) on WNAT_Hagen, connectivity + points fed to the 2-arg constructor; medians of 3. Absolute times are Octave's interpreter, not MATLAB JIT — treat as the original-algorithm baseline, not a MATLAB-vs-Octave claim.
† Rust (v0.4.0) is experimental: its skeletonization is incomplete (#163), so the skeletonization/full-init figures reflect a partial peel, not a verified result. Fast init includes fort.14 file I/O; Python and C++ receive raw arrays.

Full methodology and raw data: docs/BENCHMARK.md.

---

Validation

Cross-language skeletonization parity. The Python port's n_layers (medial-axis skeletonization) is validated against the original QuADMesh+ MATLAB @CHILmesh algorithm — run under GNU Octave 8.4 — across the ADMESH-Domains catalog, from 557 to 132k vertices. Identical connectivity + points are fed to both implementations; the MATLAB reader is bypassed so only the layering algorithm is compared.

Mesh	Vertices	Elements	MATLAB	Python	C++	Match
Baranja Hill (ADMESH v2)	557	1,011	10	10	10	✅
Baranja Hill	645	1,193	12	12	12	✅
Wetting/Drying test	2,716	4,978	15	15	15	✅
Lake Erie (refined)	5,095	9,688	20	20	20	✅
Lake Erie (5k)	13,266	24,910	17	17	17	✅
Delaware Bay	14,449	26,698	17	17	17	✅
Delaware Bay (h 100–20000)	14,449	26,697	17	17	17	✅
Lake Michigan	21,981	41,887	25	25	25	✅
WNAT (Hagen)	52,774	98,365	30	30	30	✅
Chesapeake Bay	83,388	160,734	55	55	55	✅
Great Lakes	132,162	250,905	46	46	46	✅

n_layers agrees across MATLAB (original), Python (reference), and C++ on all 11 meshes (557 → 132k vertices). The seven previously-uncaptured reference counts (Lake Erie refined, Delaware Bay refined, Chesapeake Bay, Great Lakes, Lake Michigan, both Baranja Hill variants) were captured here and pinned in tests/test_skeletonization_matlab_parity_external.py (#128). C++↔Python equivalence is also unit-tested by tests/test_backend_equivalence.py. Reproduce any of this with python scripts/benchmark.py --matlab. (Rust is omitted — its skeletonization is incomplete, #163.)

---

Implementations

CHILmesh exists in four languages, but you only need to think about two. pip install chilmesh gives you the pure-Python implementation — zero compiled dependencies, runs everywhere, and is the canonical reference every other backend is validated against. The C++ extension is the high-performance implementation: same algorithms, bit-identical output, ~24× faster on full init — opt-in when you need the speed.

Language	Role	How to get it
Python	Reference implementation — the default	pip install chilmesh
C++	High-performance backend (half-edge) — bit-identical output	pip install ./src/chilmesh_cpp (build from source)
Rust	Experimental (quad-edge); skeletonization is incomplete — see #163	source build, not recommended yet
MATLAB	Original 2017 implementation, archived & unmaintained	src/@CHILmesh/CHILmesh.m

You write the same Python API regardless; the C++ core is transparently used when present.

import chilmesh

chilmesh.backend_info()
# {'available': ['cpp', 'python'],
#  'selected': 'cpp',
#  'versions': {'cpp': '0.6.0.dev0', 'python': '1.1.0'}}

Force a specific backend with CHILMESH_BACKEND (python or cpp). When unset, the fastest available is picked.

Building the C++ extension (from source — scikit-build-core + pybind11, fetched automatically):

pip install ./src/chilmesh_cpp

Pre-built binary wheels (manylinux / macOS / Windows) via cibuildwheel are planned.

---

API Overview

from chilmesh import Mesh, examples

# Load
mesh = examples.annulus()
mesh = Mesh.read_from_fort14('mesh.14')
mesh = Mesh.read_from_2dm('mesh.2dm')

# Smooth, analyse, visualise
mesh.smooth_mesh(method='fem', acknowledge_change=True)
quality, angles, stats = mesh.elem_quality()
mesh.plot()             # wireframe
mesh.plot_quality()     # per-element quality
mesh.plot_layer()       # skeletonization layers

# Skeletonization output
layers = mesh.Layers    # {'OE', 'IE', 'OV', 'IV', 'bEdgeIDs'} per layer

# Spatial queries
elem_id = mesh.find_element([0.5, 0.0])
neighbors = mesh.nearest_vertices([0.5, 0.0], k=5)
in_radius = mesh.find_elements_in_radius([0.5, 0.0], radius=0.2)

Full reference: docs/API.md.

---

Mesh Smoothing

Three algorithms — each preserves boundary nodes, leaves topology unchanged, and accepts mixed-element meshes.

Algorithm	API call	Style	Best for
Balendran direct FEM	smooth_mesh(method='fem')	One-shot sparse solve	General-purpose default; stable on tri/quad/mixed
Zhou-Shimada angle-based	smooth_mesh(method='angle-based')	Iterative, angle-maximising	Difficult mixed meshes where FEM stalls
ADMESH Spring-Based Truss	chilmesh.optimize_with_admesh_truss(mesh, sdf, ...)	Spring/force relaxation against SDF	Quality gains with SDF-respecting boundary nodes

References.

• Balendran (1999). A direct smoothing method for surface meshes. Proc. 8th IMR, pp. 189–193.
• Zhou & Shimada (2000). An angle-based approach to two-dimensional mesh smoothing. Proc. 9th IMR, pp. 373–384.
• Conroy et al. (2012). ADMESH: An advanced, automatic unstructured mesh generator for shallow water models. doi:10.1007/s10236-012-0574-0.

---

Examples

python examples/01_quickstart.py        # load, stats, plot
python examples/02_fort14_roundtrip.py  # fort.14 read/write
python examples/03_smoothing.py         # angle-based smoother
python examples/04_spatial_queries.py   # find_element, radius search, k-nearest

---

CLI

chilmesh info mesh.fort.14                                      # stats
chilmesh convert mesh.2dm mesh.fort.14                         # format conversion
chilmesh smooth mesh.fort.14 -o out.fort.14 --method fem       # smooth in-place
chilmesh plot mesh.fort.14 -o mesh.png --quality               # render

Also available as python -m chilmesh. Each subcommand has --help.

---

Sibling Projects

CHILmesh is the shared mesh-data substrate for a small ecosystem of hydrodynamic mesh tooling. Each sibling depends on CHILmesh; CHILmesh depends on none of them.

Repo	Language	Description
ADMESH	Python	Advanced, automatic unstructured mesh generator for shallow water models (Conroy et al., 2012). Consumes CHILmesh for adjacency, smoothing, and quality analysis.
ADMESH-Domains	Python	Registry of ADMESH / ADCIRC-compatible hydrodynamic domains. Pairs with chilmesh.Mesh.from_admesh_domain() for one-call mesh loading.
QuADMesh	MATLAB	Original research project (OSU MSc thesis, 2017) on skeletonization-driven indirect tri-to-quad conversion. Pre-dates this Python ecosystem; CHILmesh's data structure descends from it.

---

Contributing

Issues and PRs welcome at github.com/domattioli/CHILmesh. Run pytest -v before opening a PR — see TESTING.md.

---

Citation

CHILmesh originated in MATLAB as the data structure backing a skeletonization-driven indirect tri-to-quad conversion heuristic (Mattioli, OSU MSc thesis, 2017). This Python library is the actively-developed successor.
