Plot complex-valued functions
Project description
Plot complex-valued functions with style.
cplot helps plotting complex-valued functions in a visually appealing manner.
Install with
pip install cplot
and use as
import numpy as np
import cplot

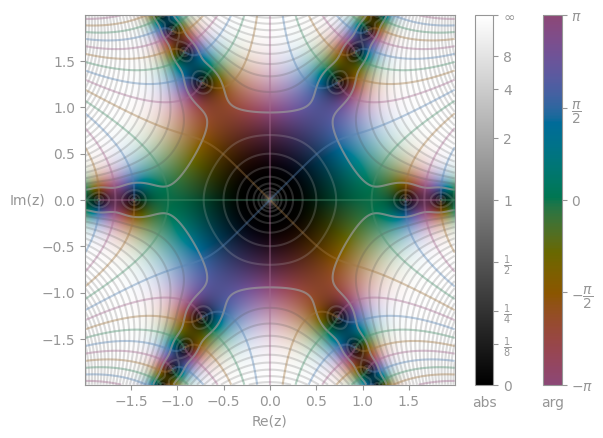

def f(z):
return np.sin(z ** 3) / z
plt = cplot.plot(
f,
(-2.0, +2.0),
(-2.0, +2.0),
400,
# colorbars: bool = True,
# abs_scaling="h-1.0", # how to scale the lightness in domain coloring
# colorspace: str = "cam16", # ditto
# abs/args contour lines:
# contours=("auto", (-np.pi / 2, 0, np.pi / 2, np.pi)),
# linecolors = "#a0a0a050",
# linestyles = "solid",
# linestyle_abs1 = "solid"
)
plt.show()
The plot consists of three building blocks:
- domain coloring, i.e., mapping the absolute value to lightness and the complex argument to the chroma of the representing color
- Contours of constant absolute value (the contour
abs(z) == 1
is dashed, the other contours are at (2, 4, 8, etc. and 1/2, 1/4, 1/8, etc., respectively) - Contours along constant argument (angle). For
arg(z) == 0
, the color is green, forarg(z) == pi/2
it's orange, forarg(z) = -pi / 2
it's blue, and forarg(z) = pi
it's pink
Other useful functions:
# There is a tripcolor function as well for triangulated 2D domains
cplot.tripcolor(triang, z)
# The function get_srgb1 returns the SRGB1 triple for every complex input value.
# (Accepts arrays, too.)
z = 2 + 5j
val = cplot.get_srgb1(z)
Gallery
All plots are created with default settings.

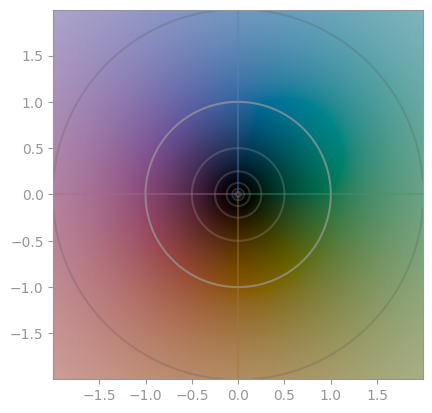

z**1 |

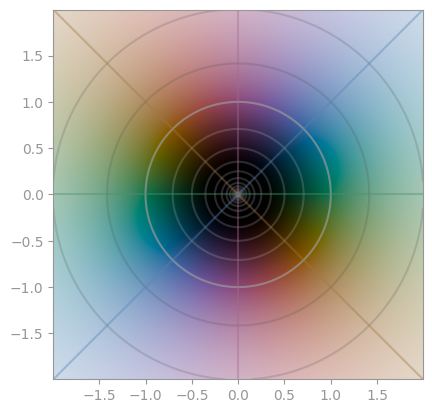

z**2 |

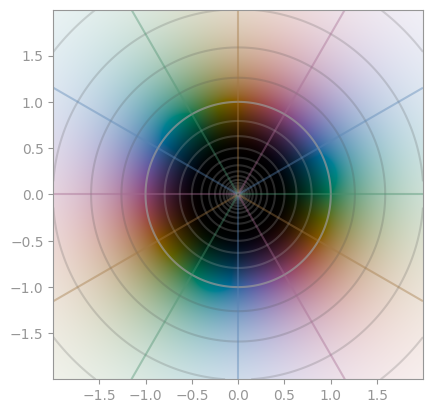

z**3 |
1/z |

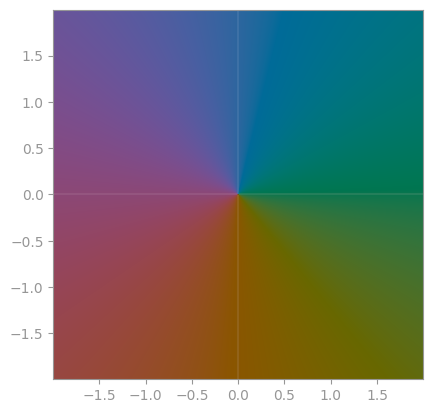

z / abs(z) |

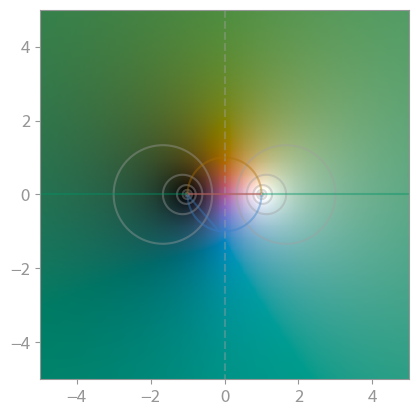

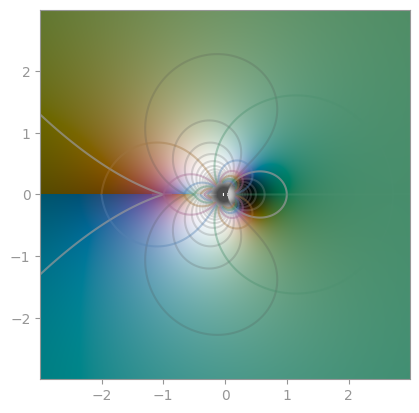

(z+1) / (z-1) |
z ** z |

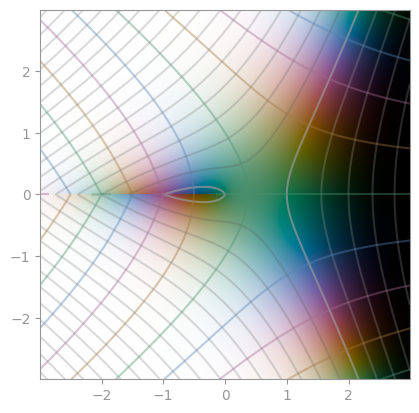

(1/z) ** z |
z ** (1/z) |
np.sqrt |

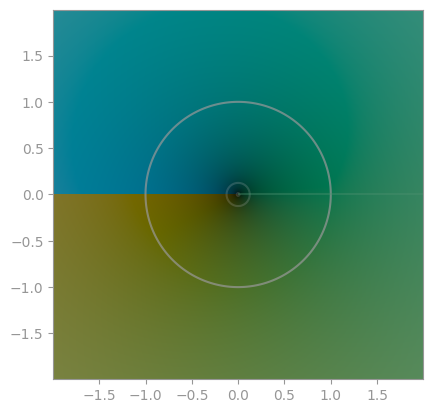

z**(1/3) |

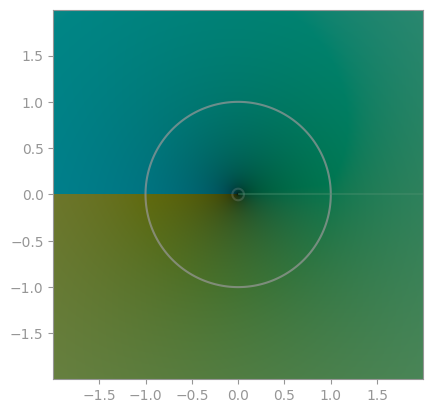

z**(1/4) |

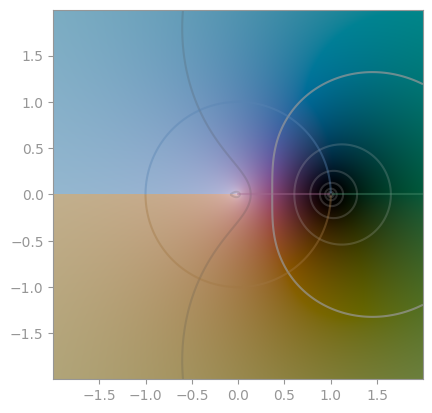

np.log |

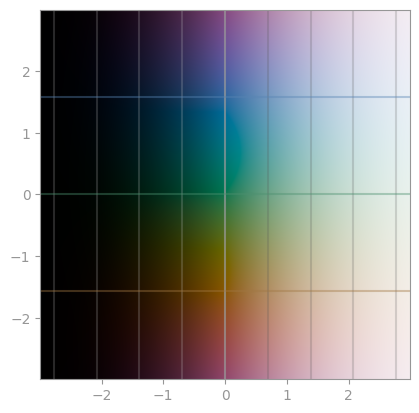

np.exp |

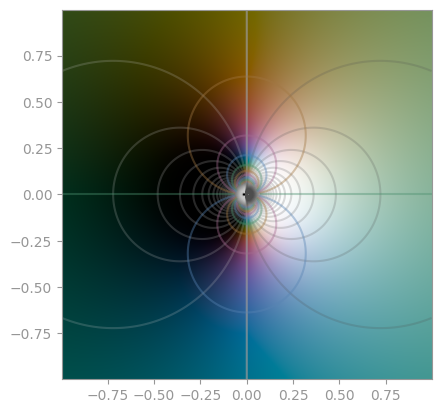

exp(1/z) |

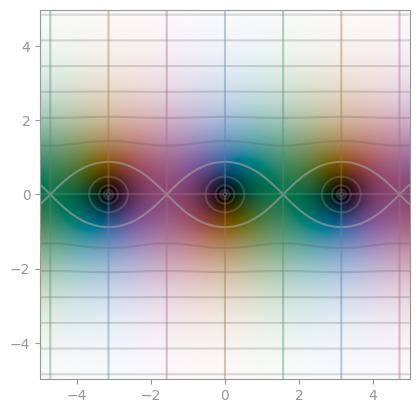

np.sin |

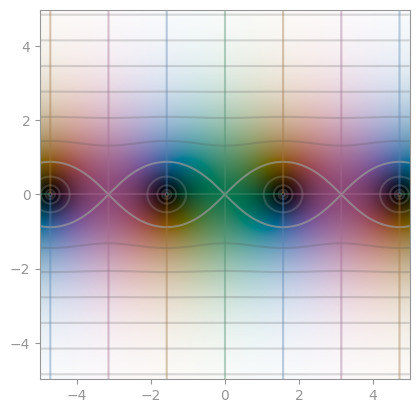

np.cos |

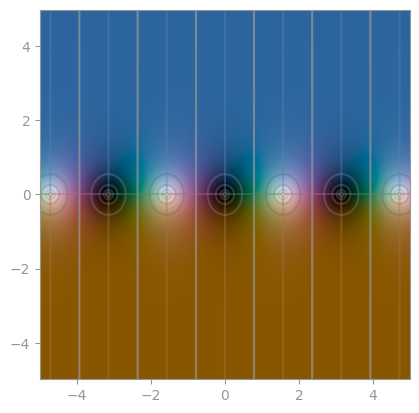

np.tan |

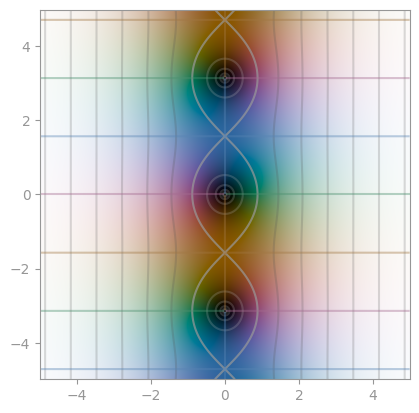

np.sinh |

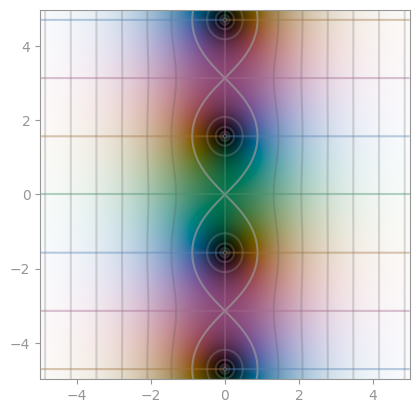

np.cosh |

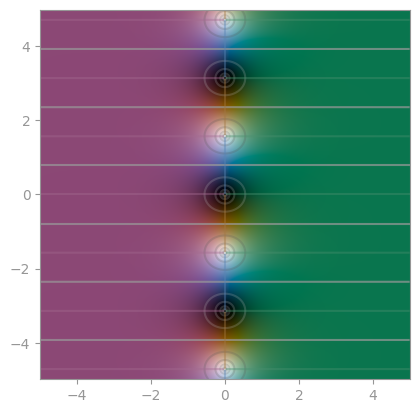

np.tanh |

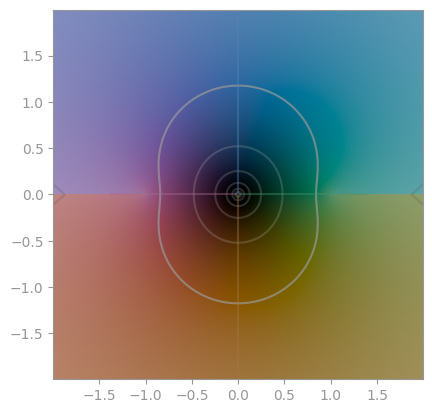

np.arcsin |

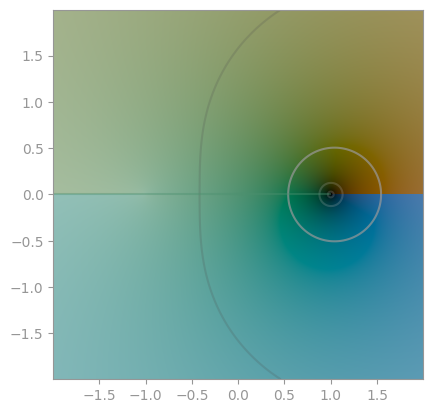

np.arccos |
np.arctan |

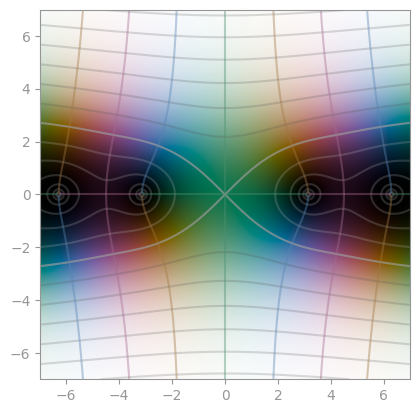

sin(z) / z |

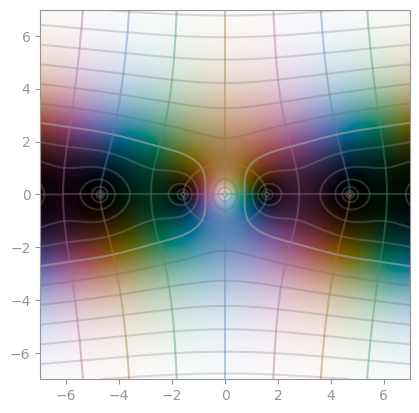

cos(z) / z |

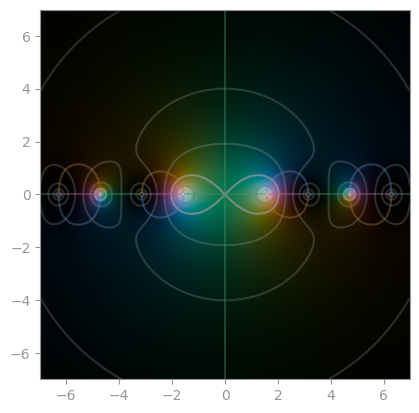

tan(z) / z |
scipy.special.gamma |

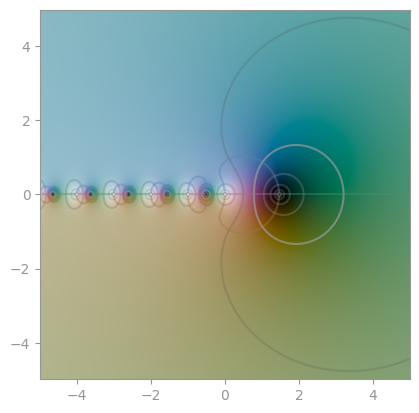

scipy.special.digamma |

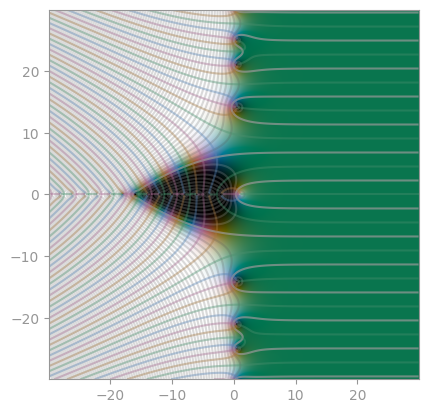

mpmath.zeta |

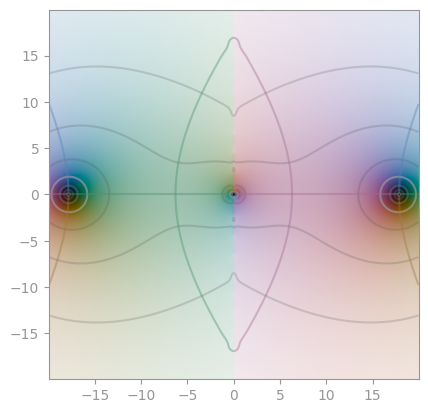

mpmath.siegeltheta |

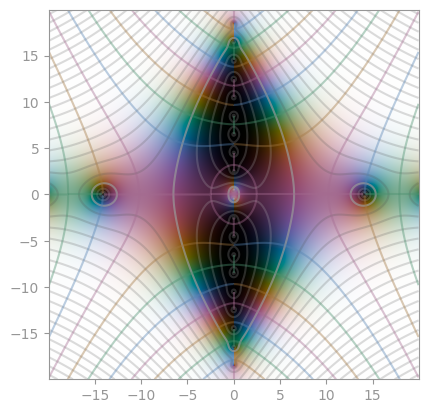

mpmath.siegelz |

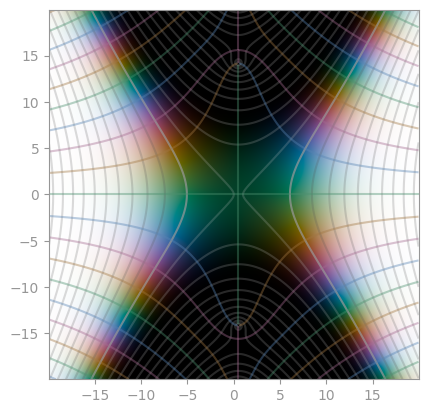

Riemann-Xi |
Testing
To run the cplot unit tests, check out this repository and run
tox
Similar projects and further reading
