CStreet is a python script (python 3.6 or higher) for cell states trajectory construction by using k-nearest neighbors graph algorithm for time-series single-cell RNA-seq data.
Project description
CStreet: a computed Cell States trajectory inference method for time-series single-cell RNA-seq data
| Overview | Installation | Quick Start | Parameter Details | Run CStreet in python interface | Citation |
Overview
CStreet is a cell states trajectory inference method for time-series single-cell RNA-seq data. It is written in python (python 3.6 or higher) and is available as a commend line tool and a python library to meet the needs of different users.

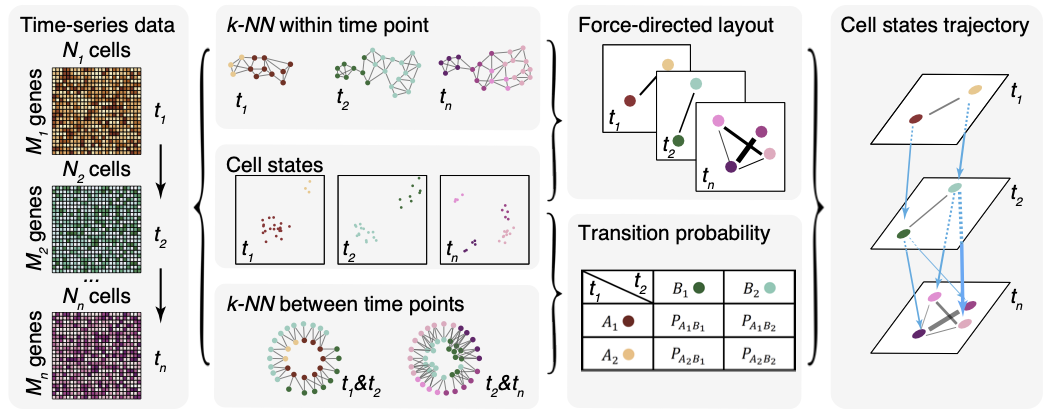

CStreet takes advantage of time-series information to construct the k-nearest neighbors connections within and between time points. Then CStreet calculated the connection probabilities of cell states and visualized the trajectory which may include multiple starting points and paths using a force-directed layout method.
Installation
CStreet has been packaged and uploaded to PyPI. Before your installation, you'll make sure you have pip available. The pip3 is the package installer for Python. If you don't have pip3 on your machine, try click here to install it. Then CStreet and its relevant packages can be installed using one single commands as follows.
$ pip3 install cstreet
Type the following command to check whether CStreet has been installed successfully.
$ CStreet -h
Quick Start
Input:
- Expression data: Expression matrix containing the time-series expression level as reads counts or normalized values in tab delimited format, and anndata format are accepted as the input of CStreet. (For example: ExpressionMatrix_t1.txt ExpressionMatrix_t2.txt ExpressionMatrix_t3.txt)
- Cell states info: The cell states information can be inputted by the user or generated using the internal clustering function of CStreet. (For example: CellStates_t1.txt CellStates_t2.txt CellStates_t3.txt)
Commandline:
$ CStreet -i ExpressionMatrix_t1.txt ExpressionMatrix_t1.txt ExpressionMatrix_t1.txt -s CellStates_t1.txt CellStates_t2.txt CellStates_t3.txt -n ProjectName
Output:
The contents of the output directory in tree format will be displayed as follows:
PATH/ProjectName
├── cstreet_result.pdf
├── figures
│ ├── timepoint1_fa.pdf
│ ├── timepoint1_louvain_umap_cord.txt
│ ├── timepoint1_louvain_umap.pdf
│ ├── timepoint2_fa.pdf
│ ├── timepoint2_louvain_umap_cord.txt
│ ├── timepoint2_louvain_umap.pdf
│ ├── timepoint3_fa.pdf
│ ├── timepoint3_louvain_umap_cord.txt
│ └── timepoint3_louvain_umap.pdf
└── results
├── alltimepoint_link_cluster_graph.txt
├── timepoint1_cell_info.txt
├── timepoint1_gene_info.txt
├── timepoint1_inner_cluster_graph.txt
├── timepoint2_cell_info.txt
├── timepoint2_gene_info.txt
├── timepoint2_inner_cluster_graph.txt
├── timepoint3_cell_info.txt
├── timepoint3_gene_info.txt
└── timepoint3_inner_cluster_graph.txt
- The clustered cell states information if not provided by users. (timepoint*_cell_info.txt)
- The connection probabilities of cell states. (alltimepoint_link_cluster_graph.txt, timepoint*_inner_cluster_graph.txt)

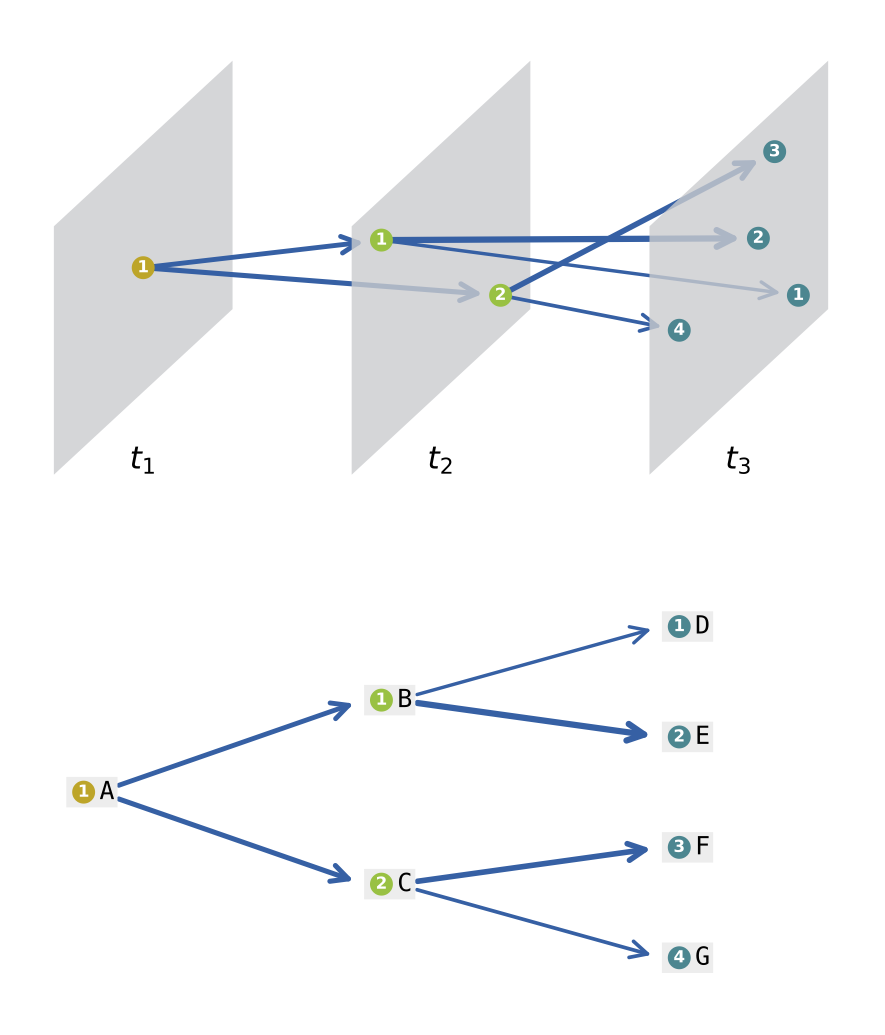

- An visulization of inferred cell states trajectory. (cstreet_result.pdf)
Parameter Details
usage: CStreet [-h] <-i ExpMatrix1 ExpMatrix2 ExpMatrix3 ...> [-s CellStates1 CellStates2 CellStates3 ...] [-n ProjectName] [-o OutputDir] [options]
CStreet is a cell states trajectory inference method for time-series single-cell RNA-seq data.
optional arguments:
-h, --help show this help message and exit
-i INPUT_EXPMATRIX [INPUT_EXPMATRIX ...], --Input_ExpMatrix INPUT_EXPMATRIX [INPUT_EXPMATRIX ...]
Expression matrixes, which will contain the time-
series expression level as reads counts or normalized
values in tab delimited format. For example: '-i
ExpressionMatrix_t1.txt ExpressionMatrix_t2.txt
ExpressionMatrix_t3.txt' means the input of 3
timepoints expression matrixes.
--Input_CellonCol {True,False}, -T {True,False}
Whether the cells are arranged on rows or columns in
the expression matrixes. For example: '-T True' means
cells on columns and genes on rows. DEFAULT: False.
--Output_Dir OUTPUT_DIR, -o OUTPUT_DIR
Project directory, which will be used to save all
output files. DEFAULT: "./"
--Output_Name OUTPUT_NAME, -n OUTPUT_NAME
Project name, which will be used to generate output
file names. DEFAULT: "cstreet_project"
--Input_CellStates [INPUT_CELLSTATES [INPUT_CELLSTATES ...]], -s [INPUT_CELLSTATES [INPUT_CELLSTATES ...]]
Cell states information, which must contain a columns
named "state" and the same cell ID with expression
matrixes in tab delimited format. Cell states
information can be inputted by the user or generated
by the internal clustering function of CStreet using
the Louvain algorithm. For example: 'CellStates_t1.txt
CellStates_t2.txt CellStates_t3.txt' means the cell
states information of 3 timepoints expression
matrixes.
--CellClusterParam_PCAn CELLCLUSTERPARAM_PCAN
Number of principal components to use, which will be
enabled ONLY if cell states information is not
provided. It can be set to 1 - minimum dimension size
of expression matrixes. DEFAULT: 10
--CellClusterParam_kNNn CELLCLUSTERPARAM_KNNN
Number of nearest neighbors to be searched, which will
be enabled ONLY if cell states information is not
provided. It should be in the range 2 to 100 in
general. DEFAULT: 15
--CellClusterParam_Resolution CELLCLUSTERPARAM_RESOLUTION
Resolution of the Louvain algorithm, which will be
enabled ONLY if cell states information is not
provided. Higher resolution means finding more and
smaller clusters. DEFAULT: 1.0
--Switch_DeadCellFilter {ON,OFF}
A switch of dead cell filter, which filter cell
outliers based on counts percent of Mitochondrial
gene. DEFAULT: "ON"
--Threshold_MitoPercent THRESHOLD_MITOPERCENT
Maximum counts percent of Mitochondrial gene for a
cell to pass filtering, which will be enabled ONLY if
'--Switch_DeadCellFilter' is "ON". DEFAULT: 0.2
--Switch_LowCellNumGeneFilter {ON,OFF}
A switch of low cell number gene filter, which keep
genes that are expressed in at least a number of
cells. DEFAULT: "ON"
--Threshold_LowCellNum THRESHOLD_LOWCELLNUM
Minimum number of cells expressed required for a gene
to pass filtering, which will be enabled ONLY if '--
Switch_LowCellNumGeneFilter' is "ON". DEFAULT: 3
--Switch_LowGeneCellsFilter {ON,OFF}
A switch of low gene number cell filter, which keep
cells with at least a number of genes expressed.
DEFAULT: "ON"
--Threshold_LowGeneNum THRESHOLD_LOWGENENUM
Minimum number of genes expressed required for a cell
to pass filtering, which will be enabled ONLY if '--
Switch_LowGeneCellsFilter' is "ON". DEFAULT: 200
--Switch_Normalize {ON,OFF}
A switch of total read count normalization for per
cell. DEFAULT: "NO"
--Threshold_NormalizeBase THRESHOLD_NORMALIZEBASE
Normalize Base of normalization, which will be enabled
ONLY if '--Switch_Normalize' is "ON". If choosing
DEFAULT, it is CPM normalization. DEFAULT: 1e6
--Switch_LogTransform {ON,OFF}
A switch of logarithmizing the expression matrix.
DEFAULT: "NO"
--WithinTimePointParam_PCAn WITHINTIMEPOINTPARAM_PCAN
Number of principal components to use, which will be
used within a timepoint. It can be set to 1 - minimum
dimension size of expression matrixes. DEFAULT: 10
--WithinTimePointParam_kNNn WITHINTIMEPOINTPARAM_KNNN
Number of nearest neighbors to be searched, which will
be used within a timepoint. It should be in the range
2 to 100 in general. DEFAULT: 15
--BetweenTimePointParam_PCAn BETWEENTIMEPOINTPARAM_PCAN
Number of principal components to use, which will be
used between timepoints. It can be set to 1 - minimum
dimension size of expression matrixes. DEFAULT: 10
--BetweenTimePointParam_kNNn BETWEENTIMEPOINTPARAM_KNNN
Number of nearest neighbors to be searched, which will
be used between timepoints. It should be in the range
2 to 100 in general. DEFAULT: 15
--ProbParam_SamplingSize PROBPARAM_SAMPLINGSIZE
Number of repeated sampling trials to estimate the
connection probability. DEFAULT: 5
--ProbParam_RandomSeed PROBPARAM_RANDOMSEED
Random seed of repeated sampling, which will make the
connection probability is reproducible. DEFAULT: 0
--FigureParam_FigureSize FIGUREPARAM_FIGURESIZE
Figure size of the result figure. Format is (width,
height). DEFAULT:(6,7)
--FigureParam_LabelBoxWidth FIGUREPARAM_LABELBOXWIDTH
Width of the label box in the result figure. For
example: '--FigureParam_LabelBoxWidth 10' means 10
characters will be showed in label box of result
figure. DEFAULT: 10
--Threshold_MaxOutDegree THRESHOLD_MAXOUTDEGREE
Maximum number of outdegree for each cell state will
be displayed, which will ONLY be used for
visualization. DEFAULT: 10
--Threshold_MinCellNumofStates THRESHOLD_MINCELLNUMOFSTATES
Minimum cell number of each cell state will be
displayed, which will ONLY be used for visualization.
DEFAULT: 50
Run CStreet in python interface
CStreet can run directly or step by step in Jupyter Notebook. The tutorial is here.
Citation
