CStreet Overview

CStreet is a python script (python 3.6 or higher) for cell states trajectory construction by using k-nearest neighbors graph algorithm for time-series single-cell RNA-seq data. It is a developmental version.

Installation

  1. Install CStreet by pip3

    CStreet can be installed directly by using pip3 commands :

    $ pip3 install cstreet


Quick Start

Input file: Only expression matrix containing the time-series expression level as reads counts or normalized values for this developmental version.

Output file: An inferenced cell states trajectory.

  1. Add new time-series single cell RNA-seq data.

    from cstreet import *
    import pandas as pd
    # Read single cell data as DataFrame
    data_t1=pd.read_table('data_t1.txt',header=0, sep="\t",index_col=0)
    data_t2=pd.read_table('data_t2.txt',header=0, sep="\t",index_col=0)
    data_t3=pd.read_table('data_t3.txt',header=0, sep="\t",index_col=0)
    # Create a new CStreet object
    cdata=CStreetData()
    # add data into CStreet object
    cdata.add_new_timepoint_scdata(data_t1)
    cdata.add_new_timepoint_scdata(data_t2)
    cdata.add_new_timepoint_scdata(data_t3)

  2. Customize parameters.

    #Step0:basic parameters
    cdata.params.output_dir="./"
    cdata.params.output_name="cstreet_project"


    #Step1:cell cluster
    cdata.params.cell_cluster_pca_n=10
    cdata.params.cell_cluster_knn_n=15
    cdata.params.cell_cluster_resolution=0.1

    #Step2:gene and cell filter
    cdata.params.filter_dead_cell=True
    cdata.params.percent_mito_cutoff=0.2
    cdata.params.filter_lowcell_gene=True
    cdata.params.min_cells=3
    cdata.params.filter_lowgene_cells=True
    cdata.params.min_genes=200

    #Step3:normalize
    cdata.params.normalize=True
    cdata.params.normalize_base=10000
    cdata.params.log_transform=True

    #Step4:get HVG
    cdata.params.highly_variable_genes=False

    #Step5:get graph
    cdata.params.inner_graph_pca_n=10
    cdata.params.inner_graph_knn_n=15
    cdata.params.link_graph_pca_n=10
    cdata.params.link_graph_knn_n=15
    cdata.params.max_outgoing=10
    cdata.params.min_score=0.1
    cdata.params.min_cell_number=50

  3. Run CStreet

    cdata.run_cstreet()


Result

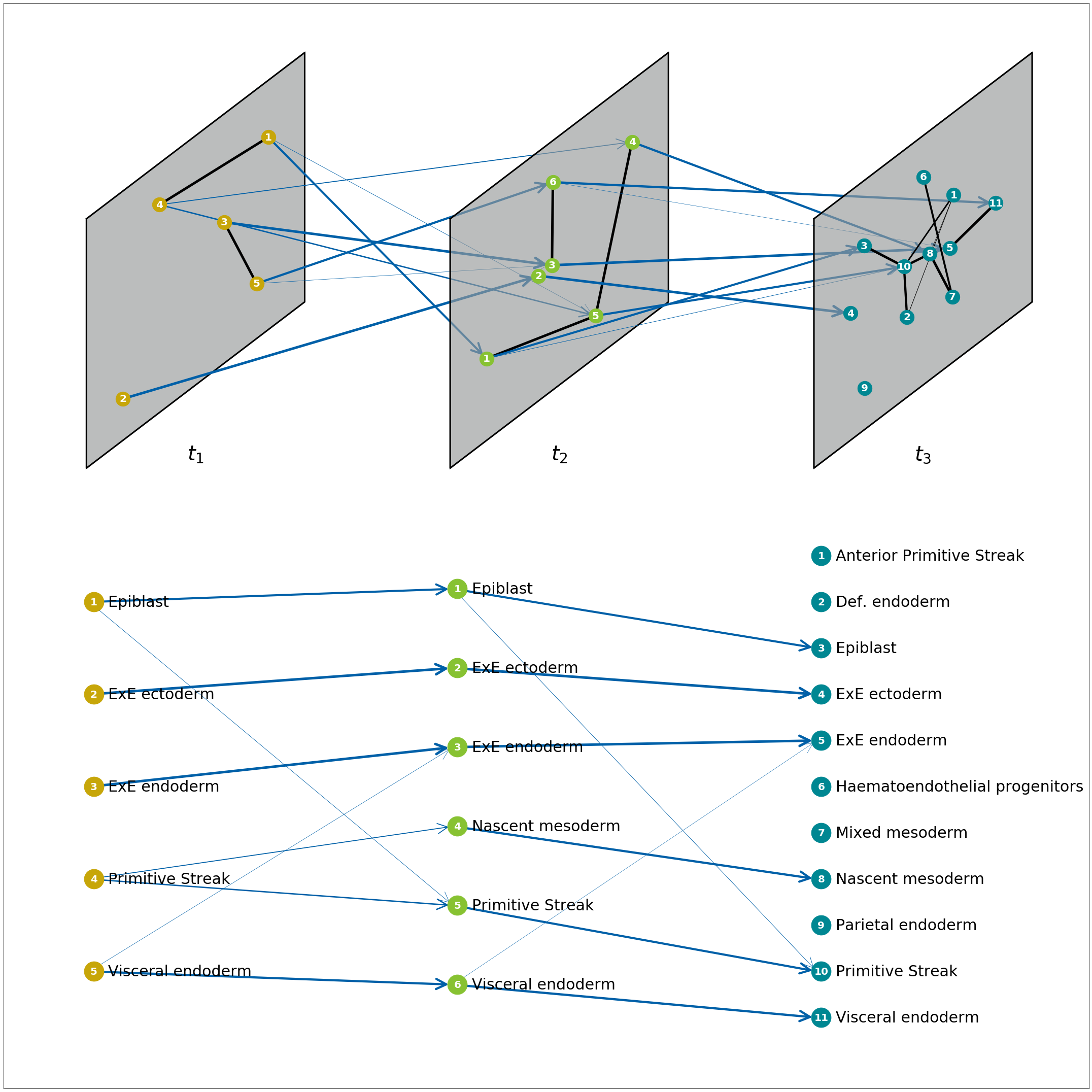

An example of inferenced cell trajectory:
