Diblob

Diblob is the package for digraphs (pseudographs) computations. Main assumption is enable easily operate on the json digraphs representations. Package enables treat subgraph as node or subraphs extraction for future work. Package based on basic python structures (not depend on non-basic packages)

Installation

• Package can be installed with pip using pip install diblob.
• Using requirements.txt (packages necessary just for testing) by pip install -r equirements.txt.

Data structure

The core of the diblob is the data structure, where every operation is managed by GraphManager. Operations are performed on Node, Edge and Blob components.

Node

Node representation in digraph. Components cosists of following fields:

• node_id - id of the node used by GraphManager.
• diblob_id - id of the diblob, where node is placed.
• incoming_nodes - list of node ids (tails of the edges for which node is head).
• outgoing_nodes - list of node ids (heads of the edges for which node is tail).

Incoming / outgoing nodes can be redundant (pseudographs are also considered).

Edge

Edge representation in digraph.

• path - list of node ids.

Diblob

Diblob representation in digraph.

• diblob_id - id of the diblob used by GraphManager.
• parent_id - id of the diblob which is the parent for diblob.
• children - ids of the diblobs which are children of the diblob.
• nodes - node ids (or diblob ids) embedded in diblob.

Diblobs which share the same graph creates tree-based structure. Moreover, entire graph is also treat as diblob (root):

Examples

Digraph data structure can be created as following:

from diblob import DigraphManager

digraph_dict = {"B0": {"A": ["B", "F"],
                       "B": ["C", "D", "E"],
                       "C": ["D"],
                       "D": ["E", "F", "G"],
                       "E": ["F", "A"],
                       "F": ["G", "B"],
                       "G": ["A", "D"]}}

digraph_manager = DigraphManager(digraph_dict)

Note that if we have digraph in json file, we can load it using json.load. Let's create in the digraph blobs B1, B2 with following nodes: A, B and C, D, E:

from diblob import tools

digraph_manager.gather('B1', {'A', 'B'})
digraph_manager.gather('B2', {'C', 'D', 'E'})

tools.display_digraph_json(digraph_manager('B0'))

The result is following (display_digraph is helper function for printing human friendly python output):

{
"B0": {
    "B1": {
        "B": [{"B2": ["C", "D", "E"]}],
        "A": ["B", {"B0": ["F"]}],
    },
    "B2": {
        "C": ["D"],
        "D": ["E", {"B0": ["F", "G"]}],
        "E": [{"B0": ["F"]}, {"B1": ["A"]}],
    },
    "F": ["G", {"B1": ["B"]}],
    "G": [{"B1": ["A"]}, {"B2": ["D"]}],
},
}

Now let's compress created diblobs to points:

digraph_manager.compress_diblob('B1')
digraph_manager.compress_diblob('B2')

tools.display_digraph(digraph_manager('B0'))

The result is as follows:

{
"B0": {
    "F": ["G", "B1"],
    "B2": ["F", "B1", "G", "F"],
    "B1": ["F", "B2", "B2", "B2"],
    "G": ["B1", "B2"],
},
}

Diblob documentation

Diblob package consists of following modules:

• components - used by graph manager (node, edge, diblob).
• digraph_manager - core of the proposed data structure.
• factory - examples of graph_manager used for more complicated digraphs creation.
• algorithms - examples of use diblob with basic digraphs algorithms like DFS, DFSA (modified DFS) and Dijkstra algorithm.
• exceptions - used in modules.
• tools - for comfortable work with digraphs.

In entire package methods started with '_' are used by GraphManager (indirectly).

Components

Components are used by GraphManager for data structure creation. Data Structure consist of instances of classes Node, Edge and Diblob.

Node

Node representation in digraph. Incoming / outgoing nodes can be redundant (pseudographs are also considered).

Fields

• node_id - id of the node used by GraphManager.
• diblob_id - id of the diblob, where node is placed.
• incoming_nodes - list of node ids (tails of the edges for which node is head).
• outgoing_nodes - list of node ids (heads of the edges for which node is tail).

Methods

• get_incoming_edges(self) - returns set of edge ids where the node is head.
• get_outgoing_edges(self) - returns set of edge ids where the node is tail.
• incoming_dim(self) - number of incoming nodes.
• outgoing_dim(self) - number of outgoing nodes.
• _add_incoming(self, node_id: str) - adds new node_id to incoming_nodes.
• _add_outgoing(self, node_id: str) - adds new node_id to outgoing_nodes.
• _rm_incoming(self, node_id: str) - removes node_id from incoming_nodes.
• _rm_outgoing(self, node_id: str) - removes node_id from outgoing_nodes.

Edge

Edge representation in digraph. Enable to treat some kinds of paths as one edge.

Fields

• path - list of node ids.

Path is keep as list, which enables treat chain of node ids as edge (used for example in compress_edges):

Methods

• get_tail_and_head(self) - returns tail and head of the edge.
• get_id(self) - returns edge_id (head, tail).
• _reverse(self) - reverse path field.

Diblob

Fields

Diblob representation in digraph.

• diblob_id - id of the diblob used by GraphManager.
• parent_id - id of the diblob which is the parent for diblob.
• children - ids of the diblobs which are children of the diblob.
• nodes - node ids (or diblob ids) embedded in diblob.

Methods

• _add_children(self, *child_ids: tuple[str]) - adds diblob_ids to the diblob.
• _add_nodes(self, *node_ids: tuple[str]) - adds node_ids to the diblob.

Digraph Manager

Digraph Manager is responsible for data structure management. Is the core of entire package. DigraphManager instance creation require digraph dict representation. For instance:

digraph_dict = {
               "B0": {
                   "B1": {
                       "B": [{"B2": ["C", "D", "E"]}],
                       "A": ["B", {"B0": ["F"]}],
                   },
                   "B2": {
                       "C": ["D"],
                       "D": ["E", {"B0": ["F", "G"]}],
                       "E": [{"B0": ["F"]}, {"B1": ["A"]}],
                   },
                   "F": ["G", {"B1": ["B"]}],
                   "G": [{"B1": ["A"]}, {"B2": ["D"]}],
               },
               }

graph_manager = GraphManager(digraph_dict)

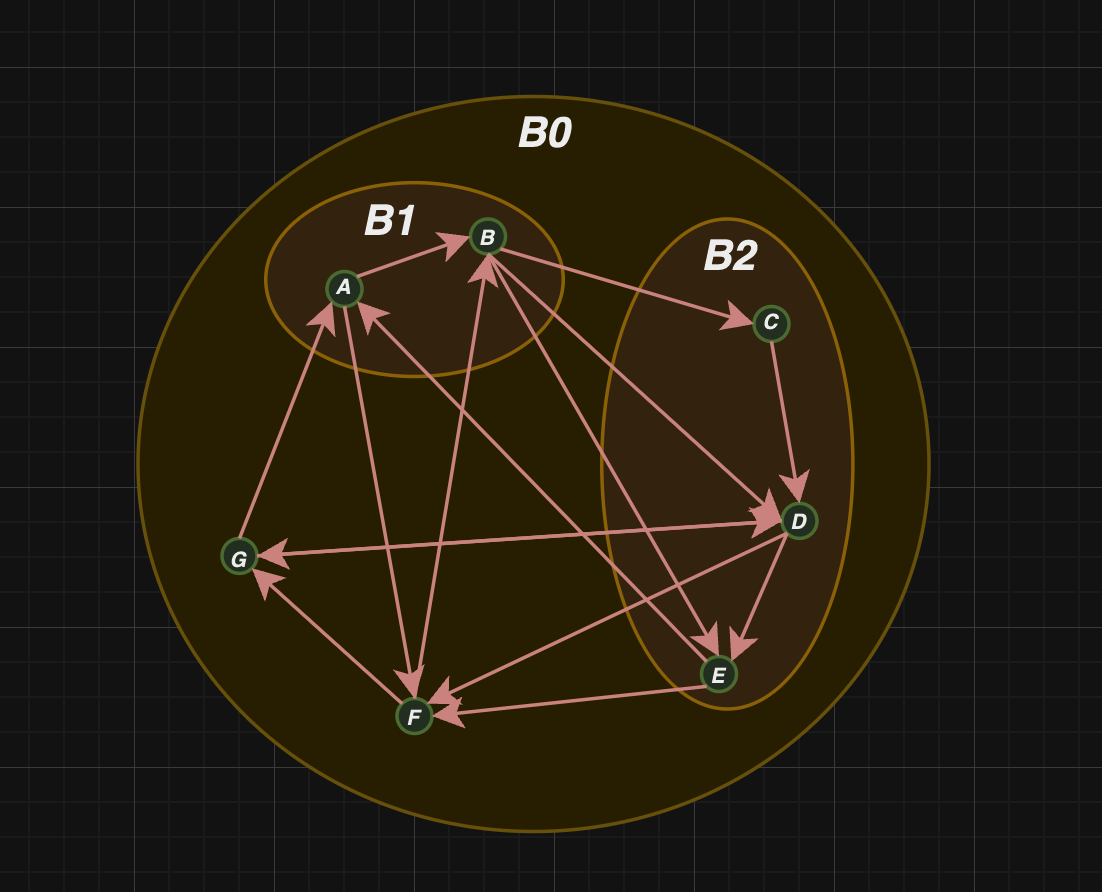

In effect, following digraph has been created:

Fields

• diblobs - dict where key, value equals diblob_id, Diblob object respectively (keep B0, B1, B2 in the picture above).
• nodes - dict where key, value equals node_id, Node object respectively (keep A, B, C, D, E, F, G in the picture above).
• edges - dict where key, value equals node_id, list of Edge objects respectively. List is used because multiple edges with the same
  head and tail are enabled (keeps edges AB, AF, BC, BD, BE, CD, DE, DF, DG, FB, FG, GA in the picture above).
• root_diblob_id - root blob_id which represents entire digraphs .Even if digraph doesn't have diblobs inside, entire graphs is treat as diblob. (B0 in the picture above).

Methods

• construct - helper function used in __init__.

• get_diblobs_common_ancestor - returns id of common ancestor of diblobs (diblobs have tree structure).

• get_diblob_descendants - returns set of diblob id's which are in the diblob subtree, where delivered node_id is the root.

• get_diblob_edges - returns set of all edge ids, set of incoming edge ids, set of outgoing edge ids and set of diblob descendants with considered diblob_id as side effect.

• is_diblob_ancestor - validates if diblob with id=potential_ancestors is the ancestor of the diblob with delivered diblob_id.

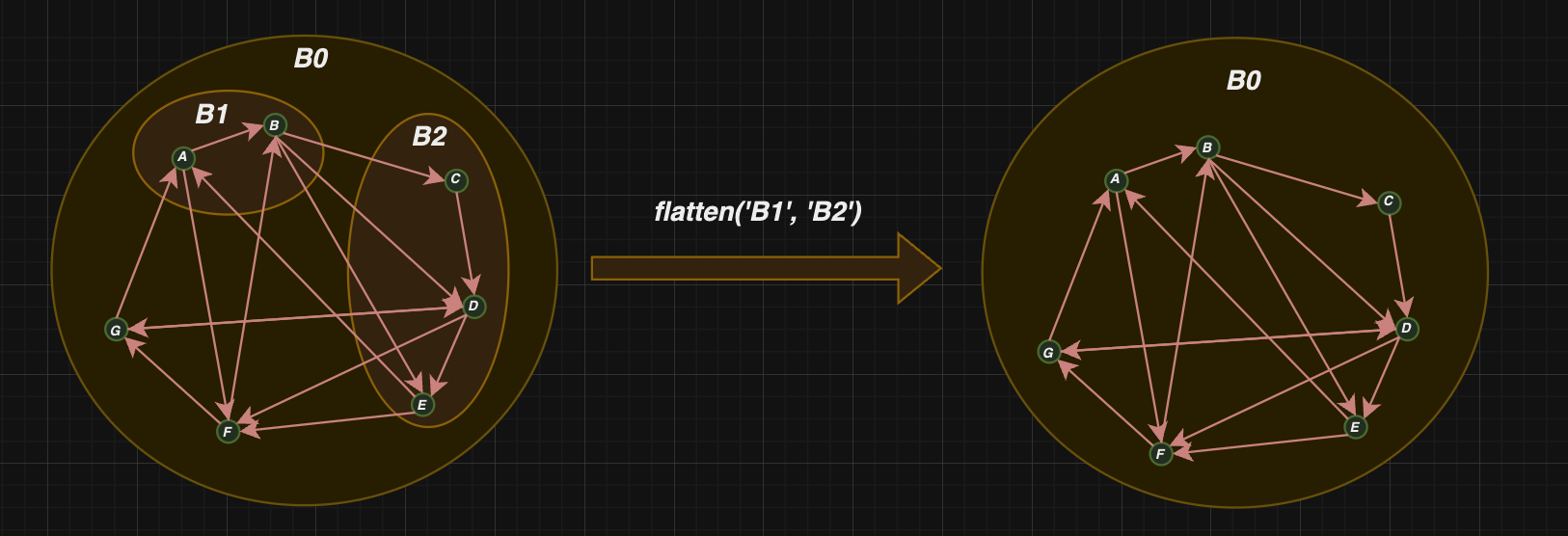

• flatten - removes diblobs with delivered ids (removing diblob doesn't implies nodes deletion. Nodes are transferred to the diblob direct ancestor). Root diblob cannot be flattened:

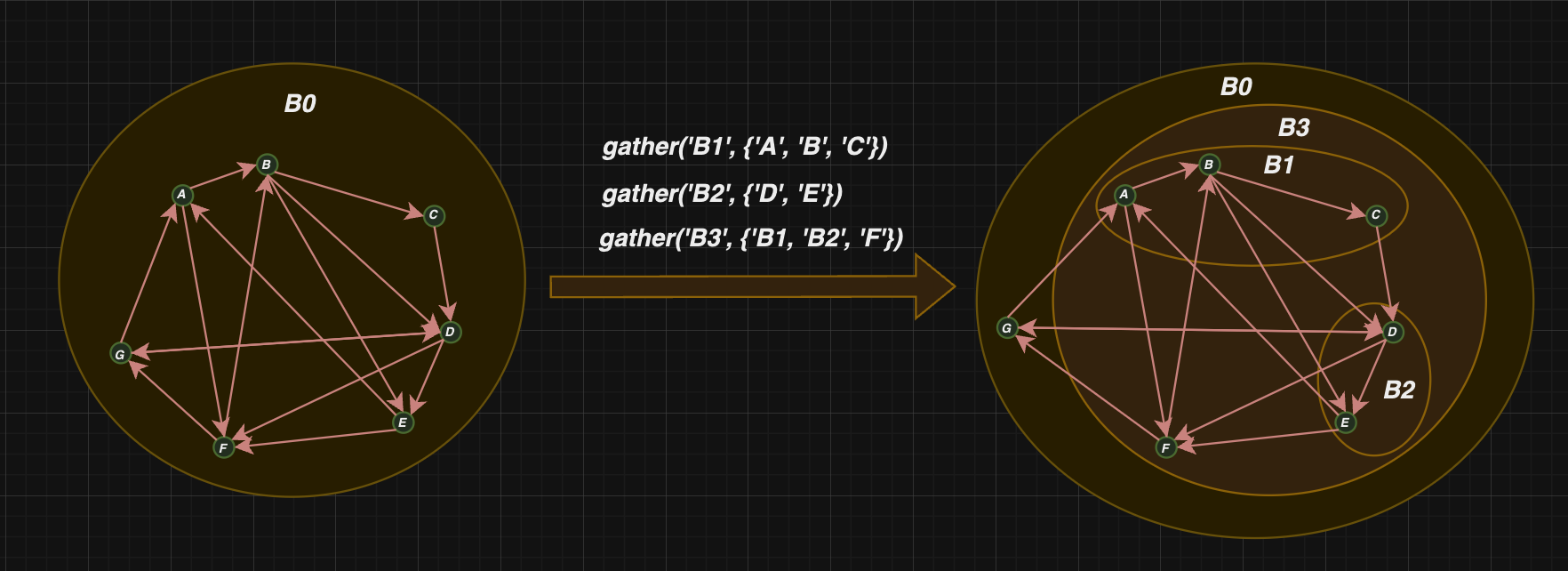

• gather - accumulate nodes and diblobs into new diblob:

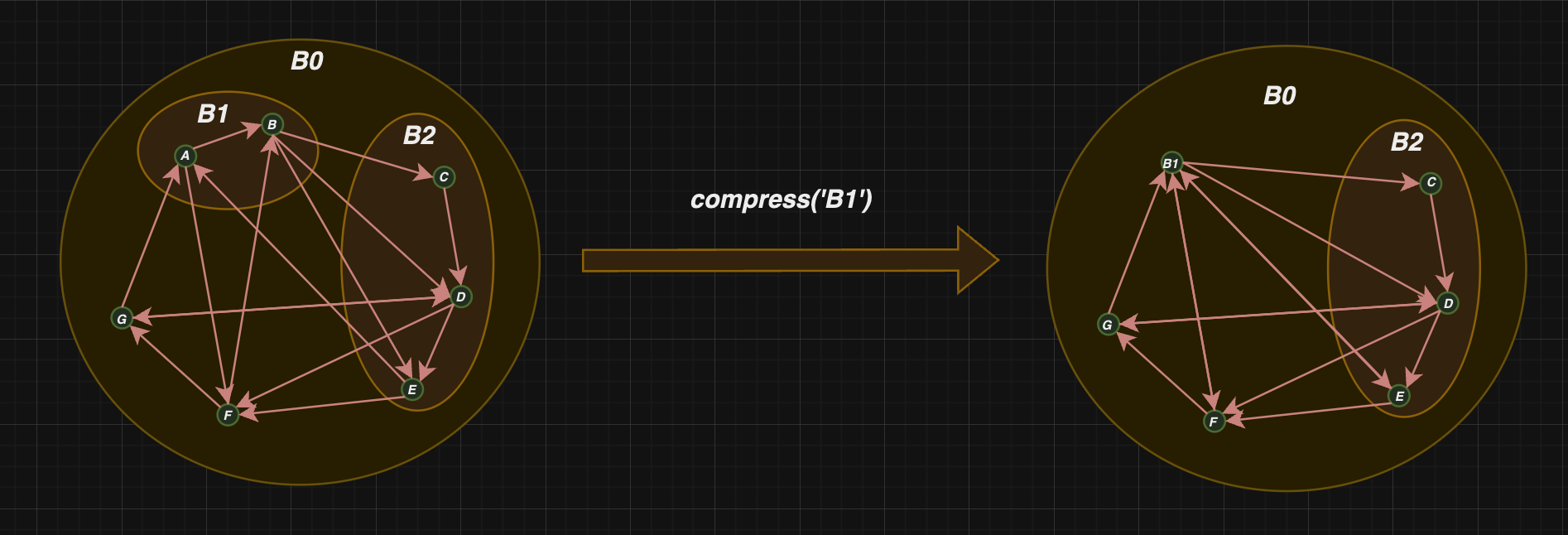

• compress_diblob - compress diblob into single node:

• merge_edges - merge edges if they are compatible (head of the first one should equals tail of the second one, and incoming / outgoing edges of the second one should equal 1)
• get_multiple_edge_ids - returns list of edge_ids with every occurrence.
• remove_edges - remove edges from the digraph (uses objects, no edge_ids)
• connect_nodes - creates edges from pair of node_ids.
• remove_nodes - remove nodes from the digraph (uses objects, no edge_ids).
• add_nodes - add nodes to the digraph (optionally diblob_id can be chosen. Set as root_id if not delivered).
• compress_edges - compress edges in the digraph (accumulates nodes with len(incoming_nodes) = len)outgoing_nodes) = 1):

• decompress_edges - reverse operation to compress_edges:

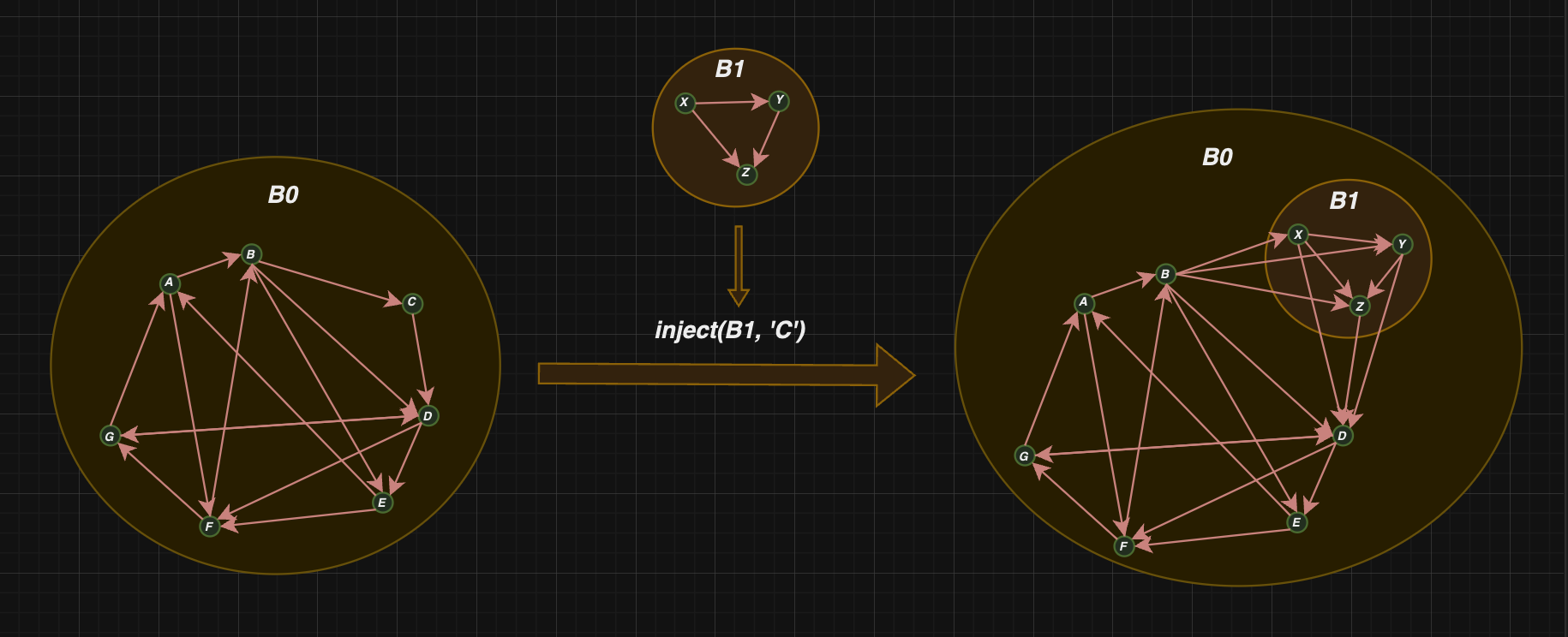

• inject - takes other DigraphManager and inject it to the digraph in place of the selected node:

• decouple_edges - convert pseudograph to digraph by edge decoupling:

• reverse_edges - reverse selected edges (use object, not node_id).
• sorted - sort all fields of the digraph structure.

GraphManager has also magic methods which enables comfortable work on the structure:

• __setitem__ enable during implementation new methods with easy components setting:

"""
Note that maintaining the structure is covered by other methods. __set_item__ is used just for methods implementation.
For instance digraph_manager[('A', 'B')] = AB not implies that nodes 'A' and 'B' are connected in structure.
Edge object is just registered by GraphManager.

If you want to create correct edge use connect_nodes method  on structure without Edge.
"""



digraph_dict = {"B0": {}}
digraph_manager = DigraphManager(digraph_dict)

A = Node(node_id='A', diblob_id='B0', incoming_nodes=[], outgoing_nodes=[])
B = Node(node_id='B', diblob_id='B0', incoming_nodes=[], outgoing_nodes=[])
B1 = Diblob(children={}, diblob_id='B1', nodes=['A', 'B'], parent_id='B0')
AB = Edge(['A', 'B'])

digraph_manager['A'] = A
digraph_manager['B'] = B
digraph_manager['B1'] = B1
digraph_manager[('A', 'B')] = AB

• __get_item__ enable getting object by it's registered id.
• __contains__ check if specific id is registered by diblob.
• __call__ can be used for diblob extraction. For example following code:

digraph_dict = {
                "B0": {
                    "B2": {
                        "E": [{"B0": ["F"]}, {"B1": ["A"]}],
                        "C": ["D"],
                        "D": ["E", {"B0": ["F", "G"]}],
                    },
                    "G": [{"B1": ["A"]}, {"B2": ["D"]}],
                    "F": ["G", {"B1": ["B"]}],
                    "B1": {
                        "B": [{"B2": ["C", "D", "E"]}],
                        "A": ["B", {"B0": ["F"]}],
                    },
                },
                }

digraph_manager = DigraphManager(digraph_dict)
tools.display_digraph(digraph_manager('B1'))

returns

{
"B1": {
    "B": [{"B2": ["C", "D", "E"]}],
    "A": ["B", {"B0": ["F"]}],
},
}

Note that outgoing edges are saved. For cutting them use cut_outgoing_edges from tools.

Factory

Factory enables creation other types of digraphs based on delivered digraph. It's decoupled with GraphManager, because GraphManager working with it's own structure.

Edge digraph and Biparite digraph can be created just for digraphs with only root diblobs.

methods:

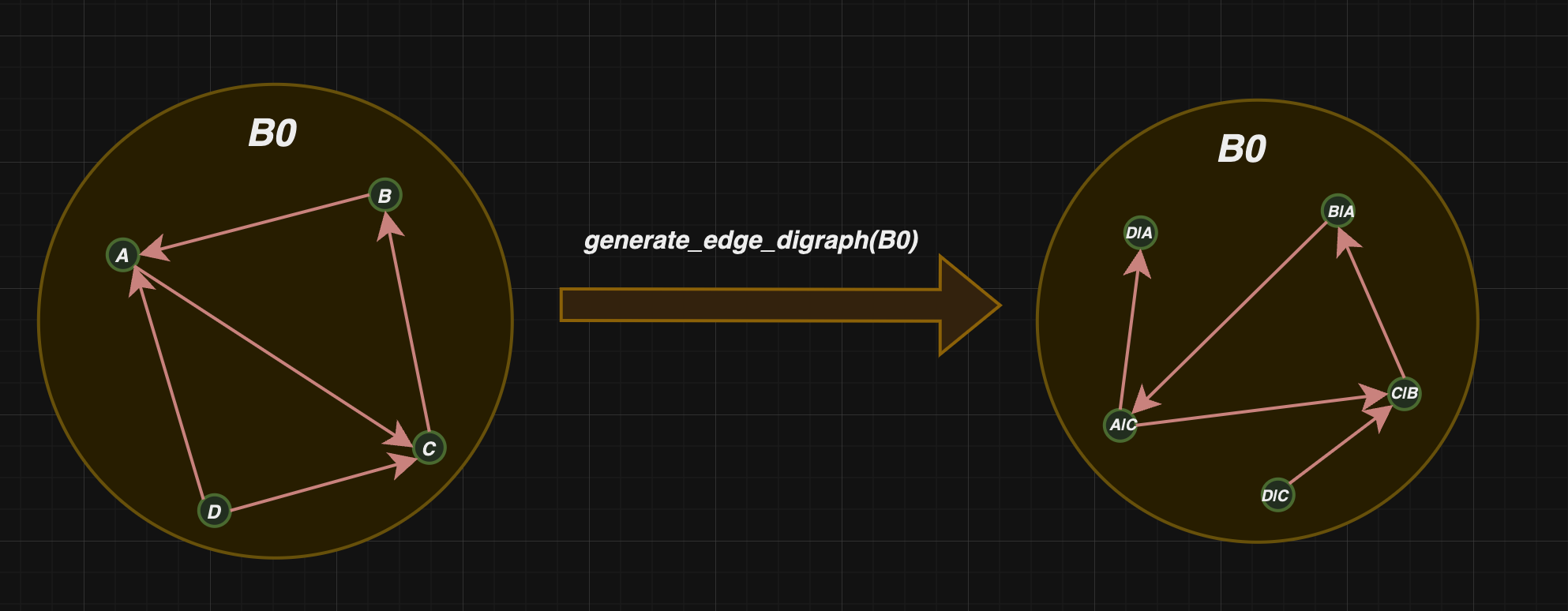

• generate_edge_digraph enable edge digraph creation (edges because nodes):

In the example default `delimiter` and `reduce_value` was used. Delimiter add separator between node_ids during node_id creation in edge graph, reduce value enable cutting delimiter (for example if we use generate_edge_digraph second time in the graph on the right in the picture, we get for example node with id = "A|C|C|B" with default reduce value = 0, but "A|C|B" if reduce_value = 1 is set).

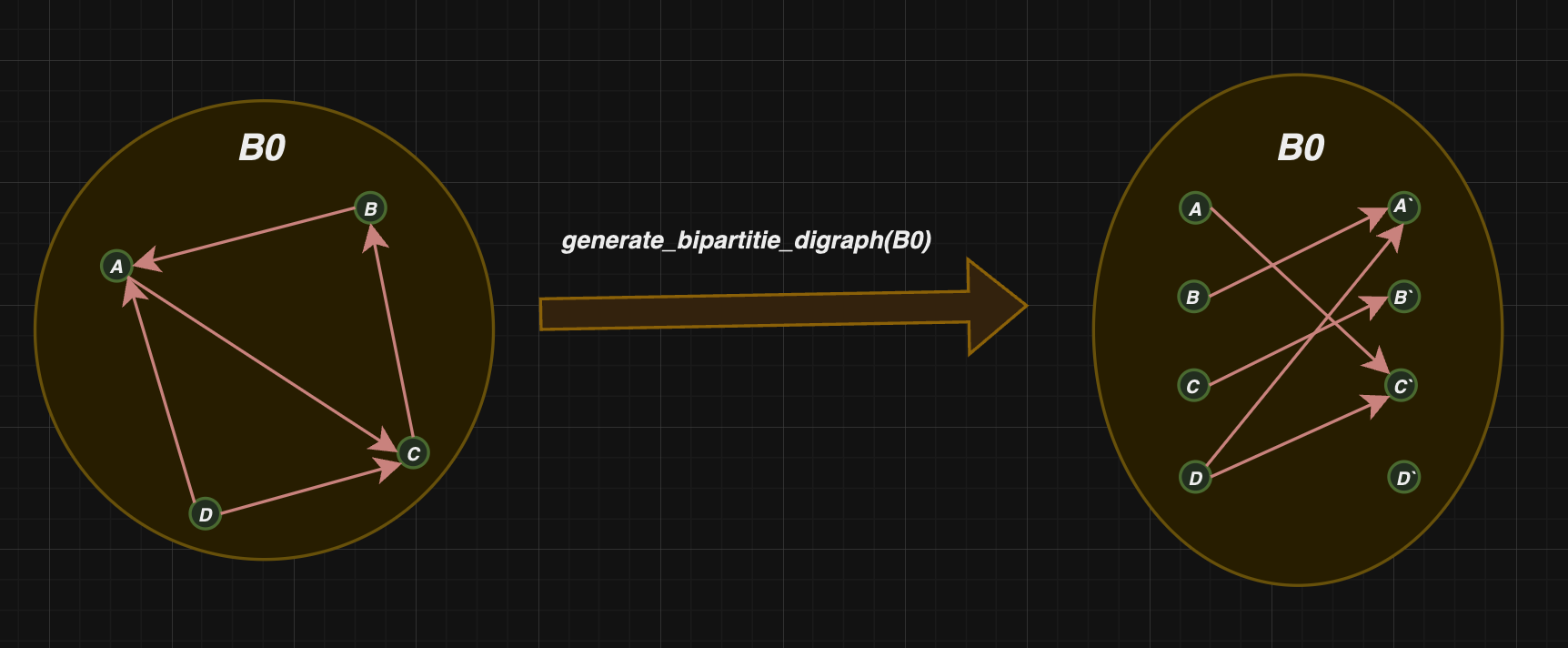

• generate_bipartite_digraph enable bipartite digraph creation:

Aghoritms

In order to working with diblob explanation, DFS, DFSA and Dijkstra algorithms are created. For more details check out algorithms.py directly in the code.

Tools

Tools for diblob which are used for user friendly printing or cutting nodes in json. Tools don't interfere with diblob class, just working with output dict.
