estampo 0.4.0b2

The build system for reproducible 3D prints. Define parts, slicer settings, and printer targets in code.

estampo

The build system for reproducible 3D prints.

3D printing workflows are trapped in GUIs. Slicer settings get lost between sessions, printer configs drift across machines, and there's no way to version, diff, or review a print job. None of this is accessible to automation — or to AI assistants.

estampo takes a different approach: define parts, slicer settings, and pipeline stages in a single TOML file — text that's git-friendly, diffable, and committable alongside your CAD files. Because the entire workflow is text, it's naturally accessible to AI coding assistants, CI systems, and code review. Same repo, same config → same G-code, locally or in CI.

Warning: estampo is in active early development. We are moving fast and breaking things — config format, CLI flags, and Python APIs may change between minor versions without deprecation. Pin your version if stability matters to you.

Safety: estampo generates G-code from your configuration but does not verify that settings are safe for your specific printer. Incorrect temperatures, speeds, or missing supports can damage your printer or create a fire hazard. Always review sliced output before sending to a printer. estampo validate checks config structure and setting names — it does not check print safety. Use at your own risk.

Note: This project was previously called fabprint. If you have an existing install, run pip install estampo to upgrade — config files and credentials are migrated automatically.

Works with STL, STEP, and 3MF files, and pairs naturally with code-CAD tools like build123d, OpenSCAD, and cadquery.

# estampo.toml — a multi-part print with slicer overrides

[[parts]]
file = "enclosure_base.step"
orient = "flat"
filament = 1                    # AMS slot 1: PETG-CF

[[parts]]
file = "enclosure_lid.step"
orient = "upright"
filament = 1

[[parts]]
file = "button_cap.stl"
copies = 4
filament = 2                    # AMS slot 2: PLA

[slicer]
engine = "orca"
version = "2.3.1"               # pinned for reproducibility

[slicer.orca]
printer = "Bambu Lab P1S 0.4 nozzle"
process = "0.20mm Standard @BBL X1C"
filaments = ["Generic PETG-CF @base", "Generic PLA @base"]

[slicer.orca.overrides]
sparse_infill_density = "25%"
enable_support = 1
brim_type = "auto_brim"

[pipeline]
stages = ["load", "arrange", "plate", "slice", "gcode-info", "pack"]

[pack]
command = "bambox repack {sliced_3mf}"
output = "{sliced_3mf}"

estampo run        # arrange → slice → pack, one command

  Output → estampo_output/enclosure
✔ Loaded 3 parts
✔ Arranged 3 parts onto plate  (256×256mm)
✔ Plate exported → plate.3mf
✔ Preview exported → plate_preview.3mf
✔ Sliced with OrcaSlicer 2.3.1 in 48s
✔ Print time: 3h 42m, 24.6g filament
✔ Packed → plate_sliced.gcode.3mf

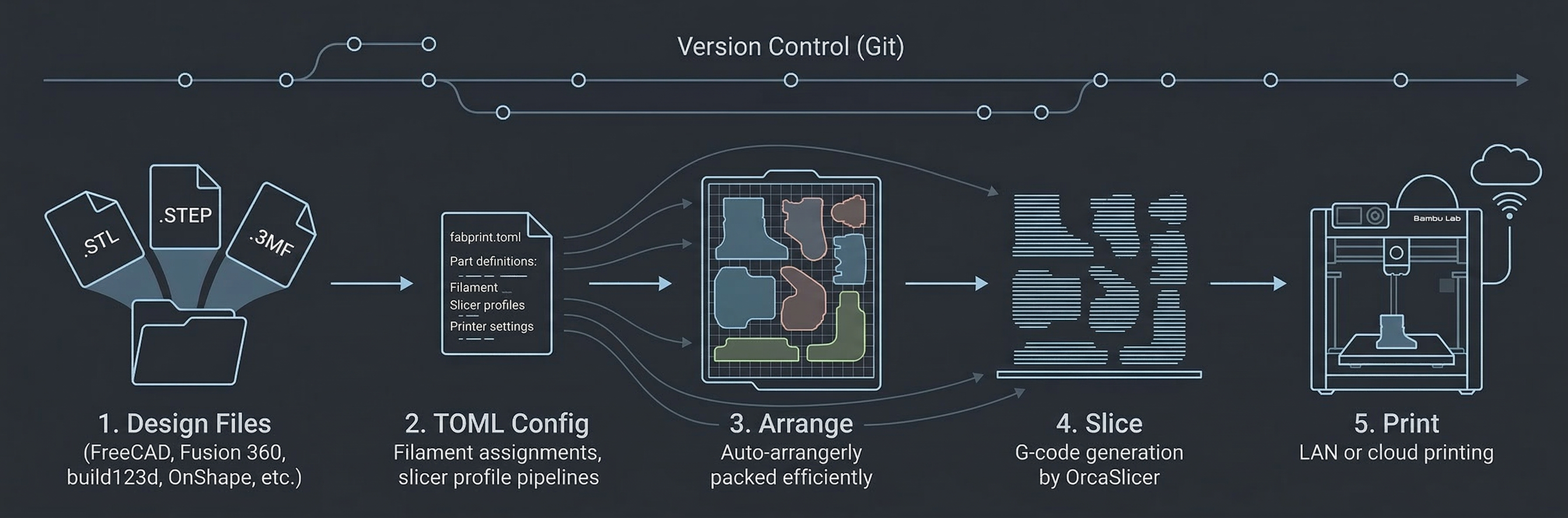

What estampo does

1. Define parts + settings in estampo.toml
2. Arrange — bin-packs models onto the build plate
3. Slice — using a pinned slicer version (via Docker) for identical G-code across machines
4. Post-process — run command stages (pack for Bambu, template resolution, etc.)

Everything is declared in a single TOML file. Lock the slicer version, pin the profiles, and the output is reproducible on any machine or in CI.

Why not just use OrcaSlicer CLI?

OrcaSlicer CLI is great for slicing a prepared plate. estampo builds a reproducible pipeline around it:

• Arrangement — bin-packs multiple STLs onto the build plate (OrcaSlicer CLI has no arrange step)
• Multi-part filament mapping — per-part filament slot assignment and paint color preservation, injected into the 3MF metadata
• Reproducible builds — pin slicer profiles into your repo + lock OrcaSlicer version in Docker = identical gcode on any machine
• Partial execution — --until plate to inspect layout, --only slice to re-slice, --dry-run to test everything
• Command stages — run external tools (e.g. bambox pack) as pipeline stages with variable substitution
• Headless Docker slicing — no GUI, no display server, works in CI, uses a specific OrcaSlicer version

Why not just use CuraEngine CLI?

CuraEngine CLI (CuraEngine slice -j definition.json -s KEY=VALUE -l model.stl -o output.gcode) is powerful but requires assembling the full invocation yourself:

What you need to do	CuraEngine CLI	estampo
Load printer definition	-j printer.def.json + -d search paths for inheritance	printer = "Ultimaker 2" in TOML
Set material/quality	Chain of -j files or -s overrides for every setting	[slicer.cura.overrides] in TOML
Arrange multiple parts	Not supported — manual positioning	Automatic bin-packing
Multi-extruder mapping	-g -e0 -l a.stl -g -e1 -l b.stl per mesh group	filament = 1 per part
Reproducible builds	Track all definition JSONs yourself	version = "5.12.0" + Docker
Version control	Shell scripts + scattered JSON definitions	Single TOML file — git-diffable and reviewable
Run in CI	Install CuraEngine + definitions manually	uses: estampo/estampo/action@v1
Pack for Bambu printers	Separate manual step	[pack] command stage

With CuraEngine CLI, your build config ends up spread across shell scripts, -s flag lists, and JSON definition files — hard to diff, review, or commit as a coherent unit. estampo replaces all of that with a single declarative TOML file: git-friendly, diffable, and accessible to AI assistants and code review.

Works with AI assistants

GUI-based slicers require point-and-click interaction that AI assistants cannot drive. estampo's text-based config is different — an AI assistant can read your TOML, understand your print setup, suggest overrides, create CI workflows, and validate the result, all without leaving the conversation.

We provide a ready-to-paste AI setup prompt that gives any AI assistant (Claude, ChatGPT, Copilot) enough context to add estampo to a project from scratch — it scans the repo for model files, asks you a few questions, and generates the config. This isn't an AI feature bolted on — it's an architectural property of using text instead of a GUI.

Best fit

estampo is best suited to:

• Hardware teams keeping CAD and manufacturing inputs in Git
• Engineers who want deterministic slicing in CI
• Teams using AI coding assistants to manage their build and print workflows
• Makers who want a declarative print workflow instead of slicer click-ops

If you mostly want interactive print setup in a GUI, use OrcaSlicer or Cura directly.

Status

Stable

• Declarative print config in estampo.toml
• Multi-part arrangement
• Docker-based slicing with pinned slicer versions (OrcaSlicer, CuraEngine)
• Slicing for any printer supported by OrcaSlicer or CuraEngine
• Profile pinning into your repository
• CI slicing and artifact generation
• Network print initiation via Bambu Cloud

Experimental

• Bambu LAN printing
• Moonraker printing

Quick start

Prerequisites: Python 3.11+ and Docker. Docker is central to estampo — it runs the slicer (OrcaSlicer or CuraEngine) in a container with a pinned version so every machine produces identical G-code. A locally installed slicer can be used as a fallback but is not recommended.

pip install estampo
# or, to install as an isolated CLI tool:
pipx install estampo

Generate a config with the interactive wizard, or dump a commented template:

estampo init                       # interactive wizard — discovers profiles and CAD files, creates TOML
estampo init --template            # dump a commented template

Or create estampo.toml by hand (see full config reference):

[pipeline]
stages = ["load", "arrange", "plate", "slice", "pack"]

[plate]
size = [256, 256]       # build plate dimensions in mm
padding = 5.0

[slicer]
engine = "orca"
version = "2.3.1"       # pin OrcaSlicer version for reproducibility

[slicer.orca]
printer = "Bambu Lab P1S 0.4 nozzle"
process = "0.20mm Standard @BBL X1C"

[slicer.orca.overrides]  # simple way to define print settings without editing JSON
sparse_infill_density = "30%"       # stronger infill
wall_loops = 3                       # extra wall strength
enable_support = 1
brim_type = "auto_brim"             # help adhesion
curr_bed_type = "Textured PEI Plate"

[[parts]]               # define multiple parts using STEP, STL or 3MF inputs
file = "frame.step"
rotate = [180, 0, 0]    # flip so mounting plate faces down
filament = "Generic PETG-CF @base"

[[parts]]
file = "wheel.stl"
copies = 5
orient = "upright"
filament = "Generic PETG-CF @base"

Run it (see full CLI reference):

estampo run                   # arrange, slice and send to printer
estampo run --until slice     # stop after slicing
estampo run --dry-run         # full pipeline without sending to printer

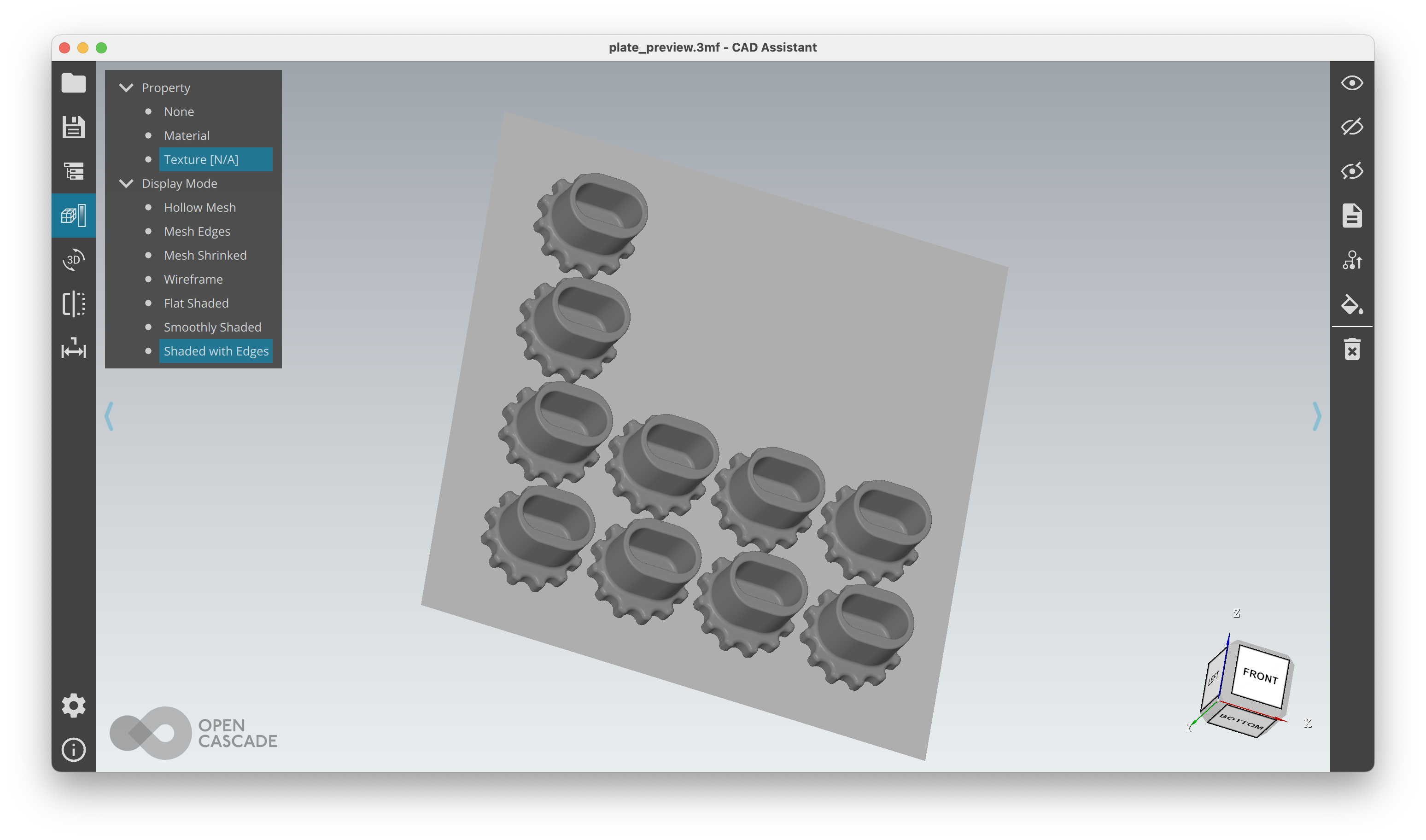

The arrangement (plate) stage generates a plate_preview.3mf — open it in any 3MF viewer to check placement:

Reproducibility

Pin profiles into your repo so builds are identical across machines:

estampo profiles pin          # copies slicer profiles into ./profiles/
git add profiles/              # commit to lock them

Combined with a pinned version in [slicer] (which locks the Docker image), the same config always produces the same gcode.

CI/CD example

Automate slicing in GitHub Actions — push a commit, get G-code as a build artifact with print metrics on your PR:

# .github/workflows/slice.yml
name: Slice
on: [push, pull_request]
jobs:
  slice:
    runs-on: ubuntu-latest
    steps:
      - uses: actions/checkout@v6
      - uses: estampo/estampo/action@v1

The action slices your model, uploads G-code as an artifact, and posts print time / filament stats as a PR comment. See action/README.md for all options.

CLI overview

estampo init                        # interactive config wizard
estampo init --template             # dump commented TOML template
estampo init --workflow             # wizard + GitHub Actions workflow
estampo validate                    # check config for issues
estampo run                         # full pipeline
estampo run --until plate           # stop after plating
estampo run --only slice            # run just one stage
estampo run --dry-run               # everything except sending to printer
estampo profiles list               # list available slicer profiles
estampo profiles pin                # pin profiles for reproducible builds

Printing

estampo is printer-agnostic — it produces sliced output but does not send files to printers. For Bambu Lab printers, use bambox as a command stage to pack and print. Run bambox login to set up credentials (~/.config/bambox/credentials.toml). See the AI setup prompt for full examples.

Documentation

• CLI reference — all commands, flags, and pipeline stages
• Config reference — complete TOML format
• Developing — setup, testing, architecture

Development

estampo's codebase is authored by Claude, Anthropic's AI assistant, under the direction and review of a human maintainer. Architecture decisions, priorities, and acceptance criteria are set by the maintainer; Claude writes the code, tests, documentation, and CI workflows. Every commit is reviewed before merge.

License

Apache 2.0
