iactsim: Imaging Atmospheric Cherenkov Telescope Simulation

GPU-accelerated instrument response simulation for IACTs.

Documentation | Source Code | Report Bug

Overview

iactsim is a high-performance Python package designed for simulating the response of Imaging Atmospheric Cherenkov Telescopes (IACTs). By exploiting the parallel computational power of GPUs (via CUDA and CuPy), it accelerates computationally intensive tasks such as ray-tracing and SiPM response simulation.

To get started with a minimal telescope simulator configuration, check out the Basics Tutorial.

Package structure

The framework is organized into four main modules:

• optics: handles optical system, non-sequential ray-tracing and photon sources.
• electronics: manages pixel signal generation, trigger logic and sampling logic. Currently only SiPM signal generation is supported, including prompt cross-talk, after-pulse and micro-cell recovery time
• visualization: provides tools for 3D geometry/ray-tracing rendering (via VTK) and helper matplotlib functions for data plotting
• iactxx: a general-purpose C++ extension module, currently used for high-performance parallel reading, decompression and conversion of files written with the IACT extension of CORSIKA7

Key Features

• GPU acceleration: fast ray-tracing and camera response simulation using CUDA and CuPy.
• Optics:
  • non-sequential ray-tracing algorithm supporting multiple reflections (e.g., protective windows, multi-layer coatings, SiPM reflectance);
  • currently supports spherical, aspherical, flat, cylindrical, cuboidal and conical surfaces;
  • flexible geometry modeling: supports surface segmentation where each segment is an independent surface, allowing for unique profiles (e.g., curvature variations) and customizable alignment errors (tilts/shifts);
  • run-time configuration of each surface.
• Electronics:
  • detailed SiPM response simulation (prompt cross-talk, after-pulse and microcell recovery time);
  • run-time configuration of pixel properties on a per-pixel basis;
  • trigger and sampling logic customization.
• Visualization:
  • built-in plotting capabilities for the detailed analysis of ray-tracing results and camera electronic signals;
  • 3D interactive visualization of optical systems and photon paths using VTK.
• Python-based: seamless integration with the scientific Python stack (NumPy, SciPy, Numba, Matplotlib, Jupyter, etc.).

Table of contents

• Installation
• Runtime configuration
• Usage
  • Building an optical system
  • Mirror segmentation
  • 3D visualization
• For developers

Installation

Prerequisites

• Python: >= 3.11
• Compiler: gcc or nvcc
• CMake: >= 3.15
• Runtime: NVIDIA Drivers, CUDA, CuPy

Environment setup

We strongly recommend using a virtual environment (e.g., mamba or conda):

mamba create -n simenv python=3.13
mamba activate simenv

Install via PyPI

If you have the prerequisites installed, you can install the latest release directly:

pip install iactsim -v

Optional: using NVHPC compilers

Building with gcc is the standard and requires no special configuration. However, if you specifically wish to use the nvcc, you must configure the environment before installation.

Please refer to the NVIDIA HPC SDK section in Runtime Configuration for detailed instructions on setting up the environment.

Custom compiler flags

You can customize the build options by passing arguments to CMake via pip. The following flags are available:

• CMAKE_CXX_COMPILER=<compiler>: specify the C++ compiler executable (e.g., nvcc, g++).
• USE_ZLIBNG=<ON|OFF>: enable/disable zlib-ng support. Default is ON.
  For the C++ part, by default zlib-ng (zlib data compression library for the next generation systems) will be used (CMake will clone the repo automatically). This is strongly recommended if you plan to read gzipped CORSIKA files.
  If you have to use the standard system zlib, you can set this to OFF.

Example: explicitly use nvcc and disable zlib-ng

python -m pip install iactsim -v -C cmake.args="-DCMAKE_CXX_COMPILER=nvcc;-DUSE_ZLIBNG=OFF"

Install from source

1. Clone the repository:

   git clone https://gitlab.com/davide.mollica/iactsim.git
   cd iactsim


2. Editable install:
   First, install the build dependencies required for the editable install:

   pip install scikit-build-core pybind11 "setuptools_scm[toml]>=8.0" cmake ninja


   Then, install the package in editable mode. This configuration disables build isolation, ensuring that only modified C++ files will be recompiled:

   python -m pip install --no-build-isolation -e .


Runtime configuration

Install CuPy (required)

iactsim relies on CuPy for GPU offloading. You must install the cupy package that matches your specific CUDA version.

pip install cupy-cuda<XXX>

Replace <XXX> with your CUDA version (e.g., cupy-cuda12x for CUDA 12).
For detailed instructions, refer to the CuPy documentation.

Configure CUDA environment

To ensure the custom kernels compile successfully, NVCC and CUDA_PATH must be set correctly. We provide helper scripts to automate this for conda/mamba environments.

Case 1: NVIDIA HPC SDK

If you are using the NVIDIA HPC SDK to provide CUDA libraries, you must configure the enviroment so that CuPy can locate the necessary libraries (you can download HPC SDK from the NVIDIA website).

We suggest to use Environment Modules to handle SDK configuration and then define NVCC and CUDA_PATH enviromental variables:

module load nvhpc
export NVCC=$NVHPC_ROOT/compilers/bin/nvcc
export CUDA_PATH=$NVHPC_ROOT/cuda

With conda/mamba enviroments you can use the provided configuration script configure_conda_env_hpcsdk

mamba activate simenv
configure_conda_env_hpcsdk simenv
mamba deactivate

This adds an activation script and a deactivation script to the simenv enviroment that will automatically handle the configuration when it is activated or deactivated.

Case 2: CUDA toolkit (conda-forge/nvidia)

If you prefer a self-contained environment without external modules, you can install the CUDA Toolkit via mamba:

mamba install -c nvidia cuda-toolkit

and then configure the environment variables NVCC and CUDA_PATH. You can use the provided configuration script configure_conda_env_cudatoolkit:

mamba activate simenv
configure_conda_env_cudatoolkit simenv
mamba deactivate

Usage

Building an optical system

The following code provides an example of how to build a simple optical system with a spherical mirror and a flat focal surface.

import matplotlib.pyplot as plt
import iactsim
from iactsim.optics import (
    ApertureShape,
    SurfaceType,
    OpticalSystem,
)

# Use iactsim matplotlib style
plt.style.use('iactsim.iactsim')

# Spherical mirror
mirror_curvature_radius = 20000
plate_scale = mirror_curvature_radius/57.296/2.
mirror = iactsim.optics.SphericalSurface(
    half_aperture=10000.,
    curvature=1./mirror_curvature_radius,
    position=(0,0,0),
    # reflective in the pointing direction
    surface_type=SurfaceType.REFLECTIVE_FRONT,
    name = 'Mirror'
)

# Flat focal surface (5deg hexagon)
focal_plane = iactsim.optics.FlatSurface(
    half_aperture = 5*plate_scale,
    position = (0,0,0.5*mirror_curvature_radius),
    aperture_shape = ApertureShape.HEXAGONAL,
    # sensitive surface opposite to the pointing direction
    surface_type=SurfaceType.SENSITIVE_BACK,
    name = 'Focal Plane'
)

# Optical system
os = OpticalSystem(
    surfaces=[focal_plane, mirror],
    name='TEST-OS'
)

# Telescope position
pos = (0,0,0)

# Telescope pointing (alt,az)
poi = (0.,0.)

# IACT
telescope = iactsim.IACT(
    os,
    position=pos,
    pointing=poi
)

# Copy optical system data to the device
telescope.cuda_init()

# Photon source initialized on-axis
source = iactsim.optics.sources.Source(telescope)
source.positions.random = False # To make spot diagrams

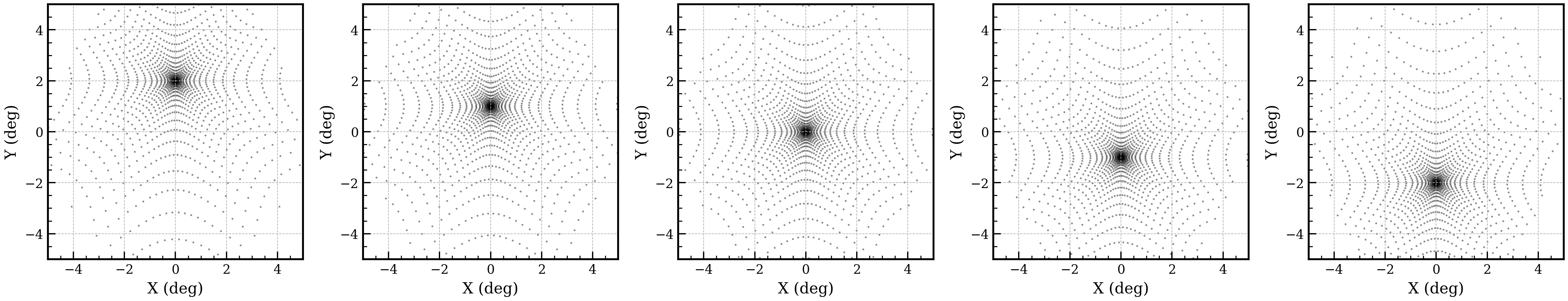

# Plot spot diagram at different off-axis angles
n_plots = 5
fig, axes = plt.subplots(1,n_plots,figsize=(3.5*n_plots,3.5))

source.directions.altitude = telescope.altitude - 2.
for ax in axes:
    # Adjust photon position to match the mirror position
    source.set_target('Mirror')

    # Generate photons
    ps, vs, wls, ts = source.generate(10000)

    # Perform ray-tracing
    telescope.trace_photons(ps, vs, wls, ts)

    # Plot spot diagram
    iactsim.visualization.scatter(ps, s=0.2, ax=ax, color='black', alpha=0.5, scale=plate_scale)
    ax.set_xlabel('X (deg)')
    ax.set_ylabel('Y (deg)')
    ax.grid(ls='--')

    # Move the source
    source.directions.altitude += 1. # degree

plt.tight_layout()
plt.show()

Mirror segmentation

The following code provides an example of how to segment a surface (AsphericalSurface, SphericalSurface or FlatSurface) starting from a mother surface (in this case mirror). Note that each segment is an independent surface and does not need a mother surface, which is used here simply for convenience.

import numpy as np

# List of segments
segments = []

# Segment ID
k = 0

# Segments on a 10X10 grid, 80 total
n = 10
segment_distance = 2*mirror.half_aperture / (n+3)

for i in range(n+3):
    for j in range(n+3):
        offset = [
            -mirror.half_aperture+segment_distance*i,
            -mirror.half_aperture+segment_distance*j
        ]
        r_segment = np.sqrt(offset[0]**2+offset[1]**2)

        # Do not create segments outside the original mirror aperture
        if r_segment > mirror.half_aperture-segment_distance*np.sqrt(2):
            continue

        # Ideal segment position
        segment_position = [
            offset[0],
            offset[1],
            mirror.sagitta(r_segment),
        ]

        # Create the surface
        segment = iactsim.optics.SphericalSurface(
            curvature=mirror.curvature,
            half_aperture=0.45*segment_distance,
            position=segment_position,
            surface_type=mirror.type,
            name = f'Segment-{k}',
            aperture_shape=ApertureShape.SQUARE,
            # Big random dispersion for visualization purpose
            tilt_angles=np.random.normal(0,1,3),
            # Gaussian scattering
            scattering_dispersion=0.02
        )

        # Specify the segment offset
        # When a segment is created in this way:
        #  - it will be oriented with the same surface normal
        #    of the mother surface at the specified offset
        #  - `tilt_angles` attribute will define a deviation from this orientation.
        segment.offset = offset

        segments.append(segment)
        k += 1

# Optical system
segmented_os = iactsim.optics.OpticalSystem(
    surfaces=[focal_plane, *segments],
    name='SEGMENTED-TEST-OS'
)

# IACT
segmented_telescope = iactsim.IACT(segmented_os, position=pos, pointing=poi)
segmented_telescope.cuda_init()

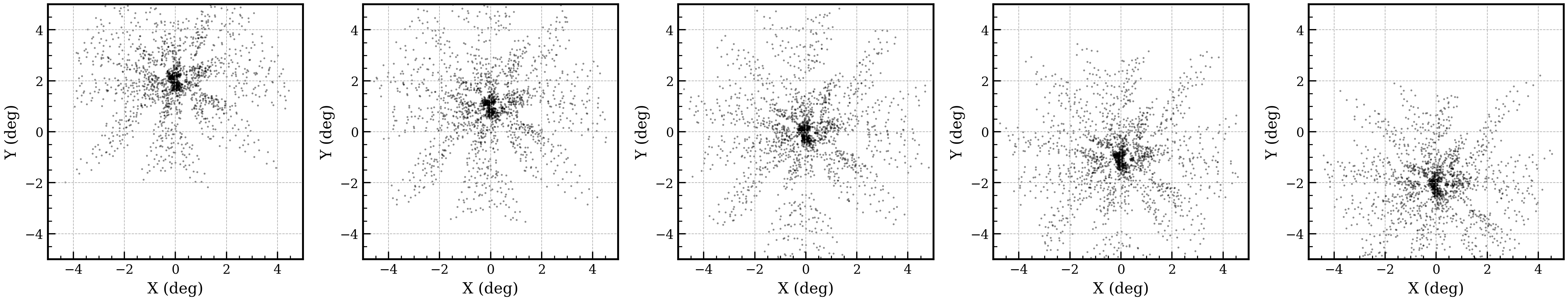

# Plot spot diagram at different off-axis angles
n_plots = 5
fig, axes = plt.subplots(1,n_plots,figsize=(3.5*n_plots,3.5))

# Photon source initialized on-axis
source = iactsim.optics.sources.Source(segmented_telescope)
source.positions.radial_uniformity = False
source.positions.random = False
source.positions.r_max = mirror.half_aperture*1.5

source.directions.altitude -= 2.
for ax in axes:
    # Adjust photon position to match the mirror position
    source.set_target()

    # Generate photons
    ps, vs, wls, ts = source.generate(10000)

    # Perform ray-tracing
    segmented_telescope.trace_photons(ps, vs, wls, ts)

    # Plot spot diagram
    iactsim.visualization.scatter(ps, s=0.2, ax=ax, color='black', alpha=0.5, scale=plate_scale)
    ax.set_xlabel('X (deg)')
    ax.set_ylabel('Y (deg)')
    ax.grid(ls='--')

    # Move the source
    source.directions.altitude += 1. # degree

plt.tight_layout()
plt.show()

3D visualization

Verify your geometry or visualize ray-tracing paths using the built-in VTK backend.

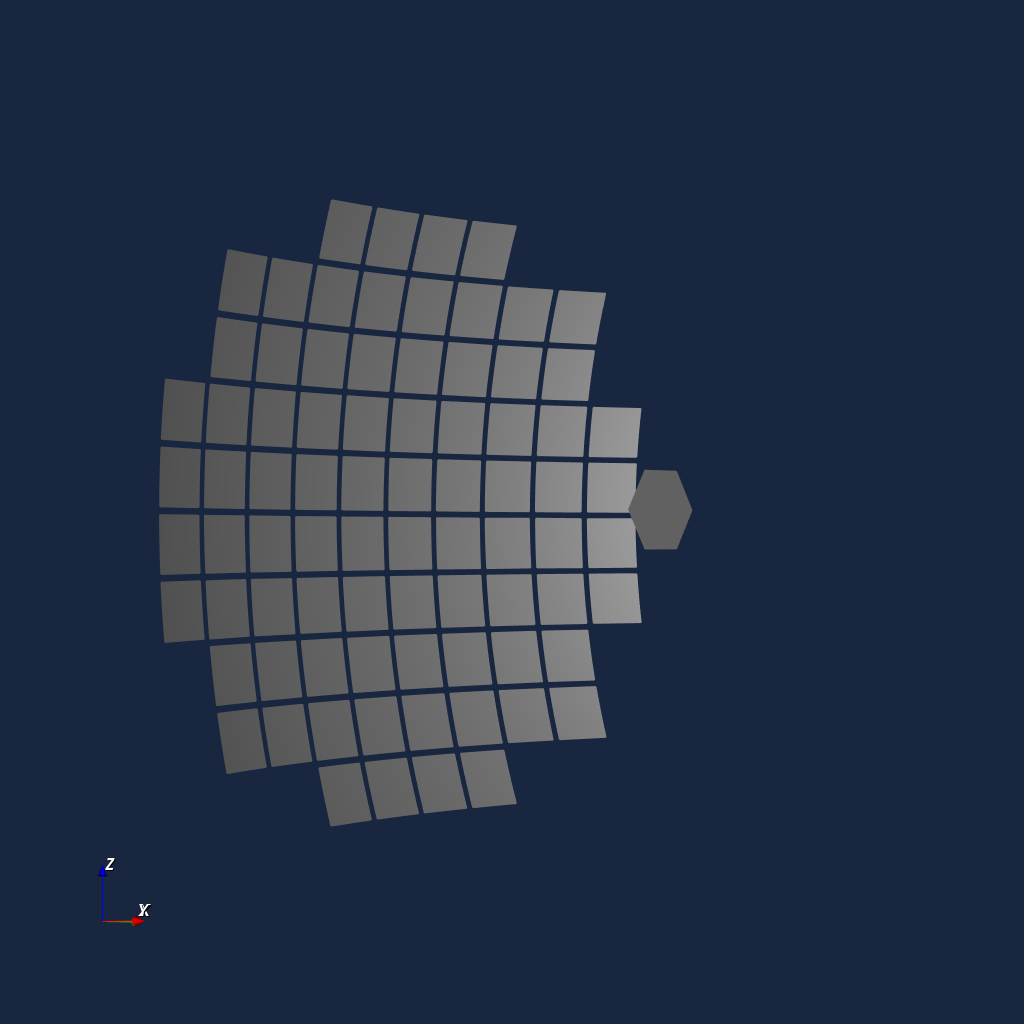

Interactive 3D view of the optical system

from iactsim.visualization import VTKOpticalSystem
renderer = VTKOpticalSystem(segmented_telescope.optical_system)
renderer.start_render()

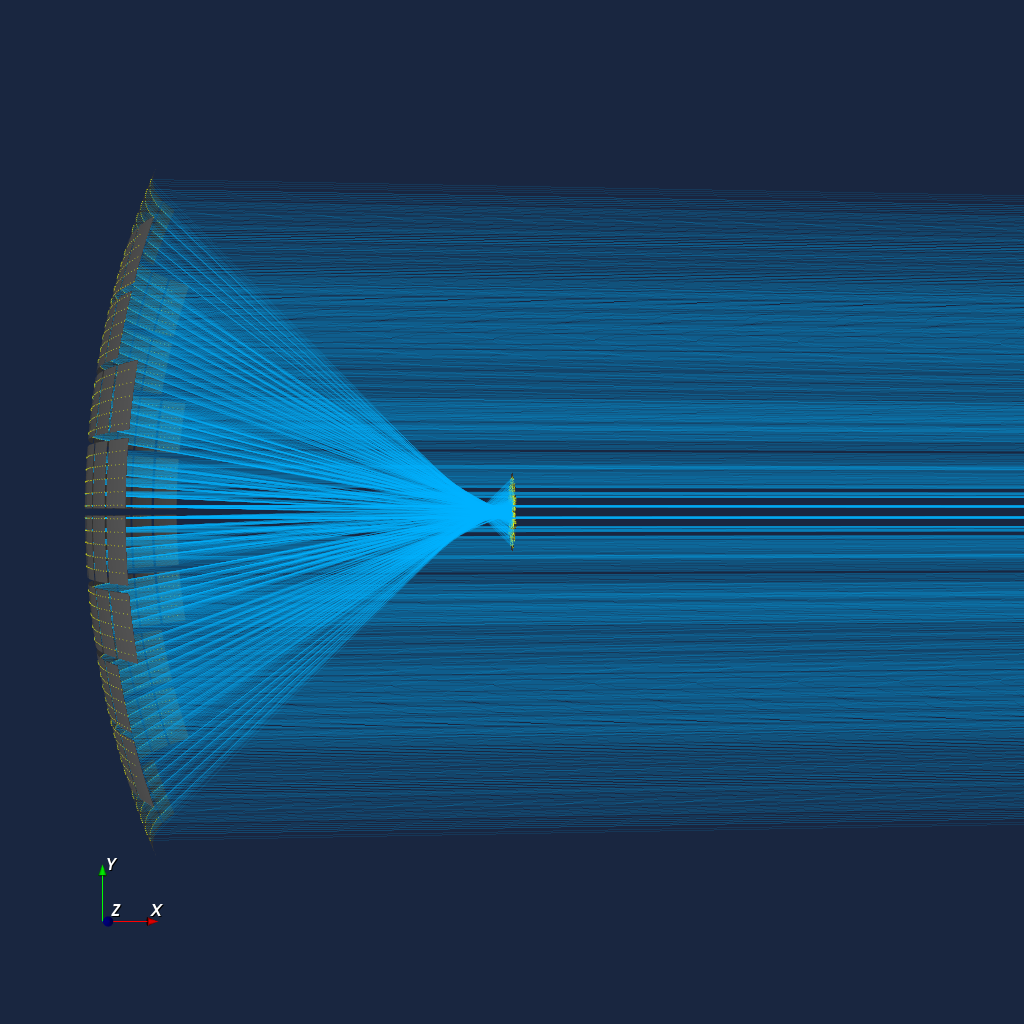

Visualize photon paths

segmented_telescope.visualize_ray_tracing(
    *source.generate(10000),
    map_wavelength_color=False,
    focal_point='Focal Plane',
    show_not_detected=False
)

For developers

• Performance benchmarks: Current vs Main Branch
• Contributions: Contributions are welcome! Please open an issue before submitting a MR.
