ImGui Bundle: easily create ImGui applications in Python and C++. Batteries included!
Project description
ImGui Bundle
ImGui Bundle is a bundle for Dear ImGui, including various useful libraries from its ecosystem. It enables to easily create ImGui applications in C++, as well as in Python.
The python bindings were autogenerated from the original C++ code, so that they are easier to keep up to date, and the python API closely matches the C++ api, making it possible to easily port research code from Python to C++.
Request for feedback : ImGui Bundle is a brand-new python and C++ package (Oct 2022). Feedback from users would be appreciated in order to make sure it works on different platforms.
Warning : The API might evolve a bit during the month of November 2022. I'll remove this warning once it is more stable.
Python C++ |
Batteries included
ImGui Bundle include:
- imgui : Immediate Gui library
- hello imgui: multiplatform backend provider for imgui.
- implot: plotting library based on ImGui
- ImGuiColorTextEdit: Colorizing text editor
- imgui-node-editor: Node editor
- imgui-knobs: Knobs for ImGui
- ImFileDialog: File dialogs
- imgui_md: Markdown for ImGui
- imspinner: Spinners
- imgui_toggle: Toggle switch widget
Philosophy
- Closely mirrors the original API of ImGui and other libraries
- Original code documentation is consciously kept inside the python stubs. See for example the documentation for:
- Fully typed bindings, so that code completion works like a charm
ImGui Backend
ImGui Bundle uses Hello ImGui, which is configured to use GLFW + OpenGL3. Under C++, this is configurable (see Hello ImGui docs), with some adaptations inside on the cmake side.
Usage with Python
Install
# Install from pypi
pip install imgui-bundle
# or install from clone
git clone https://github.com/pthom/imgui_bundle.git
cd imgui_bundle
pip install -v .
Demo

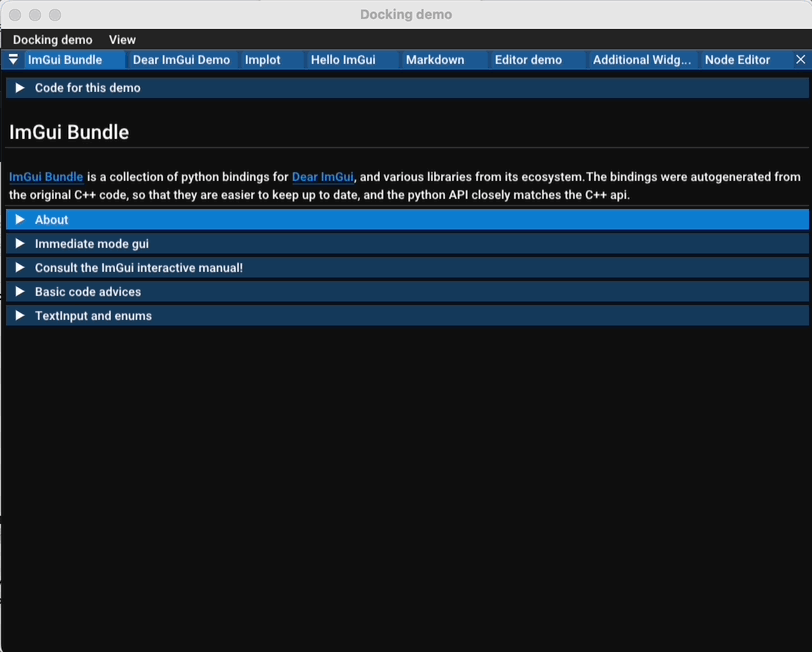

# imgui_bundle_demo will run the demo shown below.
# It also acts as a manual for ImGui Bundle with lots of examples and related code source.
imgui_bundle_demo
The source for the demos can be found inside bindings/imgui_bundle/demos.
Usage with C++
git clone https://github.com/pthom/imgui_bundle.git
Then, take inspiration from demos_cpp/demo_haiku_implot_heart, or demos_cpp/demo_widgets_docking
