linkgym

linkgym is a reinforcement-learning environment (Gymnasium API) for 5G NR link adaptation (MCS selection) built on NVIDIA Sionna: Sionna SYS models the link, and the channel is 3GPP TDL fading or ray-traced with Sionna RT. It comes with classical baselines and a fixed evaluation protocol. Its building blocks can also be used to build other environments, such as beam management: link-level functions (linkgym.phy), DFT beam codebooks (linkgym.beams) and per-antenna channels rebuilt from ray-traced paths (linkgym.paths), the last two experimental.

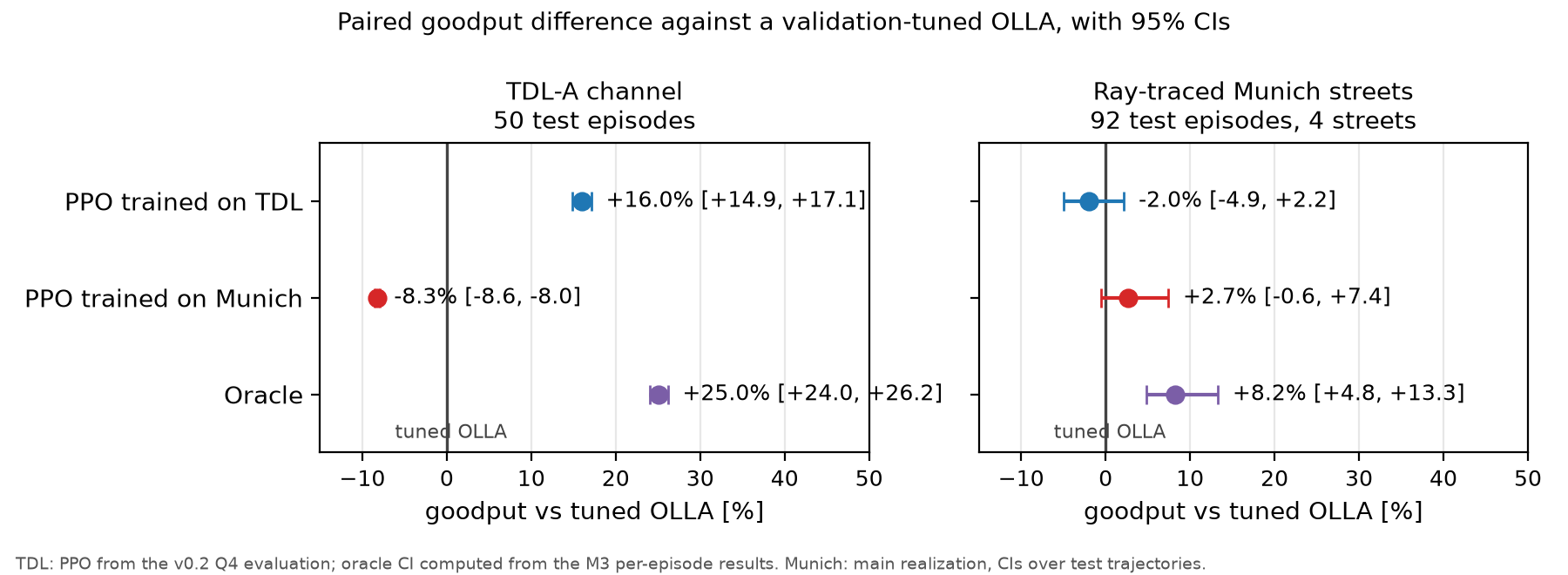

Paired goodput difference against Sionna's OLLA tuned on validation data, with 95% CIs. Left: the default TDL-A scenario, 50 held-out test episodes. Right: 92 episodes on four held-out ray-traced Munich streets (main ray-tracing realization; the CIs resample the 23 test trajectories). Each PPO is the mean of three training seeds; the CIs do not include training-seed variance. The oracle knows the channel of the slot being decided; its CI on TDL is computed from the M3 per-episode results. Details: TDL results, Munich results.

On the default TDL channel, PPO trained on linkgym delivers +16.0% goodput over a validation-tuned OLLA (95% CI [+14.9%, +17.1%], 50 held-out episodes). On ray-traced streets in Munich (Sionna RT, four held-out streets), that advantage is gone: there is no detectable difference from tuned OLLA, neither for PPO trained on TDL (-2.0%, CI [-4.9%, +2.2%]) nor for PPO trained on the Munich training streets (+2.7%, CI [-0.6%, +7.4%]). Training on the site does beat training on TDL, by +4.8% (CI [+4.0%, +5.5%]), in every route category and on two ray-tracing realizations. Each policy does best on the kind of channel it was trained on: PPO trained on Munich is 8.3% below tuned OLLA on TDL.

Why

Recent RL link-adaptation studies on Sionna (see Related work) each build their own environment. linkgym is a reusable, pip-installable Gymnasium environment, registered as linkgym/LinkAdaptation-v0, with built-in baselines (fixed MCS, ILLA, OLLA, oracle) and a fixed evaluation protocol. All policies are evaluated with common random numbers: for a given seed, every policy faces the same channel and the same ACK draws. Besides 3GPP TDL fading, the environment runs on channel traces: a published ray-traced dataset of Munich streets, traces you generate from your own Sionna RT scene, or any channel you can write as an array of gains.

Installation

pip install linkgym           # environment and baselines
pip install "linkgym[train]"  # adds Stable-Baselines3 and TensorBoard for the PPO example

From source, with the training extras:

git clone https://github.com/Tempip/linkgym.git
cd linkgym
pip install -e ".[train]"

Requires Python >= 3.11 (tested on 3.11 and 3.12); sionna-no-rt 2.1.x is installed automatically. A CPU-only PyTorch build is enough. To avoid downloading CUDA wheels, install it first with pip install torch --index-url https://download.pytorch.org/whl/cpu. The simulator runs faster with one torch thread; call torch.set_num_threads(1) in your own script (the package does not change it).

To generate traces with Sionna RT, install pip install "linkgym[rt]" in a separate environment: installing it where you train can break imports on machines without a CUDA GPU or LLVM (why).

Quickstart

Create the environment and evaluate Sionna's OLLA with linkgym.evaluate:

import gymnasium as gym

import linkgym
from linkgym.baselines import OLLAPolicy

env = gym.make("linkgym/LinkAdaptation-v0", speed=3.0)  # any ScenarioConfig field
obs, info = env.reset(seed=0)
obs, reward, terminated, truncated, info = env.step(env.action_space.sample())

result = linkgym.evaluate(
    OLLAPolicy(bler_target=0.1), env_kwargs={"speed": 3.0}, seeds=[1000, 1001]
)
print(result["goodput_mbps"]["mean"], result["observed_tbler"]["mean"])

Train PPO with Stable-Baselines3 and evaluate it the same way. This needs the [train] extra (pip install "linkgym[train]"); it is a short run, the results below use 1M steps:

import gymnasium as gym
from stable_baselines3 import PPO
from stable_baselines3.common.env_util import make_vec_env

import linkgym
from linkgym.baselines import SB3Policy

vec_env = make_vec_env(lambda: gym.make("linkgym/LinkAdaptation-v0"), n_envs=4, seed=0)
model = PPO("MlpPolicy", vec_env, gamma=0.0, seed=0).learn(total_timesteps=8_192)
print(linkgym.evaluate(SB3Policy(model), seeds=[1000])["goodput_mbps"]["mean"])

A longer walk-through is in examples/quickstart.ipynb.

Results

TDL channel (v0.1)

Default scenario, held-out test seeds 1000-1009, 5 episodes each (50 episodes of 1000 slots). Means over the test seeds; PPO is the mean of 3 training seeds (std 0.04 Mbit/s across them). All policies except the oracle observe exactly the same delayed feedback (wideband SINR, HARQ ACK/NACK, MCS used).

PPO vs tuned OLLA, paired over the 50 test episodes: +4.93 Mbit/s (+16.0%) goodput per episode, 95% bootstrap CI [+4.65, +5.21] Mbit/s ([+14.9%, +17.1%]). The protocol, validation-based selection, the other comparisons and the figures are in docs/results/m3/README.md. These results hold for this TDL scenario only.

Ray-traced Munich streets (v0.2)

The Munich dataset: 15 streets around one rooftop base station, split by street into train (8), val (3) and test (4). Test: 92 episodes of 1000 slots on 23 trajectories. OLLA was tuned on the val streets (target 0.05, delta_up 0.25 dB), PPO trained on the train streets (3 training seeds, means reported), and the protocol was committed before training. Paired differences with 95% cluster bootstrap CIs over test trajectories; "holds" means the classification (better, worse, no detectable difference) is the same on a second ray-tracing realization of the test streets.

Against tuned OLLA, by route category, PPO trained on TDL is worse on the line-of-sight street and PPO trained on Munich better on the NLoS streets; the other differences are inconclusive. Tuned OLLA is within 3 Mbit/s of the oracle here, which leaves less room than on TDL. With the default SNR normalization, 9% of the test slots are outages in which even the lowest MCS has a TBLER above 5%; a post hoc analysis shows that they account for tuned OLLA's observed TBLER of 0.129 against its 0.05 target. Protocol, per-category and per-route results, both realizations and the analysis: docs/results/v02/README.md.

Munich dataset

Ray-traced channel traces of 15 streets around one rooftop base station in Sionna RT's munich scene: 76 trajectories of 4000 slots (2 s at 15 m/s), 52 PRBs at 3.5 GHz, split by street into train, val and test, plus a second ray-tracing realization of the test streets. Published on Zenodo under the Open Database License (ODbL) 1.0, in two versions; cite the version you use, the one fetch downloads:

• v1, DOI 10.5281/zenodo.23135098: the gain per slot and PRB of a single-antenna link (munich-v1, 67 MB, and munich-v1-test-alt), for channel="trace". The v0.2 results use it.
• v2, DOI 10.5281/zenodo.23267742: the ray-traced paths of the same trajectories (munich-v2, 318 MB, and munich-v2-test-alt), from which linkgym.paths rebuilds the channel of every antenna of a transmit array and the gains of codebook beams; a single antenna gives back the v1 gains. The v2 record also holds the v1 files.

All versions, resolving to the latest, are under 10.5281/zenodo.23135097. The scene derives from OpenStreetMap data, (c) OpenStreetMap contributors.

linkgym.datasets.fetch downloads a file once, verifies its SHA-256 and returns its path:

import gymnasium as gym

from linkgym.datasets import fetch

path = fetch("munich-v1")  # 67 MB, cached in ~/.cache/linkgym (or $LINKGYM_DATA_DIR)
env = gym.make(
    "linkgym/LinkAdaptation-v0", channel="trace", trace_path=str(path), trace_splits=["train"]
)
obs, info = env.reset(seed=0)
print(env.unwrapped.channel_info)  # trajectory, start slot, split, route category, SNR

How it was generated, its statistics and its known limitations (the ray tracing does not converge within the ray budget; refraction is off) are in docs/channels.md; how to use the paths of v2 with an antenna array, in docs/paths.md.

Bring your own channel or Sionna RT scene

Any channel you can write as linear power gains per trajectory, slot and PRB works: write it with write_trace, label each trajectory with a split, and pass the file to the environment.

import gymnasium as gym
import numpy as np

from linkgym.channels import write_trace

# |h|^2 for 3 trajectories of 2000 slots and 52 PRBs: here Rayleigh block fading
gain = np.repeat(np.random.default_rng(0).exponential(size=(3, 200, 52)), 10, axis=1)
write_trace(
    "my_channel.h5",
    gain,
    split=["train", "val", "test"],
    carrier_frequency_hz=3.5e9,  # must match the scenario
    subcarrier_spacing_hz=30e3,
    slot_duration_s=0.5e-3,
)
env = gym.make("linkgym/LinkAdaptation-v0", channel="trace", trace_path="my_channel.h5")

For ray-traced traces, the linkgym-traces command (from the rt extra) computes them with Sionna RT from a JSON configuration: a scene (a built-in one or your own Mitsuba XML), a transmitter and routes split by street. The tutorial goes from a scene to a trained and evaluated agent, step by step; docs/channels.md documents the trace format, the SNR modes and the generator.

Building blocks for your own environment

Three modules can be used outside LinkAdaptation-v0, for example in a multi-user or beam-management environment of your own:

• linkgym.phy (stable): the link-level functions the environment's simulator uses. effective_sinr gives the EESM effective SINR. transmit gives the ACK, delivered bits and TBLER of a transport block, from uniforms you provide, so different policies face the same draws. See docs/phy.md.
• linkgym.beams (experimental): DFT codebooks for linear and planar arrays, steering vectors, beam gain, RSRP and best beam, consistent with Sionna RT's arrays. See docs/beams.md.
• linkgym.paths (experimental): trace format 2, which stores the ray-traced paths of a trace, and PathTraceSource, which rebuilds from them the channel of every antenna of any transmit array (size, spacing, orientation) and the gain of every beam of a codebook, as Sionna RT's synthetic arrays do. linkgym-traces generate --store-paths writes such traces, and the Munich dataset v2 is one. See docs/paths.md.

Which parts of linkgym are stable, and what a patch or minor release may change, is set out in docs/api_stability.md.

Environment at a glance

Every scenario field can be passed to gym.make. Timing, observation layout and info keys are in docs/environment.md, the channel options in docs/channels.md.

Reproducing the results

TDL (v0.1), in Bash:

pip install -e ".[train]"
for gamma in 0 0.9; do
  for seed in 0 1 2; do
    python examples/train_ppo.py --gamma $gamma --seed $seed
  done
done
python examples/evaluate_all.py

PowerShell:

pip install -e ".[train]"
foreach ($gamma in "0", "0.9") {
  foreach ($seed in 0, 1, 2) {
    python examples/train_ppo.py --gamma $gamma --seed $seed
  }
}
python examples/evaluate_all.py

Munich (v0.2), after the TDL runs above (the evaluation also uses the gamma = 0 TDL models). The first line downloads both dataset files to data/. In Bash:

LINKGYM_DATA_DIR=data python -m linkgym.datasets munich-v1 munich-v1-test-alt
for seed in 0 1 2; do
  python examples/train_ppo.py --gamma 0 --seed $seed --channel trace --trace-path data/munich-v1.h5 --eval-freq 100000
done
for phase in validation test q4 report; do python examples/evaluate_v02.py $phase; done

PowerShell:

$env:LINKGYM_DATA_DIR = "data"; python -m linkgym.datasets munich-v1 munich-v1-test-alt
foreach ($seed in 0, 1, 2) {
  python examples/train_ppo.py --gamma 0 --seed $seed --channel trace --trace-path data/munich-v1.h5 --eval-freq 100000
}
foreach ($phase in "validation", "test", "q4", "report") { python examples/evaluate_v02.py $phase }

Measured on an AMD Ryzen 7 7700X (8 cores, 16 threads), Windows 11, CPU only (torch 2.14.0+cpu, sionna-no-rt 2.1.0):

• TDL: each training run, 1,015,808 steps with 8 SubprocVecEnv workers, took 654-657 s; the six runs took 67 minutes one after another. evaluate_all.py, on 8 worker processes: 42 s for the OLLA tuning grid on the validation seeds, then 535 s for all test evaluations. It writes the tables and figures to docs/results/m3/.
• Munich: each training run took 1169-1201 s, including 12 validation passes. The evaluate_v02.py phases took 347 s (validation), 583 s (test) and 103 s (q4) on 8 worker processes; report writes the tables and figures to docs/results/v02/. The test phase refuses to run again once its results exist.

Numbers can differ slightly on other hardware, operating systems or library versions; the committed CSVs are the reference.

Limitations

• A simplified link-level simulator: a single SISO link, a SINR-to-BLER abstraction with coarse BLER tables, no HARQ retransmissions, no interference, no channel estimation error.
• Few channels: one TDL scenario, and one ray-traced site with one base station, where the test split has four streets (one line-of-sight, one transition, two NLoS). The Munich results describe these streets, not sites in general.
• The ray tracing does not converge within the ray budget: the dataset is one deterministic realization, with refraction off. All Munich verdicts were the same on a second realization, which is one other ray budget, not an independent channel.
• The default SNR normalization divides each trajectory by its mean linear gain, which puts the weak stretches of trajectories with a large dynamic range into outage (9% of the Munich test slots); these slots raise every policy's observed TBLER.
• PPO uses Stable-Baselines3 default hyperparameters, 1M steps and 3 training seeds; the confidence intervals do not include training-seed variance.
• OLLA and PPO optimise different objectives: OLLA holds a TBLER target, PPO maximises goodput; the comparison is in goodput, with TBLER reported alongside.
• The oracle knows the current slot's channel and is not achievable in practice.
• A policy learned in this simulator adapts to its abstraction; the results may not transfer to real systems.

Full lists: TDL results, Munich results, Munich traces, simulator, environment.

Roadmap

Multi-antenna channels and beam management, one small release at a time, on top of the building blocks released in 0.3 (linkgym.phy, linkgym.beams) and 0.4 (linkgym.paths); the published results stay unchanged.

• 0.4 (released): trace format 2, which stores the ray-traced paths at the anchors, so that the per-antenna channel can be rebuilt for any array and codebook; the generator option to write it (--store-paths), the reconstruction, the ArrayChannelSource interface with PathTraceSource, and the Munich 3.5 GHz paths dataset (v2) on Zenodo. The element pattern and polarization are fixed at generation and recorded in the attributes.
• 0.5: a cache of beam gains for a chosen array and codebook, and sampling and evaluation of several simultaneous users from a trace.
• 0.6 (optional): an FR2 (28 GHz) dataset and/or a statistical multi-antenna channel source based on 3GPP CDL.

Other planned work:

• A median-based normalization option for trace channels: the mean linear gain used now lets a short strong stretch push the rest of a trajectory into outage (channels).
• Include the agent's own pending actions in the observation when the feedback delay is larger than one slot.
• A variant with a continuous SINR-offset action.
• A reward variant with a TBLER constraint.
• Vectorised, batched environments for faster training.

Later:

• Ray-traced datasets of more sites and base stations, to test transfer across sites.
• PDSCH MCS table 2 (256-QAM, BLER data up to 25 dB).

Contributing

Setup, checks and commit conventions are in CONTRIBUTING.md.

Related work

Link adaptation with RL on Sionna:

• sionna-rl: a reproducible study comparing PPO against Sionna's OLLA for single-link MCS selection.
• M. Tsampazi, N. N. Santhi, N. Perrotta, F. Dressler, T. Melodia, "ARIADNE: AI-RAN Informed Link Adaptation in Digital Twin Network Environments", European Wireless 2026. arXiv:2605.29772. RL (PPO) link adaptation integrated with Sionna SYS over ray-traced channels, compared against OLLA and SALAD.

Other RL environments for wireless networks:

• mobile-env: a Gymnasium environment for coordination in wireless mobile networks, such as multi-cell selection, with single- and multi-agent RL.
• ns-O-RAN Gym: a Gymnasium environment for online RL in 5G Open RAN on the ns-3-based ns-O-RAN simulator, with traffic-steering and energy-saving use cases.
• RFRL Gym: a reinforcement-learning training environment for cognitive radio applications in the RF spectrum, such as jamming, with multi-agent support.

Ray-traced channels with Sionna RT:

• ns3sionna: an ns-3 module that computes realistic channels by ray tracing with Sionna RT for network simulation.
• RL-AERPAW-DT: a Sionna RT digital twin of UAV-assisted communication in downtown Raleigh, compared with the AERPAW path-loss model, with a reinforcement-learning pipeline for UAV control in progress.

linkgym differs from the first group in being a reusable, registered Gymnasium environment rather than a single study, and from the second in modelling the link level (MCS selection on Sionna SYS) rather than network-level coordination.

Citation

If you use linkgym, please cite it:

@software{rodrigues2026linkgym,
  author  = {Rodrigues Souza, Pedro José},
  title   = {linkgym: A Gymnasium environment for 5G NR link adaptation},
  year    = {2026},
  version = {0.4.0},
  url     = {https://github.com/Tempip/linkgym}
}

and, if you use the Munich traces, the dataset version you used: v1 for the gains, v2 for the paths.

@dataset{rodrigues2026munich,
  author    = {Rodrigues Souza, Pedro José},
  title     = {linkgym Munich ray-traced channel traces, v1},
  year      = {2026},
  version   = {v1},
  publisher = {Zenodo},
  doi       = {10.5281/zenodo.23135098}
}

@dataset{rodrigues2026munich_v2,
  author    = {Rodrigues Souza, Pedro José},
  title     = {linkgym Munich ray-traced channel traces, v2},
  year      = {2026},
  version   = {v2},
  publisher = {Zenodo},
  doi       = {10.5281/zenodo.23267742}
}

GitHub's "Cite this repository" button uses CITATION.cff.

License

The code is MIT licensed. See LICENSE. The Munich dataset is licensed under the Open Database License (ODbL) 1.0; it derives from OpenStreetMap data, (c) OpenStreetMap contributors. The same applies to the small samples of it in tests/data/munich_sample.h5 and tests/data/munich_paths_sample.h5, and the route figure docs/assets/munich_routes.png shows OpenStreetMap-derived buildings.

This project is not affiliated with or endorsed by NVIDIA. Sionna is a trademark of NVIDIA Corporation.
