2D Turbulence (SciPy + CuPy)

2D Turbulence Simulation (SciPy / CuPy)

Source code: https://github.com/mannetroll/palinstrophy

A Direct Numerical Simulation (DNS) code for 2D homogeneous incompressible turbulence

It supports:

• SciPy / NumPy for CPU runs
• CuPy (optional) for GPU acceleration on CUDA devices (e.g. RTX 3090)

One-liner CPU/SciPy (macOS)

$ curl -LsSf https://astral.sh/uv/install.sh | sh
$ uv cache clean mannetroll-palinstrophy
$ uv run --python 3.13 --with mannetroll-palinstrophy==0.1.0 turbulence

One-liner GPU/CuPy (Windows or Linux with CUDA)

$ uv run --python 3.13 --with mannetroll-palinstrophy[cuda]==0.1.0 turbulence

DNS solver

The solver includes:

• PAO-style random-field initialization
• 3/2 de-aliasing in spectral space
• Crank–Nicolson time integration
• CFL-based adaptive time stepping (Δt updated from the current flow state)

cupystorm GUI (PySide6)

Run an cupystorm window that:

• Displays the flow field as a live image (fast Indexed8 palette rendering)
• Lets you switch displayed variable:
  • U, V (velocity components)
  • K (kinetic energy)
  • Ω (vorticity)
  • φ (stream function)
• Lets you switch colormap (several built-in palettes)
• Lets you change simulation parameters on the fly:
  • Grid size N
  • Reynolds number Re (adapted)
  • Initial spectrum peak K0
  • CFL number CFL
  • Max steps / auto-reset limit
  • GUI update interval (how often to refresh the display)

Keyboard shortcuts

Single-key shortcuts (application-wide) for fast control:

• H: stop
• G: start
• Y: reset
• V: cycle variable
• C: cycle colormap
• N: cycle grid size
• K: cycle K0
• L: cycle CFL
• S: cycle max steps
• U: cycle update interval

Saving / exporting

From the GUI you can:

• Save the current frame as a PNG image
• Dump full-resolution fields to a folder as PGM images:
  • u-velocity, v-velocity, kinetic energy, vorticity

Display scaling

To keep the GUI responsive for large grids, the displayed image is automatically upscaled/downscaled depending on N. The window is resized accordingly when you change N.

Installation

Using uv

From the project root:

$ uv sync
$ uv run turbulence
$ uv run sim

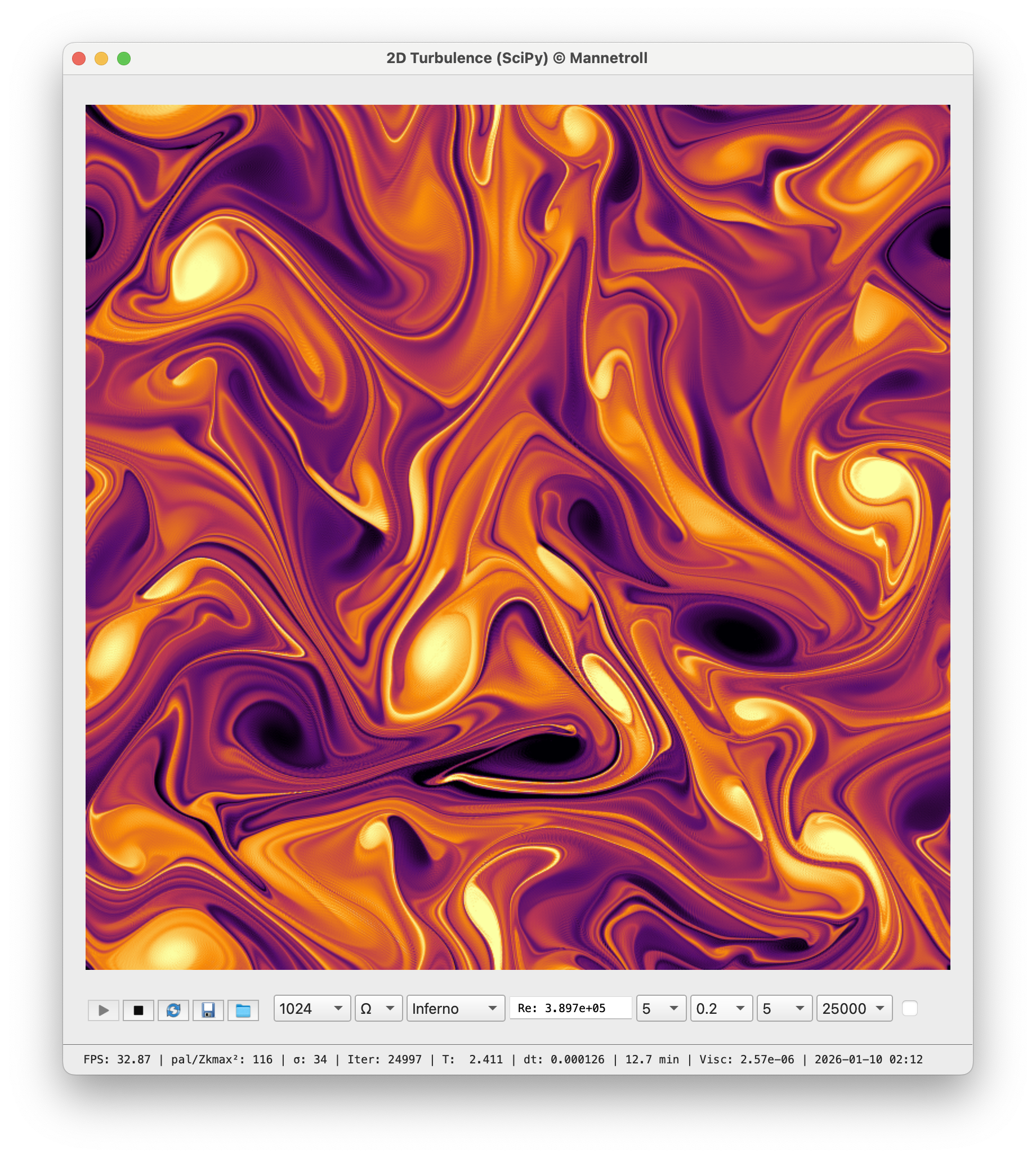

The DNS with SciPy (1024 x 1024)

Full CLI

$ python -m palinstrophy.turbo_simulator N Re K0 STEPS CFL BACKEND

Where:

• N — grid size (e.g. 256, 512)
• Re — Reynolds number (e.g. 10000)
• K0 — peak wavenumber of the energy spectrum
• STEPS — number of time steps
• CFL — target CFL number (e.g. 0.75)
• BACKEND — "cpu", "gpu", or "auto"

Examples:

# CPU run (SciPy with 4 workers)
$ python -m palinstrophy.turbo_simulator 256 10000 10 1001 0.75 cpu

# Auto-select backend (GPU if CuPy + CUDA are available)
$ python -m palinstrophy.turbo_simulator 256 10000 10 1001 0.75 auto

Enabling GPU with CuPy (CUDA 13)

On a CUDA machine (e.g. RTX 3090):

1. Check that the driver/CUDA are available:

   $ nvidia-smi


2. Install CuPy into the uv environment:

   $ uv sync --extra cuda
   $ uv run turbulence
   $ uv run sim


3. Verify that CuPy sees the GPU:

   $ uv run python -c "import cupy as cp; x = cp.arange(5); print(x, x.device)"


4. Run in GPU mode:

   $ uv run python -m palinstrophy.turbo_simulator 256 10000 10 1001 0.75 gpu


Or let the backend auto-detect:

   $ uv run python -m palinstrophy.turbo_simulator 256 10000 10 1001 0.75 auto

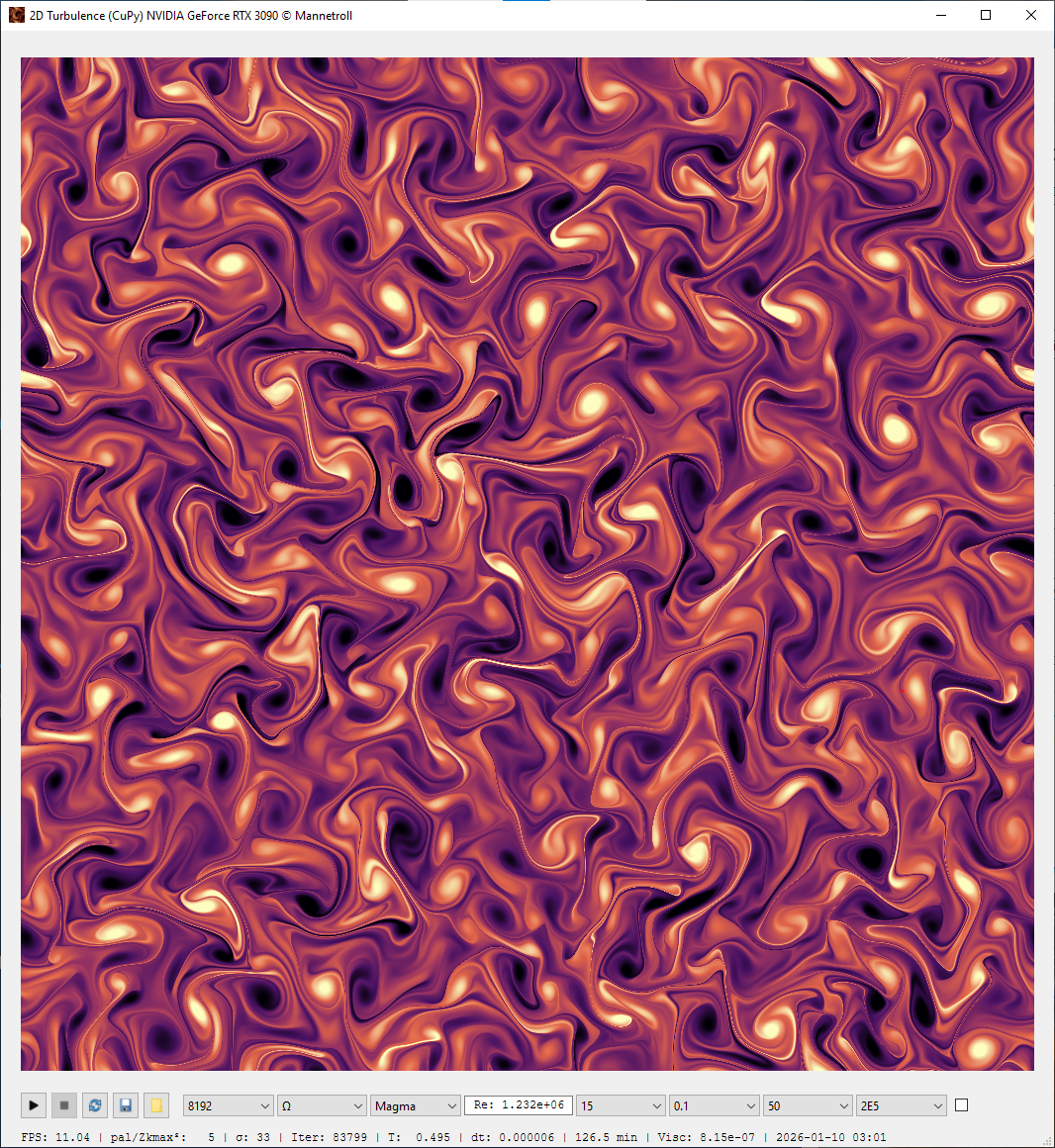

The DNS with CuPy (8192 x 8192) Dedicated GPU memory 18/24 GB

Profiling

cProfile (CPU)

$ python -m cProfile -o turbo_simulator.prof -m palinstrophy.turbo_simulator

Inspect the results:

$ python -m pstats turbo_simulator.prof
# inside pstats:
turbo_simulator.prof% sort time
turbo_simulator.prof% stats 20

GUI profiling with SnakeViz

Install SnakeViz:

$ uv pip install snakeviz

Visualize the profile:

$ snakeviz turbo_simulator.prof

Memory & CPU profiling with Scalene (GUI)

Install Scalene:

$ uv pip install "scalene==1.5.55"

Run with GUI report:

$ scalene -m palinstrophy.turbo_simulator 256 10000 10 201 0.75 cpu

Memory & CPU profiling with Scalene (CLI only)

For a terminal-only summary:

$ scalene --cli --cpu -m palinstrophy.turbo_simulator 512 10000 10 201 0.75 cpu
$ scalene --cli --cpu -m palinstrophy.turbo_main 512 15 10000 1E5 0.1 auto 10 201

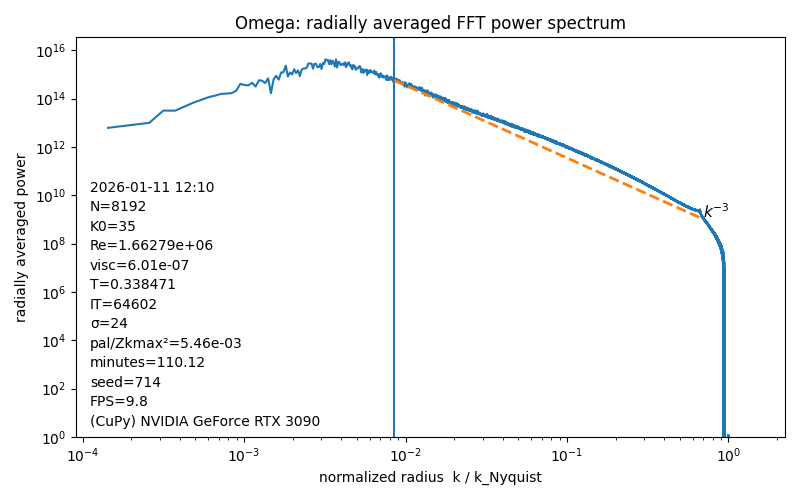

The power spectrum of the vorticity field

The radially averaged 2D FFT power spectrum of the vorticity field omega on log–log axes.
The x-axis is the normalized radial wavenumber (k/k_Nyquist), and the y-axis is the mean FFT power ω(k)² averaged within radial bins.
A vertical line marks the scale K0, and a dashed reference slope k⁻³ is drawn to compare against an expected inertial-range power-law behavior.

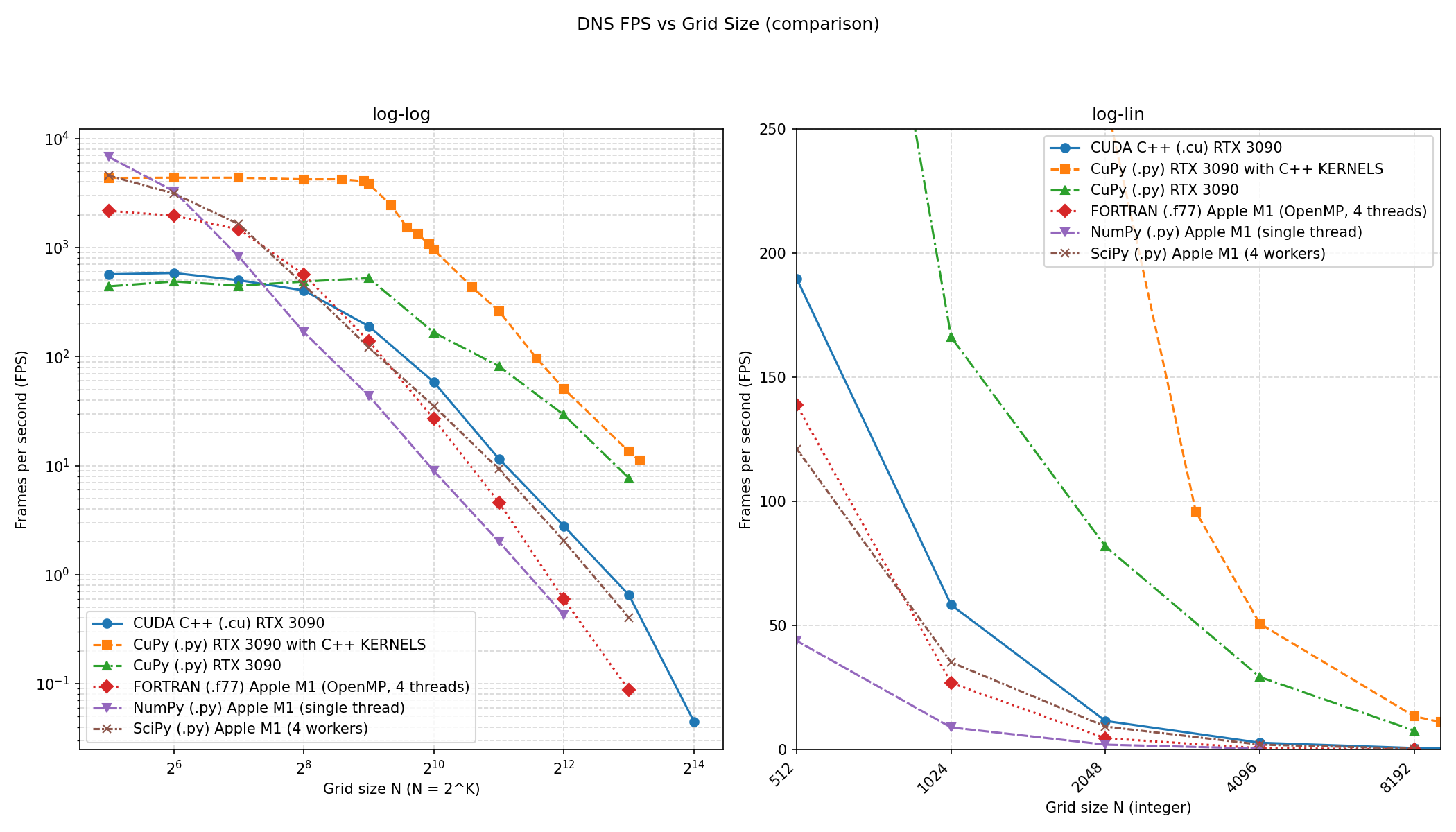

FPS Comparison Plot (DNS FPS vs Grid Size and Code)

Code bases compared

• CUDA C++ (.cu) — RTX 3090
• CuPy (Python) + custom C++ kernels (.py + C++ kernels) — RTX 3090
• CuPy (Python) (.py) — RTX 3090
• FORTRAN (.f77) — Apple M1 (OpenMP, 4 threads)
• NumPy (Python) (.py) — Apple M1 (single thread)
• SciPy (Python) (.py) — Apple M1 (4 workers)
