marinholab-papers-icra2023-orbitalmanipulation 25.5.1

Package related to the paper https://doi.org/10.1109/ICRA48891.2023.10160795.

ICRA2023: Autonomous Orbital Manipulation using Vector-Field Inequalities Example

python3 -m pip install marinholab-papers-icra2023-orbitalmanipulation

Orbital manipulation code and a minimal example for our ICRA2023 paper. (https://arxiv.org/pdf/2302.05567.pdf for the green open-access link)

@InProceedings{koyama2023vitreoretinal,
  author       = {Koyama, Y. and Marinho, M. M. and Harada, K.},
  title        = {Vitreoretinal Surgical Robotic System with Autonomous Orbital Manipulation using Vector-Field Inequalities},
  booktitle    = {2023 IEEE International Conference on Robotics and Automation (ICRA)},
  year         = {2023},
  month        = may,
  organization = {IEEE},
  pages        = {4654--4660},
  doi          = {10.1109/ICRA48891.2023.10160795}
}

In this example, I implemented the main code of the paper in marinholab.papers.icra2023.orbital_manipulation._orbital_manipulation.

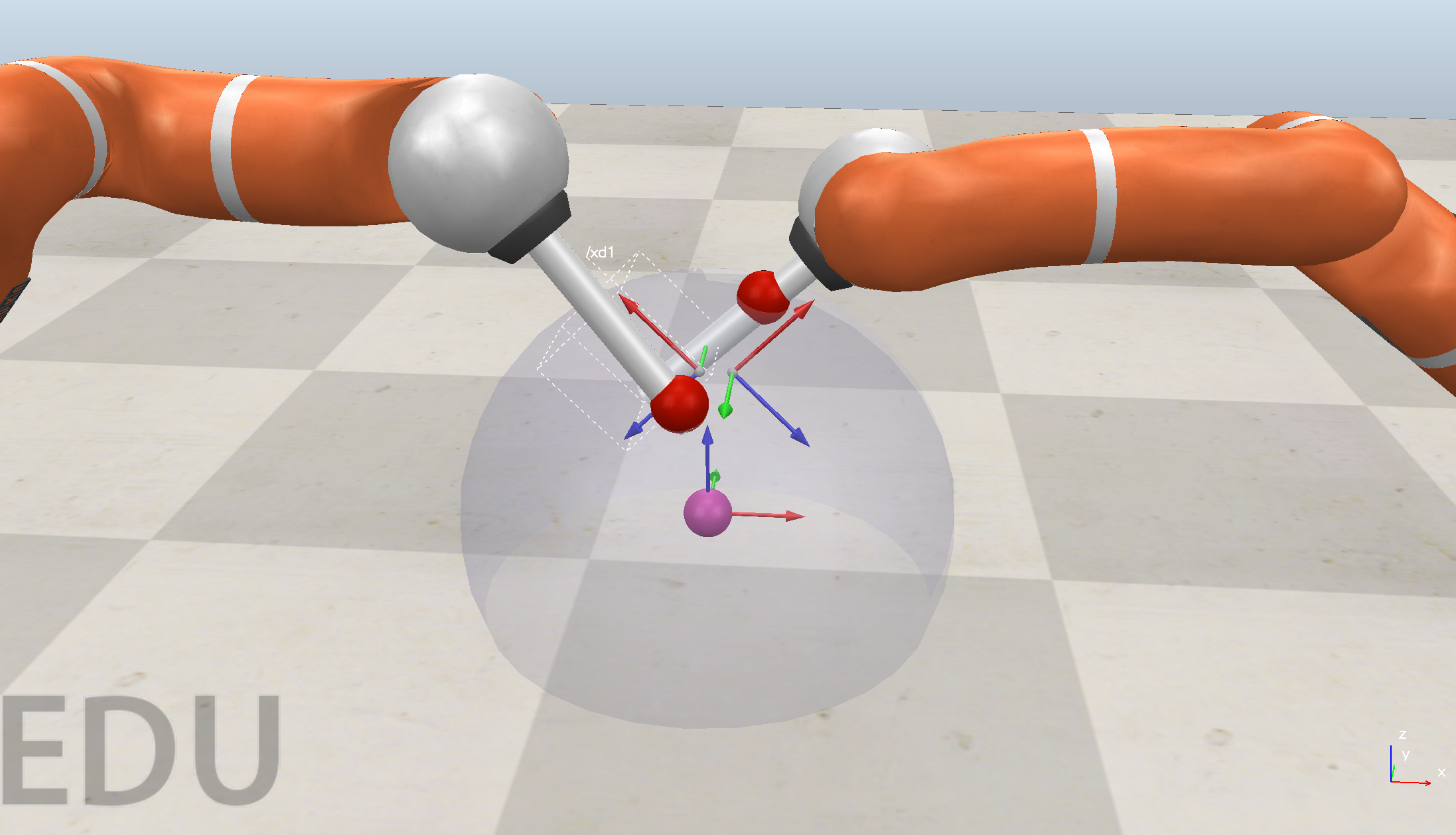

By moving xd1 and xd2, the user can see the controller handling the orbital manipulation constraint at execution time.

To simplify this example to users outside my lab, I used the KUKA LBR4+ robots available by default in CoppeliaSim.

The "eye" is in this simulation is much bigger than in the real experiments for easier visualization and operation on CoppeliaSim.

Changelog

2025.05

• Package structure was modified to be compliant with the new marinholab.papers namespace in PyPI.
• Given that DQ_VrepInterface was archived, this code was modified to be compliant with DQ_CoppeliaSimInterfaceZMQ.

Configuration

Supposing you have a suitable Python3 installation, do as follows.

1. Download this repository

git clone https://github.com/mmmarinho/icra2023_orbitalmanipulation.git
cd icra2023_orbitalmanipulation

2. Create a virtual environment

python3 -m venv venv
source venv/bin/activate

• These instructions are for bash-enabled systems, for other terminal programs, check the venv documentation linked below.
• Remember to always activate this virtual env again when you want to reuse it.
• For more info on how to use venv [click here].

3. Install the package

python3 -m pip install marinholab-papers-icra2023-orbitalmanipulation

Running this code

1. Open the orbital_manipulation_403_rev3.ttt scene in CoppeliaSim

2. Run the main script. Example

marinholab_papers_icra2023_orbitalmanipulation

• If at this stage you have problems connecting to CoppeliaSim, check the DQRobotics CoppeliaSim Interface webpage for possible fixes and tips.

3. The simulation will start automatically. You can click and drag the xd1 and xd2 to change each robot's setpoint. Then, the robots will move accordingly to keep the orbital manipulation constraint.

4. You can stop the script with CTRL+C.

TODO

• Add the motion of the eye in the simulation. The real eye will naturally move in reaction to the motion enacted by the moving RCM points of each instrument.
