modular-cli 2.3.27

Dynamic CLI for modular-api

Table of Contents

• Introduction

1. General Information
   • Key Features
   • Architecture Overview
   • Prerequisites
2. Installation and Configuration
   • Prerequisites
   • Installation Steps
   • Initial Configuration
   • Configuration File Location
3. Authentication and Authorization
   • Login Process
   • Token Management
   • Authorization Model
   • Security Best Practices
4. Command Usage
   • Command Structure
   • Built-in Commands
   • Discovering Available Commands
   • Command Execution Examples
   • Common Parameters
5. Output Formats
   • Plain Text Output
   • JSON Output
   • Table Output
   • Response Structure
6. Autocomplete
   • Prerequisites
   • Enable Autocomplete
   • Using Autocomplete
   • Disable Autocomplete
   • Troubleshooting Autocomplete
7. Advanced Configuration
   • Environment Variables
   • Configuration File Structure
   • Multiple Profiles
   • Logging Configuration
8. Modular-CLI Schema
   • Architecture Diagram
   • Request Flow
   • Component Interaction
9. Annexes
   • Annex 1: Common Use Cases
   • Annex 2: Troubleshooting Guide
10. Project Information

Introduction

About This Guide

This guide describes the installation, configuration, and usage of Modular-CLI – a specialized command-line interface tool for interacting with Modular-API. It provides comprehensive instructions for authentication, command execution, and automation workflows.

Target Audience

This guide is designed for:

• System Administrators managing cloud resources through Modular-API
• DevOps Engineers integrating Modular-CLI into CI/CD pipelines
• Support Engineers performing diagnostic and operational tasks
• Developers building automation scripts with Modular-CLI

Related Documents

• For Modular-API server setup and administration, refer to Modular-API Documentation
• For M3 Admin commands and cloud operations, see M3 Admin User Guide
• For SDK integration, see Modular-SDK Documentation

Content ↑

1. General Information

Modular-CLI is a specialized command-line interface tool for interacting with Modular-API. It provides a seamless way to execute commands, manage resources, and interact with multiple modules through a unified CLI interface.

Key Features

Feature	Description
Automatic Authentication	JWT token generation and management
Dynamic Command Loading	Automatically discovers available commands based on permissions
Multiple Output Formats	JSON, table, and plain text output
Autocomplete Support	Command and parameter autocompletion (Unix-based systems only)
Secure Credential Storage	Encrypted local storage of authentication credentials
Real-time Validation	Parameter validation before sending requests
Unified Interface	Single entry point for all Modular-API modules

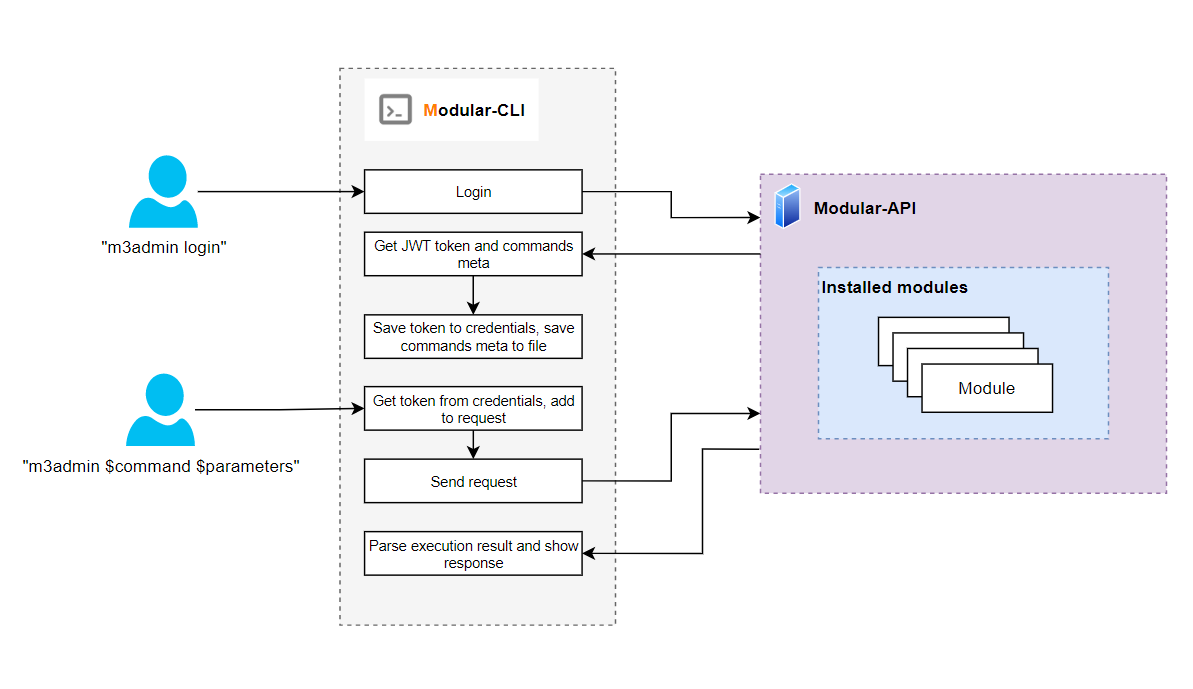

Architecture Overview

Modular-CLI acts as a client-side interface that:

1. Authenticates users with Modular-API
2. Retrieves available commands based on user permissions
3. Dynamically generates CLI commands from API metadata
4. Validates inputs before sending requests
5. Formats and displays responses in user-friendly formats
6. Manages JWT tokens and session persistence

Prerequisites

Before using Modular-CLI, ensure you have:

Requirement	Description
Python 3.10+	Python interpreter installed
pip	Package manager for Python
Active Modular-API server	Server must be running and network accessible
Valid user credentials	Username and password from administrator
Network connectivity	Access to Modular-API server endpoint

Content ↑

2. Installation and Configuration

Prerequisites

Download and install Python 3.10 or higher:

• Python for Windows
• Python for Linux
• Python for Mac

Verify installation:

python --version
# Expected: Python 3.10.x or higher

pip --version
# Expected: pip 21.x or higher

IMPORTANT: Using a virtual environment is highly recommended to prevent dependency conflicts.

Installation Steps

1. Create Virtual Environment

On Linux/Mac:

python3.10 -m venv modular_cli_venv
source modular_cli_venv/bin/activate

On Windows (PowerShell):

python -m venv modular_cli_venv
.\modular_cli_venv\Scripts\Activate.ps1

2. Install Modular-CLI

From Source:

# Clone repository
git clone https://github.com/epam/modular-cli.git
cd modular-cli

# Install
pip install .

# Or download from PYPI
pip install modular-cli

# Verify installation
modular_cli --version

3. Custom Entry Point (Optional)

You can customize the command name by setting an environment variable before installation:

On Linux/Mac:

export MODULAR_CLI_ENTRY_POINT=modular
pip install .

# Now use your custom command name
modular --help

On Windows:

$env:MODULAR_CLI_ENTRY_POINT="modular"
pip install .

# Now use your custom command name
modular --help

NOTE: This documentation uses modular_cli as the default entry point. Replace it with your custom name if configured differently.

Initial Configuration

Configure Connection to Modular-API

Before using Modular-CLI, you must configure the connection to your Modular-API server.

Basic Setup:

modular_cli setup \
  --username YOUR_USERNAME \
  --password YOUR_PASSWORD \
  --api_path https://your-modular-api.example.com/integration

Example:

modular_cli setup \
  --username john_doe \
  --password SecureP@ssw0rd \
  --api_path https://api.company.com/modular/integration

Expected output:

Response:
Great! The CLI tool 'modular_cli' has been set up

IMPORTANT: The Modular-API server must be running and accessible when executing the setup command.

Update Configuration

To update existing configuration (change credentials or API path):

modular_cli setup \
  --username new_username \
  --password new_password \
  --api_path https://new-api.example.com/integration

Remove Configuration

To delete all stored credentials and configuration:

modular_cli cleanup

Expected output:

Response:
Configuration for the CLI tool 'modular_cli' has been deleted

WARNING: This command removes all local configuration. You'll need to run setup again before using Modular-CLI.

Configuration File Location

Modular-CLI stores configuration in the following locations:

Platform	Path
Linux/Mac	~/.modular_cli/
Windows	C:\Users\<Username>\.modular_cli\

Configuration Files:

File	Description
commands_meta.json	Commands metadata file
credentials	User credentials file

Content ↑

3. Authentication and Authorization

Login Process

After configuring Modular-CLI, you must authenticate to receive a JWT token and retrieve available commands.

Execute Login

modular_cli login

Expected output:

Response:
Login successful

Credentials file example (~/.modular_cli/credentials):

access_token: eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VybmFtZSI6ImpvaG5fZG9lIiwiaWF0IjoxNzYzNDU1MTQ3LCJleHAiOjE3NjM1NDE1NDcsIm1ldGFfdmVyc2lvbiI6IjUzMDkxMTdlYTE2YTc4OWZiZmFjZDZjYzk4MGY4OTM4ZmFkYjA2NWIifQ.yw3RUDFj-gbl8IPavxlQvMgAUlrDE9PI6zY_K7hKFY4
api_link: http://127.0.0.1:8088/integration
password: qwertyuiasdfghjk21
refresh_token: eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9.eyJ1c2VybmFtZSI6ImpvaG5fZG9lIiwidmVyc2lvbiI6ImZlMWQ3MWNlMWM2MTllZjcyMTljZDJmYzk3YzVkY2JiMWMzM2FmYTA5ZmJkZWE4MmQ4ODI1OGQ1YTBiZTdkOTkiLCJpYXQiOjE3NjM0NTUxNDcsImV4cCI6MTc2NDY2NDc0N30.Z6M628PTxOsvrm5Owzmau6o7UJrsIBPfAQKP7QRkIsY
username: john_doe
version: 4.3.8

Token Management

Token Types and Validity

Token Type	Validity	Purpose
Access Token	24 hours	Used for command execution
Refresh Token	14 days	Used to automatically renew access tokens

Automatic Token Refresh

Modular-CLI automatically manages token lifecycle:

What happens during login:

1. Sends credentials to Modular-API
2. Receives two JWT tokens (access and refresh)
3. Retrieves command metadata based on user permissions
4. Caches tokens and metadata locally
5. Generates dynamic Click commands from metadata

How token refresh works:

• When access token expires, Modular-CLI automatically uses the refresh token to obtain a new access token
• This happens transparently without user intervention
• Only when the refresh token expires (after 14 days of inactivity) must you manually run modular_cli login

Manual Token Refresh

To manually refresh your token:

modular_cli login

Token Information

To check token status and permissions:

modular_cli version --detailed

Authorization Model

Available commands depend on your user permissions defined in Modular-API:

Component	Description
Policies	Define allowed/denied operations
Groups	Combine multiple policies
Users	Inherit permissions from assigned groups

Example:

User john_doe in group l3support can only execute commands allowed by L3 support policies:

# This works - allowed by policy
modular_cli tenant describe --tenant AWS-MSTR-DEV

# This fails - denied by policy
modular_cli tenant deactivate_region --tenant AWS-MSTR-DEV --cloud AWS --all_regions
# Error: Access denied. Insufficient permissions.

Security Best Practices

Practice	Description
Never share credentials	Keep tokens and credential files private
Use strong passwords	Follow complexity requirements
Logout when done	Clear cached tokens after sessions
Rotate credentials	Change passwords regularly
Use read-only accounts	For auditing and monitoring tasks
Monitor audit logs	Watch for suspicious activity
Store credentials securely	Use password managers for sensitive data

Content ↑

4. Command Usage

Command Structure

The Modular-CLI follows a hierarchical, multi-layered command structure designed for intuitive navigation and organization.

Command Levels

Level	Description
Root Commands	Top-level commands available directly under modular_cli
Command Groups	Collections of related commands (can contain commands and subgroups)
Subcommands	Specific actions within a group or subgroup

Hierarchical Structure

modular_cli
├── [Command]           # Direct executable commands
├── [Command]
└── [Group]             # Command groups
    ├── [Command]       # Commands within the group
    ├── [Command]
    └── [Subgroup]      # Nested subgroups
        ├── [Command]
        └── [Command]

Getting Help

You can access help documentation at any level of the command hierarchy:

modular_cli --help                    # Show all root-level commands and groups
modular_cli [group] --help            # Show commands within a specific group
modular_cli [group] [subgroup] --help # Show commands within a subgroup

Built-in Commands

Setup - Configure Connection

modular_cli setup --username <USER> --password <PASS> --api_path <URL>

Parameters:

Parameter	Required	Description
--username	✓	Your Modular-API username
--password	✓	Your password
--api_path	✓	Modular-API server URL

Example:

modular_cli setup \
  --username admin \
  --password Admin123! \
  --api_path https://modular.company.com/integration

Login - Authenticate and Refresh Commands

modular_cli login

Purpose: Authenticate user, retrieve JWT token, and refresh available commands.

Output:

Response:
Login successful

Cleanup - Remove Configuration

modular_cli cleanup

Purpose: Remove all stored configuration and credentials.

Output:

Response:
Configuration for the CLI tool 'modular_cli' has been deleted

Version - Display Version Information

modular_cli version --detailed

Parameters:

Parameter	Required	Description
--detailed	No	Show all modules with detailed information

Examples:

# Show server and client versions
modular_cli version

Output:

Server: 4.3.8
Client: 2.3.15

# Show detailed information
modular_cli version --detailed

Output:

Server: 4.3.6
Client: 2.3.13
Billing: 1.1.1
Private: 1.0.6
Low_level: 1.0.15
Maintenance: 1.0.9
Permissions: 2.0.22
Notifications: 1.0.14
Chef: 1.0.2
M3admin: 4.150.5

Health Check - Check API Server Status

modular_cli health_check

Purpose: Verify Modular-API server connectivity and health.

Output:

Response:
Health check successful

Discovering Available Commands

List All Available Commands

modular_cli --help

Expected output:

Description: Here are the commands supported by the current version of modular_cli
IMPORTANT: The scope of commands you can execute depends on your user permissions
Usage: modular_cli [module] group [subgroup] command [parameters]
Options:
  --help     Show this message and exit

Available modules:
  chef

Available groups:
  application
  approval
  aws
  azure
  configure
  enterprise
  ...

Available commands:
  cleanup
  get_operation_status
  health_check
  login
  setup
  version

Get Module-Specific Help

modular_cli chef --help

Expected output:

Description: Here are the commands supported by the current version of modular_cli.
IMPORTANT: The scope of commands you can execute depends on your user permissions
Usage: modular_cli [module] group [subgroup] command [parameters]
Options:
  --help     Show this message and exit

Available groups:
  setting

Available commands:
  add_configuration
  assign_configuration
  delete_client
  delete_configuration
  describe_configuration
  get_client
  set_configuration
  unassign_configuration
  update_configuration
  update_role

Get Command-Specific Help

modular_cli tenant describe --help

Expected output:

Description:
    Lists tenants by certain filters.

Usage: modular_cli tenant describe [parameters]
Parameters:
    --tenant,              -tn,     Apply filter by tenant display name
    --customer_id,         -cid,    Apply filter by customer
    --cloud,               -c,      Apply filter by cloud AZURE|GOOGLE|AWS|...
    --active,              -A,      Apply filter by active
    --account,             -acc,    Apply filter by tenant's account
    --get_linked_tenants,  -glt,    Flag. Retrieve linked tenants
    --json,                         Show response in JSON view
    --table,                        Show response in Table view

Command Execution Examples

Example 1: Simple Command

modular_cli tenant describe --tenant AWS-MSTR-DEV

Example 2: Command with Multiple Parameters

modular_cli tenant add_contacts \
  --tenant AWS-MSTR-DEV \
  --cloud AWS \
  --default_owner [e-mail] \
  --primary_contact [e-mail]

Example 3: Command with List Parameters

modular_cli tenant describe_regions \
  --customer_id EPAM \
  --cloud AWS \
  --cloud AZURE \
  --cloud GOOGLE

Example 4: Module-Specific Command

modular_cli chef add_configuration \
  --name prod-chef-config \
  --chef_server_url https://chef.company.com \
  --validator_key_path /path/to/validator.pem

Common Parameters

Most commands support these common parameters:

Parameter	Description
--json	Output response in JSON format
--table	Output response in table format
--help	Display command-specific help

Content ↑

5. Output Formats

Modular-CLI supports three output formats: plain text (default), JSON, and table.

Plain Text Output (Default)

By default, commands display output in table format when the response is large:

modular_cli tenant describe

Output:

The command's response is pretty huge and the result table structure can be broken.
Do you want to show the response in the JSON format? [y/n]: n

List of tenants
Status: SUCCESS
+----------------------+------------+---------------+------------------+...+----------+...+
|    Tenant name       |   Cloud    | Display name  |    Customer      |...|  Active  |...|
+----------------------+------------+---------------+------------------+...+----------+...+
| AWS-MSTR-DEV         | AWS        | MSTR-DEV      | EPAM Systems     |...|   True   |...|
| AWS-SFTG-MSTR-RES2   | AWS        | SFTG-MSTR     | EPAM Systems     |...|   True   |...|
| VSPHERE_TEST         | VSPHERE    | TEST          | EPAM Systems     |...|   True   |...|
+----------------------+------------+---------------+------------------+...+----------+...+

For specific tenant:

modular_cli tenant describe --tenant TEST-TENANT-001

Output:

Response:
Tenants not found by tenant: 'TEST-TENANT-001'

JSON Output

Use the --json flag to get structured JSON output suitable for parsing and automation:

modular_cli tenant describe --tenant TEST-TENANT-001 --json

Output:

{
    "status": "SUCCESS",
    "code": 200,
    "message": "Tenants not found by tenant: 'TEST-TENANT-001'",
    "warnings": [],
    "meta": {}
}

Example with data:

modular_cli tenant describe --json

Output (truncated):

{
    "status": "SUCCESS",
    "code": 200,
    "table_title": "List of tenants",
    "items": [
        {
            "Tenant name": "AWS-MSTR-DEV",
            "Cloud": "AWS",
            "Display name": "MSTR-DEV",
            "Customer": "EPAM Systems",
            "Linked to": "",
            "Contacts": {
                "default_owner": "[e-mail]",
                "primary_contacts": [
                    "[e-mail]",
                    "[e-mail]"
                ],
                "secondary_contacts": [],
                "tenant_manager_contacts": []
            },
            "Active": true,
            "Billing settings": {
                "deactivation_request_date": null,
                "default_for_common_cost": "AWS-EUCENTRAL",
                "last_rate_cards": null,
                "most_recent_record_date": null,
                "personal": false,
                "tenant_type": "NOT_BILLABLE"
            },
            "Account ID": "958173500045",
            "Activation Date": "2021-04-16T10:51:45.615Z",
            "Deactivation Date": ""
        }
    ],
    "warnings": [],
    "meta": {}
}

Use cases for JSON output:

Use Case	Description
Automation scripts	Parse output programmatically
CI/CD pipelines	Process results in build scripts
Logging	Store structured logs for analysis
Integration	Feed data into other tools

Example: Parsing JSON in Bash

#!/bin/bash

# Get tenant info and extract account ID
RESULT=$(modular_cli tenant describe --tenant AWS-MSTR-DEV --json)
ACCOUNT_ID=$(echo $RESULT | jq -r '.items[0]."Account ID"')

echo "Account ID: $ACCOUNT_ID"

Example: Parsing JSON in Python

import subprocess
import json

# Execute command
result = subprocess.run(
    ['modular_cli', 'tenant', 'describe', '--tenant', 'AWS-MSTR-DEV', '--json'],
    capture_output=True,
    text=True,
)

# Parse JSON
data = json.loads(result.stdout)
if data['status'] == 'SUCCESS':
    tenant_info = data['items'][0]
    print(f"Account ID: {tenant_info['Account ID']}")

Table Output

Use the --table flag for formatted table output (this is the default for most commands):

modular_cli tenant describe --tenant AWS-MSTR-DEV --table

Use cases for table output:

Use Case	Description
Human-readable reports	Easy to read in terminal
Documentation	Copy-paste into documents
Presentations	Clear visual format
Quick checks	Rapid information scanning

Response Structure

All responses follow this structure:

{
  "status": "SUCCESS|FAILED",
  "code": 200-599,
  "message": "string|object|array",
  "warnings": [],
  "meta": {}
}

Fields:

Field	Description
status	Operation result (SUCCESS or FAILED)
code	HTTP status code (200, 400, 401, 403, 404, 500)
message	Response data (format depends on command)
warnings	Non-critical warnings during execution
meta	Additional metadata

Content ↑

6. Autocomplete

Modular-CLI supports command autocompletion for enhanced productivity on Unix-based systems (Linux and macOS).

Supported Shells:

Shell	Supported
Bash	✓
Zsh	✓
Windows PowerShell	✗

NOTE: Autocomplete is not available on Windows. Attempting to enable it on Windows will result in an error:

OSError: The OS is not applicable for autocompletion setup. Current OS is win32

Prerequisites

Before enabling autocomplete:

1. Virtual environment must be activated
2. Modular-CLI must be installed
3. You must have sudo/root privileges

Enable Autocomplete

Step 1: Activate Virtual Environment

source /path/to/modular_cli_venv/bin/activate

Step 2: Create Symlink

sudo ln -s /path/to/modular_cli_venv/bin/modular_cli /usr/local/bin/modular_cli

Example:

sudo ln -s /usr/local/project/modular/.cli_venv/bin/modular_cli /usr/local/bin/modular_cli

Step 3: Start New Terminal Session

Close and reopen your terminal or open a new tab.

Step 4: Enable Autocomplete

sudo modular_cli enable_autocomplete

Expected output:

Autocomplete for 'modular_cli' has been successfully set up.
Path to the 'profile.d' file: /etc/profile.d/profile_modular_cli_complete.sh

Or for RC file setup:

Autocomplete has been successfully installed and will start work after the current terminal session reload.
If you want to manually activate autocomplete without reloading the terminal session,
please run the following command:
source ~/.bashrc

Step 5: Restart Terminal

Close and reopen your terminal for changes to take effect.

Using Autocomplete

After enabling autocomplete, you can use Tab key to complete commands:

Action	Command	Result
Complete group names	modular_cli ten[TAB]	modular_cli tenant
Complete command names	modular_cli tenant des[TAB]	modular_cli tenant describe
View available options	modular_cli tenant describe --[TAB][TAB]	Shows all available flags

Disable Autocomplete

To remove autocomplete functionality:

sudo modular_cli disable_autocomplete

Expected output:

Autocomplete for 'modular_cli' has been successfully removed

Troubleshooting Autocomplete

Autocomplete Not Working

Issue: Tab completion doesn't work after enabling.

Solution:

1. Verify symlink exists:

   ls -l /usr/local/bin/modular_cli


2. Check shell configuration:

   grep modular_cli ~/.bashrc  # For Bash
   grep modular_cli ~/.zshrc   # For Zsh


3. Restart terminal session

4. Try enabling again:

   sudo modular_cli enable_autocomplete


Permission Denied

Issue: Cannot create symlink or enable autocomplete.

Solution: Ensure you're using sudo:

sudo ln -s /path/to/venv/bin/modular_cli /usr/local/bin/modular_cli
sudo modular_cli enable_autocomplete

Symlink Already Exists

Issue: Error when creating symlink: "File exists"

Solution: Remove old symlink and create new one:

sudo rm /usr/local/bin/modular_cli
sudo ln -s /path/to/venv/bin/modular_cli /usr/local/bin/modular_cli

Content ↑

7. Advanced Configuration

Environment Variables

Modular-CLI supports several environment variables for advanced configuration:

Variable	Description	Default
MODULAR_CLI_LOG_PATH	Custom path for log files	~/.modular_cli/logs/
MODULAR_CLI_ENTRY_POINT	Custom command name	modular_cli
MODULAR_CLI_LOG_LEVEL	Logging verbosity level	INFO

MODULAR_CLI_LOG_PATH

Custom path for storing Modular-CLI log files.

Default locations:

Platform	Path
Linux/Mac	~/.modular_cli/logs/
Windows	C:\Users\<Username>\.modular_cli\logs\

Example:

export MODULAR_CLI_LOG_PATH=/var/log/modular-cli
modular_cli login

MODULAR_CLI_ENTRY_POINT

Custom command name for Modular-CLI.

Example:

export MODULAR_CLI_ENTRY_POINT=modular
pip install .

# Now use custom command
modular --help

MODULAR_CLI_LOG_LEVEL

Logging verbosity level.

Level	Description
DEBUG	Detailed information for debugging
INFO	General operational information
WARNING	Warning messages only
ERROR	Error messages only
CRITICAL	Critical errors only

Example:

export MODULAR_CLI_LOG_LEVEL=DEBUG
modular_cli login

Configuration File Structure

Credentials are stored in ~/.modular_cli/credentials:

access_token: eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...
api_link: http://127.0.0.1:8088/integration
m3admin_version: 4.154.3
password: qwertyuiasdfghjk
refresh_token: eyJhbGciOiJIUzI1NiIsInR5cCI6IkpXVCJ9...
username: john_doe
version: 4.3.8

WARNING: Do not manually edit configuration files. Use modular_cli setup command instead.

Multiple Profiles

To work with multiple Modular-API instances, you can switch configurations:

Profile 1: Production

modular_cli setup \
  --username prod_user \
  --password ProdPass123! \
  --api_path https://prod-modular.company.com/integration

modular_cli login

Profile 2: Staging

modular_cli setup \
  --username stage_user \
  --password StagePass123! \
  --api_path https://stage-modular.company.com/integration

modular_cli login

NOTE: Only one profile can be active at a time. Running setup overwrites the current configuration.

Logging Configuration

View Logs

# Default location (Linux/Mac)
tail -f ~/.modular_cli/logs/modular_cli.log

# Default location (Windows)
type %USERPROFILE%\.modular_cli\logs\modular_cli.log

# Custom location (if MODULAR_CLI_LOG_PATH is set)
tail -f $MODULAR_CLI_LOG_PATH/modular_cli.log

Log Format

2025-01-19 10:30:45,123 - INFO - Starting Modular-CLI v2.3.15
2025-01-19 10:30:45,234 - INFO - Loading configuration from /home/user/.modular_cli/credentials
2025-01-19 10:30:45,456 - INFO - Authenticating user: john_doe
2025-01-19 10:30:46,789 - INFO - JWT token received and cached
2025-01-19 10:30:47,012 - INFO - Command metadata refreshed

Debug Logging

Enable debug logging for troubleshooting:

export MODULAR_CLI_LOG_LEVEL=DEBUG
modular_cli login

Debug output includes:

• HTTP request/response details
• Token validation steps
• Command parsing process
• Parameter validation
• Error stack traces

Content ↑

8. Modular-CLI Schema

Architecture Diagram

Request Flow

Authentication Flow

1. User executes modular_cli login
2. CLI reads credentials from local configuration
3. Sends authentication request to Modular-API
4. Receives JWT token and command metadata
5. Caches token and metadata locally
6. Generates dynamic Click commands from metadata

Command Execution Flow

1. User executes command: modular_cli tenant describe
2. CLI validates command exists in cached metadata
3. CLI validates required parameters provided
4. CLI constructs HTTP request with JWT token
5. CLI sends request to Modular-API
6. Modular-API validates token and permissions
7. Modular-API executes command on backend module
8. Modular-API returns response
9. CLI formats and displays response

Component Interaction

┌─────────────────────────────────────────────────────┐
│                     User                            │
└─────────────────────┬───────────────────────────────┘
                      │
                      │ Command Execution
                      ▼
┌─────────────────────────────────────────────────────┐
│                 Modular-CLI                         │
│                                                     │
│  ┌─────────────────────────────────────────────┐    │
│  │  Configuration Manager                      │    │
│  │  - Load/Save config                         │    │
│  │  - Credential storage                       │    │
│  └─────────────────────────────────────────────┘    │
│                                                     │
│  ┌─────────────────────────────────────────────┐    │
│  │  Authentication Manager                     │    │
│  │  - JWT token handling                       │    │
│  │  - Token expiry checks                      │    │
│  └─────────────────────────────────────────────┘    │
│                                                     │
│  ┌─────────────────────────────────────────────┐    │
│  │  Command Generator                          │    │
│  │  - Dynamic Click command creation           │    │
│  │  - Parameter validation                     │    │
│  └─────────────────────────────────────────────┘    │
│                                                     │
│  ┌─────────────────────────────────────────────┐    │
│  │  HTTP Client                                │    │
│  │  - Request construction                     │    │
│  │  - Response handling                        │    │
│  └─────────────────────────────────────────────┘    │
│                                                     │
│  ┌─────────────────────────────────────────────┐    │
│  │  Output Formatter                           │    │
│  │  - JSON formatting                          │    │
│  │  - Table generation                         │    │
│  └─────────────────────────────────────────────┘    │
└─────────────────────┬───────────────────────────────┘
                      │
                      │ HTTPS Requests
                      ▼
┌─────────────────────────────────────────────────────┐
│                 Modular-API                         │
│  - Authentication                                   │
│  - Authorization                                    │
│  - Command Execution                                │
│  - Response Generation                              │
└─────────────────────────────────────────────────────┘

Content ↑

9. Annexes

Annex 1: Common Use Cases

This annex provides real-world examples and workflows for common Modular-CLI tasks.

• Use Case 1: First-Time Setup
• Use Case 2: Automation Script
• Use Case 3: CI/CD Integration
• Use Case 4: Batch Operations
• Use Case 5: Monitoring Script
• Use Case 6: Python Integration

Use Case 1: First-Time Setup

Scenario: Setting up Modular-CLI for the first time.

Step 1: Create Virtual Environment

python3.10 -m venv ~/.venv/modular_cli
source ~/.venv/modular_cli/bin/activate

Step 2: Install Modular-CLI

pip install /path/to/modular-cli

Step 3: Configure Connection

modular_cli setup \
  --username your_username \
  --password your_password \
  --api_path https://modular-api.company.com/integration

Step 4: Authenticate

modular_cli login

Step 5: Verify Setup

modular_cli health_check
modular_cli version --detailed
modular_cli --help

↑ Back to Use Cases

Use Case 2: Automation Script

Scenario: Create a script to describe all tenants and export to JSON.

Script: export_tenants.sh

#!/bin/bash

# Configuration
OUTPUT_DIR="/opt/reports/tenants"
TIMESTAMP=$(date +%Y%m%d_%H%M%S)
OUTPUT_FILE="${OUTPUT_DIR}/tenants_${TIMESTAMP}.json"

# Create output directory
mkdir -p ${OUTPUT_DIR}

# Activate virtual environment
source ~/.venv/modular_cli/bin/activate

# Ensure authenticated
modular_cli login > /dev/null 2>&1

# Export tenants to JSON
echo "Exporting tenants to ${OUTPUT_FILE}..."
modular_cli tenant describe --json > ${OUTPUT_FILE}

# Check if export succeeded
if [ $? -eq 0 ]; then
    echo "Export successful"
    echo "File: ${OUTPUT_FILE}"

    # Parse and display summary
    TENANT_COUNT=$(jq '.items | length' ${OUTPUT_FILE})
    echo "Total tenants: ${TENANT_COUNT}"
else
    echo "Export failed"
    exit 1
fi

Usage:

chmod +x export_tenants.sh
./export_tenants.sh

↑ Back to Use Cases

Use Case 3: CI/CD Integration

Scenario: Integrate Modular-CLI into GitLab CI/CD pipeline.

.gitlab-ci.yml

stages:
  - setup
  - deploy
  - verify

variables:
  MODULAR_API_URL: "https://modular-api.company.com/integration"

before_script:
  - python -m venv venv
  - source venv/bin/activate
  - pip install modular-cli

setup_modular:
  stage: setup
  script:
    - modular_cli setup
        --username ${MODULAR_USERNAME}
        --password ${MODULAR_PASSWORD}
        --api_path ${MODULAR_API_URL}
    - modular_cli login
  artifacts:
    paths:
      - ~/.modular_cli/
    expire_in: 1 hour

verify_tenant:
  stage: verify
  script:
    - source venv/bin/activate
    - |
      modular_cli tenant describe \
        --tenant ${CI_ENVIRONMENT_NAME} \
        --json | tee verify_result.json
    - |
      ACTIVE=$(jq -r '.items[0].Active' verify_result.json)
      if [ "${ACTIVE}" != "true" ]; then
        echo "Tenant not active"
        exit 1
      fi
  dependencies:
    - setup_modular

↑ Back to Use Cases

Use Case 4: Batch Operations

Scenario: Process multiple tenants from a list.

Script: batch_describe.sh

#!/bin/bash

# Tenant list file
TENANT_LIST="tenants.txt"
OUTPUT_DIR="tenant_reports"

# Create output directory
mkdir -p ${OUTPUT_DIR}

# Activate virtual environment
source ~/.venv/modular_cli/bin/activate

# Authenticate
modular_cli login

# Process each tenant
while IFS= read -r tenant; do
    echo "Processing tenant: ${tenant}"

    # Describe tenant
    modular_cli tenant describe \
        --tenant "${tenant}" \
        --json > "${OUTPUT_DIR}/${tenant}.json"

    # Check status
    if [ $? -eq 0 ]; then
        echo "✓ ${tenant} - Success"
    else
        echo "✗ ${tenant} - Failed"
    fi

    # Small delay to avoid rate limiting
    sleep 1
done < "${TENANT_LIST}"

echo "Batch processing complete"
echo "Reports saved in: ${OUTPUT_DIR}"

tenants.txt:

AWS-MSTR-DEV
AWS-SFTG-MSTR-RES1-DEV
AWS-SFTG-MSTR-RES2-DEV
VSPHERE_TEST

Usage:

chmod +x batch_describe.sh
./batch_describe.sh

↑ Back to Use Cases

Use Case 5: Monitoring Script

Scenario: Monitor API health and alert on failures.

Script: monitor_api.sh

#!/bin/bash

# Configuration
LOG_FILE="/var/log/modular-cli-monitor.log"
ALERT_EMAIL="[e-mail]"
CHECK_INTERVAL=300  # 5 minutes

# Activate virtual environment
source ~/.venv/modular_cli/bin/activate

# Function to log messages
log_message() {
    echo "$(date '+%Y-%m-%d %H:%M:%S') - $1" | tee -a ${LOG_FILE}
}

# Function to send alert
send_alert() {
    local subject="$1"
    local message="$2"
    echo "${message}" | mail -s "${subject}" ${ALERT_EMAIL}
}

# Monitoring loop
while true; do
    # Check API health
    HEALTH_OUTPUT=$(modular_cli health_check 2>&1)
    HEALTH_STATUS=$?

    if [ ${HEALTH_STATUS} -eq 0 ]; then
        log_message "API Health: OK"
    else
        log_message "API Health: FAILED"
        send_alert "Modular-API Health Check Failed" "${HEALTH_OUTPUT}"
    fi

    # Try to get version
    VERSION_OUTPUT=$(modular_cli version 2>&1)
    VERSION_STATUS=$?

    if [ ${VERSION_STATUS} -eq 0 ]; then
        log_message "Version Check: OK - ${VERSION_OUTPUT}"
    else
        log_message "Version Check: FAILED"
        send_alert "Modular-API Version Check Failed" "${VERSION_OUTPUT}"
    fi

    # Wait before next check
    sleep ${CHECK_INTERVAL}
done

↑ Back to Use Cases

Use Case 6: Python Integration

Scenario: Use Modular-CLI from Python scripts.

Script: tenant_manager.py

#!/usr/bin/env python3

import subprocess
import json
import sys

class ModularCLI:
    """Wrapper for Modular-CLI commands"""

    def __init__(self, cli_path='modular_cli'):
        self.cli_path = cli_path

    def execute(self, command, json_output=True):
        """Execute Modular-CLI command"""
        cmd = [self.cli_path] + command

        if json_output and '--json' not in cmd:
            cmd.append('--json')

        try:
            result = subprocess.run(
                cmd,
                capture_output=True,
                text=True,
                check=True,
            )

            if json_output:
                return json.loads(result.stdout)
            return result.stdout

        except subprocess.CalledProcessError as e:
            print(f"Command failed: {' '.join(cmd)}", file=sys.stderr)
            print(f"Error: {e.stderr}", file=sys.stderr)
            return None

    def describe_tenant(self, tenant_name):
        """Describe specific tenant"""
        return self.execute(['tenant', 'describe', '--tenant', tenant_name])

    def list_tenants(self):
        """List all tenants"""
        return self.execute(['tenant', 'describe'])

    def health_check(self):
        """Check API health"""
        return self.execute(['health_check'])

def main():
    cli = ModularCLI()

    # Check health
    print("Checking API health...")
    health = cli.health_check()
    if health and health['status'] == 'SUCCESS':
        print("✓ API is healthy")
    else:
        print("✗ API health check failed")
        return 1

    # List tenants
    print("\nListing all tenants...")
    tenants = cli.list_tenants()

    if tenants and tenants['status'] == 'SUCCESS':
        tenant_list = tenants['items']
        print(f"Found {len(tenant_list)} tenants")

        for tenant in tenant_list:
            tenant_name = tenant.get('Tenant name', 'Unknown')
            status = tenant.get('Active', 'Unknown')
            print(f"  - {tenant_name}: {'Active' if status else 'Inactive'}")
    else:
        print("Failed to list tenants")
        return 1

    return 0

if __name__ == '__main__':
    sys.exit(main())

Usage:

chmod +x tenant_manager.py
./tenant_manager.py

↑ Back to Use Cases

Annex 2: Troubleshooting Guide

This annex provides solutions to common issues encountered when using Modular-CLI.

• Issue 1: Command Not Found
• Issue 2: Authentication Failed
• Issue 3: Token Expired
• Issue 4: Permission Denied
• Issue 5: Connection Timeout
• Issue 6: SSL Certificate Error
• Issue 7: Command Not Available
• Issue 8: Invalid Parameter
• Issue 9: Configuration Corrupted
• Issue 10: Rate Limit Exceeded
• Issue 11: JSON Parse Error
• Issue 12: Module Not Found
• Getting Help

Issue 1: Command Not Found

Problem:

modular_cli --help
# bash: modular_cli: command not found

Causes:

Cause	Description
Virtual environment not activated	CLI only available in venv
Modular-CLI not installed	Package not installed
Incorrect entry point name	Custom entry point configured

Solutions:

# 1. Activate virtual environment
source /path/to/venv/bin/activate

# 2. Verify installation
pip list | grep modular-cli

# 3. Reinstall if necessary
pip install --force-reinstall /path/to/modular-cli

# 4. Check custom entry point
echo $MODULAR_CLI_ENTRY_POINT

↑ Back to Troubleshooting

Issue 2: Authentication Failed

Problem:

modular_cli login
# Error: Authentication failed. Invalid credentials.

Causes:

Cause	Description
Incorrect credentials	Wrong username or password
User account blocked	Account disabled in Modular-API
API server unreachable	Network connectivity issues

Solutions:

# 1. Verify credentials
modular_cli setup \
  --username correct_username \
  --password correct_password \
  --api_path https://correct-url.com/integration

# 2. Check API server connectivity
curl https://your-api-server.com/integration/health

# 3. Verify user is not blocked (contact admin)

# 4. Check logs for detailed error
cat ~/.modular_cli/logs/modular_cli.log

↑ Back to Troubleshooting

Issue 3: Token Expired

Problem:

modular_cli tenant describe
# Error: Token expired. Please login again.

Understanding Token Lifecycle:

Token Type	Validity	Purpose
Access Token	24 hours	Used for command execution
Refresh Token	14 days	Used to automatically renew access tokens

Automatic Refresh:

When your access token expires (after 24 hours), Modular-CLI automatically uses the refresh token to get a new access token. This happens transparently without user action.

Manual Login Required When:

• Refresh token expires (after 14 days of no activity)
• Tokens are corrupted or invalid
• You see "Token expired" error despite automatic refresh

Solution:

# Simply login again
modular_cli login

Prevention:

• Use Modular-CLI at least once every 14 days to keep refresh token active
• Automated scripts should handle authentication errors and re-login automatically

↑ Back to Troubleshooting

Issue 4: Permission Denied

Problem:

modular_cli tenant deactivate_region --tenant AWS-TEST --cloud AWS --all_regions
# Error: Access denied. Insufficient permissions.

Causes:

Cause	Description
Missing permissions	User lacks required policy access
Command restricted by policy	Command explicitly denied

Solutions:

# 1. Check your permissions (contact admin)
modular_cli version --detailed

# 2. View available commands
modular_cli --help

# 3. Request access from administrator
# Administrator should update your group policies

↑ Back to Troubleshooting

Issue 5: Connection Timeout

Problem:

modular_cli tenant describe
# Error: Connection timeout. Unable to reach API server.

Causes:

Cause	Description
API server down	Server not running
Network issues	Connectivity problems
Firewall blocking	Port/IP blocked

Solutions:

# 1. Check API server status
curl -v https://your-api-server.com/integration/health

# 2. Check network connectivity
ping api-server-domain.com

# 3. Verify firewall rules (contact network admin)

↑ Back to Troubleshooting

Issue 6: SSL Certificate Error

Problem:

modular_cli login
# Error: SSL certificate verification failed

Causes:

Cause	Description
Self-signed certificate	Certificate not from trusted CA
Expired certificate	Certificate validity expired
Certificate chain issues	Incomplete certificate chain

Solutions:

# Option 1: Install certificate authority (recommended)
# Contact your system administrator

# Option 2: Disable SSL verification (NOT RECOMMENDED for production)
# This is a security risk - use only in development
export PYTHONHTTPSVERIFY=0
modular_cli login

↑ Back to Troubleshooting

Issue 7: Command Not Available

Problem:

modular_cli chef add_configuration
# Error: Command not found or not available

Causes:

Cause	Description
Command not in policy	User lacks permission
Module not installed	Module missing on server
Typo in command	Incorrect command name

Solutions:

# 1. Check available commands
modular_cli --help

# 2. Verify module is installed
modular_cli version --detailed

# 3. Check correct command syntax
modular_cli chef --help

# 4. Contact admin to grant permissions

↑ Back to Troubleshooting

Issue 8: Invalid Parameter

Problem:

modular_cli tenant describe --tenant AWS-TEST --invalid_param value
# Error: Unknown parameter: --invalid_param

Cause: Invalid or unsupported parameter

Solution:

# Check command help for valid parameters
modular_cli tenant describe --help

↑ Back to Troubleshooting

Issue 9: Configuration Corrupted

Problem:

modular_cli login
# Error: Failed to load configuration

Cause: Configuration file corrupted

Solution:

# 1. Remove corrupted configuration
modular_cli cleanup

# 2. Reconfigure
modular_cli setup \
  --username your_username \
  --password your_password \
  --api_path https://api.example.com/integration

# 3. Login
modular_cli login

↑ Back to Troubleshooting

Issue 10: Rate Limit Exceeded

Problem:

modular_cli tenant describe
# Error: Rate limit exceeded. Please try again later.

Cause: Too many requests in short time

Solution:

# Wait and retry after a few seconds
sleep 10
modular_cli tenant describe

# For batch operations, add delays
for tenant in $(cat tenants.txt); do
    modular_cli tenant describe --tenant $tenant
    sleep 2  # Add delay between requests
done

↑ Back to Troubleshooting

Issue 11: JSON Parse Error

Problem:

modular_cli tenant describe --json
# Error: Failed to parse JSON response

Causes:

Cause	Description
Non-JSON response	API returned unexpected format
Invalid JSON	Response contains malformed JSON

Solutions:

# 1. Check response without --json flag
modular_cli tenant describe

# 2. Enable debug logging
export MODULAR_CLI_LOG_LEVEL=DEBUG
modular_cli tenant describe --json

# 3. Check logs
cat ~/.modular_cli/logs/modular_cli.log

# 4. Report issue to support with debug logs

↑ Back to Troubleshooting

Issue 12: Module Not Found

Problem:

modular_cli chef add_configuration
# Error: Module 'chef' not found

Causes:

Cause	Description
Module not installed	Module missing on server
Module not available	Module not in user's permissions

Solutions:

# 1. Check installed modules
modular_cli version --detailed

# 2. Login to refresh available commands
modular_cli login

# 3. Contact admin to install module

↑ Back to Troubleshooting

Getting Help

If issues persist after trying these solutions:

1. Collect Information:

# Get version info
modular_cli version --detailed > version_info.txt

# Get logs
cat ~/.modular_cli/logs/modular_cli.log > cli_logs.txt

# Get configuration (remove sensitive data)
cat ~/.modular_cli/credentials > config_info.txt

2. Contact Support:

Contact	Details
Email	[e-mail]
Include	Version info, logs, and detailed issue description
Response time	5 business days

↑ Back to Troubleshooting

Content ↑

10. Project Information

Project Links

Resource	URL
Source Code	https://github.com/epam/modular-cli
Documentation	https://github.com/epam/modular-cli/blob/main/README.md
Changelog	https://github.com/epam/modular-cli/blob/main/CHANGELOG.md

Related Projects

Project	URL
Modular-API	https://github.com/epam/modular-api
Modular-SDK	https://github.com/epam/modular-sdk
Modular-CLI-SDK	https://github.com/epam/modular-cli-sdk

Support

Contact	Details
Email	[e-mail]
Response Time	7 calendar days (5 business days, excluding weekends)
Python Version	3.10+

How to Report an Issue

When reporting issues, provide:

Information	How to Obtain
Python version	python --version
Modular-CLI version	modular_cli version --detailed
Modular-API version	Included in version output
Clear description	Concise issue description
Steps to reproduce	Detailed reproduction steps
Error messages	Complete error output
Log files	~/.modular_cli/logs/modular_cli.log
Environment details	OS, shell type, network setup

Example Issue Report:

Subject: Authentication fails with SSL error

Environment:
- OS: Ubuntu 22.04
- Python: 3.10.12
- Modular-CLI: 2.3.15
- Modular-API: 4.3.8
- Shell: bash

Issue Description:
When executing `modular_cli login`, I receive an SSL certificate
verification error.

Steps to Reproduce:
1. Configure CLI with: modular_cli setup --username user --password pass
   --api_path https://api.example.com/integration
2. Execute: modular_cli login
3. Error occurs: SSL certificate verification failed

Error Message:
[Paste complete error message]

Logs:
[Paste relevant log entries from ~/.modular_cli/logs/modular_cli.log]

Expected Behavior:
Login should succeed and JWT token should be retrieved.

Actual Behavior:
SSL verification error prevents authentication.

Communication Tips

Tip	Description
Be clear and concise	Keep issue description focused
Provide all necessary information	Include all required details upfront
Include command outputs and logs	Attach relevant output
Mask sensitive information	Remove passwords, tokens, internal URLs
Be respectful and patient	Support responds within 5 business days

Version Information

# Check Modular-CLI version
modular_cli version

# Check detailed version info
modular_cli version --detailed

# Check Python version
python --version

# Check pip version
pip --version

Content ↑
