OpenQuantumSim

QuTiP is excellent general-purpose quantum dynamics software. OpenQuantumSim is for researchers who want a Python interface while moving expensive open-system propagation into a Julia backend: Lindblad solvers, Monte Carlo wave-function trajectories, Bloch-Redfield weak-coupling dynamics, Dicke-space collective spins, restartable parameter sweeps, HDF5 outputs, phase-space tools, and state diagnostics in one package.

• One import, no glue code. import openquantumsim as oqs gives the full API: spaces, operators, solvers, diagnostics, plotting, and persistence.
• Julia speed, Python ergonomics. Propagation runs in the packaged OpenQuantumSimJL backend; arrays go in, named results come back.
• Validated, not just benchmarked. Analytic limits and QuTiP reference models are checked in CI on Linux and Windows.

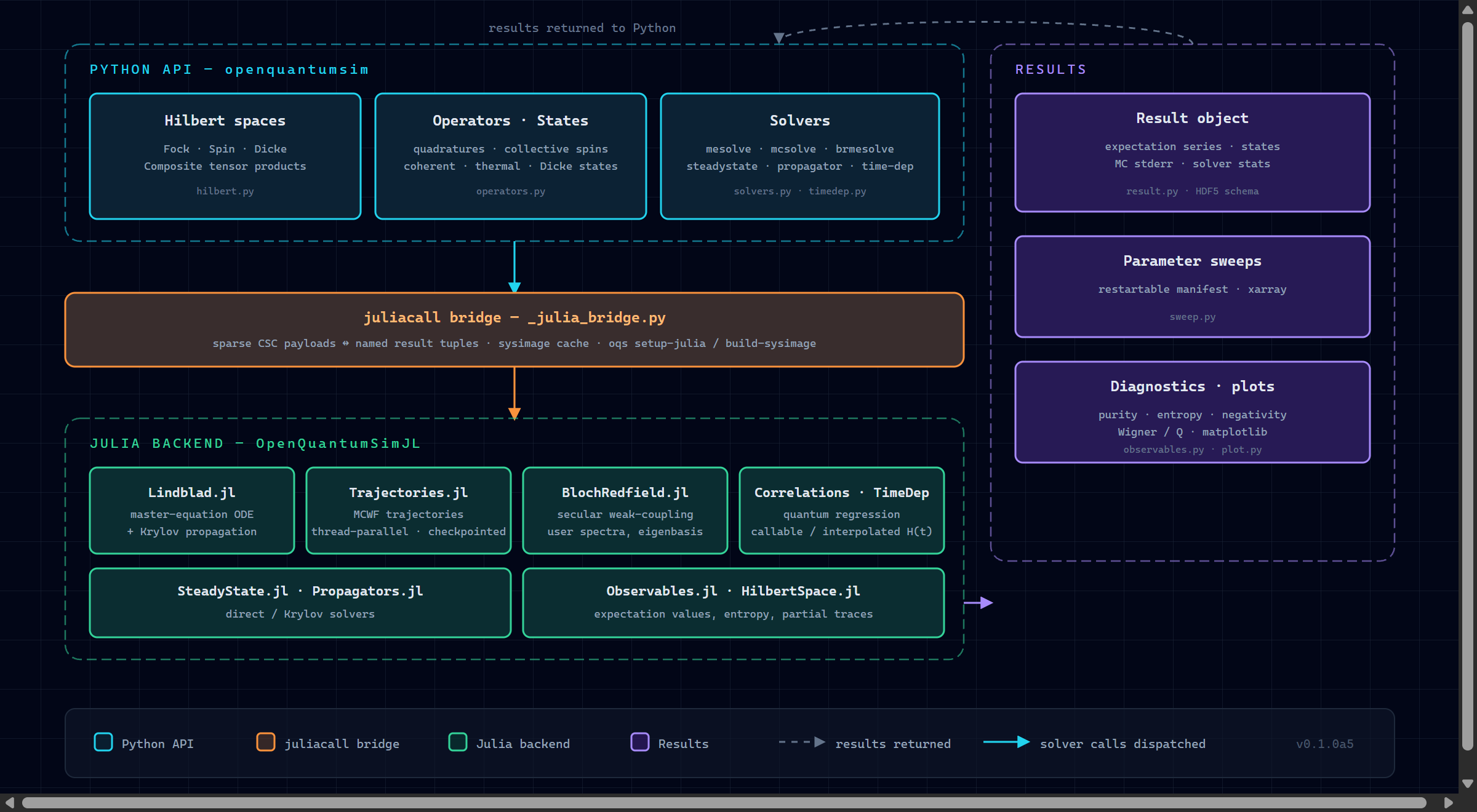

How It Fits Together

The Python API builds Hilbert spaces, operators, and solver calls. The juliacall bridge dispatches sparse payloads to the packaged Julia backend, where the heavy propagation runs (thread-parallel for trajectories). Named result tuples flow back into a Result object with HDF5 persistence, xarray sweep summaries, and matplotlib plotting on the Python side.

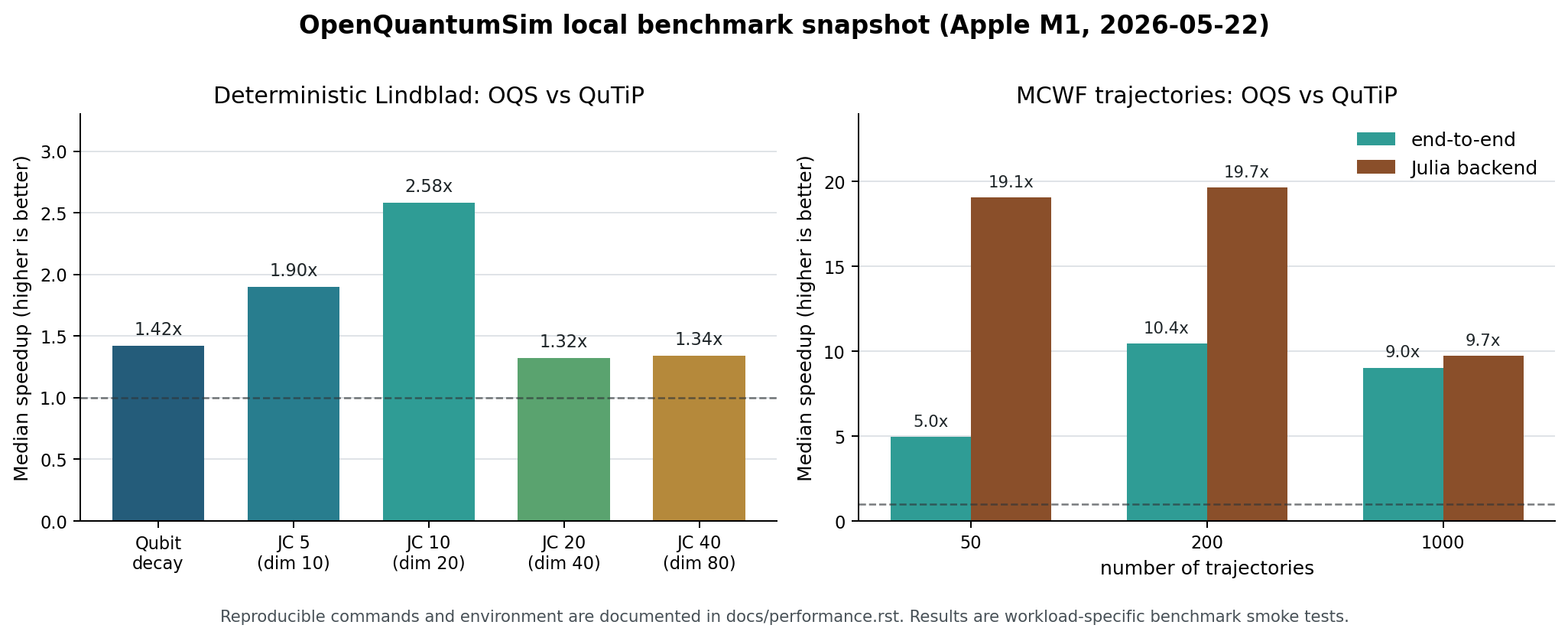

Performance

On the current Apple M1 benchmark snapshot, OpenQuantumSim is 1.3x-2.6x faster than QuTiP on deterministic Lindblad reference cases up to Hilbert dimension 80. For a qubit MCWF trajectory scaling smoke test, OpenQuantumSim is 5.0x-10.4x faster end-to-end than QuTiP, with 9.7x-19.7x faster Julia backend trajectory aggregation when using four Julia threads. The benchmark commands and environment are documented so these numbers can be reproduced and challenged.

Documentation: https://mohammadjafariph.github.io/OpenQuantumSimulation/

The package is currently released as an alpha. The API is usable, tested, and published on PyPI, but minor interface changes may still occur before a stable 0.1 release.

Stability and the Road to 0.1.0

The core solver entry points (mesolve, mcsolve, brmesolve, single_trajectory, steadystate, propagator), the Result object, and the HDF5 result schema are stable-in-practice: the validation suite and CI guard them, and no breaking change will land in a patch-level alpha release. Before the stable 0.1.0 tag, any breaking change to a documented public function will be announced with a deprecation warning and a changelog entry in the preceding release.

The remaining pre-0.1.0 work (API review items and the stability date) is tracked in the repository roadmap issue: https://github.com/mohammadjafariph/OpenQuantumSimulation/issues

Installation

python -m pip install openquantumsim

OpenQuantumSim uses JuliaCall to load the packaged Julia backend. The first solver call on a new machine may spend a few minutes resolving and precompiling Julia packages. To make that cost explicit, run the backend setup once after installing:

oqs setup-julia

For repeated simulations, build a local Julia sysimage. This can take several minutes once. The command validates the generated image with JuliaCall before registering it, and future solver calls automatically reuse it:

oqs build-sysimage

Set OPENQUANTUMSIM_USE_SYSIMAGE=0 to temporarily disable the cached sysimage, or OPENQUANTUMSIM_JULIA_SYSIMAGE=/path/to/sysimage to use a custom image. Rebuild the sysimage after upgrading Julia or OpenQuantumSim.

For development from source:

git clone https://github.com/mohammadjafariph/OpenQuantumSimulation.git
cd OpenQuantumSimulation
python -m pip install -e ".[dev]"
oqs setup-julia

Features

• Hilbert-space helpers for finite Fock spaces, spin spaces, tensor-product systems, and symmetric Dicke manifolds.
• State and operator constructors for common open-system models.
• Lindblad master-equation propagation with dense and sparse backends.
• Monte Carlo wave-function trajectories with backend-side aggregation for selected diagnostics.
• Secular Bloch-Redfield dynamics with user-supplied bath spectra.
• Time-dependent Hamiltonians with callable or interpolated coefficients.
• Steady-state solves, two-time correlations, FFT spectra, and parameter sweeps.
• Propagators: unitary evolution and Lindblad superoperators for time-independent systems.
• State metrics including purity, entropy, fidelity, trace distance, populations, coherences, and Bloch-vector components.
• Entanglement diagnostics: negativity, logarithmic negativity, and two-qubit concurrence, plus mutual information on arbitrary cuts.
• Wigner and Husimi-Q phase-space distributions for finite Fock spaces.
• HDF5 result persistence for solver outputs and sweep summaries.
• Validation scripts comparing analytic limits and QuTiP reference models.

Quick Example

The example below solves spontaneous emission for a two-level system and compares the excited-state population with the analytic result exp(-gamma * t).

import numpy as np
import openquantumsim as oqs

atom = oqs.SpinSpace(0.5, label="atom")
excited = oqs.basis(atom, "up")

gamma = 0.2
H = 0.0 * oqs.sigmaz(atom)
rho0 = oqs.ket2dm(excited)
collapse = np.sqrt(gamma) * oqs.sigmam(atom)
projector = oqs.Operator(oqs.ket2dm(excited), atom, "P_excited")
times = np.linspace(0.0, 0.2, 3)

result = oqs.mesolve(
    H,
    rho0,
    times,
    c_ops=[collapse],
    e_ops=[projector],
    options=oqs.Options(rtol=1e-8, atol=1e-10),
)

expected = np.exp(-gamma * times)
assert np.allclose(result.expect[0].real, expected, atol=2e-7)
print(result.expect[0].real)

More complete scripts are available under examples/gallery/, including deterministic decay, a time-dependent driven qubit, Jaynes-Cummings dynamics, Monte Carlo trajectories, phase-space plots, restartable parameter sweeps, and coupled-qubit entanglement dynamics with emission spectra. Each one supports a quick smoke run:

python examples/gallery/qubit_decay.py --fast
python examples/gallery/phase_space.py --fast

Tutorial notebooks are available in the documentation, including qubit decay, Dicke synchronization, parameter sweeps, phase-space plots, and state metrics:

• Qubit decay notebook
• Dicke synchronization notebook

Time-Dependent Hamiltonians

Time-dependent systems can be written as H(t) = H0 + sum_i f_i(t) H_i.

drive = oqs.InterpolatedCoefficient([0.0, 5.0], [0.0, 0.2])
H_t = oqs.time_dependent_hamiltonian(
    0.5 * oqs.sigmaz(atom),
    [(oqs.sigmax(atom), drive)],
)

result = oqs.mesolve(H_t, rho0, np.linspace(0.0, 5.0, 101), c_ops=[collapse])

Monte Carlo Trajectories

result = oqs.mcsolve(
    H,
    excited,
    times,
    c_ops=[collapse],
    e_ops=[projector],
    n_traj=1000,
    options=oqs.Options(seed=2026, max_step=0.01, progress=True),
)

population_mean = result.expect[0].real
population_stderr = result.expect_stderr[0].real

Long trajectory runs can checkpoint partial sums and resume from the same operators, seed, time grid, and solver options:

result = oqs.mcsolve(
    H,
    excited,
    times,
    c_ops=[collapse],
    e_ops=[projector],
    n_traj=20_000,
    options=oqs.Options(
        seed=2026,
        max_step=0.01,
        checkpoint_file="runs/mcsolve_checkpoint.h5",
        checkpoint_every=100,
    ),
)

Bloch-Redfield Dynamics

Weak system-bath coupling can be modeled with the secular Bloch-Redfield equation. Each coupling operator is paired with a spectrum callable giving the dissipator weight at a Bohr frequency; decay channels sit at negative frequencies.

kappa = 0.4
zero_temperature = lambda omega: kappa if omega < 0 else 0.0

result = oqs.brmesolve(
    H,
    rho0,
    times,
    a_ops=[(oqs.sigmam(atom), zero_temperature)],
    e_ops=[projector],
)

A constant spectrum gamma = g is equivalent to a Lindblad collapse operator sqrt(g) * A, which makes BR results easy to sanity-check against mesolve.

State Diagnostics

State diagnostics can be evaluated during deterministic solves, single trajectories, and supported trajectory aggregations.

metrics = oqs.state_metrics(
    purity=True,
    fidelity_to=excited,
    population_indices=[0, 1],
)

trajectory = oqs.single_trajectory(
    H,
    excited,
    times,
    c_ops=[collapse],
    state_observables=metrics,
    options=oqs.Options(seed=2026, max_step=0.01),
)

purity = trajectory.state_observables["purity"].real

Parameter Sweeps

ParameterSweep expands a parameter grid, skips completed points on rerun, writes a restartable manifest, and saves aggregate summaries.

sweep = oqs.ParameterSweep(
    base_system={"model": "qubit_decay"},
    params={"gamma": [0.05, 0.1, 0.2]},
)

run = sweep.run(run_one_point, output_dir="runs/gamma_sweep")
print(run.summary)

Phase-Space Utilities

Finite Fock-space states can be inspected with Wigner and Husimi-Q distributions.

space = oqs.FockSpace(30)
rho = oqs.ket2dm(oqs.coherent(space, 1.0 + 0.5j))
x, p = oqs.phase_space_grid(xlim=(-5.0, 5.0), points=201)

W = oqs.wigner(rho, x, p)
Q = oqs.q_function(rho, x, p)
ax = oqs.plot_wigner(rho, x, p)

Result Persistence

Solver results can be saved and loaded in HDF5 format.

result.save_hdf5("runs/qubit_decay.h5")
loaded = oqs.load_result("runs/qubit_decay.h5")

The schema stores time points, expectation series, optional saved states, state-observable series, Monte Carlo uncertainty estimates, entropy, and solver statistics.

Validation

The validation suite includes analytic qubit decay and a damped Jaynes-Cummings comparison against QuTiP.

python -m pip install -e ".[validation]"
python scripts/validate_jaynes_cummings_qutip.py

Performance comparison scripts are available under benchmarks/. Benchmark results depend strongly on problem size, backend warmup, hardware, and thread configuration; record those settings with any reported timings.

Documentation

Build the local documentation with:

python -m pip install -e ".[docs]"
sphinx-build -b html docs docs/_build/html

The documentation includes API pages, tutorials, validation examples, benchmark notes, and the HDF5 result schema.

Development

Run the Python test suite:

python -m pytest

Run the Julia backend tests:

julia --project=src/OpenQuantumSimJL -e 'using Pkg; Pkg.test()'

Repository layout:

openquantumsim/             Python frontend
src/OpenQuantumSimJL/       Julia backend package
tests/                      Python test suite
docs/                       Sphinx documentation
benchmarks/                 Benchmark scripts
scripts/                    Development and validation helpers
examples/                   Domain examples built on the public API

Authorship

The research idea, overall architecture and design, and the original seed Julia codes and scripts are the author's own work. Language models (LLMs) assisted with later improvements, optimizations, and porting; the author reviewed, tested, and validated the resulting code. The validation suite, benchmarks, and CI on Linux and Windows back this process.

Citation

If you use OpenQuantumSim in your research, please cite the software release (see CITATION.cff):

OpenQuantumSim, Mohammad Jafari, https://github.com/mohammadjafariph/OpenQuantumSimulation

License

MIT — see LICENSE.
