poseaudit

How far off are the joint angles, tilts and lengths you read from a pose model? OKS and mAP say whether the points land near the right place; poseaudit says whether the angle computed from them is good enough to use, with the statistics used to validate a measuring device: bias, limits of agreement, ICC and the rate of large errors. Angles already computed (Pose2Sim, OpenSim, your own code) go in as a CSV or .mot files with poseaudit paired (paired values).

What plain numpy misses

The mean |error| is one line of numpy. The work is around it (brackets are 95% intervals):

• Who was skipped. Keep only the detections yolo11n-pose scored 0.7 or more and its mean elbow error drops from 19.48° to 17.32°: the filter dropped 68 people it read worse. The 254 people both settings read were read alike but for one, and on them the difference, every detection minus filtered, is -0.06° [-0.20 to +0.00]. Models given as --pred a=a.json --pred b=b.json are compared the same way, on what both read.
• Pairing. People are matched to labels image by image by box overlap and keypoint similarity (OKS); points left unlabelled in the truth stay out of the count instead of counting as errors.
• Honest intervals. Readings from one image, or from one subject with --cluster, are resampled together.
• Where it goes wrong. 58% of elbows disagree with COCO's labels by 15° or more when the arm segments average under 30 px, against 26% above 60 px. How much of that is the labels' is not known: COCO's sigmas give the size of their spread, not its shape. As independent, isotropic noise on each point, that spread alone would put 30 to 44% of the small arms there, 17 to 31% of the large ones and 25.9 to 39.9% of all arms (43% observed). Yet on val2017 yolo11x-pose disagrees on 9 to 10% of straight left elbows with segments of 35 px or more, where that noise alone gives 22 to 25% on the demo's straight arms of the same lengths: most likely the labels' noise is shaped otherwise, or models learn it (statistics).

Install

python -m pip install poseaudit

That needs only NumPy and runs every audit. python -m pip install "poseaudit[plot]" adds --plot (Matplotlib); the extra [images] adds --images, which reads YOLO image sizes from the images (Pillow), and [supervision] adds pa.from_supervision.

Quick start

git clone https://github.com/8rulerstar/poseaudit   # the demo data (or GitHub's Code > Download ZIP)
cd poseaudit/examples/coco_elbow
poseaudit audit --format coco --gt gt_200.json --pred pred_yolo11n.json --angle 5,7,9 --big-error 15 --size-bands 30,60

angle (5, 7, 9): read 322 of 380 labelled instances
  not read     no matching prediction 35, prediction lacked a point 23, unmeasurable 0
  not counted  206 with a point unlabelled in the truth, 79 unmatched predictions
  bias         +2.27° [-1.21 to +6.15], median +0.52°
  limits       -50.90° to +79.99° (percentile, 2.5th to 97.5th; JSON percentile_limits)
  |error|      mean 19.48° [17.05 to 22.13], median 12.59°, 95th pct 68.99°
  RMSE         29.57° [25.30 to 33.94]
  >= 15°       43.2% [37.9% to 48.6%]
  by size      0-30 px 58% (n 134), 30-60 px 37% (n 112), 60+ px 26% (n 76)
  slope        0.731 [0.639 to 0.814] (pred on truth, 1 is ideal); Theil-Sen 0.786
  ICC(A,1)     0.762 [0.677 to 0.827]

Two warnings follow it, as in the GIF above. That is the left elbow angle of yolo11n-pose against COCO's labels on 200 val2017 images. Keypoints count from 0 in COCO's order (5, 7, 9: left shoulder, elbow, wrist; each right-side point is one higher). --big-error is required: the error that counts as large, in the measure's unit. Add --report report.md for a report that explains every line, --full for every statistic and --plot panels.png for this figure (with [plot]). If poseaudit is not found, use python -m poseaudit.

import poseaudit as pa

truth = pa.load_coco("gt_200.json")
predicted = pa.load_coco_results("pred_yolo11n.json", "gt_200.json")
result = pa.audit(
    pa.pair(truth, predicted), pa.angle(5, 7, 9), big_error=15, size_bands=[30, 60]
)
print(result.summary())

Per cycle

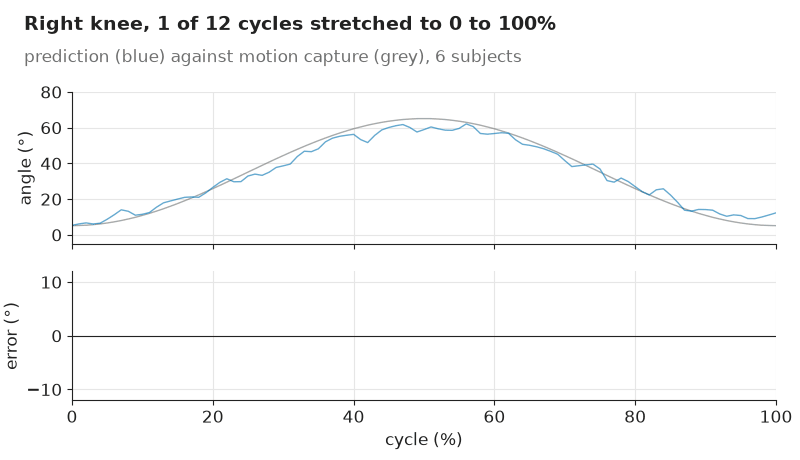

Gait and rehabilitation studies report figures per stride or repetition, not per trial. poseaudit paired --table angles.csv --big-error 5 --cycles events.csv cuts each trial at the start times in your CSV of events (or --cycles auto finds them where the reference repeats), stretches each cycle to 0 to 100% and gives the peak, trough and range of every cycle, the RMSE over the cycle and the mean error with its SD at each point, where an error that comes at one phase shows. The GIF draws the knee strides of the synthetic data in examples/paired (cycles_gif.py) (cycles).

poseaudit audit --format coco --gt labels.json --pred results.json --angle 5,7,9 --big-error 15 --full --json figures.json --report report.md --plot panels.png

As a CI gate

poseaudit audit --format coco --gt labels.json --pred results.json --angle 5,7,9 --big-error 15 --json figures.json
jq -e '(.mean_abs_error_ci[1] // 1e9) <= 25 and (.big_error_rate_ci[1] // 1) <= 0.5' figures.json

It fails unless the 95% intervals end at or below 25° of mean |error| and 50% of large errors. Resampling is seeded, so reruns agree; one image or --cluster group gives null, which fails.

How large must a limb be

poseaudit budget --format coco --gt labels.json --pred results.json --angle 5,7,9 --big-error 15 gives the smallest limb, in pixels, whose angle is off by 15° or more in at most 20% of readings, for that model on images like those, after checking its fit on readings it did not see (to within at least 6 percentage points, so a size can miss the target by that much). It needs about 140 readings of the joint, or 140 subjects or clips with --cluster, in each of its two groups (straight and bent limbs): on the 200-image demo it gives no size and says why. On COCO val2017, over four YOLO11 models at these settings, the check passed all 16 elbow groups, 11 of which gave a size (the others never get below 20%), and 3 of 16 knee groups; one elbow group passed in only 10 of 20 redraws of the data (--redraw) (budget).

More

docs/README.md indexes the docs: every option, comparing models, the Python API, the statistics, the JSON output, the limitations and the CHANGELOG.

Code: MIT. Demo data: a subset of COCO's 2017 keypoint labels (© COCO Consortium, CC BY 4.0) and predictions from Ultralytics yolo11n-pose (AGPL-3.0), which poseaudit does not depend on or include.
