Process-Bigraph
Process-Bigraph is a compositional runtime and protocol for building and executing multiscale biological models from interoperable processes.
It provides a shared architectural layer for:
- declaring process interfaces
- wiring processes through typed shared state
- orchestrating execution across heterogeneous timescales
- supporting dynamic structure (workflows, division, graph rewrites)
Process-Bigraph is the execution core of Vivarium 2.0, designed to integrate models built with different formalisms—including ODEs, FBA, agent-based models, spatial solvers, and machine-learning components—into a single coherent simulation.
🧩 What is a Process Bigraph?

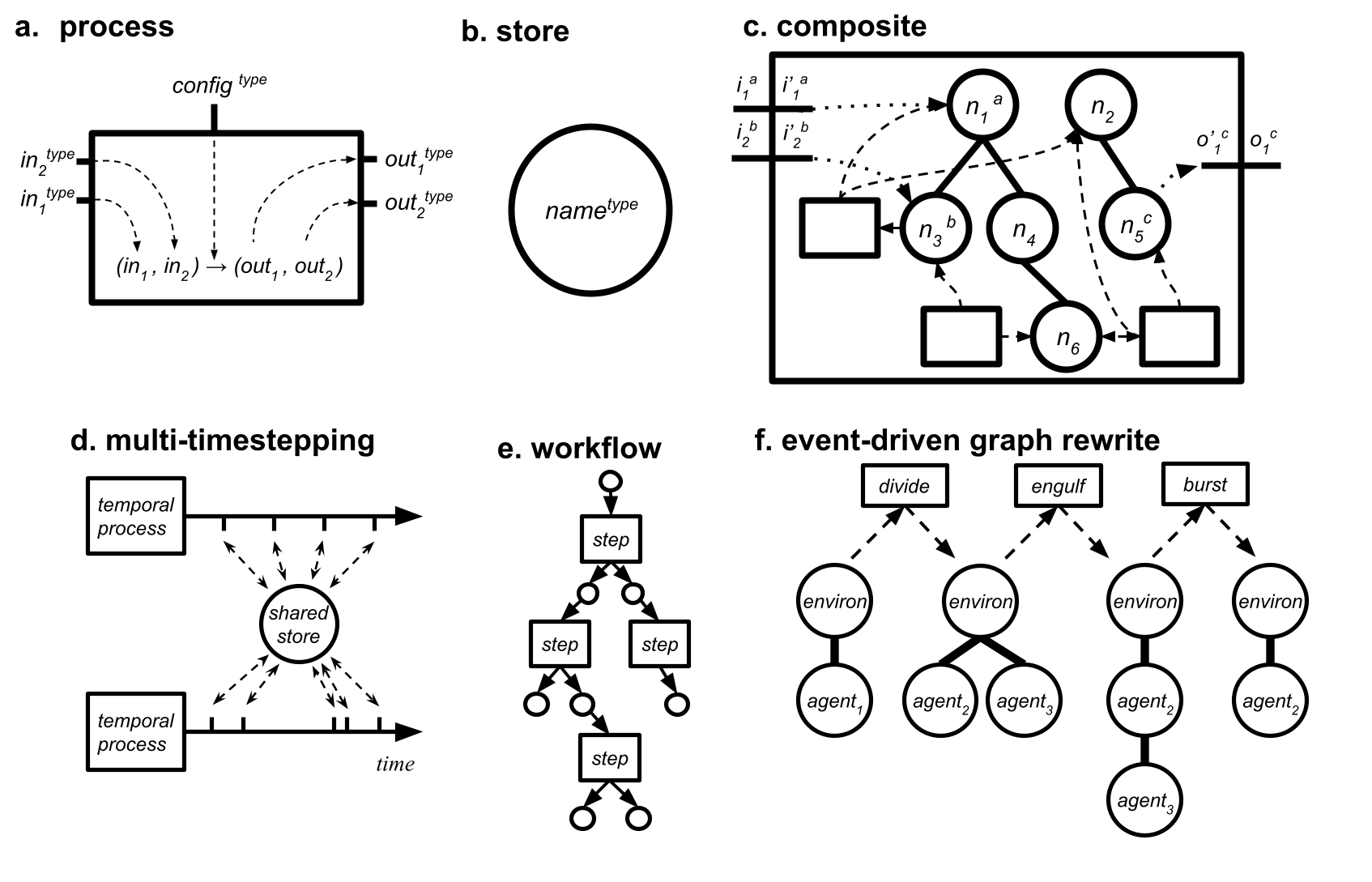

A process bigraph combines:
- Typed stores — hierarchical, schema-validated state defined with bigraph-schema
- Processes — executable components with explicit input/output ports
- Composites — encapsulated sub-simulations with their own internal structure
- Orchestration patterns — multi-timestepping, directed workflows, and event-driven rewrites
Processes do not mutate state directly. Instead, they emit typed deltas that are merged by the runtime.
This allows:
- numerical updates
- structural rewrites
- scheduling and orchestration
to coexist under a single execution semantics.
In this sense, Process-Bigraph is a composition protocol, not a domain-specific simulator.
📄 Paper reference
The conceptual framework and formal semantics of process bigraphs are introduced in:
Agmon, E. & Spangler, R. K.
Process Bigraphs and the Architecture of Compositional Systems Biology
https://arxiv.org/abs/2512.23754
🚀 Getting Started
Installation
pip install process-bigraph
Quickstart — composites, drafts & templates in code
A runnable five-minute tour of the core concepts. Every block below runs as-is
against process-bigraph ≥ 1.8.3. Concepts explained in
docs/concepts/composites-and-templates.md.
1. A process wired into a composite over a shared store. A composite is a state
map of typed nodes; processes couple only by reading/writing shared stores.
from process_bigraph import Composite, Process, allocate_core
from process_bigraph.emitter import emitter_from_wires, gather_emitter_results
class Grow(Process): # a Process = ports + an update
config_schema = {'rate': 'float'}
def inputs(self): return {'level': 'float'}
def outputs(self): return {'level': 'float'}
def update(self, state, interval):
return {'level': state['level'] * self.config['rate'] * interval} # a delta
core = allocate_core()
core.register_link('Grow', Grow) # register it in the local registry
composite = Composite({'state': {
'level': 1.0, # a shared store
'grow': {'_type': 'process', 'address': 'local:Grow', 'config': {'rate': 0.5},
'interval': 1.0, # seconds; a unit string like '1 min' also works
'inputs': {'level': ['level']}, 'outputs': {'level': ['level']}},
'emitter': emitter_from_wires({'level': ['level'], 'time': ['global_time']}),
}}, core=core)
composite.run(5.0)
print(gather_emitter_results(composite))
# {('emitter',): [{'level': 1.0, 'time': 0.0}, {'level': 1.5, ...}, ... {'level': 7.59, 'time': 5.0}]}
2. A draft — an open hole whose sort is a contract. A not-yet-implemented
process-slot is a hole: an open site (step 3) whose _sort names a
ProcessContract (its typed face + conditions). You design and review the topology
with the hole in place, then fill it with any process the contract admits.
Composite refuses to build while a required hole is open, and reports which hole,
what contract it requires, and which registered processes would fill it.
from bigraph_schema.contract import ProcessContract
from process_bigraph import find_candidates, UnfilledHoleError
# register the intended interface as a named contract …
core.register_contract('PTHSecretion', ProcessContract(
summary='senses serum Ca, secretes PTH',
face={'inputs': {'ca_sense': 'float'}, 'outputs': {'pth_out': 'float'}}))
# … and leave the slot as a hole sorted by it
template = core.access({'parathyroid': {'ca': 2.5, 'pth': 0.0,
'secretion': {'_type': 'site', '_sort': 'PTHSecretion'}}})
# Composite(..., unfilled) → UnfilledHoleError, not an opaque KeyError:
# not ground — required site(s) left unfilled: 'parathyroid/secretion'
# • parathyroid/secretion
# requires:
# inputs: ca_sense: float
# outputs: pth_out: float
# candidates:
# ✓ <any registered process whose contract admits the hole>
Fill it (step 3) with a process find_candidates(core, site) reports as admissible,
and build. The full design → inspect → fill → build lifecycle — and the rejection
report in full — is in
docs/concepts/designing-with-holes.md.
Deprecated:
@draft_process/DraftProcess(an inert placeholder node) still work but now emitDraftProcessDeprecationWarning— model a draft as a hole instead.draft_to_contract(cls)bridges an existing draft's interface to aProcessContract.
3. A template — a composite with an open site (hole). A template is a document that
isn't ground: it has open sites ({"_type": "site"}). Composite refuses to run
one until every required site is filled.
from process_bigraph import Step
from process_bigraph.templates import open_sites, is_ground_document, template_document
class ReportCard(Step): # a fixed downstream verdict
config_schema = {'threshold': 'float'}
def inputs(self): return {'level': 'float'}
def outputs(self): return {'verdict': 'string'}
def update(self, state):
return {'verdict': 'pass' if state['level'] >= self.config['threshold'] else 'fail'}
core.register_link('ReportCard', ReportCard)
MODEL_FACE = {'_type': 'link', '_inputs': {'level': 'float'}, '_outputs': {'level': 'float'}}
template = core.access({'study': { # analysis fixed, the model is a HOLE
'level': 1.0, 'verdict': 'string',
'model': {'_type': 'site', '_sort': MODEL_FACE},
'report': {'_type': 'step', 'address': 'local:ReportCard', 'config': {'threshold': 2.0},
'inputs': {'level': ['level']}, 'outputs': {'verdict': ['verdict']}}}})
print(open_sites(template), is_ground_document(template)) # [('study', 'model')] False
def model(rate): # any conforming composite fits the hole
return core.access({'_type': 'process', 'address': 'local:Grow', 'config': {'rate': rate},
'interval': 1.0, 'inputs': {'level': ['level']}, 'outputs': {'level': ['level']}})
sim = Composite({'state': template_document(core, template, {'study/model': model(0.5)})}, core=core)
sim.run(4.0)
print(sim.state['study']['verdict']) # pass (a slower model → fail)
# template_document(core, template, {}) → UnfilledHoleError: not ground — required site 'study/model'
4. An investigation — one site per member study; gating is filling. Fill a member's site to admit it; leave it open and it is pruned from the built document, so a blocked prerequisite simply never runs.
from process_bigraph.templates import investigation_document
study = lambda: {'level': 1.0, 'verdict': 'string',
'model': {'_type': 'site', '_sort': MODEL_FACE},
'report': {'_type': 'step', 'address': 'local:ReportCard', 'config': {'threshold': 2.0},
'inputs': {'level': ['level']}, 'outputs': {'verdict': ['verdict']}}}
inv = core.access({'investigation': {'study_A': study(), 'study_B': study()}})
document, blocked = investigation_document(
core, inv, {'investigation/study_A/model': model(0.5)}, member_depth=2) # fill A only
print(blocked, sorted(document['investigation'])) # ['investigation/study_B'] ['study_A']
This same template/site machinery is what viva-superpowers uses to compile a whole investigation into a composite (one
StudyStepper member). The study/investigation layer is documented in viva-superpowersdocs/concepts/composites-templates-and-the-study-investigation-stack.md.
📘 Tutorials
The Process-Bigraph tutorials are executable Jupyter notebooks, rendered to HTML and published automatically on GitHub Pages.
- 📚 Tutorial Index (all tutorials)
https://vivarium-collective.github.io/process-bigraph/notebooks/index.html
Learning Path (Featured Tutorials)
-
Tutorial 0 — A Process in 12 Lines (quickstart)
The new front door: define a process with the@processdecorator, wire and run it end-to-end on one screen, and watch a_units-bearing port auto-convert
https://vivarium-collective.github.io/process-bigraph/notebooks/tutorial_0_quickstart.html -
Tutorial 1 — Process-Bigraph Basics
Processes, Steps, ports, Composites, workflows, and emitters
https://vivarium-collective.github.io/process-bigraph/notebooks/tutorial_1.html -
Tutorial 2 — Wrapping an ODE Solver (
odeint)
How to expose an existing scientific API as a Process
https://vivarium-collective.github.io/process-bigraph/notebooks/tutorial_2.html -
Tutorial 3 — Declarative Math
Defining mathematical relationships, signal pipelines, and events usingMathExpressionStep
https://vivarium-collective.github.io/process-bigraph/notebooks/tutorial_3.html
Requires the companion packageviva-basic-processes, published to PyPI aspbg-basic-processes(pip install "pbg-basic-processes[plotting]>=0.3.0"), which providesMathExpressionStep, theTickprocess, and the plotting helpers. -
Tutorial 4 — Composing a Biological Model
The central dogma from four small processes: composition over shared molecular state, biological units in the port types, and adding regulation by adding a wire
https://vivarium-collective.github.io/process-bigraph/notebooks/tutorial_4.html
More tutorials are added continuously and appear automatically in the index.
Architecture
- The framework, end to end — start here to understand the whole system:
what the objects are (documents, sites, handles), how they compose, the
higher-order DAG, templates and gating, content-addressed artifacts, the
git:protocol, and the laws everything else follows from. docs/architecture.md
Topic Guides
-
Emitters — Recording Simulation Results Built-in emitters (RAM, console, JSON, SQLite), how to wire them, retrieve results, store runs long-term, and write your own. docs/emitters.md
-
Tick lifecycle — how a step network is ordered and advanced, and how a protocol runtime batches remote dispatch. docs/tick_lifecycle.md
-
Distributed lifecycles — running parts of a composite off-process. docs/distributed_lifecycles.md
-
Deploying a Step network to Nextflow — opt-in: compile a composite's Step network into a Nextflow DSL2 workflow and run it on a batch backend (local / SLURM). Nothing changes about
Composite.run(). docs/nextflow.md
🧪 Reference Implementation: spatio-flux
Process-Bigraph is exercised end-to-end in spatio-flux, a multiscale reference model built entirely using the process-bigraph protocol.
spatio-flux composes spatial fields, particle dynamics, and metabolic processes using typed shared state and declarative orchestration.
GitHub: https://github.com/vivarium-collective/spatio-flux
Live test report: https://vivarium-collective.github.io/spatio-flux/report/index.html
🔗 Related Resources
-
Bigraph Schema Basics
https://vivarium-collective.github.io/bigraph-viz/notebooks/basics.html
Introduction to the schema language underlying Process-Bigraph -
Visualization of Bigraph Document — diagramming and rendering with bigraph-viz
https://vivarium-collective.github.io/bigraph-viz/notebooks/format.html -
E. coli Whole-Cell Wiring Diagram
https://raw.githubusercontent.com/vivarium-collective/bigraph-viz/main/doc/_static/ecoli.png -
Claude Code skills — wrap simulators, compose
pbg-*packages, and scaffold process-bigraph research workspaces with the pbg-superpowers Claude Code plugin (install with/plugin install pbg-superpowers).
📜 License
Process-Bigraph is open-source software released under the
Apache 2 License.
