pybrass 0.1.0

Binary Reader and Analysis Suite Software

BRASS (Binary Reader and Analysis Suite Software)

A simple and extensible C++/Python library for reading and analyzing binary particle output files.

Features

• Blazingly fast (see performance)
• C++ binary file reader for particle data
• Plugin-style extensible analysis system (via registry macros)
• Histogramming utilities
• Developed primarily for Binary format used by SMASH (see https://theory.gsi.de/~smash/userguide/current/doxypage_output_binary.html)

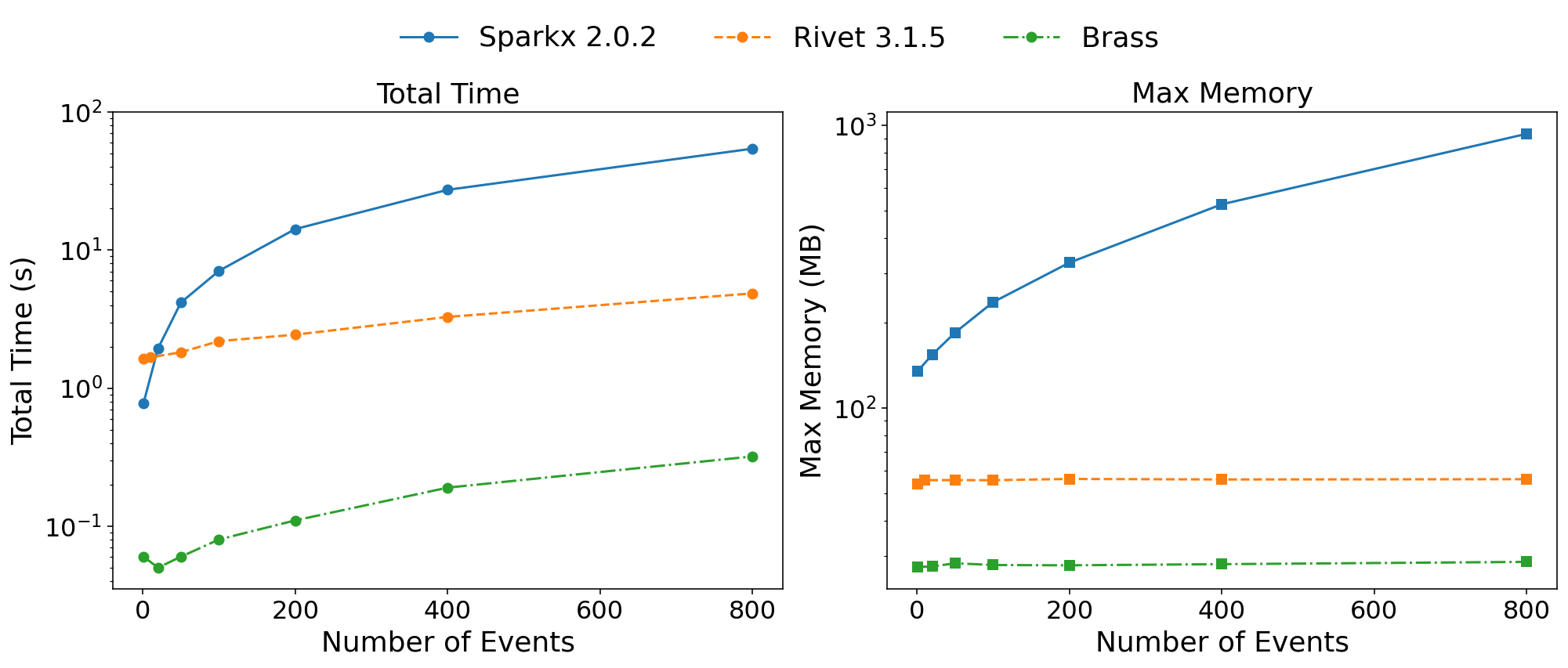

Performance

Build Instructions

in repository

pip install .

or from PyPI

pip install pybrass

Simplest Usage

from brass import BinaryReader, Accessor

QUANTITIES = ["p0", "px", "py", "pz", "pdg"]

class Example(Accessor):
    def on_particle_block(self, block):
        arrays = dict(self.gather_block_arrays(block, QUANTITIES))
        E = arrays["p0"]
        px = arrays["px"]
        py = arrays["py"]
        pz = arrays["pz"]
        pdg = arrays["pdg"]
        # do something with E, px, py, pz, pdg here

reader = BinaryReader("events.bin", QUANTITIES, Example())
reader.read()

brass-analyze

Command-line tool for running registered analyses on multiple SMASH run directories.

Usage

brass-analyze [OPTIONS] OUTPUT_DIR ANALYSIS_NAME

• OUTPUT_DIR — top directory containing run subfolders (out-* by default)
• ANALYSIS_NAME — name of a registered analysis (see --list-analyses)

Options

--list-analyses List registered analyses and exit.

--pattern PATTERN Glob for run folders (default: out-*).

--keys KEY1 KEY2 ... Dotted keys from config for labeling runs (last segment used as name). Example: --keys Modi.Collider.Sqrtsnn General.Nevents

--results-subdir DIR Subdirectory to store results (default: data).

--strict-quantities Fail if Quantities differ across runs (default: warn and use first).

--load Load python files containing an analysis class registration

-v, --verbose Print detailed information.

Writing Analyses

import numpy as np
import brass as br
from pathlib import Path

class Dndydpt:
    def __init__(self, y_edges, pt_edges, track_pdgs=None):
        self.y_edges  = np.asarray(y_edges)
        self.pt_edges = np.asarray(pt_edges)

        # 2D histogram over (pt, y), with variance tracking for errors
        self.incl     = br.HistND([self.pt_edges, self.y_edges], track_variance=True)
        self.per_pdg  = {}   # pdg -> HistND([pt, y], track_variance=True)
        self.track    = set(track_pdgs or [])
        self.n_events = 0

    def on_particle_block(self, block, accessor, opts):
        self.n_events += 1
        pairs = accessor.gather_block_arrays(block, ["p0","pz","px","py","pdg"])
        cols  = {k: v for k, v in pairs}
        E, pz, px, py, pdg = cols["p0"], cols["pz"], cols["px"], cols["py"], cols["pdg"]

        m = (E > np.abs(pz))  # avoid invalid rapidity
        if not m.any():
            return
        E, pz, px, py, pdg = E[m], pz[m], px[m], py[m], pdg[m]

        y  = 0.5*np.log((E + pz) / (E - pz))
        pt = np.hypot(px, py)

        # inclusive fill
        self.incl.fill(pt, y)

        # optional per-PDG fills
        if self.track:
            pdgs_here = np.intersect1d(np.unique(pdg), np.fromiter(self.track, dtype=int))
            for val in pdgs_here:
                sel = (pdg == val)
                H = self.per_pdg.setdefault(
                    int(val), br.HistND([self.pt_edges, self.y_edges], track_variance=True)
                )
                H.fill(pt, y, mask=sel)

    def merge_from(self, other, opts):
        self.incl.merge_(other.incl)
        for k, H in other.per_pdg.items():
            self.per_pdg.setdefault(k, br.HistND([self.pt_edges, self.y_edges], track_variance=True))
            self.per_pdg[k].merge_(H)
        self.n_events += getattr(other, "n_events", 0)

    def finalize(self, opts):
        """
        Normalize to d^2N/(dy dpt) per event, and compute per-bin errors.
        Error per bin = sqrt(variance), with variance propagated under normalization.
        """
        dy  = np.diff(self.y_edges)   # (ny,)
        dpt = np.diff(self.pt_edges)  # (npt,)
        area = dpt[:, None] * dy[None, :]     # (npt, ny), supports non-uniform bins
        n_ev = max(int(self.n_events), 1)

        # Normalize counts -> per-event per (dy dpt)
        self._normalize_hist2d_(self.incl, n_ev, area)
        for H in self.per_pdg.values():
            self._normalize_hist2d_(H, n_ev, area)

    @staticmethod
    def _normalize_hist2d_(H, n_ev, area):
        """
        Counts and variance normalization:
          value_norm = counts / (n_ev * area)
          var_norm   = sumw2 / (n_ev^2 * area^2)   (since errors() = sqrt(sumw2))
        """
        H.counts[:] = H.counts / (n_ev * area)
        if getattr(H, "sumw2", None) is not None:
            H.sumw2[:] = H.sumw2 / ((n_ev * area) ** 2)

    def _fmt_val(self, v):
        return f"{round(v, 3):g}" if isinstance(v, float) else str(v)

    def _label_from_keys(self, keys: dict) -> str:
        parts = [f"{k}-{self._fmt_val(keys[k])}" for k in sorted(keys)]
        return "_".join(parts).replace("/", "-")

    def save(self, out_dir, keys, opts):
        out_dir = Path(out_dir)
        out_dir.mkdir(parents=True, exist_ok=True)
        tag = self._label_from_keys(keys)
        path = out_dir / f"dndydpt_{tag}.npz"

        # Build dict of per-PDG outputs: values + errors (if available)
        pdg_arrays = {}
        for k, H in self.per_pdg.items():
            pdg_arrays[f"pdg_{k}"] = H.counts
            if getattr(H, "sumw2", None) is not None:
                pdg_arrays[f"pdg_{k}_err"] = np.sqrt(H.sumw2)

        # Inclusive arrays: values + errors
        extras = {}
        if getattr(self.incl, "sumw2", None) is not None:
            extras["H_inclusive_err"] = np.sqrt(self.incl.sumw2)

        np.savez(
            path,
            H_inclusive=self.incl.counts,
            y_edges=self.y_edges,
            pt_edges=self.pt_edges,
            n_events=int(self.n_events),
            **pdg_arrays,
            **extras,
            keys=keys,
            analysis_name=getattr(self, "name", "dndydpt_python"),
            version=getattr(self, "smash_version", None),
        )

# Register
edges_y  = np.linspace(-4, 4, 31)
edges_pt = np.linspace(0.0, 3.0, 31)

br.register_python_analysis(
    "dndydpt_py",
    lambda: Dndydpt(edges_y, edges_pt, track_pdgs=[2212, 211, -211]),
    {},
)

How Analyses Work

Each analysis plugin in BRASS subclasses the Analysis interface and is responsible for processing particle blocks and storing results.

Run an Analysis

import sys
import os
import argparse
import brass as br
import time
# 1) import your python analysis module so it registers itself
import dndydpt

# 2) Quantities must EXACTLY match what the file contains
QUANTITIES = [
    "t","x","y","z",
    "mass","p0","px","py","pz",
    "pdg","id","charge","ncoll",
    "form_time","xsecfac",
    "proc_id_origin","proc_type_origin","time_last_coll",
    "pdg_mother1","pdg_mother2",
    "baryon_number","strangeness"
]
def main():
    if len(sys.argv) < 2:
        print(f"Usage: {sys.argv[0]} /path/to/particles_oscar2013_extended.bin [outdir]")
        sys.exit(1)

    binfile = sys.argv[1]
    outdir  = sys.argv[2] if len(sys.argv) > 2 else "results_py"


    t0 = time.perf_counter()
    print(br.list_analyses())
    br.run_analysis(
        file_and_meta=[(binfile, "meta_key=1")],
        analysis_names=["dndydpt_py"],
        quantities=QUANTITIES,
        output_folder=outdir,
    )
    t1 = time.perf_counter()
    print(f"[PY] dndydpt_py elapsed: {t1-t0:.6f} s")

if __name__ == "__main__":
    main()

Merging by Metadata

When you run over multiple binary files, BRASS uses user-supplied metadata (like sqrt_s, projectile, target) to associate results with a merge key. You define metadata like this:

 br.run_analysis(
        file_and_meta=[(binfile_A, "meta_key=1"),(binfile_B, "meta_key=1"),(binfile_C, "meta_key=2")],
        analysis_names=["dndydpt_py"],
        quantities=QUANTITIES,
        output_folder=outdir,
    )

This will call the merge_frommethod in Analysis class such that binfile_Aand binfile_Bwill be merged.
