PyPowerwall Server

A high-performance FastAPI-based server for monitoring and managing Tesla Powerwall systems. Designed as the next-generation evolution of the pypowerwall proxy with multi-gateway support, real-time monitoring, and a built-in status console.

The Energy panel toggles between Energy Summary (current kW totals) and Energy Trend (raw kW data with battery level % overlay).

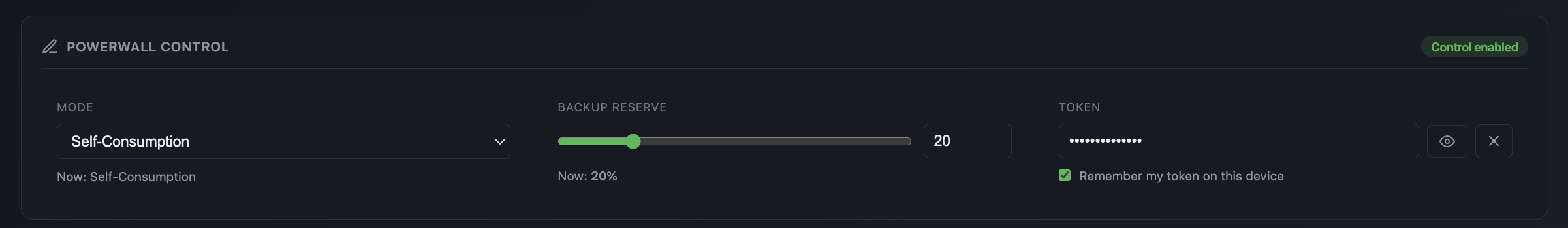

The Control panel allows you to manage the Powerwall's operation mode, reserve percentage, and grid charging settings. Requires setting the PW_CONTROL_SECRET environment variable.

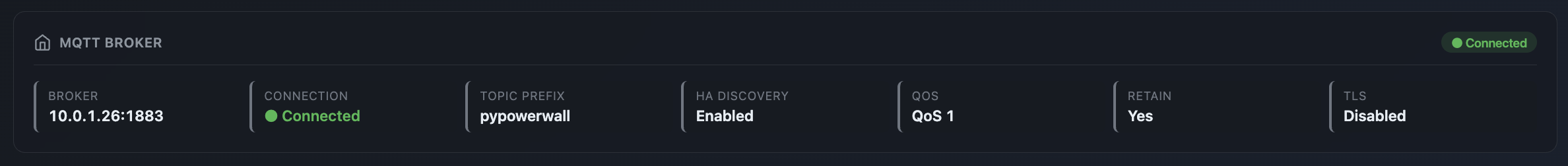

The MQTT panel shows the live MQTT settings if the PW_MQTT_BROKER environment variable is set.

Features

• Multi-Gateway Support - Monitor multiple Powerwall installations from a single server with per-gateway configuration and aggregated metrics
• Connection Modes - TEDAPI (local), Basic LAN (PW3 wired LAN, core metrics), Cloud Mode (remote), and FleetAPI support with automatic failover and graceful degradation
• Real-Time Updates - WebSocket streaming with 1-second updates and background polling with intelligent caching
• Complete API - Full backward compatibility with pypowerwall proxy plus new multi-gateway and aggregate endpoints
• Console Web UI - Tesla Power Flow animation, management console, and auto-generated API documentation at /docs
• Optional Control Mode - Token-protected /control/* API to set backup reserve and operating mode, plus a Powerwall Control card in the web Console (enabled by PW_CONTROL_SECRET; read-only by default)
• MQTT Integration - Publish live Powerwall metrics to any MQTT broker; built-in Home Assistant auto-discovery; see mqtt-tools/README.md

Quick Start

Requirements

• TEDAPI Mode: For extended metrics you will need the Powerwall/Gateway Password (typically found on the QR sticker - behind front panel of PW3 - see picture). And you computer must be connected to the Powerwall WiFi Access point (it will be IP address 192.168.91.1)
• Basic LAN Mode (PW3): For core metrics over a wired connection, you only need the customer password (last 5 characters of the gateway password) and the Powerwall's wired LAN IP on the vendor subnet (e.g. 10.42.1.x). See Basic LAN Mode below.
• Cloud Mode: For basic metrics, you will need your Tesla customer login credentials (email) and will need to run the cloud mode one-time setup below.

Docker (Recommended)

The easiest way to get started is using the provided Docker image. You can run in either TEDAPI Mode (local access) or Cloud Mode (remote access). Select the appropriate option below:

Choosing a Connection Mode

Not sure which mode to run? Pick the row that matches your setup — then follow its example below:

All local modes are read-only unless cloud credentials are provided (hybrid mode).

TEDAPI Mode (Local Access)

# TEDAPI Mode requires host network to access gateway at 192.168.91.1
docker run -d \
  --name pypowerwall-server \
  --network host \
  -e PW_HOST=192.168.91.1 \
  -e PW_GW_PWD=your_gateway_password \
  -v pws-data:/data \
  jasonacox/pypowerwall-server

TEDAPI v1r Mode (RSA Key Auth)

# TEDAPI v1r uses an RSA-4096 private key for the encrypted channel,
# but still requires PW_GW_PWD to derive the customer password.
# Generate a key pair with pypowerwall, then mount it into the container.
docker run -d \
  --name pypowerwall-server \
  --network host \
  -e PW_HOST=192.168.91.1 \
  -e PW_GW_PWD=your_gateway_password \
  -e PW_RSA_KEY_PATH=/keys/tedapi_rsa_private.pem \
  -e PW_WIFI_HOST=192.168.91.1 \
  -v /path/to/keys:/keys \
  -v pws-data:/data \
  jasonacox/pypowerwall-server

Note: PW_WIFI_HOST is the IP address pypowerwall uses for the WiFi fallback path in v1r mode. It defaults to 192.168.91.1. Only set it if your gateway is on a different IP (e.g. behind a travel router).

Note: The -v pws-data:/data mount persists the daily energy history (SQLite time-series store) across container upgrades. Omit it if you run with PW_TIMESERIES_RETENTION=-1 (subsystem disabled).

Basic LAN Mode (Powerwall 3, No Gateway Password or RSA Key)

Powerwall 3 units expose a small set of local API endpoints over their wired LAN interface (vendor subnet, e.g. 10.42.1.x). With just the customer password (the last 5 characters of the gateway password), you can monitor core metrics without the gateway Wi-Fi password, an RSA key, or any cloud setup:

# Basic LAN Mode - connect directly to the Powerwall 3 over Ethernet
# PW_HOST is the Powerwall's wired LAN IP on the vendor subnet
# PW_PASSWORD is the customer password (last 5 chars of the gateway password)
docker run -d \
  --name pypowerwall-server \
  --network host \
  -e PW_HOST=<pw3-ip> \
  -e PW_PASSWORD=your_customer_password \
  -v pws-data:/data \
  jasonacox/pypowerwall-server

This mode serves power flows (/api/meters/aggregates), battery state of charge (/api/system_status/soe), and grid status (/api/system_status/grid_status). Most other local /api/* endpoints (vitals, strings, operation, firmware info, etc.) return 404 in this mode, so pypowerwall-server skips them automatically to keep the logs clean. Monitoring is read-only and limited to the core metrics — for full device-level data use TEDAPI mode above. Requires pypowerwall 0.17.0+.

Basic LAN + Cloud Control (Hybrid)

The local Basic LAN connection is read-only. To control your Powerwall from this mode (set reserve level, operating mode, grid charging), add Tesla cloud credentials — monitoring stays on the local connection, control writes go through the Tesla cloud:

docker run -d \
  --name pypowerwall-server \
  --network host \
  -e PW_HOST=<pw3-ip> \
  -e PW_PASSWORD=your_customer_password \
  -e PW_EMAIL="your@email.com" \
  -e PW_AUTH_PATH=/auth \
  -v ~/.pypowerwall:/auth \
  -v pws-data:/data \
  jasonacox/pypowerwall-server

# One-time setup (runs the Tesla auth flow to generate the token files)
docker exec -it pypowerwall-server python -m pypowerwall setup

Both pieces are required for control: PW_EMAIL identifies the Tesla account, and PW_AUTH_PATH points at the directory holding the .pypowerwall.auth / .pypowerwall.site token files created by the one-time setup (email alone is not enough — the cloud connection has no password to log in with). With both set, /control/reserve, /control/mode and /control/grid_charging route through the cloud connection while all monitoring data keeps coming from the local Basic LAN endpoints (no internet needed for reads). The Console shows Hybrid as the connect mode and tracks both links separately (Local / Cloud sub-rows): if the internet drops, the Connection card reads Degraded with Local: Healthy / Cloud: Unavailable instead of reporting plain health from the local link alone. If the cloud connection can't be established at all, monitoring is unaffected, control requests return an error, and the Console's Powerwall Mode shows -- (unavailable) rather than a made-up value; when the cloud link drops after having been up, the last known mode/reserve are shown marked (stale) with their fetch time exposed via /api/operation.

Cloud Mode (Remote Access)

# Cloud Mode requires one-time setup using Tesla login step below
docker run -d \
  --name pypowerwall-server \
  -p 8675:8675 \
  -v ~/.pypowerwall:/auth \
  -v pws-data:/data \
  -e PW_EMAIL="your@email.com" \
  -e PW_AUTH_PATH=/auth \
  jasonacox/pypowerwall-server

# One-time setup (runs auth flow to generate token files)
docker exec -it pypowerwall-server python -m pypowerwall setup

The PyPowerwall Server will be running at: http://localhost:8675 (if not running local, replace "localhost" with the IP of the host running the container).

Option: Multiple Powerwalls

# Multiple local gateways - requires host network
docker run -d \
  --name pypowerwall-server \
  --network host \
  -v pws-data:/data \
  -e PW_GATEWAYS='[
    {"id": "home", "name": "Home Gateway", "host": "192.168.91.1", "gw_pwd": "gateway_password_1"},
    {"id": "cabin", "name": "Cabin Gateway", "host": "192.168.91.2", "gw_pwd": "gateway_password_2"},
    {"id": "garage", "name": "Garage (travel router)", "host": "192.168.1.50", "port": 8443, "gw_pwd": "gateway_password_3"}
  ]' \
  jasonacox/pypowerwall-server

Option: Command Line Test

# Install
pip install pypowerwall-server

# TEDAPI Mode
pypowerwall-server --host 192.168.91.1 --gw-pwd your_gateway_password

# Multiple Powerwalls
pypowerwall-server --config gateways.yaml

# Cloud Mode
pypowerwall-server --setup # one-time setup
pypowerwall-server --email "your@email.com"

Configuration

Note: Most users will use TEDAPI to connect to their Powerwall gateway, which is accessible at the standard IP address 192.168.91.1 on your local network. You'll need your gateway password (found in the Tesla app under your gateway settings).

Cloud Authentication Setup (Optional, for Control Operations)

If you want to control your Powerwall (set reserve level, operating mode, etc.), you'll need Tesla Cloud authentication:

One-time setup:

pip install pypowerwall-server
pypowerwall-server --setup

This will:

1. Open your browser to authenticate with Tesla
2. Generate .pypowerwall.auth and .pypowerwall.site token files
3. Store them in the default location or a specified directory

Environment Variables

Single Gateway Mode (Read-Only via TEDAPI):

PW_HOST=192.168.91.1
PW_GW_PWD=your_gateway_password
PW_TIMEZONE=America/Los_Angeles
PW_PORT=8675              # Default port (proxy-compatible)
PW_BIND_ADDRESS=0.0.0.0  # Listen on all interfaces
PROXY_BASE_URL=/pypowerwall  # Optional: serve under a sub-path (see Reverse Proxy)

Single Gateway Mode (TEDAPI v1r — RSA Key Auth):

PW_HOST=192.168.91.1
PW_GW_PWD=your_gateway_password                  # Gateway password (last 5 chars used as customer password)
PW_RSA_KEY_PATH=/path/to/tedapi_rsa_private.pem  # RSA-4096 private key for v1r encrypted channel
PW_WIFI_HOST=192.168.91.1                         # WiFi fallback IP for v1r mode (default: 192.168.91.1)
PW_TIMEZONE=America/Los_Angeles

Single Gateway Mode (With Cloud Control):

PW_HOST=192.168.91.1
PW_GW_PWD=your_gateway_password          # For TEDAPI data reads
PW_EMAIL=your-tesla-account@email.com
PW_AUTH_PATH=/path/to/auth/files            # Directory with .pypowerwall.auth/.site
PW_TIMEZONE=America/Los_Angeles

Multi-Gateway Mode:

PW_GATEWAYS='[
  {
    "id": "home",
    "name": "Home System",
    "host": "192.168.91.1",
    "gw_pwd": "gw_pwd_1",
    "email": "tesla@email.com",
    "authpath": "/auth"
  },
  {
    "id": "cabin",
    "name": "Cabin System",
    "host": "192.168.91.1",
    "gw_pwd": "gw_pwd_2",
    "email": "tesla@email.com",
    "authpath": "/auth"
  }
]'

TEDAPI SolarOnly Fallback Recovery:

PW_TEDAPI_RECOVERY=yes                     # Enable auto-recovery (default: yes)
PW_TEDAPI_PROBE_INTERVAL=30                # Seconds between TEDAPI health probes (default: 30)

When TEDAPI drops mid-session (firmware update, route loss), the server tracks SolarOnly fallback as a distinct state and retries reconnection with exponential backoff (60s → 300s max). Fallback state is exposed in /health and /stats. POST /health/reset clears fallback state (requires PW_CONTROL_SECRET). Only active in TEDAPI mode — no overhead for Cloud/FleetAPI.

Logging & Diagnostics:

PW_DEBUG=no                # Enable debug logging (default: no)

HTTP access logs (one line per request) are only emitted when PW_DEBUG is enabled — production logs stay quiet. The gateway firmware version is logged at the first successful poll and again on every change (Gateway <id> firmware changed: X -> Y), so docker logs pypowerwall-server answers "when did my Powerwall firmware update?" without extra tooling.

Time-Series Storage (Daily Energy Stats):

PW_TIMESERIES_RETENTION=24h            # Raw 5s sample retention (default: 24h)
PW_TIMESERIES_DAILY_RETENTION=0        # Daily kWh aggregate retention (default: 0 = unlimited)
PW_TIMESERIES_PATH=/data/timeseries.db  # SQLite path (default: /data/timeseries.db if /data exists)

The server records every poll cycle's power readings to a local SQLite store (WAL mode) and derives daily energy totals per gateway via trapezoidal integration: solar, home consumption, battery charge/discharge, grid import/export — each tracked directionally (never netted). Totals reset at local midnight using each gateway's configured timezone, survive restarts, and show in the web console's Daily Energy panel plus the /api/timeseries/* endpoints. Raw samples also capture battery level (state of charge) per poll — kept for the raw retention window only, never downsampled into daily aggregates. Clicking the console's Energy Summary panel toggles it into an Energy Trend view: the last 24 hours of raw data charted as Solar/Home/Battery/Grid kW (shared left axis) plus Battery Level % (dashed, right axis), using the standard color coding. Raw samples are pruned to the retention window (keeping the last hour for troubleshooting); daily aggregates are one tiny row per gateway per day (~100 B/day) so unlimited retention is the sensible default. Intervals longer than 1 hour (outage/gap) are never integrated — no fabricated energy. Set PW_TIMESERIES_RETENTION=-1 to disable the subsystem entirely for headless proxy deployments (no SQLite file, no writes, UI panel hidden). Retention accepts 90s, 48h, 7d, 30d, 365d style values; 0 = unlimited.

Configuration File (gateways.yaml)

Pass a YAML (or JSON) config file with --config gateways.yaml or PW_CONFIG=/path/to/gateways.yaml. A template ships as gateways.yaml.example — copy it to gateways.yaml (which is gitignored, since it holds gateway passwords) and edit:

server:
  host: 0.0.0.0
  port: 8675
  cors_origins:
    - http://localhost:3000

gateways:
  - id: home
    name: Home System
    host: 192.168.91.1
    gw_pwd: gw_pwd_1
    email: tesla@email.com
    authpath: /auth
    timezone: America/Los_Angeles

  - id: cabin
    name: Cabin System
    host: 192.168.91.1
    gw_pwd: gw_pwd_2
    email: tesla@email.com
    authpath: /auth
    timezone: America/Denver

  - id: garage
    name: Garage (travel router)
    host: 192.168.1.50   # travel router IP
    port: 8443           # non-standard HTTPS port forwarded to 192.168.91.1
    gw_pwd: gw_pwd_3
    timezone: America/Los_Angeles

  - id: south-inverter
    name: South Array Inverter
    host: 192.168.91.1
    gw_pwd: gw_pwd_4
    type: inverter       # solar-only; suppresses battery panels in console
    timezone: America/Los_Angeles

  - id: cloud-site
    name: Cloud Mode Site
    email: user@example.com
    authpath: /auth
    cloud_mode: true

  - id: v1r-gateway
    name: TEDAPI v1r Gateway
    host: 192.168.91.1
    gw_pwd: your_gateway_password                # Required even in v1r mode (used to derive customer password)
    rsa_key_path: /keys/tedapi_rsa_private.pem  # RSA-4096 private key (TEDAPI v1r mode)
    wifi_host: 192.168.91.1                     # WiFi fallback IP (optional, defaults to 192.168.91.1)
    timezone: America/Los_Angeles

Authentication:

• gw_pwd: For TEDAPI local gateway access (standard mode)
• rsa_key_path: Path to RSA-4096 private key PEM file for TEDAPI v1r LAN access (requires gw_pwd — the RSA key handles the encrypted channel, but gw_pwd is still needed to derive the customer password)
• email + authpath: For Tesla Cloud API (control operations)
  • Run pypowerwall-server --setup to authenticate and generate auth files
  • Specify directory containing .pypowerwall.auth and .pypowerwall.site files

TEDAPI connection modes:

• host + gw_pwd → TEDAPI (standard, uses gateway Wi-Fi password)
• host + gw_pwd + rsa_key_path → TEDAPI v1r (RSA-4096 encrypted channel + customer password from gw_pwd; shown as "TEDAPI v1r" in console)
• wifi_host → Optional WiFi fallback IP for v1r mode (default 192.168.91.1; only needed when your gateway is on a non-standard IP)

Optional fields:

• port: Non-standard HTTPS port (e.g. 8443) — use when the gateway is behind a travel router that forwards a custom port to 192.168.91.1:443
• type: Gateway device type — powerwall (default, has batteries) or inverter (solar-only; suppresses battery panels in the console)
• rsa_key_path: RSA-4096 private key PEM path for TEDAPI v1r LAN authentication (requires gw_pwd — see above)
• wifi_host: WiFi host IP for TEDAPI v1r WiFi fallback (default 192.168.91.1; set this when your gateway's WiFi AP is on a different subnet, e.g. behind a travel router)

Reverse Proxy / HTTPS Proxy

You can serve pypowerwall-server from a sub-path alongside other services (e.g. Grafana on /) using PROXY_BASE_URL. This is the recommended setup for HTTPS via nginx.

Environment variable:

PROXY_BASE_URL=/pypowerwall   # Serve everything under /pypowerwall/

With this set, all UI pages, static assets, and API calls are rendered with the correct prefix so the browser resolves them through the proxy. No changes to API clients are needed.

Example nginx configuration:

server {
    listen 443 ssl;
    server_name lab.lan;

    # Grafana at root
    location / {
        proxy_pass http://grafana:3000/;
    }

    # PyPowerwall at /pypowerwall/
    location /pypowerwall/ {
        # Strip the /pypowerwall prefix before forwarding (trailing slash is required)
        proxy_pass http://pypowerwall:8675/;

        proxy_set_header Host              $http_host;
        proxy_set_header X-Forwarded-Host  $http_host;
        proxy_set_header X-Forwarded-Proto $scheme;
        proxy_set_header X-Forwarded-Port  $server_port;

        # Strip CORS headers added by pypowerwall so nginx can set its own
        proxy_hide_header Access-Control-Allow-Origin;
        proxy_hide_header Access-Control-Allow-Credentials;
        proxy_hide_header Access-Control-Allow-Methods;
        proxy_hide_header Access-Control-Allow-Headers;

        # Using "*" is suitable for trusted LAN deployments where API data is not sensitive.
        # For stricter setups, replace "*" with your specific trusted origin, e.g.:
        #   add_header Access-Control-Allow-Origin "https://pypowerwall.lan" always;
        add_header Access-Control-Allow-Origin  "*" always;
        add_header Access-Control-Allow-Methods "GET, POST, OPTIONS" always;

        # WebSocket upgrade support
        proxy_http_version 1.1;
        proxy_set_header Upgrade    $http_upgrade;
        proxy_set_header Connection "upgrade";
    }
}

Note: nginx's trailing slash in proxy_pass http://pypowerwall:8675/; strips the /pypowerwall prefix before forwarding requests to pypowerwall. The PROXY_BASE_URL setting is only used to generate correct browser-side URLs (asset paths, API URLs, redirects) — pypowerwall itself receives all requests without the prefix.

URL mapping with this configuration:

Rate Limiting

Optional per-client-IP request throttling, disabled by default. Most deployments sit behind Powerwall-Dashboard, Grafana, or Home Assistant, which poll many of the 113+ endpoints every 1-5 seconds — that's the primary use case, not something to be throttled away.

Environment variables:

export PW_RATE_LIMIT_ENABLED=yes
export PW_RATE_LIMIT_MAX_REQUESTS=1000   # ~16 req/s per IP, well above normal dashboard polling
export PW_RATE_LIMIT_WINDOW_SECONDS=60

Or via CLI: pypowerwall-server --rate-limit --rate-limit-max-requests 1000 --rate-limit-window 60

The default budget (1000 requests / 60s per IP) is set well above a normal dashboard's polling load, so it should not affect typical usage even when enabled. Requests over the limit receive HTTP 429 {"detail": "Rate limit exceeded"}.

Caveats:

• Reverse proxies: if pypowerwall-server sits behind a reverse proxy (see above), every client shares the proxy's IP address, so one rate-limit bucket applies collectively to all users behind that proxy. Size the limit accordingly, or rely on the proxy's own per-client rate limiting instead.
• Internet-exposed deployments: this server is designed to be bound to a LAN interface (PW_BIND_ADDRESS) behind your firewall — that's the default and recommended setup. If you do expose it to the internet, pair PW_CONTROL_SECRET (control endpoint auth) with rate limiting at a real reverse proxy (nginx limit_req, Traefik, Caddy) in front of pypowerwall-server. This in-process limiter runs after a connection is already accepted, so it does not protect against connection-level resource exhaustion.

MQTT Integration

Set MQTT_HOST to enable publishing. All other variables are optional.

export MQTT_HOST=192.168.1.100       # broker IP — required to enable MQTT
export MQTT_PORT=1883                # default: 1883
export MQTT_USERNAME=mqttuser        # optional
export MQTT_PASSWORD=mqttpassword    # optional
export MQTT_HA_DISCOVERY=true        # auto-configure Home Assistant sensors (default: true)

Topics are published under {MQTT_TOPIC_PREFIX}/{gateway_id}/ — e.g. pypowerwall/default/battery, pypowerwall/default/solar, etc. See mqtt-tools/README.md for the full topic list, broker setup guide, Home Assistant integration steps, and the live monitor GUI.

API Endpoints

Legacy Proxy Compatibility

All existing proxy endpoints work unchanged:

Core Data Endpoints:

• GET /vitals - Detailed system vitals
• GET /aggregates - Power meter aggregates
• GET /soe - State of energy (battery %)
• GET /freq - Grid frequency data
• GET /pod - Battery pod details
• GET /strings - Solar string data
• GET /battery - Battery information
• GET /json - Combined metrics and status (JSON)

Temperature & Environment:

• GET /temps - All temperature sensors
• GET /temps/pw - Powerwall temperatures only

Alerts & Status:

• GET /alerts - System alerts
• GET /alerts/pw - Powerwall alerts only

Fan Information:

• GET /fans - All fan status
• GET /fans/pw - Powerwall fans only

Data Export:

• GET /csv - CSV format for Telegraf/InfluxDB
• GET /csv/v2 - Enhanced CSV format

TEDAPI Raw Access:

• GET /tedapi - TEDAPI endpoint list
• GET /tedapi/config - Gateway configuration
• GET /tedapi/status - System status
• GET /tedapi/components - Component details
• GET /tedapi/battery - Battery information
• GET /tedapi/controller - Controller data

Tesla API Endpoints:

• GET /api/system_status/soe - State of energy
• GET /api/system_status/grid_status - Grid connection status
• GET /api/system_status/grid_faults - Grid fault log
• GET /api/sitemaster - Sitemaster information
• GET /api/meters/aggregates - Power meters
• GET /api/status - System status
• GET /api/site_info - Site information
• GET /api/site_info/site_name - Site name
• GET /api/customer/registration - Customer registration info
• GET /api/troubleshooting/problems - Problem list
• GET /api/auth/toggle/supported - Auth toggle support
• GET /api/networks - Network configuration
• GET /api/system/networks - System networks
• GET /api/powerwalls - Powerwall device list

Server Status:

• GET /version - Server and firmware versions
• GET /stats - Server statistics (uptime, requests, errors)

Control Operations (requires authentication):

• GET /control/status - Control availability for the Console ({"enabled": bool}, unauthenticated)
• POST /control/{path} - Control operations (reserve, mode, etc.)

Multi-Gateway Endpoints

Gateway Selection:

• GET /api/gateways - List all configured gateways
• GET /api/gateways/{id} - Gateway details
• GET /api/gateways/{id}/vitals - Gateway-specific vitals
• GET /api/gateways/{id}/aggregates - Gateway-specific power data

Aggregated Data:

• GET /api/aggregate/power - Combined power across all gateways
• GET /api/aggregate/soe - Total battery capacity and charge
• GET /api/aggregate/status - Health status of all gateways

Time-Series Endpoints (Daily Energy):

• GET /api/timeseries/today - Today's running kWh totals per gateway
• GET /api/timeseries/daily?days=7 - Daily kWh totals (per gateway/category)
• GET /api/timeseries/trend?hours=24 - Bucketed kW + battery level for charting (per-gateway mean, summed across gateways)
• GET /api/timeseries/samples - Raw samples (troubleshooting; filters: gateway, start, end, limit) — includes battery level (soe)
• GET /api/timeseries/status - Subsystem status, retention settings, DB size

All report {"enabled": false, ...} when disabled (PW_TIMESERIES_RETENTION=-1).

WebSocket Endpoints:

• WS /ws/gateway/{id} - Real-time data stream for specific gateway
• WS /ws/aggregate - Real-time aggregated data stream

Interactive API Documentation

• Swagger UI: http://localhost:8675/docs
• ReDoc: http://localhost:8675/redoc
• OpenAPI JSON: http://localhost:8675/openapi.json

Design

Cloud Authentication with Auth Tokens

The server supports Tesla Cloud authentication for control operations:

TEDAPI (Local): For fast data reads from 192.168.91.1

• Requires: host + password (gateway password)
• Fast response times (local network)
• No internet dependency
• Used for monitoring metrics

Cloud (Control): For control operations via Tesla API

• Requires: email + authpath
• Setup: Run pypowerwall-server --setup to authenticate
• Generates: .pypowerwall.auth and .pypowerwall.site token files
• Used for: Setting reserve level, operating mode, etc.

Configuration:

# TEDAPI only (monitoring)
PW_HOST=192.168.91.1
PW_GW_PWD=gateway_password

# TEDAPI + Cloud (monitoring + control)
PW_HOST=192.168.91.1
PW_GW_PWD=gateway_password
PW_EMAIL=tesla@email.com
PW_AUTH_PATH=/path/to/auth  # Directory with .pypowerwall.auth/.site files

Async + Sync Library Integration

FastAPI is async, but pypowerwall is synchronous. This is handled using asyncio.run_in_executor() to run blocking pypowerwall calls in thread pools, preventing event loop blocking.

Stateless Server Architecture

The server maintains no persistent state or historical data. All historical data for graphs is stored in browser localStorage, allowing:

• Server restarts without data loss (data persists in browser)
• Horizontal scaling (no shared state required)
• Minimal server resource usage
• Simple deployment model

Control Features & Security

Default: Read-only - The server operates in monitoring mode by default.

Optional Control Mode: Enable by setting the control secret:

PW_CONTROL_SECRET=your-secure-random-token

When control is enabled:

• All control operations require authentication via token
• Token must be sent in the Authorization header (plain or Bearer <token>)
• Applies to /control/* and the per-gateway POST proxy (POST /api/gateways/{id}/api/*)
• When PW_CONTROL_SECRET is not set, all write endpoints return 403

Calling the control API:

TOKEN=$PW_CONTROL_SECRET

# Set backup reserve to 20%
curl -X POST http://localhost:8675/control/reserve \
  -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
  -d '{"value": 20}'

# Set operating mode (self_consumption, backup, autonomous)
curl -X POST http://localhost:8675/control/mode \
  -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
  -d '{"value": "self_consumption"}'

# Set mode + reserve in one call (companion parameter)
curl -X POST http://localhost:8675/control/mode \
  -H "Authorization: Bearer $TOKEN" -H "Content-Type: application/json" \
  -d '{"value": "self_consumption", "level": 20}'

Note on reserve 0: changing the operating mode together with a reserve level of 0 is applied by Tesla's cloud API as two separate commands, and the mode change can be silently dropped (HTTP 200, but the mode doesn't stick). If you need mode + reserve 0, set the mode with the current reserve level first, then set the reserve to 0 in a separate call.

Web Console (/console): when PW_CONTROL_SECRET is set, the Console shows a Powerwall Control card (after System Health) with mode select (Self-Consumption/Backup/Time-Based), reserve slider + number (0–100) and a token field (kept in the tab by default, optional “Remember my token on this device” persists it in localStorage; sent as Authorization: Bearer <token> per request). Availability is checked via unauthenticated GET /control/status ({"enabled": bool}); current values come from GET /api/operation. One Save button sends a single combined POST /control/mode {"value": mode, "level": reserve} when both changed (reserve 0 + mode change is auto-split into two calls, see note above), otherwise a single /control/reserve or /control/mode call. Controls the default gateway.

Data Aggregation Strategy

Multi-gateway aggregation uses smart aggregation that will evolve over time:

Current implementation (v0.1.x):

• Battery %: Simple average (TODO: weighted by capacity)
• Power flows: Simple sum (works for independent systems)
• Grid power: Calculated as site - solar

Future considerations documented in code:

• Capacity-weighted averages
• Different strategies per metric type
• Handling mixed local/cloud gateways
• Time synchronization across gateways
• Outlier detection

This area is expected to need tuning as real-world multi-gateway deployments provide feedback.

Performance & Caching

• Polling interval: 5 seconds (configurable)
• WebSocket updates: Real-time to UI (1-second interval)
• No server-side caching: Fresh data on every request
• Browser caching: Historical data in localStorage

UI Framework

Vanilla JavaScript - lightweight, no build step, fast loading. Charts and advanced features can be added incrementally without framework overhead.

Architecture

pypowerwall-server/
├── app/
│   ├── main.py                 # FastAPI application entry point
│   ├── config.py               # Configuration management
│   ├── api/
│   │   ├── __init__.py
│   │   ├── legacy.py           # Legacy proxy endpoints
│   │   ├── gateways.py         # Multi-gateway endpoints
│   │   ├── aggregates.py       # Aggregated data endpoints
│   │   └── websockets.py       # WebSocket handlers
│   ├── core/
│   │   ├── __init__.py
│   │   └── gateway_manager.py  # Connection manager with caching
│   ├── models/
│   │   ├── __init__.py
│   │   └── gateway.py          # All data models
│   ├── utils/
│   │   ├── __init__.py
│   │   └── transform.py        # UI data transformations
│   └── static/
│       ├── index.html          # Management console
│       ├── example.html        # iFrame demo
│       └── powerflow/          # Power flow UI assets
├── tests/
│   ├── conftest.py
│   ├── test_api_aggregates.py
│   ├── test_api_gateways.py
│   ├── test_api_legacy.py
│   ├── test_basic.py
│   ├── test_config.py
│   ├── test_edge_cases.py
│   └── test_gateway_manager.py
├── Dockerfile
├── docker-compose.yml
├── requirements.txt
├── requirements-dev.txt
└── README.md

Development

Setup

# Create virtual environment
python -m venv venv
source venv/bin/activate

# Install dependencies
pip install -r requirements-dev.txt

# Run development server with auto-reload
#
#   Local TEDAPI Mode
PW_GW_PWD=ABCDEFGHIJ ./run.sh uvicorn app.main:app --reload --port 8675
#
#   Cloud Mode
pypowerwall-server --setup # create .pypowerwall.auth
PW_EMAIL="your@emal.com" PW_HOST= uvicorn app.main:app --reload --port 8675

Running Tests

# Run all tests
pytest

# Run with coverage
pytest --cov=app --cov-report=html

# Run specific test file
pytest tests/test_api.py -v

CI (GitHub Actions) runs the pytest suite on Python 3.10–3.12 and a js-syntax job that extracts every inline <script> block from app/static/**/*.html and validates it with node --check, so a syntax error in the Console's inline JavaScript fails the build instead of silently breaking the web UI.

Building Docker Image

docker build -t pypowerwall-server .
docker run -p 8675:8675 pypowerwall-server

Performance

The server is designed for efficiency with background polling and caching:

• Cached Responses - API endpoints return instantly from cache (no pypowerwall blocking)
• Background Polling - Default 5-second interval (configurable via PW_CACHE_EXPIRE)
• Thread Pool - Sized dynamically: max(10, num_gateways * 3) workers
• WebSocket Updates - Push data every 1 second to connected clients
• Graceful Degradation - Serves last known good data when gateways are offline
• Concurrent Gateway Polling - All gateways polled in parallel using asyncio

Technology Stack

• FastAPI - Modern, fast web framework
• Uvicorn - Lightning-fast ASGI server
• Pydantic - Data validation and settings management
• pypowerwall - Core Powerwall communication library
• aiohttp - Async HTTP client for concurrent gateway polling
• WebSockets - Real-time data streaming
• Modern UI - HTML5, CSS3, Vanilla JavaScript

Contributing

Contributions are welcome! Please feel free to submit a Pull Request.

License

MIT License - See LICENSE for details.

Support

• Issues: https://github.com/jasonacox/pypowerwall-server/issues
• Discussions: https://github.com/jasonacox/pypowerwall-server/discussions
