PyTessera

A modular library for turning whole-slide images into training-ready tile datasets for multi-scale models.

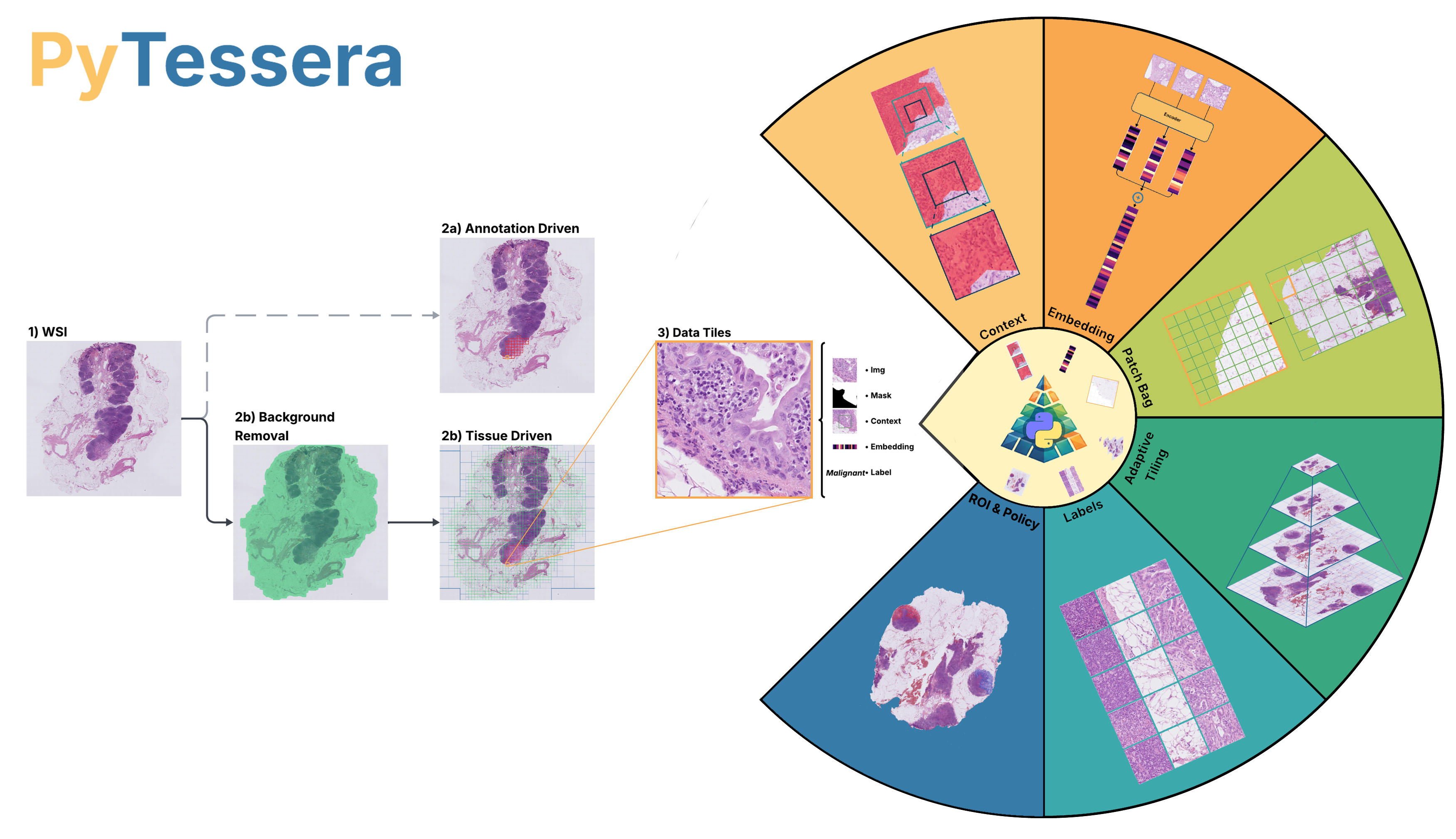

Diagnostic interpretation of whole-slide images (WSIs) relies on integrating cellular morphology and tissue architecture across multiple magnifications, so AI training datasets must preserve those spatial relationships. PyTessera builds training-ready tile datasets from WSIs through modular functions rather than one fixed pipeline. A quadtree tiles only tissue, or only annotated regions of interest, into DataTiles, the shared unit that each later stage enriches: a tile can carry a multi-resolution context chain for multi-scale models, or join its neighbours in a patch bag for hierarchical patch-then-region models. Encoders and classifiers attach feature embeddings and tissue-type labels through simple hooks, so users bring their own models, while a class-balanced sampler draws a balanced subset from the same catalog for a standardized data representation.

Features

• Adaptive quadtree tiling: background is pruned as the tree descends, so tiles follow the tissue, and the whole layout is built as a pixel-free skeleton before anything is read.
• Aligned multi-zoom context: every tile can carry a multi-resolution context chain, and neighbouring tiles regroup into patch bags, both off the same tiling.
• Bring your own models: encoders and classifiers attach through hooks; PyTessera bundles and validates none of them.
• Class-balanced datasets: draw a materialised balanced subset or an exact per-class epoch, over either the annotation-derived category or a hooked tissue-type label.
• Pure Python (≥3.11), with a native DICOM reader in the core. PyTorch (pytessera[ml]) and the SVS/NDPI/OME-TIFF readers (pytessera[tiff]) are optional extras, so import pytessera never pulls PyTorch.
• Format-agnostic: a native Sectra DICOM backend, plus Aperio SVS, Hamamatsu NDPI and OME-TIFF through tifffile + zarr.

Install

The core is a light, pure-Python install; the slide readers and the PyTorch loading stack are optional extras you add only when your workflow needs them.

pip install pytessera                 # core: tissue segmentation, quadtree tiling, DICOM
pip install "pytessera[tiff]"         # + Aperio SVS / Hamamatsu NDPI / OME-TIFF readers
pip install "pytessera[ml]"           # + PyTorch loading stack (TileDataset, samplers)
pip install "pytessera[tiff,ml]"      # both extras at once (what the tutorials use)

From the command line

The same builders run as a pytessera command, so a cohort can be tiled from a shell script or a cluster job and the catalog handed to Python later with load_datatile_dict:

pytessera build --slides cohort/*.svs --magnification 20 --save cohort.npz   # tissue-driven
pytessera build-annotations --slides cohort/*.tif --labels Tumor --save tumour.npz
pytessera build -h                                                           # every flag

Slides can be files of any supported format, or DICOM case folders (--data-root DIR --cases ID...). The command stops at the catalog; embeddings, labels and balancing are Python calls.

Tutorials

Start here: Train a tumour segmentation model on a cohort takes ten annotated CAMELYON16 slides to a trained model, scores it on held-out slides, and paints a prediction map over an unseen CAMELYON17 slide. PyTessera calls do the data side, the scoring and the map; only the model and the training loop are plain PyTorch.

The other notebooks in docs/tutorials/ take one idea each:

1. Slide-level MIL on patch bags — group tiles into patch bags, encode them with a foundation model, and feed the bags to an attention-MIL model.
2. Tissue mask hook — swap in your own tissue segmentation via the mask_fn hook.
3. Embeddings — leaf, chain, and merged tile embeddings, plus a classifier hook.
4. Patch bags — group tiles into HIPT-style region grids and encode each into a vector.
5. ROI-balanced tiling — label tiles from real ASAP annotations and balance classes before materialising pixels.
6. Label-balanced skeleton — enrich with pixels, then drop them and keep only the labelled, embedded skeleton.
7. End-to-end training — the cohort training tutorial above.

Acknowledgements

We thank all paper authors for their contributions: Tomás Bordoy García-Carpintero, Lucas A. D. T. Dyssel, Isabell Seyfried If PyTessera is useful in your work, please cite it; see CITATION.cff.

Contact

Tomás Bordoy García-Carpintero and Lucas A. D. T. Dyssel (equal contribution), University of Southern Denmark & Odense University Hospital. Corresponding author: tobor@imada.sdu.dk. Issues and questions are welcome on the GitLab repository.
