PyVista Gridder

Structured and unstructured mesh generation using PyVista for the Finite-Element (FEM), Finite-Difference (FDM), and Finite-Volume Methods (FVM).

Features

• Pre-Meshed Geometric Objects: Easily create basic geometric objects with pre-defined meshes, using structured grids whenever possible.
• Line/Polyline Extrusion: Extrude lines or polylines into 2D structured grids.
• Surface Extrusion: Extrude surface meshes into volumetric meshes while preserving their original type.
• 1.5D/2.5D Mesh Creation: Generate meshes by stacking polylines or surfaces, ideal for geological modeling and similar applications.
• 2D Voronoi Mesh Generation: Create 2D Voronoi meshes from a background mesh, with support for adding constraint points to define custom shapes.
• Mesh Merging: Combine multiple PyVista meshes into a single mesh and assign cell groups, leaving conformity checks to the user.
• Additional Utility Functions: Includes tools to manipulate structured and unstructured grids.

Installation

The recommended way to install pyvista-gridder and all its dependencies is through the Python Package Index:

pip install pyvista-gridder

Otherwise, clone and extract the package, then run from the package location:

pip install .[full]

To test the integrity of the installed package, check out this repository and run:

pytest

Examples

2D structured grid

import numpy as np
import pyvista as pv
import pvgridder as pvg

mesh = (
   pvg.MeshStack2D(pv.Line([-3.14, 0.0, 0.0], [3.14, 0.0, 0.0], resolution=41))
   .add(0.0)
   .add(lambda x, y, z: np.cos(x) + 1.0, 4, group="Layer 1")
   .add(0.5, 2, group="Layer 2")
   .add(0.5, 2, group="Layer 3")
   .add(0.5, 2, group="Layer 4")
   .add(lambda x, y, z: np.full_like(x, 3.4), 4, group="Layer 5")
   .generate_mesh()
)

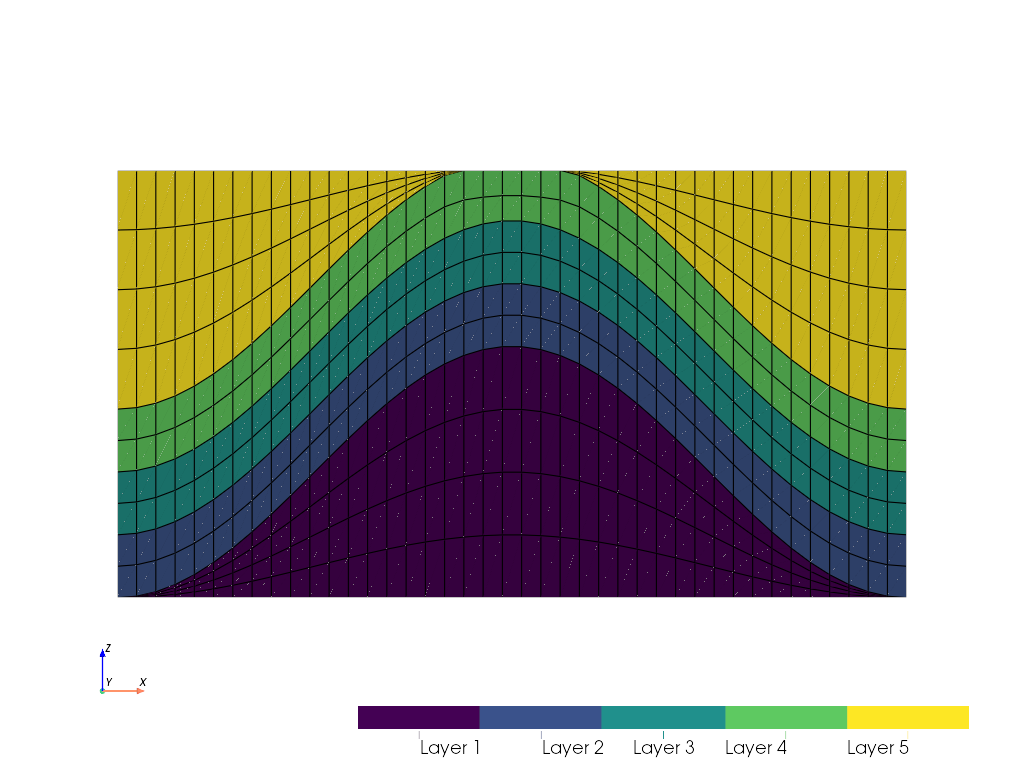

mesh.plot(show_edges=True, scalars=pvg.get_cell_group(mesh))

2D Voronoi mesh

import numpy as np
import pyvista as pv
import pvgridder as pvg

smile_radius = 0.64
smile_points = [
   (smile_radius * np.cos(theta), smile_radius * np.sin(theta), 0.0)
   for theta in np.deg2rad(np.linspace(200.0, 340.0, 32))
]
mesh = (
   pvg.VoronoiMesh2D(pvg.Annulus(0.0, 1.0, 16, 32), default_group="Face")
   .add_circle(0.16, plain=False, resolution=16, center=(-0.32, 0.32, 0.0), group="Eye")
   .add_circle(0.16, plain=True, resolution=16, center=(0.32, 0.32, 0.0), group="Eye")
   .add_polyline(smile_points, width=0.05, group="Mouth")
   .generate_mesh()
)

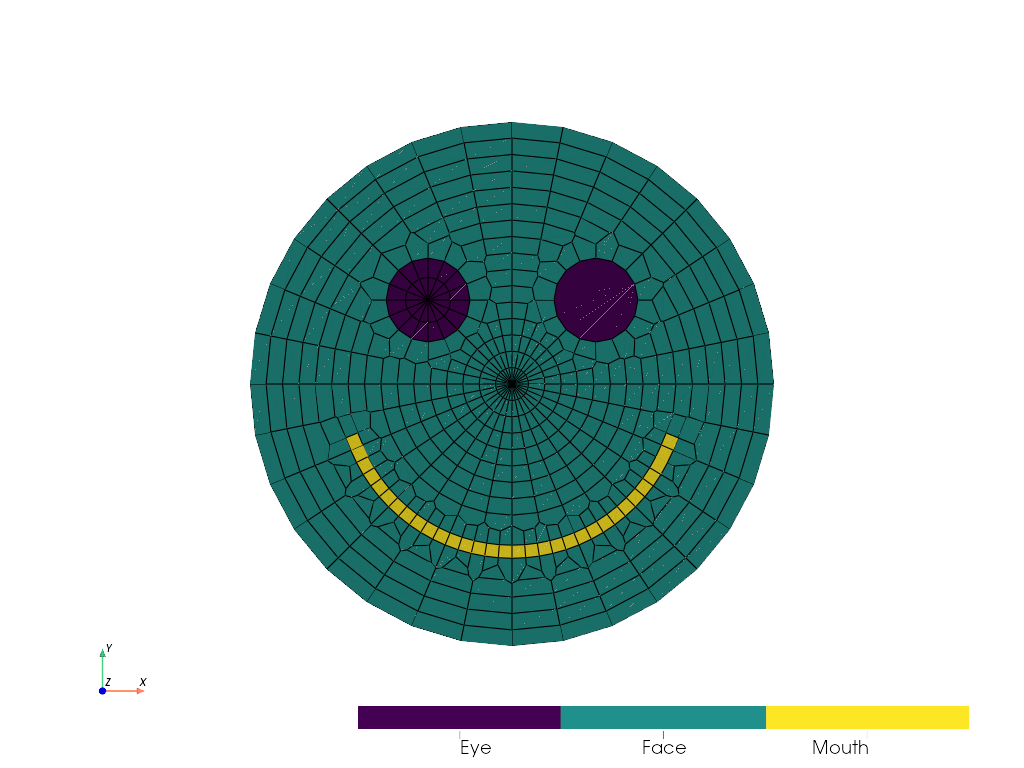

mesh.plot(show_edges=True, scalars=pvg.get_cell_group(mesh))

2.5D geological model

import pyvista as pv
import pvgridder as pvg

terrain = pv.examples.download_crater_topo().extract_subset(
   (500, 900, 400, 800, 0, 0), (10, 10, 1)
)
terrain_delaunay = pvg.Polygon(terrain, celltype="triangle")
terrain = terrain.cast_to_structured_grid().warp_by_scalar("scalar1of1")

mesh = (
   pvg.MeshStack3D(
      pvg.VoronoiMesh2D(terrain_delaunay, preference="point").generate_mesh()
   )
   .add(0.0)
   .add(terrain.translate((0.0, 0.0, -1000.0)), 5, method="log_r", group="Bottom layer")
   .add(500.0, 5, group="Middle layer")
   .add(terrain, 5, method="log", group="Top Layer")
   .generate_mesh()
)

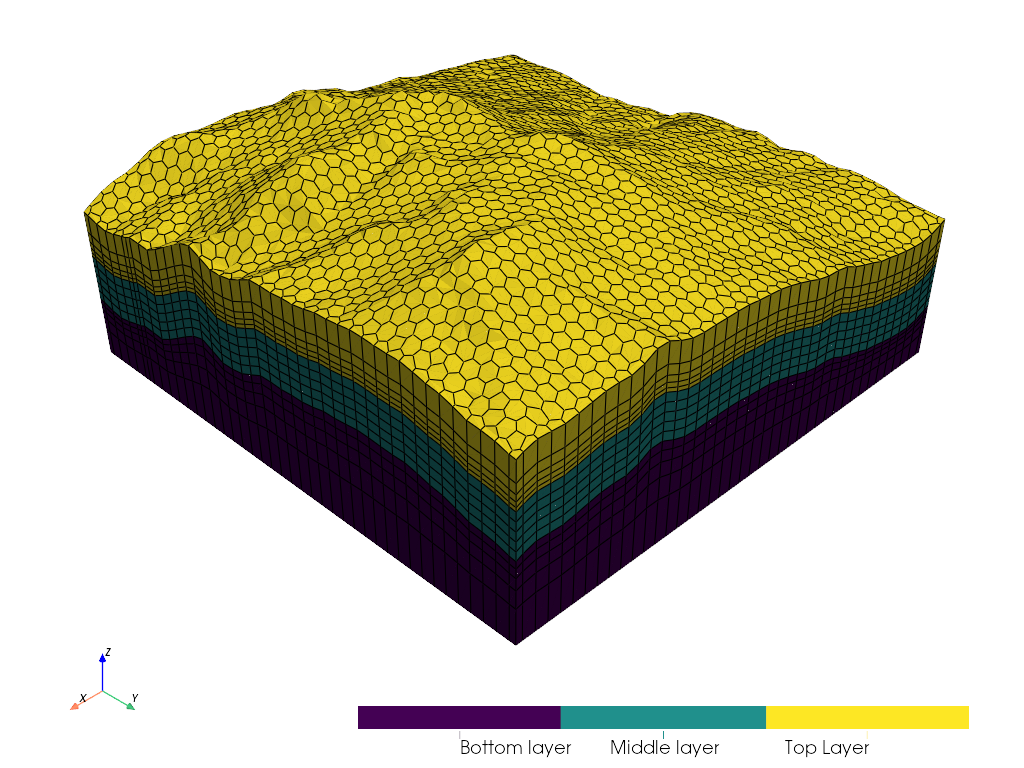

mesh.plot(show_edges=True, scalars=pvg.get_cell_group(mesh))

Acknowledgements

This project is supported by Nagra (National Cooperative for the Disposal of Radioactive Waste), Switzerland.
